Aquatic AquaFit 16 User manual

i

Aquatic Fitness System Owner’s Manual
i
Your Product Information
Please gather the following important information about your Dimension One Aquatic Fitness System
(AFS) and register your product online at www.AquaticFitnessSystems.com. Registering your product
establishes your warranty, protects your product and helps us develop new and better products.
My Aquatic Fitness System
ƑAquaFit 16 ƑAquaPro 19 ƑAquaFit 19DT
Gallons: 1700 Gallons: 2400 Gallons: 1730
Liters : 6440 Liters : 9085 Liters : 6550
Date Purchased: Date
Installed:
Serial
Number:
Notes:
Dealer Information:
Dealer’s Name:
Address:
City: State, Zip:
Province,
Postal Code:
Telephone: Email:

Aquatic Fitness System - Owner’s Manual
ii
Table of Contents
IMPORTANT INSTALLATION INSTRUCTIONS ......................................................................................... 1
IMPORTANT WARNING .............................................................................................................................. 1
IMPORTANT SAFETY INSTRUCTIONS ..................................................................................................... 1
IMPORTANT SAFETY INSTRUCTIONS (CANADA) (CSA SAFETY INFORMATION) ............................. 2
HYPERTHERMIA ......................................................................................................................................... 4
SAFETY DO’S AND DON’TS....................................................................................................................... 4
DANGER SIGN............................................................................................................................................. 4
INITIAL STARTUP........................................................................................................................................ 5
USING YOUR AQUATIC FITNESS SYSTEM.............................................................................................. 8
USING YOUR CONTROL PANEL ............................................................................................................... 8
HYDROSPORT¥SWIM SYSTEM ............................................................................................................. 15
IMPORTANT SAFETY INSTRUCTIONS ...................................................................................................15
USING THE SWIM TETHER ...................................................................................................................... 15
USING THE SWIM KICK BAR ................................................................................................................... 16
USING THE SWIM JETS............................................................................................................................ 16
OPTIONAL HYDROSPORT¥ROWING SYSTEM .................................................................................... 17
INSTALLING THE ROWING SYSTEM ...................................................................................................... 17
ROWING FOR THE FIRST TIME ............................................................................................................... 18
CONNECTING THE HYDROSPORT¥BODY BELT ................................................................................ 19
CONNECTING THE HYDROSPORT¥D-HANDLES ................................................................................ 19
CONNECTING THE HYDROSPORT¥BAR STRAPS.............................................................................. 19
HYDROSPORT¥EXERCISE BARS ......................................................................................................... 20
INSTALLING THE STATIONARY EXERCISE BARS ............................................................................... 20
HYDROSPORT¥AQUATIC FITNESS BAR ............................................................................................. 20
INSTALLING THE AQUATIC FITNESS BAR............................................................................................ 20
ROUTINE EQUIPMENT MAINTENANCE.................................................................................................. 21
DRAINING YOUR SYSTEM ....................................................................................................................... 21
FILTER CLEANING.................................................................................................................................... 21
LIGHT REPLACEMENT ............................................................................................................................. 21
SURFACE CARE........................................................................................................................................ 22
SPECIAL COLD WEATHER INSTRUCTIONS .......................................................................................... 22
TROUBLESHOOTING GUIDE ................................................................................................................... 24
ELECTRICAL REQUIREMENTS ............................................................................................................... 27

Aquatic Fitness System - Owner’s Manual
1
IMPORTANT INSTALLATION INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
xConcrete Pad. The AFS must be fully supported over the entire base. A typical installation on soil
that will support 1,000 psi load, is 5 inch (13 cm) thick concrete with # 4 rebar on 18 inch (46 cm)
centers. (Ref. Doc 138 Installation Instructions)*. Conditions at the site will determine the exact
support requirements. Please contact your local contractor for adequate installation. Damages
caused by inadequate support will not be covered by the warranty
*Doc 138 can be found at the following address:
http://www.aquaticfitnesssystems.com/pdfs/ConsumerPlanningGuide.pdf and go to Appendix A
xExcess Water. Normal use of the swim spa causes large amounts of water to splash out of the
unit. Depending on the specific installation, additional provisions may have to be made for proper
removal of this water.
xClearance Access: In order to better service your product, clearance for access to AFS must be
36 inches (92 cm) at equipment compartment and 24 inches (61 cm) around the remaining area.
IMPORTANT WARNING
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
An empty AFS should never be exposed to temperatures below 0ºF (-18ºC) as extreme cold can
cause shell damage. This includes storage, delivery, and draining (winterizing). If your AFS can be
exposed to these temperatures, keep the AFS filled and running. If you do not plan to use your AFS,
you can lower the temperature setting to 61ºF (16ºC).
Failure to adhere to these guidelines will void the warranty.
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
Installation and use of this equipment requires the user to always follow safety precautions including:
xRisk of Accidental Drowning. Exercise extreme caution to prevent unsupervised children going
near the Aquatic Fitness System. Children should not use the Aquatic Fitness System without
adult supervision.
xRisk of Serious Injury or Death. If you need to replace the suction fitting or pump make sure
that the flow rates are compatible. Never operate the Aquatic Fitness System if the suction fittings
are broken or missing. Never replace a suction fitting with one rated less than the flow rate
marked on the original suction fitting.
xRisk of Electric Shock. Install at least 5 FEET (1.5 m), from all metal surfaces. As an alternative,
the Aquatic Fitness System may be installed within 5 feet of metal surfaces if each metal surface is
permanently connected by a minimum No. 8 AWG (8.4 mm2) solid copper conductor attached to
the wire connector on the grounding lug, inside the equipment compartment on the equipment can.
xRisk of Electric Shock. Do not permit any electrical appliance, such as a light, telephone, radio,
television, etc. within 5 feet (1.5 m) of the Aquatic Fitness System. Never operate any electrical
appliances from inside the Aquatic Fitness System or when you are wet.
xDanger. The electrical supply for this Aquatic Fitness System must include a suitably rated switch
or circuit breaker to open all ungrounded supply conductors to comply with section 680-42 of the
National Electrical Code, ANSI/NFPA 70-1993. The disconnect must be readily accessible and
visible to the Aquatic Fitness System occupant but installed at least 5 feet (1.5 m), from the
Aquatic Fitness System water.
xDanger. A grounding wire connector is provided on this Aquatic Fitness System to connect a
minimum No. 8 AWG (8.4 mm2) solid copper conductor between this unit and any metal

Aquatic Fitness System - Owner’s Manual
2
equipment, metal enclosures of electrical equipment, metal water pipe, or conduit within 5 feet
(1.5 m) of the Aquatic Fitness System.
xRisk of Electric Shock. Do not attempt to remove the light housing cover without lowering the
water level below the light housing cover.
xTo Reduce the Risk of Injury: The water in the Aquatic Fitness System should never exceed
104° F (40° C). Water temperatures between 100° F (38° C) and 104° F (40° C) are considered
safe for a healthy adult. Lower water temperatures are recommended for young children and
when Aquatic Fitness System use exceeds 10 minutes.
xTo Reduce the Risk of Injury: Since excessive water temperatures have a high potential for
causing fetal damage during the early months of pregnancy, pregnant or possibly pregnant
women should limit Aquatic Fitness System water temperatures to 100° F (38° C).
xTo Reduce the Risk of Injury: Before entering the Aquatic Fitness System, the user should
measure the water temperature with an accurate thermometer since the tolerance of water
temperature-regulating devices may vary as much as +/- 5° F (2° C).
xTo Reduce the Risk of Injury: The use of alcohol, drugs, or medication before or during Aquatic
Fitness System use may lead to unconsciousness with the possibility of drowning.
xTo Reduce the Risk of Injury: Pregnant women, the elderly, infants, or persons suffering from
obesity or with a medical history of heart disease, low or high blood pressure, circulatory system
problems, or diabetes, should consult a physician before using the Aquatic Fitness System.
People with infectious diseases should not use an Aquatic Fitness System.
xTo Reduce the Risk of Injury: Persons using medication should consult a physician before
using the Aquatic Fitness System since some medication may induce drowsiness, while other
medication may affect heart rate, blood pressure, and circulation.
xObserve a reasonable time limit when using the Aquatic Fitness System. Long exposures at high
temperatures can cause high body temperature (hyperthermia, see pg. 3). Enter and exit the
Aquatic Fitness System slowly. Wet surfaces can be very slippery.
xProper chemical maintenance of Aquatic Fitness System water is necessary to maintain safe
water and prevent possible damage to Aquatic Fitness System components.
xUse the cover straps and clip tie downs to secure the cover when not in use. This will help
discourage unsupervised children from entering the spa and keep the spa cover secure in high
wind conditions. There is no guarantee that the cover, clip tie downs, or the actual locks will
prevent access to the Aquatic Fitness System.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS (CANADA)
(CSA SAFETY INFORMATION)
In addition to the preceding safety instructions, Canadian owners should read and
understand the following information from the Canadian Safety Association:
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
xA green colored terminal or a terminal marked G, GR, Ground, Grounding, or the symbol * is
located inside the supply terminal box or compartment. To reduce the risk of electric shock,
this terminal must be connected to the grounding means provided in the electric supply
service panel with a continuous copper wire equivalent in size to the circuit conductors
supplying this equipment.
oIEC Publication 417, Symbol 5019.
xAt least two lugs marked “BONDING LUGS” are provided on the external surface or on the
inside of the supply terminal box/compartment. To reduce the risk of electric shock, connect
the local common bonding grid in the area of the hot tub or Aquatic Fitness System to these
terminals with an insulated or bare copper conductor not smaller than No. 6 AWG.
xAll field-installed metal components such as rails, ladders, drains or other similar hardware
within 3 meters of the Aquatic Fitness System or hot tub shall be bonded to the equipment
grounding bus with copper conductors not smaller than No. 6 AWG.
xChildren should not use Aquatic Fitness Systems or hot tubs without adult supervision.
xAVERTISSEMENT: NE PAS LAISSER LES ENFANTS UTILISER UNE CUVE DE
RELAXATION SANS SURVEILLANCE.

Aquatic Fitness System - Owner’s Manual
3
xDo not use Aquatic Fitness Systems or hot tubs unless all suction guards are installed to
prevent body and hair entrapment.
xAVERTISSEMENT: POUR ÉVITER QUE LES CHEVEUX OU UNE PARTIE DU CORPS
PUISSENT TRES ASPIRÉS, NE PAS UTILISER UNE CUVE DE RELAXATION SI LES
GRILLES DE PRISE D’ASPIRATION NE SONT PAS TOUTES EN PLACE.
xPeople using medications and/or having adverse medical history should consult a physician
before using an Aquatic Fitness System or hot tub.
xAVERTISSEMENT: LES PERSONNES QUI PRENNENT DES MÉDICAMENTS OU ONT
DES PROBLÈMES DE SANTÉ DEVRAIENT CONSULTER UN MÉDECIN AVANT
D’UTILISER USE CUVE DE RELAXATION.
xPeople with infectious diseases should not use an Aquatic Fitness System or hot tub.
xAVERTISSEMENT: LES PERSONNES ATTEINTES DE MALADIES INFECTIEUSES NE
DEVRAIENT PAS UTILISER UNE CUVE DE RELAXATION.
xTo avoid injury, exercise care when entering or exiting the Aquatic Fitness System or hot tub.
xAVERTISSEMENT: POUR ÉVITER DES BLESSURES, USER DE PRUDENCE EN
ENTRANT DANS UNE CUVE DE RELAXATION ET E SORTANT.
xDo not use drugs or alcohol before or during the use of the Aquatic Fitness System or hot tub
to avoid unconsciousness and possible drowning.
xAVERTISSEMENT: POUR ÉVITER L’ÉVANOUISSEMENT ET LA NOYADE EVENTUELLE,
NE PRENDRE NI DROGUE NI ALCOOL AVANT D’UTILISER UNE CUVE DE RELAXATION
NI QUAND ON S’Y TROUVE.
xPregnant or possibly pregnant women should consult a physician before using an Aquatic
Fitness System or hot tub.
xAVERTISSEMENT: LES FEMMES ENCEINTES, QUE LEUR GROSSESSE SOIT
CONFIRMÉE OU NON, DEVRAIENT CONSULTER UN MÉDECIN AVANT D’UTILISER UNE
CUVE DE RELAXATION.
xWater temperature in excess of 38qC may be injurious to your health.
xAVERTISSEMENT: IL PEUT TRES DANGEREUX POUR LA SANTÉ DE SE PLONGER
DANS DE L’EAU À PLUS DE 38qC.
xBefore entering the Aquatic Fitness System or hot tub, measure the water temperature with
an accurate thermometer.
xAVERTISSEMENT: AVANT D’UTILISER UNE CUVE DE RELAXATION MESURER LA
TEMPÉRATURE DE L’EAU À L’AIDE D’UN THERMOMÈTRE PRÉCIS.
xDo not use an Aquatic Fitness System or hot tub immediately following strenuous exercise.
xAVERTISSEMENT: NE PAS UTILISER UNE CUVE DE RELAXATION IMMEDIATEMENT
APRÈS UN EXERCICE FATIGANT.
xProlonged immersion in an Aquatic Fitness System or hot tub may be injurious to your health.
xAVERTISSEMENT: L’UTILISATION PROLONGÉE D’UNE CUVE DE RELAXATION PEUT
TRES DANGEREUSE POUR LA SANTÉ.
xDo not permit electric appliances (such as a light, telephone, radio, television, etc.) within
1.5m of this Aquatic Fitness System or hot tub.
xAVERTISSEMENT: NE PAS PLACER D’APPAREIL ÉLECTRIQUE (LUMINAIRE,
TÉLÉPHONE, RADIO, TÉLÉVISEUR, ETC.) À MOINS DE 1.5 M DE CETTE CUVE DE
RELAXATION.
xMaintain water chemistry in accordance with manufacturer’s instructions.
xATTENTION: LA TENEUR DE L’EAU EN MATIERÈS DISSOUTES DOIT TRE CONFORME
AUX DIRECTIVES DU FABRICANT.
xThe use of alcohol or drugs can greatly increase the risk of fatal hyperthermia in hot tubs and
Aquatic Fitness Systems.
xAVERTISSEMENT: LA CONSOMMATION D’ALCOOL OU DE DROGUE AUGMENTE
CONSIDÈRABLEMENT LES RISQUES D’HYPERTHERMIE MORTELLE DANS UNE CUVE
DE RELAXATION.

Aquatic Fitness System - Owner’s Manual
4
Hyperthermia
Prolonged immersion in hot water may induce hyperthermia. Hyperthermia occurs when the internal
temperature of the body reaches a level several degrees above the normal body temperature of
(98.6˚ F, 37qC). The symptoms of hyperthermia include dizziness, drowsiness, lethargy, and fainting.
The effects of hyperthermia include:
xFailure to perceive heat,
xFailure to recognize the need to exit the spa,
xUnawareness of impending hazard,
xFetal damage in pregnant women,
xPhysical inability to exit spa,
xUnconsciousness resulting in the danger of drowning.
Safety Do’s and Don’ts
DO
xDO read all operating instructions.
xDO read, understand and follow all Safety, Danger and Warning instructions before use.
xDO test water temperature with your hand before entering.
xDO keep the cover down when the spa or AFS remains unused.
DO NOT
xDO NOT block or sit on the filter recess area.
xDO NOT allow horseplay or unsupervised use of your AFS.
xDO NOT allow anyone to tamper or play with any of the safety or suction fittings of your spa
or AFS system.
DANGER SIGN
Every AFS has a warning sign that
outlines safety precautions. Read
and familiarize yourself with all
warnings listed on this sign. Make the
sign visible and accessible to all AFS
users.
Replacement signs may be obtained
from our service department at the
following address:
For North America:
[e-mail]
For Europe:
[email protected]

Aquatic Fitness System - Owner’s Manual
5
Initial Startup
Go over the initial startup with your dealer before they begin the installation of your spa.
IMPORTANT: About your GFCI Circuit Breaker — The GFCI (Ground Fault Circuit Interrupter —
also called a "circuit breaker”) automatically shuts off power to the Aquatic Fitness System in case of
an electrical malfunction. You must have a GFCI installed according to your local building codes in
an electrical power box near your system. The GFCI must be OFF before you fill your Aquatic Fitness
System with water. You can manually turn off power to the system any time by moving the switch into
the OFF position. After turning off the GFCI check for a blank control panel screen which means the
power is off. To turn power back on move the switch to the ON position.
If you have questions about the location or operation of your GFCI, ask your dealer for clarification.
DO NOT use your system unless you understand the operation of the GFCI.
1. Locate the equipment
compartment, beneath the steps
of the AFS.
2. Use a Phillips screwdriver to
remove the equipment
compartment screws. Open the
compartment. Have your dealer
familiarize you with the equipment
components.
3. Check the pump unions (see
photo) for hand-tightness and to
prevent the possibility of
leakages.
4. Check near the pumps to make sure the
gate valve has the red safety clips in
place which means that the gate valve
is open (see photo above).
5. Remove the two front and two rear
shipping bolts on each pump mount.
(See photo, left).

Aquatic Fitness System - Owner’s Manual
6
6. Remove the filter
baskets and the
foam blocks
securing the
filters.
7. Remove one of
the two filters
from the pool side of the system. (If you
have the Dual-Temp model with
separate built-in spa, also remove the
filter from the spa side). (If you need
more details on how to remove the
filters, see the Filter Cleaning section,
pg. 23)
8. Ensure that the hose
bibs are closed before
filling the spa. The
hose bibs are connected to hoses in
the equipment
compartment. Turn the
handles on the side of
the valve perpendicular
to the pipe to close the hose
bibs.
9. Place a garden hose in
the empty filter canister to
fill the system. Fill the
system until the water level reaches the
center of the tile line.
NEVER run your spa’s pumps without the filters in place. This can cause damage to
the pumps.
10. Once the swim spa is filled, turn on the GFCI
circuit breaker. Your swim spa’s Upper Control
Panel will turn on. It will take about 30 seconds
for the Upper Control Panel to go through its
start-up screens. When the screen reads the
current temperature with no other messages or
flashing lights, push the JETS Button to start
the jet pump. Push JETS 1, JETS 2, and JETS
3. For the spa part of the AFS 19 DT push on
JETS 1.
Closed
Opened

Aquatic Fitness System - Owner’s Manual
7
11. If there is no jet action, then the water level is
too low or there is air trapped in the plumbing.
To eliminate the trapped air, turn the pumps on
and off several times to force the trapped air
through the pumps. If there is still no jet action
turn off the pumps and loosen the top pump
unions (see illustration earlier) slightly to let any
trapped air escape. Re-tighten the pump unions
and turn the pumps on again. Turn the pumps
on and off several times until jets function
properly.
The Display Window does not allow you to set the temperature above 104qF
(#40qC). However, if the water temperature exceeds 104qF (#40qC), the display will
show the actual temperature. Never get in water if the temperature exceeds 104q
F (#40qC).
12. After the jets are functioning properly, replace the filters. To adjust the temperature you
want your swim spa to be, use the up and down key until you reach the desired
temperature. Press the “accept” button to save this temperature in memory.
13. While heating your AFS, inspect the pump unions and plumbing fittings for leaks. When
you have finished the inspection, you can reinstall the equipment compartment panel.
14. After completing the above steps, see the Water Care Guide (provided separately) to
ensure proper water chemistry.
15. Place the thermal cover on your Aquatic Fitness System to conserve energy and keep it
ready for use. Remember to always lock your AFS cover when not in use.

Aquatic Fitness System - Owner’s Manual
8
Using Your Aquatic Fitness System
Using your Control Panel
Your Aquatic Fitness System has a Control Panel on the top side to control the Pool and spa (on AFS
19 DT only) functions.
Push the screen selection button next to any item to turn on that item. When active, the ring around
that item will spin. Push the button again to turn off the item. In a menu, push the button next to an
item to bring up that item.
Navigation

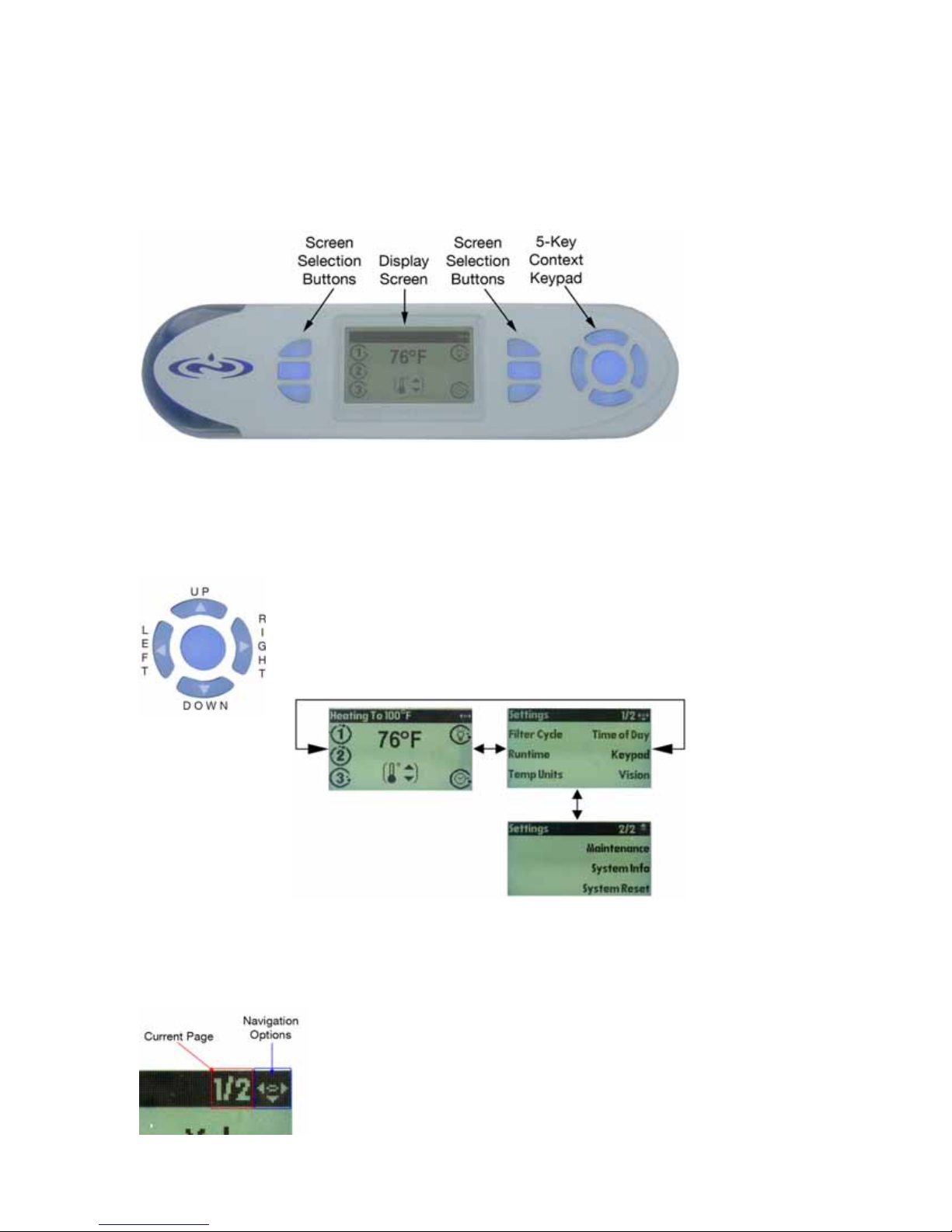

The 5-Key Context Keypad
The 5-Key Context Keypad buttons access and change swim spa settings
quickly and easily. On each menu, the current navigation options are indicated
in the upper right corner of the screen. The left and right arrows allow
navigation through the menu structure.
The Temperature menu and the Settings menu are the two main menus on the control panel. The
Temperature menu sets the swim spa temperature, turns jet pumps on and off, and operates the
swim spa’s light. The Settings menu adjusts other various aspects of the swim spa, including the
time of day and display screen brightness.

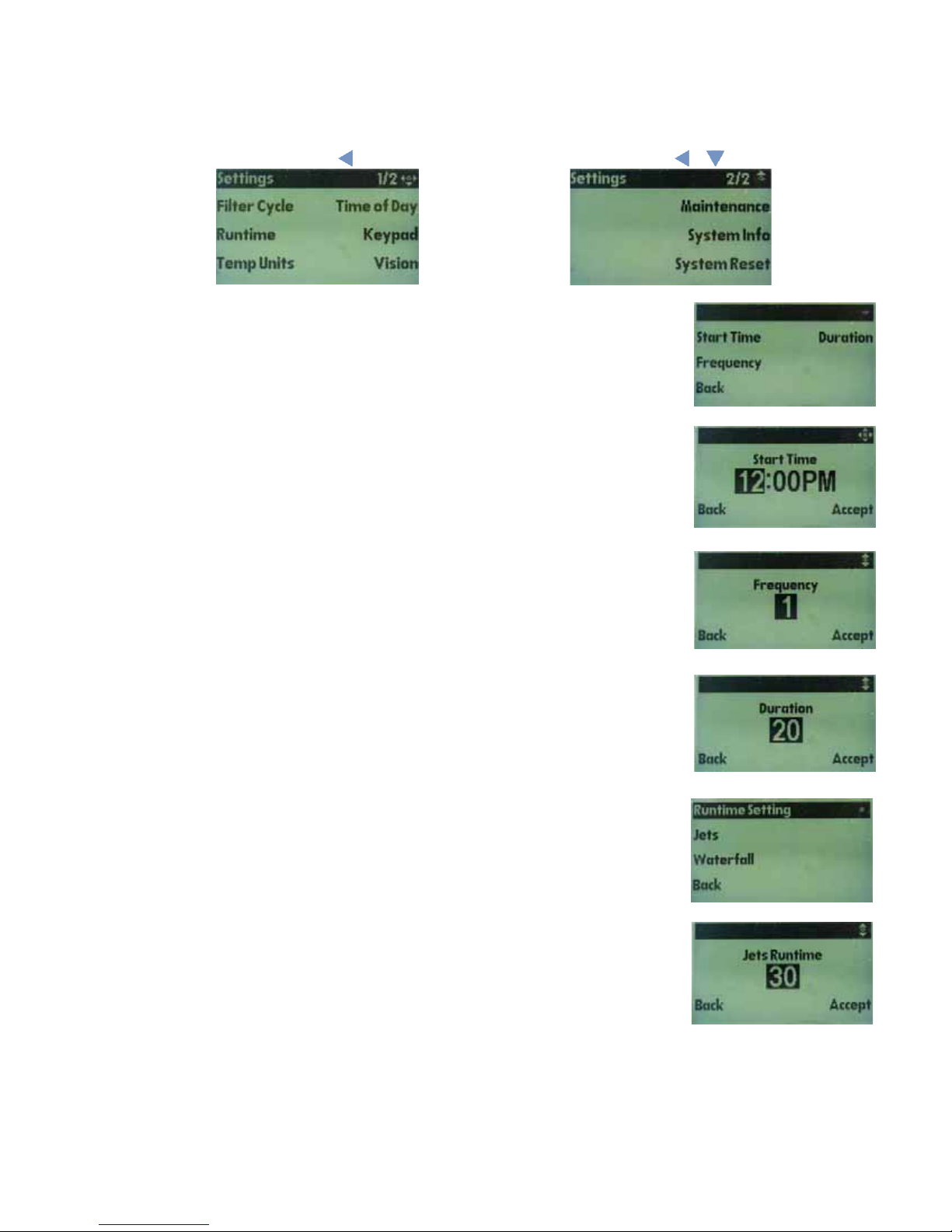

The settings menu contains two pages of options; the current one is
indicated in the top right of the display. On the 5-Key Context Keypad, the
up and down buttons scroll between pages 1 and 2 in that particular menu.
The center button goes back to page 1 of the current menu; if it is at page
1, it goes back to the Temperature menu. To adjust a setting (i.e. filter
cycle time), the center key goes back to the menu to access that setting.

Aquatic Fitness System - Owner’s Manual
9
Swim Spa Menu
The Hotkey The Hotkey allows the swim spa to display different
sets of information on the screen while still giving
access to the main controls. Pushing the Hotkey
changes the information displayed in the center of
the Swim Spa Menu in the following sequence:
Temperature Screen The Temperature screen displays the current swim
spa temperature and sets the desired swim spa
temperature.
Clock Screen The Clock screen displays the current time of day.
Runtime Screen The Runtime screen shows how much time
remains in the current jet cycle for each pump.
Invert Screen The Invert screen inverts the display to face the
inside or outside of the spa with the up and down
arrows on the 5-Key Context Keypad.
Push the Hotkey again to return to the default
Temperature screen and restart the sequence.

Aquatic Fitness System - Owner’s Manual
10

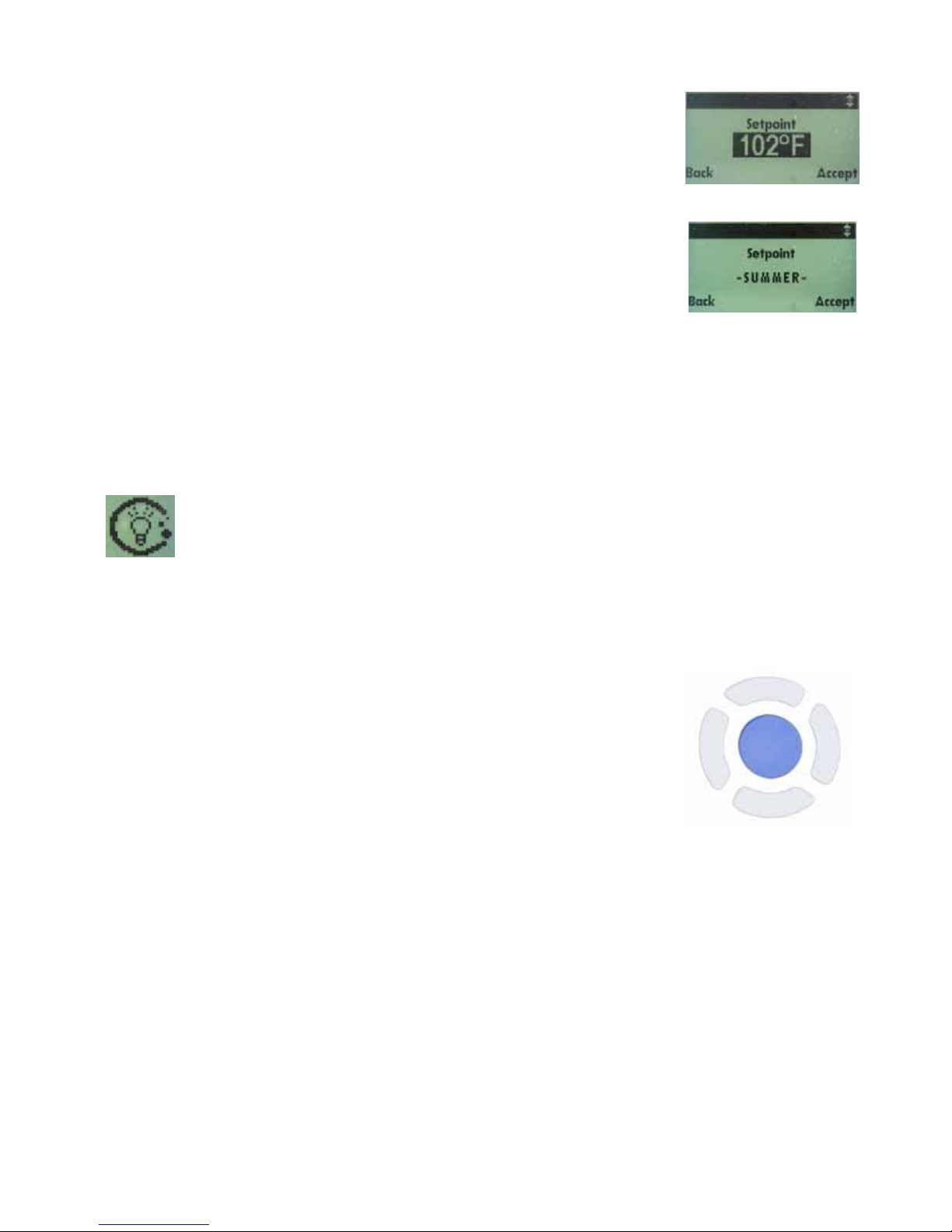

Adjusting Temperature From the Temperature screen, push the up or
down arrow on the 5-Key Context Keypad to enter
the Setpoint screen. In this screen, use up and
down to select the desired temperature. Press
Accept to save the changes.
Summer Mode During hot weather (AFS 19DT only), normal
filtering can cause swim spa to exceed the set
temperature, which stops the circulation pump so
the swim spa can cool. If the swim spa is not
filtering enough during hot weather, it is possible to
put it into Summer Mode to allow the pump to keep
running.
To enter Summer Mode, adjust the set point to the
lowest possible temperature, 59°F (15°C), and
continue to hold the down arrow on the 5-Key
Context Keypad. The temperature value will be
replaced by “Summer.”
Light Operation Your swim spa is equipped with a Dynamic L.E.D. Light. The light has 2
modes: Color Change, which cycles through all colors, and Color Select, which
allows selection of any solid color from the Color Change mode. Push the light
button once to enter Color Change mode. To change between Color Change
and Color Select modes, turn the light off for 3 seconds, and then turn it back
on. Another way to change modes is to hold down the Light button until the
light flashes off and on. To synchronize all spa lights, turn off the light for 3-9
seconds and turn it back on.
Standby Mode To enter Standby mode, hold down the center key
on the 5-Key Context Keypad while on the home
screen for 5 seconds. This mode disables all
automatic and manual functions so the pumps do
not accidentally start while you are cleaning the
filters. The swim spa stays in standby mode for 30
minutes. To reactivate the swim spa, press exit.

Aquatic Fitness System - Owner’s Manual
11
Jets Operation Pressing the Jets 1 button once turns Pump 1
on low speed. A second press turns it to High
Speed. A third press turns the pump off,
unless the pump has been automatically
activated during a heating cycle – in which
case a third press returns the pump to Low
Speed for heating. A built-in timer
automatically shuts the pump off after 20
minutes of operation. The Jets 1 Indicator light
(beside the button) will glow while the pump is
running.

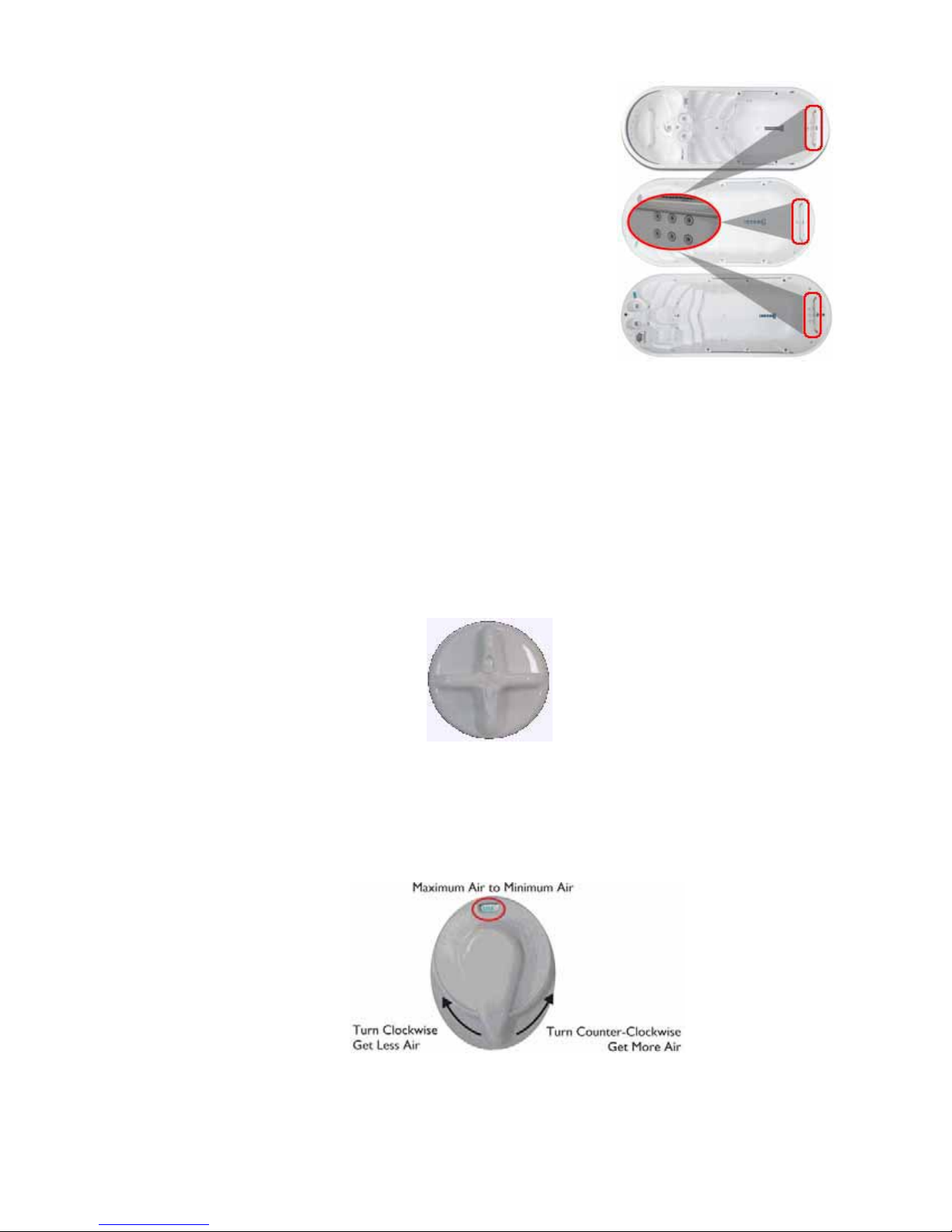

Pump 1 powers the Swim Jets and/or
HydroTherapy Jets.The diverter valve (see
the left picture) controls which set of jets gets
the water, and how much flows to each set.
(Note: If you have the Dual Temp model with
built-in spa, the spa side has a diverter valve
but the swim side does not.)
Note: Pump 1 also runs on low speed during
all filtering and heating cycles. During the filter
cycle the indicator light for Jets 1 glows. If
you manually press JETS 1 during a filter
cycle, that particular filter cycle disables to
give you control of the jet pump.

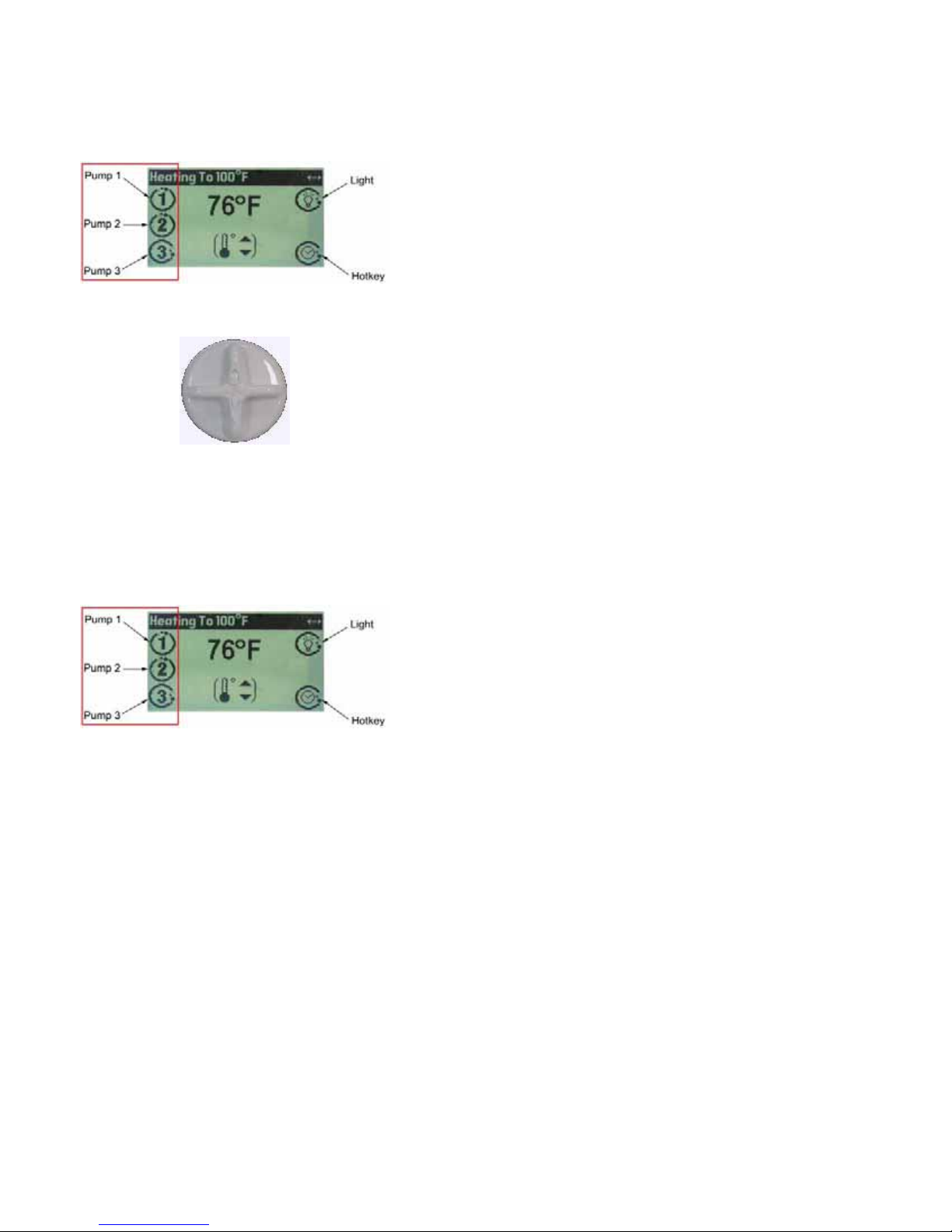

Pumps 2 and 3 provide high-volume water
flow to the Swim Jets.
Press the appropriate button once to turn on
Pump 2 or 3. The pumps work independently,
giving you flexible control over the amount of
water flowing from the Swim Jets. Pressing
either button a second time turns that pump
off.
A built-in timer will shut the pump(s) off after
20 minutes of operation unless you manually
shut them off earlier. The Jets 1, Jets 2 or
Jets 3 Indicator light beside the button will
glow when that pump is running.
Note for North American Models: If your
system was installed with less than the
maximum recommended electrical service for
heat and pumps, the heater will turn off when
the pumps run at high speed. If you have the
maximum electrical service, then you can
continue to heat your water while running the
pumps at high speed. Ask your dealer if you
have questions about your electrical service.

Aquatic Fitness System - Owner’s Manual
12
Settings Menu
Page 1
MAIN > Page 2
MAIN > >
Filter Cycle Menu Pressing the filter cycle button brings up the filter
cycle menu, which adjusts how long and how often
the spa’s filter cycle runs.
Start Time To adjust the filter cycle’s start time, use the left
and right arrows on the 5-Key Context Keypad to
select whether to modify hours or minutes. Use
the up and down arrows on the 5-Key Context
Keypad to select the start time. Press Accept to
save the changes.
Frequency Use the up and down arrows on the 5-Key Context
Keypad to adjust the number of filter cycles per
day. Press Accept to save the changes.
Duration Use the up and down arrows on the 5-Key Context
Keypad to adjust how many minutes each filter
cycle will last. Press Accept to save the changes.
Runtime Pressing the Runtime button brings up the Runtime
Setting menu. This menu adjusts how long the jets
and waterfall run.
Adjusting Runtime Push the Jets or Waterfall button to bring up that
item’s Runtime screen. On this screen, use the up
and down arrows on the 5-Key Context Keypad to
select how many minutes each cycle will last.
Press Accept to save the changes.

Aquatic Fitness System - Owner’s Manual
13
Temperature Units Push the Temp. Units button to bring up the
Temperature Units screen. Use the up and down
arrows on the 5-Key Context Keypad to select
whether to display the temperature in Fahrenheit or
Celsius. Press Accept to save the changes.
Time of Day Push the Time of Day button to bring up the Time
of day screen. To adjust the time of day, use the
left and right arrows on the 5-Key Context Keypad
to select whether to modify hours or minutes. Use
the up and down arrows on the 5-Key Context
Keypad to adjust the time. Press Accept to save
the changes.
Keypad Push the Keypad button to bring up the Keypad
menu. The Keypad menu adjusts various aspects
of the display screen, including which language the
menus are displayed in. Push the button next to
any item to bring up that item’s adjustment screen.
Contrast Use the left and right arrows on the 5-Key Context
Keypad to adjust the contrast of the display screen.
Press Accept to save the changes.
Language Use the up and down arrows on the 5-Key Context
Keypad to select the display language. The
options are English, Spanish, French and German.
Press Accept to save the changes.
Lock Function Use the up and down arrows on the 5-Key Context
Keypad to control others’ access to the swim spa’s
controls. Choose Unlock to allow access to all
swim spa functions. Choose Partial Lock to lock
programmable features but allow control of the jets
and light. Choose Full Panel Lock to lock all swim
spa functions. Press Accept to save the changes.
To unlock the swim spa from a Partial Lock,
navigate back to the Lock Function menu and
change the setting to Unlock. To unlock from a
Full Panel Lock, hold down the center key on the
5-Key Context Keypad for 5 seconds.
Backlight Pushing the Backlight button from the Keypad
screen brings up the Backlight menu. The
Backlight menu adjusts the brightness of the
backlight and how long the light will stay lit.

Aquatic Fitness System - Owner’s Manual
14
Cleaning Your Control Panel
If the control panel needs to be cleaned, using baking soda and water is recommended.
Do NOT use caustic cleaners such as “409,” ammonia based
cleaners such as “Windex,” citrus based or alcohol based
cleaners.

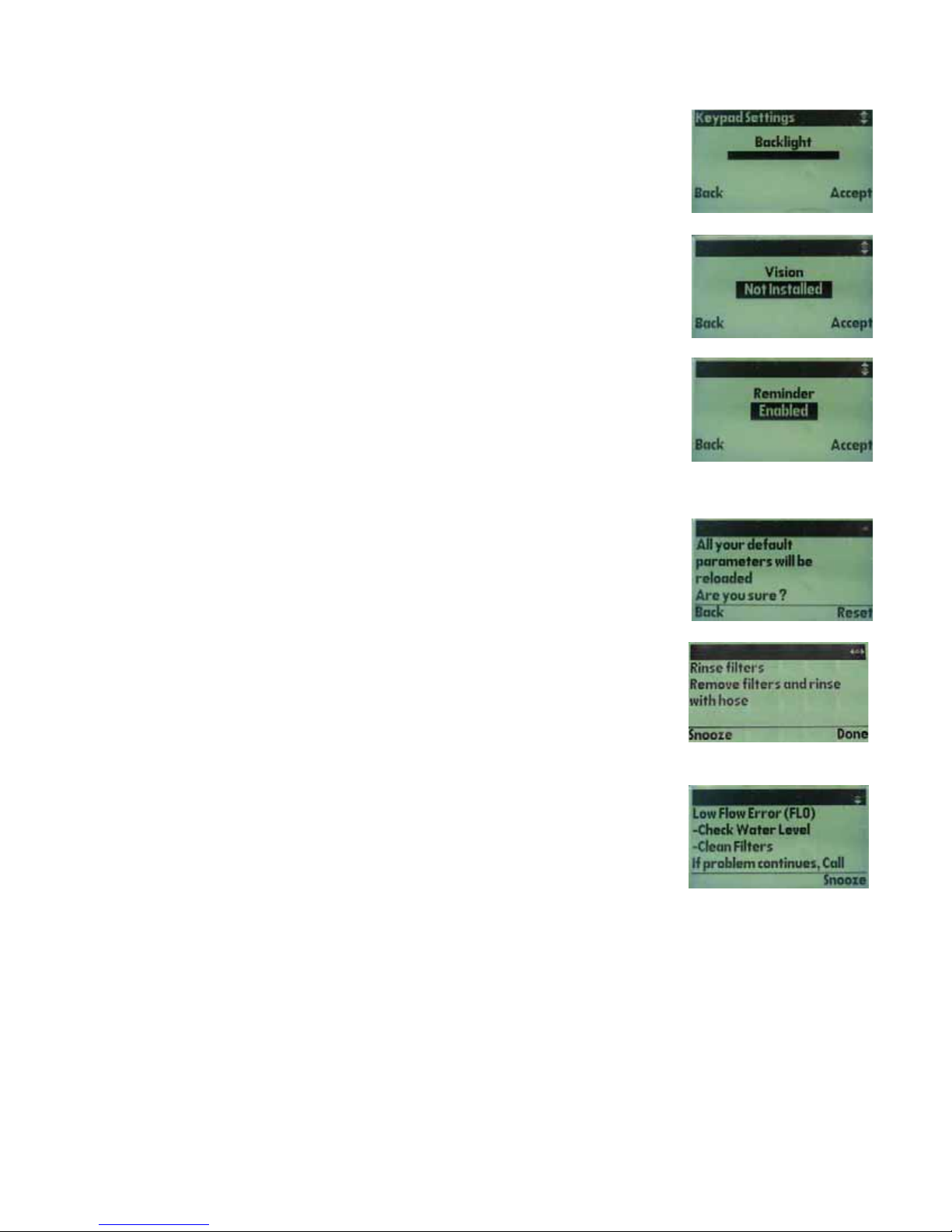

Adjusting Backlight
Settings Push the Level or Duration button to bring up that
item’s adjustment screen. Use the left and right
arrows on the 5-Key Context Keypad to adjust
backlight brightness and how long the light stays
on. Press Accept to save the changes.
Vision From the Settings menu, push the Vision button to
bring up the Vision adjustment screen. Use the up
and down arrows on the 5-Key Context Keypad to
indicate if a Vision cartridge is installed. Press
Accept to save the changes.
Maintenance From page 2 of the Settings menu, push the
Maintenance button to bring up the Maintenance
Reminder adjustment screen. Use the up and
down arrows on the 5-Key Context Keypad to
choose if the spa will display maintenance
reminders. Press Accept to save the changes.
Press Back to go back to the previous menu and
cancel the changes.
System Reset The system reset menu resets all parameters to
the factory defaults. To proceed and reset all
settings, press Reset. To go back and keep your
settings, press Back.
Reminders Occasionally, a maintenance reminder will appear
on the screen. Some messages have an arrow
below the last line; push Down on the 5-Key
Context Keypad to read the remainder of the
message. After the requested action is performed,
push Done. To have the system remind you again
later, push the Snooze button.
Warnings If there is a warning light on the display screen, the
swim spa has detected a problem in the spa. DO
NOT ENTER THE WATER IF A WARNING
MESSAGE IS DISPLAYED. Perform the
suggested actions and if the problem persists,
contact your local dealer for service.

Aquatic Fitness System - Owner’s Manual
15
HydroSport¥Swim System
Important Safety Instructions
Never let children play with the Swim Tether Cord. They could get the cord wrapped
around their neck and suffocate.
Swimming in your Aquatic Fitness System (AFS) requires that you follow swimming safety
precautions. Your AFS offers a variety of exercises that require awareness of many safety and health
precautions.
Using the Swim Tether
The HydroSport¥Swim Tether system that comes with the AFS provides multiple stationary
exercises.
The Swim Tether system includes a 7-foot Swim Tether Pole, an
adjustable Swim Tether Belt, and 7 feet of Swim Cord.
The belt snaps easily around your waist using a quick-release buckle
and adjusts from the back.
Swim Tether Mounts are located at either end of the AFS (see picture at
left). Place the pole in the mount, strap on the adjustable belt and adjust
the cord length.
If speed is your goal, the Swim Tether allows you to swim as fast as you want and
remain stationary.
Do not allow your Tensor Cords to remain in direct sunlight for extended periods of
time. Exposure to direct sunlight for extended periods of time can cause the Tensor
Cords to deteriorate. Deteriorated, or damaged, Tensor Cords could break and
cause injury if the break should occur during use.
Be sure to examine your Tensor Cords for damage or deterioration prior to each use.
Do not use damaged or deteriorated Tensor Cords.
Do NOT adjust any piece of HydroSport equipment too tightly! If a piece is too tight it
might not release in the event of an emergency.

Aquatic Fitness System - Owner’s Manual
16
Using the Swim Kick Bar
A swim kick bar at the end opposite the steps comes standard on
all the AFS models.
Use this bar as you would the edge of a pool to do kicking or
standing exercises.
Using the Swim Jets
The swim jets in your Aquatic Fitness System are adjustable, allowing you to get the most out of your
exercise.
When swimming, use the tile markers on the side, front and bottom of the spa to properly position
yourself in the swim lane. You can also use the swim jets for resistance to while walking or jogging in
place.
Using the Diverter Valve
The diverter valve at the filter end of the AFS controls water movement from Pump 1. Turn the valve
to direct water flow either in the direction of the hydrotherapy or swim jets.
Adjusting Air Flow
The air valves located at the front of the AFS control the amount of air added to the water. The
window in the air valve informs you of the amount of air being mixed with the water at the swim jets.

Aquatic Fitness System - Owner’s Manual
17
Optional HydroSport¥
Rowing System
Installing the Rowing System
Easy as 1-2-3
The HydroSport¥Rowing System installs in three steps:
1) Install Butterfly Tops
2) Install Rowers
3) Install Tensor Cords
1) Screw a Butterfly Top into the
OptiMount¥located on top of the
pedestal closest to the rowing seat or
area. Be sure to remove the plastic
insert from the OptiMount¥center.
Use the OptiMounts identified by “1”
in the 1-2-3 picture.
2) Screw each rower into an OptiMount¥
on the wall on each side of the rowing seat. Be
sure to remove the plastic insert from the
center of the OptiMount¥. Use the
OptiMounts identified by “2” in the
1-2-3 picture.
A good guide for measuring the correct installation of the rowers is to ensure that
you first screw the rower into the OptiMount until it is almost snug, then back off
½ turn. Next continue to back it off slightly until the rings on the rower are
horizontal.
3) Choose a tensor cord for your rowing exercise. Snap a clip from one end of the rower to a Butterfly
Top. Snap the other end of the cord to the rower.
As a starting point use the red
cords. Change colors to adjust
resistance as you determine
your needs.
You must make sure the cord snap-hooks are properly connected and the rower
ring and the Butterfly Top ring are completely “inside” the snap-hook. If not
properly installed, the tension on the cords during exercise could cause them to
release and become a safety hazard.
