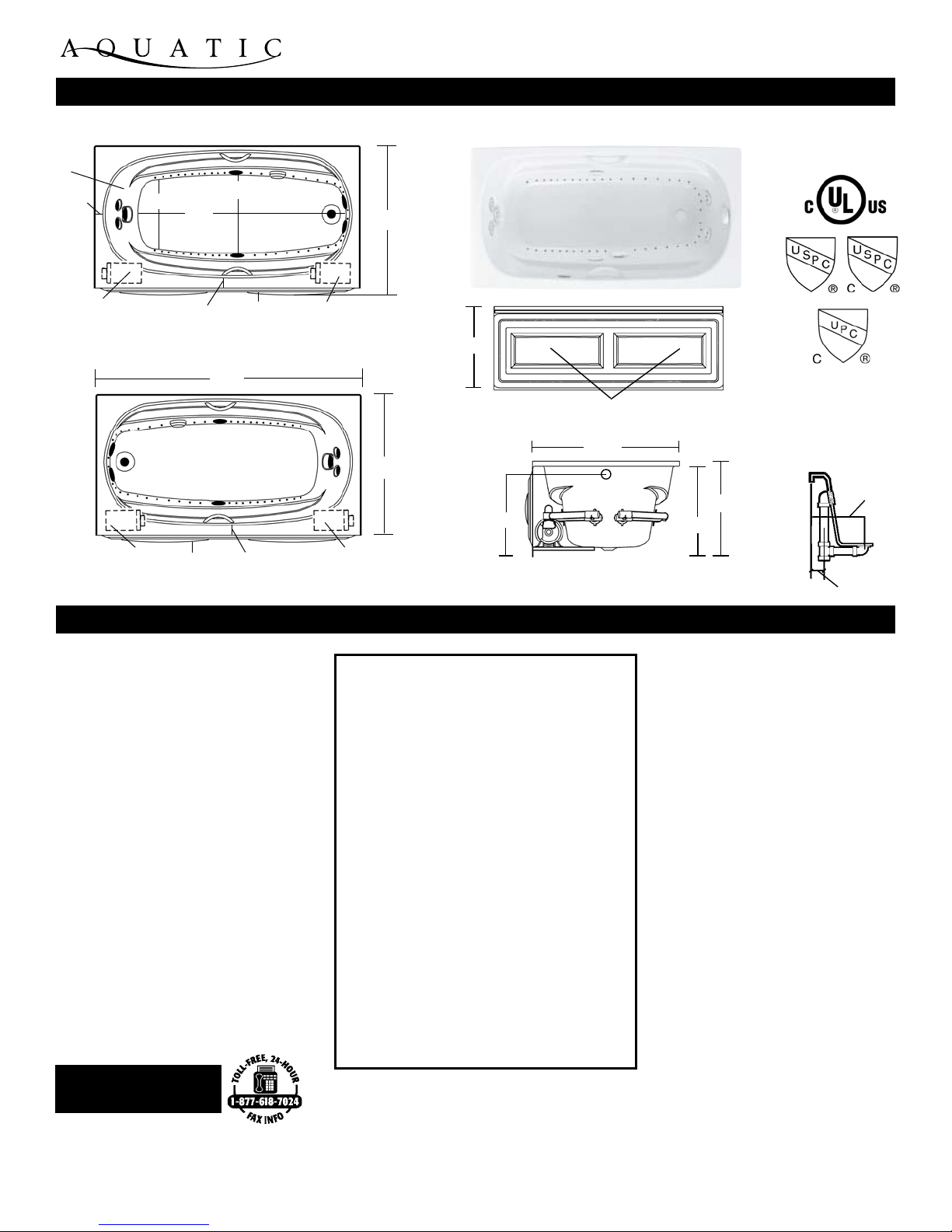

SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324
October 2008
Rough-In Plumbing
Measurements
LuxEAIr 31
GENERAL SPECIFICATIONS:
Tub Size 66” x 36” x 26”
169 cm x 91 cm x 66 cm
Bathing Well 44” long
18” wide
21 3/4” interior depth
Shipping Weight 292 lbs. / 132 kg
Tub Weight Filled 913 lbs. / 413 kg
Weight w/Equipment 207 lbs. / 94 kg
Gallons to Overow 85 gal. / 321 L
Gallons to Operate 66 gal. / 249L
ELECTRICAL SPECIFICATIONS:
Pump 1.75 HP; 12 AMP; 110V
Inline Heater 1.5 kW; 12.5 AMP; 110V
Requirement 1-15 AMP 2 pole, separate circuit
required protected with Class A GFCI
Blower 1 HP; 10.5 AMP; 110V
Requirement 1-15 AMP 1 pole, separate circuit
required protected with Class A GFCI
This whirlpool will need to be hard wired to the breaker box.
Three outlets will be supplied on the whirlpool.
OPTIONAL EQUIPMENT:
• Chromatherapy LED Lighting
• Comfort Pillow - Oval or Rectangle
• Jet Finish
- Chrome, Polished Brass, Gold Tone, Polished Nickel
or Satin Nickel
• Bolt-on Grab Bars
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
• Lift & Turn Waste and Overow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
• Cable Drive Waste and Overow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or Color Matched
(Bone, White and Biscuit Only)
• Hand Held Jet - Chrome or Polished Brass
• Premium Colors
All acrylic colors featured by Aquatic match the industry’s
leading xture manufacturers.
STANDARD EQUIPMENT:
LuxEAIr SErIES Model # aI31lUX6636ISl (left draIn) / aI31lUX6636ISr (rIght draIn)
Fax-On-Demand
Document #1156
Right Drain Model
36”
Deck
Width
3”
18”
44”
17”
Skirt Side Pump
Blower
Removable Access Panels
26
Left Drain Model
Pump Skirt Side Blower
66”
34”
34”
21 3/4”
26”
25”
1 3/4”
10 3/4”
7 Hydrotherapy Jets including:
- 4 Full Size Pressure-Flo Hydrotherapy Jets
- 2 StressEaz Neck & Shoulder Therapy Jets
- 1 Recessed Rotary Massage Jet
Air Bath System:
- 51 Air Jets
- 1 HP Variable Speed Air Blower with 20-Minute Timer
- Electronic Control Panel
- 3 Massage Settings: Constant, Wave and Pulse
- Automatic Purge and Dry Cycle
- 600 Watt Air Heating System
Aquatic Quality Features:
- 1.75 HP Run-Dry Pump with 20-Minute Timer
- 1.5 kW Inline Maintenance Heater
- ”Quiet Pad”Anti-Vibration Pump Mount for Quiet Pump Operation
- Color Matched Integral Skirt with Removable Access Panels
- Integrally Molded Tile Flange
- 2 Bolt-On Grab Bars Color Matched (White & Biscuit) or Chrome
- 2 Arm Rests
- Slip Resistant Floor
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
UL & IAPMO Listed, Factory Tested
Limited Lifetime Warranty
Back Angle
27º
Deck Width
2 1/2”
Deck Width
2 1/2”
No alternate pump/blower locations available.
Note: Requires a mortar base.
ABS Support Base not included.
