Aquatic AQ-DM-5UBT User manual


DIGITAL MEDIA LOCKER™
AQ-DM-5UBT
OWNERSMANUAL
DIGITAL MEDIA LOCKER™





CONTENTS
• AQ-DM-5UBT Digital Media Locker™
• 2-Way RF Wireless Remote Control (AQ-RFDM-5U)
• 3.5mm to 3.5mm Jack Cable
• Wiring Harness (AQ-UNH-2) optional
• Six (6) Stainless Steel Mounting Screws
• One (1) CR-2430 Battery
• Mounting Template
• Owner’s Manual


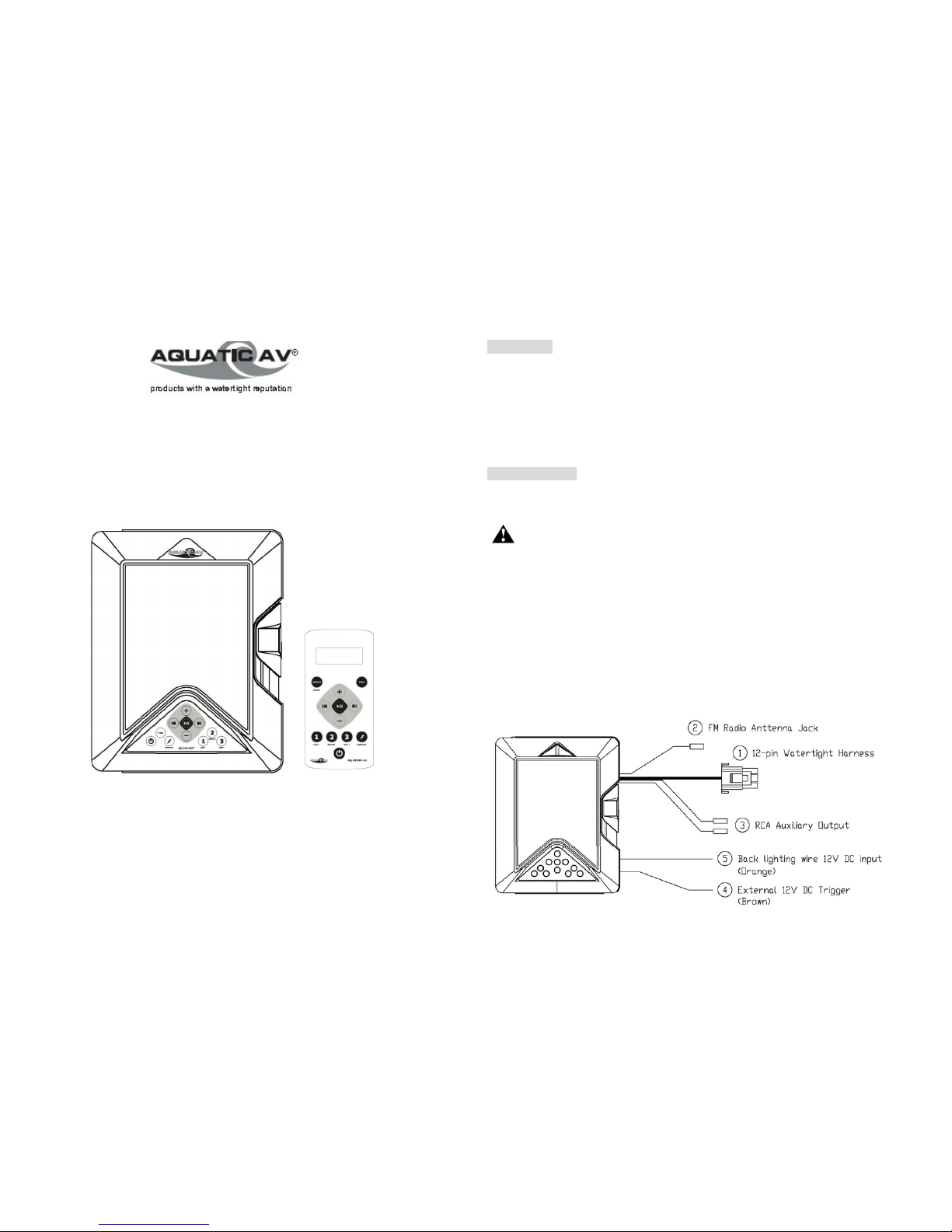

INSTALLATION
1. 12-pin Watertight Harness
The 12-pin harness supplies power and ground connections to the Digital Media Locker and four (4)
speaker channel output connections from the Digital Media Locker.
Do not cut or modify the 12-pin harness on the Locker side or warranty will be void.
2. FM Radio Antenna Jack
Connect antenna (AQ-ANT-1 sold separately) to female antenna receptacle. For best FM
performance make sure the antenna is extended to the highest achievable position.
3. Auxiliary Outputs
Allows external amplifiers to be connected to power additional speakers.
4. 12V DC External Trigger
Allows for an external light or relay to be triggered (350mA max load).
5. Backlighting 12V DC input (orange)
Allow to connect to an external 12V DC, light up LED backlight.















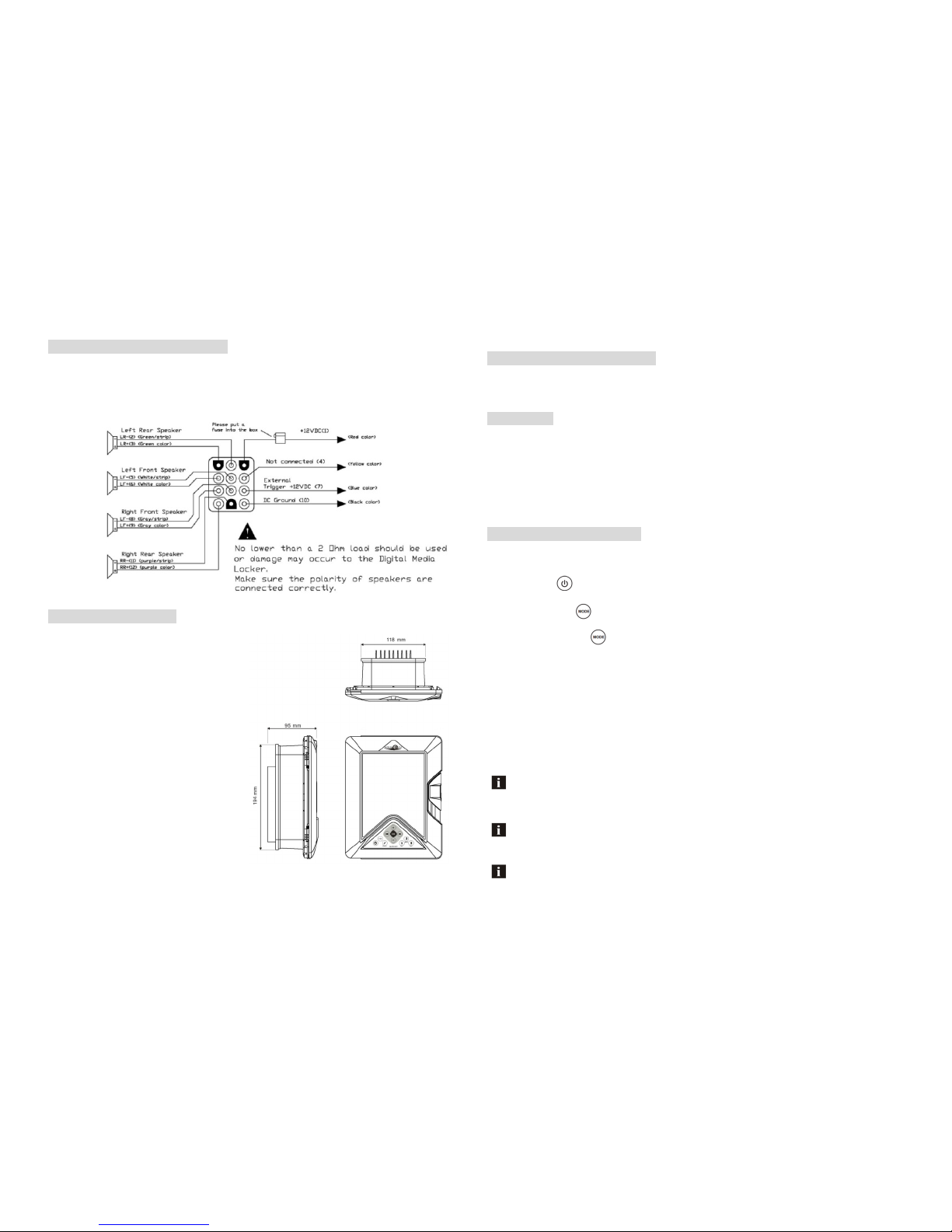

12-PIN HARNESS CONNECTION
The AQ-DM-5UBT includes the universal harness AQ-UNH-2 in order to connect the
dock to power and speakers.
All open wire connections should be soldered and protected against water and dust for best long term
performance.












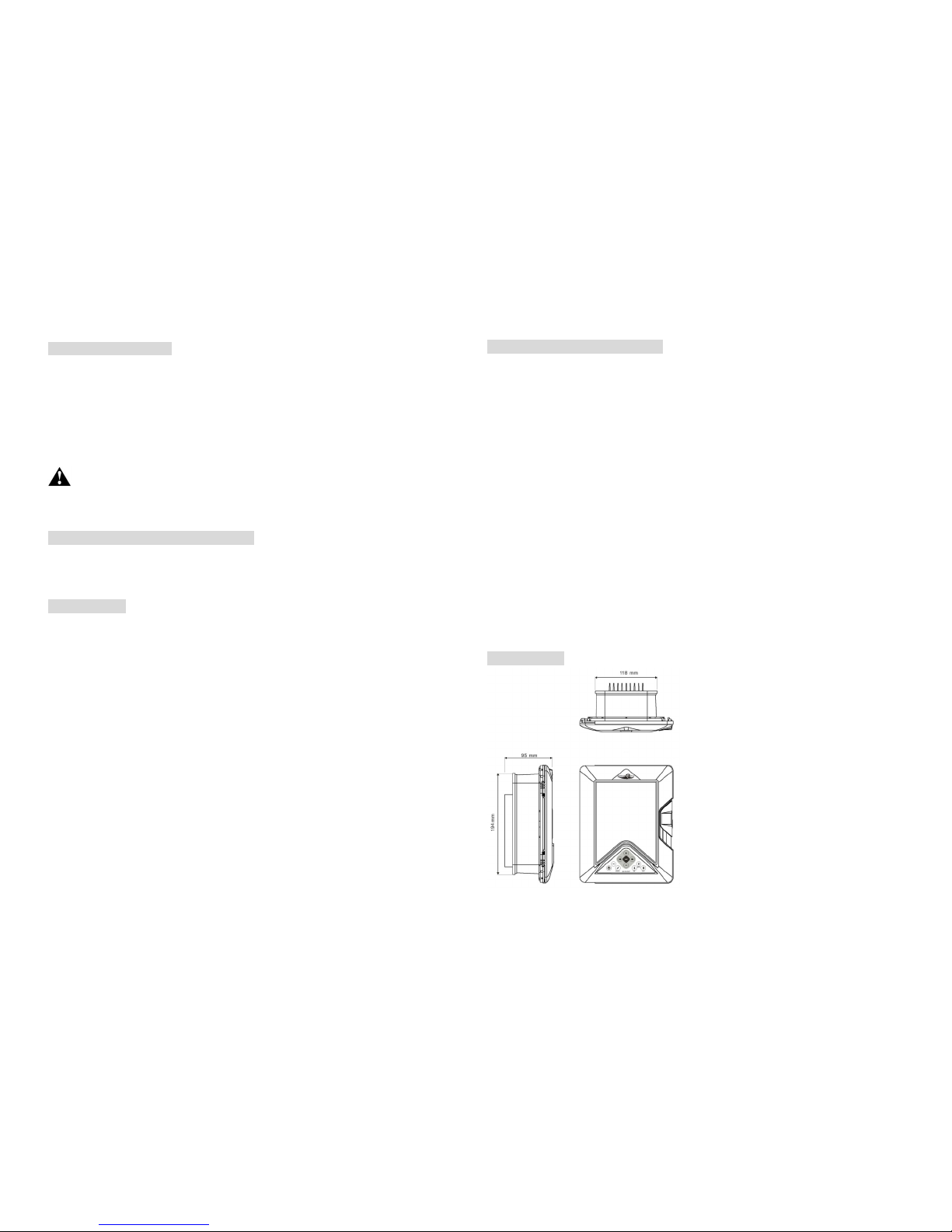

MOUNTING THE UNIT
1. Mounting templates is included. Aquatic
AV recommends using the ‘measure twice, cut
once’ method.
2. Once the mounting hole is complete, make
sure the outside surface is clean and clear
of debris. The Digital Media Locker has an
external water/dust proof gasket, but this
requires a clean surface for best performance.

3. The Digital Media Locker has six (6) front
screws. Drive the screws using a screw driver.
During final mounting apply equal pressure
to all points for the best water/dust outer seal
performance.

4. Review all outside surfaces of the Digital
Media Locker to ensure proper water/dust seal.
This is important for long term environmental
protection performance for your digital media
device.
REMOTE BATTERY INSTALL
Remove the RF Wireless Remote control from the Digital Media Locker. Unscrew the
waterproof cap on the back of the remote control. Place the CR-2430 battery in the RF
Remote control and replace the water/dust proof cap.
POWER ON
Press the on/off button. Standby will be indicated by a red LED and ON by a blue LED.
For applications that require low current draw and where battery drain may occur, the power button
must be turned OFF. When the power button is in the OFF position the red LED will not be lit.
For applications where a 12V battery is not used, such as in a Spa, the power button can be left ON
and the remote control can then be used to power on/off accordingly.

REMOTE SYNCHRONZING
1. Turn the Digital Media Locker to standby with the power button inside the door. The LED
should illuminated red.
2. Press the red( ) button on the remote.
3. Press and hold the( ) button until the LCD reads PAIR.
4. Continue to press the( ) button during step 5 below.
5. Turn the docking station stand by (within 10 seconds) with the on/off button inside door(the red
LED will illuminate).

6. The remote’s LCD should read WELCOME or show a mode position such as RADIO, BT or AUX
IN.
For any additional remote controls, you will also need to activate/synchronize those remote controls
by following the steps above.

If the pairing process is not effective, switch the locker off using the on/off button located
inside the door of the dock. Unplug the 12-pin Harness on the back of the Locker for 3minutes.
Reattach the Harness and repeat steps 1-6 above.
If the LCD displays “NO LINK” in either mode, this means the remote is out of reception
range. Move the remote closer to the Locker and try again.

If you lose your remote control and buy another new remote control, please follow the above
to start pairing before normal usage.




DIGITAL MEDIA LOCKER



1. Digital Media Locker Open/Close Latch & Protective Door.
2. Power ON/OFF Button
3. Water/Dust Protection Inner Gasket
4. 3.5mm Aux Input for MP3 Devices
5. Power ON/OFF LED.
6. Security Strap for digital media devices.
7. Door Control Keypad.
8.LED Mode indicator.
9.Back lighting.
DOOR CONTROL KEYPAD
ButtonsMusicModeFMRadioMode
Power Pressonce:Tog gl efromOperationmodetoStandbymodeorvice‐versa.
ModePressonce:Changethesource.Pressonce:Changethesource
Volumeup+Pressonce:Volumeup
Pressandhold:Fastvolumeup
Pressonce:Volumeup
Pressandhold:Fastvolumeup
VolumeDown‐ Pressonce:Volumedown
Pressandhold:Fastvolumedown
Pressonce:Volumedown
Pressandhold:Fastvolumedown
FastRewind<<Pressonce:Previoustrack
Pressandhold:Fastrewind
Pressonce:Seekdown
Pressandhold:Togg le manualscanning
Fast
Forward>>
Pressonce:Nexttrack
Pressandhold:Fastforward
Pressonce:Seekup
Pressandhold:Togg le tomanualscanning
12V
Trigger/random
Pressonce:Randomplaybackfunction
Pressandhold:Togg leexternal12Vpoweron/off
Pressonce:Nofunction
Pressandhold:Toggleexternal12Vpower
on/off
Play/pausePressonce:Play/Pause
Pressandhold:Play/Pause
Pressonce:Toggle mute
Pressandhold:Togg le mute
1/DIR‐1Pressonce:Backtopreviousfolder
Pressandhold:Backtopreviousfolder
Pressonce:ListentoFMpresetstation1
Pressandhold:SetpresetFMstation1
2/REPEAT2Pressonce:Repeatfunction
Pressandhold:Repeatfunction
Pressonce:ListentoFMpresetstation2
Pressandhold:SetpresetFMstation2
3/DIR+3Pressonce:Forwardtonextfolder
Pressandhold:Forwardtonextfolder
Pressonce:ListentoFMpresetstation3
Pressandhold:SetpresetFMstation3
The keypad on the door has a set of keys fewer than those on the remote but has exactly the
same functions correspondingly. This keypad allows you to operate the dock even underno
remote condition.


REMOTE CONTROL








ButtonsMusicModeFMRadioMode
Power Pressonce:Tog gl efromOperationmodetoStandbymodeorvice‐versa.
ModePressonce:Changethesource.
Pressandhold:Pair
Pressonce:Changethesource
Pressandhold:Pair
Audio
Pressandhold:BAS‐TRE‐BAL‐FAD‐DSP
‐LOUD‐BATTON‐VOL
Pressonce:BAS‐TRE‐BAL‐FAD‐DSP‐AREA
USA‐LOUD‐DX‐STEREO‐BATTON‐VOL
Pressandhold:
BAS‐TRE‐BAL‐FAD‐DSP‐AREA
USA‐LOUD‐DX‐STEREO‐BATTON‐VOL
Volumeup+Pressonce:Volumeup
Pressandhold:Fastvolumeup
Pressonce:Volumeup
Pressandhold:Fastvolumeup
VolumeDown‐Pressonce:Volumedown
Pressandhold:Fastvolumedown
Pressonce:Volumedown
Pressandhold:Fastvolumedown
Play/pausePressonce:Play/Pause
Pressandhold:Play/Pause
Pressonce:Toggle mute
Pressandhold:Togg le mute
FastRewind Pressonce:Previoustrack
Pressandhold:Fastrewind
Pressonce:Seekdown
Pressandhold:Togg le manualscanning
FastForwardPressonce:Nexttrack
Pressandhold:Fastforward
Pressonce:Seekup
Press andhold:Toggle tomanualscanning
1/DIR‐1Pressonce:Backtopreviousfolder
Pressandhold:Backtopreviousfolder
Pressonce:ListentoFMpresetstation1
Pressandhold:SetpresetFMstation1

2/REPEAT2Pressonce:Repeatfunction
Pressandhold:Repeatfunction

Pressonce:ListentoFMpresetstation2
Pressandhold:SetpresetFMstation2

3/DIR+3Pressonce:Forwardtonextfolder
Pressandhold:Forwardtonextfolder
Pressonce:ListentoFMpresetstation3
Pressandhold:SetpresetFMstation3
12Vtrigger/random Pressonce:Randomplaybackfunction
Pressandhold:Toggleexternal12Vpower
on/off
Pressonce:Nofunction
Pressandhold:Toggleexternal12Vpower
on/off
If your music player is connected via the Auxiliary input you will not be able to control track or
receive track information.
In order to prolong remote battery life the LCD will shut off in 20 seconds if no other button is
pressed. To turn remote back on press any key once and then press the command desired.
Turn off DSP to access control of Bass and Treble
○
A
○
B
A. RemoteControlLCD
B. RemoteControlkeypad
C. BatteryDoor


LISTENING VIA 3.5MM JACK
1. Power up the Digital Media Locker.
2. Attach your MP3 device to the 3.5mm connector.
3. Secure the device with the anchor straps provided.
4. Secure the Digital Media Locker’s protective door.
5. Press (Mode) on the remote control to select ‘AUX IN’ mode.
ADJUST VOLUME LEVEL
1. Press + (VOLUME UP) once to increase the volume.
2. Press - (VOLUME DOWN) once to reduce the volume.
3. Press and hold either + or - and the Digital Media Locker will increase or decrease audio volume
continuously.
ENTER FM RADIO MODE
1. Press( MODE) on remote control to switch to FM radio mode.
If this is the first time you listen to FM radio, the default frequency will be 87.5MHz, as shown
on the remote LCD.
FM radio is only available when you are in the FM Radio mode.
TO SCAN OR NAVIGATE CHANNELS
1. Press (FAST REWIND) or FAST FORWARD) to seek another station.
2. Press and hold either (FAST REWIND) or (FAST FORWARD) for manual tuning back
or forward.
SAVING RADIO CHANNEL TO MEMORY
1. If you want to save the current frequency into memory, press and hold, , or for more
than 2 seconds. The station will be stored into relevant button.
LISTENING TO SAVED RADIO MEMORY
1. Press the, or button once to listen to the station stored in button.
SWITCH BETWEEN US & EURO FM MODES
1. Make sure dock and remote are turned on and in ‘RADIO’ mode.
2.Press the AUDIO button 6 time in a row.
3. The remote will display ‘AREA USA’ or ‘AREA EUR’ depending on which tuning mode is
currently selected.
4. Use the + & - buttons to switch between US or European modes.
5.Press( PLAY/PAUSE) to select the desired tuning mode.
6. Once you switch modes it will default to the FM station stored in ‘PRESET 1’.
US mode will increase and decrease the FM frequency in steps of 0.1 MHz, e.g. 88.5, 88.6,88.7
MHz. EUR mode will increase and decrease the FM frequency in steps of 0.05 MHz, e.g. 88.25,
88.30, 88.35 MHz.
PAIR WITH BLUETOOTH DEVICE
1. Switch on your Bluetooth device.
2. Select ‘AQUATIC AV’ from the list of available devices to pair (no password is needed).
Only one Bluetooth device can be paired with the Digital Media Locker at any time.
PLAY SONG FROM BLUETOOTH DEVICE
1. Bluetooth mode will be activated once a Bluetooth device is linked.
2. Play the song from device and the sound will play through the Digital Media Locker.
3. Press for play/pause.
4. Press / button to play previous/next song file.


EXTERNALTRIGGER
Aquatic AV understands the need for more flexible remote applications. With the Digital Media
Locker Aquatic AV has provided an independent 12V ‘accessory’ trigger, activated from the RF
wireless remote. This could activate any 12V based device like 12Vlights or surveillance camera.
1. In any operational mode, press the(12V TRIGGER) key to activate. Press again to deactivate.
2. We strongly recommend you speak to our technical service staff or your dealer if you are
considering using this feature.
Load on External Trigger should not exceed 350mA.
.
REMOTE CONTROL LCD AUTO OFF
To maximize battery life of the Remote Control, the LCD will be OFF if no key is pressed for 20
seconds. To re-activate the LCD display, press any key once to bring the remote control to normal
operation.
DOCK LIGHT
Plug the orange wire to the brown wire, use the trigger of the remote to toggle the dock light
ON/OFF.














TECHNICAL SPECIFICATIONS
Media
Supported media.......................................Bluetooth/iPod/ iPhone /MP3/FM
Device control............................................via Door Controls & RF Remote Control

Inputs
Auxiliary.................................................... 1x 3.5mm Stereo Jack Socket
Outputs
Pre-Out......................................................1x Stereo pair RCA (4V P-P)
FM Radio
FM pre-sets............................................... 3
US/Euro frequencies................................. Yes
Power
Output voltage @ 2 Ohm.......................... 4x 72W
Output voltage @ 4 Ohm.......................... 4x 45W
Operation voltage......................................10.7V - 15.6V DC
Max current draw...................................... 7A
Standby current draw................................ 6mA
Multi-environment Certifications
Waterproof / Dustproof..............................Yes (IP65 Digital Media Locker™)
Waterproof / Dustproof..............................Yes (IP66 Remote Control)
Conformal PCB coating.............................Yes
UV protection.............................................500 hours stable, ASTM D4329 compliant
Salt/Fog protection.................................... 500 hours stable, ASTM B117 compliant
Stainless Steel mountings.........................Yes
DIMENSIONS
















Aquatic AV offers a limited warranty of our products on the following terms:
Length of warranty
2 years on audio systems, electronics, speakers, and accessories (receipt required).

Coverage
This warranty covers only the original purchaser of a Aquatic AV product purchased from an
authorized Aquatic AV dealer in the United States. In order to receive service, the purchaser must
provide Aquatic AV with a copy of the receipt stating the customer name, dealer name, product
purchased and date of purchase.

Defective products
Products found to be defective during the warranty period will be repaired or replaced(with a product
deemed to be equivalent) at Aquatic AV’s discretion.

What is not covered
Damage caused by accident, abuse, improper operations, water, theft. Any cost or expense related to
the removal or reinstallation of product. Service performed by anyone other than an authorized
Aquatic AV service center. Any product with the serial number or tamper labels defaced, altered, or
removed. Subsequent damage to other components. Any product not purchased from an authorized
Aquatic AV dealer.

Limit on implied warranties
Any implied warranties including warranties of fitness for use and merchantability are limited in
duration to the period of the express warranty set forth above. Some states do not allow limitations on
the length of an implied warranty, so this limitation may not apply. No person is authorized to
assume for Aquatic AV any other liability in connection with the sale of the product.
How to obtain service
You must obtain a return material authorization number (RMA) to return any product to Aquatic AV.
You are responsible for shipping charges of returned products to Aquatic AV.

Please record the model and serial number[s] of your equipment in the space provided below as your
permanent record and will assist us with your factory warranty coverage.These numbers can be found
on the rear of the Digital Media Locker.

Modelnumber(s)Serialnumber(s)



FCC ID: WBQAQRFDM5D
MADE IN CHINA
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2)this device must accept any
interference received, including interference that may cause undesired operation.

NOTE:
The equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.

The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate the
equipment.


























































