Aquatica Digital Colonna-WS User manual

Function : Form : Fashion
Colonna-WS
Freestanding Tub Filler
Installation & Care Manual
EUROPE / INTERNATIONAL
Function : Form : Fashion
Function : Form : Fashion
Aquaticabath.eu
E: [email protected]

Colonna-WS
Freestanding Tub Filler
PARTS LIST
1. Tub Filler Spout
2. Body
3. Standing Tube
4. Floor Escutcheon
5. Inter Tube Metal
Pipe x 2
6. Connect Parts
7. Conceal Box
8. Hand Shower
and Hose
YOU WILL NEED:
• Plumber’s Putty
• Pipe Tape
• Adjustable Wrench
• Pliers
• Philips Screwdriver
1
2
8
83
4
6
5
7
MEASUREMENTS: mm
Aquaticabath.eu
E: [email protected]
1029
Ø50
646.5
763
715
364
243
Ø160
50
Ø40
32º

Function : Form : Fashion
Screw
to ground
Plate
Level
Function : Form : Fashion
- Installation to be performed by qualified personnel
- Before connecting to mains, bleed the pipes
to avoid damage.
IMPORTANT NOTE:
Colonna-WS
Freestanding Tub Filler

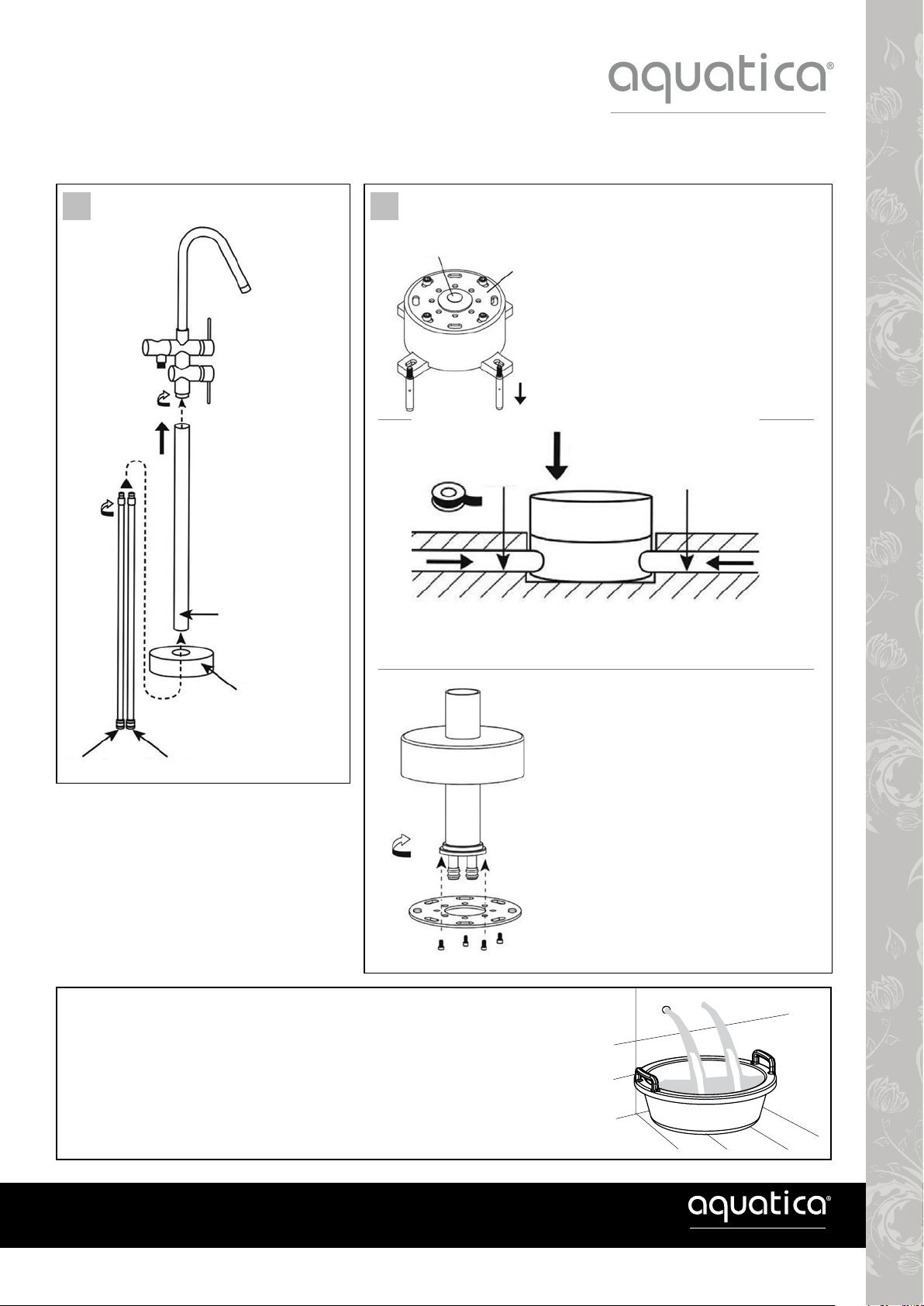

INSTALLATION SEQUENCE
1FAUCET INSTALLATION STEPS 2CONCEAL BOX INSTALLATION STEPS
1a. Twist tight to
attach inlet
tube metal pipe
to the faucet.
1b. Twist to tighten
the standing
pipe to the
top faucet.
Standing Pipe
Floor Escutcheon
Cold WaterHot Water
2a. Set the conceal box on the ground, measure
with the level provided to make sure it is
perfectly level with the ground. THen scxrew the
conceal box on to the ground.
2b. Unscrew and remove the plate.Knock out the
level from the back of the plate.
2c. Connect hot & cold water from the source to the inlets on conceal box.
Wrap the threads on the one end of the pipe with pipe tape or teflon tape
(not included). Screw the adapters into the female fittings.
Cold
Pipe
Hot
Conceal
Box
Pipe
CLEANING & CARE:
Care should be exercised when cleaning
this product. Although its finish is durable,
it can be damaged from harsh abrasives
and cleaning pads.
To clean, use light, noin-abrasive cleaning
solution or cleaning polish.
2d. Connect hot & cold water from the source to
the inlets on conceal box. Wrap the threads
on the one end of the pipe with pipe tape or
teflon tape (not included).
Screw the adapters into the female fittings.
2e. Screw connect parts to the standing tube.
Align the plate with the connect parts.
Tighten the screws from the bottom of the
plate to the connect parts.

Aquaticabath.eu
E: [email protected]
Function : Form : Fashion
Function : Form : Fashion
2CONCEAL BOX INSTALLATION STEPS continued
2f. Screw the plate onto the bottom of the faucet base
with the 4 hex screws provided.
Insert the assembled faucet body into the conceal
box. Insert the inlet pipe to the hot and cold outlet
tube of the conceal box.
Colonna-WS
Freestanding Tub Filler
INSTALLATION SEQUENCE Function : Form : Fashion
2g. Tighten the plate to the conceal box. Place the cover.
2h. Install the hose to the hand shower and the tub filler.
Please check the tub filler spout and hand shower water
flow are functioning correctly.
Inlet Pipe
