Aquavida AQ200 User manual

Conte
n
ts
Ⅰ. INTRODUCTION..............................................................................................................................................1
Ⅱ. SAFETY NOTES...............................................................................................................................................1
Ⅲ. PRECAUTIONS ................................................................................................................................................2
Ⅳ. MAINTENANCE...............................................................................................................................................3
Ⅴ. HOW DOES YOUR ATMOSPHERIC WATER GENERATOR WORK?.........................................................3
Ⅵ. FEATURES OFATMOSPHERIC WATER GENERATOR...............................................................................4
Ⅶ. OPERATING YOUR ATMOSPHERIC WATER GENERATOR ......................................................................6
1. DIGITALTOUCH SCREEN FUNCTION..................................................................................................6
1.1. Screen Indication...............................................................................................................................6
1.2. Digital Touch Screen indication......................................................................................................12
2. SETTING UP.............................................................................................................................................15
3. OPERATIONAL STAGE...........................................................................................................................16
4. CLEANING AND REPLACEMENT OF FILTERS..................................................................................18
4.1. Cleaning ..........................................................................................................................................24
4.2. Sterilization .....................................................................................................................................28
4.3. Replacement....................................................................................................................................29
5. ATTENTION..............................................................................................................................................34
Ⅷ. TROUBLE SHOOTING..................................................................................................................................35
Ⅸ. TECHNICAL SPECIFICATIONS...................................................................................................................39
Note：We reserves the right to at any time without notice make any changes / amendments / deletions and / or
variations to the contents of this manual.

ATMOSPHERIC WATER GENERATOR
Ⅰ
. INTRODUCTION
Thank you for purchasing the Atmospheric Water Generator. The Atmospheric Water Generator is a new,
state-of-the-art water-generating machine, which uses some of the latest and most sophisticated technology
available in the industry today. We have designed your Atmospheric Water Generator with one objective in mind
i.e. to produce the most maximum amount of high quality drinking water while using only minimum amount of
electricity. When hook up with city water supply, the machine can produce purified
drinking water thus makes it a duo-functional machine.
Ⅱ.
SAFETY NOTES
The power cord using 2x2.5mm²+1 should be connected to the line with the
protection switch over 40A.
The socket should be equipped with reliable protection earthing.
Always keep the unit from poisonous gas and liquid.
Do not use damaged electrical plug or power cable.
Unplug power cord before cleaning,installing and maintenance.
Always use correct replacement parts.
Do not unplug power cord with wet hands.

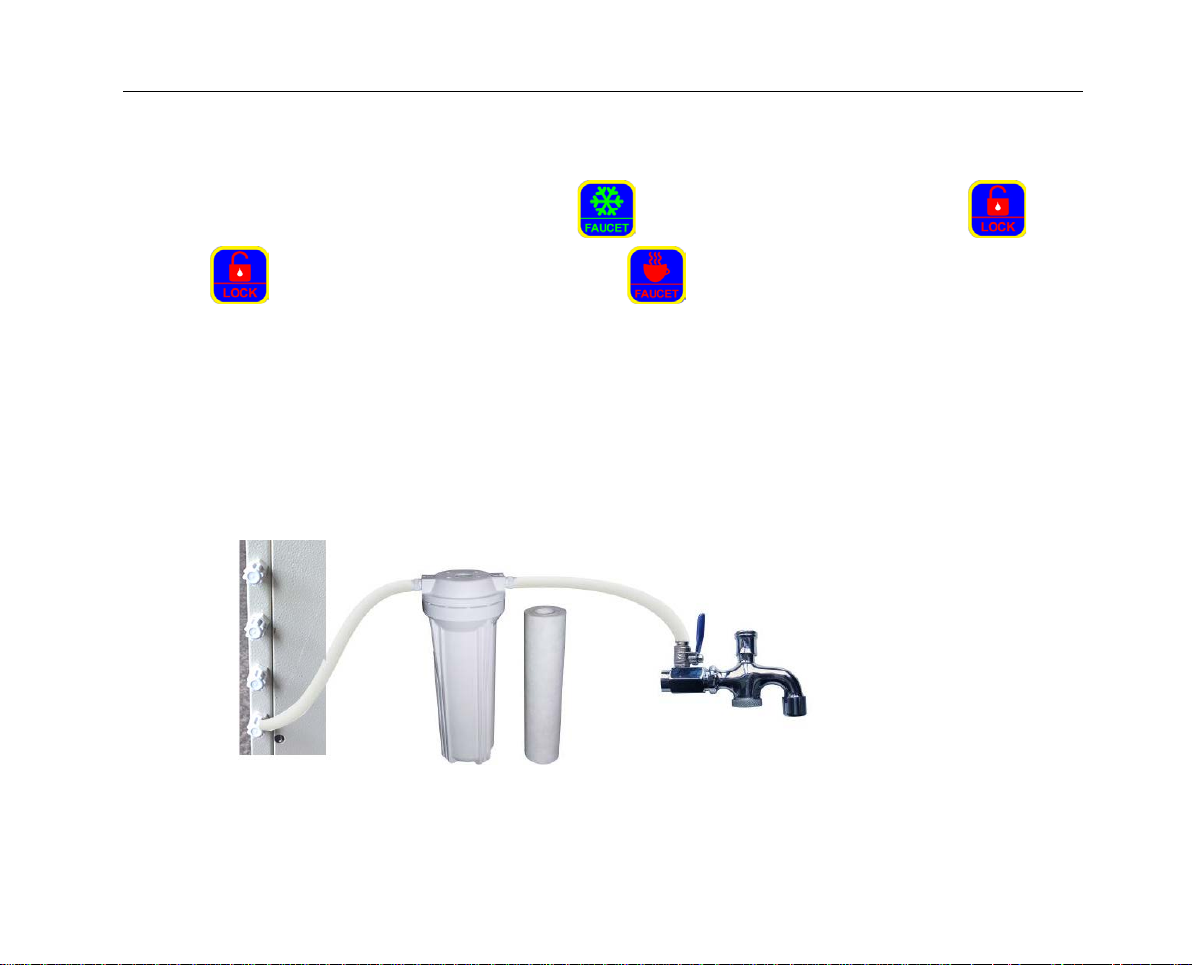

Use the enclosed water pipe kits to connect with city water input. Do not use
any old water pipelines to connect to the unit.
When moving the machine, please unplug the power cord and empty water in all tanks. Do not tilt the
machine more than 20º during moving.
People who suffer from any physical or mental incapacity or lack relevant experience and knowledge
may only operate this product under supervision and guidance of someone who is responsible for their
safety.
1

USER’S MANUAL
Keep an eye on children to ensure they will not have fun with this product.
Ⅲ
. PRECAUTIONS
Do not place the unit too close to the wall. Best performance is obtained when the unit is placed at least
50 cm from the wall.
This unit is not for outdoor use.
Avoid prolonged exposure to direct sunlight.
Keeps the unit working in standing position.
Operating voltage must not drop below 10% of standard Power supply. When the unit operates below
this level, the unit becomes noisy with the possibility of overheating. When this occurs, immediately switch
the unit off until the voltage returns to normal.
Avoid prolonged direct eye exposure to ultraviolet device as it may damage the eye.
Prevent children playing with HOT knob to avoid scalding.
This unit is not suitable for use at places with spray water. Do not use spray water to clean the unit.
To prevent the machine from damage caused by freezing, please drain off the remaining water and stop
operating the machine if the environment temperature during its working is below 0℃.
If there is any damage to the power cables, the cables must be repaired or replaced by an authorized
person to avoid danger.
For the condition of operating on uneven ground, a fixer should be mounted to the unit .
Do not place any object on top of the machine. Good ventilation is required to ensure optimum
performance.
2

ATMOSPHERIC WATER GENERATOR
Ⅳ
. MAINTENANCE
Always keep the unit clean. Wipe the outer casing with soft, damp fabric to clean. Use water to clean,
avoid using harsh cleaning agent.
Do not use cleaning agent to clean storage tanks.
Clean air filters regularly to ensure proper air flow.
When machine not use for a longer period of time, drain out all water completely and clean all tanks.
Please follow sterilization process in the user menu.
Ⅴ
. HOW DOES YOUR ATMOSPHERIC WATER GENERATOR WORK?
It is important to be aware that your Atmospheric Water Generator is a humidity and temperature driven machine.
This means the machine totally depends on the level of humidity in the air and the temperature to produce water.
Ideally, the humidity level should be at least 50% or above to achieve the machine’s optimum performance. In
places with lower humidity level, the machine will still produce water but not as quickly, nor as much as in
places with high level of humidity. In the house environment, higher level of humidity tends to be around the
kitchen area, near an open window or in more spacious rooms. This unit also performs well in an air-conditioned
room, but it is recommended to open the window at night to make the room ventilated.
Because your Atmospheric Water Generator works by converting the humidity in the air to water, this unit also
acts as an effective dehumidifier. In areas with high humidity, It not only acts as a good water generator, but also
a perfect dehumidifier to keep you healthy and ensure your home appliances a long service time.
To ensure high quality of drinking water, The Atmospheric Water Generator is utilizing multiple filtration
technologies.
When the air is dry or during cold season, water generation will be slow. At this moment, connection to city
water will make the machine serve as water purifier by utilization of the filtration and sterilization system.
3

USER’S MANUAL
Ⅵ
. FEATURES OF ATMOSPHERIC WATER GENERATOR.
1. Microcomputer
The unit is fitted with a microcomputer, which ensures proper working of internal parts.
The machine has preset hot/cold temperature adjustable functions. Temperature of hot or cold water can preset
according to personal preference.
2. Electronic Sensors
Various electronic sensors are attached to parts such as UV light, heating mechanism and storage tanks. These
sensors ensure that all parts are working properly and warn you should a breakdown or performance
irregularities occur in the machine.
3. Energy Saving Features
To conserve electricity, electronic sensors have been placed in the storage tank to automatically stop the
machine from making more water when the tank is full and hot/cold water reaches the preset data.
4. Child-proof Hot Water Lock Out
The function of hot water lock out is to prevent child from scalding upon touching the water tap.
5. Condensing Coils
The condenser is designed especially and with food class coating to prevent any metal pollution and improve
water production efficiency.
6. Multi-Stage Filtration System
Our dedication to providing high-quality, great tasting water to our consumers is accomplished by our unique
multi-stage filtration system. It can remove odor and infectant.
6.1. Anti-static patented air-filter:
Before air become water drop through condensation, the air must go through anti-bacterial air filter to
4

ATMOSPHERIC WATER GENERATOR
filter out dust particles and effectively block dust in the air from entering the machine.
6.2. LF2 zeolite + active carbon filter at the bottom tank(As per customer”s requirement):
This device can remove organic compound, dust and large particles in the air. It can also reduce ammonia
level in the water.
6.3. Small filter tip at bottom tank : Remove large particles to extend the service time of RO booster pump .
6.4. Multi stage filtration system:
Our filter system not only can produce light alkaline water which is free from filthy dirt, but also
producing tasteful purified water with mineral which bring health to our body.
7. Ultraviolet Sterilization System
The proprietary ultraviolet lamp treats the water for sterilization to ensure that all bacteria and microorganism
are eliminated. Sterilization process is controlled by microcomputer automatically.
7.1. Top tank UV device: Eliminate bacteria grow in top tank, reduce bacteria level to minimal.
7.2. Cool water out UV device: Eliminating bacteria from dispensing tubing. To ensure water is safe to drink.
7.3. Filtration system UV device: Eliminate bacteria in the water coming out from filtration system, reduce
bacteria level in the bottom tank to minimal.
8. Water Recirculation
Our patented exclusive technology ensures that stored water remains fresh and clean and avoids second
pollution.
9. Overheat Protector
Overheat protector offers further protection for your machine. In case of overheat in hot pot during heating
process, this protector will automatically shut off heating device.
10. Novel and Noble Body
The attractive modern design together with digital touch screen makes the machine easy to operate and more
options to select personal preference.
5

USER’S MANUAL
Ⅶ
. OPERATING YOUR ATMOSPHERIC WATER GENERATOR
By following these simple instructions and simple maintenance procedures, your Water Generator should give
you years of trouble-free operation while producing the most maximum amount of pure, high-quality, drinking
water that is not only healthy, but also beneficial to your health.
Please read this operation manual carefully before you start the machine. By reading and following the simple
manual, you will familiarize yourself with your new water machine and all its functions, ensuring yourself of a
machine constantly operating at its’ optimum level.
1. DIGITALTOUCH SCREEN FUNCTION
1.1. Screen Indication
6

ATMOSPHERIC WATER GENERATOR
1.1.1. Digital Touch Screen Icon Funciton
1.1.1-1. Screen Indication
1.1.1-2. From the top to bottom are as follows, Booster bump icon indicator, Heating function, Cooling function,
Water generating indicator.
1.1.1-3. Water level in the top tank and bottom tank(top tank represents water level in the top tank, bottom tank
represents water lever in the bottom tank)
1.1.1-4. Cold water dispensing indication
1.1.1-5. Mode icon
1.1.1-6. Adjustment icon
1.1.1-7. Hot water dispensing indication of unlock
1.1.1-8. Hot water dispensing indication
1.1.1-9.“UV1”、“UV2”、“UV3” represent the one in the top tank, cold water outlet, the one in the filtration
system separately. “ ”light on means its working , “ ”flashing means the relevant UV is
malfunction.
1.1.1-10. Temperature indicator
1.1.1-11. Humidity indicator
1.1.2 Operation Of Icon Function
1.1.2-1. Cold water spout dispense icon ：Continuous light pressing the icon will dispense cold water.
1.1.2-2. Hot water unlock indicator ：when hot water is needed, press unlock icon to unlock then keep
pressing unlock icon until hot water dispensing icon flashing.“”
1.1.2-3. Hot water dispenser icon ：if water is needed, please operate the machine according to“1.1.2-2”，
7

USER’S MANUAL
when the icon“ ”flashes，continuously soft press the icon“ ”dispenser water.
1.1.2-4. Ajdustment icon ：Enter function setting choose function and make adjustments.
1.1.2-5. Hold on the mode icon ：to select function: Select function needed to be adjueded
STDBY-ON / OFF：soft press the icon of power-saving, soft press the icon of“ ”is to switch its
on and off. When the machine is STDBY-ON,, the machine will start to work in a energy-saving mode.
HEAT- ON / OFF：indicates present heating funciton on or off，soft press the icon of“ ”to turn
it on or off；
HOT-(75 ~ 95)：indicates present pre-set hot water temperature,soft press the icon“ ”will make
adjustment range from 75~95℃；
HOT—000 to 100：indicates hot water temperature.
COOL- ON / OFF：indicates present cooling function on or off, press “ ”to make desire
adjustment.
COLD-(4 ~ 10)：indictes present pre-set value of cold water temperature, soft press the icon
“”to make desire adjustment from 4~10℃.
COOL—0 至50：indicates the temperature of cold water.
AWG-ON / OFF：indicates generating function on or off, soft press the icon “ ” to stop or
8

ATMOSPHERIC WATER GENERATOR
start the function；
FLT1--***, FLT2--***，FLT3--***，RO--***：indicates filter system usage time periods（it can be reseted to
zero when the number is not zero）， soft press the icon of “”will clear the time set（indicates DAYS
000）。
TEMP C/F *：shows the present centigrade & fahrenheit temperature, soft press the icon“ ”will
convert each other. ；
RESET：soft press adjustment icon “ ”to reset machine back to original factory setting ；
DEFT--***：Indicates the temperature of condenser.
1.1.3 Operational Stage
1.1.3-1. First time plug in the machine there will be a “ beep” sound, the display screenwilllight on. The
compressor will start working thee minutes later, at the same time, the compressor icon will show the
machines is functioning normally when the icon”GENERATING” flashes. To turn off the machine, keep
soft pressing the “POWER”KEY, which will turn off the machine immediately.
1.1.3-2. During the first few hours after the machine start working, there will not be any hot and cold water
available in the water tanks of the machine because of with liited water. Only when it reaches to the
second level among water level, it will start to generate hot and cold water.(under normal condition, the
machine takes one full day to fill up all the tanks, depends on local condition of temperature and
humidity)
1.1.3-3. When the machine has enough water, soft press the “”icon, and then soft press“ ”icon to
select options to adjust. When heating is on, the “HOT” in red color light will turn on, light turns off
when fuction is off. This will happen when there is enough water and start heating. It will not stop until
the temperature reached the pre-set level. The icon of “HEATING” will flash, which means it is heating.
And it will stop heating once it reached to the pre-set temperature..
9

USER’S MANUAL
1.1.3-4. When the machine has enough wter, soft press the“ ”icon and, then pressand the npress“ ”
to select options to adjust. When the “COOLING” is on. Its light is on. If it is shut down, the light is off.
Only when it is met the pre-set condition, the icon of COOLING flashes, which means it is cooling.
When the water temperature is below the pre-set one, it will stop cooling. If cooling function is canceled,
it will stop cooling whatever water level or temperature it is.
1.1.3-5. Usually, when heating and cooling fnction is working, the hot&cold water temperaturewillmaintain
within the pre-set temperature range. Temperature can be adjust by soft press “”soft press
“”then make adjustment on preferred temperature level. Hot water range from ：75℃～95℃，
cold water range from ：4℃～10℃.
1.1.3-6. After the filter system has been used for a period of time, the icon of “FILTER” will flash, which is to
remind owver to replace or clean up the filters(please refer to filter cleaning and maintenance menu).
After cleaning or replacement, soft press “”key and re-set number to zeroT-000, soft press
FILTER ***，soft press“”again and the icon will stop flashing. Timer has been re-set.
1.1.3-7. If cold water is needed, continuously soft press the icon “”； If hot water is needed, soft press the
icon of “”until the icon of hot water dispenser flashes, which indicates it is unlocked,, then hot
water will come out when press the icon of “”the icon of “ ”is unlocked，and then soft
press the icon“”which will dispenser water.
10

ATMOSPHERIC WATER GENERATOR
2. SETTING UP
2.1. Please confirm parts in the package are of complete set. The unit should be placed on solid and level ground,
and be located in place with good air circulation. The unit should be placed no less than 50 cm from the wall.
Push down the lever of braking wheel to get the machine in fixed position.
2.2. Do NOT connect it to power within the first half hour, letting the machine in a standing position to make
sure the refrigerant return to compressor. Upon arrival, instant plugging to power may damage the
compressor.
2.3. Insert into electrical socket capable of handling no less than 40A.
2.4. If required to connect to city water supply, you may purchase our related optional spare parts .
Please turn to user manual “operating procedure”, section 11 and follow the instructions.
3. OPERATIONAL STAGE
3.1. First time plug in the machine there will be a “beep” sound, the display screen will light on. The compressor
will start working three minutes later, at the same time, the icon “GENERATING” showed in the screen will
flash which means the compressor is functioning normally. Turn off STANDBY function by following the
above steps to switch off the machine when it is needed.
3.2. During the first few hours after the machine start working, with limited amount of water, hot & cold water is
available until the water level is up to level 2 showed as “③”in above picture . ( For the first use , the
machine takes one full day to fill up all the tanks, depends on weather condition).
3.3. When the machine has enough water, soft press the “ ” icon to switch on/off heating function, and then
11

USER’S MANUAL
press “ ” to select options to adjust. When heating is on, the “HEATING” will light on, light turns off
when function is off. This will happen when the water level is no less than 2 . It means the machine starts
heating. It won’t stop until the temperature reached the pre-set level. When the machine is in heating
process, turning off the heating function will light off the HEATING icon .Under this circumstance,the
machine will stop heating for any temperature or water level.
3.4. When the machine has enough water, soft press the “ ” icon to turn on the cooling function , then soft
press “ ” to select options to adjust. When cooling is on, the “Cooling” icon will light on, light turns
off when function is off. This will happen when the water level reach pre-set level which means the machine
starts cooling. It will stop antomatically when the temperature lower than the pre-set level. During cooling
process, The”Cooling”icon will light off when the cooling function is turned off.And the machine will stop
cooling for any temperature or water level.
3.5. Usually, when heating and cooling function is working, the hot & cold water temperature will maintain
within the pre-set temperature range. Temperature can adjust by soft press “ ” then make adjustment
on preferred temperature level. Hot water range from 75 ℃～95 ℃, cold water range from 4℃～10 ℃。(by
follows 1.2-5-3 and 1.2-5-5)
3.6. After the filter system has been used for a period of time . The R-FILTER icon will flash(timing starts from
the usage time of RO) (indicated as ①
, not ②). This is to remind owner to replace or clean up the filters
(please refer to filter cleaning and maintenance menu).After cleaning or replacement finish, soft press
“” key and choose the mode to RO_ ***, then soft press “ ” again to re-set number to zero
12

ATMOSPHERIC WATER GENERATOR
showing RO-000 and the FILTERING icon showed in the screen will stop flashing. Timer has been
re-set.(Refer to 1.2-5-7)
3.7. For cool water dispensing, keep pressing on the “ ” key; For hot water dispensing, press “ ” key
until “ ” icon flashes to unlock spout, then press “ ” to release hot water.
3.8. For energy saving purposes, water level sensors are installed, when water filled to certain level, the machine
will stop generating water.
3.9. Areas with very low humidity and low temperature can hook up city water supply to the machine. Under
extreme weather condition, the machine still can produce tasteful healthy prinking water. Installation
instructions are as follow (optional purchase item):
13

USER’S MANUAL
3.10. Brand new machine under first time use need to follow “Machine cleaning and sterilizing” procedure and
remove odor from machine parts.
CLEANINGAND REPLACEMENT OF FILTERS
LCD DTS
screen
Water tap
Drip tray
Wheel
Hot Water
Drain
Cold Water
Drain
Waste Water
Drain
City Water
Input
RO membrane
Carbon filter
First stage filter
cup
Second stage
filter cup
Third stage filter
cup
14

ATMOSPHERIC WATER GENERATOR
The above structure and filtration system is for reference only,may change without prior notice.
Recommended Timing for Filter Replacement (It might be verified according to different water consumption.
The timing below is based on 10 liters water consumption per day.):
1. LF2 filter cup Cleaning every month , replacement every 3-6months
2. First stage filter cup (CTO) 6 months
3. Second stage filter cup(RESIN) 6 months
4. Third stage filter cup(CTO) 6-12 months
5. Carbon filter 9-12 months
6. RO membrane 24 months
7. Top tank UV light bulb 8000H or one year
8. Reflux UV light bulb 8000H or one year
9. Filter UV light bulb 8000H or one year
Note:
The above recommended service timing is for reference only due to different evrionment condition in
different countries..
After a long period of service, we recommend that you replace the filters and UV light , clean and stelize the
15

USER’S MANUAL
cold tank and bottom tank as well, to ensure that your unit will always produce the cleanest and purest drinking
water effectively.
4.1. Cleaning
4.1.1. Cleaning ofAir Filter
Please clean air filter regularly according to the air pollution situation in order to ensure proper air supply.
Take off air filter and rinse in clean water or blow in the air to remove dirt and then replace back after
natural drying .(as shown in diagram 4.1.1-1，4.1.1-2,4.1.1-3).
4.1.1-1 4.1.1-2 4.1.1-3
16

ATMOSPHERIC WATER GENERATOR
4.1.2. Cleaning of Bottom Tank
①Unplug the power cord; Detach the panel
②pull out the PIN of water level sensor, and unplug the water outlet pipe and reflux pipe , then take out bottom
tank (diagram 4.1.2-2,4.1.2-3,4.1.2-4);
③Take out the bottom tank filter and replace the zeolite inside with a new one. (diagram 4.1.2-5,4.1.2-6);
④Rinse the bottom tank with clean city water;
4.1.2-1 4.1.2-2 4.1.2-3 4.1.2-4
4.1.2-5 4.1.2-6 4.1.2-7 4.1.2-8
The above cleaning procedure recommend to use city water supply. Install back all parts after finish.
17

USER’S MANUAL
4.2. Sterilization
The brand new machine should be sterilized after one week service.
4.2.1. Sterilization solution: Prepare a 70 Liter clean container and mix 60 liters of clean water with 0.36 liter of
sterilization liquid (30% hydrogen peroxide sterilization liquid) Formular:
0.2%=ρ30%hydrogen peroxide×V30%hydrogen peroxide/(ρ30% hydrogen peroxide×V30% hydrogen peroxide+ρwater×Vwater)×100%
Note：ρ＝m/V
ρ—density, V—volume, m—quality
4.2.2. Unplug the power cord ;
Open the top cover of machine (diagram 4.2-2) , then open the top tank cover (diagram 4.2-3); Mix
sterilization solution according to ratio and pour into the top tank (diagram 4.2-4); Check to make sure
tank cover closed properly and tight,then put plastic machine cover back ;
4.2.3. Plug the power cord,Soft touch the “ ” icon ,then keep touching the “ ” icon to unlock, then
touch “ ”to respectively dispense about one liter of sterilization solution (diagram 4.2-5, 4.2-6, 4.2-7).
Unplug the power cord again and Drain off about 0.5L of the remaining solution from hot water drain outlet at
the back (diagram 4.2-8); Keep the remaining solution soaking in the top tank for more than 2 hours (or as per
instruction of the solution);
4.2.4.After the soaking period finished, turn on machine, touch the “ ” icon, and then continue
touching “ ” icon to unlock then touch the “ ” icon to respectively dispense about 2L of
sterilization solution; Shut down machine, drain out the rest of the water from the cold and hot water outlet
in behind;
18

ATMOSPHERIC WATER GENERATOR
4.2.5. Fill city water into bottom tank. Turn on the unit and have it running automatically till top
tank is full of water;
4.2.6. Touch the “ ” icon and then continue touching “ ” icon to unlock then touch the
“” icon to repectively dispense about 2L of water; Shut down the unit. Drain off all remaining
water from cold and hot water drain outlet at the back (diagram 4.2-8);
4.2.7. Repeat the above steps in 5 and 6 in order to clean off the remaining solution in top tank.
Suggest twice the same operation.
4.2-1 4.2-2 4.2-3 4.2-4
4.2-5 4.2-6 4.2-7 4.2-8
4.3. Replacement
4.3.1. Replace a Filter
①Switch power off and detach the lower panel; (diagram 4.3.1-2, 4.3.1-2)
19
