Arachnid CMX5000 User manual

1.800.399.4402
FAX: [phone]
Please have your model number ready when calling.
DMI Sports Inc.
1300 Virginia Drive, Suite 401
Ft. Washington,PA,19034
www.dmisports.com
CRICKETMAXX 5.0
ELECTRONIC DARTBOARD
MODEL# CMX5000

For any warranty issues or problems,
DO NOT RETURN THIS PRODUCT TO THE STORE WHERE PURCHASED
WARRANTY: This DMI electronic dartboard is guaranteed against defects in
materials and workmanship for 90 days. (Note: flights, shafts and points wear out
and/or break as a normal part of play; this is not a defect and is not covered under
the guarantee.) This guarantee is void if merchandise is misused, abused,
neglected, shopworn, scratched or if you cannot provide a valid proof of purchase.
Opening this dart game will render your warranty null and void

Setup / Mounting Instructions
Choose a location to hang the dartboard where there is about 10 feet of open space in front
of the board. The “toe-line” should be 7’ 9 1/4” from the face of the dartboard. (8 feet away to
observe soft tip rules) Since this dartboard is powered with an AC adapter, you may want to
mount it close to an electric outlet for convenience.
The mounting holes on this dartboard set are 16” apart so it can be mounted securely on wall
studs in your home. Locate a wall stud and place a mark 82 ¼ ” from the floor. Measure 16”
from your first mark (staying level with the first mark) and place the second mark on the wall,
which should be over another wall stud (refer to diagram on next page).
Screw 2 mounting screws in the center of the studs using the marks you made as guides. Be
sure the screws are level to ensure an accurate playing surface. If not mounting into studs,
be sure to use drywall anchors or other securing hardware appropriate to the wall you are
using.
Mount the dartboard on the wall by lining up the hang holes on the back with the screws (see
diagram below). It may be necessary to adjust the screws until the board fits snugly against
the wall. If you want to mount the dartboard even more securely to the wall, you can fasten
four screws through the holes located in the catch ring area (the area outside the scoring
segments).
Center of bullseye should be 5’ 8” from the ground.
Plug the A/C adapter into the wall outlet and into the jack at the bottom right of the dartboard
and you’re ready to play.
16” 
Hang Brackets

Dartboard Functions
POWER button -Located on the lower right corner of the dartboard (when doors are open).
Be sure the AC Adapter is plugged into the jack on the right side of the dartboard. Press the
POWER button to turn game on or off.
GAME GUARD button – Press to activate Game Guard Feature
SOUND button –Press continually to set desired volume level or mute.
DOUBLE/MISS button - This button is used to activate the Double In/Double Out and Master
Out options for the “01” games. This function is only active when selecting 301, 401, etc.
games. The MISS feature is active during play of any game. Press button to register a
“missed” dart. Player can press when dart lands outside target area so computer registers a
thrown dart.
DART-OUT/SCORE button - The dart-out feature is active only during the “01” games (301,
401, etc.). When a player’s score falls below 160, he/she can press the DART OUT button to
get a suggestion from the dartboard as to the 3 darts needed to finish the game. Note:
doubles and triples are indicated with 2 and 3 dashes to the left of the number respectively.
The SCORE feature allows player to access score not current on display.
BOUNCE OUT button - Decide before play if you want to count darts that do not remain in
board (“bounce-outs”) or not. If not, simply press the BOUNCE OUT button immediately after
a bounce out occurs to deduct the score that registers.
SOLO PLAY button – Press to activate Solo Play feature where you can play against the
computer. Press continually to cycle through the 5 different skill levels.
X
X
82 ¼”
Wall Studs
7’ 9 ¼”
Toe
Line
5’ 8” from Floor
to center of
Bullseye
Dartboard

PLAYER/PAGE button - This button is used at the start of each game to select the number
of players you want to play the game. In addition, this button allows players to see other
player scores of not on active display. This dartboard keeps track of scores for up to 8
players.
GAME button -Press to page through the on-screen game menu and select game.
SELECT button - Press to select various difficulty settings for games. Many games contain
several difficulty options that can be accessed by pressing this button.
START/HOLD button - This multi-function button is used to:
•START the game when all options have been selected.
•HOLD to put dartboard in HOLD status between rounds to allow player to
remove darts from the target area.
RESET button – Press to clear display and reset dartboard to opening sound.

E-BRISTLE PLAY SURFACE
This dart board utilizes the E-BRISTLE target playing surface which allows for both Soft tip
and Steel tip dart play.
Traditional steel tip dart play combined with the modern convenience of electronic scoring
gives you the best of both worlds! The playing surface plays and feels just like the natural
sisal bristle dartboard.
E-Bristle dartboards are also a great choice for Soft tip dart players. The playing surface
provides a smooth quiet dart playing experience- The way the sport was meant to be played!
No longer will you experience unpleasant crashing sounds from darts making impact on
plastic targets. Additionally, there are no small holes in the playing surface. Darts have the
maximum amount of surface area to strike upon. This minimizes the chances of deflections
and bounce outs.
Please use very special caution when playing with darts (especially steel tip darts.)
The steel tip points are sharp and can cause harm. Dart play should always be
monitored under close adult supervision.
Interactive Heckler® Feature
Your electronic dartboard includes an exciting interactive Heckler® feature that emits
rewarding comments of praise for high scoring darts and taunting insults for poorly thrown
darts. The fun interactive comments are sure to add plenty of enjoyment to your dart game.
There are four levels to choose from to control how frequent you will hear these interactive
sound effects:
FREQUENCY LEVELS
Level 4: Every throw -All throws will include an interactive sound effect
Level 3: Frequently -Frequent interactive sound effects
Level 2: Occassional -Occassional interactive sound effects
Level 1: OFF -Turns OFF the interactive Heckler® sounds
The default setting when the dartboard is turned on is Level 4 (Every Throw) Players do
have the ability to change the frequency level while a game is in process. Simply press the
Heckler® button to change the frequency level.
IMPORTANT! The interactive Heckler® feature can only be used with standard games of
Cricket and ’01 (301,501 etc)

Electronic Dartboard Operation
1. Press the POWER switch to activate dartboard. A short musical introduction is played
as the display goes through power-up test.
2. Press GAME button until desired game is displayed (see Game Menu on
page 23).
3. Press DOUBLE button (optional) to select starting and/or ending on doubles or
Master Out (used only in 301 - 901 games). This is explained in the game rules
section.
4. Press PLAYER button to select the number of players (1, 2, ... 8). The
default setting is 2 players.
5. Press START/HOLD button (red) to activate game and begin play.
6. Throw darts
•The dart indicator display is located above the numbers in the LED displays.
The lights indicate the number of darts thrown in the round.
•When all 3 darts have been thrown, a voice command will indicate
“Remove Darts” and the score will flash. The darts can now be removed
without affecting the electronic scoring. When all darts are removed from
the playing surface press the START button to go to next player. Voice
command will indicate which player is up. Also, the player indicator lights
will illuminate to show which player’s turn it is.
Display Protective Film
This electronic dartboard may have a clear film over the entire display area and over the
button area to prevent scratching during shipping. It is recommended that you remove this
film so display is easier to read. To remove, simply lift edge, peel off, and discard.

Game Guard Feature
After the START button has been pressed and play has begun, the GAME GUARD feature
can be activated. When the button is pressed, all of the keys will ‘lock’. When Game Guard
is active, a misguided dart hitting a button will not affecting your game. To deactivate the
Game Guard, simply press the button again and the keys will unlock.
Solo Play Feature
This exciting feature allows single player to play against the computer at one of five different
levels of skill! Only 1 player can compete against the Solo Play competitor at a time.
The Solo Play feature adds a level of competition to normally routine practice sessions.
To activate the Solo Play opponent:
1. Select the Game you wish to play
2. Press Solo Play button
Select Solo Play opponent skill level by pressing the SOLO PLAY button continually
Level 1 (C1) Professional
Level 2 (C2) Expert
Level 3 (C3) Advanced
Level 4 (C4) Intermediate
Level 5 (C5) Beginner
3. Press START to begin play
When play begins:
The ‘human’ player throws first. After 3 darts are thrown, go to the board to take darts
out and press START to change to the next player (SOLO PLAYER). Watch as the
SOLO PLAY opponent’s dart scores are registered on the display. After the
SOLO PLAYER opponent completes his round, the board will automatically reset for
the “human” player. Play continues until one player wins.
Caring for your Electronic Dartboard
Do not use excessive force when throwing darts. Throwing darts too hard will cause
frequent tip breakage and cause excess wear on the board.
Turn darts clockwise as you pull them from the board. This makes it easier to remove
darts and extends the life of the tips.
If you need to replace your AC adapter, use only an AC adapter (available directly from
DMI Sports) for this dartboard. Use of an AC adapter from other than DMI may cause
electrical shock, fire, and damage to the electronic circuits and will void your warranty.
Do not spill liquids on the dartboard. Do not use spray cleaners, cleaners that contain
ammonia or other harsh chemicals, as they may cause damage.
SOLO PLAY
Skill Levels

Game Rules
Your electronic dartboard is loaded with games and options. The rules for each game are
detailed below in the order they appear on the LED display when paging through the games.
An illustration of the LED displays is indicated next to the game description for your
reference. Please note the characters may appear slightly different than illustrated here.
301
This popular tournament and pub game is played by subtracting each dart from the starting
total until the player reaches exactly 0 (zero). If a player goes past zero it is considered a
“Bust” and the score returns to where it was at the start of that round. For example, if a
player needs a 32 to finish the game and he/she hits a 20, 8, and 10 (totals 38), the score
goes back to 32 for the next round.
In playing the game, the double in / double out option can be chosen (double out is the most
widely used option). Simply press the “DOUBLE” button to change this setting. LED
indicators will display your current setting:
•Double In - A double must be hit before points are subtracted from the total.
In other words, a player’s scoring does not begin until a double is hit.
•Double Out - A double must be hit to end the game. This means that an
even number is necessary to finish the game.
•Double In and Double Out - A double is required to start and end scoring
of the game by each player.
•Master Out - A double or triple is required to finish the game.
Dart-Out Feature (“01” games only)
This electronic dartboard has a special “Dart Out” feature. When a player requires less than
160 to reach zero, the estimate feature becomes active. The player can press the DART
OUT button to view the darts necessary to throw to finish the game (reach zero exactly).
Doubles and triples are indicated with 2 or 3 lines to the left of each number respectively.
Adjustable Difficulty Settings for 301 include 401, 501, 601, 701, 801, and 901. To
change to these more difficult settings, simply press the SELECT button. Each option is
played exactly as outlined for 301 with the exception of the starting total; 401 has starting
total of 401 points; 501 has starting total of 501 points and so on up to 901.

CRICKET
Cricket is a strategic game for accomplished players and beginners alike. Players throw for
numbers best suited for them and can force opponents to throw for numbers not as suitable
for them. The object of Cricket is to “close” all of the appropriate numbers before one’s
opponent while racking up the highest number of points.
Only the numbers 15 through 20 and the inner/outer bullseye are used. Each player
must hit a number 3 times to “open” that segment for scoring. A player is then awarded the
number of points of the “open” segment each time he/she throws a dart that lands in that
segment, provided their opponent has not closed that segment. Hitting the double ring
counts as two hits, and the triple ring counts as 3 hits.
Numbers can be opened or closed in any order. A number is “closed” when the other
player(s) hit the open segment 3 times. Once a number has been “closed”, any player for the
remainder of the game can no longer score on it.
Winning - The side closing all the numbers first and accumulating the highest point total is
the winner. If a player “closes” all numbers first but is behind in points, he/she must continue
to score on the “open” numbers. If the player does not make up the point deficit before the
opposing player(s) “closes” all the numbers, the opposing side wins. Play continues until all
segments are closed - the winner is the player with the highest score.
Cricket Scoring Display
This dartboard utilizes a dedicated scoreboard that keeps track of each player’s segment
status when playing Cricket. The exclusive Tournament Cricket Scoring display on this
dartboard utilizes traditional X and O style characters to track ‘marks’. When Cricket is
selected, the lights on the Cricket scoreboard are not lit – they will illuminate as ‘marks’ are
scored. There are 3 separate lights within each number (15 through 20 and bullseye).
During play, one of the status lights will turn on as a segment is hit. If a double or triple of an
active number is hit, 2 or 3 lights will turn on respectively.
NO-SCORE CRICKET
(Press SELECT button when Cricket is displayed)
Same rules as standard Cricket except there is no point scoring. The object of this version is
to be the first to simply “close” all the appropriate numbers (15 through 20 and the bullseye).
1st Mark
/ X ⊗
2nd Mark
3rd Mark

SCRAM
(For 2 players only)
This game is a variation of Cricket. The game consists of two rounds. The players have a
different objective in each round. In round 1, player 1 tries to “close” (score 3 hits in each
segment - 15 to 20 and bullseye). During this time, player 2 attempts to rack up as many
points in the segments that the other player has not yet closed. Once player 1 has closed all
segments, round 1 is complete. In round 2, each player’s roles are reversed. Now, player 2
tries to close all the segments while player 1 goes for points.
The game is over when round 2 is complete (player 2 closes all segments). The player with
the highest point total is the winner.
CUT-THROAT CRICKET
Same basic rules as standard Cricket except once scoring begins, points are added to your
opponent(s) total. The object of this game is to end up with the fewest points. This variation
of Cricket offers a different psychology to the players. Rather than adding to your own score
and helping your own cause as in standard Cricket, Cut-Throat offers the benefit of racking
up points for your opponent(s), digging him in a deeper hole. Competitive players will love
this variation!
ENGLISH CRICKET
(For 2 players only)
This game is another variation of Cricket that requires precision dart throwing. The game
consists of two rounds. The players have a different objective in each round. During the first
round, player 2 attempts to throw bullseyes – with the objective of needing 9 to complete
round 1. Double bull (red center) counts as 2 scores. Any throw that does not hit bullseye is
credited to player 1’s point total. For example, if player 2 throws a 20, a single bullseye, and
a 7 during his/her turn, player 2 will have one bullseye subtracted from the 9 needed, and 27
points will be credited to player 1’s point total. Player 2 must exhibit accurate bullseye dart
throwing!
Meanwhile, player 1 attempts to score as many points as possible during this first round.
Doubles and triples count 2x and 3x their respective values. However, to score points, player
1 must score over 40 points in each turn (3 throws) to amass points against player 2. Only
those points over 40 are counted toward the cumulative score. Player 1 must also exhibit
precision dart throwing and avoid hitting any bullseyes during this first round because any
hits scored by player 1 in the bullseye area will be subtracted from player 2’s needed total of
9 bullseyes.
Once player 2 reaches the objective of getting 9 bullseyes, the roles are reversed for round
two.

ADVANCED CRICKET
A difficult version of cricket recommended for the advanced player. Players must close out
the segments (20,19,18,17,16,15 and bullseye) by using only triples and doubles. In this
challenging game, doubles segments count as 1x the number, and triple segments count as
2x the number. The bullseye scoring is the same as in standard cricket. The first player to
close out the numbers with the most points is the winner.
SHOOTER
This game tests the players ability to “group together” darts within a segment during each
round of play. The computer will randomly select the segment the players must hit for each
round and display the flashing number in the display.
Scoring is as follows: Single segment = 1 Point
Double segment = 2 Points
Triple segment = 3 Points
Single Bullseye = 4 Points
When the computer selects double Bullseye, the outer bull scores 2 points and the inner bull
scores 4 points. The player with the most points at the end of the selected rounds is the
winner.
Adjustable Difficulty Settings for Shooter include 6 rounds, 7 rounds, ... 12 rounds.
BIG SIX
This game pits player against player to challenge your opponent to hit the targets you select.
Similar to the popular basketball game “HORSE”, players must earn the chance of picking
the next target for their opponent by scoring a hit on the current target first. Single 6 is the
first target to shoot for at the start of the game. Before the game starts, players must
agree on how many ‘lives’ will be used. Within the three throws, player 1 must hit a 6 to
“save” their life. After the current target is hit, the next dart thrown will determine the
opponents target. If player 1 fails to hit the current target within 3 darts, they will lose a ‘life’
and a chance to determine the next target for player 2. In this case, player 2 shoots for the
single 6 – and if it is hit, he can throw for a segment for the next round.
Singles, doubles and triples are all separate targets for this game. The object of the
game is to force your opponent into losing ‘lives’ by selecting difficult targets for your
opponent to hit such as “Double Bullseye” or “triple 20” The last player with a ‘life’ left is the
winner.
Adjustable Difficulty Settings for Big Six include 3 ‘lives’, 4 ‘lives’, ... 7 ‘lives’.

OVERS
The object of this game is to simply score higher (“over”) than your previous three dart total
score. Before play begins, players choose the amount of ‘lives’ to be used. When a player
fails to score “over “ their previous three dart total, they will lose one ‘life’. When a player
“equals” the previous three dart total, a ‘life’ will also be lost. The LED display on the right
will indicate remaining ‘lives’. The last player with a ‘life’ remaining is the winner.
Adjustable Difficulty Settings for Overs include 3 ‘lives’, 4 ‘lives’, ... 7 ‘lives’.
UNDERS
This game is the opposite of “Overs” Players must score less (“Under”) than their previous
three dart total. The game begins with 180 (highest total possible). When a player shoots
higher than his previous three dart total, he will lose one ‘life’. Each dart that hits outside the
scoring area, including bounce outs will be penalized with 6o points added to your score.
This will be added at the end of the round when the START/HOLD button is pressed. The
last player with a ‘life’ remaining is the winner
Adjustable Difficulty Settings for Unders include 3 ‘lives’, 4 ‘lives’, ... 7 ‘lives’.
COUNT-UP
The object of this game is to be the first player to reach the specified point total. Point total is
specified when the game is selected. Each player attempts to score as many points as
possible per round. Doubles and triples count 2 or 3 times the numerical value of each
segment. For example a dart that lands in the triple 20 segment is scored as 60 points. The
cumulative scores for each player will be displayed in the LED display as the game
progresses.
Adjustable Difficulty Settings for Count-Up include 400, 500, 600, 700, 800, 900, and
999. To change to these more difficult settings, simply press the SELECT button. Each
option is played exactly as outlined above with the exception of the total necessary to win the
game. For example, in Count-Up 500, the first player to reach 500 points is the winner.
HIGH SCORE
The rules for this competitive game are simple - Rack up the most points in three rounds
(nine darts) to win. Doubles and triples count as 2x and 3x that segment’s score
respectively.
Adjustable Difficulty Settings for High Score include 4 rounds, 5 rounds, ... 14 rounds.
Each option is played exactly as outlined above with the exception of the number of rounds in
the game. For example, in High Score 7 rounds, the player with the most points after 7
rounds is the winner.

ROUND-THE-CLOCK
Each player attempts to score in each number from 1 through 20 and bullseye in order.
Each player throws 3 darts per turn. If a correct number is hit, he/she tries for the next
number in sequence. The first player to reach 20 is the winner. The display will indicate
which segment you are shooting for. A player must continue shooting for a segment until it is
hit. The display will then indicate the next segment you should shoot for.
There are many difficulty settings available for this game. Each game has the same rules,
the differences are detailed as follows:
•
ROUND-THE-CLOCK 5 - Game starts at segment number 5
•
ROUND-THE-CLOCK 10 - Game starts at segment number 10
•
ROUND-THE-CLOCK 15 - Game starts at segment number 15
Since this game does not utilize point scoring, the double and triple rings count as single
numbers.
ROUND-THE-CLOCK Double - Player must score a Double in each segment from 1 through
20 in order.
•
ROUND-THE-CLOCK Double 5 - Game starts at double segment 5
•
ROUND-THE-CLOCK Double 10 - Game starts at double segment 10
•
ROUND-THE-CLOCK Double 15 - Game starts at double segment 15
ROUND-THE-CLOCK Triple - Player must score a Triple in each segment
from 1 through 20 in order.
•
ROUND-THE-CLOCK Triple 5 - Game starts at triple segment 5
•
ROUND-THE-CLOCK Triple 10 - Game starts at triple segment 10
•
ROUND-THE-CLOCK Triple 15 - Game starts at triple segment 15
KILLER
This game will really show who your friends are. The game can be played with as few as two
players, but the excitement and challenge builds with even more players. To start, each
player must select his number by throwing a dart at the target area. The LED display will
indicate “SEL” at this point. The number each player gets is his assigned number throughout
the game. No two players can have the same number. Once each player has a number, the
action starts.
Your first objective is to establish yourself as a “Killer” by hitting the double segment of your
number. Once your double is hit, you are a “Killer” for the rest of the game. Now, your
objective is to “kill” your opponents by hitting their segment number until all their
“lives” are lost. The last player to remain with lives is declared the winner. It is not
uncommon for players to “team up” and go after the better player to knock him out of the
game.

Adjustable Difficulty Settings for Killer include 7 lives, 8 lives, ... 14 lives. Each option is
played exactly as outlined above with the exception of the number of lives each player has in
the game. In addition, for those who really want a challenge, there are three additional
difficulty settings: Doubles 3 lives, Doubles 5 lives, and Doubles 7 lives. In these games, you
can only “Kill” opponents by scoring doubles in their number segment.
DOUBLE DOWN
Each player starts the game with 40 points. The object is to score as many hits in the active
segment of the current round. The first round, the player must throw for the 15 segment. If
no 15’s are hit, his score is cut in half. If some 15’s are hit, each 15 (doubles and triples
count) is added to the starting total. The next round players throw for the 16
segment and hits are added to the new cumulative point total. Again, if no hits are
registered, the point total is cut in half.
Each player throws for the numbers as indicated in the chart below in order (the LED screen
will indicate the active segment in which to throw). The player who completes the game with
the most points is the winner.
15 16 D 17 18 T 19 20 B TOTAL
Player 1
Player 2
DOUBLE DOWN 41
This game follows similar rules as standard Double Down as described above with two
exceptions. First, instead of going from 15 through 20 and bullseye, the sequence is
reversed which will be indicated on the LED display. Second, an additional round is included
toward the end in which players must attempt to score three hits that add up to 41 points (20,
20, 1; 19, 19, 3; D10, D10, 1: etc.). This “41” round adds an extra level of difficulty to the
game. Remember, a player’s score is cut in half if not successful, so the “41” round presents
quite a challenge!
20 19 D 18 17 T 16 15 41 B TOTAL
Player 1
Player 2
Any Double
Any Triple
Any Double
Any Triple
“41” Round

ALL FIVES
The entire board is in-play for this game (all segments are active). With each round (of 3
darts) each player has to score a total which is divisible by 5. Every “five” counts as one
point. For example 10, 10, 5 = 25. Since 25 is divisible by 5 fives, this player scores 5 points
(5 x 5 = 25).
If a player throws 3 darts that are not divisible by 5, no points are given. Also, the last dart of
each round must land in a segment. If a player throws the third dart and it lands in the catch
ring area (or misses the board completely), he earns no points even if the first two darts are
divisible by 5. This prevents a player from “tanking” the third throw if his first two are good.
The first player to total fifty-one (51) “fives” is the winner. The LED screen will keep track of
the point totals.
Adjustable Difficulty Settings for All Fives include 51, 61, 71, 81, and 91. Each option
is played exactly as outlined above with the exception of the number of points (or fives) it
takes to win the game.
SHANGHAI
Each player must progress around the board from 1 through 20 in order. Players start at
number 1 and throw 3 darts. The object is to score the most points possible in each round of
3 darts. Doubles and triples count toward your score. The player with the highest score after
completing all twenty segments is the winner.
Adjustable Difficulty Settings for Shanghai include the following options:
•
SHANGHAI 5 -Game starts at segment 5
•
SHANGHAI 10 - Game starts at segment 10
•
SHANGHAI 15 - Game starts at segment 15
In addition, we added Super Shanghai as a difficulty option. This game is played exactly as
described above except various doubles and triples must be hit as specified by the LED
display.
Adjustable Difficulty Settings for Super Shanghai include the following options:
•
SUPER SHANGHAI 5 -Game starts at segment 5
•
SUPER SHANGHAI 10 - Game starts at segment 10
•
SUPER SHANGHAI 15 - Game starts at segment 15

GOLF
This is a dartboard simulation of the game golf (but you don’t need clubs to play). The object
is to complete a round of 9 through 18 “holes” with the lowest score possible. The
Championship “course” consists of all par 3 holes making par 27 for a nine hole round or 54
for a round of 18.
The segments 1 through 18 are used with each number representing a “hole.” You must
score 3 hits in each hole to move to the next hole. Obviously, double and triples affect your
score as they allow you to finish a hole with fewer strokes. For example, throwing a triple on
the first shot of a hole it is counted as an “eagle” and that player gets a completes that hole
with 1 “stroke.”
Note: The active player continues to throw darts until he “holes out” (scores 3 hits on
the current hole). The voice announcer will indicate the player that is up - listen carefully to
avoid shooting out of sequence. By the way, there are no “gimmes” in this game!
FOOTBALL
Strap your helmet on for this game! The first thing necessary is to select each player’s
“playing field.” This can be done by throwing a dart or by manually pressing a segment on
the board by each player. This is entirely up to you, but whichever segment is selected
becomes your starting point which carries through the bullseye and directly across to the
other side of the bullseye (see diagram).
For example, if you select the 20 segment, you start on the double 20 (outer ring) and
continue all the way through to the double 3. The “field” is made up of 11 individual
segments and must be hit in order. So, keeping with the example above, you must throw
darts in the following segments in this order:
Double 20 ... Outer Single 20 ... Triple 20 ... Inner Single 20 ... Outer Bullseye ... Inner
Bullseye ... Outer Bullseye ... Inner Single 3 ... Triple 3 ... Outer Single 3 ... and finally a
Double 3.
The First player to “score” is the winner. The LED display will keep track of your progress
and indicate the segment you need to throw for next.

BASEBALL
This dartboard version of baseball takes
a great deal of skill. As in the real game,
a complete game consists of 9 innings.
Each player throws 3 darts per “inning.”

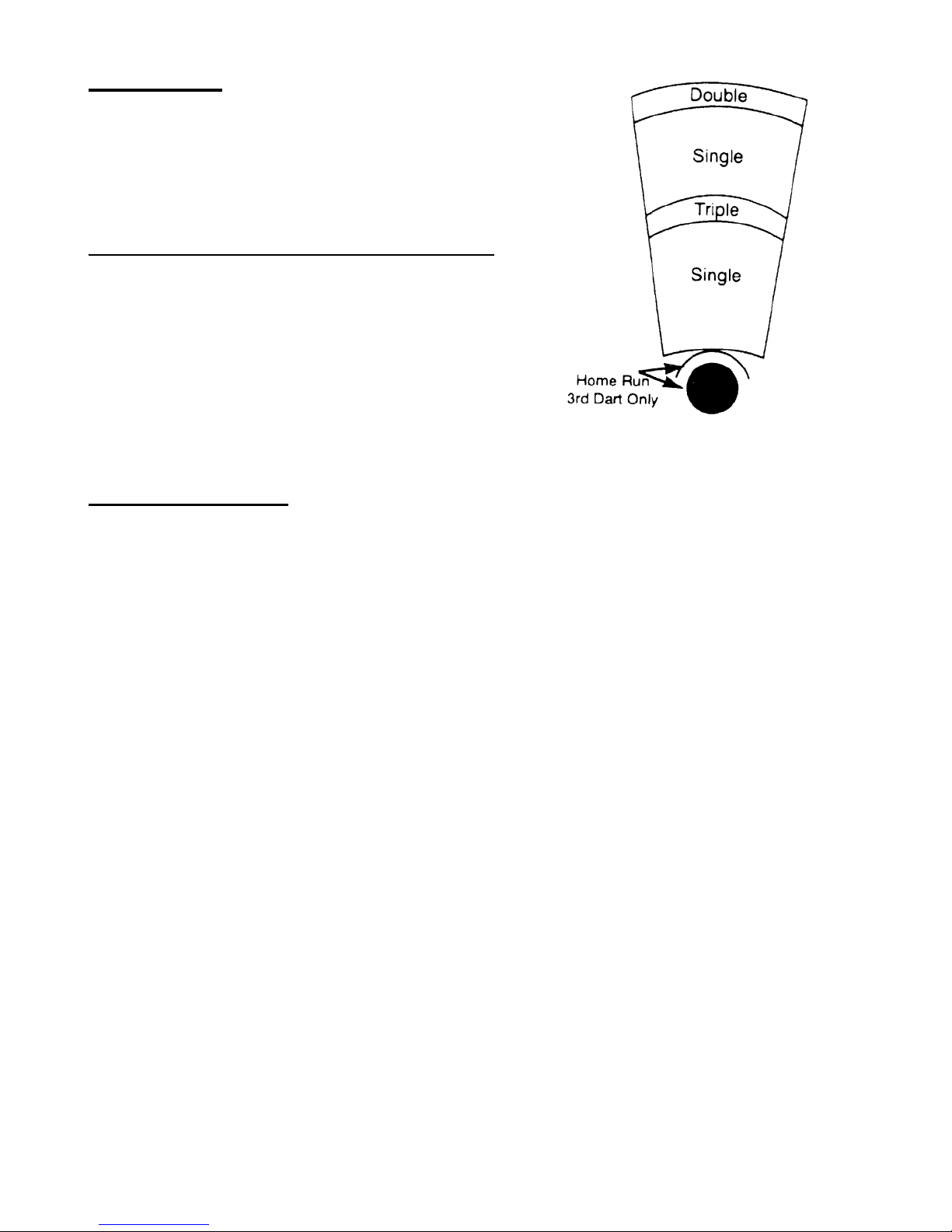

The field is laid out as shown in the diagram.
Segment Result____________
Singles segments “Single” - one base
Doubles segment “Double” - two bases
Triples segment “Triple” - Three bases
Bullseye “Home Run” (can only
be attempted on third
dart of each round)
The object of the game is to score as many runs as
possible each inning. The player with the most runs at the end of the game is the winner.
STEEPLECHASE
The object of this game is to be the first player to finish the “race” by being the first to
complete the “track.” The track starts at the 20 segment and runs clockwise around the
board to the 5 segment and ends with a bullseye. Sounds easy right? What has not yet
been specified is that you must hit the inner single segment of each number to get through
the course. This is the area between the bullseye and the triples ring. And, as with a real
steeplechase, there are obstacles throughout the course to hurdle. The four hurdles are
found at the following places:
•1st fence Triple 13 •2nd fence Triple 17
•3rd fence Triple 8 •4th fence Triple 5
The first player to complete the course and hit the bullseye wins the race.

BOWLING
This dartboard adaptation of bowling
is a real challenge! It is a difficult game
in that you must be very accurate to rack
up a decent score. Player one starts the
game. You must select your “alley” by
either throwing dart or manually pressing
segment of choice. Once alley is selected,
you have 2 remaining darts to throw in

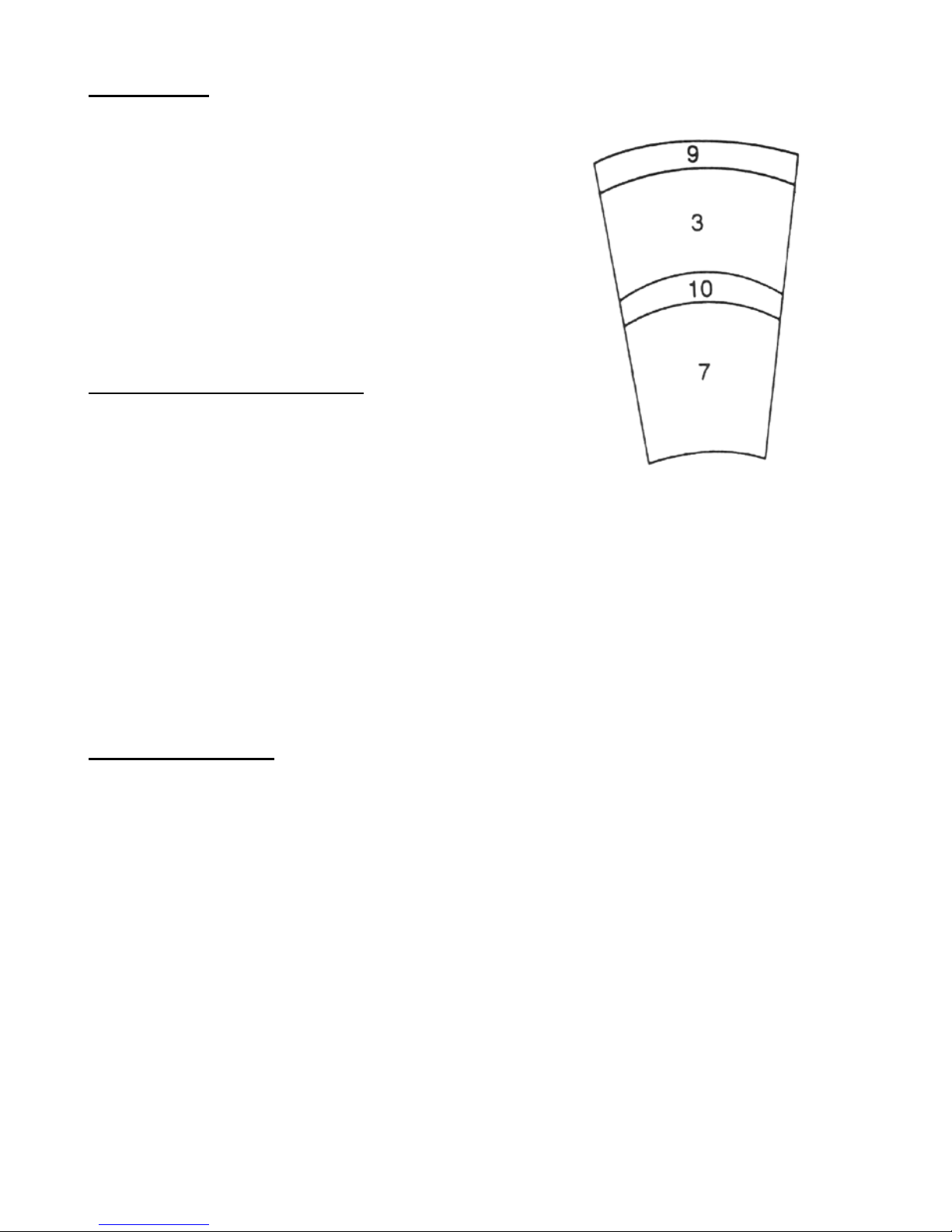

which to score points or “pins.” Each
specific segment in your “alley” is worth a
given pin total:
Segment Score
Double 9 pins
Outer Single 3 pins
Triple 10 pins
Inner Single 7 pins
There are several rules for this game as follows:
1. A perfect game score would be 200 in this version of bowling
2. You cannot hit the same singles segment twice within the same “frame” (round). The
second hit will count as zero points. Hint: Try to hit each single to reach 10 points in the
frame.
3. You can score 20 points per “frame” by hitting the triple segment twice.
4. Hitting the double segment with your second dart will only count as 10 points if you
scored a double on your first throw. Otherwise you will score a total of 9 points by
throwing a double with your second dart.
CAR RALLYING
This game is similar to steeplechase except we let you set up your own “race track.” You can
set up as many obstacles as you wish. The track must be 20 lengths long.
Before the game starts, the LED display will prompt you to select the course (“SEL”). Players
should alternate selecting segments by pressing on the specific segment of your
choice. Note: You will have to hit the exact segment you selected to move on during the
race. If you choose inner single 20, that inner single area will need to be hit during the race.
The LED display will indicate inner single with a line next to the bottom of the 1, an outer
single is shown with a line next to the top portion of the 1.
Obstacles usually comprise hitting a difficult number before continuing on the racetrack.
Again, the route can be made as difficult or easy as you wish and can go anywhere on the
target area of the board.
After the track is selected, press START to begin the race. The first player to complete the
course is the winner.

SHOVE A PENNY
Only the numbers 15 through 20 and the bullseye are used. Singles are worth 1 point,
doubles are worth 2, and triples are worth 3 points. Each player must throw for the numbers
in order with the objective of scoring 3 points in each segment to move on to the next. If a
player scores more than 3 points in any one number, the excess points are given to the next
player. The first player to score 3 points in all segments (15 - 20 and bull) is the winner.
NINE-DART CENTURY
The object of this game is to attempt to score 100 points, or come as close as possible, after
3 rounds (9 darts). Doubles and triples count as 2x and 3x their value respectively. Going
over 100 points is considered a “bust” and causes you to lose unless all players go over. In
that case, the player closest to 100 wins (player that scored the lowest amount over 100.
GREEN VS. RED
(2 players only)
This game is a race around the board, where skill at hitting doubles and triples pays off with
victory. Player 1 is “green” and player 2 is “red.” Player 1 shoots for only doubles and triples
that are green and works around the board clockwise. Player 2 starts at 20 and works
around the board counter-clockwise, shooting for red segments (the temporary score display
will indicate which segment to throw for). Note: a maximum of one double and one triple of
the same number can be scored in a single round.
What’s more, hitting the wrong number (of your opponent’s color) subtracts that amount
from your score - so be careful.
The player with the most points after completion of the game is the winner.
GOLD HUNTING
The object of this game is to find “gold.” You collect gold for each 50 points. Gold is only
collected only if your score is exactly 50 or a multiple of 50 (100, 150, etc.) at any point during
a round. However, since “gold” can make a person greedy, not only do you collect gold for
every multiple of 50, you also steal 1 gold from all other players. Therefore, as you collect a
gold, you take 1 gold from all other players who have gold.
This is a real back-and-forth game, but the player who reaches to selected total gold required
first is the winner.
