ARC LYCR-3500 User manual

USER MANUAL

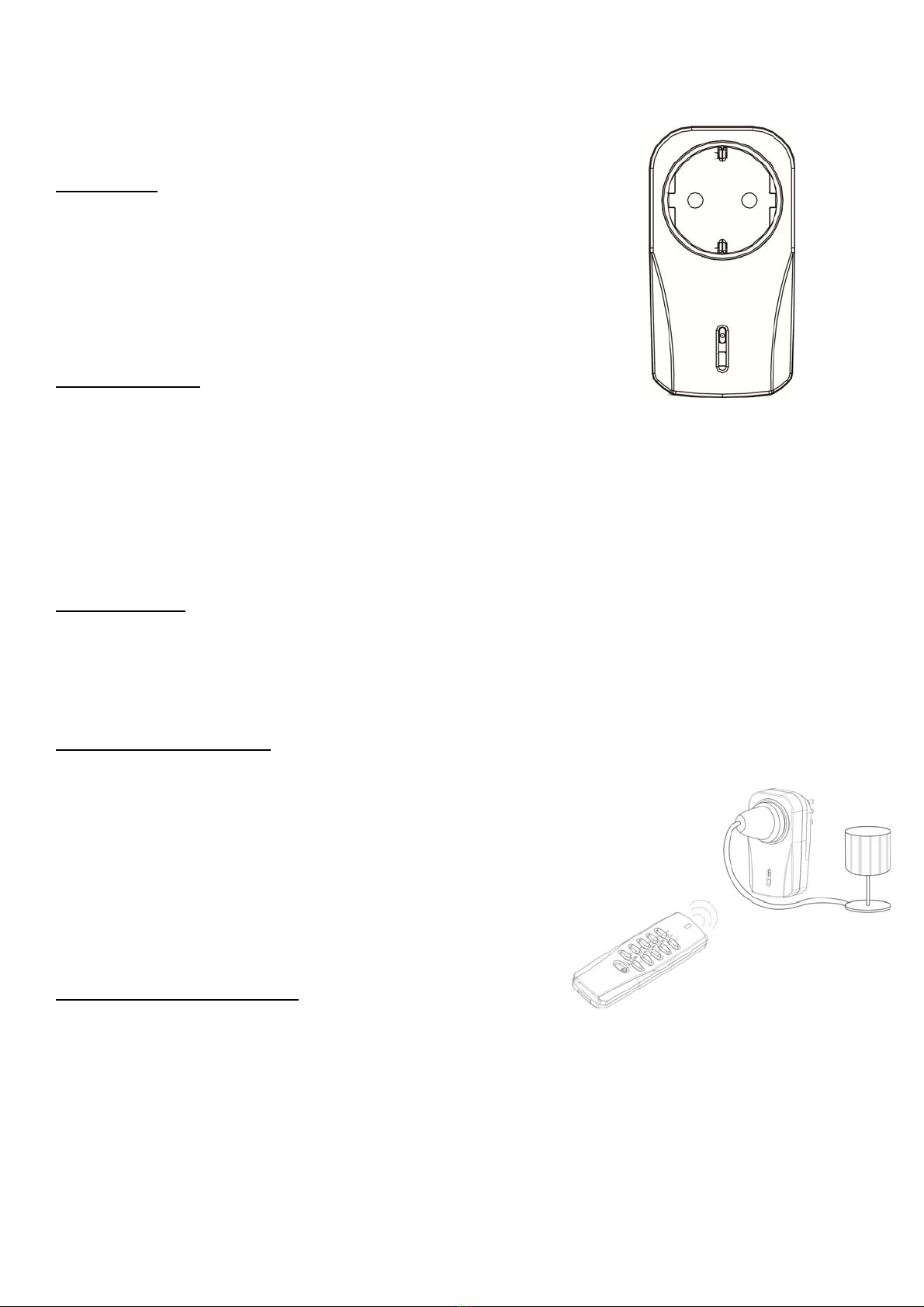

Model LYCR-3500 Receiver
FEATURES:
●No wiring, easy operation, just plug and use.
●67 million codes, self program function receiver.
●Receiver has 6 memory settings, no memory loss forever.
●Red LED indicator for POWER ON and PROGRAMMING SETTINGS.
●Transmitter with 16 receivers control on paged channel.
INSTALLATION:
Controller (Receiver)
●Just plug-in receiver into wall outlet
●Indicator on receiver should light on.
●Connect lamp plug into receiver
Remote control (Transmitter)
●Remote control till 30M in open area
OPERATION :
ON/OFF RECEIVER
* Press transmitter button ‘ON’ to switch on.
* Press transmitter button ‘OFF’ to switch off.
HOW TO LINK CODE:
*To start, program your transmitter with the receiver.
* Receiver plugged on power
* Bring the transmitter near the receiver, push the self program button on receiver once
* Receiver led will blink slowly, press transmitter selected “ON” button
* Receiver connected lamp will blink twice, code is confirmed and led stops blinking.
* Remember the transmitter button you selected for the programmed receiver.
* Transmitter and Receiver codes are auto programmed.
TO CHANGE OR DELETE CODE :
INDIVIDUAL DELETE -
* Push the self program button once, led will blink slowly
* Press selected “OFF” button on transmitter, programmed memory is deleted.
* Receiver connected lamp will blink twice for confirmation.
* Repeat step for re-setting
ALL MEMORY DELETE -
* Push the self program button till the LED blinking continuously
* Release and push again once.

* Receiver connected lamp will blink twice for confirmation.
* ALL PROGRAMMED MEMORY WILL BE DELETED FROM RECEIVER
RECEIVER HAS 6 MEMORY SETTINGS :
* Self program function RECEIVER has 6 memory settings.
* It can be programmed as to your requirement with special effect. It can be programmed to switch ON at one time individually
or programmed with different combinations switching.
* This means one receiver can be programmed into max. 6 different combination.
Example : If there is 3 receivers, [ receiver 1 = lamp shade , receiver 2 = night light , receiver 3 = fan ]
Receiver 1,2,3 can be control individually with transmitter button 1,2,3
Receiver 1,3 can be programmed with transmitter button 4, (lamp shade and fan ON/OFF at same time)
(Above settings ‘Receiver 1’ and ‘3’ takes up 2 programmed memory and ‘Receiver 2’ only 1 program memory, different combinations
and settings can be teamed up and control from transmitter )
SPECIFICATION
RECEIVER
Frequency: 433.92MHz
Power: 240V +/-10%, 50Hz
3500 watt / 230VAC
FAULT FINDING
No activation : Check battery polarity or running out battery
Check code program successful.
CAUTION :
Do not place two receivers near each other, the distance should be above 1 meter.
Warning!
DO NOT OVERLOAD
Do not plug or use in damp places like patios, cellar, flammable liquid, solvents, paints etc…
