Arca-Swiss Monoball p0 User manual

The ARCA-SWISS p0instructions
The p0 oers a tilt
range of 90° and
360° panning.
Panning
locking lever
Locking ring
Functional
motion
Congratulations on your purchase of the latest
Monoball® p0 from ARCA-SWISS.
The legendary Monoball® tripod head series
with an aspherical ball.
Please note th at th e knu rled ring to
lock th e Monoball does need some
vertical play tofu nction properly !
Your Monoball® p0 needs no maintenance
and will serve you for many years.
If the Monoball is not moving as smoothly,
clean the ball with a soft cloth and alcohol.
However, please make sure that sand and
dust do not enter the housing.
DO NOT USE ANY LUBRICANTS !
as this would impair proper function.
802330
X-table monoball®Fix
802331
X-table monoball®Classic
802332
X-table monoball®Fliplock
for
macro-photographie
802335
macro-table monoball®Fix
for
macro-photographie
802336
macro-table monoball®Classic
802337
macro-table monoball®Fliplock
802311
monoball®Pan
System 1
X 80 max ; Y 135 max
Z 150 max ;
weight 350gr
802309
L-Bracket Pano
monoball®Fix
X 40 max ; Y 105 max ;
Z 150 max ; weight 290gr
X
Y
Z
802314
monoball®Pan
Sytem 2
X 120 max
Y 175 max
Z 150 max
weight 750gr
© Copyright, including translations by ARCA-SWISS® International, Besançon.
ARCA-SWISS International
29 quartier de l'Europe
FR-25048 Besançon
[email protected]
Tel : [phone]
Fax : + 0033 381 85 40 69
nodal Set required for all monoball Pan Systems :
802317
L 200 nodalSet
monoball®Fliplock
802318
L 200 nodalSet
monoball®Fix
802316
L 200 nodalSet
monoball®Classic

802282
Cameraplate
300 monoball®Fix
(1) Accepts both monoball®Classic and monoball®Fix camera plates
(2) For Nik. D850 / D780 / D810 / D800 ; Nik. Z ; Fujifilm X-T3 ; Can. 5D mk IV / mk III / 5Ds
: Leica SL series ; Can. R5 / R6
(3) For Can. 7D mk II / 5D mk IV / mk III / 5Ds ; Nik. D810 / D800 ; Fuji GFX 50S / 100S
(4) The Variokit system allows to mount longer base Cameraplates 802280 -> 802284

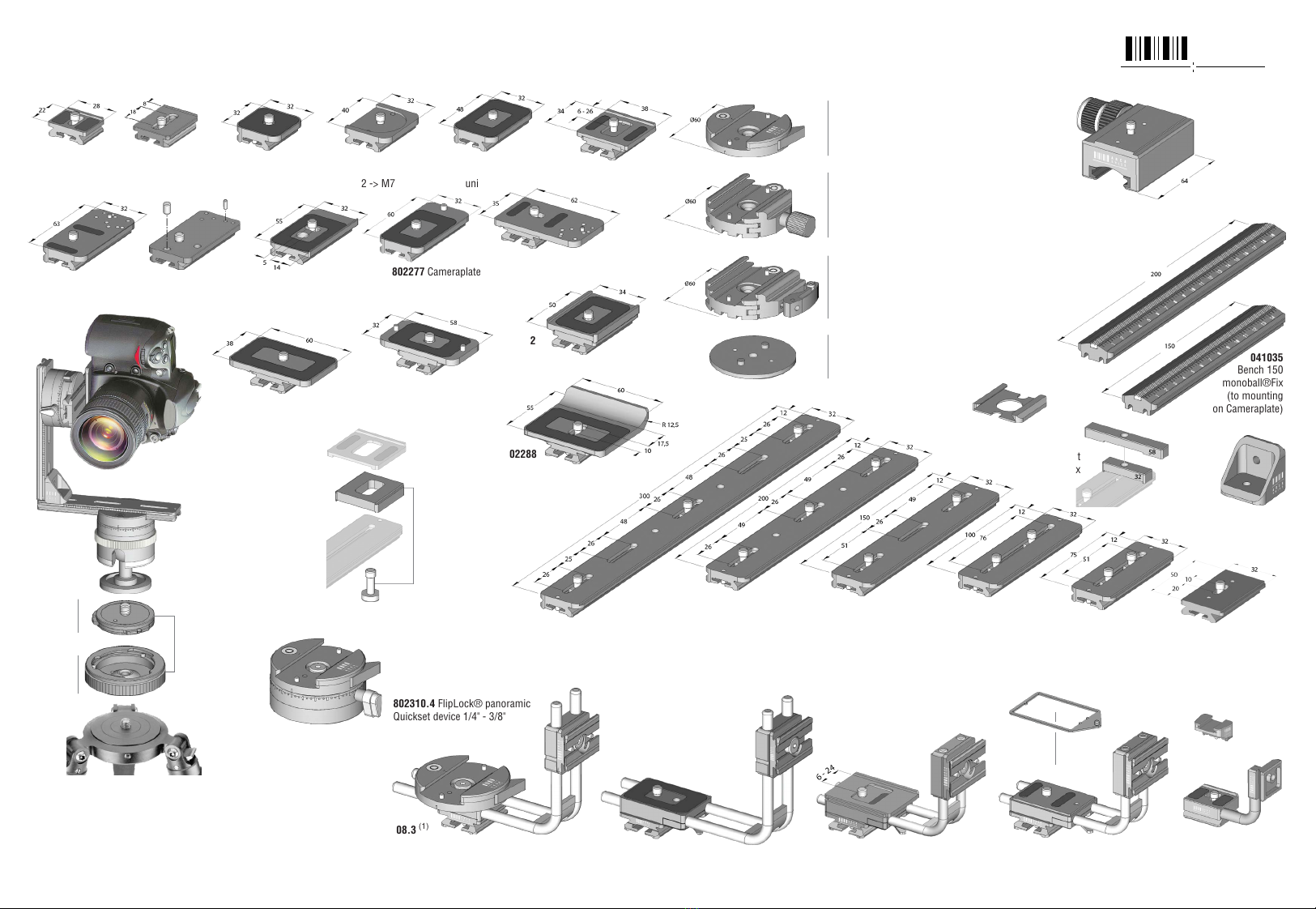

All cameraplate monoball®Fix are compatible with monoball®Fix and monoball®Classic
quickset devices
(5) pin anti-twist Ø4/ center distance 14 included for notably nikon D850 / D780 ...
units=millimeters
802299
Connection angle
041035
Bench 150
monoball®Fix
(to mounting
on Cameraplate)
041036 Bench 200
monoball®Fix
(to mounting
on Camera-
plate)
802273 Cameraplate
monoball®Fix 55 Hasselblad ;
Leica M8-M9-M240 ;
Olympus E30
802265 Cameraplate
monoball®Fix 48
universal
802262 Cameraplate
monoball®Fix Leica
M2 -> M7
802270 Cameraplate
monoball®Fix SLR
index
(3)
052010
Carrier monoball®Fix system
802260 Cameraplate
monoball®Fix 32
universal
802292
Cameraplate
Variokit
(4)
Hasselblad
802285 Cameraplate
Variokit
(4)
Mamiya
802288
Cameraplate
Variokit
(4)
SLR for
Canon 1D-series ; Nikon
D6 / D4 / D3 -series
& DSLR’s with
battery-grip
802290
Cameraplate Variokit
(4)
SLR index
(3)
802289 Cameraplate
Variokit
(4)
universal
802310 monoball®Fix panoramic
Quickset device 1/4" - 3/8"
802310.3 Classic panoramic
Quickset device 1/4" - 3/8"
802310.4 FlipLock® panoramic
Quickset device 1/4" - 3/8"
802281
Cameraplate
200 monoball®Fix
802283
Cameraplate
100 monoball®Fix
802280
Cameraplate
150 monoball®Fix
802296
Spacer mono
ball®Fix
Variokit 3mm
with screw
802297
Spacer mono-
ball®Fix
Variokit 6mm
with screw
802002
(1)
Quickset device
Classic with 1/4" - 3/8"
802027 Quickset device monoball®Fix
to mount DSLR on Function carrier
802013 Quickset base
(for mounting Quickset on Cameraplate
and Carrier monoball®Fix system)
802010
(1)
Quickset device
FlipLock® with 1/4" - 3/8"
802030
(1)
Quickset device FlipLock®
to mount DSLR on Function carrier
802030.1
(1)
Quickset device Classic
to mount DSLR on Function carrier
802012 Quickset device monoball®Fix 1/4" - 3/8”
802308.5 L -bracket Dual-Base
(4)
monoball®Fix
802308.4
(1)
L -bracket Dual-Base
(4)
FlipLock®
802308.3
(1)
L -bracket Dual-Base Classic
802251
Adapter
monoball®Fix-> Classic
The ARCA-SWISS monoball®Fix system 07/2021
802287 Cameraplate
Variokit
(4)
Compact
802284
Cameraplate
75 monoball®Fix
802295
Stop-plate Kit
monoball®Fix
540201
Cold-shoe
Sony NEX
802302.1
L -bracket monoball®Fix
Sony NEX-a5000-a6000
series
802277 Cameraplate
monoball®Fix Pentax
645D, 67, 67II
802255
Cameraplate
monoball®Fix
compact
802304.1
mini L -bracket Dual-Base
(4)
anti-twist lip
802320
Quick-Link Set
(incl. 1 base 3/8"
+ 1 disk 3/8")
802320.1
Quick-Link
Disk only
802320.2
Quick-Link
Base only
802304
mini L -bracket Dual-Base
(4)
rubberized
802304.2 Fuji GFX 50S mounting
plate for 802304 series
802272 Cameraplate
monoball®Fix SLR
index 2
(2)
802257 Cameraplate
monoball®Fix 35
anti-twist lip
802279
Cameraplate
50 monoball®Fix
802307
L -bracket monoball®Fix
universal
(4)(5)
A R C A
S WI S S
