Arcam FMJ P35 User manual

Power Amplifier P35

4
5
English
Safety guidelines
SAFETY INSTRUCTIONS
This product is designed and manufactured to meet strict quality
and safety standards. However, you should be aware of the following
installation and operation precautions:
1. Take heed of warnings and instructions
You should read all the safety and operating instructions before
operating this appliance. Retain this handbook for future reference
and adhere to all warnings in the handbook or on the appliance.
2. Water and moisture
The presence of electricity near water can be dangerous. Do not use
the appliance near water – for example next to a bathtub, washbowl,
kitchen sink, in a wet basement or near a swimming pool, etc.
3. Object or liquid entry
Take care that objects do not fall and liquids are not spilled into the
enclosure through any openings. Liquid filled objects such as vases
should not be placed on the equipment.
4. Ventilation
Do not place the equipment on a bed, sofa, rug or similar soft surface,
or in an enclosed bookcase or cabinet, since ventilation may be
impeded. We recommend a minimum distance of 50mm (2 inches)
around the sides and top of the appliance to provide adequate
ventilation.
5. Heat
Locate the appliance away from naked flames or heat producing
equipment such as radiators, stoves or other appliances (including
amplifiers) that produce heat.
6. Climate
The appliance has been designed for use in moderate climates.
7. Racks and stands
Only use a rack or stand that is recommended for use with audio
equipment. If the equipment is on a portable rack it should be moved
with great care, to avoid overturning the combination.
8. Cleaning
Unplug the unit from the mains supply before cleaning.
The case should normally only require a wipe with a soft, damp, lint-
free cloth. Do not use paint thinners or other chemical solvents for
cleaning.
We do not advise the use of furniture cleaning sprays or polishes as
they can cause indelible white marks if the unit is subsequently wiped
with a damp cloth.
9. Power sources
Only connect the appliance to a power supply of the type described in
the operating instructions or as marked on the appliance.
10. Power-cord protection
Power supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, paying
particular attention to cords and plugs, and the point where they exit
from the appliance.
11. Grounding
Ensure that the grounding means of the appliance is not defeated.
12. Power lines
Locate any outdoor antenna/aerial away from power lines.
13. Non-use periods
If the unit has a standby function, a small amount of current will
continue to flow into the equipment in this mode. Unplug the power
cord of the appliance from the outlet if left unused for a long period
of time.
14. Abnormal smell
If an abnormal smell or smoke is detected from the appliance, turn
the power off immediately and unplug the unit from the wall outlet.
Contact your dealer immediately.
15. Servicing
You should not attempt to service the appliance beyond that
described in this handbook. All other servicing should be referred to
qualified service personnel.
16. Damage requiring service
The appliance should be serviced by qualified service personnel
when:
A. the power-supply cord or the plug has been damaged, or
B. objects have fallen, or liquid has spilled into the appliance, or
C. the appliance has been exposed to rain, or
D. the appliance does not appear to operate normally or exhibits
a marked change in performance, or
E. the appliance has been dropped or the enclosure damaged.
SAFETY COMPLIANCE
This product has been designed to meet the EN60065 international
electrical safety standard.

10
11
English
Installation: P35 power amplier
CONNECTING TO OTHER EQUIPMENT
Follow the installation instructions for the integrated amplifier on
pages 5–6.
AUDIO IN – Connect this input to the output sockets of your pre-
amplifier or the PRE OUT sockets of an integrated amplifier.
MONO LINK – The power amplifier can be adapted to provide
two mono loudspeaker outputs from a single input. Pull out the
link supplied and use it to connect the L and R AUDIO OUT sockets
together. Using one power amplifier per loudspeaker will enable you
to bi-amplify bi-wireable loudspeakers.
This is particularly beneficial for top quality stereo installations with a
separate pre-amplifier, or where amplifiers are provided for the left,
centre and right channel loudspeakers in a five speaker Dolby Pro
Logic or Dolby Digital system.
Contact your Arcam dealer for more information.
‘Daisy chaining’ – The power amplifier can be connected to further
power amplifiers to drive more speakers (e.g. those in other rooms or
tri-amplified speakers, etc).
Connect the extra power amplifier inputs to the AUDIO OUT sockets
on the power amplifier, left to left, right to right.
+R/CH1 –
CTR/CH3
SP1
SP2
POWER INLET OUTIN
L
R
VOLTAGE
SELECT
230V
4 – 16 OHMS
+L/CH2 –
+R/CH1 –+L/CH2 –
AUDIO
SP1
SP2
4 – 16 OHMS
+CTR/CH3 –
+CTR/CH3 –
AUDIO
IN
OUT
LINK
REMOTE
IN
TRIG
OUT
Optional Third Channel Module
– provides a third 90W channel
suitable for Home Cinema or
multi-channel audio use.
REMOTE SWITCHING
By making a connection from the REMOTE IN socket of the P35 power
amplifier to the TRIG OUT socket of the A32 integrated amplifier, you
can use the A32 to switch the power amplifier on and off. If configured
in this way, the front panel POWER button of the A32 (or the POWER/
STANDBY button on the remote control) switches both amplifiers on
and off together. This facility allows you to conceal the power amplifier
yet still control it.
The connecting cable required is a 3.5mm to 3.5mm jack lead (stereo
or mono) and it is possible to connect several power amplifiers to an
A32 by ‘daisy chaining’ from TRIG OUT of one P35 into the REMOTE IN
of the next.
THREE CHANNEL OPTION
The power amplifier can be upgraded from stereo to three channels
by adding a Third Channel Module: in this case, the model is designated
P35/3.
The module offers extra loudspeaker terminals together with a third
set of AUDIO IN and OUT phono sockets and converts the P35 into
a 3 x 90W (RMS per channel into 8Ω) amplifier suitable for Home
Cinema or multi-channel audio use.
Contact your Arcam dealer for further details.

12
13
English
Using your P35 power amplier
POWER (AND POWER INDICATOR LIGHT)
Switches the unit on and off. The light indicates the status of the
amplifier.
When you switch your amplifier on, the light glows amber for a few
seconds, during which time the speakers are disconnected. The light
changes to green when the amplifier is ready for use. A red light
means the amplifier is in standby mode.
The light may flash if a fault has occurred. You should unplug the
amplifier and leave it for a few minutes before reconnecting. If the
fault cannot be cleared, unplug your amplifier and contact your Arcam
dealer.

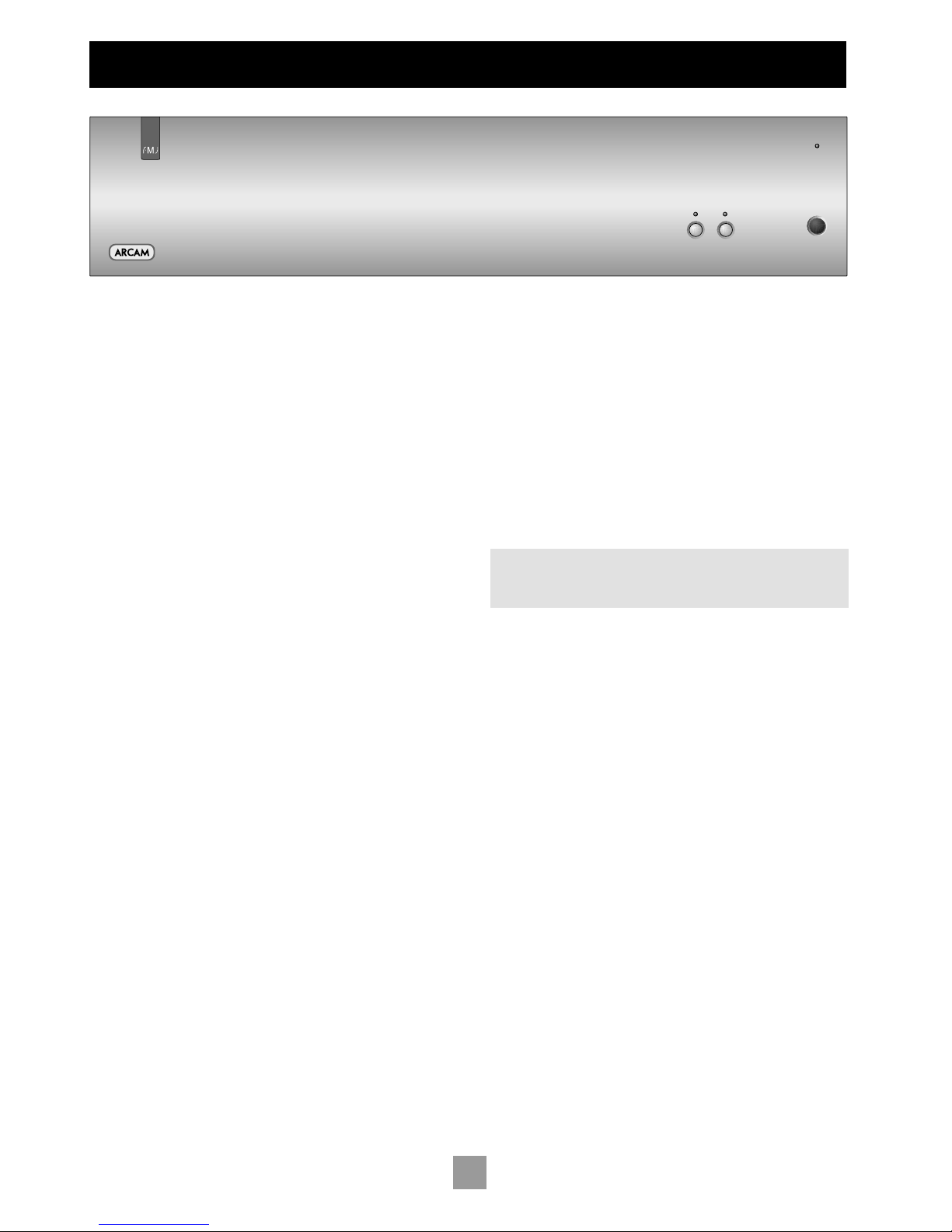

P35 POWER AMPLIFIER
SP1 SP2 POWER
NOTE: If both lights are out the amplifier will appear not to work,
as all speakers are switched off. If both are on, and low impedance
speakers are connected, overloads are more likely.
SP1 AND SP2
These buttons allow you to select and deselect the main (SP1) and
secondary (SP2) sets of speakers attached to your amplifier. An
indicator light shows which set of speakers are currently selected.

12
13
English
Bi-wiring and bi-amping loudspeakers
BEFORE YOU START
WARNING: Do not make any connections to your amplifier while
it is switched on or connected to the mains supply.
Before switching on please check all connections thoroughly, making
sure bare wires or cables are not touching the amplifier in the wrong
places (which could cause short circuits) and you have connected
positive (+) to positive and negative (–) to negative.
Always ensure that the volume control on your amplifier is set to
minimum before starting these procedures.
BI-WIRING YOUR LOUDSPEAKERS
Bi-wiring improves the sound of your system because it divides the
high and low frequency signal currents into separate speaker cables.
This avoids signal distortions arising from the high and low frequency
currents interacting with one another within a single cable, as in
conventionally wired systems.
You will need:
Speakers – with four input terminals each: these will be marked HF
(High Frequency) and LF (Low Frequency).
Loudspeaker cables – two pairs of cables per loudspeaker (which may
be joined at the amplifier end if your amplifier has only one pair of
output terminals per channel). Or, a suitably terminated cable set (a
loom, probably prepared by your dealer and capable of being used for
bi-wiring in one length).
How to bi-wire loudspeakers
1. Remove the terminal links on the rear of your loudspeakers.
WARNING: This step is essential or damage to your
amplifier may result which is not covered under warranty.
2. Connect the cables as shown in the diagram below, ensuring
correct polarity at all times.
BI-AMPING YOUR SYSTEM
The performance of your system can be further enhanced over that
achieved with bi-wiring, by extending the principle one stage further
to include separate amplification for the low and high frequency drive
units in each loudspeaker enclosure.
Connect the integrated amplifier to the high frequency (HF) terminals
and connect the power amplifier to the low frequency (LF) terminals.
You will need:
Speakers – with four input terminals each (as with bi-wiring): these will
be marked HF (High Frequency) and LF (Low Frequency).
Two amplifiers – one of these would be the A32 and the other an
Arcam power amplifier (e.g. P35).
Loudspeaker cables – two pairs of cables per loudspeaker or a suitably
terminated cable set (a loom, probably prepared by your dealer and
capable of being used for bi-amping in one length).
Interconnect cables – one pair of high quality interconnect cables.
How to set up a bi-amped system
1. Remove the terminal links on the rear of your loudspeakers.
WARNING: This step is essential or damage to your
amplifier may result which is not covered under warranty.
2. Connect the cables as shown in the diagram below, ensuring
correct polarity at all times.
3. Use the interconnect cables to connect the PRE OUT sockets of
the A32 to the corresponding AUDIO IN sockets of the power
amplifier.
Bi-wiring using one set of connections on amplifier Recommended bi-amping configuration
Arcam A32 amplifier
R L
Right
speaker
HF
LF
+
+
+ –
HF
LF
+
+
–
–
+ –
Left
speaker
–
–
R L
Arcam P35 power amplifier
+ –+ –
RL
+ –+ –
Right
speaker
HF
LF
+
–
+–
–
HF
LF
+
–
–
+
Left
speaker
Arcam A32 amplifier

14
15
English
Technical specications
NOTE: All specification values are typical unless otherwise stated.
CONTINUAL IMPROVEMENT POLICY
Arcam has a policy of continual improvement for its products. This
means that designs and specifications are subject to change without
notice.
A32 P35
Continuous power output (20Hz—20kHz at 0.5% THD), per channel
Both channels, 8Ω, 20Hz—20kHz 100W 100W
Single channel, 8Ω, 20Hz—20kHz 150W 150W
Both channels, 4Ω, 20Hz—20kHz 140W 140W
Single channel, 4Ω, at 1kHz 200W 200W
Three channels, 8Ω, 20Hz—20kHz – 90W
Harmonic distortion, 80% power, 8Ω at 1kHz 0.005% 0.005%
Inputs
Phono cartridge:
Input sensitivity 2.7mV (MM); 270µV (MC) –
Input impedance 47kΩ (MM); 300Ω (MC)
Signal/noise ratio (CCIR) –79dB (MM); –73dB (MC)
Overload margin 35dB –
Line and tape inputs:
Nominal sensitivity 250mV—2V 800mV
Input impedance 22kΩ 22kΩ
Signal/noise ratio (CCIR) –103dB –110dB
Tone controls, max. boost/cut ±12dB @ 80Hz and 12kHz –
Power amplier input
Nominal sensitivity 800mV 800mV
Input impedance 22kΩ 22kΩ
Gain 31dB 31dB
Preamplier output
Nominal output level 700mV –
Maximum output level 8V RMS –
Output impedance <50Ω –
Headphone output
Maximum output level into 600Ω 8V –
Output impedance 100Ω –
General
Mains voltage 230V±12%; 115V±12% 230V±12%; 115V±12%
Power consumption (maximum) 800VA 800VA (950VA for P35/3)
Power consumption (standby) 2VA 2VA
Dimensions W x D x H (including feet) 430 x 370 x 110mm 430 x 350 x 110mm
Weight (net) 10.8kg 9.5kg (10.5kg for P35/3)
Weight (packed) 13kg 12.5kg (13.5kg for P35/3)
Supplied accessories mains lead mains lead
CR-389 remote control
2 x AAA batteries
E&OE

14
15
English
Service information
Before returning your amplifier for service, please check the following:
SOUND CUTS OUT FOR NO REASON
If the temperature of the internal heatsink rises above a safe level, then
a thermal cutout inside the amplifier will operate.
The power indicator on the front panel flashes and the protection
system temporarily removes the power to the speakers. The system
resets itself as the heatsink cools down.
Note that because of the high output voltage from a CD player, it is
possible to drive the A32 at full power even though the volume is not
set at maximum.
AMPLIFIER DOES NOT SWITCH BACK ON
The A32 and P35 amplifiers have a protection mechanism which is
activated if you switch the unit on immediately after turning it off. If this
mechanism activates, wait 30 seconds then try again.
WORLDWIDE GUARANTEE
This entitles you to have the unit repaired free of charge, during the
first two years after purchase, at any authorised Arcam distributor
provided that it was originally purchased from an authorised Arcam
dealer or distributor. The manufacturer can take no responsibility for
defects arising from accident, misuse, abuse, wear and tear, neglect
or through unauthorised adjustment and/or repair, neither can they
accept responsibility for damage or loss occurring during transit to or
from the person claiming under the guarantee.
The warranty covers:
Parts and labour costs for two years from the purchase date. After two
years you must pay for both parts and labour costs. The warranty does
not cover transportation costs at any time.
CLAIMS UNDER GUARANTEE
This equipment should be packed in the original packing and returned
to the dealer from whom it was purchased, or failing this, directly
to the Arcam distributor in the country of residence. It should be
sent carriage prepaid by a reputable carrier -– NOT by post. No
responsibility can be accepted for the unit whilst in transit to the
dealer or distributor and customers are therefore advised to insure
the unit against loss or damage whilst in transit.
For further details contact Arcam at:
Arcam Customer Support Department,
Pembroke Avenue, Waterbeach, CAMBRIDGE, CB5 9PB, England
Telephone: [phone]
Fax: [phone]
Email: suppor[email protected]
PROBLEMS?
Always contact your dealer in the first instance.
If your dealer is unable to answer any query regarding this or any other
Arcam product please contact Arcam Customer Support on +44 (0)
1223 203203 or write to us at the above address and we will do our
best to help you.
ON LINE REGISTRATION
You can register your Arcam product on line at:
www.arcam.co.uk/reg
Guarantee
