Arcam Solo Uno User manual

HANDBOOK / HANDBOOK / HANDBOOK / HANDLEIDING
MANUAL / РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ / MANUALE / 手冊
WIRELESS Hi-Fi SYSTEM
DRAHTLOSES Hi-Fi-SYSTEM
SYSTÈME HAUTE-FIDÉLITÉ SANS FIL
DRAADLOOS HiFi-SYSTEEM
SISTEMA INALÁMBRICO Hi-Fi
БЕСПРОВОДНАЯ СИСТЕМА Hi-Fi
SISTEMA Hi-Fi WIRELESS
無線 Hi-Fi 系統

EN
HANDBOOK
WIRELESS Hi-Fi SYSTEM

EN-2
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions
2. Keep these instructions
3. Heed all warnings
4. Follow all instructions
5. Do not use this apparatus near water
6. Clean only with dry cloth
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t
into your outlet, consult an electrician for replacement of the obsolete outlet
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus
11. Only use attachments/accessories specied by the manufacturer
12. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over
13. Unplug this apparatus during lightning storms or when unused for long periods of time
14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped
15. The apparatus shall not be exposed to dripping or splashing and that objects lled with liquid, such as
vases, shall not be placed on apparatus
16. The apparatus should be connected to a mains socket outlet with a protective earthing connection
17. The Mains plug should be readily available to disconnect the equipment
18. Objects lled with liquids, such as vases should not be placed on the apparatus
19. WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain, moisture,
dripping or splashing
This lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to
the presence of non-insulated‘dangerous voltage’within the product’s enclosure that may be of sucient
magnitude to constitute a risk of electric shock.
WARNING: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-
serviceable parts inside. Refer servicing to qualied personnel.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance instructions in the literature accompanying the appliance.
This equipment is a Class II or double insulated electrical appliance. It has been designed in such a
way that it does not require a safety connection to electrical earth.

EN-3
EN
WELCOME...
Thank you for purchasing the Arcam Solo Uno wireless Hi-Fi system.
Arcam has been producing high quality audio components for over forty years. During that time, we have
amassed a wealth of knowledge on both the design and construction of audio components in order to give
the best sound performance for the price.
This handbook provides guidance for connecting and using your Solo Uno.
We hope that your Solo Uno will give you years of trouble-free operation. In the unlikely event of any fault,
or if you simply require further information about Arcam products, our network of dealers will be happy to
help you. Further information can be found on the Arcam website at www.arcam.co.uk.
The Solo Uno development team

EN-4

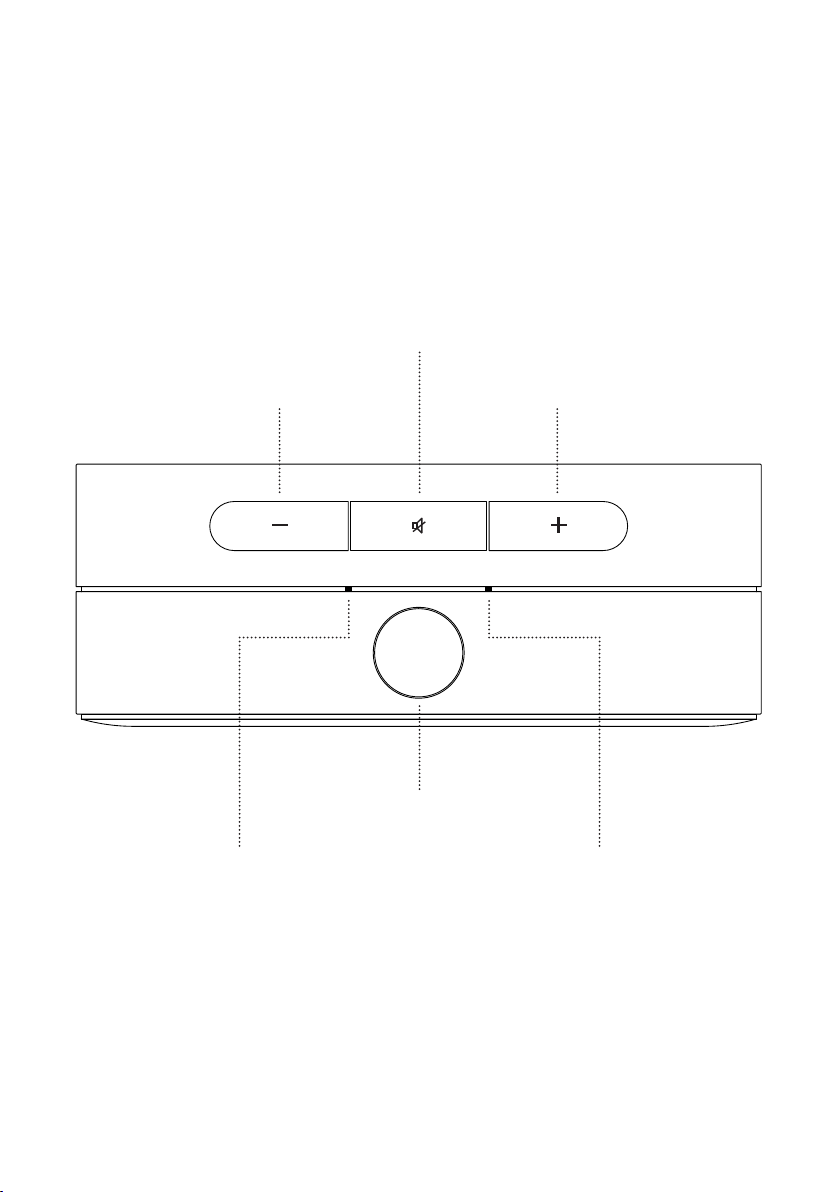

CONNECTORS, INDICATORS AND
CONTROLS
NET STATUS
POWER SWITCH
MUTE / AUX INPUT SEL
See “Using the AUX input”
on page EN-8
VOLUME DOWN VOLUME UP
NETWORK LINK INDICATOR
See “NET LED” on page EN-9
STATUS INDICATOR
See “STATUS LED”on page EN-9

EN-5
EN
SERVICE RESET 100-240V~
50/60Hz 60W MAX
SUB OUT
NET
ANT
RIGHT LEFT
AUX
USB SERVICE PORT
AC POWER INPUT
RESET
See “Resetting the Solo Uno”
on page EN-8
SUBWOOFER
OUTPUT
ETHERNET
PORT
WIRELESS ANTENNA
RIGHT SPEAKER
TERMINAL
LEFT SPEAKER
TERMINAL
ANALOGUE AUDIO INPUT
See “Using the AUX input”
on page EN-8)

EN-6

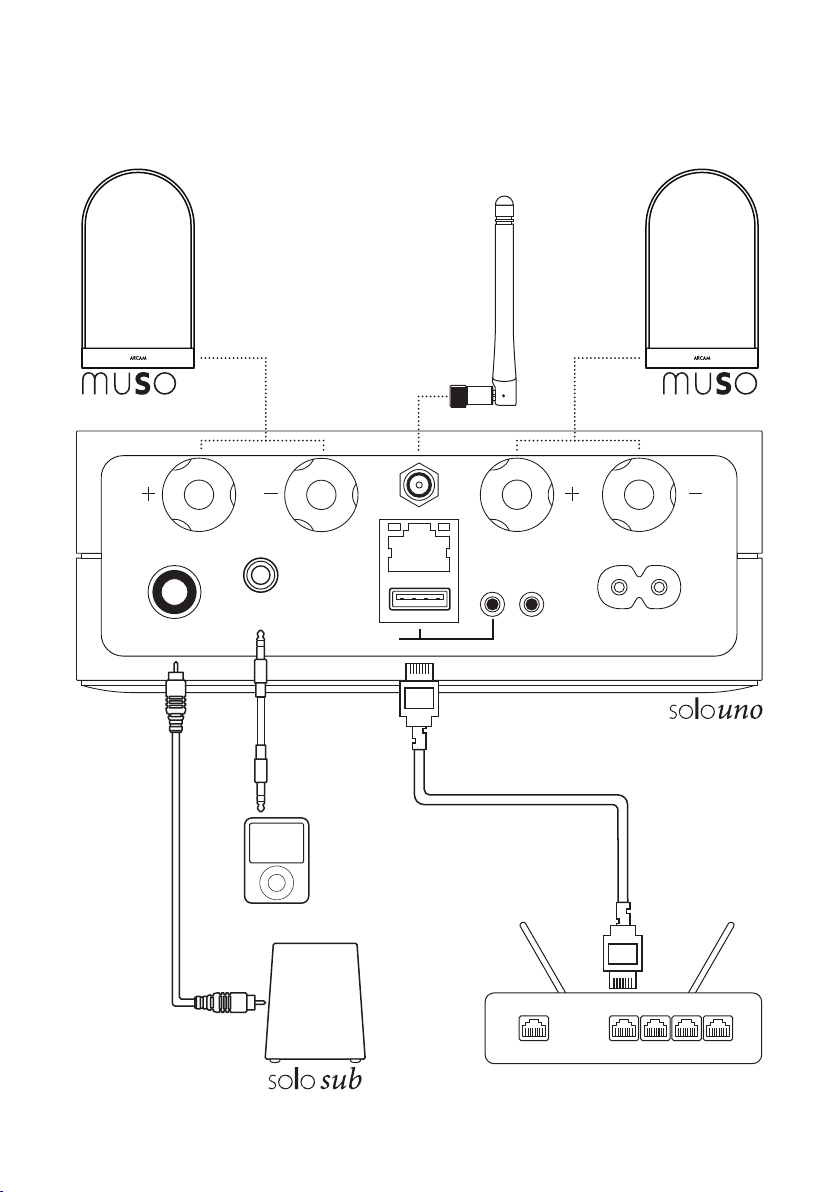

CONNECTIONS
RESET 100-240V~
50/60Hz 60W MAX
SUB OUT
NET
ANT
RIGHT LEFT
AUX
1 2 3 4NET
SERVICE
Wi-Fi ANTENNA
NETWORK ROUTER

EN-7
EN
SETUP
Connecting to a Network
In order to use the audio streaming functions of the Solo Uno it needs to be connected to your local
network by either a wired or wireless network.
Connecting to a Wired Network
When setting up the Solo Uno using a wired connection, connect the Ethernet cable before the unit is
switched on. Power on the unit and allow the unit to boot up. Once a wired connection is established, the
NET LED will turn solid BLUE and the STATUS LED will turn PURPLE.
Connecting to a Wireless Network
When setting up the Solo Uno using a wireless connection, always wait for the unit to boot up. The
Solo Uno is ready when the Status LED turns RED and the NET LED starts ashing BLUE.
Connecting to Google Home
1. Download and open the Google Home app on a phone or tablet.
2. Connect your phone or tablet to the same network that you want the Solo Uno to be connected to.
3. Set up your Solo Uno in the Google Home app.
4. The Solo Uno is now set-up and ready for use.
Google Home
Connecting Wirelessly via AirPlay
5. Select the wireless network settings on your iOS device.
6. Go to the Wi-Fi settings on your mobile device and navigate to“SET UP NEW AIRPLAY SPEAKER...”
7. Select the speaker called “Solo Uno-XXXXXX”(where XXXXXX is a unique number assigned to the
Solo Uno).
8. Select the network you want the Solo Uno to connect to and press “Next”.
9. Follow the on-screen instructions to complete the Solo Uno setup as an AirPlay speaker.

EN-8
OPERATION
Play Music With Chromecast built-in
1. Launch the Chromecast built-in enabled app on your phone or tablet.
2. Press the icon in the app and select the Solo Uno.
3. Press “Play”in the app.
Using AirPlay on your iOS device
1. Locate and press the icon on your iOS device.
2. Choose the Solo Uno as the AirPlay speaker.
3. Select your music and start playing.
Using the AUX input
To use the input press and hold the key for approx 3 seconds and release. The STATUS LED will
change to GREEN.
The input is active until either an AirPlay or GoogleCast audio stream is sent to the Solo Uno.
Upgrading the Solo Uno software
The Solo Uno will automatically download any available software updates when it is connected to a
network.
If the Solo Uno is left powered on these updates will be installed over night when the unit is idle.
If the unit is powered o over night then the update will installed the next time the unit is powered on.
The NET LED will double ash BLUE to indicate the update is in progress.
Resetting the Solo Uno
To reset the Solo Uno without loosing any stored settings simply press the button on the rear panel
for less than 1 second. The LEDs will change state to indicate the unit is restarting.
To restore the Solo Uno to factory defaults including forgetting any stored WiFi networks press and hold
the button on the rear panel for more than 3 seconds. Both LEDs will briey light BLUE to indicate
factory reset has been inititated.

EN-9
EN
STATUS LED
LED state Meaning
Pulsing BLUE The Solo Uno is waiting to be congured for a wireless
connection.
Flashing BLUE The Solo Uno is attempting to connect to a network.
Solid BLUE The Solo Uno is connected to a network.
O The Solo Uno is booting up.
Solo Uno mode Led State Meaning
Streaming
Solid WHITE The Solo Uno is on, connected to a network and playing.
Solid PURPLE The Solo Uno is on, connected to a network, but not playing or
playback is paused.
Solid RED The Solo Uno is on and not connected to a network.
AUX input Solid GREEN The Solo Uno is in line-in (auxiliary) mode.
All modes
Solid ORANGE The Solo Uno is muted.
Flashing ORANGE The Solo Uno is initializing or a rmware update is in progress.
Flashing RED/
BLUE
Amplier has overheated. Turn o unit and allow to cool down
before restarting.
Flashing PURPLE/
BLUE
Amplier fault. Turn o unit and check speaker wiring for short
circuits before restarting.
NET LED
STATUS INDICATORS

EN-10
SPECIFICATIONS
Frequency Response 10Hz - 20kHz
Signal-to-Noise Ratio (A-Weighted) 117dB
Output power (1kHz, 1% THD,
One channel driven)
4Ω 50W
8Ω 25W
AUX input sensitivity 2V
Subwoofer Output level 2.1V
Cross-over frequency 80Hz
Power requirements 100 – 240VAC, 50/60Hz
Dimensions (W x H x D)
(Including speaker terminals) 140 x 52 x 213mm
Net weight 1.5kg
Supplied accessories
Power cord
Wi-Fi antenna
User manual and registration card
E&OE. All specication values are typical unless otherwise stated

EN-11
EN
WORLDWIDE GUARANTEE
This entitles you to have the unit repaired free of charge for two years after purchase, provided that it was
originally purchased from an authorised Arcam dealer. The manufacturer can take no responsibility for
defects arising from accident, misuse, abuse, wear and tear, neglect or through unauthorised adjustment
and/or repair, neither can they accept responsibility for damage or loss occurring during transit to or from
the person claiming under the guarantee.
The warranty covers:
Parts and labour costs for two years from the purchase date. After two years you must pay for both parts
and labour costs. The warranty does not cover transportation costs at any time.
Claims under guarantee
This equipment should be packed in the original packing and returned to the dealer from whom it was
purchased, or failing this, directly to the Arcam distributor in the country where the product was purchased.
It should be sent carriage prepaid by a reputable carrier – not by post. No responsibility can be accepted for
the unit whilst in transit to the dealer or distributor and customers are therefore advised to insure the unit
against loss or damage whilst in transit.
For further details contact Arcam at [e-mail].
Problems?
If your Arcam dealer is unable to answer any query regarding this or any other Arcam product please
contact Arcam Customer Support at the above address and we will do our best to help you.
TECHNOLOGY LICENSING
Android Google, Google Play, Chromecast, Chromecast built-in, Google Home and other related marks and
logos are trademarks of Google Inc.
Apple, AirPlay and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries. App Store
is a service mark of Apple Inc.
MQA and the Sound Wave Device are registered trade marks of MQA Limited.© 2016
Correct disposal of this product
This marking indicates that this product should not be disposed with other household
waste throughout the EU.
To prevent possible harm to the environment or human health from uncontrolled waste
disposal and to conserve material resources, this product should be recycled responsibly.
To dispose of your product, please use your local return and collection systems or contact
the retailer where the product was purchased.

EN-12
IMPORTANT ANTENNA INFORMATION
The Solo Uno is only designed to operate with the supplied antenna. Any other antenna is strictly prohibited for use with the Solo Uno.
FCC Information (for US customers)
1. PRODUCT
This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
2. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT
This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modication not expressly
approved by ARCAM may void your authority, granted by the FCC, to use the product.
3. NOTE
This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation.
This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this product does cause harmful interference to radio or television reception, which can be determined by turning the product OFF and ON,
the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the product into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the local retailer authorized to distribute this type of product or an experienced radio/TV technician for help.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the antenna and your body.
INDUSTRY CANADA Information (for CANADIAN customers)
This Class B digital apparatus complies with Canadian ICES-003
1. "This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement"
2. "This radio transmitter 6132A-LUXASTR01 has been approved by Industry Canada to operate with the antenna types listed below with
the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list,
having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio 6132A-LUXASTR01 a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés
ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans
cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur."
Wanshih WSS002, Antenna Gain +2dBi
3. "This equipment complies with IC RSS102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20 cm between the antenna and your body.
Cet équipement est conforme aux limites IC RSS102 d'exposition aux rayonnements dénies pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé à distance minimale de 20 cm entre l'antenne et votre corps."

FR
HANDBOOK
SYSTÈME HAUTE-FIDÉLITÉ SANS FIL

FR-2
CONSIGNES DE SÉCURITÉ IMPORTANTES
1. Lire ces instructions
2. Conserver ces instructions
3. Tenir compte de tous ces avertissements
4. Suivre toutes les instructions
5. Ne pas utiliser cet appareil près de l’eau
6. Ne nettoyer qu’avec un linge sec
7. Ne pas obstruer les ouvertures de ventilation. Installer l’appareil conformément aux instructions du
fabricant.
8. Ne pas installer à proximité de sources de chaleur comme les radiateurs, les bouches de chaleur, des
poêles ou autres appareils (y compris les amplicateurs) qui produisent de la chaleur.
9. Ne pas contourner l’objectif de sécurité de la che polarisée ou de mise à la terre. Une che polarisée
possède deux lames dont l’une est plus large que l’autre. Une che de type mise à la terre a deux lames
et une troisième broche de mise à la terre. La lame large ou la troisième broche sont prévues pour votre
sécurité. Si la che fournie ne rentre pas dans votre prise, consulter un électricien pour le remplacement
de la prise obsolète.
10. Protéger le cordon d’alimentation pour éviter qu’il ne soit piétiné ou pincé, en particulier au niveau des
ches, du réceptacle et de l’endroit où le cordon sort de l’appareil.
11. N’utiliser que les accessoires spéciés par le fabricant.
12. N’utiliser qu’avec le chariot, la base, le trépied, les éléments de montage ou la table spéciés par
le fabricant, ou vendus avec l’appareil. Lorsqu’un chariot est utilisé, faire attention en déplaçant
la combinaison chariot/appareil an d’éviter les blessures causées par le basculement du chariot.
13. Débrancher cet appareil pendant les orages ou en cas d’inutilisation prolongée.
14. Coner toutes les réparations à du personnel de service qualié. Une réparation est nécessaire lorsque
l’appareil a été endommagé de quelque façon que ce soit, par exemple si le cordon d’alimentation
ou la che est endommagé, si du liquide a été renversé ou si des objets sont tombés dans l’appareil, si
l’appareil a été exposé à la pluie ou à l’humidité, ne fonctionne pas normalement ou est tombé.
15. L’appareil ne doit pas être exposé à des gouttes ou à des éclaboussures et les objets remplis de liquide,
comme des vases, ne doivent pas être placés sur l’appareil.
16. L’appareil doit être raccordé à une prise de courant avec une prise de terre de protection.
17. La che secteur doit être facilement accessible pour débrancher l’équipement.
18. Les objets remplis de liquides, comme les vases, ne doivent pas être placés sur l’appareil.
19. AVERTISSEMENT: Pour réduire les risques d’incendie ou de décharge électrique, ne pas exposer cet
appareil à la pluie, à l’humidité, aux gouttes ou aux éclaboussures.
Ce symbole de foudre avec une èche à l’intérieur d’un triangle équilatéral est destiné à avertir l’utilisateur
de la présence d’une «tension dangereuse» non isolée à l’intérieur du boîtier du produit qui pourrait être
d’une magnitude susante pour constituer un risque de décharge électrique.
AVERTISSEMENT: Pour réduire le risque d’électrocution, ne pas retirer le couvercle (ou l’arrière), car il n’y a
aucune pièce réparable par l’utilisateur à l’intérieur. Coner l’entretien à un personnel qualié.
Le point d’exclamation à l’intérieur d’un triangle équilatéral est destiné à alerter l’utilisateur de la présence
d’instructions importantes d’utilisation et d’entretien dans la documentation accompagnant l’appareil.
Cet équipement est un appareil électrique de classe II ou à double isolation. Il a été conçu de telle
manière qu’il ne nécessite pas de connexion de sécurité à la terre électrique.

FR-3
FR
BIENVENUE...
Merci d’avoir acheté le système Solo Uno haute-délité sans l Arcam.
Arcam produit des composants audio de haute qualité depuis plus de quarante ans. Au cours de cette
période, nous avons accumulé une mine de connaissances sur la conception et la construction de
composants audio an d’orir les meilleures performances sonores au meilleur rapport qualité/prix.
Ce manuel fournit des conseils pour la connexion et l’utilisation de votre Solo Uno.
Nous espérons que votre Solo Uno vous procurera des années d’opération sans problème. Dans le cas peu
probable d’une panne ou si vous avez simplement besoin d’informations complémentaires sur les produits
Arcam, notre réseau de revendeurs se fera un plaisir de vous aider. De plus amples informations sont
disponibles sur le site Arcam au www.arcam.co.uk.
L’équipe Solo Uno de développement

FR-4
BRANCHEMENTS, INDICATEURS ET
COMMANDES
NET STATUS
INTERRUPTEUR D’ALIMENTATION
SOURDINE / SÉLECTION ENTRÉE AUXILIAIRE
Voir“Utilisation de l’entrée AUX”on page FR-8
BAISSER LE VOLUME AUGMENTER LE VOLUME
INDICATEUR DE LIAISON RÉSEAU
Voir“VOYANT DE RÉSEAU”on page FR-9
INDICATEUR DE STATUT
Voir“VOYANT DE STATUT” on page FR-9

FR-5
FR
SERVICE RESET 100-240V~
50/60Hz 60W MAX
SUB OUT
NET
ANT
RIGHT LEFT
AUX
PORT DE
SERVICES USB
ENTRÉE
ALIMENTATION CA
RÉINITIALISATION
Voir “Réinitialisation du
Solo Uno”on page FR-8
SORTIE DU
CAISSON DE
GRAVES
PORT
ETHERNET
ANTENNE SANS FIL
BORNE DE L’ENCEINTE
DE DROITE
BORNE DE L’ENCEINTE
DE GAUCHE
ENTRÉE AUDIO
ANALOGIQUE
Voir «Utilisation de l’entrée
AUX» à la page FR-8)

FR-6
BRANCHEMENTS
RESET 100-240V~
50/60Hz 60W MAX
SUB OUT
NET
ANT
RIGHT LEFT
AUX
1 2 3 4NET
SERVICE
ANTENNE WI-FI
ROUTEUR RÉSEAU
