Technical data
Power supply:
220-240 V~, 50-60 Hz
Power: 1350 W
Technical and design modifications reserved.
1. Coffee Beans Container Cover
2. Coffee Bean Container
3. Control Panel
4. On/Off button
5. Steam Nozzle
6. Nozzle cover
7. Adjustable coffee spout
8. Metal tube
9. Coffee Grounds Container
10. Internal Drip Tray
11. External Drip Tray
12. Cleanness brush
13. Service Door
14. Brewer
15. Power cord
16. Water Tank
1
2
3
4
56
8
7
9
10
11
12
13
14
15
16

Please read this user manual
first!
Dear Customers,
Thank you for selecting an Arçelik
product. We hope that you get the best
results from your product which has been
manufactured with high quality and state-
of-the-art technology. Therefore, please
read this entire user manual and all
other accompanying documents carefully
before using the product and keep it as a
reference for future use. If you handover
the product to someone else, give the
user manual as well. Follow all warnings
and information in the user manual.
Meanings of the symbols
Following symbols are used in the various
section of this manual:
Important information or useful hints
about usage.
DANGER: Warning for hazardous
situations with regard to life and
property.
WARNING: Warning indicates a
potentially dangerous situation.
CAUTION:Warning indicates potential
material damage.
Materials are intended to be in contact
with food.
This product has been produced in environmentally-friendly, state-of-the-art facilities.
Complies with the WEEE Directive. It does not contain PCB.

5 / EN
Fully Automatic Coffee Machine / User Manual
1 Important instructions for safety and
environment
This section includes the safety
instructions that will help provid-
ing protection against personal
injury and material loss risks.
Failure to follow these instruc-
tions invalidates the granted war-
ranty.
1.1 Danger of electric cur-
rent
Danger to life by electric current!
Contact with live wires or compo-
nents could lead to serious injury
or even death!
Observe the following safety pre-
cautions to avoid electric shocks:
• Do not use the coffee machine
if the connecting cable or mains
plug are damaged.
• Before reusing the coffee ma-
chine, the mains cable must be
renewed by a qualified electri-
cian.
• Do not open the housing of the
coffee machine. Danger of elec-
tric shock if live connections are
touched and/or the electrical
and mechanical configuration is
changed.
• Before cleaning the bean con-
tainer, pull the mains plug of
the appliance out of the socket.
Danger from rotating coffee mill!
1.2 Danger of burning or
scalding
Parts of the coffee machine can
become very hot during opera-
tion! Dispensed drinks and es-
caping steam are very hot!
Observe the following safety pre-
cautions to avoid burning/scald-
ing yourself and/or others:
• Do not touch either of the metal
sleeves on both coffee spouts.
• Avoid direct contact of the skin
with escaping steam or hot
rinsing, cleaning and descaling
water.
1.3 Fundamental safety
precautions
Observe the following safety pre-
cautions to ensure safe handling
of the coffee machine:
• Never play with packaging ma-
terial. Risk of suffocation.

6 / EN Fully Automatic Coffee Machine / User Manual
1 Important instructions for safety and
environment
• Inspect the coffee machine for
visible signs of damage before
use. Do not use a damaged cof-
fee machine.
• If the connecting cable is dam-
aged, it should only be replaced
by a service agent recom-
mended by the manufacturer
in order to prevent any danger!
Please contact the manufac-
turer or his customer service.
• Repairs to the coffee machine
must only be carried out by an
authorised specialist or by the
works customer service. Un-
qualified repairs can lead to
considerable danger for the
user. They will also void the
warranty.
• Repairs to the coffee machine
during the warranty period may
only be carried out by service
centres authorised by the man-
ufacturer, otherwise the war-
ranty will become void in the
event of subsequent damage.
• Defective parts may only be re-
placed with original spare parts.
Only original spare parts guar-
antee that the safety require-
ments are met.
• This appliance can be used by
children from the age of 8 up as
well as by persons with reduced
physical, sensory or mental
abilities or with lacking experi-
ence and/or knowledge, if these
persons are supervised or have
been instructed how to use the
appliance in a safe way and
have understood the hazards
which could arise from using it.
Children must not play with the
appliance. Cleaning and user
maintenance shall not be made
by children unless they are older
than 8 and supervised.

7 / EN
Fully Automatic Coffee Machine / User Manual
1 Important instructions for safety and
environment
• This appliance is intended to be
used in household and similar
applications such as:
- staff kitchen areas in shops,
offices and other working en-
vironments,
- farm houses,
- by clients in hotels, motels and
other residential type environ-
ments,
- bed and breakfast type envi-
ronments.
• Protect the coffee machine
against the effects of weather
such as rain, frost and direct
sunlight. Do not use the coffee
machine outdoors.
• Never immerse the coffee ma-
chine itself, the mains cable or
the mains plug into water or
other liquids.
• Do not clean the coffee machine
or accessories in a dish washer.
• Do not pour any other liquids
apart from water or place food-
stuffs into the water tank.
• Do not fill the water tank beyond
the maximum mark (lower edge
of the filling hole) (1.5 litres).
• Only operate the machine when
the waste container, drip tray and
the cup grate are fitted.
• Do not pull the cable to remove
the plug from the mains socket
or touch with wet hands.
• Do not hold the coffee machine
with the mains cable.
• Keep the appliance and its cord
out of reach of children aged
less than 8 years.
• Do not operate the hot water
function continuously for more
than one tank of water.

8 / EN Fully Automatic Coffee Machine / User Manual
1 Important instructions for safety and
environment
1.4 Intended use
The fully automatic coffee machine Beko is
intended for use in homes and similar applications,
for instance in staff kitchens, shops, offices and
similar areas or by customers in bed & breakfast,
hotels, motels and other living accommodation.
This coffee machine is not intended for commercial
use. The machine is only intended for preparing
coffee and heating milk and water. Any other use
other than previously stated is considered as
improper use.
Danger resulting from improper use!
If not used for its intended purpose or used in any
other way, the coffee machine may be or become
a source of danger.
AWARNING: Therefore, the coffee
machine may only be used for its
intended purpose.
AWARNING: Observe the procedures
described in this user manual.
No claims of any kind will be accepted for damage
or injury resulting from use of the coffee machine
for other than its intended purpose.
The risk has to be borne solely by the machine
owner.
1.5 Limitation of liability
All technical information, data and instructions
on installation, operation and maintenance of
the coffee machine contained in these operating
instructions represent the current status at the
time of printing and are based on the best possible
knowledge gained by experience and knowhow.
No claims can be derived from the information,
illustrations and descriptions in this user manual.
The manufacturer assumes no liability for damage
or injury resulting from failure to observe the user
manual, use for other than the intended purpose,
unprofessional repairs, unauthorised modifications
or use of non-approved spare parts.
1.6 Compliance with the WEEE
Directive and Disposing of the Waste
Product:
This product complies with EU WEEE Directive
(2012/19/EU). This product bears a classification
symbol for waste electrical and electronic equip-
ment (WEEE).
This symbol indicates that this product
shall not be disposed with other house-
hold wastes at the end of its service
life. Used device must be returned to
offical collection point for recycling of
electrical and electronic devices. To find these col-
lection systems please contact to your local au-
thorities or retailer where the product was pu-
chased. Each household performs important role
in recovering and recycling of old appliance.
Appropriate disposal of used appliance helps pre-
vent potential negative consequences for the envi-
ronment and human health.
1.7 Compliance with RoHS Directive
The product you have purchased complies with EU
RoHS Directive (2011/65/EU). It does not contain
harmful and prohibited materials specified in the
Directive.
1.8 Package information
Packaging materials of the product are
manufactured from recyclable materials
in accordance with our National
Environment Regulations. Do not dis-
pose of the packaging materials together with the
domestic or other wastes. Take them to the pack-
aging material collection points designated by the
local authorities.

9 / EN
Fully Automatic Coffee Machine / User Manual
2 Display

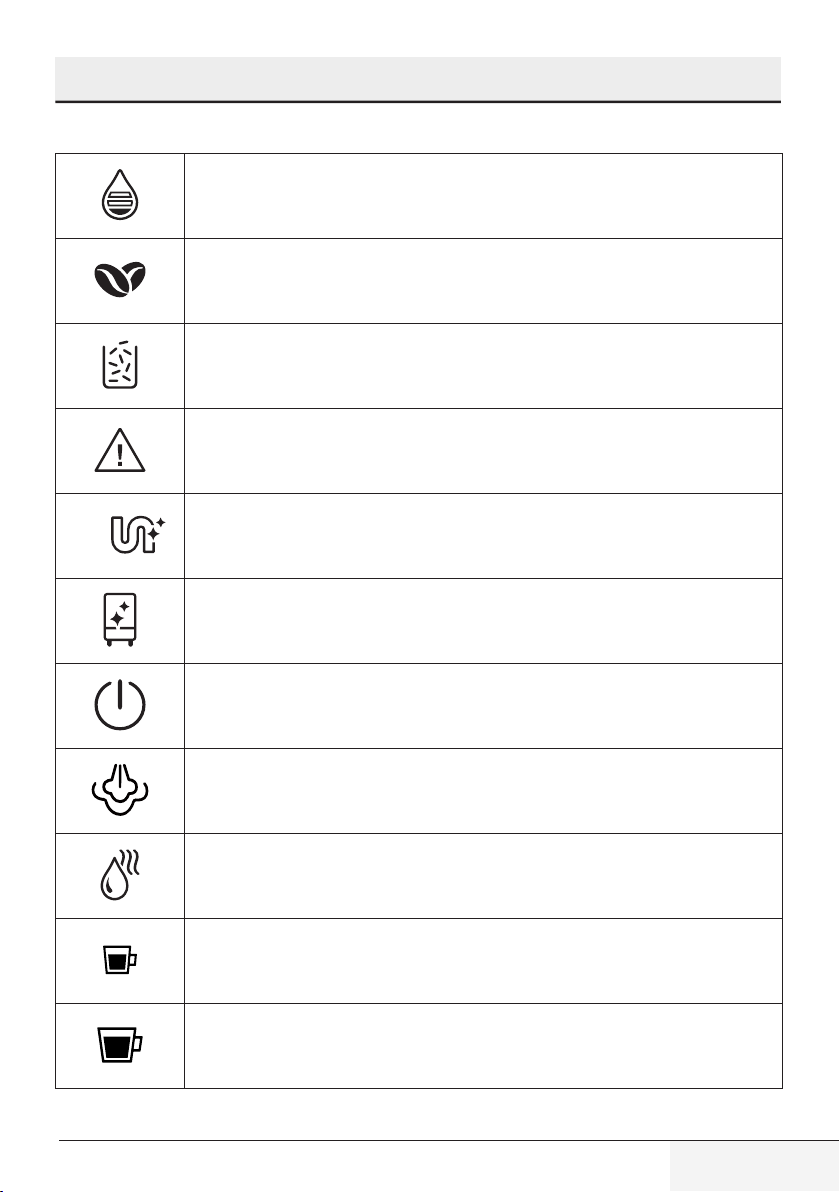

2.1 Control Panel
Flashing: Low water level/ Water tank missing
Lack of bean
Lights up stably: coffee grounds container is full
Flashing: Internal Drip Tray/coffee grounds container is missing
Lights up stably: Brewer is missing/ installed improperly
Flashing: Service door is opened / installed improperly
Lights up stably: Requires to do descaling
Flashing: Descaling is under process
Empty System Function is running
Power ON/OFF Button
Steam Button
Hot Water Button
Strong Espresso Button
Mild Espresso Button

10 / EN Fully Automatic Coffee Machine / User Manual
3 Preparation

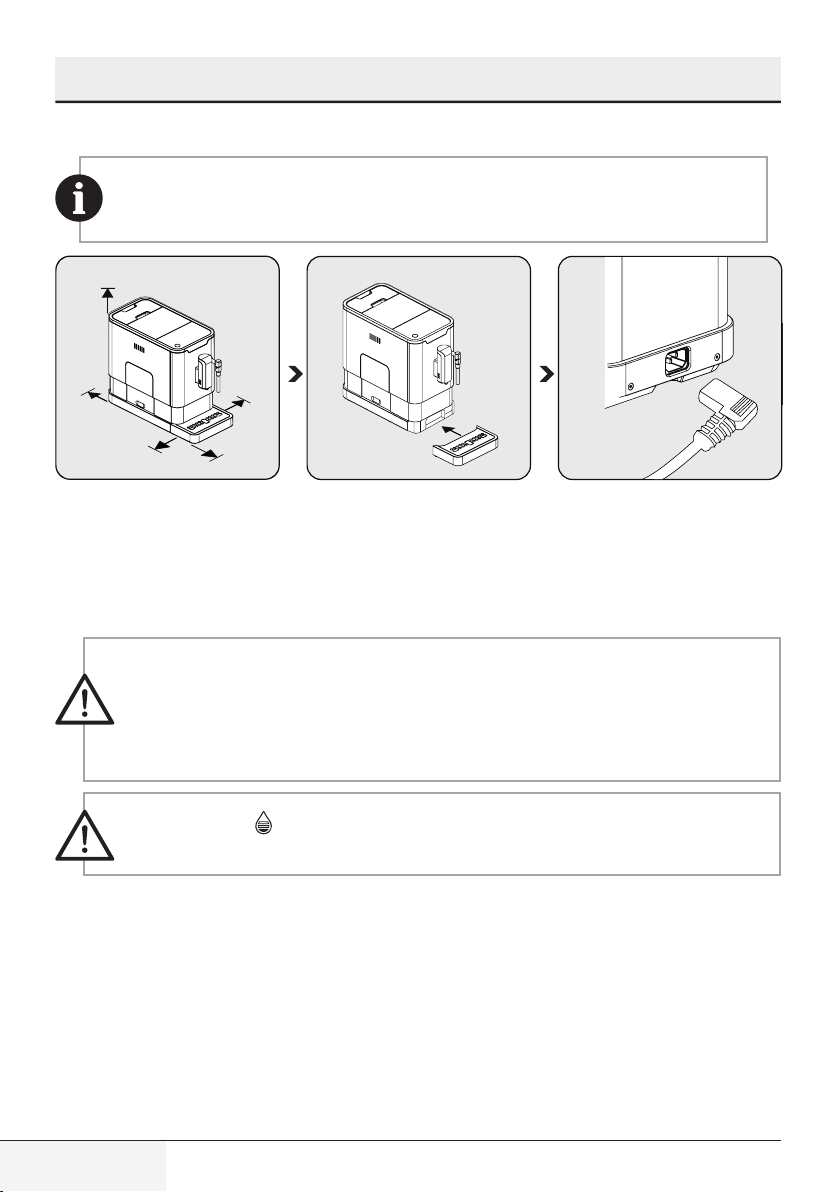

3.1 Installation
Remove any protective films, stickers and any other packing material on the appliance.
150mm
150mm
150mm
150mm
150mm
.
Choose a safe and stable surface with an
easily reachable power supply and allow
minimum distance from the sides of the
machines.
Insert the external drip tray. Make sure it
is inserted correctly.
Unwind and straighten the power cord
and insert the plug into the socket locat-
ed on the back of the machine. Insert the
other end of the power cord into a wall
socket with suitable power voltage.

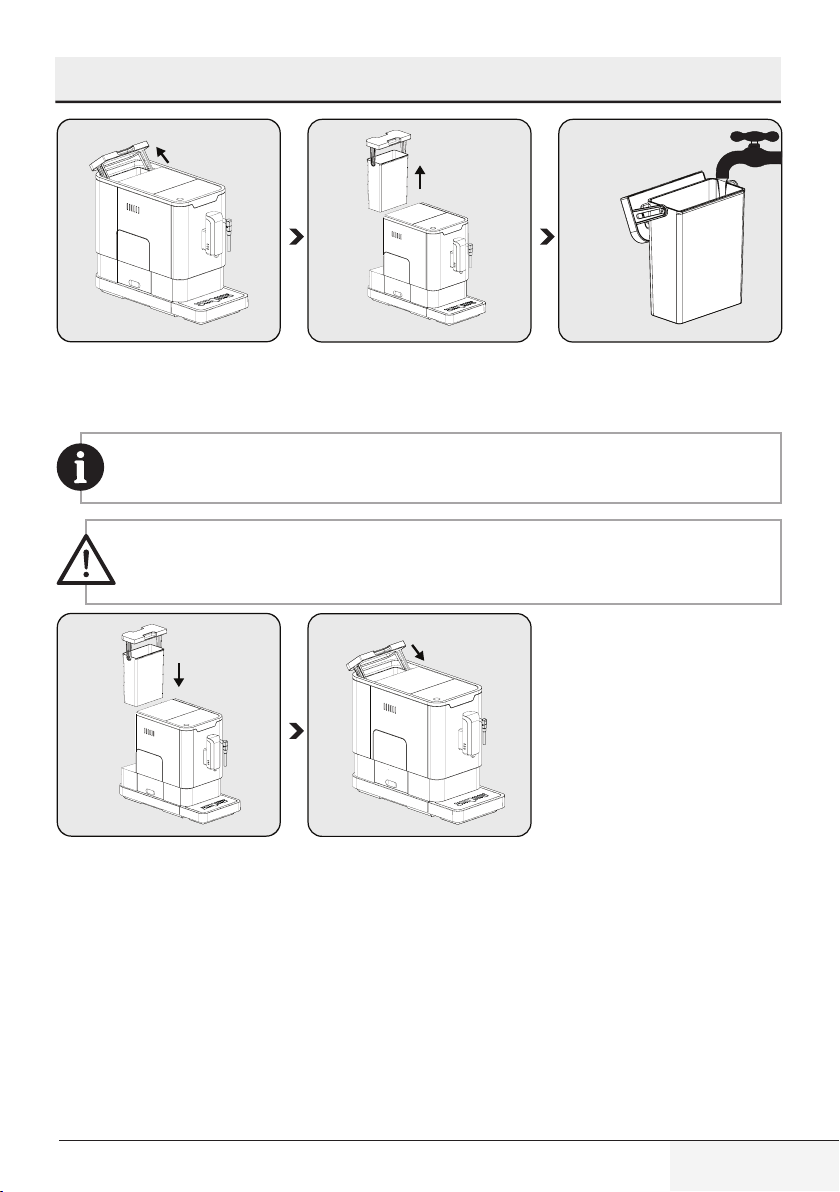

3.2 Filling the water tank
About the protect program: If the water tank is not fully placed into the machine, a
protection mode will be activated in 15 seconds during brewing process. Hot water button
will lights on control panel.

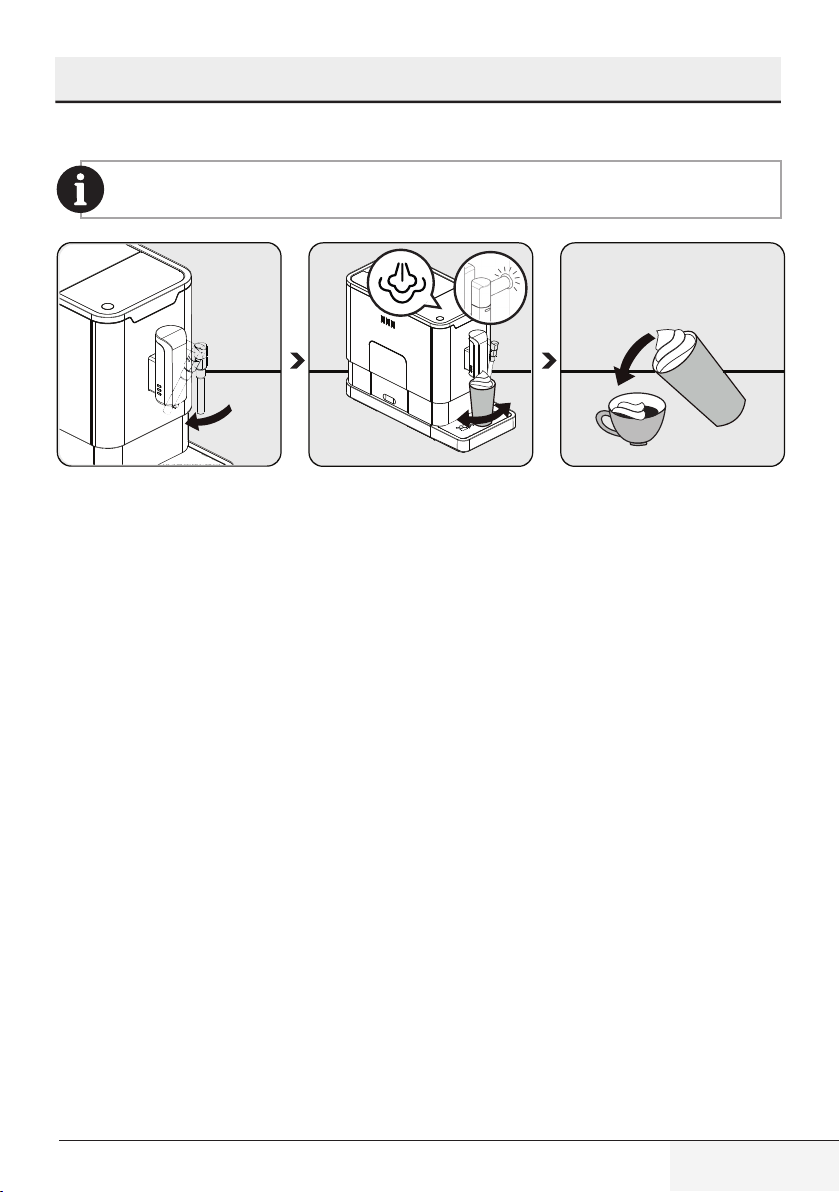

1. Make sure that the water tank is fully inserted into the machine.
2. Press the hot water button. After the hot water is dispensed, the machine will be in
standby condition.
WARNING: When is flashing, the water tank is in low water level and requires filling the
water tank.

11 / EN
Fully Automatic Coffee Machine / User Manual
Lift the water tank by using the lid as the
handle.
Take the water tank out. Rinse the water tank with fresh water and
then fill the tank to the Max level and place
it back into the machine. Make sure it is
fully inserted.
To prevent overflow of water from the water tank, do not add water directly into the appliance
with another container.
WARNING: Never fill the water tank with warm, hot, sparkling water or any other liquid
which might damage the water tank and the machine.
.
Place the water tank back by using the lid
as the handle.
Close the water tank by using the lid.
3 Preparation

12 / EN Fully Automatic Coffee Machine / User Manual
4 Operation
4.1 Grinding Adjustment
You can adjust the grinder to suit the roast of your coffee by turning adjuster knob in the bean
container:
WARNING: Never do the grinding adjustment when the grinder is not operating. It may
damage the grinder.
The dots on the adjuster knob indicate the fineness of the grind.
4.2 Filling the bean container
When is flashing, the appliance needs to be filled with coffee bean.
Remove the bean container lid. Slowly pour in the coffee beans. Place the container lid back.
WARNING: Fill the coffee bean container only with coffee beans. Grounded coffee, instant
coffee, caramelized coffee and any other objects may damage the machine.
When the grinder is grinding the coffee
bean when it is making the coffee,
you can turn the adjust knob to do the
adjustment.

13 / EN
Fully Automatic Coffee Machine / User Manual
Press the hot water button to clean inside of the coffee maker before first use.
4.3 Making Your Coffee
Switch on the appliance by pressing the
power on/off button. The appliance is
then in the standby condition.
Place a cup under the coffee spout and
adjust the height of the spout the fit the
cup.
The espresso button being pressed will
light on and the illumination will lights up
indicates that the appliance is preparing
the cup of coffee.
When the appliance is back to standby
condition, the coffee is ready to serve.
Switch off the appliance by pressing the power on/off button.
Depending on the taste of coffee you would like to have, press strong espresso button or mild
espresso button .
Press the hot water button to clean inside of the coffee maker before first use.
The Appliance is equipped with auto-shut off. Depending on the mode you have selected the
appliance will have different auto-shut off timing.
4 Operation

14 / EN Fully Automatic Coffee Machine / User Manual
4 Operation
4.4 Adjustiing The Volume Of Your Coffee/Hot Water
You can memorize your desired volume of coffee for both strong espresso and mild espresso and also
the hot water from 25ml to 250ml.
2x
bipp!
When making your coffee (either strong
espresso or mild espresso) or dispensing
hot water, press and hold the button you
selected. The appliance will continue to
make the cup of coffee.
When the volume of coffee meets your
desired volume, release the button. Two
beep sounds will be heard indicates that
the volume of coffee is being memorized.

15 / EN
Fully Automatic Coffee Machine / User Manual
4 Operation
4.5 Preparing Frothy Milk for Coffee
As the temperature of steam is higher than the temperature of espresso, so espresso should
be prepared before making frothy milk; otherwise the espresso might be burnt.
Prepare the espresso coffee with larg-
er cup. Turn the steam nozzle toward to
the Drip tray.
Press the steam button. Steam indica-
tor light will flash. Then the appliance is
heating up and draining the residual wa-
ter into the Drip Tray or another container.
After the steam indicator light stop flash-
ing and stay on, place a container with
milk under the steam nozzle and im-
merse the steam nozzle about 5cm deep
into the container. Swivel the container
while the hot steam comes out.
Pour the hot frothy milk into the espresso.
Now you can enjoy your coffee.
4.6 Hot Water
The appliance can dispense hot water by simply pressing the hot water button. The hot water button
and the illumination will lights up indicates that the appliance is heating up the water. When the hot
water button and the illumination turn off, the water is ready to serve.

16 / EN Fully Automatic Coffee Machine / User Manual
4 Operation
4.7 Mode Selection
The machine has two different setting: default setting, ECO mode and speed mode. In ECO mode, the
appliance helps to save more energy. In speed mode, the user can make their coffee faster than in
default setting.
ECO Mode Speed Mode Default Settng
Illumnaton Lght No Yes Yes
Pre-brewng* Yes No Yes
Auto shut off tme 10mns 30mns 20mns
Cup Volume memory Yes Yes Yes
The pre-brewing function moistens the grounded beans in the brewer with a small amount of
water before full extraction. This expands the coffee grounds to build up a greater pressure in
the brewer which help extraction of all the oils and full flavor from the grounded beans.
1. When the machine is in standby condition, press and holds the for 5 seconds.
2. The will then be flashing and the following button will have the following indications for different
settings:
Hot water button Strong espresso button Mld espresso button
In ECO Mode Lghts ON Flashng Flashng
In Speed Mode Yes No Flashng
In Default Settng Flashng Flashng Lghts On
3. Press the hot water button for ECO mode, strong espresso button for speed mode and mild
espresso button for default setting. Two Beep sound will be heard indicates that the mode is being
selected. (Note: If you are pressing the relative lights on button for each mode, the machine will not
response).
4. If you would like to remain the setting unchanged, press again or wait for 5 seconds for the
machine to return to the standby condition

17 / EN
Fully Automatic Coffee Machine / User Manual
5.1 Cleaning of the appliance
1. Disconnect the power cord from the mains supply outlet.
2. P our away all the water in the internal and external drip tray
3. Use a damped cloth or non-scratching cleaner to clean the water stains on the applance.
WARNING: Never use any abrasive, vinegar or descaling agents not included in the box to
clean the appliance.
Timely cleaning and maintenance of the appliance is very important in prolonging the life of the
appliance.
1
2
2
1

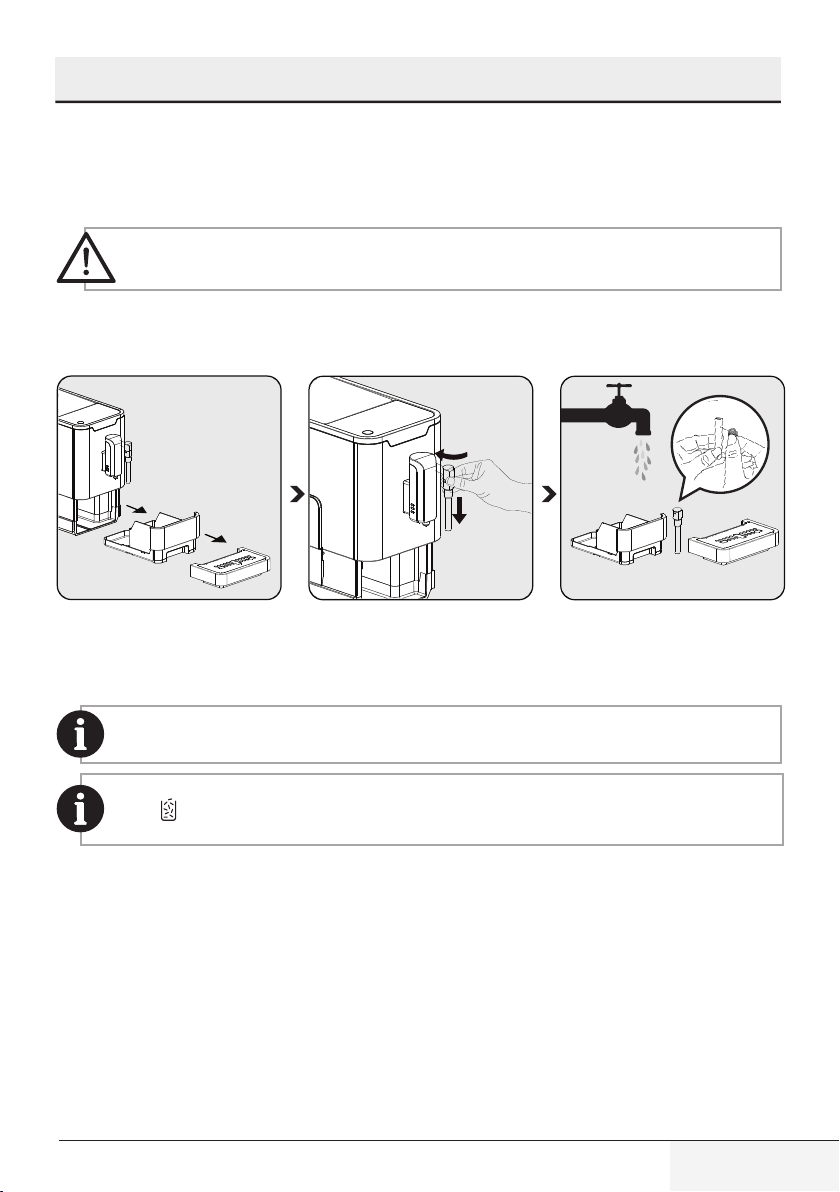

Remove the external drip tray. Slides
open the internal drip tray and the coffee
grounds container.
Unlock the nozzle cover by turning it to
left.Then pull it downward to remove Pull
the metal tube downward to ds-assem-
bly the nozzle cover and metal tube.
Empty the coffee grounds container, ex-
ternal drip tray, nozzle cover and metal
tube wash it with fresh water. Dry it af-
terwards.
Assembly the metal tube back to the nozzle cover. Then push upward to place the nozzle cover
back. And turn it to right to lock it.
When lights up, the coffee grounds container needs to be empty.
5 Cleaning

18 / EN Fully Automatic Coffee Machine / User Manual
2
1
Pull down the service door and remove it. Press the release knob. Remove the brewer. Wash the brewer
with fresh water. Dry the brewer after-
wards.
When lights up stably, it indicates that the brewer is missing / installed improperly. When
is flashing, it indicates that the service door is missing/installed improperly.
5.2 Self-Cleaning
WARNING: Please wait for finishing the self cleaning process and then switch off the
machine.
When is flashing, it indicates that the appliance needs to undergo self-cleaning. The appliance
will remain in the best condition if this function is performed at least once a month or more regularly
depending on the hardness of water used. It is also suggested that to
1. Fully fill the water tank.
2. Adding one pack of cleaning agent included in the box to the water tank.
WARNING: Do not use vinegar or other cleaning agent to do self-cleaning of this appliance.
The cleaning agent might damage the appliance.
3. Plug in the appliance.
4. Place a sufficient large container under the coffee spout.
5. In standby condition, press and hold and strong espresso button for 5 seconds. A beep sound
will be heard with and strong espresso button will be flashing.
6. Press strong espresso button to confirm undergoing the self-cleaning process. To resume back to
the standby condition, press .
7. Will be flashing indicates that the appliance is undergoing the self-cleaning process.
WARNING: Keep skin/body away from the hot water.
5 Cleaning

19 / EN
Fully Automatic Coffee Machine / User Manual
5 Cleaning
8. When all the water in the water tank is being dispensed out, and strong espresso button will be
flashing. Remove all the remaining solution in the water tank and fill the tank with normal tap water
until the max position.When water is filled into the water tank, will goes off. Then the appliance will
continue the self-cleaning process.
9. When the self-cleaning process is completed, the appliance will switch off automatically.
5.3 Empty System Function
The empty system function is recommended to be used before long period of non-use, frost protection
and before talking to repair agent.
1. In standby condition, press and hold the and mild espresso button together for 5 seconds.
2. will then be flashing.
3. Remove the water tank from the appliance. will light up stably indicates that the empty system
is under process. You can press before removing the water tank to resume back to the standby
condition.
4. When the empty system function is completed, the appliance will switch off automatically.
WARNING: After perform EMPTY SYSYEM FUNCTION; press the hot water button until water
can come out from spout when the coffee maker is reused again.
5.4 Manual Rinsing
You can perform a manual rinsing cycle to clean the coffee nozzle after use. It is also suggested to
perform a manual rinsing if the appliance has not been used for a long period of time.
1. In standby condition, press and hold the and hot water button together.
2. The hot water button , strong espresso button and mild espresso button will then goes off.
The coffee nozzle will then dispense a small amount of water which is used for the rinising.
WARNING: Water comes out of the coffee nozzle is hot and is collected in the drip tray
underneath. Avoid contact with splashes of water.
3. After rinsing, the appliance will return to the standby condition.

20 / EN Fully Automatic Coffee Machine / User Manual
Problem Cause Solution
The applance does not work. The applance s not connected to the mans. Plug n and press the swtch. Check the cable
and the Plug
No or delayed response n several trals of
pressng on functon key on the panel Applance s under an electromagnetc nterference
Drt over the panel
Unplug the applance. Restart after few
mnutes Clean the panel wth the cloth
provded
The coffee s not hot enough. The cups have not been preheated.
The brewng unt s too cold. Rnse the applance at least 3 tmes before makng the coffee.
The coffee cannot come out from spout. Empty system functon maybe used before. Press the hot water button untl water can
come out from spout.
The frst cup of coffee s poor qualty. The frst run of grnder does not pour
suffcent quantty coffee power nto the
brewng unt.
Throw the coffee away. The other coffees
wll always be of good qualty.
The touch buttons are not senstve Excessve scale has bult up. Descale the applance.
The water tank s removed / the water level
s very low n the water tank but have no
alert.
The area near the water
tank connector s wet. Wpe the water around the water tank connector
Internal drp tray s flled wth a lot of water. Coffee powder too fne whch block the water
to come out. Adjust the coffee fneness to bgger dot durng grnder operaton.
Coffee s delvered too slowly or a drop at a
tme. Coffee powder too fne whch block the water to come out. Adjust the coffee fneness to bgger dot durng grnder operaton.
Lack of bean ndcator flashes but there s stll
a lot of coffee bean nsde the contaner. Internal coffee powder outlet s blocked. Follow the steps of secton Cleanng coffee powder outlet.
The brewer or the coffee ground tray s
mpossble to remove. The applance dd not fnsh the self-cleanng process and was swtched off . Please swtch on the machne agan and let t fnsh ts auto cleanng process.
The applance no longer performs the rnsng
cycle when swtched on or off. Improper handlng when servcng the applance may be the cause. 1. When the applance s on, remove the coffee group access door.
2. Press and hold the on/off button untl you
hear 2 beeps.
3. Replace the coffee group access door.
6 Troubleshooting
