Explanation of symbols
Throughout this User Manual the following symbols are used:
CImportant information or
useful hints about usage.
AWarning for hazardous
situations with regard to life
and property.
BWarning for electric shock.
Packaging materials of the
product are manufactured
from recyclable materials
in accordance with our
National Environment
Regulations.
Do not dispose of the packaging materials together with the domestic or other
wastes. Take them to the packaging material collection points designated by
the local authorities.
Please read this user manual first!
Dear Customer,
We hope that you get the best results from your product which has been
manufactured with high quality and state-of-the-art technology. Therefore,
please read this entire user manual and all other accompanying documents
carefully before using the product and keep it as a reference for future use.
If you handover the product to someone else, give the user manual as well.
Follow all warnings and information in the user manual.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.

Document Number :
1728766521_AA_ARCELIK_B6_9241 MI_EN/ 04-10-16.(16:18)
Document Number :
9241 MI
Dishwasher
User’s Manual
EN

Explanation of symbols
Throughout this User Manual the following symbols are used:
CImportant information or
useful hints about usage.
AWarning for hazardous
situations with regard to life
and property.
BWarning for electric shock.
Packaging materials of the
product are manufactured
from recyclable materials
in accordance with our
National Environment
Regulations.
Do not dispose of the packaging materials together with the domestic or other
wastes. Take them to the packaging material collection points designated by
the local authorities.
Please read this user manual first!
Dear Customer,
We hope that you get the best results from your product which has been
manufactured with high quality and state-of-the-art technology. Therefore,
please read this entire user manual and all other accompanying documents
carefully before using the product and keep it as a reference for future use.
If you handover the product to someone else, give the user manual as well.
Follow all warnings and information in the user manual.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.

CONTENTS
1 
 
General safety ....................................4
Intended use.......................................5
Children’s safety .................................5
Disposing of packaging material.........5
Transportation of the product .............6
Compliance with WEEE Directive and
Disposing of the Waste Product .........6
Compliance with RoHS Directive........6
Package information...........................6
2  
Overview.............................................7
Technical specifications ......................8
3  
Appropriate installation location..........9
Connecting water supply ..................10
Adjusting the feet.............................. 11
Electrical connection......................... 11
Initial use .......................................... 11
 
Tips for energy saving ......................12
Water softening system ....................12
Adjusting the water softening system12
Adding salt........................................12
Adjusting the water softening system14
Detergent..........................................16
Adding detergent ..............................16
Combined tablet detergents .............17
Rinse aid...........................................18
Silverware basket piece....................21
Silverware basket .............................21
Cutlery basket ..................................22
Cutlery basket ..................................22
Collapsible lower basket wires (6
pieces)..............................................23
Collapsible lower basket wires (4
pieces)..............................................24
Collapsible lower basket wires (2
pieces)..............................................24
Collapsible lower basket tines ..........25
Collapsible lower basket tines ..........26
Lower basket bottle wire...................26
SoftTouch Accessory ........................27
Lower Basket Glass Holder..............27
Tray Wash Supports.........................27
Lower basket multipurpose / height
adjustable service rack.....................28
Upper basket height adjustable rack 29
Upper basket drawer ........................29
Upper basket glass support piece ....29
Upper basket glass support piece ....30
Collapsable upper basket wires........30
Collapsible upper basket tines..........31
Collapsible upper basket tines..........31
Adjusting the height of the upper
basket...............................................32
Adjusting the height of loaded upper
basket...............................................33
Height setting with empty basket......34
Upper cutlery basket.........................35
5 
Keys..................................................37
Preparing the machine .....................37
Programme selection........................37
Auxiliary functions.............................39
Scheduling the washing time............40
Starting the programme....................41
Cancelling the programme ...............42
Salt indicator ( ).............................42
Rinse Aid indicator ( ) ....................42
End of programme............................42
Water cut-off warning........................43
Overowing warning.........................43


Cleaning the outer surface of the
product..............................................44
Cleaning the interior of the machine.44
Cleaning the filters............................44
Cleaning the hose filter.....................45
Cleaning the impellers......................46
Lower impeller ..................................46
Upper impeller ..................................46
 

4 Dishwasher / User’s Manual/51 EN

1
This section contains safety
instructions that will help to
get protected from risk of
personal injury or property
damage. Failure to follow
these instructions shall void
all warranties.

Never place the product
on a carpet-covered floor;
otherwise, lack of airflow
beneath the product will
cause electrical parts
to overheat. This will
cause problems with your
product.
Do not operate the product
if the power cable / plug
is damaged! Call the
Authorised Service Agent.
Connect the product to a
grounded outlet protected
by a fuse complying
with the values in the
“Technical specifications”
table. Do not neglect
to have the grounding
installation made by a
qualified electrician. Our
company shall not be
liable for any damages
that will arise when the
product is used without
grounding in accordance
with the local regulations.
The water supply and
draining hoses must be
securely fastened and
remain undamaged.
Unplug the product when
not in use.
Never wash the product by
spreading or pouring water
onto it! There is the risk of
electric shock!
Never touch the plug
with wet hands! Never
unplug by pulling on the
cable, always pull out by
grabbing the plug.
The product must
be unplugged during
installation, maintenance,
cleaning and repairing
procedures.
Always have the
installation and repairing
procedures carried out by
the Authorised Service
Agent. Manufacturer
shall not be held liable for
damages that may arise
from procedures carried
out by unauthorised
persons.
Never use chemical
solvents in the product.
They bring forth the risk of
explosion.
When you pull the upper
and lower baskets out
completely, the door of
the product will bear all
the weight of the baskets.
Do not put other loads on
the door; otherwise, the
product may tilt.
Never leave the door
of the product open
apart from loading and
unloading procedures.
Do not to open the door
of the product when it is
running unless necessary.
Be careful for the rush of

Dishwasher / User’s Manual 5/ 51 EN
instructions for safety and environment
hot vapour when you need
to open the door.

This product has been
designed for domestic
use.
It must be used to do the
domestic type dishes only.
This appliance is intended
to be used in household
and similar applications
such as:
- Staff kitchen areas in shops,
offices and other working
environments;
- Farm houses;
- By clients in hotels, motels
and other residential type
environments;
- Bed and breakfast type
environments
Only dishwasher safe
detergents, rinse aids and
additives must be used.
The manufacturer waives
any responsibility arisen
from incorrect usage or
transportation.
The service life of your
product is 10 years.
During this period,
original spare parts will be
available to operate the
product properly.
This product should not
be used by persons
with physical, sensory
or mental disorders
or unlearned or
inexperienced people
(including children)
unless they are attended
by a person who will be
responsible for their safety
or who will instruct them
accordingly for use of the
product.

Electrical products are
dangerous for the children.
Keep children away from
the product when it is in
use. Do not let them to
tamper with the product.
Do not forget to close the
door of the product when
leaving the room where it
is located.
Store all detergents and
additives in a safe place
away from the reach of the
children.


Packaging materials are
dangerous to children. Keep
packaging materials in a safe
place away from reach of the
children.
Packaging materials of the
product are manufactured
from recyclable materials.
Dispose of them properly
and sort in accordance with
recycled waste instructions.
Do not dispose of them with
normal domestic waste.

6 Dishwasher / User’s Manual/51 EN
instructions for safety and environment


AIf you need to move
the product, do it
in upright position
and hold from the
rear side. Slanting
the product onto its
front side may cause
the electronic parts
in it get wet and
damaged.
1. Unplug the product before
transporting it.
2. Remove water drainage
and water supply
connections.
3. Drain the remaining water
in the product completely.



This product complies
with EU WEEE Directive
(2012/19/EU). This
product bears a
classification symbol for
waste electrical and electronic
equipment (WEEE).This
product has been
manufactured with high
quality parts and materials
which can be reused and are
suitable for recycling. Do not
dispose of the waste product
with normal domestic and
other wastes at the end of its
service life. Take it to the
collection center for the
recycling of electrical and
electronic equipment. Please
consult your local authorities
to learn about these collection
centers.


The product you have
purchased complies with EU
RoHS Directive (2011/65/EU).
It does not contain harmful
and prohibited materials
specified in the Directive.

Packaging materials of the
product are manufactured
from recyclable materials in
accordance with our National
Environment Regulations. Do
not dispose of the packaging
materials together with the
domestic or other wastes.
Take them to the packaging
material collection points
designated by the local
authorities.

Dishwasher / User’s Manual 7/ 51 EN

2

1. Upper impeller
2. Lower basket
3. Lower impeller
4. Rating Label
5. Control panel
6. Door
7. Detergent dispenser
8. Filters
9. Cutlery basket
10. Salt reservoir lid
11. Upper basket rail
12. Upper basket

8 Dishwasher / User’s Manual/51 EN
Dishwasher

Compliance to standards and test data / EC declaration of conformity
This product complies with the following EU directives;
Development, production and sales stages of this product comply with the
safety rules included in all pertaining European Community regulations.
2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242
Power input 220-240 V, 50 Hz (see rating label)
Total power consumption 1800-2100 W (see rating label)
Heater power consumption 1800 W (see rating label)
Total current (depends on the model) 10 A (see rating label)
Drain pump power consumption 30 W (see rating label)
Water pressure 0.3 –10 bar (= 3 – 100 N/cm² = 0.01-
1.0 Mpa)
CTechnical specifications may be changed without prior notice to
improve the quality of the product.
CFigures in this manual are schematic and may not match the product
exactly.
CValues stated on the markings of the product or in the printed
documents accompanying the product are obtained in the laboratory
on basis of the relevant standards. Depending on operational and
environmental conditions of the product, these values may vary.

Data required for performance tests shall be provided upon request. Requests
can be e-mailed to the following address:

Do not forget to provide the code, stock and serial numbers of the product to be
tested in your request e-mail along with your contact information. Code, stock and
serial numbers of the product may be found on the type label attached to the side
wall of the door.

Dishwasher / User’s Manual 9/ 51 EN
3
Refer to the nearest Authorised
Service Agent for installation of your
product. To make the product ready
for use, make sure that the electricity,
tap water supply and water drainage
systems are appropriate before calling
the Authorised Service Agent. If they
are not, call a qualified technician
and plumber to have any necessary
arrangements carried out.
CPreparation of the location
and electrical, tap water and
waste water installations
at the place of installation
is under customer's
responsibility.
BInstallation and electrical
connections must be carried
out by the Authorised
Service Agent. Manufacturer
shall not be held responsible
for damages arising from
processes carried out by
unauthorised persons.
APrior to installation, visually
check if the product has any
defects on it. If so, do not
have it installed. Damaged
products cause risks for
your safety.
CMake sure that the water
inlet and discharge hoses
are not folded, pinched or
crushed while pushing the
product into its place after
installation or cleaning
procedures.
When placing the product, pay
attention not to damage the floor, walls,
piping, etc. Do not hold the product
from its door or panel to move it.


Place the product on a solid and
flat floor that has sufficient load
carrying capacity! The product
must be installed on a flat surface
in order for the door to be closed
comfortably and securely.
Do not install the product at places
where temperature may fall below
0ºC.
Place the product at least 1 cm
away from the edges of other
furniture.
Place the product on a rigid floor.
Do not place it on a long pile rug
or similar surfaces.
BDo not place the product on
the power cable.
Make sure that you select a
location that will allow you to load
and unload the dishes in a fast
and comfortable manner.
Install the product in a place close
to the tap and the drain hole.
Select the installation location
by considering that it will not be
changed after the connections are
made.

10 Dishwasher / User’s Manual/51 EN
Installation

CWe recommend attaching
a filter on the house/
apartment supply water
inlet to protect the machine
from damages that may
arise from impurities (sand,
dirt, rust, etc.) coming from
the urban water supply
system or from your own
water system as well as to
prevent complaints such
as yellowing or sludge
accumulation at the end of
washing.


The dishwasher may not be connected
to open warm water devices or flow-
through water heaters.
Do not use old or used water inlet
hose on the new product. Use the
new water inlet hose supplied with
the product.
Connect the water inlet hose
directly to the water tap. Pressure
coming from the tap should be
minimum 0.3 and maximum
10 bars. If the water pressure
exceeds 10 bars, a pressure
relief valve should be installed in
between.
Open the taps completely after
making the connections to check
for water leaks.
Tightly fix the water discharge hose to
the drainpipe in order to prevent any
dislocation of the water discharge hose
during operation of the product.
min 300
min 120
max 1000
min 500
CUse a screw-on hose
connector to connect the
water inlet hose to a water
tap with a ¾ inch external
thread. If required, use a
filter insert to filter deposits
from the pipes.

Dishwasher / User’s Manual 11/51 EN
Installation
CDrainpipe must be
connected to the sewage
system and it should not be
connected to any surface
water.

If the door of the product cannot be
closed properly or if the product swings
when you push it slightly, then you
need to adjust the feet of the product.
Adjust the feet of the product as
illustrated in the installation manual
supplied with the product.

Connect the product to a grounded
outlet protected by a fuse complying
with the values in the “Technical
specifications” table. Our company
shall not be liable for any damages
that will arise when the product is used
without grounding in accordance with
the local regulations.
Connection must comply with
national regulations.
Power cable plug must be within
easy reach after installation.
BUnplug the product after the
washing programme is over.
The voltage and allowed fuse or
breaker protection are specified
in the “Technical specifications”
section. If the current value of
the fuse or breaker in the house
is less than 16 Amps, have a
qualified electrician install a 16
Amp fuse.
The specified voltage must be
equal to your mains voltage.
Do not make connections via
extension cables or multi-plugs.
BDamaged power cables
must be replaced by the
Authorised Service Agent.
BIf your dishwasher is
equipped with internal
illumination, lamp should
only be replaced by the
Authorised Service Agent
in case of failures that may
occur on the lamp.
BIf the product has a failure,
it should not be operated
unless it is repaired by the
Authorised Service Agent!
There is the risk of electric
shock!

Before starting to use the product,
make sure that all preparations
are made in accordance with the
instructions in sections “Important
safety instructions” and “Installation”.
To prepare the product to do the
dishes, perform first operation
in the shortest programme with
detergent while the machine is
empty. During the initial use, fill the
salt reservoir with 1 litre of water
prior to filling it with salt.
AThere might be a small
amount of water left in the
product after factory quality
control tests. This has no
harm on the product.

12 Dishwasher / User’s Manual/51 EN

4

Following information will help you use
the product in an ecological and energy-
efficient manner.
Wipe away any coarse food remnants
on the dishes before putting them in
the product. Operate the product after
filling it completely. When selecting
a programme, consider the table
of “Programme data and average
consumption values”.
Do not put more detergent than
suggested on the detergent package.

CYour dishwasher requires
soft water. If the hardness
of the water is above 6°dH,
the water must be softened
and descaled. Otherwise,
ions that create the hardness
will accumulate on the
surfaces of the dishes and
may adversely affect the
washing, shining and drying
performances of the product.
The product is equipped with a water
softening system which reduces the
hardness of incoming water. This system
softens the supply water that enters
into the product to a level that will allow
washing the dishes with the required
quality.


Washing performance will increase
when water softening system is adjusted
properly.
Adjust the new water hardness level
according to the Water hardness level
instruction in this booklet.

Water softening system needs to be
regenerated in order that the product
operates with the same performance
continuously. Dishwasher salt is used
for this purpose.
CUse only special softening
salts produced particularly
for the dishwashers in your
machine.
CWe recommend using
granular or powder softening
salts. Do not use salts that
are insoluble in water such
as table salt or common
salt. Performance of water
softening system may get
worse in time.
CSalt reservoir will fill with
water when you start the
product. Therefore, add the
softening salt before starting
the machine.
1. First take the lower basket out to
add softening salt.
2. Turn the salt reservoir lid counter
clockwise to open it (A, B).

Dishwasher / User’s Manual 13/51 EN
Preparation
CYou can put about 2 kg of
dishwasher salt into the salt
reservoir.
4. Replace the lid and tighten it
securely when the reservoir is full.
5. If you will not start a washing
programme immediately after
adding the salt, run the machine
empty in the shortest programme
to dissolve and wash away the
scattered salt in the machine.
CSince different salt brands
in the market have different
particle sizes and since the
water hardness may vary,
dissolution of the salt in
water may take a couple
of hours. Therefore, Salt
Indicator remains on for a
while after adding salt into
the machine.
Loose salt grains can cause
rust marks in your machine
if not rinsed away. Only fill
salt just before a programme
is run.
CSalt reservoir will fill with
water when you start the
product. Therefore, add the
softening salt before starting
the machine.
CBefore initial use, fill the
water softening system with
1 litre of water (C).
3. Fill the salt reservoir with salt by
using salt funnel (D). To speed up
dissolution rate of salt in water, stir
it with a spoon.

14 Dishwasher / User’s Manual/51 EN
Preparation

Cleaning, rinsing and drying performance of your dishwasher will increase when
water softening system is adjusted properly.
Adjust the new water hardness level according to the Water hardness level
instruction in this booklet.
Use the test strip supplied with the product according to the steps given below to
determine hardness level of your supply water.
ab cde f
Remove the test
strip from the
packet.
Turn on the tap and
let the water run for
about a minute.
Hold the test strip in
the water for about
a second.
Remove the test
strip from the water
and shake it.
Wait for 1 minute. The test strip shows
you the hardness
level.
1 Second
1 Minute
1 min.
After determining hardness level of the supply water:
1. Turn on the machine, press and hold Time Delay and Programme keys
simultaneously for 3 seconds to enter the settings menu.
2. Press the programme key until the Salt indicator starts to flash. Current
regeneration stage is displayed on the programme indicator.
3. Using Time Delay key, adjust water hardness level according to the hardness
of the supply water. See “Water hardness level adjustment table” for correct
setting.
4. Press On / Off key to save the setting.

Hardness
Level
English Water
Hardness °dE
German Water
Hardness °dH
French Water
Hardness °dF Water Hardness Level Indicator
0th Level 0-5 0-4 0-8 Press the Time Delay key to switch the water hardness
level to position P1.
1st Level 6-9 5-7 9-13
2nd Level 10-15 8-12 14-22 Press the Time Delay key to switch the water hardness
level to position P2.
3rd Level 16-19 13-15 23-27 Press the Time Delay key to switch the water hardness
level to position P3.
4th Level 20-24 16-19 28-34 Press the Time Delay key to switch the water hardness
level to position P4.
5th Level 25-62 20-50 35-90 Press the Time Delay key to switch the water hardness
level to position P5.

Dishwasher / User’s Manual 15/51 EN
Preparation

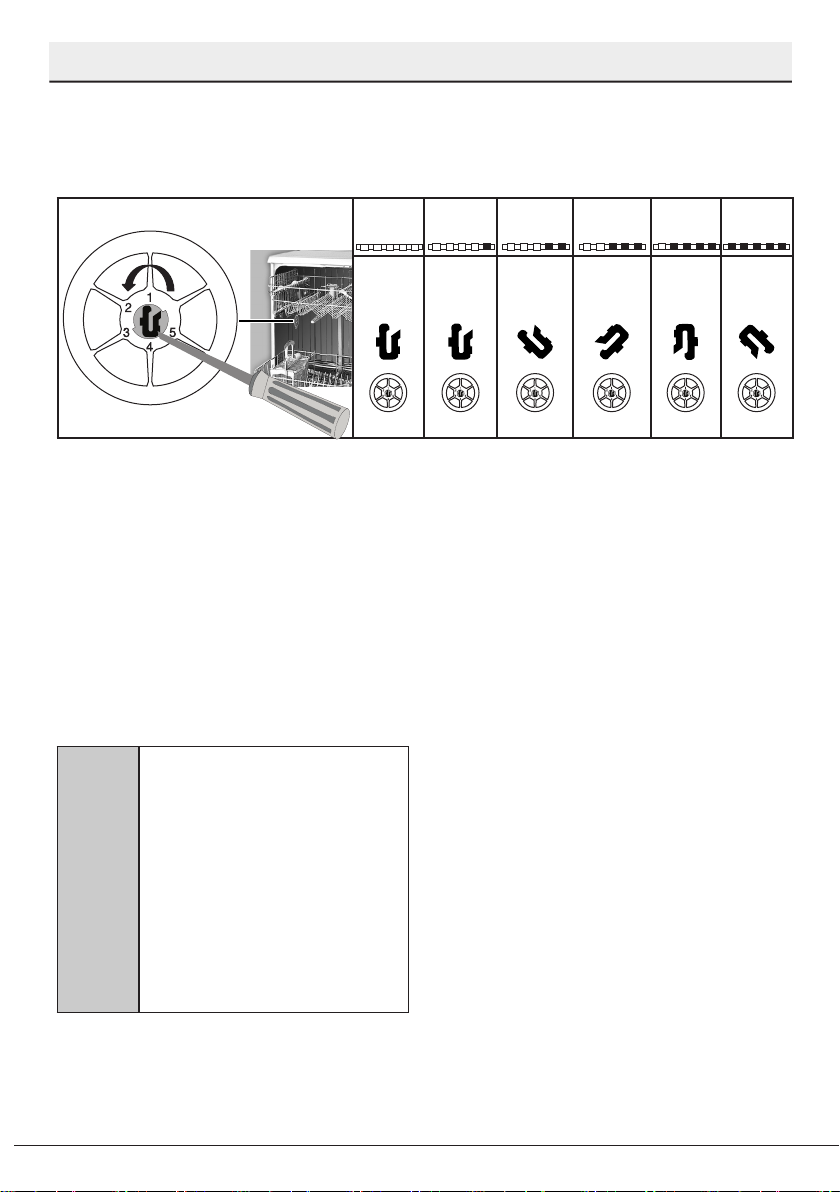

Perform the same hardness level adjustment that you have set on the control
panel also with the regeneration adjustment switch. For example, if you
have adjusted to “3rd level” in the control panel, also set the regeneration
adjustment switch to 3rd level.
Regeneration Adjustment Switch
0th Level 1st Level 2nd Level 3rd Level 4th Level 5th Level
1 1 2 3 4 5
If the hardness level of the supply water is above 90 °dF or if you are using
well water, then it is recommended to use water purification devices and
special filters.
If the hardness level of the supply water is below 13°dF, there is no need to
use salt in your dishwasher. If this is the case, “No Salt Warning Indicator” (if
any) illuminates continuously on the panel of your machine.
If the water hardness level adjustment is set to level 1, the “No salt warning
indicator” will illuminate continuously although it is not necessary to use salt.
If you use salt under this condition, salt will not be consumed and the Salt
indicator will not illuminate.
CIf you move your house,
it is necessary to readjust
water hardness level of your
machine by considering the
information given above
according to the hardness
level of the supply water
in your new location. Your
machine will display the
most recently adjusted water
hardness level.

16 Dishwasher / User’s Manual/51 EN
Preparation
2. Put suggested amount of powder,
liquid/gel or tablet detergent in the
dispenser.
CInside the detergent
dispenser, there are level
markings that help you
use appropriate amount of
detergent. When brimful,
detergent dispenser will
contain 40 cm³ of detergent.
Fill detergent up to 15 cm³
or 25 cm³ level marks in
the detergent dispenser
according to fullness of
the machine and/or soiling
degree of the dishes (1).
CIf dishes have been waiting
for a long time and have
dried residues, fill the 5 cm³
compartment too (2).
3. Close the detergent dispenser lid

You can use powder, liquid/gel and
tablet detergents in the machine.
COnly use the detergents
produced particularly for use
with dishwashers. Never
use washing up liquids.
We recommend you not to
use detergents that contain
chlorine and phosphate
as they are harmful for the
environment.

CRefer to the “Programme
Table” to determine the
correct amount of detergent
for the selected programme.
CIn order to have good
washing and drying results,
always follow the instructions
on the detergent packaging.
If you have further questions,
we recommend to contact
with the producer of the
detergent.
ADo not put solvents into the
detergent dispenser. There
is risk of explosion!

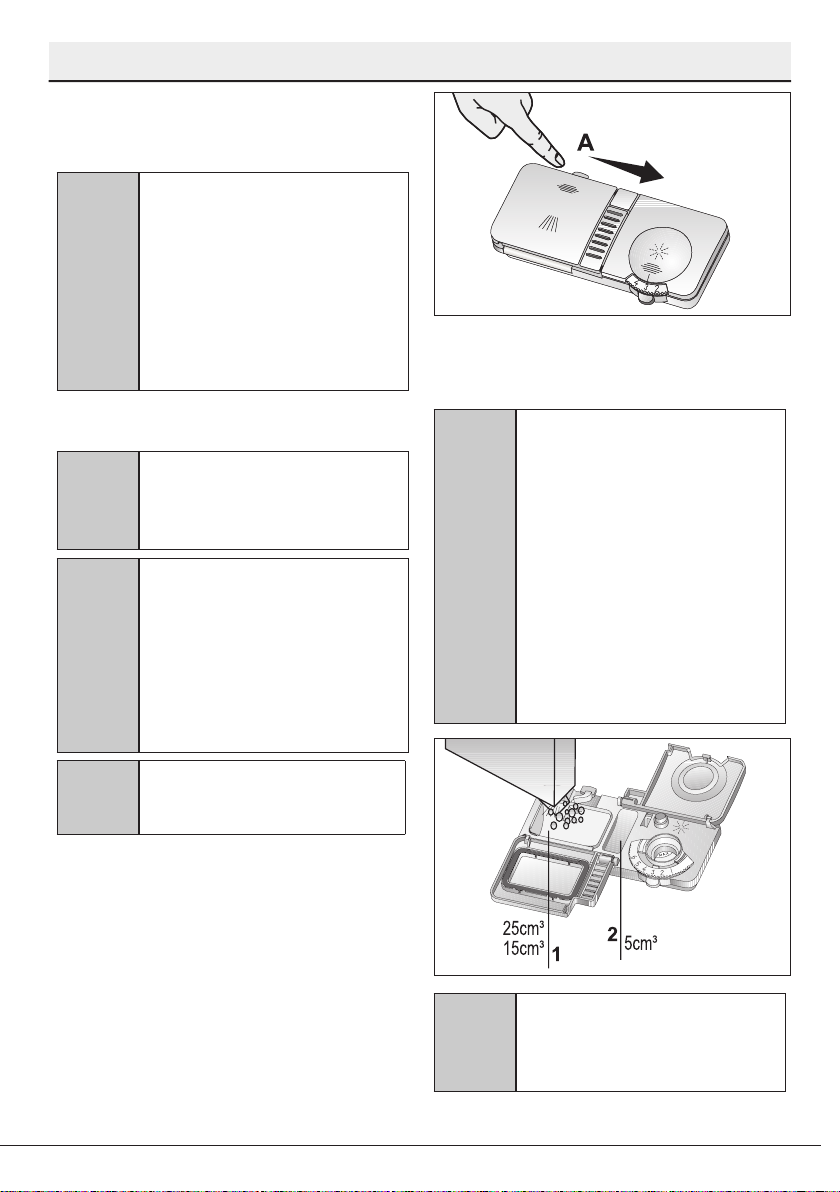

Put the detergent into the detergent
dispenser just before operating the
machine as illustrated below.
1. Push the latch to right to open the
detergent dispenser lid (A).

Dishwasher / User’s Manual 17/51 EN
Preparation
by pressing on it lightly. A “click” will
be heard when the lid is closed.
CIn programmes with prewash
and high temperature,
in which you use tablet
detergents, make sure that
the detergent dispenser lid is
closed firmly.
CUse powder detergent in
short programmes without
prewash since the solubility
of the tablet detergent
changes depending on the
temperature and time.
AExcessive usage of powder
detergents will cause the
detergent not dissolve
completely and will also
cause scratches on the
glassware.

Combined tablet detergents exhibit
water softening and / or rinse aid effect
in addition to detergent effect. Some
types of these detergents also contain
special-purpose washing chemicals
such as glass and stainless steel
protectors.
Combined tablet detergents are
available as 3in1, 5in1, Allin1 etc. They
function only up to a specific degree
of water hardness. Above this limit
regeneration salt and rinse aid must be
added. Refer to the instructions on the
packaging of the combined detergent
whether it is suitable for the hardness
level of the water supply.
CWhile using combined tablet
detergents contact with the
detergent producers if the
dishes are wet and/or if
you notice limescale spots
particularly on glasses after
the washing programme is
over.
CThe best washing
performance in dishwashers
is obtained by using
detergent, rinse aid and
water softening salt
individually.
When you switch to powder, liquid/gel
or tablet detergent from a combined
tablet detergent:
1. Make sure that salt and rinse aid
reservoirs are full.
2. Set the water hardness to the
highest level and perform an empty
run.
3. After the empty washing cycle,
review the user manual and
readjust the water hardness level
so as to suit the water supply.
4. Make the appropriate rinse aid
settings.
CDepending on the model,
salt indicator and/or rinse aid
indicator must be enabled
again if they were disabled
before.

18 Dishwasher / User’s Manual/51 EN
Preparation

CThe rinse aid used in
dishwashers is a special
combination used to
increase drying efficiency
and prevent water or
limescale stains on the
washed items. For this
reason, care must be paid
to have rinse aid in the rinse
aid reservoir and to use rinse
aids produced specially for
dishwashers only.

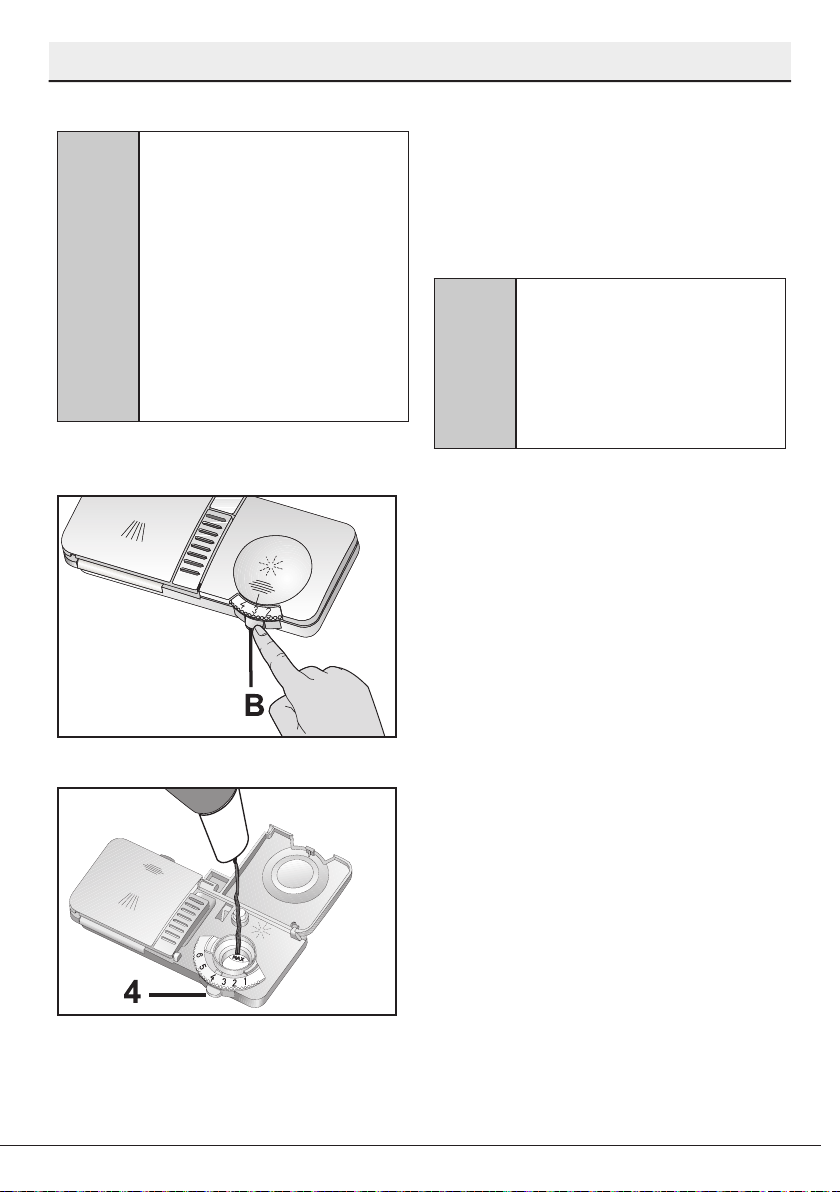

1. Open the lid of the rinse aid
reservoir by pressing its latch (B).
2. Fill the reservoir until “MAX” level.
3. Turn the rinse aid amount
adjuster manually to a position
between 1 and 6 (4). If there are
stains on tableware items after
washing, level must be increased
and if there is a blue trace after
wiping them by hand, it must be
decreased. This is set to position 4
as factory default.
4. Close the lid of the reservoir by
pressing on it lightly.
CWipe clean any spilled
rinse aid outside the
reservoir. Rinse aid that
spilled accidentally will
cause foaming and it will
eventually decrease washing
performance.


Never wash dishes soiled by
cigarette ash, candle remnants,
polish, dyestuff, chemicals, etc. in
your dishwasher.
Do not wash iron alloy items in the
dishwasher. It can get corroded or
leave stains on other items.
Do not wash cutlery with wooden
or bone stems, glued pieces,
or pieces that are not resistant
to heat, as well as copper and
tin-plated containers in the
dishwasher.
