Please read this user manual first!
Dear Customer,
Thank you for prefering a Arçelik product. We hope that your product which has been manufactured with high
quality and technology will give you the best results. We advise you to read through this manual and the other
accompanying documentation carefully before using your product and keep it for future reference. If you transfer
the product to someone else, give its manual as well. Pay attention to all details and warnings specified in the user
manual and follow the instructions given therein.
Use this user manual for the model indicated on the cover page.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful hints about
usage.
AWarning for hazardous situations with
regard to life and property.
BWarning against electric shock.
Warning against hot surfaces.
Warning against fire hazard.
Packaging materials of the product are
manufactured from recyclable materials in
accordance with our National Environment
Regulations.
Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated
collection points designated by the local authorities.
This product was manufactured using the latest technology in environmentally friendly conditions.
WEEE It complies with the WEEE Directive

3 / EN
Dryer / User Manual
1 Important instructions for safety and environment
This section contains safety instructions that will help protect from risk of
personal injury or property damage. Failure to follow these instructions
shall void any warranty.
1.1 General safety
•The dryer can be used by children at and above 8 years old and by
persons whose physical, sensory or mental capabilities were not fully
developed or who lack experience and knowledge provided that they
are supervised or trained on the safe usage of the product and the risks
it brings out. Children should not play with the product. Cleaning and
maintenance works should not be performed by children unless they are
supervised by someone.
•Children of less than 3 years should be kept away unless continously
supervised.
•Adjustable feet should not be removed. The gap between the dryer and
the floor should not be reduced with materials such as carpet, wood and
tape. This will cause problems with the dryer.
•Always have the installation and repairing procedures carried out by the
Authorized Service.Manufacturer shall not be held liable for damages
that may arise from procedures carried out by unauthorized persons.
•Never wash the dryer by spraying or pouring water onto it! There is the
risk of electric shock!

4 / EN
Dryer / User Manual
Important instructions for safety and environment
1.1.1 Electrical safety
AElectrical safety instructions should be followed while electrical
connection is made during the installation.
•Connect the dryer to a grounded outlet protected by a fuse at the value
specified on the type label. Have the grounding installation performed by
a qualified electrician. Our company shall not be liable for any damages
that will arise when the dryer is used without grounding in accordance
with the local regulations.
•The voltage and allowed fuse protection is stated on the type label plate.
•The voltage specified on the type label must be equal to your mains
voltage.
•Unplug the dryer when it is not in use.
•Unplug the dryer from the mains during installation, maintenance,
cleaning and repair works.
•Do not touch the plug with wet hands! Never unplug by pulling on the
cable, always pull out by grabbing the plug.
•Do not use extension cords, multi-plugs or adaptors to connect the dryer
to power supply in order to decrease the risk of fire and electric shock.
•Power cable plug must be easily accessible after installation.
BDamaged mains cable should be changed notifying the Authorized
Service.
BIf the dryer is faulty, it must not be operated unless it is repaired
by an authorized service agent! There is the risk of electric shock!

5 / EN
Dryer / User Manual
Important instructions for safety and environment
1.1.2 Product safety
Points to be taken into consideration for fire hazard:
Below specified laundry or items must not be dried
in the dryer considering fire hazard.
•Unwashed laundry items
•Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain
removers, turpentine, paraffin or paraffin removers must be
washed in hot water with plenty of detergent before being dried
in the dryer.
For this reason especially the items containing the above
specified stains must be washed very well, to do this use
adequate detergent and choose a high washing temperature.
Below specified laundry or items must not be dried in the
dryer due to the fire hazard:
•Garments or pillows bolstered with rubber foam (latex foam),
shower bonnets, water resistant textiles, materials with rubber
reinforcement and rubber foam pads.
•Clothing cleaned with industrial chemicals.
Items such as lighter, match, coins, metal parts, needle etc.
may damage the drum set or may lead to functional problems.
Therefore check all the laundry that you will load into your dryer.
Never stop your dryer before the programme completes. If you
must do this, remove all laundry quickly and lay them out to
dissipate the heat.
Clothes that are washed inadequately may ignite on their own
and even may ignite after drying ends.
•You must provide enough ventilation in order to prevent gases exiting
from devices operating with other types of fuels including the naked
flame from accumulating in the room due to the back fire effect.

6 / EN
Dryer / User Manual
Important instructions for safety and environment
AUnderwear that contains metal reinforcements should not be
dried in the dryer. Dryer may be damaged if metal reinforcements
come loose and break off during drying.
CUse softeners and similar products in accordance with the
instructions of their manufacturers.
CAlways clean the lint filter before or after each loading. Never
operate the dryer without the lint filter installed.
•Never attempt to repair the dryer by yourself. Do not perform any repair
or replacement procedures on the product even if you know or have the
ability to perform the required procedure unless it is clearly suggested in
the operating instructions or the published service manual. Otherwise,
you will be putting your life and others’ lives in danger.
•There must not be a lockable, sliding or hinged door that may block
the opening of the loading door in the place where your dryer is to be
installed.
•Install your dryer at places suitable for home use. (Bathroom, closed
balcony, garage etc.)
•Make sure that pets do not enter the dryer. Check the inside of the dryer
before operating it.
•Do not lean on the loading door of your dryer when it is open, otherwise
it may fall over.
•The lint must not be allowed to accumulate around the tumble dryer
1.2 Mounting over a washing machine
•A fixing device should be used between the two machines when
installing the dryer above a washing machine. The fitting device must be
installed by the authorized service agent.
•Total weight of the washing machine and the dryer -with full load- when
they are placed on top of each other reaches to approx. 180 kilograms.
Place the products on a solid floor that has sufficient load carrying
capacity!

7 / EN
Dryer / User Manual
Important instructions for safety and environment
AWashing machine cannot be placed on the dryer. Pay attention
to the above warnings during the installation on your washing
machine.
Installation Table for Washing Machine and Dryer
Dryer Depth Washing Machine Depth
62 cm 60 cm 54 cm 50 cm 49 cm 45 cm 40 cm
54 cm Can be installed Can be installed Cannot be
installed
60 cm Can be installed Cannot be
installed
1.3 Intended use
•Dryer has been designed for domestic use. It is not suitable for
commercial use and it must not be used out of its intended use.
•Use the dryer only for drying laundry that are marked accordingly.
•The manufacturer waives any responsibility arisen from incorrect usage
or transportation.
•The service life of the dryer that you purchased is 10 years. During this
period, original spare parts will be available to operate the dryer properly.
1.4 Child safety
•Packaging materials are dangerous for the children. Keep packaging
materials away from children.
•Electrical products are dangerous for the children. Keep children away
from the product when it is operating. Do not let them tamper with the
dryer. Use the child-proof lock in order to prevent the children to tamper
with the dryer.
CChild-proof lock is on the control panel.(See Child lock)
•Keep loading door closed even when the dryer is not in use.
1.5 Compliance with the WEEE regulation and disposing of the waste product

8 / EN
Dryer / User Manual
Important instructions for safety and environment
This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification
symbol for waste electrical and electronic equipment (WEEE).
This product has been manufactured with high quality parts and materials which can be reused and
are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes
at the end of its service life. Take it to the collection center for the recycling of electrical and electronic
equipment. Please consult your local authorities to learn about these collection centers.
1.6 Compliance with RoHS Directive:
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and
prohibited materials specified in the Directive.
1.7 Package information
Packaging materials of the product are manufactured from recyclable materials in accordance with our National
Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes.
Take them to the packaging material collection points designated by the local authorities.
1.8 Technical Specifications
* Min. height: Height with adjustable feet are closed.
Max. height: Height with adjustable feet are opened maximum.
EN
Height (Min. / Max.) 84,6 cm / 86,6 cm*
Width 59,5 cm
Depth 59,8 cm
Capacity (max.) 9 kg**
Net weight (plastic front door usage) 51 kg
Net weight (glass front door usage) 53 kg
Voltage
See type label***Rated power input
Model code
** Dry laundry weight before washing.
*** Type label is located behind the loading door.
CTechnical specifications of the dryer are subject to specification without notice to improve the quality of
the product.
CFigures in this manual are schematic and may not match the product exactly.
CValues stated on markers on the dryer or in the other published documentation accompanying with the
dryer are obtained in laboratory in accordance with the relevant standards. Depending on operational
and environmental conditions of the dryer, these values may vary.

9 / EN
Dryer / User Manual
2 Your Dryer
2.1 Overview
1
8
7
6
11
4
9
2
3
10
5
1. Top panel
2. Control panel
3. Loading door
4. Kick plate opening button
5. Ventilation grids
6. Adjustable legs
7. Kick plate
8. Type label
9. Lint filter
10. Water tank drawer
11. Power cord

10 / EN
Dryer / User Manual
Your Dryer
2.2 Package Contents
12 3 5
4

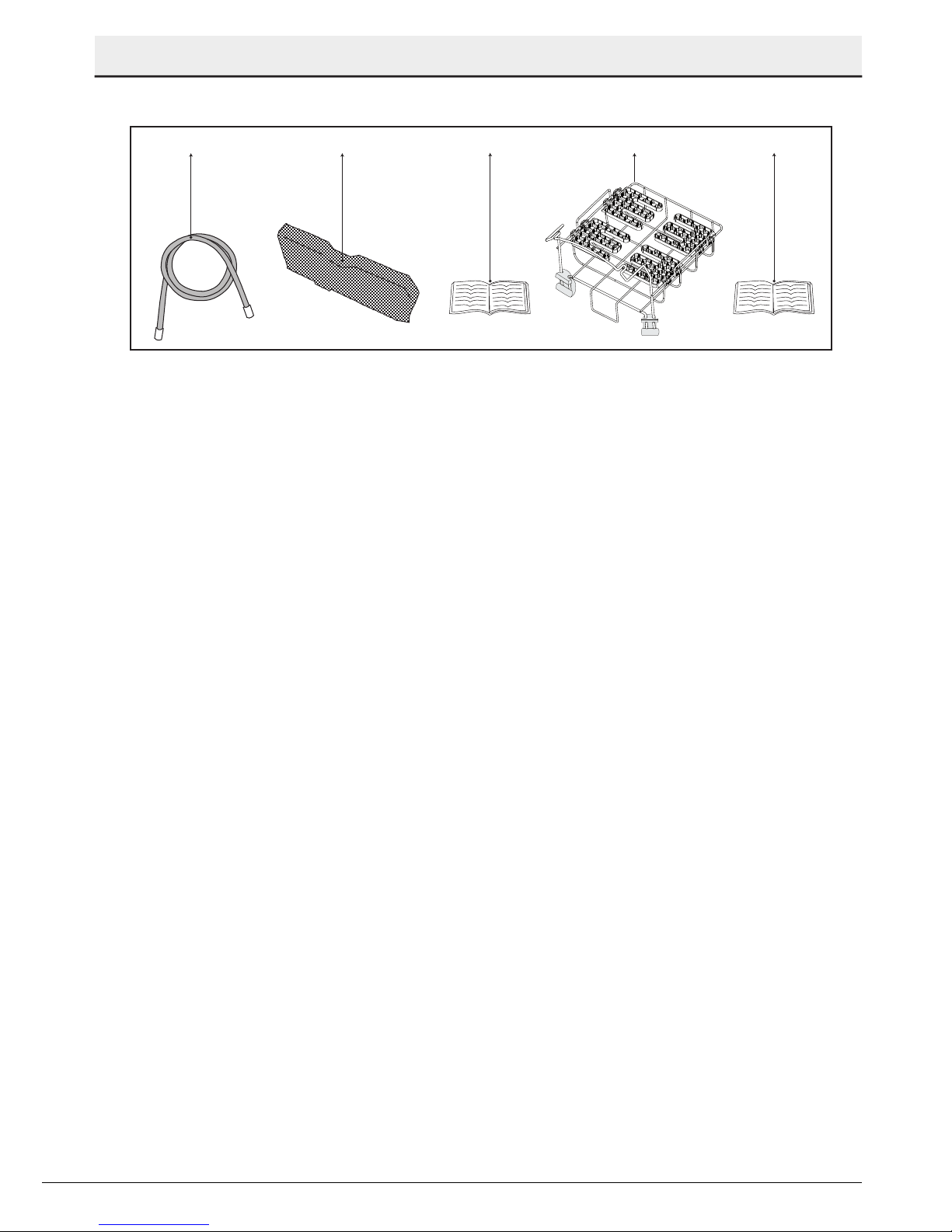

1. Water drain hose *
2. Filter drawer spare sponge*
3. User Manual
4. Drying basket*
5. Drying basket user manual*
*It can be supplied with your machine depending on its model.

11 / EN
Dryer / User Manual
3Installation
Before the calling the nearest Authorized Service for the
installation of the dryer, ensure that electrical installation
and water drain is appropriate referring to the user's
manual. (See 3.3 Connecting to the drain and
3.5 Electrical connection) If they are not suitable,
contact a qualified electrician and technician to make
necessary arrangements.
CPreparation of the dryer's location
as well as the electrical and waste
water installations is under customer's
responsibility.
APrior to installation, visually check if the
dryer has any defects on it. If the drier
is damaged, do not have it installed.
Damaged products cause risks for your
safety.
ALet your dryer wait for 12 hours before
starting to use it.
3.1 Appropriate installation location
• Install the dryer on a stable and level surface.
• Dryer is heavy. Do not move it by yourself.
• Operate your dryer in a well ventilated, dust-free
environment.
• The gap between the dryer and the surface should
not be reduced by the materials such as carpet, wood
and tape.
• Do not cover the ventilation grills of the dryer.
• There must not be a lockable, sliding or hinged door
that may block the opening of the loading door in the
place where your dryer is to be installed.
• Once the dryer is installed, it should stay at the same
place where its connections have been made. When
installing the dryer, make sure that its rear wall does
not touch anywhere (tap, socket, etc.).
• Place the dryer at least 1 cm away from the edges of
other furniture.
• Your dryer can be operated at temperatures between
+5°C and +35°C. If the operating conditions fall
outside of this range, operation of the dryer will be
adversely affected and it can get damaged.
• The rear surface of the tumble dryer shall be placed
against a wall.
BDo not place the dryer on the power
cable.

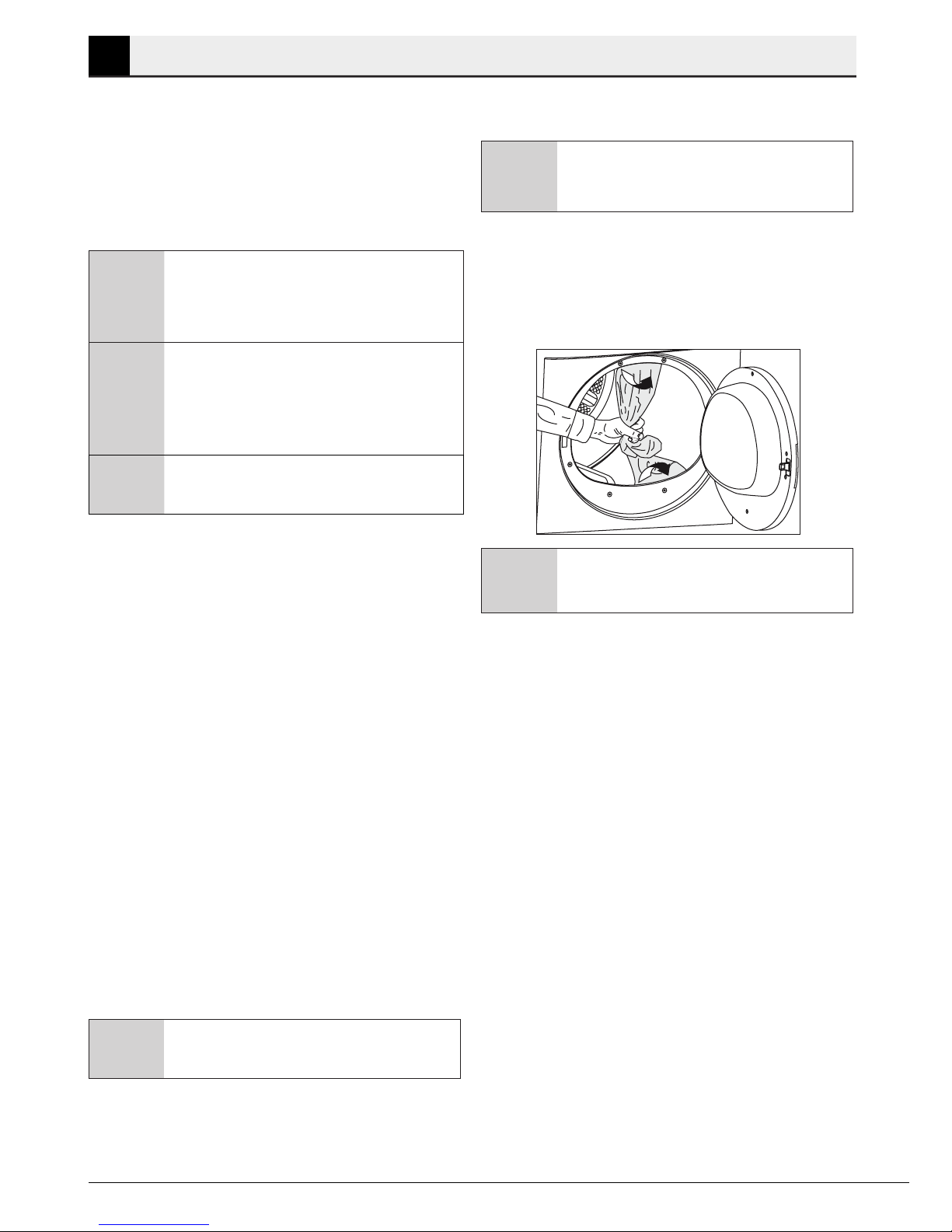

3.2 Removing the transportation
safety assembly
ARemove the transportation safety
assembly before using the dryer for the
first time.
• Open the loading door.
• There is a nylon bag inside the drum that contains a
piece of styrofoam. Hold it from its section marked
with XX XX.
• Pull the nylon towards yourself and remove the
transportation safety assembly.
ACheck that no part of the transportation
safety assembly remains inside the drum.
3.3 Connecting to the drain
In products equipped with condenser unit, water
accumulates in the water tank during the drying cycle.
You should drain accumulated water after each drying
cycle.
You can directly drain accumulated water through the
water drain hose supplied with the product instead of
periodically draining the water collected in the water
tank.
Please refer to the detailed instructions supplied with the
accessories pack.
Connecting the water drain hose
1-2 Pull hose at the behind of the dryer by hand
in order to disconnect it from where it is
connected. Do not use any tools to remove the
hose.
3Connect one end of the drain hose supplied
with the dryer to the connection point from
where you removed the hose of the product in
previous step.
4Connect the other end of the drain hose
directly to the wastewater drain or to the
washbasin.

12 / EN
Dryer / User Manual
Installation
1
3 4
2
AHose connection should be made in a safe
manner. Your drain house will be flooded if
the hose comes out of its housing during
water discharge.
CWater drain hose should be attached to a
height of maximum 100 cm.
CMake sure that the water drain hose is not
stepped on and it is not folded between
the drain and the machine.
3.4 Adjusting the feet
• In order to ensure that the dryer operates more
silently and vibration-free, it must stand level and
balanced on its feet. Balance the machine by
adjusting the feet.
• Turn the feet to left or right until the dryer stands level
and firmly.
CNever unscrew the adjustable feet from
their housings.
3.5 Electrical connection
For specific instructions for electrical connection
required during installation (see 1.1.1 Electrical
Safety)
3.6 Transportation of the dryer
• Unplug the dryer before transporting it.
• Drain all water that has remained in the dryer.
If direct water drain connection is made, then remove
the hose connections.
A
We recommend carrying the dryer in
upright position. If it is not possible to carry
the machine in the upright position, we
recommend carrying it by tilting towards
the right side when looked from the front.
3.7 Warnings about sounds
CIt is normal to hear a metallic noise
from the compressor sometimes during
operation.
CWater collected during operation is
pumped to water tank. It is normal to hear
pumping noise during this process.
3.8 Changing the illumination lamp
In case an illumination lamp is used in your laundry
dryer.To change the Bulb/LED used for illumination of
your tumble dryer, call your Authorized Service.
The lamp(s) used in this appliance is not suitable for
household room illumination. The intended purpose of
this lamp is to assist the user to place laundry in the
tumble dryer in a comfortable way. The lamps used
in this appliance have to withstand extreme physical
conditions such as vibrations and temperatures above
50 °C.

13 / EN
Dryer / User Manual
4Preparation
4.1 Laundry suitable for drying in the dryer
• Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are
suitable for drying in a dryer and make sure that you select the appropriate programme.
Drying
Settings
At any temperature At high temperature At medium temperature At low temperature Without heating Hang to dry Lay to dry Hang wet to dry Lay in shadow to dry Dry-cleanable
Iron -
IRON
Dry or Steam
Iron at high
temperature
Iron at medium
temperature Iron at low
temperature
Do not iron
Iron without
steam
Maximum temperature 200 0C150 0C110 0C
LAUNDRY DRYING SYMBOLS
Drying
Symbols Suitable for
dryer No Iron Sensitive /
Delicate dry
Do not dry
with dryer
Do not dry Do not dry-
clean
4.2 Laundry not suitable for drying in
the dryer
CDelicate embroidered fabrics, woollen, silk
garments, delicate and valuable fabrics,
airtight items and tulle curtains are not
suitable for machine drying.
4.3 Preparing laundry for drying
• Laundry may be tangled with each other after
washing. Separate the laundry items before
placing them into the dryer.
• Dry garments having metal accessories such as
zippers, inside out.
• Fasten the zippers, hooks and buckles and button
sheets.
4.4 Things to be done for energy
saving
• Following information will help you use the dryer in
an ecological and energy-efficient manner.
• Spin your laundry at the highest speed possible
when washing them. Thus, the drying time is
shortened and energy consumption is reduced.
• Sort out the laundry depending on their type and
thickness. Dry the same type of laundry together.
For example thin kitchen towels and table clothes
dries earlier than thick bathroom towels.
• Follow the instructions in the user manual for
programme selection.
• Do not open the loading door of the machine during
drying unless necessary. If you must certainly open
the loading door, do not to keep it open for a long
time.
• Do not add wet laundry while the dryer is in
operation
• Clean the lint filter before or after each drying cycle.
(See 6.1 Cleaning Lint Filter / Loading Door
Inner Surface)

14 / EN
Dryer / User Manual
Preparation
• Clean the filter periodically when there is visible air
collection on it or when the symbol lights up, if
there is a filter drawer cleaning warning symbol «
» available. (See 6. 4 Cleaning the filter
drawer)
• Ventilate the room, where the dryer is located, well
during drying.

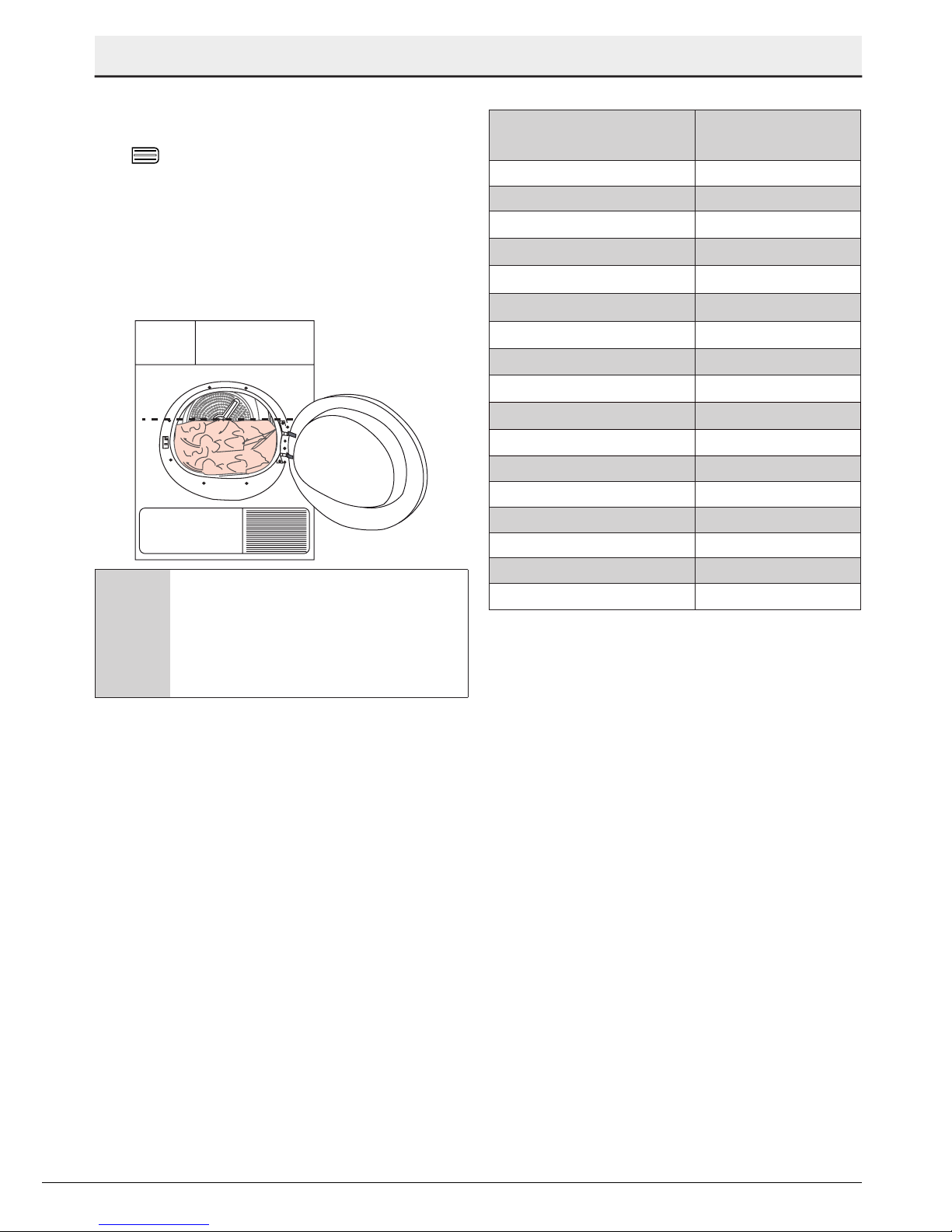

4.5 Correct load capacity
Follow the instructions in the “Programme selection and
consumption table”. Do not load more than the capacity
values stated in the table.
CIt is not recommended to load the dryer
with laundry exceeding the level indicated
in the figure. Drying performance will
degrade when the machine is overloaded.
Furthermore, dryer and the laundry can get
damaged.
Following weights are given as examples.
Laundry Approximate weights
(g)*
Cotton quit covers (double) 1500
Cotton quit covers (single) 1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Blouses 150
Cotton shirts 300
Shirts 250
Cotton dresses 500
Dresses 350
Jeans 700
Handkerchiefs (10 pieces) 100
T-Shirts 125
*Dry laundry weight before washing.

15 / EN
Dryer / User Manual
5Program selection and operating your machine

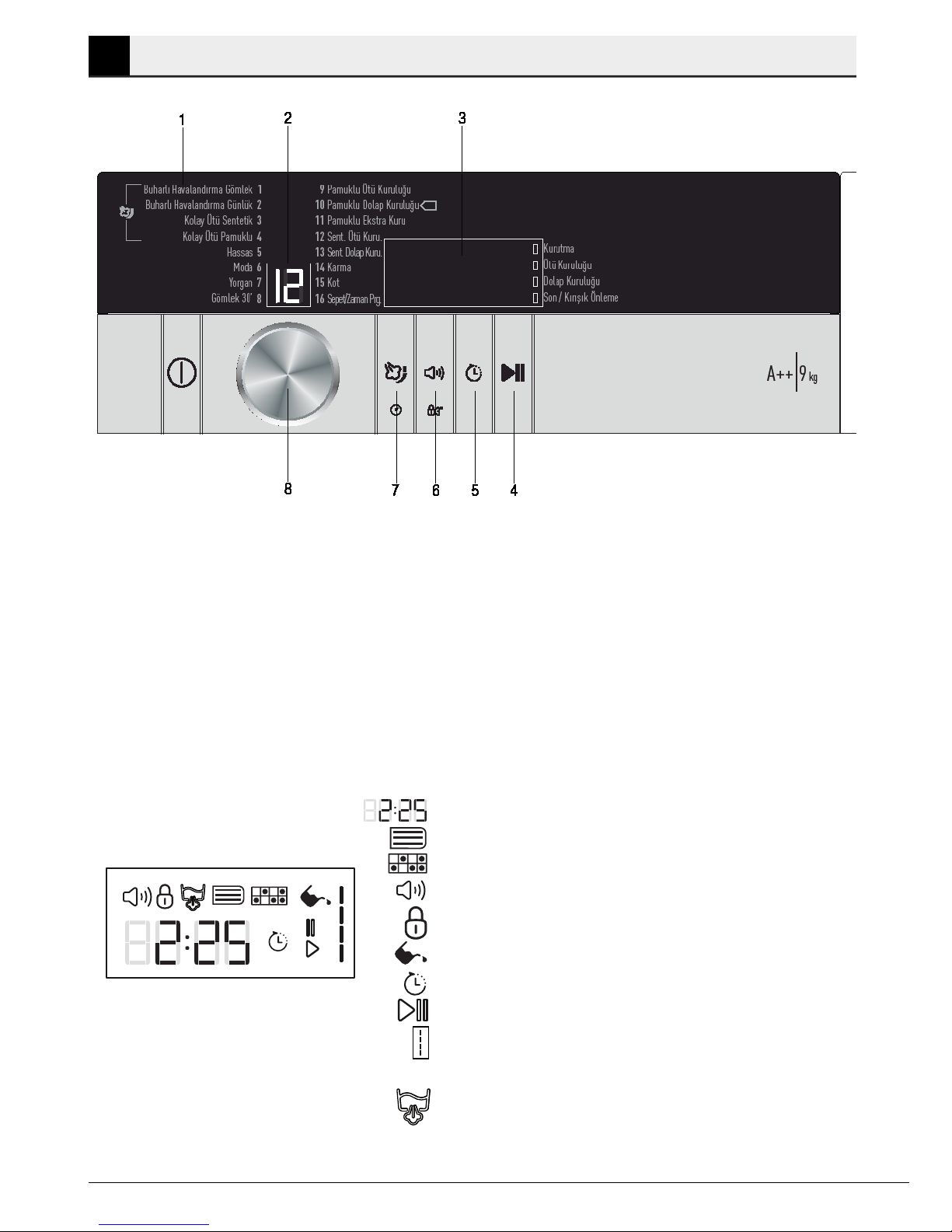

5.1 Control Panel
1. On/Off/Cancel button
2. Program number indicator
3. Display
4. Start/standby button Sound warning level button/child lock
5. Time delay selection button
6. Sound warning level button/child lock
7. Timing / Steam program selection button
8. Program selection button
5.2 Screen Symbols
Remaining time indicator*
Condensator cleaning warning sign
Filter cleaning warning sign
Buzzer sign
Child lock warning sign
Water tank warning sign
Time delay sign
Start/Stand-by sign
Program progress bar
*Duration on screen species the time remaining for program nish and
varies based on the dampness of the clothes.
Steam tank warning sign

16 / EN
Dryer / User Manual
Operating the product
5.3 Preparing the Machine
1. Plug the machine“
2. Place laundry into the machine.
3. Press On/Off/Cancel button for 1 second
(long).
4. When your machine is turned on for the first
time, it turns on with the declaration program
(cotton wardrobe dry).
CPressing the On/Off/Cancel button does
not mean that the program started. Press
the Start / Stand-by button to start the
program.
5.4 Program selection
1. Determine the suitable program from the table
below where drying levels are presented.
2. Use the Program Selection button to select
the program you wish.
Extra Dry
Only cotton clothes are dried under
normal temperature. Thick and multi-
layered laundry (towels, bed sheets,
denim trousers etc.) are dried so
that they can be placed in wardrobe
without ironing.
Wardrobe Dry
Normal laundry (tablecloths,
underwear etc.) are dried so that they
can be placed in wardrobe without
ironing.
Iron Dry Normal laundry (shirts, dresses etc.)
are dried to be ready for ironing.
CFor detailed program information, see
“Program selection and consumption
chart”.
5.5 Main programs
The following main programs are available depending on
fabric type.
• Cotton
Dry durable laundry with this program. It dried under
normal temperature. It is recommended for your cotton
laundry (bedsheets, bedding, towel, bathrobe etc.)
• Synthetic
Dry sensitive laundry with this program. It is
recommended for your synthetic laundry.
5.6 Additional programs
The following additional programs are available in the
machine for special situations.
CAdditional programs may vary depending
on the features of your machine.
• Quilt
Dry fibre quilts with a label that indicates it can be dried
in drying machine. Ensure that you have loaded the quilt
correctly to prevent damage to the machine and the quilt.
Remove the quilt cover before loading the quilt to the
machine. Load the quilt to the machine after folding it in
two.
- Do not load more than 1 double size fibre quilt
(200x200 cm). Do not dry items that contain cotton
material such as quilts, pillows etc.
- Do not dry items other than quilts such as carpets,
rugs, hall rugs etc. This may cause permanent damage to
your machine.
• Shirt 30
Use this program to prepare 2 shirts ready for ironing in
30 minutes.
• Denim
Use to dry denim clothes wrung in the washing machine
with high speed.
• Fashion
Allows safely drying of your t-shirts, blouses and shirts
that include “can be dried” in their washing instructions.
• Mixed
Use to dry synthetic and cotton clothes that don’t give out
colour together.

17 / EN
Dryer / User Manual
Operating the product
• Delicate
You can dry your delicate clothes suitable for drying
or clothes that are recommended for hand wash (silk
blouses, thin underwear etc.) under low temperatures.
CIt is recommended to dry your delicates
in a laundry bag to prevent wrinkles and
damage. When the program ends, take out
your laundry immediately and hang them to
prevent wrinkles.
• Refreshing
Ventilates for 10 minutes without blowing hot air. You
can ventilate the cotton and linen clothes that have been
enclosed for a long time with this program to remove
their odour.
• Basket / Timer.
You can select the timer programs from 10 mins to 160
mins to achieve the desired final drying level under low
temperature. In this program, the dryer dries for the
time set, regardless of the dryness of the laundry. This
product is suitable for the usage of a drying basket as
an option. You may perform drying by using the timing
programs explained above with the drying basket that
you may procure from the authorized service. Refer to
Section 5.18 Drying Basket for the details of using a
drying basket.
CIn this program, the machine dries for the
duration set, regardless of the drying level.

18 / EN
Dryer / User Manual
Operating the product
5.7 Program selection and consumption chart
* : Energy Label standard program (EN 61121:2012)
All the values on the chart are identified according to EN 61121:2012 standard. Consumption values may vary from
the valued in the chart depending on laundry type, wringing speed, ambient conditions and voltage levels.
CDischarge the condensation water via a hose that is condensed in cotton programs.
„Cotton cupboard dry programme“ used at full and partial load is the standard drying programme
to which the information in the label and the fiche relates, that this programme is suitable for drying
normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption
for cotton.
EN
Programs Capacity
(kg)
Spin speed in washing
machine (rpm)
Approximate amount of
remaining humidity
Drying Time
(Minutes)
Cottons / Coloreds
AExtra dry 9 1000 % 60 230
ACupboard dry 9 1000 % 60 209
AIron dry 9 1000 % 60 160
Jeans 4 1200 %50 130
Shirts 30 1.5 1200 %60 30
Sport 4 1000 %60 115
Delicates 2 600 %50 55
Mix 4 1000 % 60 110
Bedding 2.5 1000 % 60 164
Synthetics
BCupboard dry 4.5 800 % 40 80
BIron dry 4.5 800 % 40 60
Energy consumption values
Programs Capacity
(kg)
Spin speed in washing
machine (rpm)
Approximate amount of
remaining humidity
Energy consumption
value kWh
Cottons linen Ready to wear* 9 1000 % 60 2.14
Cottons Ready to iron 9 1000 % 60 1.65
Synthetics Ready to wear 4.5 800 % 40 0.75
Power consumption of the off-mode for the standard cotton programme at full load, PO (W) 0,5
Power consumption of the left-on mode for the standard cotton programme at full load, PL (W) 1,0
Contains fluorinated greenhouse gases covered by the Kyoto Protocol. Hermetically sealed.
R134a / 0,30 kg - GWP:1430 - 0,429 tCO2e

19 / EN
Dryer / User Manual
Operating the product
5.8 General Description of Steam Programs
Programs Monitoring
Duration Program Definition Capacity
Official
28 min.
This program can be used for cotton clothes
(shirts, jackets, pants etc). This program will
ensure that unwanted odours are removed from
your clothes. You can put your laundry into the
cupboard without ironing. Only for dry clothes.
1.5 kg or 5-6 pieces of shirts
22 minutes 1 kg or 3-4 pieces of shirts
16 minutes 0.5 kg or 1-2 pieces of shirts
Daily
31 minutes
You can use this program for your daily cotton or
synthetic laundry. This program will ensure that
unwanted odours are removed from your clothes.
You can put your laundry into the cupboard
without ironing. Only for dry clothes.
1.5 kg or 5-6 pieces of t-shirts
25 minutes 1 kg or 3-4 pieces of t-shirts
20 minutes 0.5 kg or 1-2 pieces of t-shirts
Easy ironing
Synthetics
45 minutes
You can use this program for synthetic clothes
that will be ironed. This program will ensure that
your dried clothes are ready in the closet for
ironing. For wet and dry laundry.
1.5 kg or 5-6 pieces of shirts
40 minutes 1 kg or 3-4 pieces of shirts
35 minutes 0.5 kg or 1-2 pieces of shirts
Easy ironing
Cotton
50 minutes
You can use this program for cotton clothes that
will be ironed. This program will ensure that your
dried clothes are ready in the closet for ironing.
For wet and dry laundry.
1.5 kg or 5-6 pieces of shirts
45 minutes 1 kg or 3-4 pieces of shirts
40 minutes 0.5 kg or 1-2 pieces of shirts

20 / EN
Dryer / User Manual
Operating the product
5.9 Steamy programs
The steam programs you will use will allow you to
reduce odour in laundry and minimize wrinkles.
Laundry should be separated with respect to its type
and size.
When steam programs are on, some noise may be
generated in addition to vapour generation.
The result given by the process of wrinkle removing and
odour removing may be different according to type and
amount of laundry and program selected.
Upon completion of steam programs, laundry should be
immediately extracted from the machine and hung out
for at least 15 minutes.
Activating the machine
Prior to first use of steam programs, you must fill the
steam tank. For the first use, you may use distilled water
provided with the machine. Fill the filling vessel provided
with the machine with distilled water.
ADo not drink pure (distilled) water.
You may use condensed water to fill the steam tank.
For this, water should be filtered. You may fill the filling
vessel with condensed water accumulated in the water
tank.

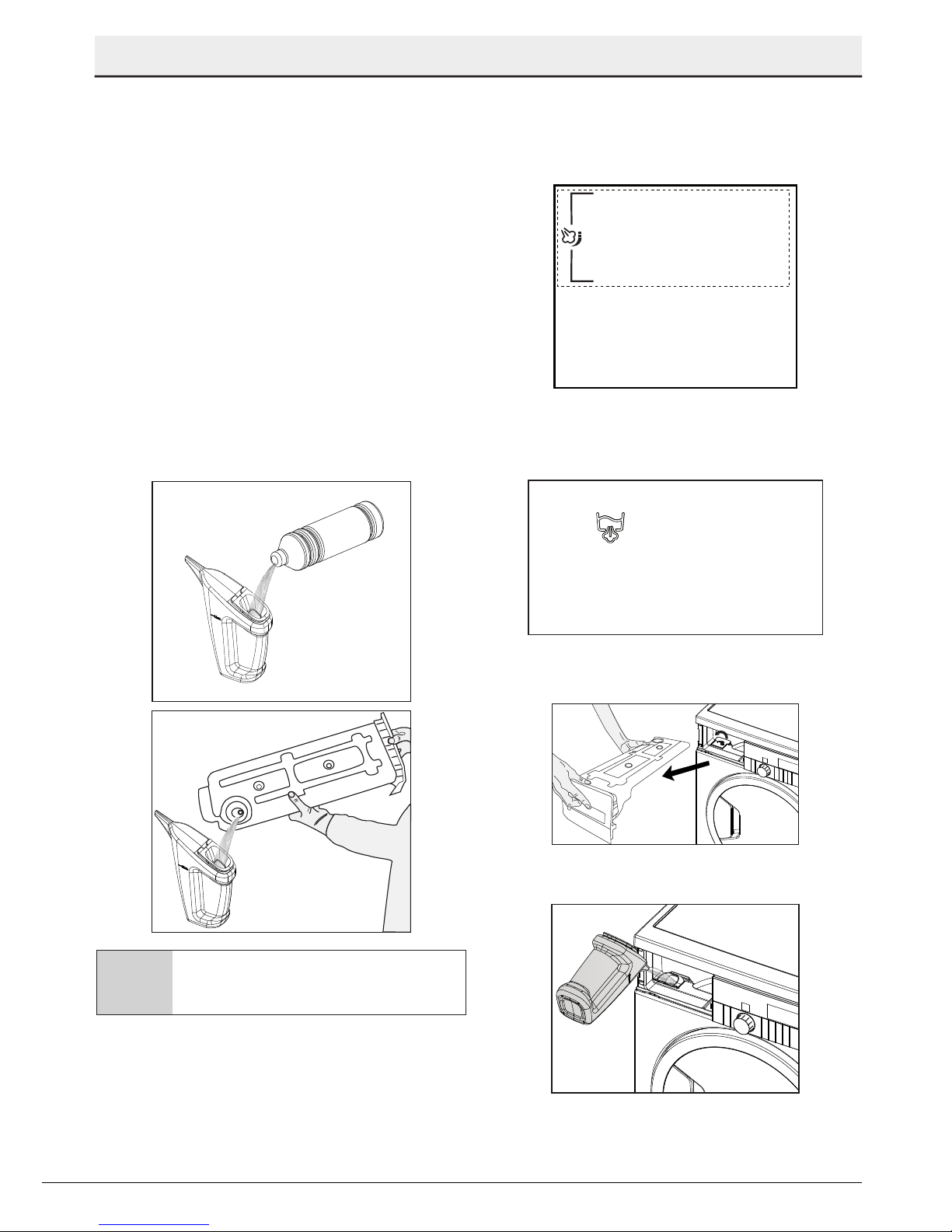

Filling steam tank:
1. Turn on the machine, and move the program
key onto one of steam programs.
Quilt
Shirt 30’
Easy Iron Cotton
Delicate
Fashion
Easy Iron Synthetic
Steam Ventilation Shirt
Steam Ventilation Daily
1
2
3
4
5
6
7
8
2. The symbol below shall flash when a steam
program is selected as the steam tank is
empty.
3. Pull the water tank out.
4. Lift the cap of the steam tank as shown.
5. Use the filling vessel filled with distilled water
or condensed water to fill the steam tank.
