ARCHITETTURA SONORA APOLLO User manual

APOLLO
Apollo is an indoor and outdoor bioethanol replace. With a base designed to propagate sound, it is an omnidirectional sound diffuser
that creates a warm and pleasant atmosphere of comfort and relaxation. Suitable for any gathering venue.
Mounting instructions: Apollo sound module can be installed either indoor and outdoor. Once you have selected the
mounting position best suited for the sonic replace, proceed carefully. Mount the module
securely and it is heavy and fragile and damage to the product and/or injury could result from
improper mounting. Please follow the instructions below carefully.
Speaker type
6” dual-concentric speaker
Nominal impedence
8 Ω
Crossover
two way on board
Frequency range
55-20.000 Hz (-6dB)
Sensitivity (1W-1m)
89 dB
Speaker Max Power
300W
Speaker RMS Power
150W
200W (Class D)
SOUND OUTPUT SPECIFICATIONS
Material
Painted steel (black or white)
Smoked glass
Base material
steel
Dimensions
900 x 1370 mm
Weight
35 kg
1370
900
220
1100
Place the Apollo on the oor, taking the
utmost care not to squeeze the cable and
not to damage the feet
1.
Connect the cable to the amplier
according to the polarity "red+ black-"
AS amplier need Speakon connector
(supplied) "+1 red /-1black"
6.
Screw the 4 brackets with the double oring
in the M10 holes on the body of the Apollo
3.
Place the steel burner in the proper slot
on top of the Apollo
2.
Place the glass top of the brackets (on the
double oring)
4.
Place the glass cylinder in the proper slot
over the burner
5.

Bioethanol replace
general informations: Bioethanol replaces are created to allow everyone to enjoy the beauty of the re. The innovation
of these products is the way they operate: a simple system that does not require specialists for
the installation and the need for electrical connections or gas pipes, making the replace suitable
for every place. The products of combustion are heat, steam and every low percentage of CO2.
The power supply comes from renewable energy source (denatured alcohol) that does not require
maintenance, it does not stain, it is clean for humans and is in harmony with nature. However, in
case the bio-replace is used in a small room of 27mc (approx. 3x3 mt room) it is recommended
to leave one or more doors open on the adjacent rooms or outside.
ETAN-K fuel: Bioethanol is the result of a process of fermentation and distillation of raw materials such as sugar cane, cereals
etc.. These resulting alcohol is denatured and is the base product for ETAN-K, and high quality product, organic,
a renewable source that does not pollute. ETAN-K comes in liquid form ready to be poured into the various
burners with proper tools. It is always recommended to completely burn the fuel contained inside the burner, or
at least to close it with the appropriate tools to avoid any evaporation of the product, that may cause alcoholic
smells or may develop ammable gases. It is also very recommended to turn on the bio-replace right after
charging them to avoid the development of ammable gases. Each combustion produces fumes but with proper
air circulation (see minimum size room) does not create problems or concerns to users.
Circular burner operation:Using the proper tool pour the fuel inside the burner, light the re with a special lighter that
has the ame at least 20cm apart for the handle (long steam lighter), do not lean over the
burner when starting the re, keeping a position that allows you to stay out of range of the
burner. To turn-off the ame use the proper ame arrestor lid, with a pistil handle, desig-
ned to allow a grip from above in order to avoid any possible contact with the ame. It is
recommended to let burn all the liquid inside of the burner. The combustion maximum
duration is approximately 2h 40’. The lid pistil handle can be also used as a lighter-holder.
Remember that it is absolutely forbidden to reload the burner when the ame is on.
Instructions: Apollo bioethanol replace operation is really easy, it does not need any permission to install, it requires no power
outlets, chimneys, nor any masonry work. Maintenance is virtually zero, it does not produce neither smoke nor
ash, it does not release odors, on the contrary, if purchased with the aromatherapy options it can offers really
pleasant scents and sensations. The only required operation is to ll the burner with the desired amount of
ETAN-K fuel and to light the re with the recommended long steam lighter. All products have been tested and
work properly with our Etan-K fuel, which they were regulated on. Therefore we are not responsible of evidence
different from the ones we exposed, in case the fuel used is not the one described above. During the loading
operations make sure that the liquid does not spill outside the burner, if it happens, it is necessary to dry and
clean in order to avoid the spread of not controllable ames. For a safer operation it is better to place the bioetha-
nol replace in ventilated areas.
Observations and
recommendations: Apollo is an open re, so an important requirement is to keep and follow a behavior allowith the
product perfect operation, avoiding any risk for the user. There behaviors specied above and summa-
rized below, partially allow a proper and not risky use. Make sure that ammable objects are at least
1mt away from the Apollo sound module. We also recommend adutls to make sure that children or
disabled people do not approach the replace when working, thus avoiding any overthrowing risk.
Keep the Etan-k fuel stored in a safe place, away from heat, at temperatures not above 28° and away
from children. When turning on the replace do not lean over the ame with your body. It is recommen-
ded to keep the distance permitted by the special recommended lighter. Never charge the fuel into the
burner when it is in operation.
Last update: March 2016
Specication could be changed without notice
to keep your speakers beautiful as long as possible, we warmly recommend doing maintenance at
least once a year. When not in use, sound modules should be appropriately covered or stored
away; heavy duty protective covers are available from AS.
Please refer to the General Manual for appropriate instructions and note that any departure from
our recommendations on care and cleaning, or any evidence of misuse or damages from ordinary
wear and tear, will void all warranty claims.
Maintenance and care:

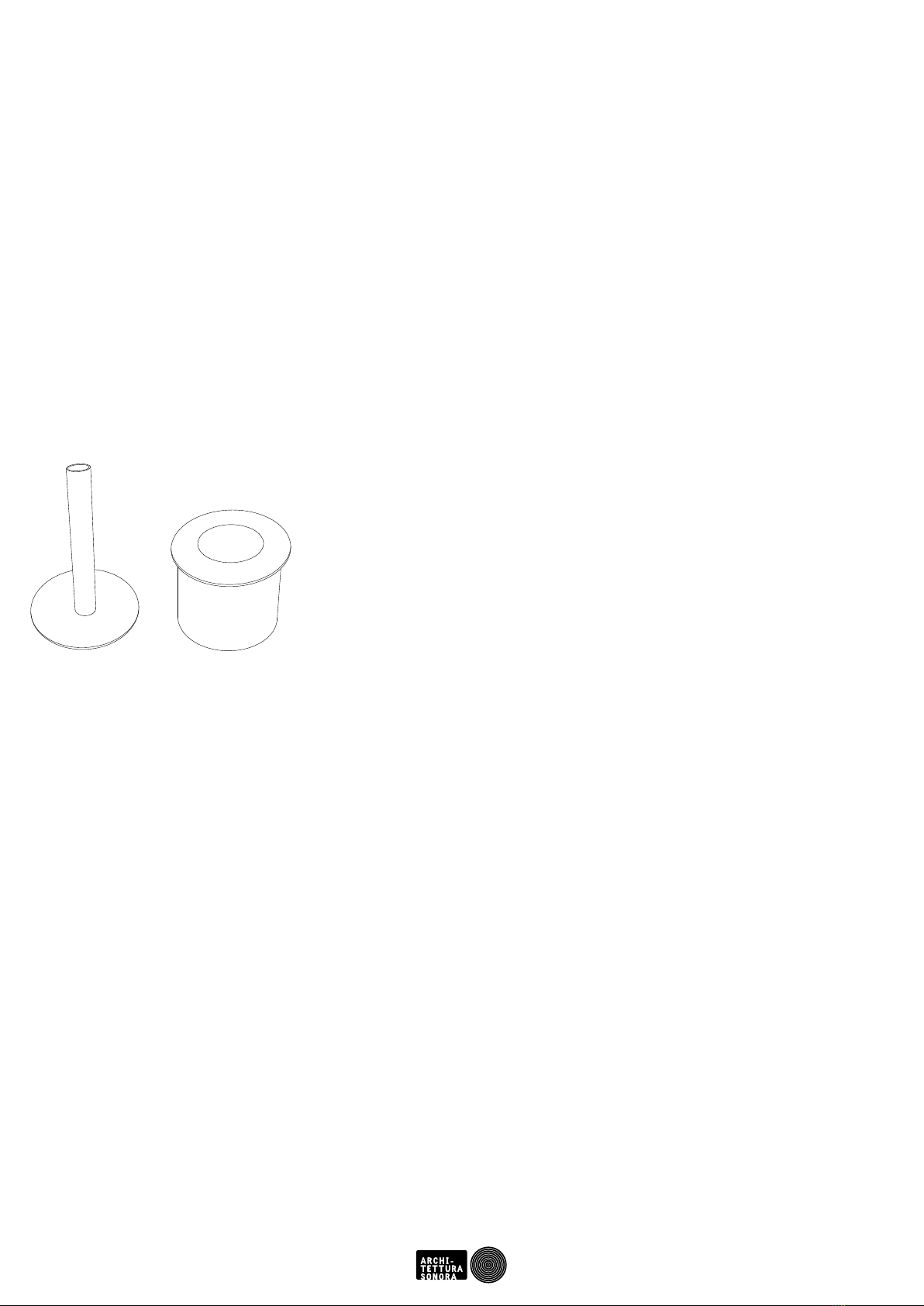

Apollo round burnerApollo ame arrestor lid
