Arcora BLANCUS 40 User manual

BLANCUS 40 COMPACT SCRUBBER DRYER MACHINE
Please read this manual carefully before use

2
1.0 Overview
Notice：Please read this manual carefully before operating the
BLANCUS 40 scrubber-dryer machine.
BLANCUS 40 miniature automatic floor scrubber is a mechanical movement of disc brush
and chemical action of water and detergent solution, which can be used to clean hard floors
with various stains, and collect the removed stains and untreated stains while doing it. A
machine for floors to absorb cleaner solutions.
Use:
The scientific name of the machine is a miniature fully automatic scrubber. It is suitable
for fast mechanized floor cleaning of small office buildings, hotels, restaurants and workshops,
etc., and the cleaning operation is more efficient and faster.
This device is not suitable for use in the rain or under a water jet. It is strictly forbidden to use
this device to collect dangerous dust or flammable liquids in flammable and explosive
environments. In addition, the device is not suitable for use as a means of transportation.
2.0 Summary of Security Matters
Notice：Operators please read this manual carefully
●Before starting any work, it is important to familiarize yourself with all of the scrubber's
design, controls and functions.
●When using the scrubber for the first time, the operator should place it in an open area to
understand its various functions.
●Before starting any operational work, check the general and operational condition of the
scrubber and its parts.
●If the floor scrubber isn't working properly, the equipment cannot be used.
●The operator must use the scrubber for the proper application (cleaning hard floors)。
●When operating, pay attention to obstacles in the workplace, such as stairs, shelves, etc.,
and pay attention to the surrounding people, especially children.
●Use appropriate cleaning agents (only use cleaning agents in accordance with the cleaning
agent manufacturer's instructions, with appropriate dosages and restrictions).
●This scrubber should only be maintained and serviced by properly trained personnel using
suitable tools.
●Turn off the power or remove the battery when cleaning or maintaining the scrubber.
●Don't use high-pressure water or steam equipment to clean the scrubber.
●Prohibit electrical components from entering water.
Notice：▲Don't use this scrubber to clean flammable liquids, solvents, fuel oil, active

3
metal vapor or flammable dust.
▲Electric shock hazard. Don't use damaged wires. Unplug the power cord
before servicing.
▲FOR SAFETY: Using an incompatible battery charger may result in battery
damage or fire.
3.0 Blancus 40 Floor Scrubber Specifications
ITEM
Specifications
Voltage
DC36V
Working width
42cm
Water absorption width
44cm
Work efficiency
700 /h
Brush disc diameter (bristle)
17.5cm（21cm）
Brush speed slow/fast
270/340rpm
Brush motor
2*150W
Brush plate pressure
11kg
Suction motor
150W
Vacuum
120mbar
Turning radius
30cm
Clean water tank capacity
2L
Sewage Tank Capacity
3.5L
Noise level
63dB
Battery
7.5Ah-36V (Lithium battery)
Battery weight
1.8 kg
N.W
16kg
G.W
20kg

4
5.0 Machine components
1.control Panel 2.sewage tank cover 3.sewage tank
4.Battery compartment lock 5.Battery compartment 6.LED light
7. brush plate 8.Squeegee 9. transport wheel
10.Vertical buckle unlock rocker 11.Vertical buckle lock press 12.clean water tank
4.0 Packaging of the machine
Package size as follows：
Length：116cm
Width：46cm
High：35cm

5
Pic 6-1
Pic 6-2
6.0 Instructions for use

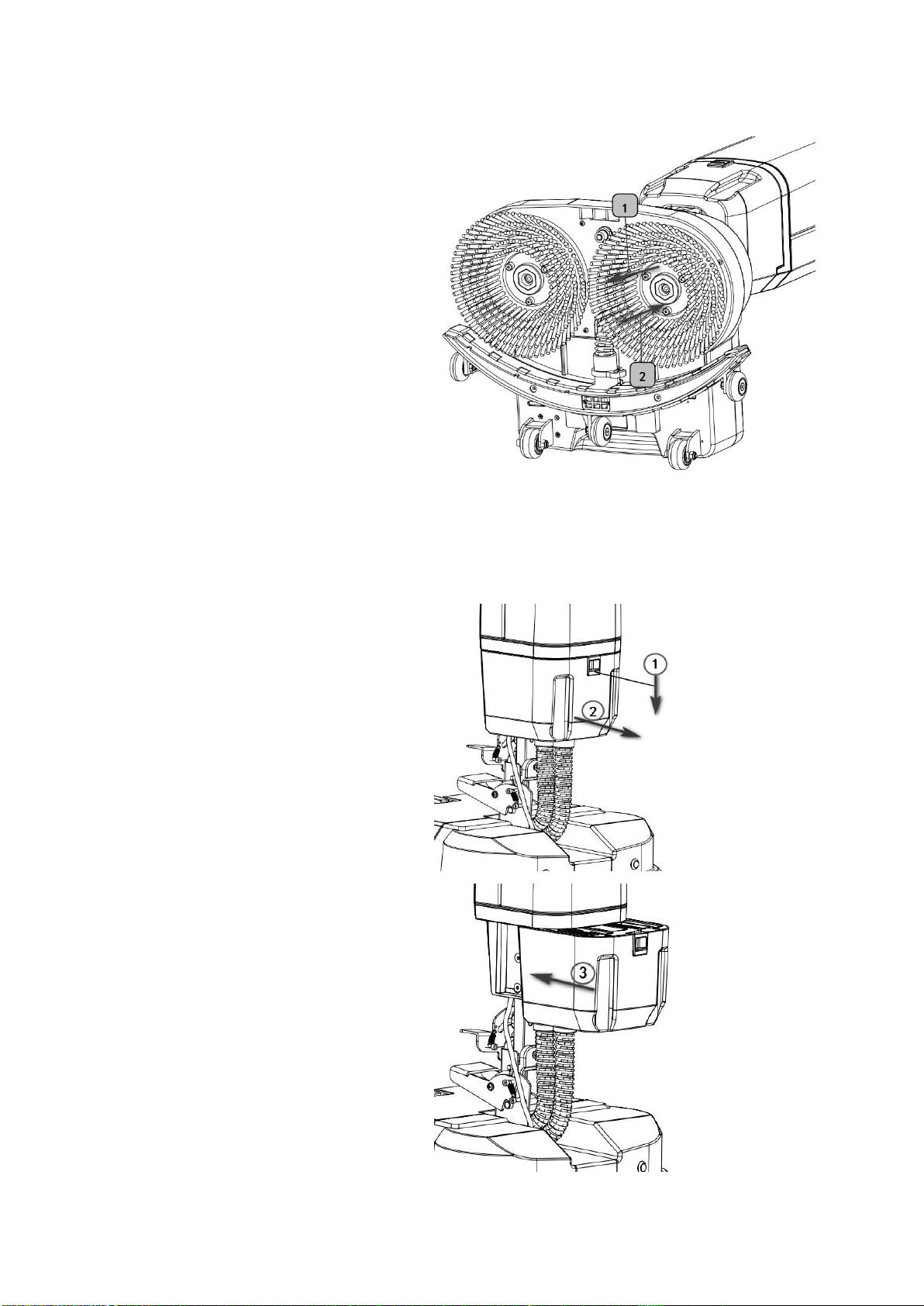

6-1 Brush Disassembly and
Installation Instructions：pic6-1
1. According to the direction of arrow
1 in the figure, you can directly pull
out the brush tray.
2. Align the hexagonal column and
push it in the direction of arrow 2
in the figure to tighten the brush
plate.
6-2 Battery Removal and Installation
Instructions：pic 6-2.
1.Press the battery lock.
2.Press and hold the battery lock and
pull it in the direction of the arrow to
remove the battery.
3.Align the slot and push the battery to
the end, the buckle of the battery is
fastened, and the battery is installed.

6
Pic 6-3-（1）Pic 6-3-（2）
Notice：The recovery tank must be emptied when refilling the
solution tank.
Notice：Don't fill the solution tank with water or unclean water
from the recovery tank.It will clog the pipes.
Pic 6-4-（1）Pic 6-4-（2）

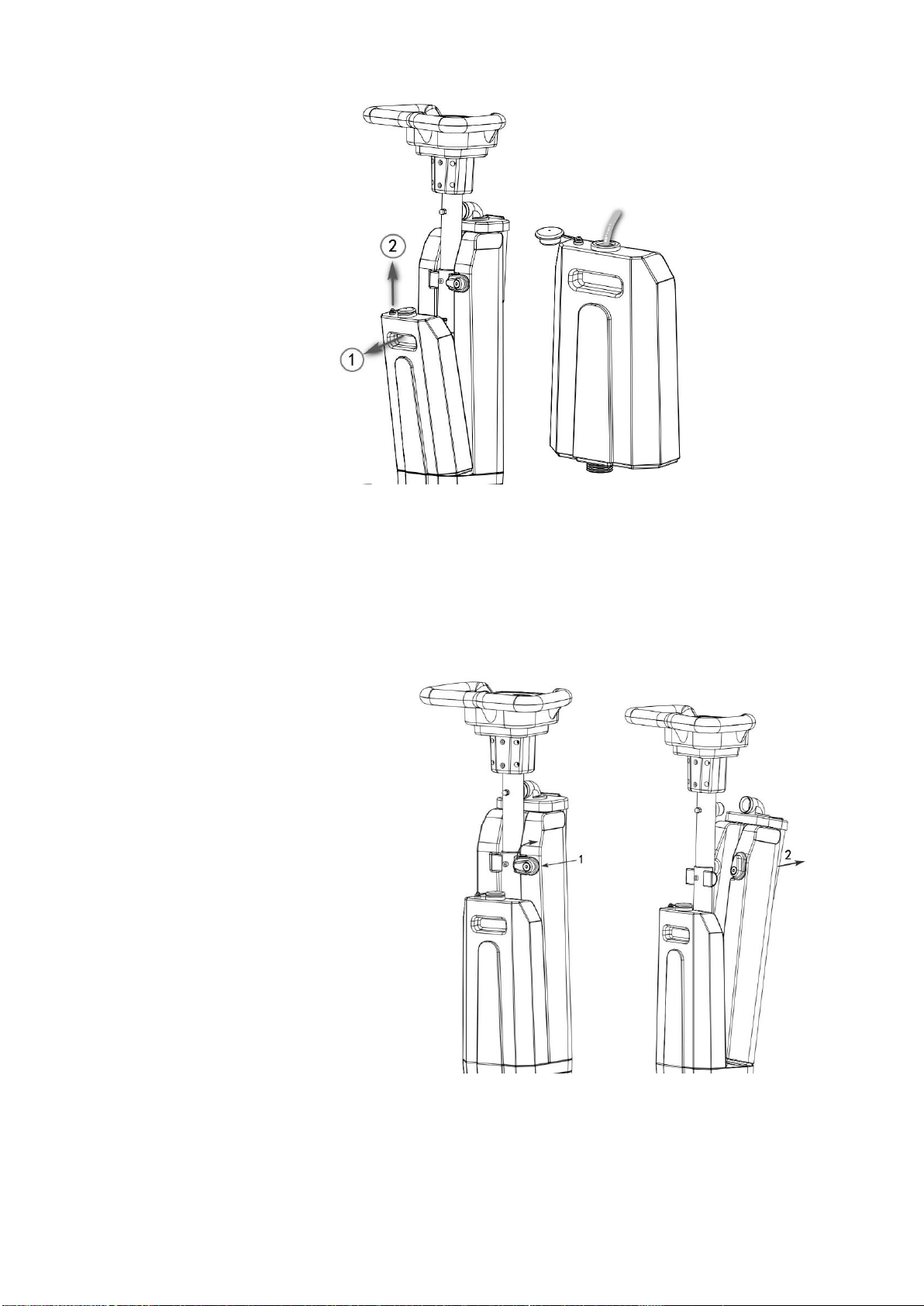

6-3 Instructions for filling
water：pic 6-3-（1）~ (2)
1. Pic 6-3-（1）Step 1 Push
the clean water tank
outward to disengage
the buckle.
2. Pic 6-3-（1）Step 2 Lift
the clean water tank
up.
3. Pic 6-3-（2）Open the
water tank cover and
fill the water tank with
clean water.
6-4 Sewage Tank Removal
Instructions：Pic 6-4-（1）-（2）
1. Pic 6-4-（1）Push up the sewage
tank swing button.
2. Pic 6-4-（2）First open the upper
end of the sewage tank
outwards, disengage the joint,
and lift it away.

7
Pic 6-5
Pic 6-6
6-5 Instructions for Unlocking and
Locking the Universal Joint of the
Machine：pic 6-5
1. Unlocking: Grab the operating
handle with your hands first, then
step down the rocker ① to the
lowest position with your feet, and
then you can use the machine.
2. Locking: Step on the rocker ② to
the lowest position with your feet,
swing the handle back and forth,
left and right to make it
perpendicular to the machine
head, and the machine handle will
be automatically locked vertically.
6-6 Control panel illustration：Pic 6-6
1. Power switch
2. Battery indicator
3. Low battery indicator light, the light is
on and flashing, indicating that the
battery is low and needs to be charged in
time.
4. Brush plate switch (cycle ECO slow, &
fast)
5. Clean water switch
6. Suction switch

8
Pic 6-8
7.0 Maintenance
1、Daily maintenance and maintenance
（1）Remove the pad/brush plate and wipe it clean with a specific cleaner.
（2）Drain the recovery and solution tanks and rinse them with clean water. Check recovery tank for debris
and remove immediately.
（3）Lift the squeegee assembly off the ground and wipe the squeegee with a damp towel.
（4）Wipe the machine clean with a specific cleaner.
(5）Charge the battery.
(6) Check whether the edge of the scraper is sharp. If it is damaged, please turn it over and use it or
replace it.
2、Monthly maintenance and maintenance
（1）Check for loose or corroded battery connections.
（2）Lubricate all lubrication points and shafts with a specific lubricant.
（3）Check for loose machine fasteners.
（4）Check the water tank for leaks. Check the sealing strip of the waste water tank cover and replace if
damaged.
3、Machine storage
（1）Store indoors in a dry place.
（2）Store upright.
（3）If the storage place is extremely cold, the machine needs to be kept completely dry before storing to
avoid damage caused by low temperature.
（4）Drain the recovery and solution tank
6-8 Battery charging：
Notice：Must use the battery charger approved
and provided by the company（Pic 6-8）， Using an
incompatible charger may damage the battery and
possibly result in a fire. When charging, both batteries
must be charged together.
Correct charging steps：
1.Transport the machine to a well-ventilated area.
2.Park the machine in a dry level place and turn off the
main power.
3.Plug the DC cable plug of the charger into the
charging socket of the machine.
4.Connect the charger's AC power cord into a properly
grounded outlet.
5.The charger will start charging automatically, and the
charging time is about 2 hours and 30 minutes。
6.After the charging cycle is complete, unplug the AC
power plug from the outlet first, then unplug the DC
charging plug from the machine.

9
8.0 Common faults and solutions
Fault
Cause Analysis
Solution
Machine can’t working
The power switch is not turned on
Please turn on the power
switch
The battery is low and needs to be
charged
Charge the battery
Battery damage
Replace the battery
Damaged power switch
Contact the manufacturer
The brush motor not run
The battery is low and needs to be
charged
Charge the battery
The brush motor is damaged or its
circuit is damaged
Contact the manufacturer
Solenoid switch damaged
Contact the manufacturer
Controller damage
Contact the manufacturer
The drive motor or its wiring is
damaged
Contact the manufacturer
Suction motor not
working
Suction motor or its circuit is
damaged
Contact the manufacturer
Poor water absorption
Wiper assembly clogged
Cleaning the Squeegee
Assembly
Squeegee blade wear
Turn over or replace
The suction pipe is not reliably
connected to the wiper assembly
Reliable connection of
suction pipe
Suction pipe clogged
Clear blockage
Damaged suction pipe
Replace the suction hose
Sewage tank cover is not closed
Covered
Damaged waste water tank cover
seal
Replace the seal
Suction motor damaged
Contact the manufacturer
Battery is low
Charge the battery
Short runtime
Damaged battery charger
Repair or replace the
charger

10
Explosion diagram 1
Number
Name
Number
Name
Number
Name
101
Handle case upper case
102
Control circuit board
103
3X8 pan head
self-tapping screws
104
Handle case lower case
105
4X16 pan head
self-tapping screws
106
M6X16 cylinder head
screw
107
4X30 pan head
self-tapping screws
108
Handle connector
(rear)
109
4X30 pan head
self-tapping screws

11
110
Handle attachment
(front)
111
Water tank locator
112
M6X16 round head
screw
113
40X2 aluminum handle
114
M6X16 round head
screw
115
Electric wire
116
M6X16 cylinder head
screw
117
Sewage tank suction
liner
118
M6 round head nut
119
Aluminum tube closure
120
Wire sheath
Explosion diagram 2
Number
Name
Number
Name
Number
Name

12
201
4X16 pan head
self-tapping screws
202
Clean water tank
cover
203
Clean water tank
buckle
204
M5X12 M5X12
round head screw
205
Clean water tank
206
Water valve rubber
sleeve
207
Water valve
208
Sewage tank swing
buckle
209
Water tank swing
buckle spring
210
Water tank swing
buckle screw
211
Waste water tank
212
Sewage tank inner
elbow
213
3X12 countersunk
head self-tapping
screw
214
Bottom cover of
float cover
215
Float
216
Float cover
217
Sewage tank cover
218
Sewage tank
extraction jacket
219
3X12 countersunk
head self-tapping
screw
Explosion diagram 3

13
Number
Name
Number
Name
Number
Name
301
Sewage tank
connection rubber
sleeve
302
Rubber sleeve
connecting pipe
303
4X12 Countersunk
head self-tapping
screw
304
Water tank pallet
305
3X12 pan head
self-tapping screws
306
Battery insert press
plate
307
Battery insert
308
Conversion quick
connector
309
O-ring 19 (inner) X3
310
Battery Holder
311
Universal joint upper
part
312
M6X12 countersunk
head screw
313
5X8X4 cushion cover
314
M5X12 screw
315
Vertical lock
316
Vertical lock locking
rocker
317
7X0.8X27 extension
spring
318
M4X8 screw
319
4X6X3 cushion cover
320
Unlock rocker
321
7X0.8X27 Extension
spring
322
M5X8 screw
323
5X8X4 cushion cover
324
Universal joint lower
part
325
M6X20 cylinder head
screw
326
10X70 pin
327
M6X8 Machine screw
328
9X1X40 compression
spring
329
4X6X4 cushion cover
330
4X40 pin
331
Standing latch
unlocking position
332
8X40 pin
333
Universal joint middle
section
334
Hose clamp
335
Suction hose
336
uction hose
337
Battery case
338
3X10 pan head
self-tapping screws
339
Battery plug
340
8X0.6X30 compression
spring
341
3X10 pan head
self-tapping screws
342
Battery compartment
lock
343
4X16 countersunk
head self-tapping
screw
344
Battery compartment
cover
345
Battery compartment
plug copper parts
346
3X12 pan head
self-tapping screws
347
Battery compartment
plug
348
3X12 countersunk
head self-tapping
screw
349
Battery
350
Charging socket

14

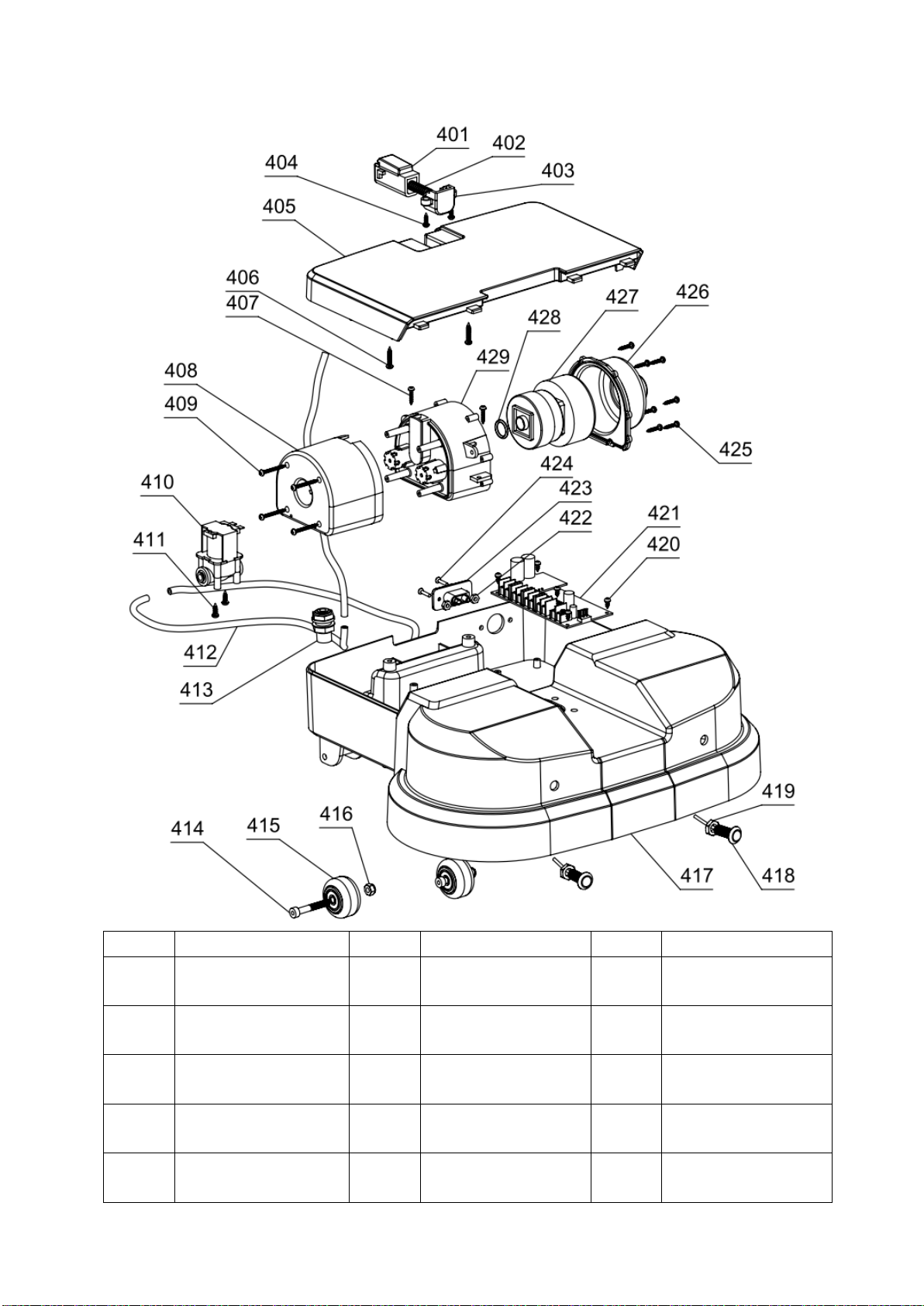

Explosion diagram 4
Number
Name
Number
Name
Number
Name
401
Folding buckle
402
9X1X40 compression
spring
403
Folding Buckle
Positioner
404
3X12 pan head
self-tapping screws
405
Chassis cover
406
4X20 pan head
self-tapping screws
407
4X20 pan head
self-tapping screws
408
Suction Motor Noise
Cover 2
409
3X30 pan head
self-tapping screws
410
Electromagnetic valve
411
4X12 pan head
self-tapping screws
412
Water pipe
413
6.3 water pipe quick
connector
414
M6X40 cylinder head
screw
415
ф40X23 wheel

15
416
M6 fasten the screw
nut
417
Host shell
418
LED light
419
LED light nut
420
3X8 Pan head
self-tapping screws
421
Main control circuit
board
422
M3 nut
423
Charging socket
424
M3X12 countersunk
head screw
425
3X16 pan head
self-tapping screws
426
Suction Motor Mount
427
Suction motor
428
O-ring 14 (inner)X2.5
429
Suction Motor Noise
Cover 1
430
Explosion diagram 5
Number
Name
Number
Name
501
Left thread brush motor
502
M6X25、20 countersunk
head screw

16
503
Brush plate motor bottom
plate
504
4X12 pan head self-tapping
screws
505
4X30 pan head self-tapping
screws
506
Left thread brush buckle
507
Brush buckle magnetic
sheet
508
4X12 countersunk head
self-tapping screw
509
4X20 countersunk head
self-tapping screw
510
Strong magnet ф15X5
511
Brush plate
512
Right thread brush buckle
513
Right thread brush motor
Explosion diagram 6
Number
Name
Number
Name
601
Squeegee shell
602
M6 star nut
603
M6 fasten the screw nut
604
606 Bearing
605
M6X25 cylinder head
screw
606
Squeegee hub
607
40mm squeegee
608
Squeegee Internals
609
M6X40 cylinder head
screw
610
Squeegee rear rubber strip
611
Squeegee front rubber
strip

17
Series product warranty card Card number：
User name：Contact number：
Contact address：
Post code：
Date of purchase：Invoice number：
Product model：Machine number：
Replacement parts：
Fault description：
Distributor (official seal)
1. This warranty card must be stamped with the official seal of the agent
distributor to be valid.
2. This maintenance card is in duplicate, one for each customer and agent
distributor.
★Warranty with purchase receipt, thank you for your cooperation!

18
Series product warranty card Card number：
User name：Contact number：
Contact address：
Post code：
Date of purchase：Invoice number：
Product model：Machine number：
Replacement parts：
Fault description：
Distributor (official seal)
3. This warranty card must be stamped with the official seal of the agent
distributor to be valid.
4. This maintenance card is in duplicate, one for each customer and agent
distributor.
★Warranty with purchase receipt, thank you for your cooperation!

19
---------------------------------------------------------------------------------------------------
Address: Marsstrasse 9, 85609 Aschheim near Munich
E-mail : [e-mail] Tel :
[phone]
www.arcora-group.com
-----------------------------------------------------------
