Arctic King WWK05CM61N User manual

Before using your air conditioner, please read
this manual carefully and keep it for future reference.
WINDOW/WALL TYPE
ROOM AIR CONDITIONER
-
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

Producto
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

1 866 747 4332
1 866 747 4332
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

CONTENTS
Inside you will find many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time
and money over the life of your air conditioner. You'll find many answers to common
problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting
Tips first, you may not need to call for service at all.
Contact the authorized service technician for repair or maintenance of this unit.
Contact the installer for installation of this unit.
The air conditioner is not intended for use by young children or infirm persons
without supervision.
Young children should be supervised to ensure that they do not play with the air
conditioner.
If the power cord is to be replaced, replacement work shall be performed by
authorized personnel only.
Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.
!CAUTION
Read This Manual
1
1. SAFETY PRECAUTIONS............. .....................................................2
2. IMPORTANT SAFETY INSTRUCTIONS ...... ....................................4
3. NORMAL SOUNDS .... . ...................................................................5
4. AIR CONDITIONER FEATURES ...... .. ... ......................................5
5. INSTALLATION INSTRUCTIONS.... ..................................................10
6. CARE AND CLEANING ..... ..............................................................14
7. TROUBLESHOOTING TIPS...............................................................15
8
..
..
.. ...
.. .. .. ..
.
..
. WARRANTY INFORMATION..............................................................17
9. CUSTOMER SERVICE INFORMATION.............................................17
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

To prevent injury to the user or other people and property damage, the following instructions
must be followed. Incorrect operation due to ignoring of instructions may cause harm or
damage. The seriousness is classified by the following indications.
Safety Precautions
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
!
!
WARNING
Always do this.
Never do this.
!
CAUTION
This symbol indicates the possibility of injury or damage to property.
Plug in power plug
properly.
Do not modify power cord
length or share the outlet
with other appliances.
Always ensure effective
earthing.
Unplug the unit if strange
sounds, smell, or smoke
comes from it.
Keep firearms away.
Ventilate room before operating air
conditioner if there is a gas leakage from
another appliance.
Otherwise, it may cause electric
shock or fire due to heat
generation.
excess
It may cause electric shock or
fire due to heat generation.
Incorrect earthing may cause
electric shock.
It may cause fire and electric
shock.
It may cause fire.
It may cause explosion, fire and, burns.
It may cause electric shock or fire
due to heat generation.
It may cause electric shock.
It may cause failure of machine
or electric shock.
It may cause fire and electric
shock.
It may cause fire and electric
shock.
It may cause electric shock or fire.
If the power cord is damaged, it
must be replaced by the manufac-
turer or an authorised service
centre or a similarly qualified per-
son in order to avoid a hazard.
This could damage your health.
Incorrect installation may cause
fire and electric shock.
It may cause electric shock.
It may cause an explosion or fire.
It may cause failure and electric shock.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
Do not operate with wet
hands or in damp
environment.
Do not allow water to run
into electric parts.
Do not use the socket if it is
loose or damaged.
Do not use the power cord
close to heating appliances.
Do not damage or use an
unspecified power cord.
Do not direct airflow at
room occupants only.
Always install circuit
breaker and a dedicated
power circuit.
Do not open the unit
during operation.
Do not use the power cord near
flammable gas or combustibles, such
as gasoline, benzene, thinner, etc.
Do not disassemble or modify unit.
!
!
!
!
!
!
WARNING
!
2
!!!
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

!
CAUTION
When the air filter is to be
removed, do not touch the
metal parts of the unit.
It may cause an injury.
Do not clean unit when
power is on as it may cause
fire and electric shock, it may
cause an injury.
Operation with windows
opened may cause wetting
of indoor and soaking of
household furniture.
When the unit is to be
cleaned, switch off, and turn
off the circuit breaker.
Stop operation and close
the window in storm or
hurricane.
Use caution when unpacking and
installing. Sharp edges could cause injury.
Do not clean the air
conditioner with water.
Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
This could injure the pet or
plant.
It may cause electric shock
and damage.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
Hold the plug by the head
of the power plug when
taking it out.
Ventilate the room well when
used together with a stove,
etc.
An oxygen shortage may occur.
Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects.
It may cause deterioration of
quality, etc.
It may cause failure of product
or fire.
Do not use for special
purposes.
Turn off the main power
switch when not sing the
unit for a long time.
u
If water enters the unit, turn the unit off at the power
outlet and switch off the circuit breaker. Isolate
supply by taking the power-plug out and contact a
qualified service technician.
3
!
!
!
!
!
!
!
It may cause failure of
appliance or accident.
Appearance may be
deteriorated due to change
of product color or
scratching of its surface.
Do not place obstacles
around air-inlets or inside
of air-outlet.
Do not use strong deter-
gent such as wax or
thinner but use a soft cloth.
If bracket is damaged, there
is concern of damage due to
falling of unit.
There is danger of fire or
electric shock.
Ensure that the installation bracket of
the outdoor appliance is not damaged
due to prolonged exposure.
Do not place heavy object on the
power cord and ensure that the cord
is not compressed.
Operation without filters may
cause failure.
It contains contaminants and
could make you sick.
Always insert the filters
securely. Clean filter once
every two weeks.
Do not drink water drained
from air conditioner.
!
!
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

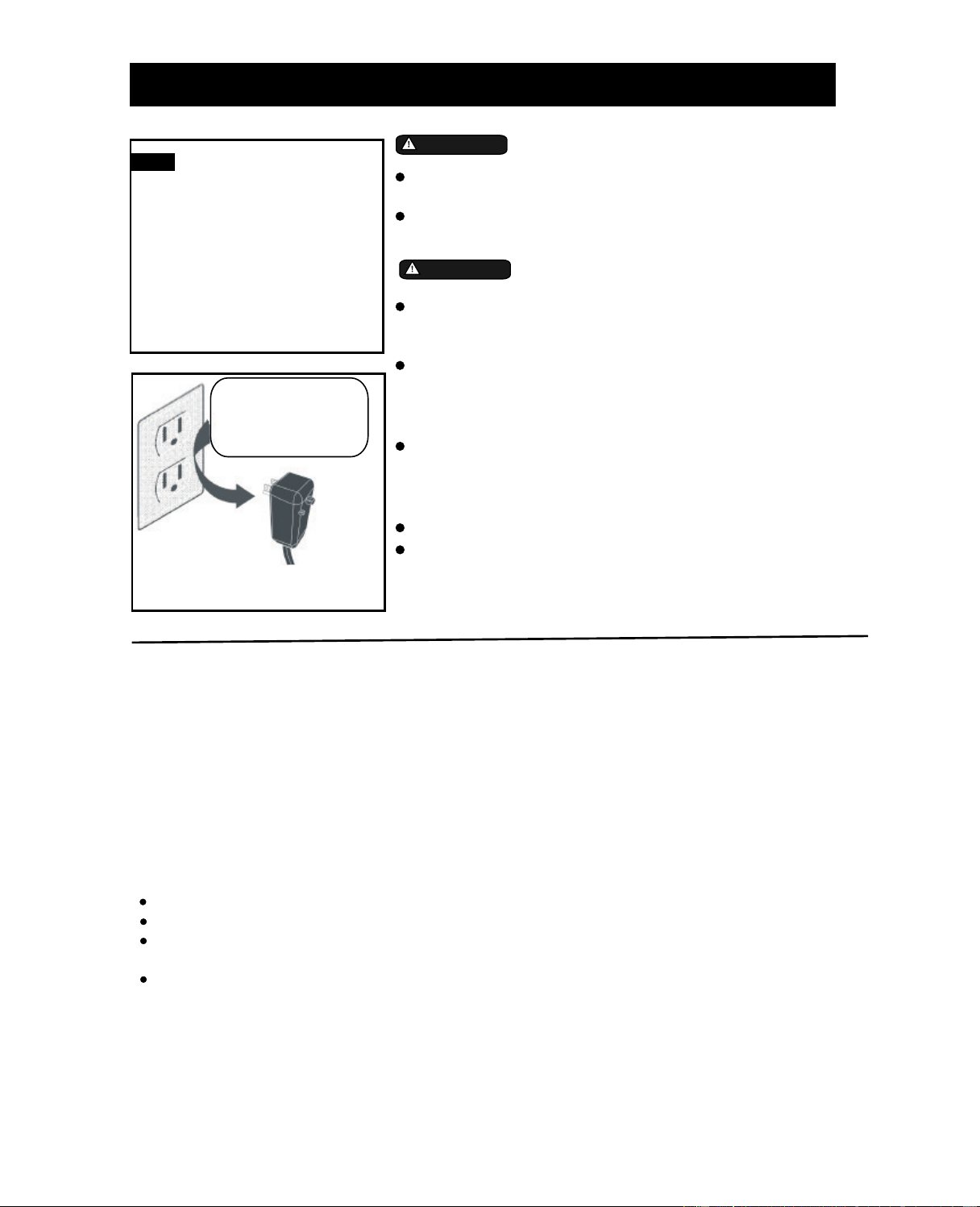

IMPORTANT SAFETY INSTRUCTIONS
Be sure the electrical service is adequate for the model you have
chosen. This information can be found on the serial plate, which
is located on the side of the cabinet and behind the grille.
Be sure the air conditioner is properly grounded. To minimize
shock and fire hazards, proper grounding is important. The power
cord is equipped with a three-prong grounding plug for protection
against shock hazards.
Your air conditioner must be used in a properly grounded wall
receptacle. If the wall receptacle you intend to use is not adequately
grounded or protected by a time delay fuse or circuit breaker,
have a qualified electrician install the proper receptacle.
Ensure the receptacle is accessible after the unit installation.
Do not run air conditioner without side protective cover in place.
This could result in mechanical damage within the air conditioner.
Do not use an extension cord or an adapter plug.
WARNING For your safety
Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
Avoid fire hazard or electric shock. Do not use an extension cord or
an adaptor plug. Do not remove any prong from the power cord.
WARNING Electrical Information
NOTE The power supply cord with
this air conditioner contains a current
detection device designed to reduce
the risk of fire.
Please refer to the section Operation
of Current Device for details.
In the event that the power supply
cord is damaged, it can not be
repaired.It must be replaced with a
cord from the Product Manufacturer.
,
,
Do not, under any
circumstances, cut,
remove, or bypass
the grounding prong.
Power supply cord
with 3-prong grounding plug
and current detection device
Operation of Current Device
The power supply cord contains a current device that senses damage to the power cord. To test your power
supply cord as follows:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the TEST button, you will notice a
click as the RESET button pops out.
3. Press the RESET button, again you will notice a click as the button engages.
4. The power supply cord is now supplying electricity to the unit. (On some products this it also indicated by
a light on the plug head.)
Do not use this device to turn the unit on or off.
Always make sure the RESET button is pushed in for correct operation.
The power supply must be replaced if it fails reset when either the TEST button is pushed, or it can not be
reset. A new one can be obtained from the product manufacturer.
If power supply cord is damaged, it can not be repaired. It MUST be replaced by one
NOTE:
obtained from the
product manufacturer.
4
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

NORMAL SOUNDS
AIR CONDITIONER FEATURES
Sound of Rushing Air
At the front of the unit, you may
hear the sound of rushing air
being moved by the fan
High Pitched Chatter
High efficiency compressors
may have a high pitched chatter
during the cooling cycle.
Gurgle/Hiss
Gurgling or hissing noise may
be heard due to refrigerant
passing through evaporator
during normal operation.
Pinging or Switching
Droplets of water hitting condenser
during normal operation may cause
pinging or switching sounds.
Before you begin, thoroughly familiarize yourself with the control panel and remote as shown below
and all its functions, then follow the symbol for the functions you desire. The unit can be controlled
by the unit control alone or the remote.
Vibration
Unit may vibrate and make noise
because of poor wall or window
construction or incorrect installation.

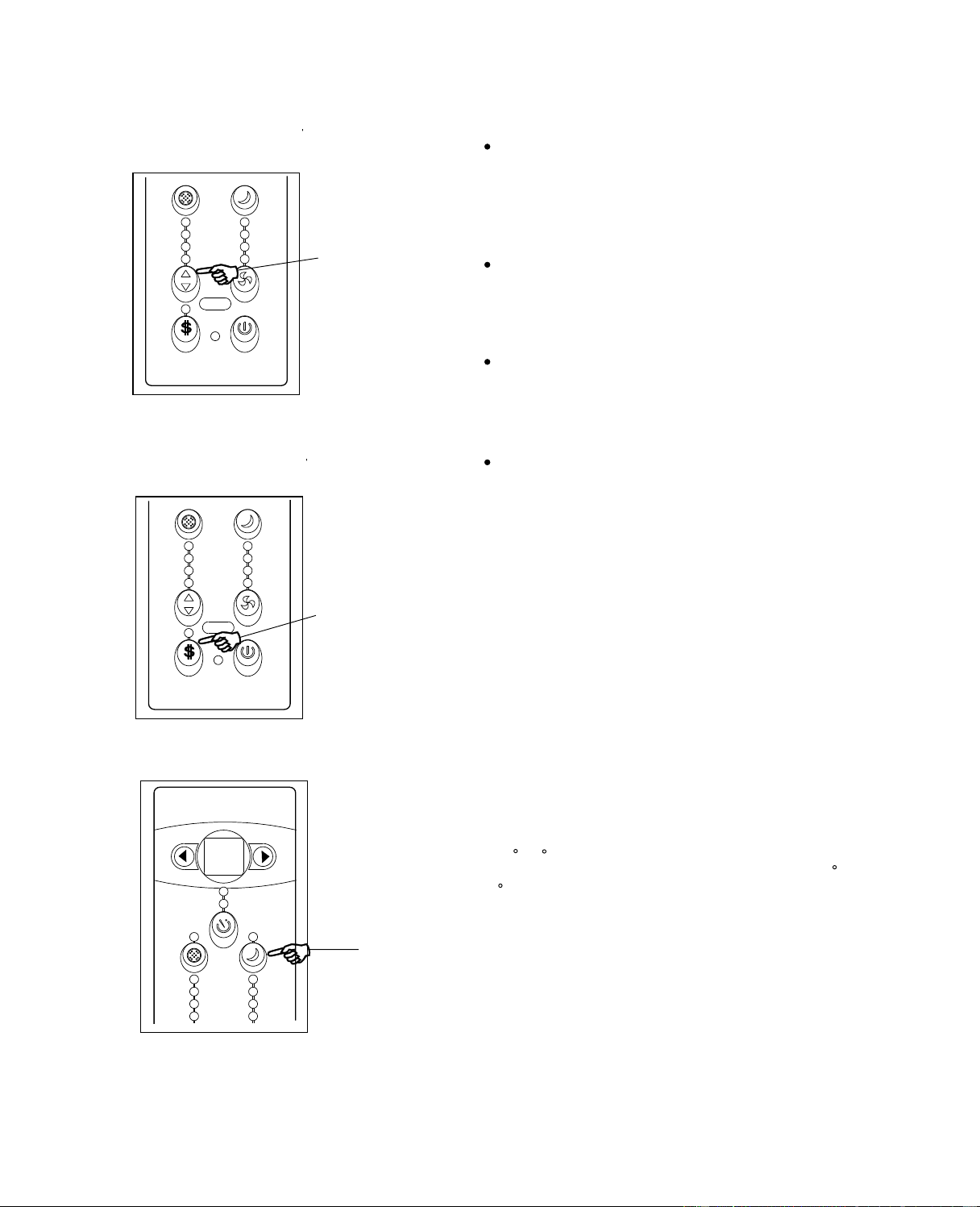

ELECTRONIC CONTROL OPERATING INSTRUCTIONS
ADJUST
TEMPERATURE
OR TIME
ADJUST
TEMPERATURE
OR TIME
DISPLAY
TEMPERATURE
OR TIME
ACTIVATE
TIMER
CHECK FILTER
RESET BUTTON
SET MODE
ENERGY
SAVER MODE
SLEEP MODE
SET FAN SPEED
TURN UNIT
ON OR OFF
UNIT CONTROL
Temp Temp
Timer Timer
On
Off
Sleep
Check
Filt er
Timer
Auto
Cool
Dry
Fan
Low
Auto
Med
High
Fan
Mode
Follow
Me
Energy
Saver On/Off
5
FOLLOW ME INDICATOR
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

AIR CONDITIONER FEATURES(CONTINUED)
TO TURN UNIT ON:
NOTE: The following instructions represent the Unit Controls, the same instructions can be used
for the Remote Control.
TO CHANGE TEMPERATURE
SETTING:
Press the On/Off button.
Auto
Cool
Dry
Fan
Low
Auto
Med
High
Fan
Mode
Follow
Me
Energy
Saver On/Off
DO THIS:
Temp Temp
Timer Timer
On
Off
Sleep
Check
Filt er
Timer
Auto Auto
Press to raise
DO THIS:
Press to lower
Press or hold either Left( <) or Right (>) button
until the desired temperature is seen on the
display. This temperature will be automatically
maintained anywhere between 62 F(17 C) and
86 F(30 C). If you want the display to read the
actual room temperature, see To Operate on
Fan Only section.
NOTE:
TO ADJUST FAN SPEEDS:
Auto
Cool
Dry
Fan
Low
Auto
Med
High
Fan
Mode
Follow
Me
Energy
Saver On/Off
Press to select
appropriate fan
speed
DO THIS:
Used to select the Fan Speed in four steps:
Auto, Low, Med or High. Each time the button
is pressed, the fan speed mode is shifted.
NOTE:
6
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

AIR CONDITIONER FEATURES(CONTINUED)
TO SELECT THE
OPERATING MODE:
Press the Mode
button.
Auto
Cool
Dry
Fan
Low
Auto
Med
High
Fan
Mode
Follow
Me
Energy
Saver On/Off
DO THIS:
To choose operating mode, press the Mode button.
Each time you press the button, a mode is selected
in a sequence that goes from Auto, Cool, Dry to
Fan. The indicator light besides will be illuminated
and remained on once the mode is selected.
NOTE:
To operate on Auto feature:
In this mode, the fan speed can not be adjusted, it
starts automatically at a speed according to the
room temperature. If the room does not get too
warm, it will stay at Low speed.
To operate on Fan Only:
Use this function only when cooling is not desired,
such as for room air circulation or to exhaust stale
air(on some models). (Remember to open the vent
during this function, but keep it closed during
cooling for maximum cooling efficiency.) You can
choose any fan speed you prefer.
During this function, the display will show the actual
room temperature, not the set temperature as in the
cooling mode.
TO USE THE ENERGY
SAVER FEATURE:
Press the button
Auto
Cool
Dry
Fan
Low
Auto
Med
High
Fan
Mode
Follow
Me
Energy
Saver On/Off
DO THIS: In this mode, the fan will continue to run for 3 minutes
after the compressor shuts off. The fan then cycles
on for 2 minutes at 10 minute intervals until the room
temperature is above the set temperature, at which
time the compressor turns back on and cooling starts.
NOTE:
Temp Temp
Timer Timer
On
Off
Sleep
Check
Filt er
Timer
Auto
Cool
Dry
Fan
Low
Auto
Med
High
SLEEP FEATURE:
Press Sleep
button
DO THIS:
NOTE:
7
In this mode the selected temperature will increase
by 2 F(1 C) 30 minutes after the mode is selected.
The temperature will then increase by another 2 F
(1 C) after an additional 30 minutes. This new
temperature will be maintained for 7 hours before it
returns to the originally selected temperature. This
ends the Sleep mode and the unit will continue to
operate as originally programmed. The Sleep mode
program can be cancelled at any time during operation
by pressing the Sleep button again.
NOTE:
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

Temp Temp
Timer Timer
On
Off
Sleep
Check
Filt er
Timer
Auto
Cool
Dry
Fan
Low
Auto
Med
High
TIMER: AUTO START/
STOP FEATURE:
Press Timer
button
DO THIS:
AIR CONDITIONER FEATURES(CONTINUED)
First press the Timer button, the indicator light
besides word On illuminates. It indicates the Auto
Start program is initiated.
Press or hold the Left arrow or Right arrow to change
the Auto time by 0.5 hour increments, up to 10 hours,
then at 1 hour increments up to 24 hours. The control
will count down the time remaining until start.
The selected time will register in 5 seconds and the
system will automatically revert back to display the
previous temperature setting.
Turning the unit ON or OFF at any time will cancel the
Auto Start/Stop function.
NOTE:
Temp Temp
Timer Timer
On
Off
Sleep
Check
Filt er
Timer
Auto
Cool
Dry
Fan
Low
Auto
Med
High
CHECK FILTER FEATURE:
Press Check
Filter button
DO THIS:
This feature is a reminder to clean the Air Filter for
more efficient operation. The light will illuminate
after 250 hours of operation. To reset after cleaning
the filter, press the Check Filter button and the light
will go off.
NOTE:
8
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

AIR CONDITIONER FEATURES(CONTINUED)
FOLLOW ME FEATURE:
Light flashing
Auto
Cool
Dry
Fan
Low
Auto
Med
High
Fan
Mode
Follow
Me
Energy
Saver On/Off
NOTE:
To activate the Follow Me feature, point the remote
control towards the unit and press the Follow Me
button. T
If the unit does not receive the Follow Me signal
during any 7 minutes interval, the unit will beep to
indicate the Follow Me mode has ended.
The actual temperature can be displayed at the unit
by pressing the Fan Only mode. When in the Cool
mode, the unit display indicates the set temperature.
he remote display is actual temperature
at its location. The remote control will send this
signal to the air conditioner every 3 minutes interval .
This feature can be activated from the remote
control ONLY. The remote control serves as a
remote thermostat allowing for the precise
temperature control at its location.
ADDITIONAL THINGS YOU SHOULD KNOW
Now that you have mastered the operating procedure, here are more features in your control that
you should become familiar with.
The Cool circuit has an automatic 3 minutes time delayed start if the unit is turned off and on
quickly. This prevents overheating of the compressor and possible circuit breaker tripping.
The fan will continue to run during this time.
The control will maintain any set temperature within 1 F, between 62 F(17 C) and 86 F(30 C) degrees.
The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius.
To convert from one to the other, press and hold the Left and Right Temp/Timer buttons at the
same time for 3 seconds.
9
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

INSTALLATION INSTRUCTIONS
Your air conditioner is designed to install in standard double hung windows with opening widths of
23 to 36 inches(584mm to 914mm) (See Fig.1).
Lower sash must open sufficiently to allow a clear vertical
opening of 14-1/2 inches (368mm). Side louvers and the rear
of the AC must have clear air space to allow enough airflow
through the condenser, for heat removal. The rear of the unit
must be outdoors, not inside a building or garage.
NOTE: Carton Installation InstructionsSave and these
for future reference. The carton is the best way to store unit
during winter, or when not in use.
3 4 Screws
(7)
Lock Frame
(2)
Sash Lock
(1)
Mounting Hardware TOOLS NEEDED:
CAUTION:
Phillips Screw Driver
Drill(If pilot holes are needed)
When handling unit, be careful to avoid cuts from
sharp metal edges and aluminum fins on front and rear coils.
Top Rail Hardware
3 8 Screws
(4) Top Rail
(1) Before installing unit, the top rail must be assembled
on the unit (For <10000Btu/h models only).
Tool Needed: Phillips Screwdriver
A: Remove the air conditioner from the carton and place
on a flat surface.
B: Remove top rail from the bottom of the packaging
material as shown in Fig.A
10
Fig.1
OFFSET
EX ERIOR
WALL
T
STOOL
SILL
INTERIOR
WALL
23 to 36
584mm to 914mm
14 1 2 min.
/
(368 mm)
NOTE:
more
than 10000Btu/h.
The top rail hardware and the following Fig.A,
Fig.B and Fig.C are not applicable to the units
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

C: Align the hole in the top rail with those in the
top of the unit as shown in Fig.B
Fig.B Fig.C
D: Secure the top rail to the unit with the 3/8
Screws as shown in Fig.C.
For safety reasons, all four(4) screws
be securely fastened.
NOTE:
MUST
,,
HOW TO INSTALL
NOTE: Top rail and Sliding Panels at each side are offset to provide the proper pitch to the rear of
5/16 (8mm). This is
Place unit on floor, a bench or a table. There is a Left and Right Window Filler Panel- be sure
to use the proper panel for each side. When installed the flange for securing the panel in place to
the window sill will be facing into the room.
necessary for proper condensed water utilization and drainage. If you
are not using the Side Panels for any reason, this pitch to the rear must be maintained.
,,
1
Fig.1
A. Hold the Accordion Panel
in one hand and gently
pull back the center to free
the open end. See Fig.1.
Fig.2A
Fig.2B
B. Slide the free and (I section)
of the panel into the cabinet
as shown in Fig. 2A, 2B & 3.
Slide the panel down., Be
sure to leave enough space
to slip the top and bottom of
the frame into the rails on
the cabinet.
Fig.3
11
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

Keep a firm grip on the air conditioner, carefully
place the unit into the window opening so the bottom
of the air conditioner frame is against the window
sill (Fig.5). Carefully close the window behind the top
rail of the unit.
2
Fig.5
Fig.6
Extend the side panels out against the window
frame (Fig.6).
3
Place the frame lock between the frame
extensions and the window sill as shown
(Fig.7). Drive 3 / 4 (19mm) locking screws
through the frame lock and into the sill
(Fig.8).
NOTE: To prevent window sill from splitting,
drill 1 / 8 (3mm) pilot holes before driving
screws.
4
,,
,,
Fig.7
Fig.8
12
Fig.4 C. Once the panel has been installed on the side of the
cabinet, make sure it sits securely inside the frame
channel by making slight adjustments. Slide the top
and bottom ends of the frame into the top and bottom
ends of the frame into the top and bottom rails of
the cabinet. Fig.4.
D. Slide the panel all the way in and repeat on the other
side.
If storm window blocks AC, see Fig. 13.NOTE:
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

Fig.9
Fig.10
Drive 3 / 4 (19mm) locking screws through frame
holes into window sash (Fig.9/10).
5,,
To secure lower sash in place, attach right angle
sash lock with 3 / 4 (19mm) screw as shown(Fig.11).
6,,
Fig.11
Cut foam seal and insert in the space between the
upper and lower sashes (Fig.12).
7
Fig.12
If AC is Blocked by Stor m Window
Add wood as shown in Fig.13, or remove storm
window before air conditioner is installed.
If Storm Window Frame must remain, be sure the
drain holes or slots are not caulked or painted shut.
Accumulated Rain Water or Condensation must be
allowed to drain out.
Storm window
frame or other
obstruction
11/2 MIN
(38 mm)
,,
Sash
Board
thickness
as required,
for proper
pitch to rear,
along entire
sill. Fasten
with nails or
screws.
Fig.13
Removing AC From W indow
13
Turn AC off, and disconnect power cord.
Remove sash seal from between windows, and
unscrew safety lock.
Remove screws installed through frame and frame
lock.
Close (slide) side panels into frame.
Keeping a firm grip on air conditioner, raise sash
and carefully rock air conditioner backward to
drain any condensate water in base of unit. Be
carefully not to spill any remaining water while
lifting unit form window. Store parts WITH air
conditioner.
,
,
,
,
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

14
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

Before calling for service, review this list. It may save you time and expenditure. This list includes common
occurrences that are not the result of defective workmanship or materials in this appliance.
Solution
Air conditioner
does not start
Wall plug disconnected. Push plug firmly into wall outlet.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type or
reset circuit breaker.
Plug Current Device Tripped. Press the RESET button.
TROUBLESHOOTING TIPS
Problem
Air from unit does
not feel cold
enough
Reset to a Lower temperature.
Room temperature below 17 C(62 F). Cooling may not occur until room temperature
rises above 17 C(62 F).
Thermostat set too cold for night-time cooling. To defrost the coil, set to FAN ONLY
mode. Then, set temperature to a Higher setting.
Temperature sensing element touching cold coil, located behind air filter. Straighten
tube away from coil.
Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost,
set to FAN ONLY mode.
Dirty air filter- air restricted. Clean air filter. Refer to Care and Cleaning section.
Unit recently turned on in hot room. Allow additional time to remove Stored heat from
walls, ceiling, floor and furniture.
Control is OFF. Turn Control ON and set to desired setting.
OO
O
O
Air conditioner
cooling, but room
is too warm- ice
forming on cooling
coil behind
decorative front.
Outdoor temperature below 18 C(64 F). To defrost the coil, set FAN ONLY mode.
OO
Air conditioner
cooling, but room
is too warm- NO
ice forming on
cooling coil behind
decorative front.
Temperature is set too High, set temperature to a Lower setting.
Air directional louvers positioned improperly. Position louvers for better air distribution.
Front of units is blocked by drapes, blinds, furniture, etc. - restricts air distribution.
Clear blockage in front of unit.
Doors, windows, registers, etc. Open- cold air escapes. Close doors, windows, registers.
Compressor shut-off by changing modes. Wait approximately 3 minutes and listen for
compressor to restart when set in the COOL mode.
Air conditioner turns on
and off rapidly
Noise when unit is
cooling
Water dripping
INSIDE when
unit is cooling.
Improper installation. Tilt air conditioner slightly to the outside to allow water drainage.
Refer to installation instructions - check with installer.
Dirty air filter- air restricted. Clean air filter.
Air movement sound. This is normal . If too loud, set to a slower FAN setting.
Outside temperature extremely hot. Set FAN speed to a Higher setting to bring air past
cooling coils more frequently.
Window vibration - poor installation. Refer to installation instructions or check with installer.
15
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

Solution
Problem
Water dripping
OUTSIDE when
unit is cooling.
Unit removing large quantity of moisture from humid room. This is normal during
excessively humid days.
Remote Sensing
Deactivating
Prematurely
(some models)
Remote control not located within range. Place remote control within 20 feet & 180 ,
radius of the front of the unit.
Remote control signal obstructed. Remove obstruction.
Room too cold
Set temperature too low. Increase set temperature.
16
Meijer.com
Downloaded from www.Manualslib.com manuals search engine

Meijer.com
Downloaded from www.Manualslib.com manuals search engine
