PORTABLE AIR CONDITIONER
Operator's manual
Customer Service / Service à la clientèle:
Model/modèle : 87795054
MPPD-12CRN1-BI0
1-866-206-0888

Preparation.............................................................................................................................................2
Safety Precautions.................................................................................................................................3
Cautions..................................................................................................................................................4
Installation..............................................................................................................................................5
Operation................................................................................................................................................9
Maintenance.........................................................................................................................................14
Faults Diagnosis..................................................................................................................................15
Design and Compliance Notes...........................................................................................................16
Sociable Remarks ...............................................................................................................................17
Remote Controller Illustration............................................................................................................18
Air Conditioner Limited Warranty...........................................................................................................31
Contents
1

Preparation
2

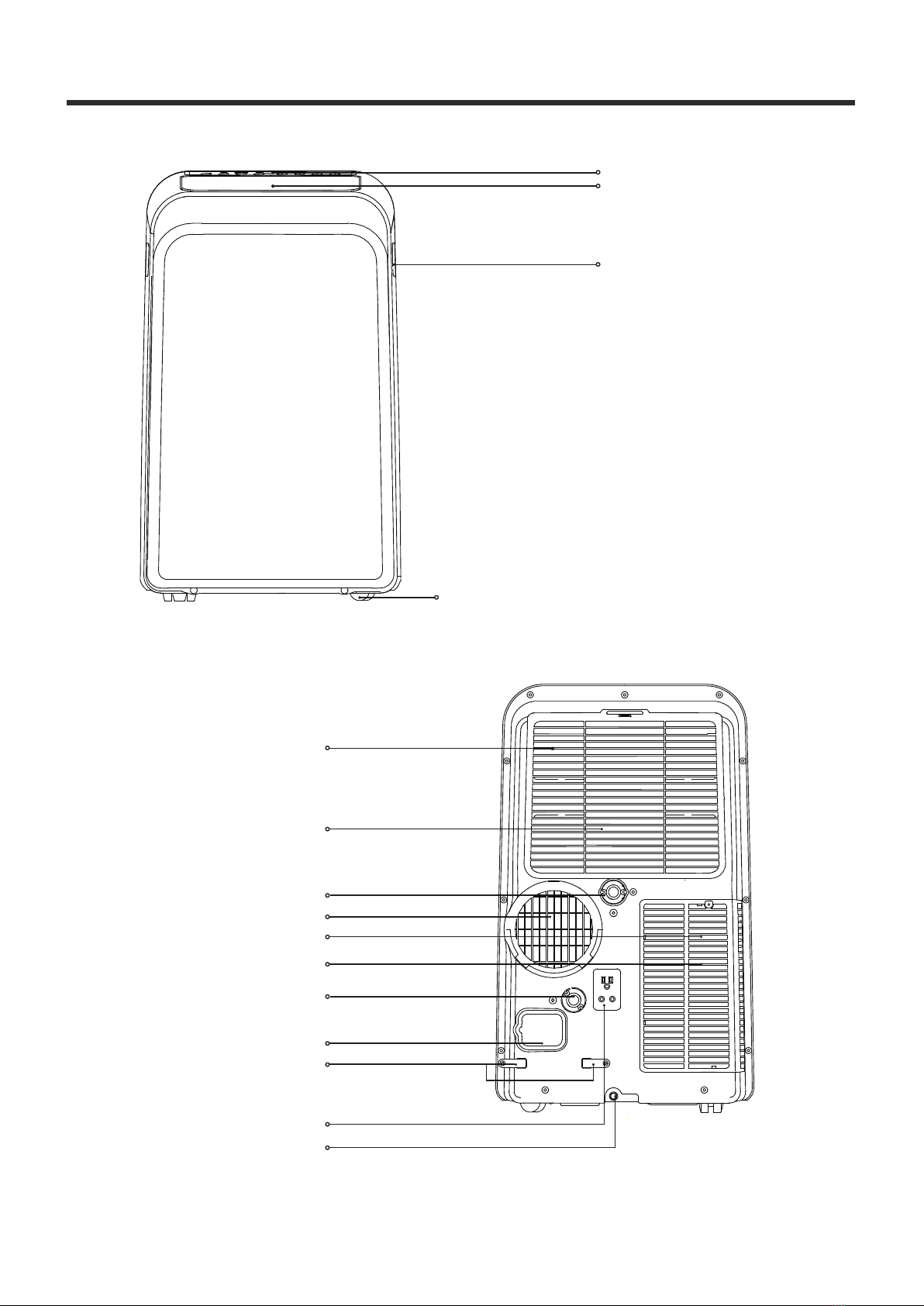

Rear
Front
Control panel
Handle
(both sides)
Horizontal louver
blade
(swing automatically)
Caster
Power plug socket
Power cord buckle
Bottom tray
drain outlet
Power cord outlet
Drain outlet
(only for pump
heating mode)
Upper air filter
(behind the grille)
Upper air intake
Air outlet
Lower air filter
/lower air intake
Drain outlet

3
Safety Precautions
-Installation must be performed according to the installation instructions. Improper installation
can cause water leakage, electrical shock, or fire.
-Use only the included accessories and parts, and specified tools for the installation. Using
non-standard parts can cause water leakage, electrical shock, fire, and injury or property
damage.
-Make sure that the outlet you are using is grounded and has the appropriate voltage. The
power cord is equipped with a three-prong grounding plug to protect against shock. Voltage
information can be found on the side of the unit, behind the grille.
-Install the unit on a flat and sturdy surface. Failure to do so could result in damage or excessive
noise and vibration.
-The unit must be kept free from obstruction to ensure proper function and to mitigate safety
hazards.
-DO NOT modify the length of the power cord or use an extension cord to power the unit.
-DO NOT share a single outlet with other electrical appliances. Improper power supply can
cause fire or electrical shock.
-DO NOT install your air conditioner in a wet room such as a bathroom or laundry room.
Excessive exposure to water can cause electrical components to short circuit.
-DO NOT install the unit in a location that may be exposed to combustible gas, as this could
cause fire.
-The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet or
to roll over objects, as these could cause tipping.
-DO NOT operate a unit that has been dropped or damaged.
-Only use the included accessories and specified parts for installation. Using nonstandard
parts can cause water leakage, electrical shock, fire, and injury or property damage.
-The unit must be kept free from obstruction to ensure proper function.
-DO NOT allow children to play with the air conditioner. Children must be supervised around
the unit at all times.
-If the air conditioner is knocked over during use, turn off the unit and unplug it from the main
power supply immediately. Visually inspect the unit to ensure there is no damage. If you
suspect the unit has been damaged, contact a technician or customer service for assistance.
-In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning.
Please read through these instructions before you start the installation process.
Improper installation can cause damage to the unit, your personal property, and
also poses a personal safety hazard.

4
Cautions
-This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory, or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning the use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision applicable for European countries.
-This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been
given supervision or instruction concerning uthese of the appliance by a person responsible for
their safety applicable for other countries, except European countries.
-Children should be supervised to ensure that they do not play with the appliance.
-If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or
similarly qualified persons in order to avoid a hazard.
-Prior to cleaning or any other maintenance, the appliance must be disconnected from the supply
mains.
-Do not install the appliance in a location that may be exposed to combustible gas.
-If combustible gas accumulates around the unit, it may cause fire.
-Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners, or similar
coverings.
-Do not route the cord under furniture or appliances. Arrange the cord away from traffic areas and
where it will not be tripped over.
-Do not operate the unit with a damaged cord or plug. Discard the unit or return it to an authorized
service facility for examination and/or repair.
-To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control
device.
-The appliance shall be installed in accordance with the national wiring regulations.
-Contact the authorised service technician for repair or maintenance of this unit.
-Contact the authorized installer to install this unit.
-If the function description in the OPERATOR'S MANUAL and "Remote Controller Illustration"
is significantly different, the description in the OPERATOR'S MANUAL shall prevail.
-Do not operate your air conditioner in a wet room such as a bathroom or laundry room.

5
Installation
Choosing the Right Location
Your installation location should meetthe following
requirements:
-Make sure that you install your unit on an even
surface to minimize noise and vibration.
-The unit must be installed near a grounded plug
and the collection tray drain (on the back of the
unit) must be accessible.
-The unit should be located at least 30 cm (12”) from
the nearest wall to ensure proper air conditioning.
-DO NOT cover the intakes, outlets, or remote
signal receptor of the unit, as this could cause
damage to the unit.
Note about Fluorinated Gases
-This air-conditioning unit is a hermetically sealed unit that contains fluorinated gases. For
specific information on the type of gas and the amount, please refer to the relevant label on
the unit itself.
-Installation, service, maintenance, and repair of this unit must be performed by a certified
technician.
-Product uninstallation and recycling must be performed by a certified technician.
-If the system has a leak-detection system installed, it must be checked for leaks at least
every 12 months.
-When the unit is checked for leaks, proper record-keeping of all checks is strongly
recommended.
All the illustrations in the manual are for explanation purpose only. Your machine may be
slightly different. In such case, the actual shape shall prevail.The unit can be controlled by the
unit control panel alone or with the remote controller. This manual does not include the remote
controller operations. Refer to the <<Remote Controller Instruction>> packed with the unit for
details.
NOTE:

6
Installation
Tools Needed
-Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors;
-Saw (optional to shorten the window adaptor for narrow windows).
Accessories
Your window installation kit fits windows from 67.5-123 cm(26.5-48”) and can be shortened
for smaller windows.
Window Installation Kit Step 1 :
Preparing the Exhaust Hose
Assembly
Press the exhaust hose into the window
slider adaptor and unit adaptor, and clamp
automatically using the elastic buckles of
the adaptors.
Insert the unit adaptor of the exhaust hose assembly
into the lower groove of the air outlet of the unit
while the adaptor hook is aligned with the
hole seat of the air outlet, and slide down the
exhaust hose assembly along the arrow direction
for installation.
Step 2: Installing the Exhaust Hose
Assembly to the Unit

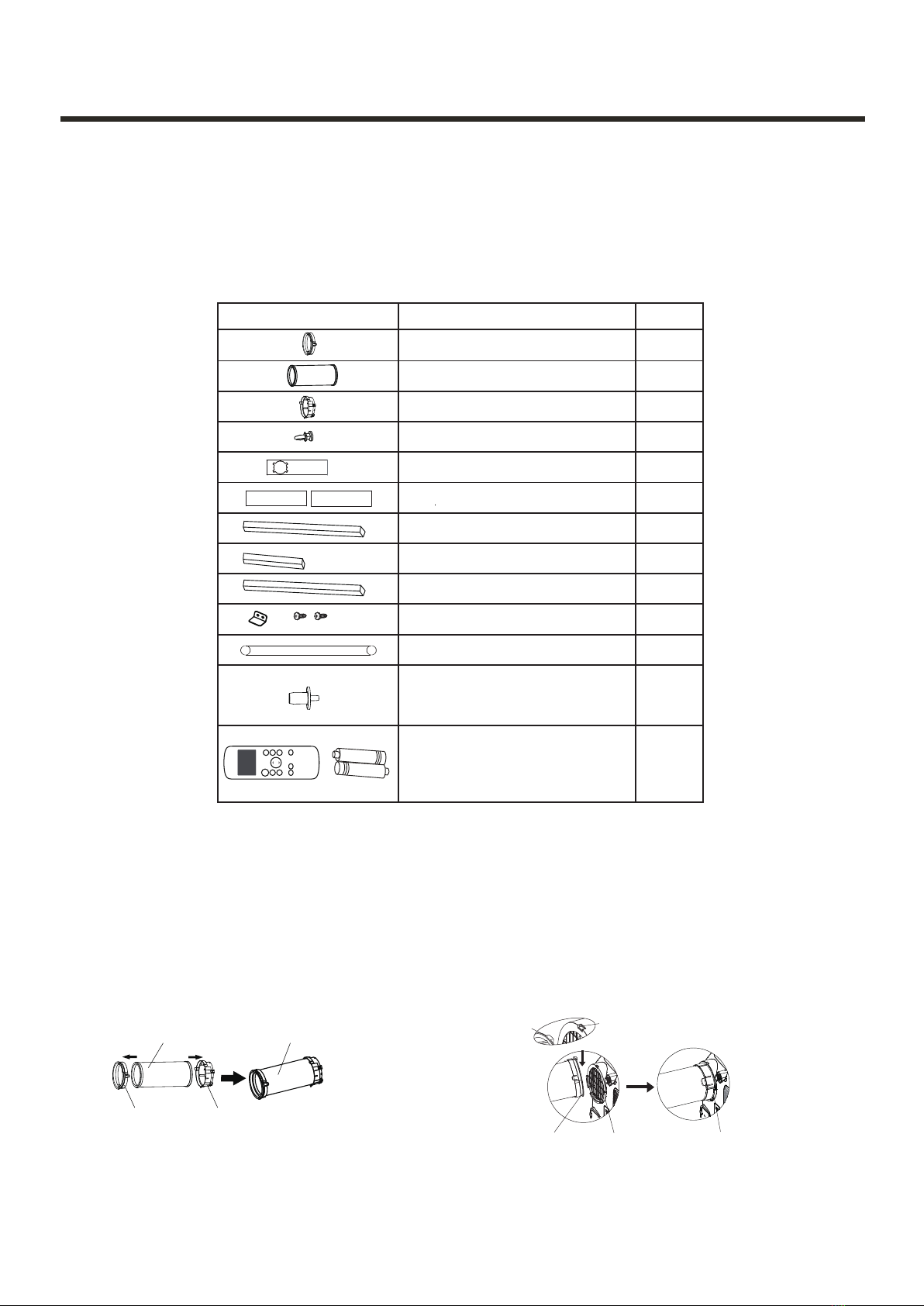

Part Description
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
2 pc
2 pc
1 set
1 set
Unit adaptor
Window slider adaptor
Window slider A
Window slider B and C
Exhaust hose
Bolt
Foam seal A (adhesive)
Foam seal B (adhesive)
Foam seal C (non-adhesive)
Security bracket and 2 screws
Drain hose
Drain hose adaptor(only for
heat pump mode)
Quantity
Remote controller and battery
(for remote control models only)
ON/OF F
TEMP
SHORT
CUT
TIMER ON
TIMER
OFF
MODE
FAN
SLEEP S WING LED
Unit adaptor Window slider
adaptor
Exhaust hose Exhaust hose
assembly Hook Hole seat
Lower groove
Adaptor Make sure the adaptor is
inserted into the lower
groove of the air outlet.

7
Installation
Step 3: Preparing the
Adjustable Window Slider
1. Depending on the size of your window,
adjust the size of the window slider.
2. If the length of the window requires two
window sliders, use the bolt to fasten the
window sliders once they are adjusted to
the proper length.
Note: Once the exhaust eose assembly and adjustable window slider are prepared,
choose from one of the following installation methods.
Cut the adhesive foam seal
A and B strips to the proper
lengths and attach them to
the window sash and frame
as shown.
Insert the window slider
assembly into the window
opening.
Insert the window slider
adaptor into the hole of
the window slider.
Cut the non-adhesive foam
seal C strip to match the width
of the window. Insert the seal
between the glass and the
window frame to prevent
air and insects from getting into
the room.

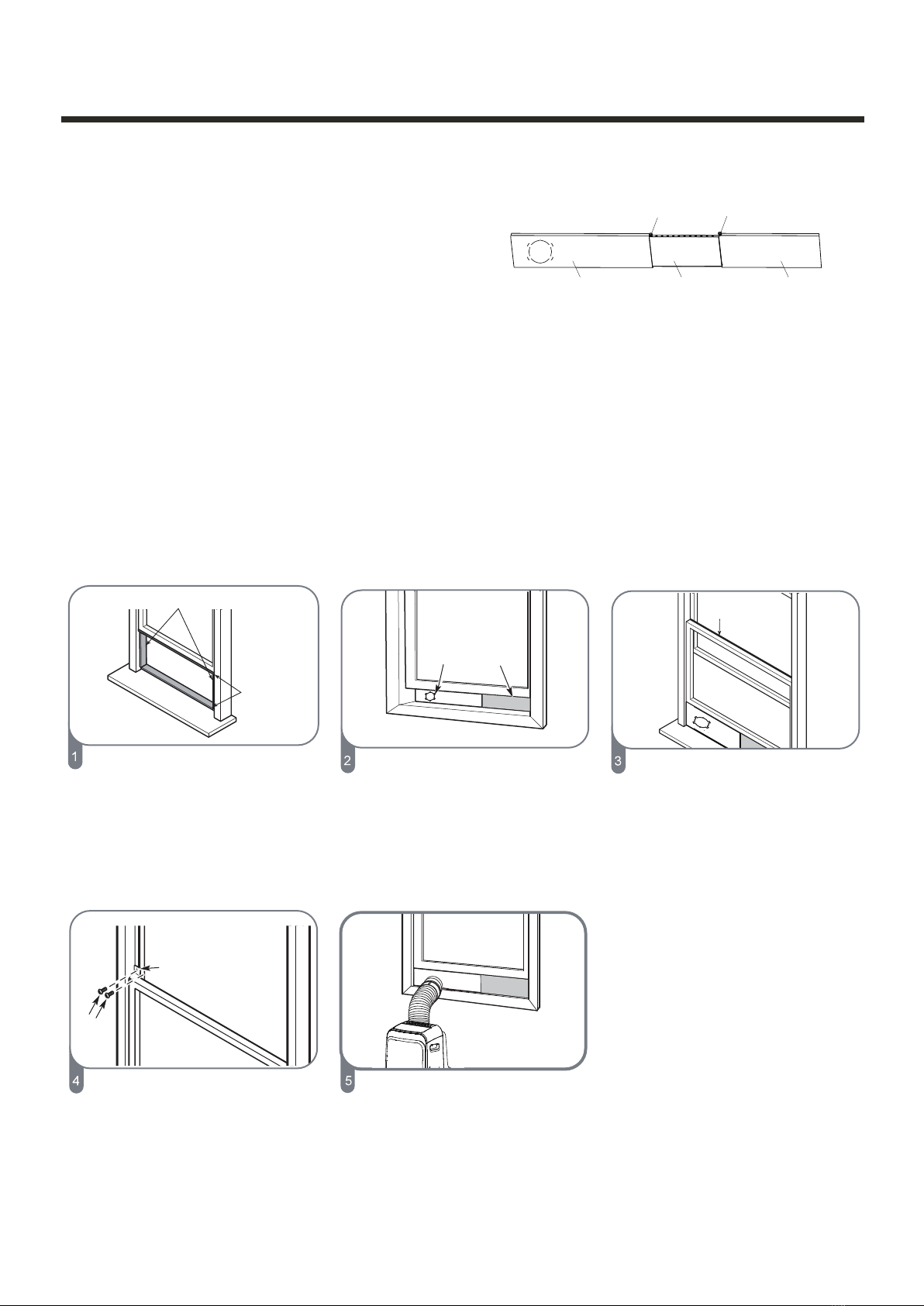

Type 1: Hung Window Installation
Window slider A Window slider B
Bolt
Foam seal B
(shorter adhesive type)
Foam seal A
(adhesive type)
Window slider A
Window slider B
(if required)
Foam seal C
(non-adhesive type)
If desired, install the
security bracket with
2 screws as shown.
2 screws
Security bracket
Bolt
Window slider C

Installation
8
Cut the adhesive foam seal
A and B strips to the proper
lengths and attach them to
the window sash and frame
as shown.
If desired, install the
security bracket with
2 screws as shown.
Insert the window slider
adaptor into the hole of
the window slider.
Insert the window slider
assembly into the window
opening.
Cut the non-adhesive foam
seal C strip to match the
window height. Insert the
foam seal between the glass
and the window frame to
prevent air and insects from
getting into the room.

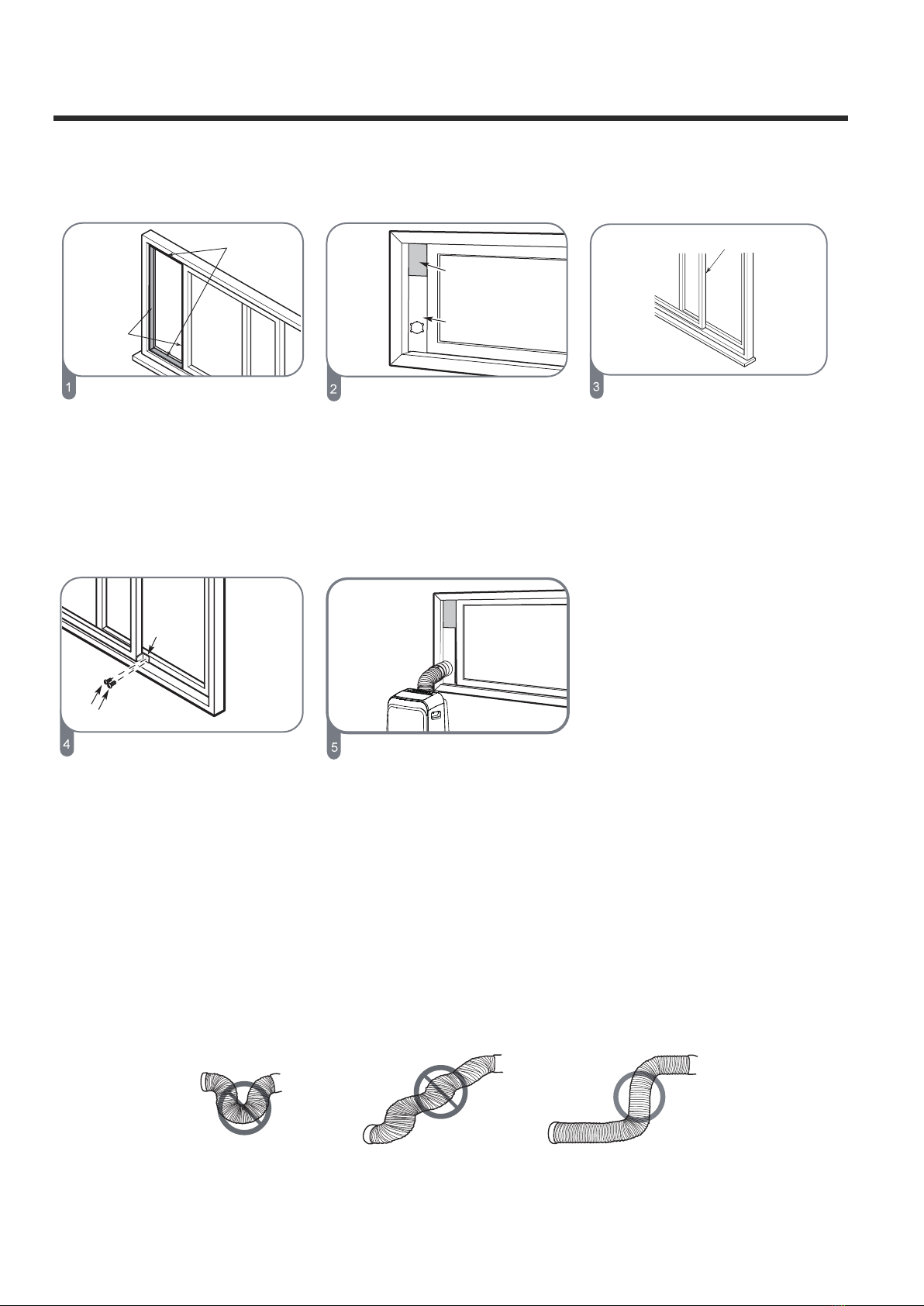

Type 2: Sliding Window Installation
Note: To ensure proper function, DO NOT overextend or bend the hose.
Make sure that there is no obstacle around the air outlet of the exhaust
hose (in the range of 500 mm) to ensure that the exhaust system works
properly. All the illustrations in this manual are for explanation purposes
only. Your air conditioner may be slightly different. The actual shape shall
prevail.
Foam seal B
(shorter adhesive type)
Foam seal A
(adhesive type)
Window slider A
Window slider B
(if required)
Foam seal C
(non-adhesive type)
2 screws
Security
bracket

Operation
9

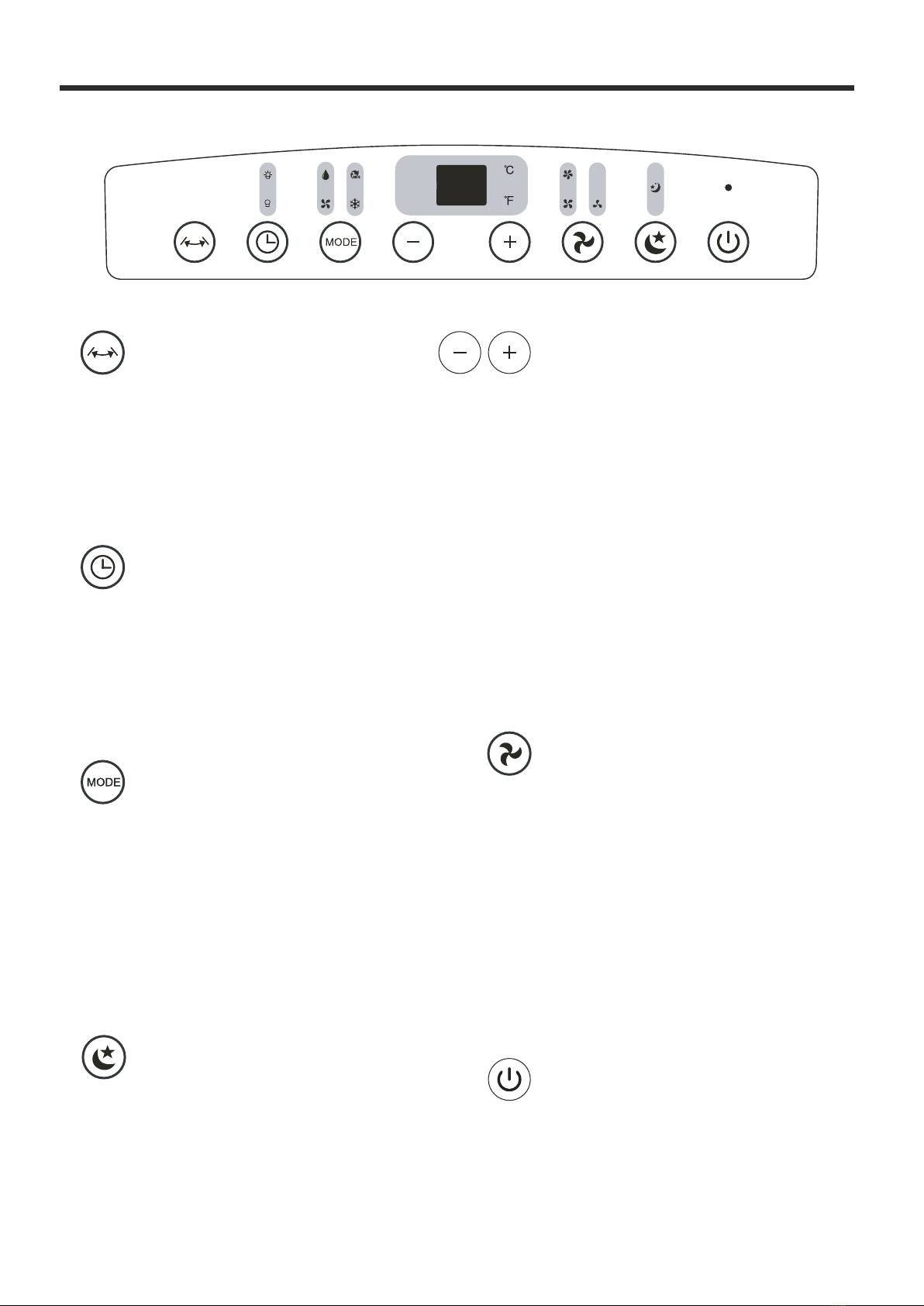

Swing Button (Optional)
Used to initiate the auto-swing
feature(for models with the auto
swing feature only). When the
unit is ON, pressing the SWING
button can stop the louver at the
desired angle.

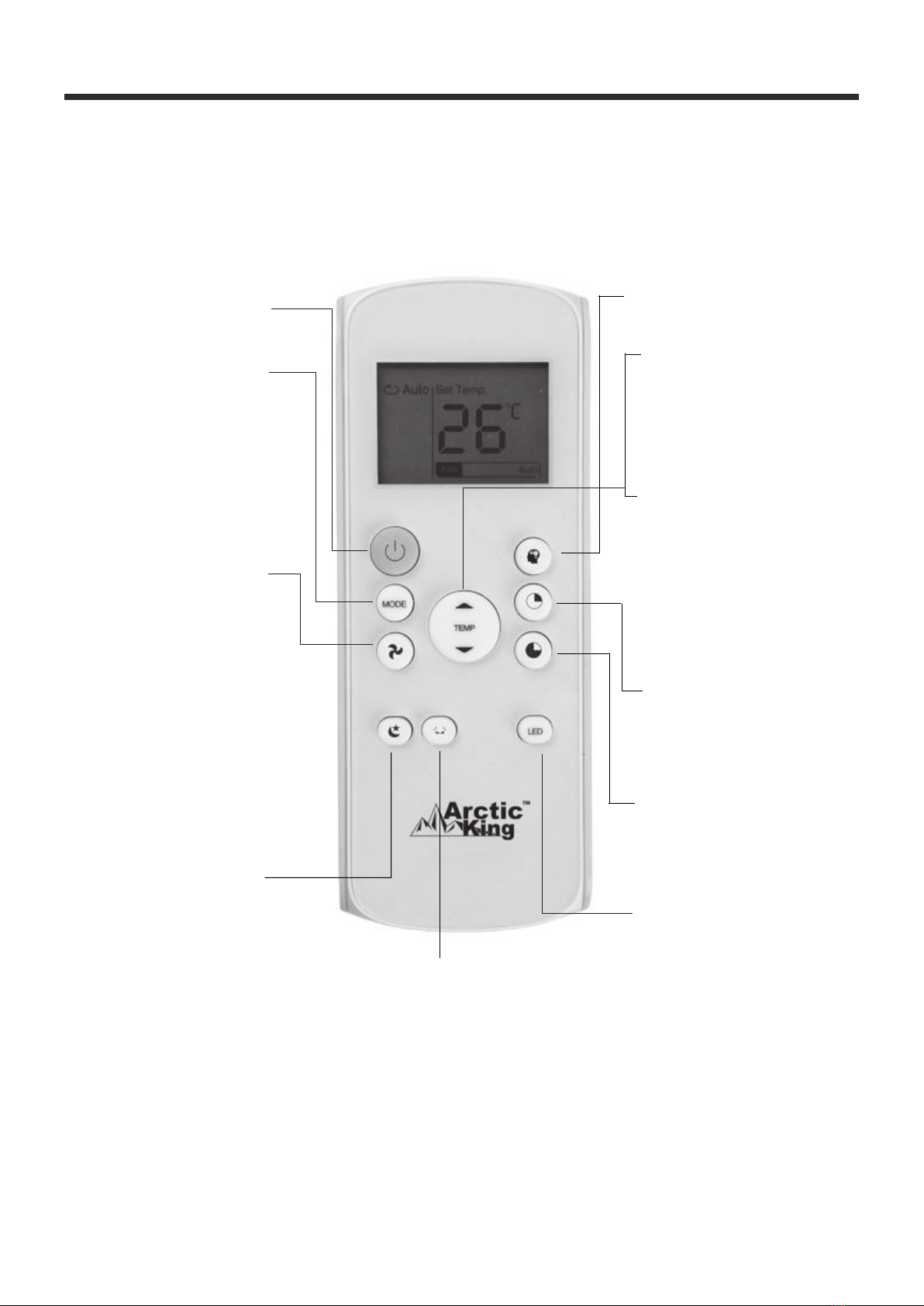

Timer Button
Used to initiate the AUTO ON
start time and AUTO OFF stop
time program, in conjuction with
the + & - buttons. The timer ON/OFF
indicator light illuminates under
the timer ON/OFF settings.
Mode Button
Selects the appropriate operating
mode. Whe pressing the button,
a mode is selected in a sequence
that goes from AUTO, COOL, DRY,
FAN, and HEAT (for models without
cooling only).The mode indicator light
illuminates under the different mode
settings.
Up (+) and Down (-) Buttons
Used to adjust (increasing/decreasing)
temperature settings in 1°C/1°F
increments in a range of 17°C/62°F to
30°C/86°F or the TIMER setting in a
range of 0~24 hrs.
NOTE: The control is capable
of displaying temperature in
degrees Fahrenheit or degrees
Celsius. To convert from one
to the other, press and hold
the Up and Down buttons at
the same time for 3 seconds.
Fan/Ion Button (Ion is Optional)
Used to control the fan speed. Press to select
the fan speed in four steps-LOW, MID, HIGH,
and AUTO. The fan speed indicator light
illuminates under different fan settings.
NOTE: Press this button for 3 seconds to
initiate the ION feature. The ion generator is
energized and will help to remove pollen
and impurities in the air, and trap them
in the filter. Press the button again for 3
seconds to stop the ION feature.
Sleep/Eco Button
Used to initiate the SLEEP/ECO
function.
Power Button
Power switch on/off.

Operation
10
Note: When one of the above malfunctions occurs, turn off the unit and check
for any obstructions. Restart the unit and if the malfunction is still present, turn
off the unit and unplug the power cord. Contact the manufacturer or its service
agents, or a similar qualified person for service.
LED Display
Shows the set temperature in °C or °F and the "Auto timer" settings.
While on DRY and FAN modes, it shows the room temperature.
Shows error and protection codes :
E1-Room temperature sensor error.
E2-Evaporator temperature sensor error.
E3-Condenser temperature sensor error (on some models).
E4-Display panel communication error.
P1-Bottom tray is full-Connect the drain hose and drain the collected
water away.If the protection repeats, call for service.
-Press the MODE button until the COOL indicator light comes on.
-Press the ADJUST buttons "+" or "-" to select your desired room temperature. The
temperature can be set within a range of 17°C~30°C/62°F~86°F.
-Press the FAN SPEED button to choose the fan speed.
COOL Operation
Operation Instructions
-Press the MODE button until the DRY indicator light comes on.
-Under this mode, you cannot select a fan speed or adjust the temperature. The fan motor
operates at LOW speed.
-Keep windows and doors closed for best dehumidifying results.
-Do not put the duct to the window.
DRY Operation
-Press the MODE button until the HEAT indicator light comes on.
-Press the ADJUST buttons "+" or " - " to select your desired room temperature. The
temperature can be set within a range of 17°C~30°C/62°F~86°F.
-Press the FAN SPEED button to choose the fan speed. For some models, the fan
speed can not be adjusted under HEAT mode.
HEAT operation(for models without cooling only)

Operation
11
-When setting the air conditioner in AUTO mode, it will automatically select cooling, heating
(for models without cooling only), or fan only operation depending on the selected temperature
and room temperature.
-The air conditioner automatically will control the room temperature a round the temperature point
that you set.
-The fan speed cannot be selected under AUTO mode.
AUTO Operation
-Press the MODE button until the FAN indicator light comes on.
-Press the FAN SPEED button to choose the fan speed. The temperature cannot be adjusted in
-Do not put the duct to the window.
the FAN SPEED mode.
FAN Operation
-Press this button, to increase (cooling) or decrease (heating) the selected temperature by
1°C/1°F 30 minutes.The temperature will then increase (cooling) or decrease (heating) by
another 1°C/1°F after an additional 30 minutes. This new temperature will be maintained for
7 hours before it returns to the originally selected temperature. This ends the "Sleep/Eco" mode
and the unit will continue to operate as originally programmed.
SLEEP/ECO Operation
-When the unit is on, pressing the TIMER button initiates the "Auto-off stop" program and the
TIMER OFF indicator light illuminates. Press the UP or DOWN button to select the desired time.
Press the TIMER button again after 5 secondsto initiate the "Auto-on start" program. And the
TIMER ON indicator light illuminates. Press the UP or DOWN button to select the desired "Auto
-on start" time.
-When the unit is off, press the TIMER button to initiate the "Auto-on start" program, press it again
after 5 seconds to initiate the "Auto-off stop" program.
-Press or hold the UP or DOWN button to change the Auto time by 0.5-hour increments, up to
10 hours, then at 1-hour increments up to 24 hours. The control will count down the remaining
time until start.
-The system will automatically revert back to display the previous temperature setting if there is
no operation in a 5-second period.
-Turn the unit ON or OFF at any time or reset the timer to 0.0 to cancel the "Auto Start/Stop
timer" program.
-If a the malfunction occurs, the Auto "Start/Stop timer" program will also be cancelled.
TIMER Operation
NOTE: This feature is unavailabe under FAN or DRY mode.

Operation
12
FOLLOW ME/TEMP SENSING Feature (Optional)
Other Features
f the unit breaks off unexpectedly due to power outage,it will automatically restart with the previous function
settings when the power resumes.
AUTO-RESTART
After the unit has stopped, do not restart in the first 3 minutes. This is to
protect the unit. Operation will automatically resume after 3 minutes.
WAIT 3 MINUTES BEFORE RESUMING OPERATION
The louver can be adjusted automatically. Adjust the
air flow direction automatically (NOTE: The louver on some models
can be only adjusted manually):
-When the power is ON, the louver opens fully.
-Press the SWING button on the panel or remote
controller to initiate the Auto swing feature. The
louver willl swing up and down automatically.
-Please do not adjust the louver manually.
AIR FLOW DIRECTION ADJUSTMENT
-During dehumidifying modes, remove the upper drain
plug from the back of the unit and install the drain
connector (5/8" universal female mender) with a 3/4"
hose (locally purchased). For models without a drain
connector, just attach the drain hose to the hole. Place
the open end of the hose directly over the drain area in
your basement floor.
Water Drainage
NOTE: This feature can be activated from the remote controller ONLY. The remote
controller serves as a remote thermostat allowing for precise temperature control
at its location.To activate the "Follow Me/Temp Sensing" feature, point the remote
controller towards the unit and press the "Follow Me/Temp Sensing" button. The
remote controller displays the actual temperature at its location. The remote
controller will send this signal to the air conditioner at 3-minute intervals until the
"Follow Me/Temp Sensing" button is pressed again. If the unit does not receive the
"Follow Me/Temp Sensing" signal within a 7-minute interval, the unit will beep to
indicate the end of the "Follow Me/Temp Sensing" mode.
Remove the
upper drain plug
√
Continuous
drain hose

Operation
13

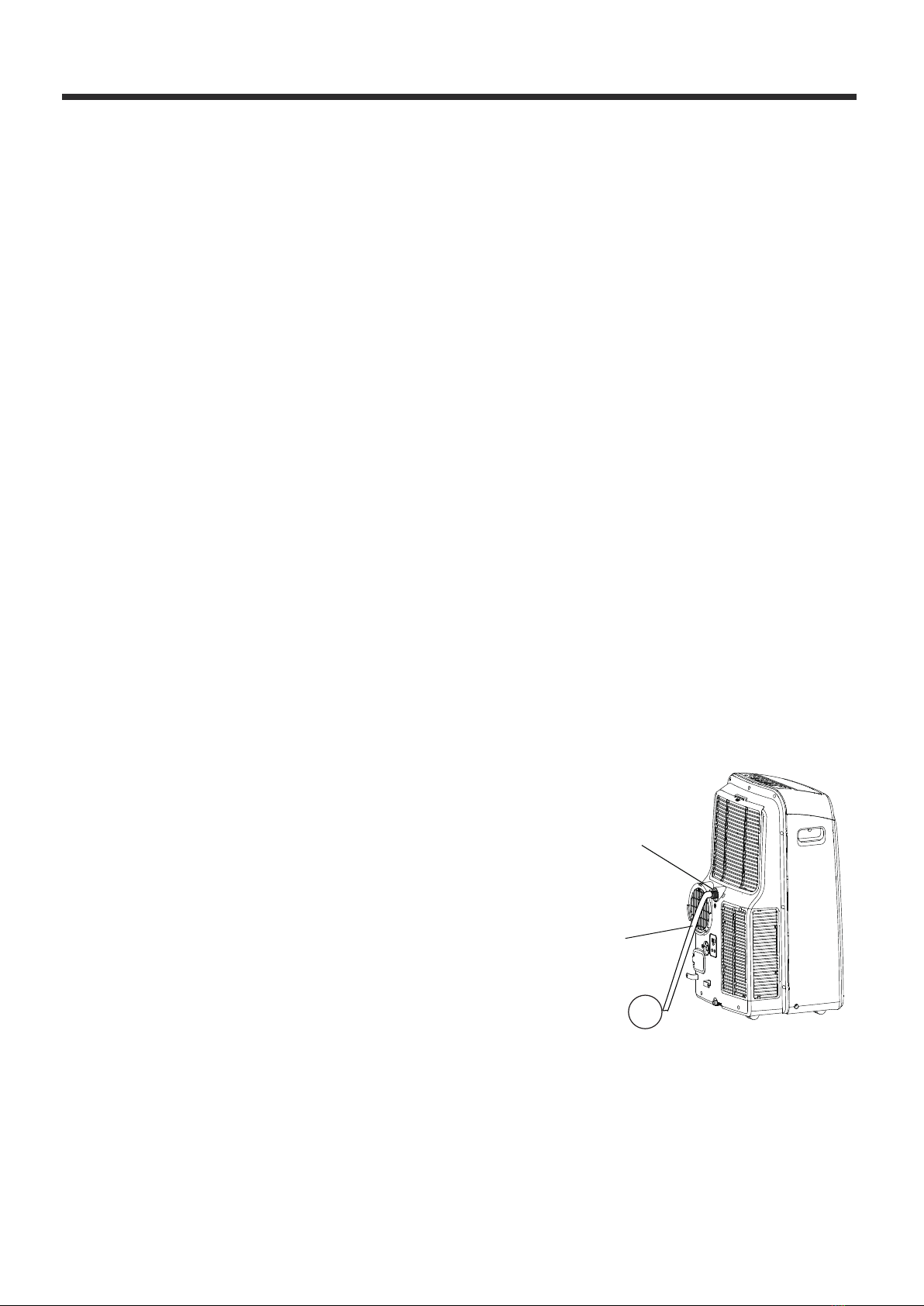

-Under heating pump mode, remove the lower drain
plug from the back of the unit and install the drain connector
(5/8" universal female mender) with a 3/4" hose (locally
purchased). For models without a drain connector,
simply attach the drain hose to the hole. Place the open
end of the hose adaptor directly over the drain area in
your basement floor.
-When the water level of the bottom tray reaches a
predetermined level, the unit beeps 8 times and the
digital display area shows P1. At this time, the air
conditioning/dehumidification process will immediately
stop. However, the fan motor will continue to operate
(this is normal). Carefully move the unit to a drain
location, remove the bottom drain plug, and let the water
drain away. Reinstall the bottom drain plug and restart
the machine until the P1 symbol disappears. If the error
repeats, call for service.
NOTE: Make sure the hose is secure so there
are no leaks. Direct the hose toward the drain,
making sure that there are no kinks that will
stop the water flowing. Place the end of the
hose into the drain and make sure the end of
the hose is down to let the water flow smoothly
(see Figures with . Never let it up. (see Figures with ).
When the continuous drain hose is not used,
ensure that the corresponding drain plug and
knob are installed firmly to prevent leakage.
NOTE: Be sure to reinstall the bottom drain plug
firmly to prevent leakage before using the unit.
√
Drain hose
adaptor
Continuous
drain hose
Remove the
lower drain plug
√X
√
Delivery lift <1.8m
Drain hose
adaptor
Drain hose
adaptor X

Maintenance
14
-Always unplug the unit before cleaning or servicing.
-DO NOT use flammable liquids or chemicals to clean the unit.
-DO NOT wash the unit under running water. This may cause an electrical danger.
-DO NOT operate the machine if the power supply was damaged during cleaning. A damaged
power cord must be replaced with a new cord from the manufacturer.
-Be sure to clean the air filter every
2 weeks for optimal performance.
-The water collection tray should be
drained immediately after the P1
error occurs and before storage to
prevent mold.
-In households with animals, you
wipe down
the grille periodically to prevent airflow
obstruction due to animal hair.
Safety Precautions
Clean the unit using a damp, lint-free cloth and mild detergent. Dry the unit with a dry, lint-free
cloth.
Cleaning the unit
-Drain the unit’s water collection tray according to the instructions in the following section.
-Run the appliance on FAN mode for 12 hours in a warm room to dry it and prevent mold.
-Turn off the appliance and unplug it. Press Enter (new bullet)-Clean the air filter according to
the instructions in the previous section. Press Enter (new bullet) Reinstall the clean, dry filter
before storing.
-Remove the batteries from the remote controller.
Be sure to store the unit in a cool, dark place. Exposure to direct sunlight or
extreme heat can shorten the lifespan of the unit.
Storing the Unit when not in Use
Cleaning the Air Filter Maintenance Tips

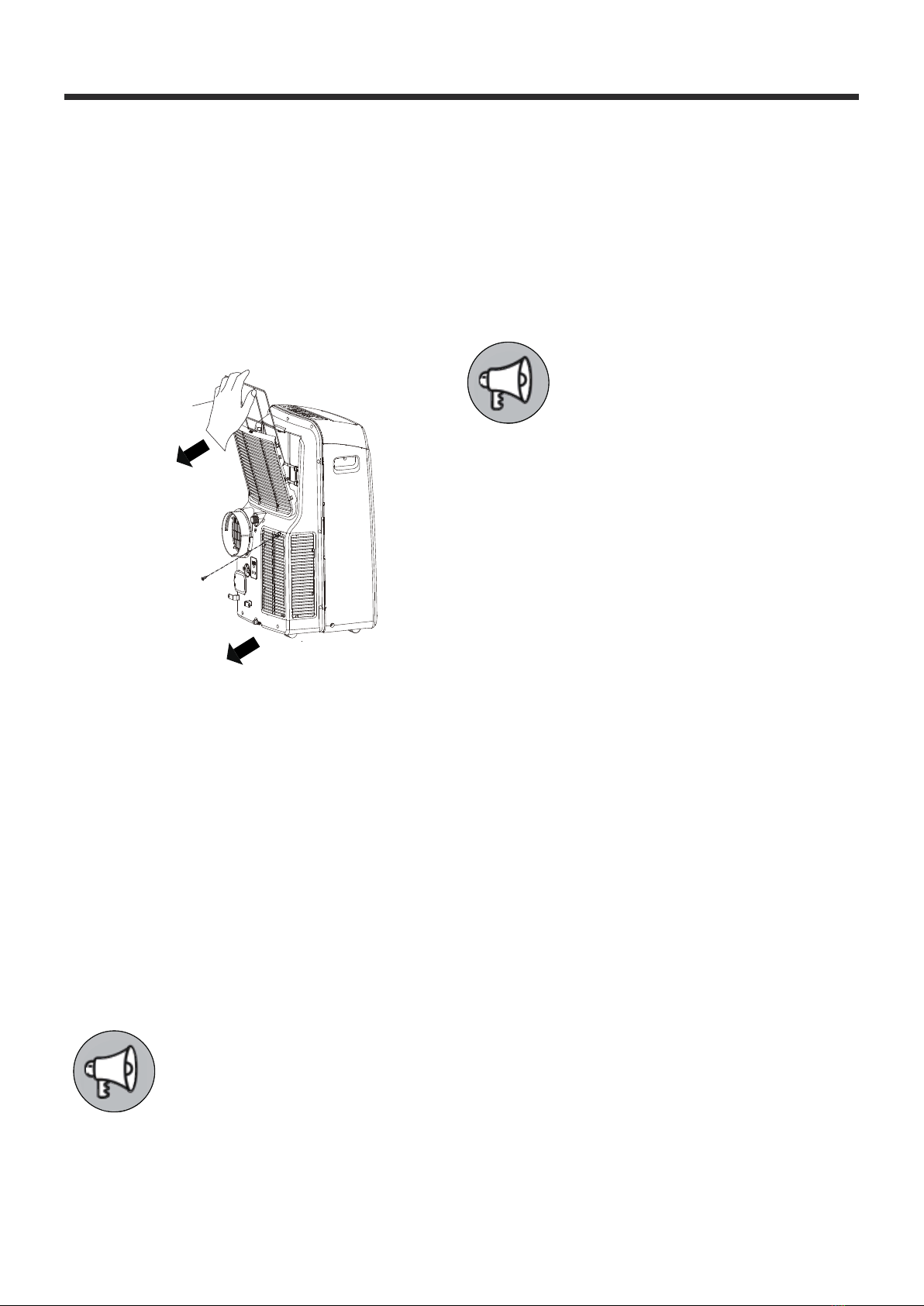

Remove the air filter
Upper filter
(take out)
Remove the
screw,then
take the lower
filter out.

Problem Possible Cause Troubleshooting
Faults Diagnosis
15
The unit does not
turn on when
pressing the ON/OFF
button
P1 error code.
Reset the temperature.
In COOL mode: the room
temperature is lower
than the set temperature.
The water collection tray is full.Turn off
the unit, drain the water from the water
collection tray, and restart the unit.
The exhaust hose is not
connected or is blocked.
The unit is low on refrigerant.
Teh temperature setting is
too high.
The room area is too large.
The ground is not level.
Windows and doors in the
room are open.
There are heat sources inside
the room.
This sound is caused by the flow
of refrigerant inside the unit.
The air filter is blocked
with dust or animal hair
The air filter is blocked
with dust or animal hair.
Turn off the unit and clean the filter
according to instructions.
Call a service technician to inspect the
unit and top off refrigerant.
Make sure all windows and doors are
closed.
Turn off the unit and clean thefilter
according to instructions.
Remove heat sources if possible.
Place the unit on a flat, level surface.
This is normal.
Decrease the set temperature.
Double-check the cooling area.
Turn off the unit, disconnect the hose,
check for obstructions, and reconnect
the hose.
The unit does not
cool well
The unit is noisy and
vibrates too much
The unit makes
a gurgling sound
Please check the unit using the following form before asking for
maintenance:

Design and Compliance Notes
16
In order to ensure the optimal performance of our products, the design specifications of the unit
and remote controller are subject to change without prior notice.
Design Notice
The energy rating for this unit is based on an installation using an un-extended exhaust duct
without adapters A or B (as shown in the Installation section of this manual).
Energy Rating Information
Unit Temperature Range
≤
Cool 17-35°C (62-95°F)
Dry
Heat (pump heat
mode)
Heat (electrical
heat mode)
13-35°C (55-95°F)
5-30°C (41-86°F)
30°C (86°F)
Mode Temperature Range

Environmental Remarks
17
DISPOSAL: Do not dispose of this product as unsorted municipal waste. It must be collected for
special treatment.
It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are
several possibilities:
A) The municipality has established collection systems, where electronic waste can be disposed
of free of charge for the user.
B) When buying a new product, the retailer will take back the old product free of charge.
C) The manufacturer will take back the old appliance for disposal free of charge for the
user.
D) As old products contain valuable resources, they can be sold to scrap metal dealers.
Wild disposal of waste in forests and landscapes endangers your health when hazardous
substances seep into groundwater and end up in the food chain.
When using this dehumidifier in European countries, the following
instructions must be followed:

Remote Controller Illustration
18
Model
Rated voltage
8 m
3.0 V (dry batteries R03/LR03×2)
Environment
Signal receiving range
RG57H(B)/BG(C)E;
RG57H3(B)/BG(C)EF;RG57H1(B)/BG(C)E-M;RG57H(B)/BG(C)EU1
RG57H1(B)/BG(C)E; RG57H2(B)/BG(C)EF;
Remote Control Specifications
O O O O
-5 C~60 C (23 F~140 F)

Remote Controller Illustration
19
Function Buttons
Before using your new air conditioner, make sure to familiarize yourself with the remote
controller. The following is a brief introduction to the remote controller. For instructions on how to
operate your air conditioner, refer to the "How to Use the Basic Functions" section of this manual.
SHORT CUT
Sets and activates your
favourite presettings.
ON/OFF
Turns the unit on or off.
MODE
Scrolls through operation
modes as follows:
AUTO COOLDRY

HEATFAN
FAN SPEED
Selects fan speeds in
the following order:
AUTO LOW 
MED HIGH
SLEEP
Saves energy during
sleeping hours.
TEMP
Increases the temperature in
O O
1 C (1 F) increments.
Max. temperature is
O O
30 C (86 F) .
TEMP
Decreases temperature in
O O
1 C (1 F) increments.
Min. temperature is
O O
17 C (62 F).
TIMER ON
Sets the timer to turn the unit
on (refer to "How to Use
Basic Functions" for
instructions).
TIMER OFF
Sets the timer to turn the unit
off (refer to "How to Use
Basic Functions"for
instructions).
SWING
Starts and stops the louver
movement.
LED
Turns on/off indoor unit s LED
,
NOTE: If you are sensitive
to light when you go to
sleep, you can press the
LED button to turn off
the LED display on the
unit. Press the button
again to turn it back on.
display.
NOTE:
"Swing", "Ion", and "Follow me" features are optional. RG57H1(B)/BG(C)E-M without medium fan speed.
NOTE：Please do not select the
HEAT mode if the machine you
purchased is cooling type only.
The heat mode is not supported
by the "Cooling only" appliance.
NOTE: Press and hold the
and buttons together for
3 seconds to switch the
temperature display
O O
between the C & F scale.


