OWNERS MANUAL
ARCTIC ESSENTIALS
Arctic Essentials Owners Manual
1
Safety Information / Warnings 2-4
Introduction 5
Overview 6
Keypad Installation 7-8
Electrical Wiring 9
Heater Connections 10
Power-up & breaker setting 11-12
Keypad Overview 13-16
Error Codes 16-21
Troubleshooting 22-32
Water Maintenance 33-37
Specifications 38-40
Warranty 40-41
2
Important Safety Instructions:
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
When installing and using this electrical equipment, basic safety precautions
should always be followed, including:
1) WARNING: To reduce the risk of injury, do not permit children to use this product unless they are
closely supervised at all times.
2) WARNING: A grounding wire connector is provided on this unit to connect a minimum No. 8
AWG solid copper conductor (USA) No. 6 AWG stranded (Canada) 8.4mm (Europe) between this
unit and any metal equipment, metal enclosures of electrical equipment, metal water pipe, or conduit
within 5 feet (1.5 m) of the unit.
3) DANGER: Risk of Accidental Drowning. Extreme caution must be exercised to prevent unautho-
rized access by children. To avoid accidents, ensure that children cannot use this hot tub unless they are
supervised at all times. Use the hot tub straps, cover safety and clip tie downs to secure the cover when
not in use. This will help to discourage unsupervised children from entering the hot tub. There is no
representation that the cover, clip tie downs, or actual locks will prevent access to the hot tub.
4) DANGER: Risk of Injury. The suction fittings in this hot tub are sized to match the specific water
flow created by the pump. Should the need arise to replace the suction fittings or the pump, be sure
that the flow rates are compatible. Never operate the hot tub if the suction fittings are broken or miss-
ing. Consult your local dealer for assistance in choosing an appropriate replacement
suction fitting.
5) DANGER: Risk of Electric Shock. Install at least 5 feet (1.5 m), from all metal surfac-
es. As an alternative, a hot tub may be installed within 5 feet (1.5 m) of metal surfaces
if each metal surface is permanently connected (bonded) by a minimum No. 8 AWG
solid copper conductor (US) No. 6 AWG stranded (Canada) 8.4 mm (Europe) at-
tached to the wire connector on the equipotential bonding bar which is located on the
side of the spa control pack.
6) DANGER: Risk of Electric Shock. Do not permit any electrical appliance, such as
a light, telephone, radio, television, etc. within 5 feet (1.5 m) of a hot tub. All controls
or devices accessible from the spa must be powered by a maximum of 12vdc. Do not
permit any electrical appliances powered by 12 vdc or more within 1.5 m of the hot
tub.
7) ELECTRICAL SUPPLY: The electrical supply for this product must include a
suitable circuit breaker GFCI (north America) RCD (Europe) to open all ungrounded
supply conductors. The disconnect must be readily accessible and visible to the hot
tub occupant but installed at least 5 feet (1.5 m), from the hot tub water.
8) WARNING: To Reduce the Risk of Injury:
a) The water in a hot tub should never exceed 104ºF (40ºC). Water temperatures
between 100ºF (38ºC) and 104ºF (40ºC) are considered safe for a healthy adult.
Lower water temperatures are recommended for young children and when hot tub use
exceeds 10 minutes.
IMPORTANT!
This manual was
written to ensure
the proper use and
installation of any
Arctic Spa. Any
modifications to the
procedures outlined
may result in
your warranty
being voided.
Please read this
manual to avoid any
unnecessary damage
to your spa and
equipment.
Arctic Essentials Owners Manual
3
b) Since excessive water temperatures have a high potential for causing fetal damage during the early
months of pregnancy, pregnant or possibly pregnant women should limit hot tub water temperatures to
100ºF (38ºC). If pregnant, please consult your physician before using a hot tub.
c) The use of alcohol, drugs, or medication before or during hot tub use may lead to unconsciousness
with the possibility of drowning.
d) Persons suffering from obesity or a medical history of heart disease, low or high blood pressure, cir-
culatory system problems, or diabetes should consult a physician before using a hot tub.
e) Persons using medication should consult a physician before using a hot tub since some medication
may induce drowsiness, while other medication may affect heart rate, blood pressure, and circulation.
9)A bonding lug bar is provided on the side of your spa pack to accommodate grounding of entire spa.
To reduce the risk of electric shock, connect the local common bonding grid in the area of the hot tub
to these terminals with an insulated or bare copper conductor not smaller than No. 8 AWG solid (US)
No. 6 AWG stranded (Canada) 8.4 mm (Europe).
SAVE THESE INSTRUCTIONS
WARNINGS!
WARNING: Children should not use hot tubs without adult supervision.
AVERTISSEMENT: Ne pas laisser les enfants utiliser une cuve de relaxation sans surveillance.
WARNING: Do not use hot tubs unless all suction guards are installed to prevent body and hair
entrapment.
AVERTISSEMENT: Pour eviter que les cheveux ou une partie du corps Puissent étre aspires, ne pas utiliser
une cuve de relaxation si esgrilles de prise d’aspiration ne sont pas toutes en place.
WARNING: People with infectious diseases should not use a hot tub.
AVERTISSEMENT: Les personnes atteintes de maladies infectieuses ne devraient pas utiliser une cuve de
relaxation.
WARNING: To avoid injury, exercise care when entering or exiting the hot tub.
AVERTISSEMENT: Pour éviter des blessures, user de prudent en entrant dans une de cuve de relaxation et
en sortant.
WARNING: Do not use drugs or alcohol before or during the use of a hot tub to avoid unconsciousness
and possible drowning.
AVERTISSEMENT: Pour éviter l’évanouissement et la noyade éventuelle, ne prendre ni drogue ni alcool
avant d’utiliser une cuve de relaxation ni quand on s’y trouve.
WARNING: Pregnant or possibly pregnant women should consult a physician before using a hot tub.
AVERTISSEMENT: Les femmes enceintes, que leur grossesse soit confirmée ou non, devraient consulter un
médecin avant d’utiliser la cuve de relaxation.
WARNING: Water temperature in excess of 100ºF (38ºC) may be injurious to your health.
AVERTISSEMENT: Il peut être dangereux pour la santé de se plonger dans de l’eau a plus de 100ºF
(38°C).
WARNING: Before entering the hot tub, measure the water temperature with an accurate thermometer.
4
Hyperthermia
AVERTISSEMENT: Avant d’utiliser une cuve de relaxation mesurer la température de l’eau à l’aide d’un ther
momètre précis.
WARNING: Do not use a hot tub immediately following strenuous exercise.
AVERTISSEMENT: Ne pas utiliser une cuve de relaxation immédiatement après un exercice fatigant.
WARNING: Prolonged immersion in a hot tub may be injurious to your health.
AVERTISSEMENT: L’utilisation prolongée d’une cuve de relaxation peut être dangereuse pour la santé.
WARNING: Do not permit electric appliances (such as light, telephone, radio, television, etc.) within 5 feet
(1.5m) of this hot tub.
AVERTISSEMENT: Ne pas placer d’appareil éléctrique (luminaire, téléphone, radio, téléviseur, etc.) à moins de
5 feet (1.5m) de cett cuve de relaxation.
CAUTION: Maintain water chemistry in accordance with manufacturer’s instructions.
ATTENTION: La teneur de l’eau en matières dissoutes doit être conformé aux directives du fabricant.
WARNING: The use of alcohol or drugs can greatly increase the risk of fatal hyperthermia in hot tubs.
AVERTISSEMENT: La consommation d’alcool ou de drogue augmente considérablement les risques
d’hyperthermie mortelle dans une cuve de relaxation.
WARNING: People using medications and / or having an adverse medical history should consult a
physician before using a spa or hot tub.
AVERTISSEMENT: Les personnes qui prennent des médicaments ou ont des problémes de santé
devraient consulter un médecin avant d’utiliser une cuve de relaxation.
Prolonged immersion in hot water may induce hyperthermia.
Hyperthermia occurs when the internal temperature of the body reaches a level sev-
eral degrees above the normal body temperature of 99ºF (37°C). The symptoms of
hyperthermia include drowsiness, lethargy, and an increase in the internal tempera-
ture of the body. The effects of hyperthermia include:
Unawareness of impending hazard;
Failure to perceive heat;
Failure to recognize the need to exit hot tub;
Physical inability to exit hot tub;
Fetal damage in pregnant women; and
Unconsciousness and danger of drowning.
WARNING!
The use of alcohol
or drugs can greatly
increase the risk of
fatal hyperthermia in
hot tubs or spas.
Arctic Essentials Owners Manual
5

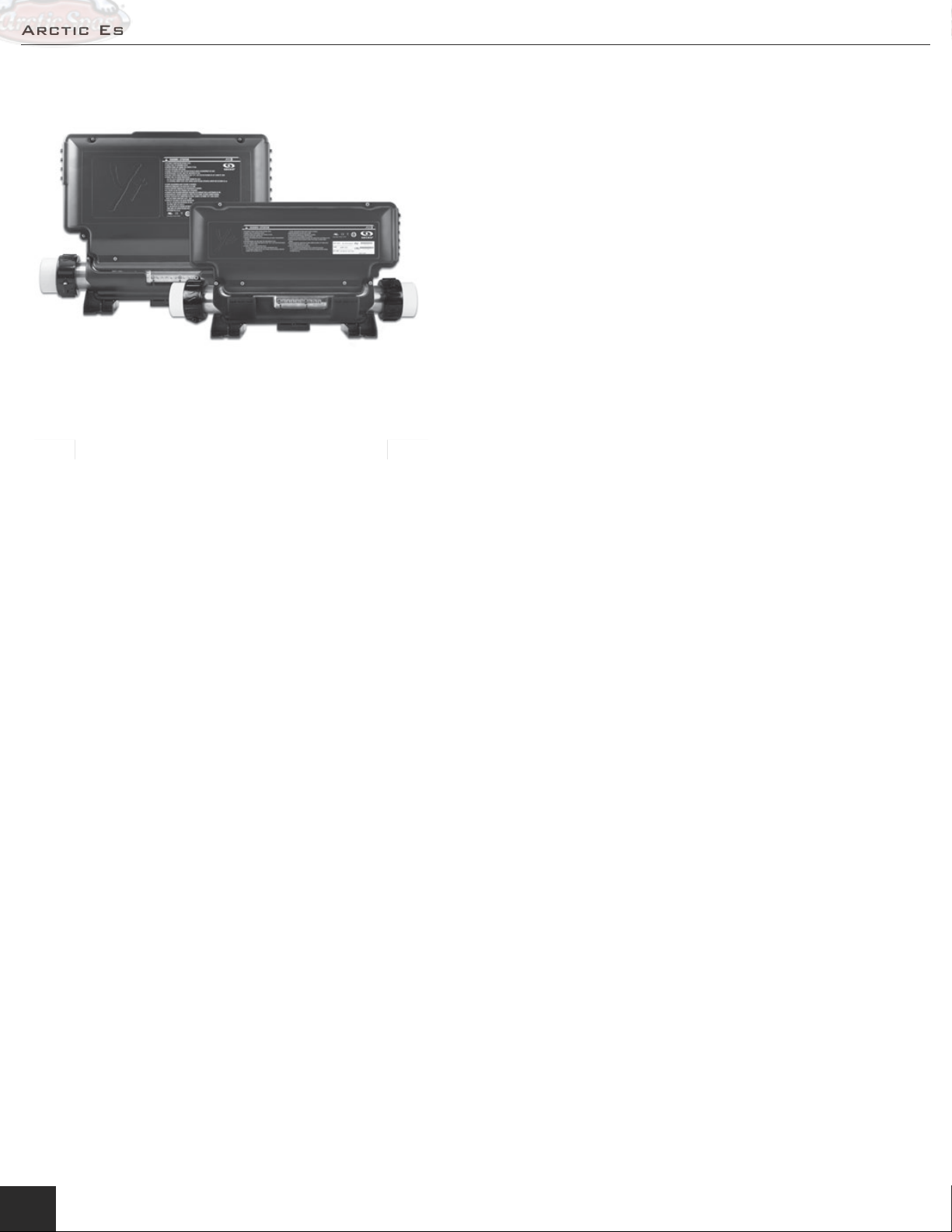

Series Techoo
ntroduction eieatee te pa ti i you contol ytemThe Series offers the kind of simplicity that makes for a genuine top-of-its-class product. It is the natural choice for anyone who wants an easy-to-understand multi-application solution.ou dont have to wonder about compatibility instead, there’s just the comforting certainty that when you invest in the Series, all spa configurations are supported. Whats more, it also takes into account future compatibility, so you can have peace of mind knowing that you can enjoy your spa pack for years to come.
6
5

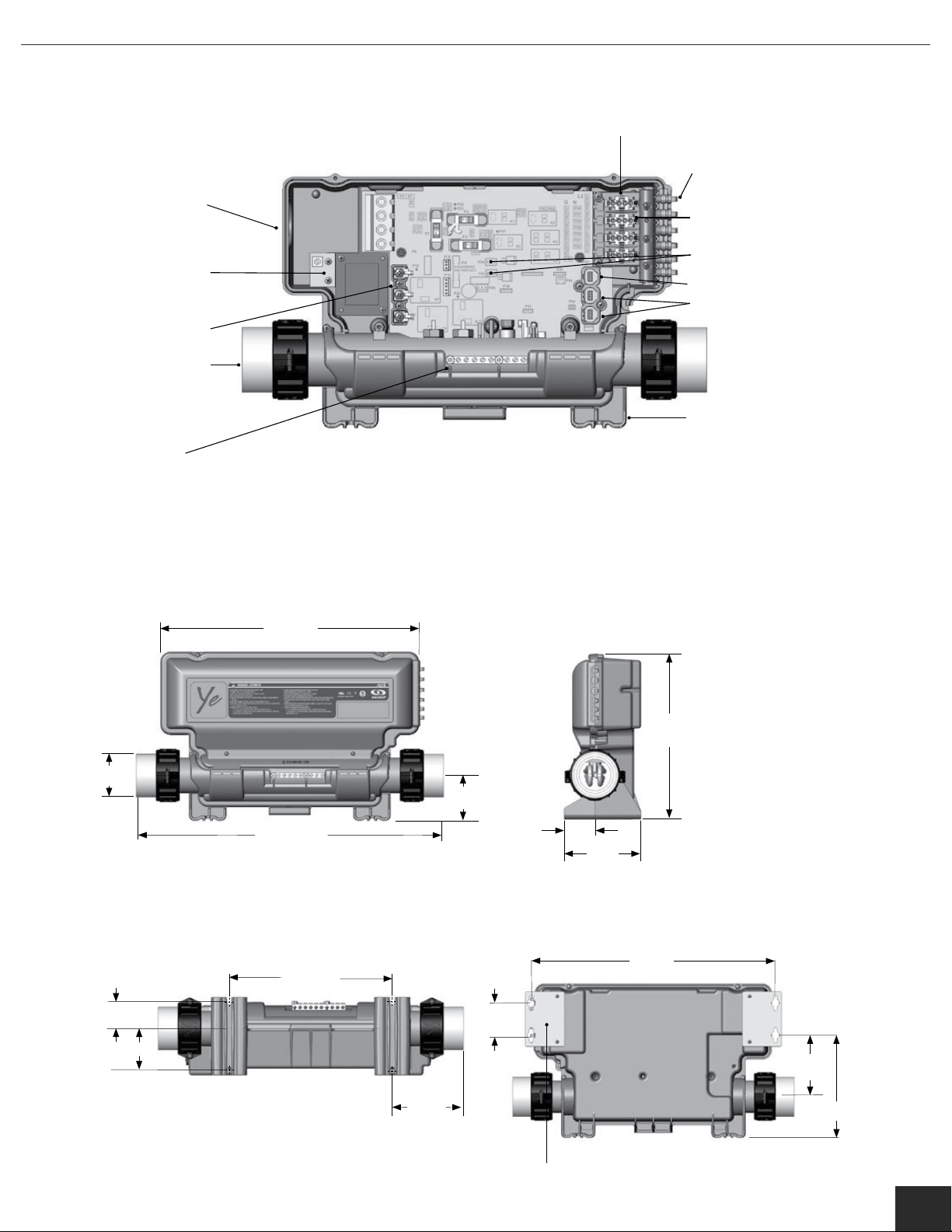

in.ye dimensions
in.ye overview
Ground input
connection
(European
version shown)
heat.wav heater
with in.flo
technology
Watertight strain
relief system
Access to heater
connections
Mounting feet
Industry-standard AMP
connectors for outputs
Enough outputs for all
your spa needs
Light outputs
(1 direct, 1 switched)
Main keypad connector
Communications link
Accessible
bonding lugs
Front view Side view
4.98"
(126 mm)
2"
(51 mm)
10.75"
(273 mm)
16.55"
(420 mm)
19.60"
(498 mm)
2.88 "
(73 mm)
10.47"
(266 mm)
1.63"
(41 mm)
2.61"
(66 mm)
Bottom view
4.56"
(115 mm)
2.25"
(57 mm)
4.29"
(108 mm)
7.16"
(182 mm)
Rear view
17"
(431 mm)
Note: Shown with optional wall mouting brackets (see Installation).
Main power
entry connection
2.38 "
(60.3 mm)
Arctic Essentials Owners Manual
7
Series Techoo
See the techbook for your specific keypad model for installation details and drilling template.Connecting the main keypad to the spa packTo connect the keypad, remove the cover, then insert the in.link connector into the appropriate keypad connector (as illustrated). Route the cable through one of the molded strain relief channels on the bottom right side of the spa pack (as illustrated). Fill the remaining space with the foam gaskets supplied. Don’t forget to replace the cover and all screws (torque to 8 in.lb max 0.9 N.m).Note: always shut power down before connecting an accessory to the in.ye or in.yt.
Keypad installationkeypadConnect the main keypad as indicated here.
8

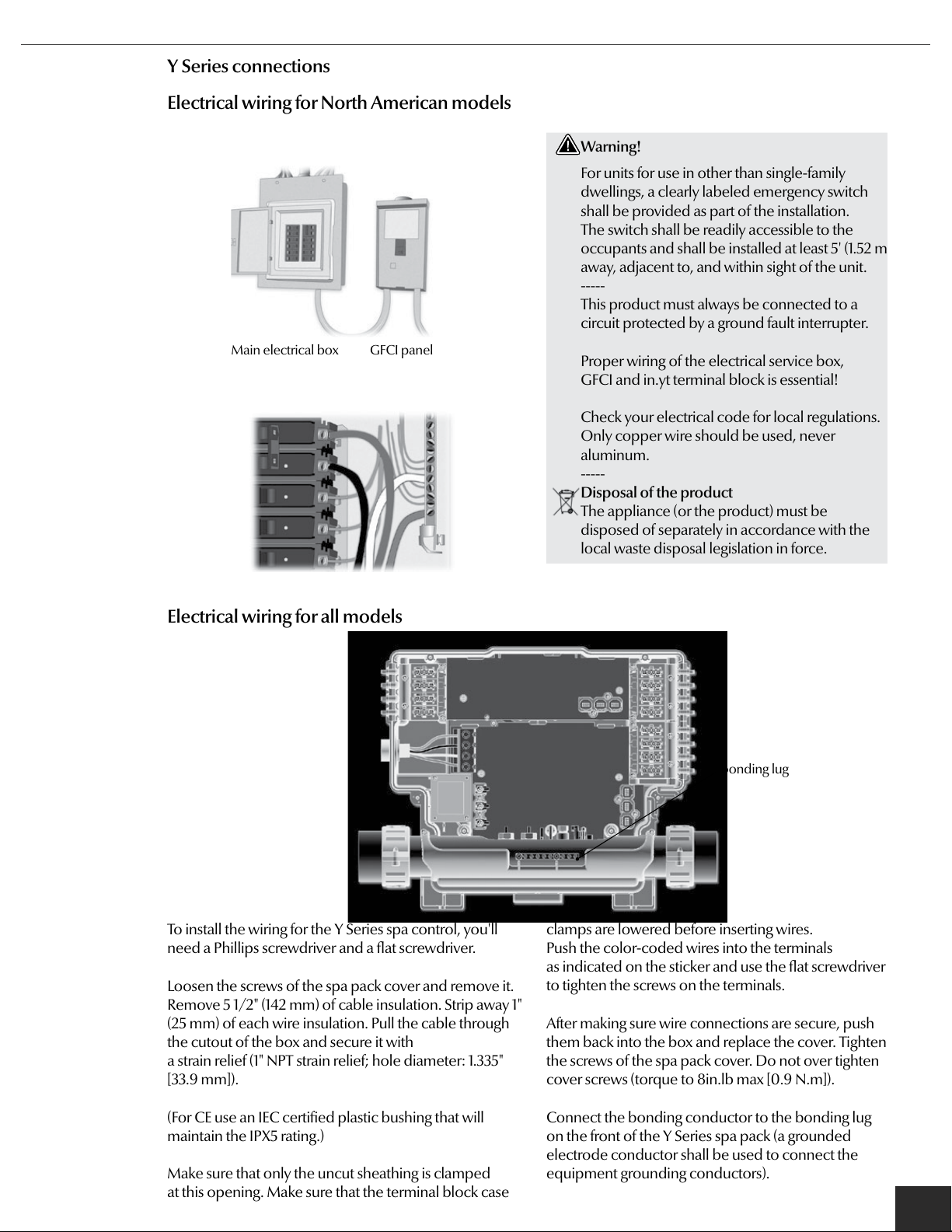

Series TechooElectrical wiring for orth American modelsMain electrical boxGFCI panel Warning For units for use in other than single-family dwellings, a clearly labeled emergency switch shall be provided as part of the installation. The switch shall be readily accessible to the occupants and shall be installed at least 5 (1.52 m) away, adjacent to, and within sight of the unit. ----- This product must always be connected to a circuit protected by a ground fault interrupter. Proper wiring of the electrical service box, GFCI and in.yt terminal block is essential! Check your electrical code for local regulations. Only copper wire should be used, never aluminum. ----- Disposal of the product The appliance (or the product) must be disposed of separately in accordance with the local waste disposal legislation in force.To install the wiring for the Series spa control, youll need a Phillips screwdriver and a flat screwdriver.Loosen the screws of the spa pack cover and remove it. Remove 5 1/2" (142 mm) of cable insulation. Strip away 1" (25 mm) of each wire insulation. Pull the cable through the cutout of the box and secure it with a strain relief (1" NPT strain relief hole diameter: 1.335" 33.9 mm).(For CE use an IEC
