Arctica HEC906 User manual

HEC906/HEC908 143 Litre White Refrigerator/Freezer
HEC907/HEC909 143 Litre Stainless Steel Refrigerator/Freezer
HEC910/HEC912 356 Litre White Refrigerator/Freezer
HEC911/HEC913 356 Litre Stainless Steel Refrigerator/Freezer
HED105/HED107 580 Litre White Refrigerator/Freezer
HED106/HED108 580 Litre Stainless Steel Refrigerator/Freezer
HEF540/HEF541/HEF542 Glass Door Refrigerators
For service during warranty period

Safety Tips
▲Position on a flat, stable surface.
▲A service agent/qualified technician should carry out
installation and any repairs if required. Do not remove
any components or service panels on this product.
▲Consult Local and National Standards to comply with
The following:
*Health and Safety at Work Legislation
* BS EN Codes of Pratice
*Fire Precautions
*IEE Wiring Regulations
*Building Regulations
▲ DO NOT use jet/pressure washers to clean the appliance
▲DO NOT use the appliance outside.
▲ DO NOT use electrical appliances inside the appliance
(e.g. heaters, ice-cream makers etc.)
▲DO NOT stand or support yourselves on the base, drawers or doors.
▲DO NOT allow oil or fat to come into contact with the plastic
components or door seal. Clean immediately if contact occurs.
▲DO NOT place more than 30 kg load on each shelf.
WARNING:
Keep ventilation openings, in the appliance enclosure or
In the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage.
compartments of the appliance, unless they are of the
Please read the manual before you use this product.
This manual contains Important Safety Instructions which
must be strictly followed when using this equipment.

type recommended by the manufacturer.
▲Bottles that contain a high percentage of alcohol must
be sealed and placed vertically in the refrigerator.
▲Always carry, store and handle the appliance in a vertical
position and move by holding the base of the appliance.
▲Always switch off and disconnect the power supply to the
unit before cleaning.
▲Keep all packaging away from children. Dispose of the
packaging in accordance with the regulations of local authorities.
▲If the power cord is damaged, it must be replaced by an agent or
a recommended qualified technician in order to avoid a hazard.
▲Do not store explosive substances such as aerosol can switch a
flammable propellant in this appliance.
Introduction
Please take a few moments to carefully read through this manual. Correct
maintenance and operation of this machine will provide the best possible
performance from your product.
Pack Contents
The following is included:
*Refrigerator or Freezer
*Shelves：
Model
Shelf
Bottom
shelf
HEC906/907/908/909/HEF540
SR20/SF20(S)/SR20G
2
1
HEC910/911/HED105/106/HEF541/542
3
1
SR40/60(S)/SR40VG/60
HEC912/913/HED107/108
SF40V(S)/SF60V(S)
6
1
*Door Key
*Instruction manual
*Shelf spacer and hook
*Waste water tray
We pride ourselves on quality and service, ensuring that at the time of
packaging the contents are supplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your
dealer immediately.
Installation
Note: If the appliance has not been stored or move in an upright position,
let it stand upright for approximately 12 hours before operation. If in
doubt allow the appliance to stand.
1. Remove the appliance from the packaging. Make sure that all
protective plastic film and coatings are thoroughly removed from all
surfaces.
2. Maintain a distance of 20cm (7 inches) between the unit and walls or
other objects for ventilation. Increase this distance if the obstacle is a
heat source.
Note: Before using the appliance for the first time, clean the shelves and
interior with soapy water.
3. Set the brakes on the castors to keep the appliance in position OR
Level the appliance by adjusting the screw feet.
Removable Gaskets
The door gasket keeps in the cold. For cleaning, it is easy to remove
without the use of tools—simple and hygienic.

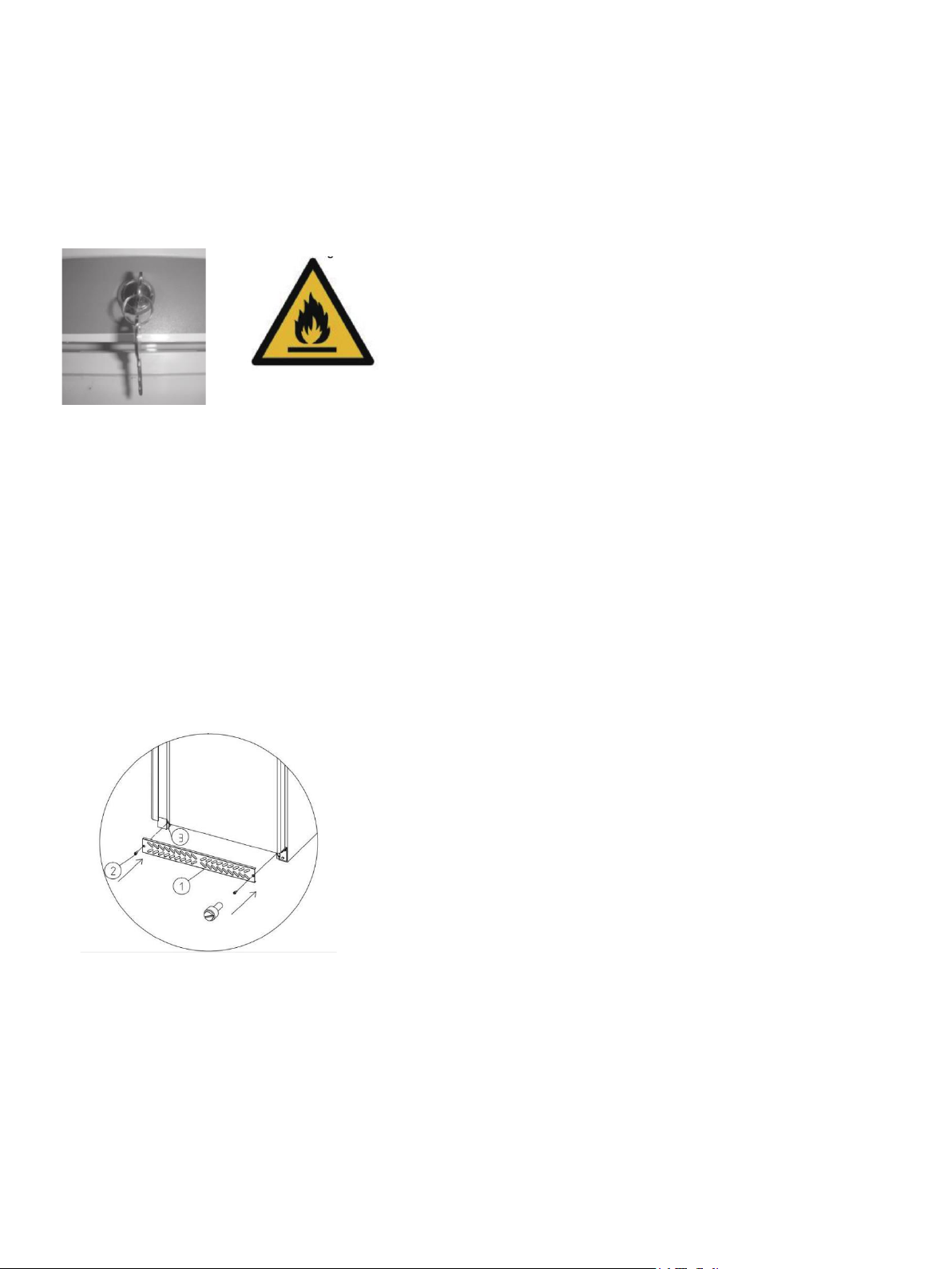

Lock/Unlock the Doors
A lock is fitted to the doors to ensure foodstuffs are kept secure within
your appliance. Use the keys provided to lock/unlock the door

All COMPACT models are equipped with a door lock, ensuring that stocks
are safe after closing.
The R600a and R290 refrigerant used by this refrigerator.
Install bottom front panel.
Bottom front panel is placed in interior box in when packing product,
install bottom front panel with screws before using the product.
Fitting the Waste Water Tray
The waste water tray comes ready to fit to the underside of the appliance.
Slide the tray into the runners situated under the appliance.
Fitting the Shelves
1. Place one set of shelf guides on either side of the cabinet at the
desired height.
2. Slide the shelf into place.
3. Repeat for the remaining shelves.
Note: This is vital for ensuring correct drainage of
condensation.
Operation
Storing Food
To get the best results from your appliance, follow these instructions:
*Only store foodstuffs in the appliance when it has reached the
correct operating temperature.
*Do not place uncovered hot food or liquid inside the appliance.
*Wrap or cover food where possible.
*Do not obstruct the fans inside the appliance.
*Avoid opening the doors for prolonged periods of time.
Turn On
1. Close the door(s) of the appliance.
2. Ensure the power switch is set to {0} and turn on at the socket.
3. Switch on the Power{1}.The current temperature within the
appliance is displayed.
Automatic Defrost
Refrigerant or freezer has forced air system in evaporator,
which will automatically run a defrost cycle.
Note: The cycle starts from the time the appliance is initially
powered up.

To manually defrost the appliance:
1. Press and hold the DEFROST Button for 5 seconds.
2. The defrost cycle will start immediately and the Defrost LED
illuminates. The defrost will last a maximum of 30minutes.
Note: Starting a manual defrost also resets the automatic defrost
timer. The next automatic defrost will start six hours after the
manual defrost has finished.
3. Waste water is collected in the waste water tray.
Cleaning, Care& Maintenance
▲ Switch off and disconnect from the power supply before cleaning.
▲ Clean the interior of the appliance as often as possible.
▲ Do not use abrasive cleaning agents. These can leave harmful
residues.
▲Clean the door seal with water only.
▲Always wipe dry after cleaning.
▲ Do not allow water used in cleaning to run through the drain hole
into the evaporation pan.
▲ Take care when cleaning the rear of the appliance. Sharp edges can
cut.
▲An agent or qualified technician must carry out repairs if required.
Cleaning the Condenser
Periodically cleaning the condenser can extend the life of the appliance.
We recommend that our agent or qualified technician clean the
condenser.
Troubleshooting
If your appliance develops a fault, please check the following table before making a call to your retailer.
Fault
Probable Cause
Action
The appliance is not
working
The unit is not switched on
Check the unit is plugged in correctly and switched on
Plug and lead are damaged
Call your agent or qualified Technician
Fuse in the plug has blown
Replace the fuse
Power supply
Check power supply
Internal wiring fault
Call your agent or qualified Technician
The appliance turns on,
but the temperature is
too high/low
Too much ice on the evaporator
Defrost the appliance
Condenser blocked with dust
Call your agent or qualified Technician
Doors are not shut properly
Check doors are shut and seals are not damaged
Appliance is located near a heat source or air flow
Move the refrigerator to a more suitable location

to the condenser is being interrupted
Ambient temperature is too high
Increase ventilation or move appliance to a cooler
position
Unsuitable foodstuffs are being stored in the
appliance
Remove any excessive hot foodstuffs or blockages to
the fan
Appliance is overloaded
Reduce the amount of food stored in the appliance
The appliance is leaking
water
The appliance is not properly leveled
Adjust the screw feet to level the appliance(if
applicable)
The discharge outlet is blocked
Clear the discharge ourlet
Movement of water to the drain is obstructed
Clear the floor of the appliance(if applicable)
The water container is damaged
Call your agent or qualified Technician
The drip tray is overflowing
Empty the drip tray(if applicable)
The appliance is
unusually loud
Loose nut/screw
Check and tighten all nuts and screws
The appliance has not been installed in a level or
stable position
Check installation position and change if necessary

Technical Specifications
Model
NO.
Model
（ref
）
Voltage
V
Current
A
Temperature
℃
Net
capacity
Lt.
Dimension
W*D*H(mm)
Weight
(kg)
refrigerant
HEC906
SR20
220-240VAC
50Hz
1.4
0～8
170
595*653*870
42
R600a/54g
HEC907
SR20S
HEC908
SF20
220-240VAC
50Hz
2
-18～-22
170
595*653*870
44
R600a/65g
HEC909
SF20S
HEF540
SR20G
220-240VAC
50Hz
1.4
0～8
170
595*635*870
44
R600a/54g
HEC910
SR40
220-240VAC
50Hz
1.4
0～8
239
595*653*1840
68
R600a/128g
HEC911
SR40S
HEF541
SR40VG
220-240VAC
50Hz
1.4
0～8
220
595*635*1840
72
R600a/128g
HEC912
SF40V
220-240VAC
50Hz
2.6
-18～-22
206
595*653*1840
85
R290/120g
HEC913
SF40VS
HED105
SR60
220-240VAC
50Hz
2
0～8
376
775*723*1840
81
R600a/145g
HED106
SR60S
HEF542
SR60VG
220-240VAC
50Hz
2
0～8
350
775*705*1840
85
R600a/145g
HED107
SF60V
220-240VAC
50Hz
2.8
-18～-22
321
775*723*1840
101
R290/110g
HED108
SF60VS
IN CASE THE SUPPLY CABLE IS DAMAGED. THE MANUFACTURER OR THE
AFTER-SALES SERVICE. OR QUALIFIED TECHNICIAN SHALL REPLACE IT .IN
ORDER TO PREVENT ANY POSSIBLE RISK.
THE ELECTRIC PARTS REPAIR AND REPLACEMENT SHALL BE CARRIED OUT BY
QUALIFIED TECHNICIANS. WITH POWER SUPPLY DISCONNECTED.
ONLY QUALIFIED TECHNICIANS SHALL CARRY OUT THE EXTRAORDINARY
MAINTENANCE INTERVENTIONS.

Electrical Wiring
Appliances are supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.
The plug is to be connected to a suitable mains socket. Appliances are wired as follows:
Live wire (colored brown) to terminal marked L
Neutral wire (colored blue) to terminal marked N
Earth wire (colored green/yellow) to terminal marked E
All appliances must be earthed, using a dedicated earthing circuit.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.
Disposal
EU regulations require refrigeration product to be disposed of by specialist companies who remove
or recycle all gasses, metal and plastic components.
Consult your local waste collection authority regarding disposal of your appliance. Local authorities
are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how
to dispose of the equipment locally.
Compliance
Parts have undergone strict product testing in order to comply with regulatory standards and specifications
set by international, independent, and federal authorities.
Products have been approved to carry the following symbol:
Disposal of packaging
All packaging materials should be disposed of in an environmentally friendly way.
The cardboard may be used as scrap paper. The protective foil and the foam cushions are CFC-free.4
Do not allow children to play with the packaging and destroy plastic bags safely.
You can break or cut the cardboard into smaller pieces and give to a waste paper disposal service.
Environmental protection
Discarded electric appliances are recyclable and should not be discarded in the domestic waste!
Please actively support us in conserving resources and protecting the environment by returning this
appliance to the collection centers (if available).
