Arctica HEF546 Instruction manual

Installation, Operation&
Maintenance Manual
Upright Refrigerator & Freezer
HEF546/HEF547 Upright Bottle Coolers
(HC gas R600/R290 used)
For warranty Tel: [phone]
Email address service@ lockhartcatering.co.uk

PLEASE READ THE MANUAL THOROUGHLY PRIOR TO
EQUIPMENT SET-UP, OPERATION AND MAINTENANCE.
General Safety Tips
⚫All packaging should be disposed of in accordance with the regulations of local authorities. Keeping all
packaging away from children.
⚫This appliance must be properly installed/positioned on a flat stable surface, away from heat source.
Position on a flat, stable surface.
⚫If the supply cord is damaged, it must be replaced by a competent person or similarly qualified person.
⚫Avoid the use of extension cords. Do not run cord under carpeting, runners or the like. Arrange cord
away from traffic area and where it will not create a tripping hazard.
⚫Always unplug the appliance when not in use and before cleaning, adjusting or maintaining this unit. To
disconnect appliance, turn off switch and remove plug from the power source.
⚫Do not disconnect by pulling the cord or touch the power plug with wet hands.
⚫Do not use outdoors.
⚫Do not splash water on the appliance. Do not use jet/pressure washers to clean this unit. It may cause
malfunction or electric shock.
⚫Do not disassemble, repair or alter the appliance. It may cause fire or abnormal operations. Any repair
work should be carried by a qualified service agent.
⚫Do not use/store electrical appliances inside the appliance.
⚫Consult Local and National Standards to comply with
The following:
·Health and Safety at Work Legislation
·BS EN Codes of Practice
·Fire Precautions
·IEE Wiring Regulations
·Building Regulations
⚫Do not use this appliance to store medical supplies or use for storage of explosive substances such as
aerosol cans with a flammable propellant.
⚫Do not allow oil or fat to come into contact with the plastic components or door seal. Clean immediately
if contact occurs.
INSTALLATION/ OPERATION
IMPORTANT!!! PLEASE READ BEFORE INSTALLATION
■If the unit has recently been transported please let unit stand still for a minimum of 24 hours
before plugging it in.
■Make sure that the unit drops down to desired temperature before loading the unit with
product.
■Make sure that there is proper ventilation around the unit in the area where it will operate.
■Make sure all accessories are installed (i.e. shelves, shelf clips, casters) before plugging the
unit in.
■Please read through the manual in its entirety.
CABINET LOCATION GUIDELINES

■Install the unit on strong and leveled surfaces
-unit may make unpleasant noises if surface is uneven
-unit may malfunction if surface is uneven
■Install the unit in an indoor, well-ventilated area
-unit performs more efficiently in a well-ventilated area

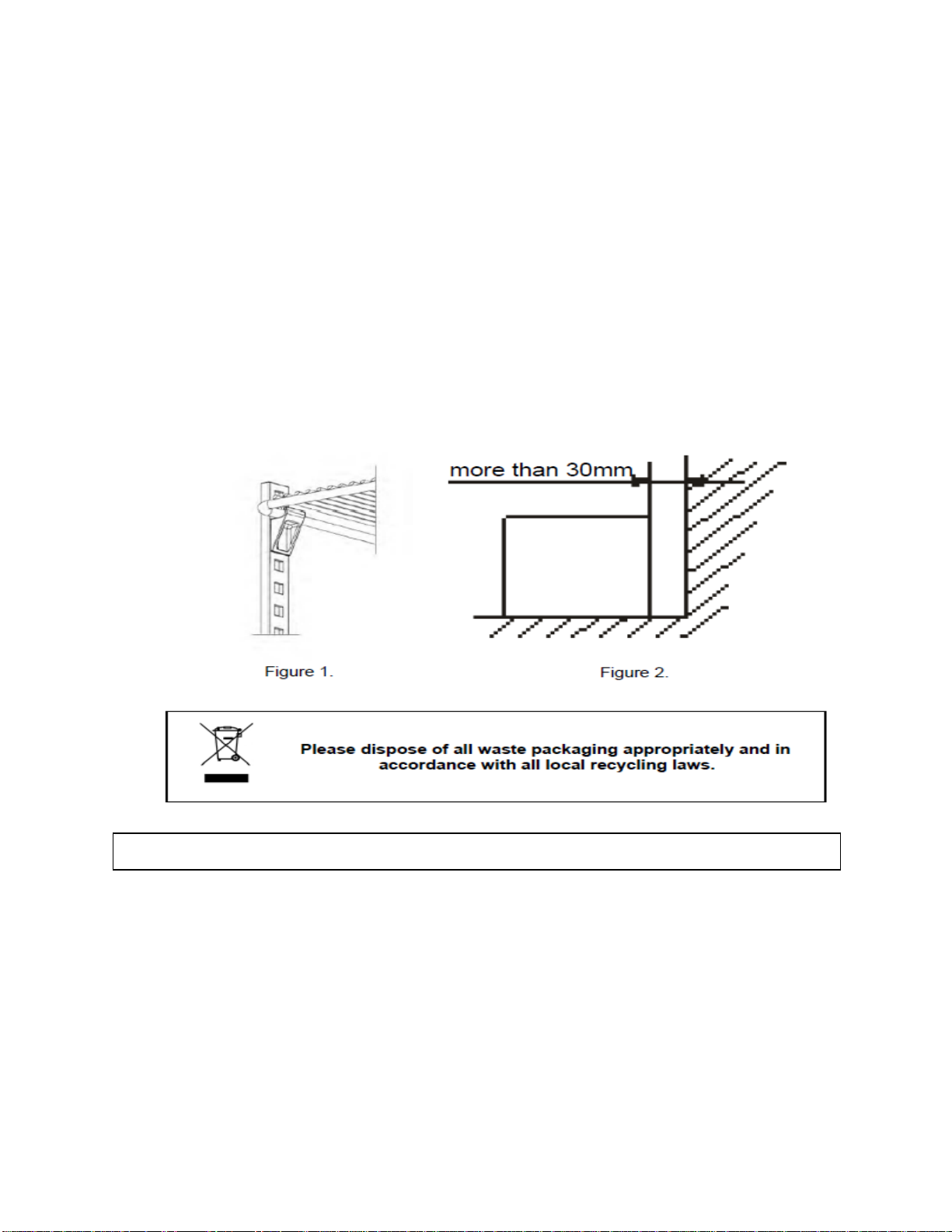

-for best performance, please maintain clearance of 30 mm on the back of the unit
-outdoor use may cause decreased efficiency and damage to the unit
■Avoid installation in a high humidity and/or dusty area
-humidity could cause unit to rust and decrease efficiency of the unit
-dust collected on condenser coil will cause unit to malfunction. Clean the condenser at least
once a month with a brush or clean cloth
-malfunction due to dirty condenser will void warranty
■Select a location away from heat and moisture-generating equipment
-high ambient temperatures will cause the compressor to overwork, leading to higher energy
bills and gradual breakdown of the unit
-malfunction due to high ambient temperature will void warranty
ELECTRICAL
Please ensure that the required voltage of the compressor is being always supplied. Low or
high voltage can detrimentally affect the refrigeration unit.
All units should be plugged into a grounded and properly sized electrical outlet with
appropriate overcurrent protection. Please refer to the electrical requirements on the
nameplate of the unit. Please make sure that your unit has its own dedicated outlet. Do not use
an extension cord.
TEMPERATURE CONTROLS
The temperature controls are factory-set to maintain an average temperature of 0 C in
refrigerators. To maintain a different temperature, simply adjust the thermostat is located at
All electrical work must be carried out by suitably qualified persons

the control panel based on operation manual inside of cabinet.
CAUTION
Setting the temperature control to the coldest setting may cause the evaporator coil to freeze
and ice up. This will eventually result in a warmer cabinet temperature.
LOADING PRODUCT
Shelves have been factory-installed for your convenience. Before loading shelves, please be
sure that all shelf clips are completely fastened in their correct locations. It is important that all
shelves rest completely level before stocking your cabinet with product.
In order to maintain correct air flow inside the unit, please be sure to leave 50 mm to 100 mm
of space between the back wall and stored product. Blocking the evaporator fans will result in a
warmer cabinet temperature, and ultimately compressor failure.
DEFROST SYSTEMS
Refrigerator coils are kept below the freezing point (0 C). During compressor down-time, the
evaporator fan continues to circulate air through the evaporator coil. This air circulation raises
the coil temperature above the freezing point, melting any accumulated frost. Run-off water is
drained into the evaporator pan and evaporated.
PLEASE NOTE: Excessive door openings should be avoided in order to maintain cabinet
temperature and to eliminate the possibility of coil freeze-up.
SAFETY / WARNING
Please pay close attention to the safety notices in this section.
Disregarding these notices may lead to serious injury and/or damage to the
unit.
ATTENTION
■To minimize shock and fire hazards, be sure not to overload outlet. Please designate one
outlet for your unit.
■Do not use extension cords.
■Do not put your hands under the unit when the unit is required to be moved.
■When the unit is not in use for a long period of time, please unplug the unit from the outlet.

■After unplugging the unit, wait at least 10 minutes before re-plugging it. Failure to do so
could cause damage to the compressor.
UNPLUG CORD
■To minimize shock and fire hazards, please do not plug or unplug the cord with wet hands.
■During maintenance and cleaning, please unplug the unit.
PROPER GROUNDING REQUIRED
■To minimize shock and fire hazards, make sure that the unit is properly grounded.
PROHIBITION
■Do not attempt to remove or repair any component unless instructed by factory.
■Make sure that the unit is not resting on or against the electrical cord and plug.
■To minimize personal injury, do not hang on the doors.
■Do not store any flammable and explosive gas or liquids inside the unit.
■Do not attempt to alter or tamper with the electrical cord.
!

REGULAR MAINTENANCE

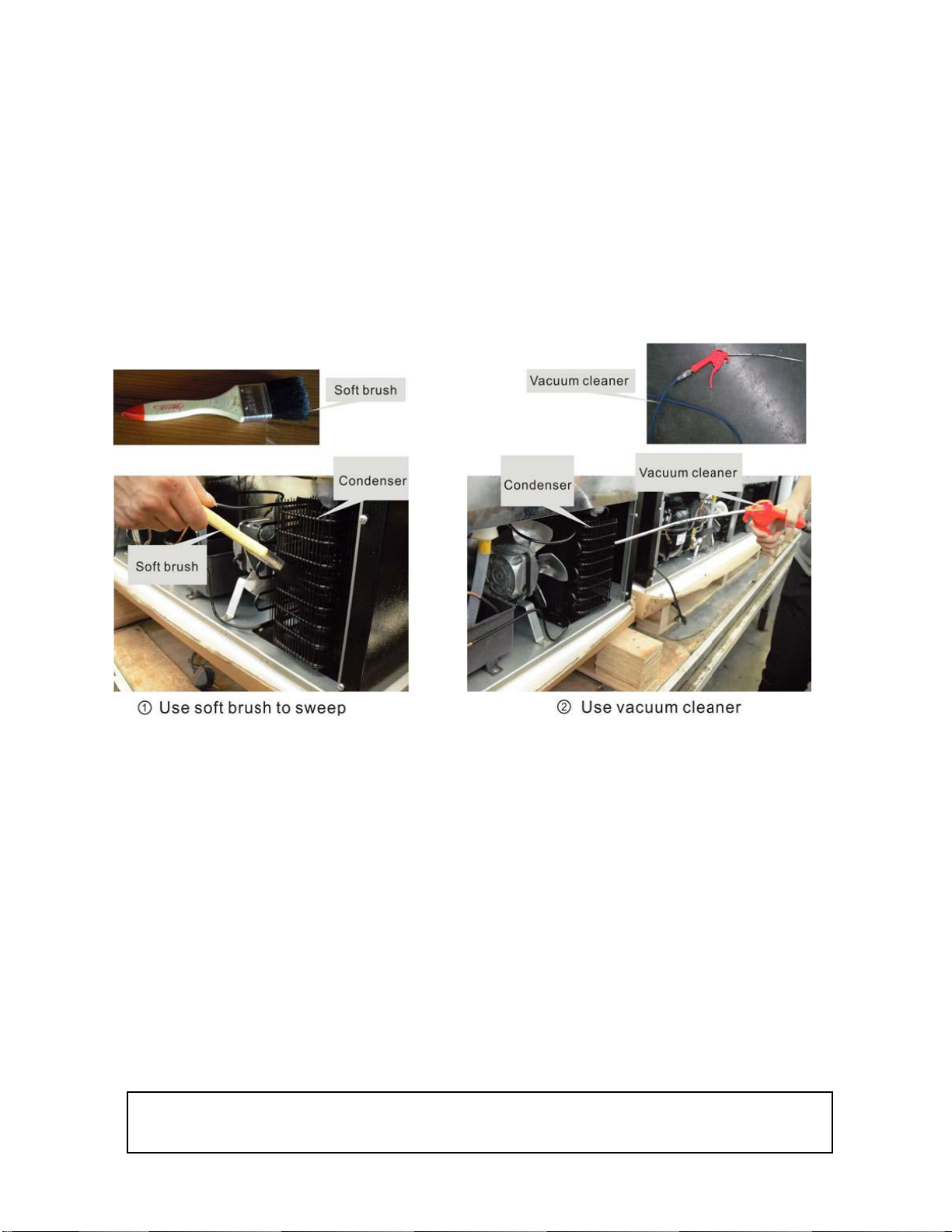

CLEANING THE CONDENSER COIL
■For efficient operation, it is important that the condenser surface be kept free of dust, dirt,
and lint.
■We recommend cleaning the condenser coil and fins at least once per month.
■Clean with a commercial condenser coil cleaner, available from any kitchen equipment
retailer. Brush the condenser fins from top to bottom, not side to side.
■After cleaning, straighten any bent condenser fins with a fin comb.
CLEANING THE FAN BLADES AND MOTOR
If necessary, clean the fan blades and motor with a soft cloth. If it is necessary to wash the fan
blades, cover the fan motor to prevent moisture damage.
CLEANING THE INTERIOR OF UNIT
■When cleaning the cabinet interior, use a solvent of warm water and mild soap.
■Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the
stainless steel surface.
■Wash door gaskets on a regular basis, preferably weekly. Simply remove door gasket from
the frame of the door, soak in warm water and soap for thirty (30) minutes, dry with soft
cloth, and replace.
■Check door gaskets for proper seal after they are replaced.
■Periodically remove the shelves and pilasters from the unit and clean them with mild soap
and warm water. To remove the pilasters, first remove the shelves and shelf brackets. Then,
simply lift the pilaster up and out.
WARNING
Disconnect power cord before cleaning any parts of the unit.

TROUBLE SHOOTING
Before requesting any service on your unit, please check the following points.
Please note that this guide serves only as a reference for solutions to common
problems.
SYMPTOM
POSSIBLE CAUSE
CORRECTIVE ACTION
Compressor not running.
Fuse blown or circuit breaker
tripped.
Power cord unplugged.
Thermostat set too high.
Cabinet in defrost cycle.
Replace fuse or reset circuit breaker.
Plug in power cord.
Set thermostat to lower
temperature.
Wait for defrost cycle to finish.
Condensing unit runs for long
periods of time.
Excessive amount of warn
product placed in cabinet.
Prolonged door opening or
door ajar.
Door gasket(s) not sealing
properly.
Dirty condenser coil.
Evaporator coil iced over.
Allow adequate time for
product to cool down.
Ensure doors are closed when not in
use. Avoid opening doors for long
periods of time.
Ensure gaskets are snapped in
completely. Remove gasket and
wash with soap and water. Check
condition of gasket and replace if
necessary.
Clean the condenser coil.
Unplug unit and allow coil to defrost.
Make sure thermostat is not set too
cold. Ensure that door gasket(s) are
sealing properly.
Cabinet temperature is too
warm.
Thermostat set too warm.
Blocking air flow.
Excessive amount of warm
product placed in cabinet.
Fuse blown or circuit breaker
tripped.
Dirty condenser coil.
Prolonged door opening or
door ajar.
Set thermostat to lower
temperature.
Re-arrange product to allow for
proper air flow. Make sure there is
at least 50 mm of
clearance from evaporator.
Allow adequate time for
product to cool down.
Replace fuse or reset circuit breaker.
Clean the condenser coil.
Ensure doors are closed when not in
use. Avoid opening doors for long
periods of time.
(see above)

Evaporator coil iced over.
Cabinet is noisy.
Loose part(s).
Tubing vibration.
Locate and tighten loose
part(s).
Ensure tubing is free from
contact with other tubing or
components.
Caution!
Consult repair manual/owner’s guide before attempting to install or service this product. All safety
precautions must be followed. Dispose of properly in accordance with federal or local regulations. Risk of fire
or explosion due to puncture of refrigerant tubing. Follow handling instructions carefully.
Danger!
Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. Do not
use mechanical devices to defrost refrigerator. Do not puncture refrigerant tubing.
Disposal
EU regulations require refrigeration product to be disposed of by specialist companies who
remove or recycle all glasses,
metal and plastic components.
Consult your local waste collection authority regarding disposal of your appliance. Local
authorities are not obliged to
dispose of commercial refrigeration equipment but may be able to offer advice on how to
dispose of the equipment locally.
All packaging materials should be disposed of in an environmentally friendly way.
The cardboard may be used as scrap paper. The protective foil and the foam cushions are
CFD-free.
Do not allow children to play with the packaging and destroy plastic gags safely.
Environmental protection
Discarded electric appliances are recyclable and should not be discarded in the domestic
waste! Please actively support us in conserving resources and protecting the environment by
returning this appliance to the collection’s centers (if available).
Compliance
Parts have undergone strict product testing in order to comply with regulatory standards and

specification set by
international, independent, and federal authorities.
Products have been approved to carry the following symbol:
