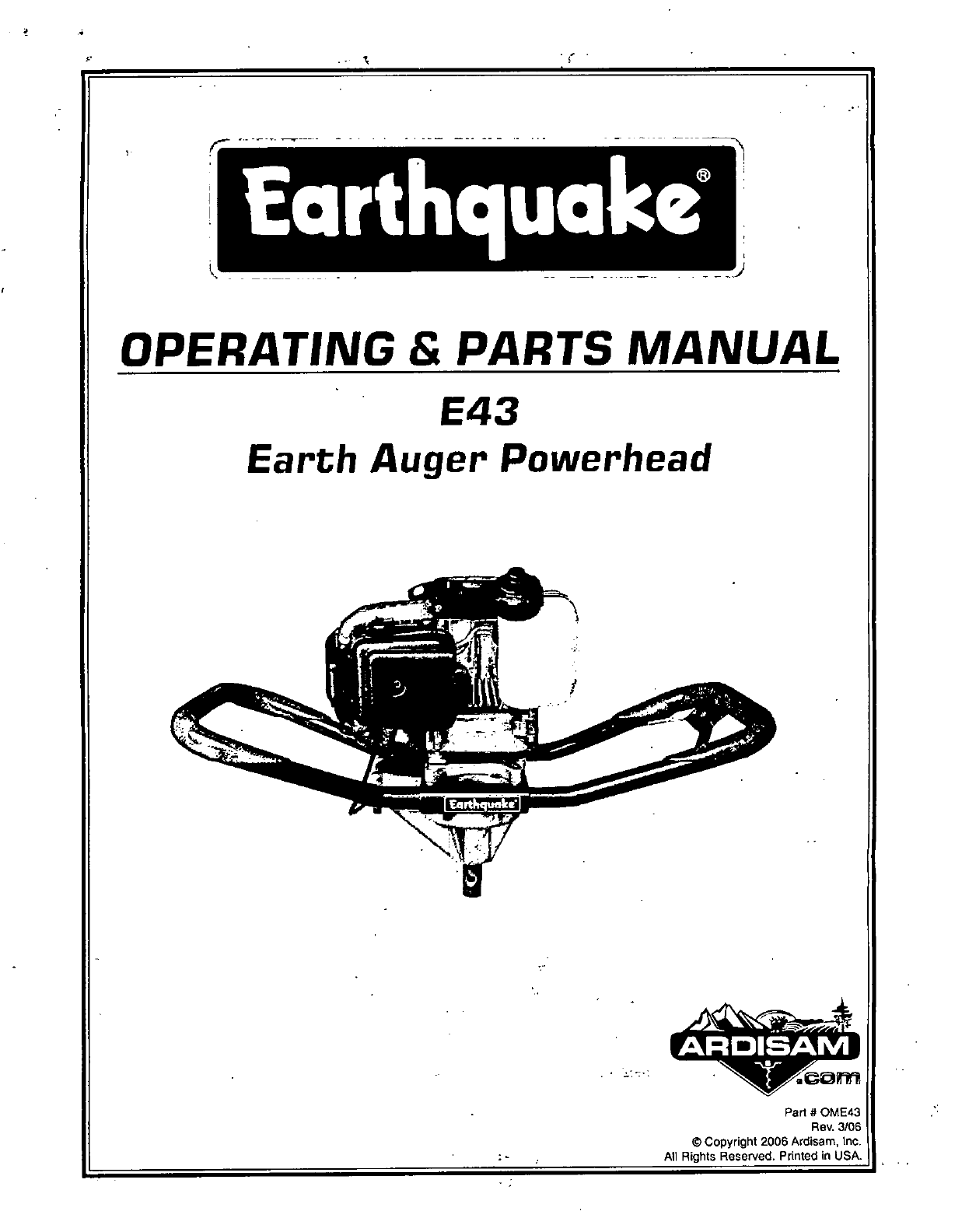

Ardisam Earthquake E43 User manual

Earthquake®
OPERATING & PARTS MANUAL
E43
Earth Auger Powerhead
AR D I SAM
W t.
Part # OME43
Rev. 3/06
0 Copyright 2006 Ardisam, Inc.
All Rights Reserved. Printed In USA.

Earthquake'

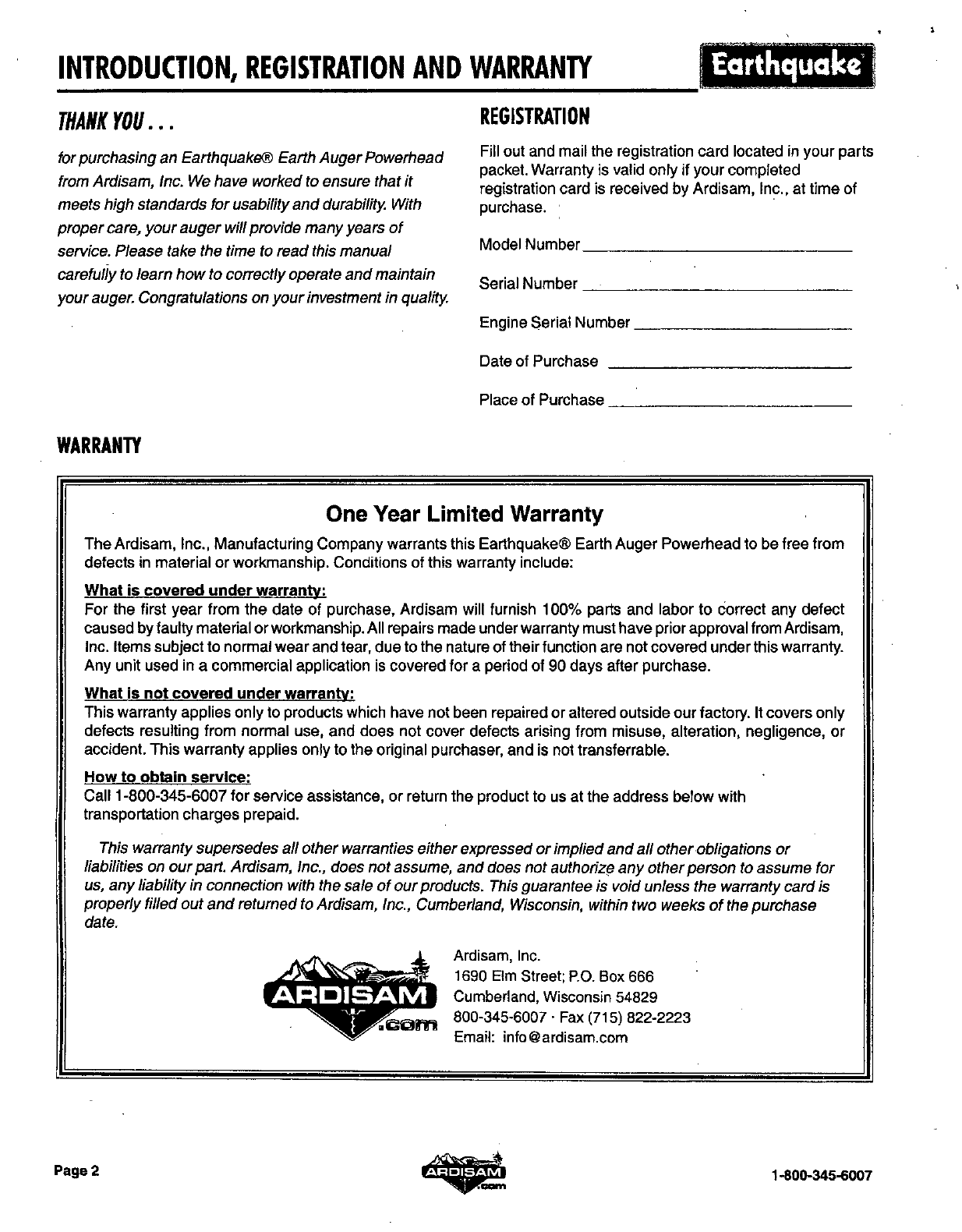

INTRODUCTION, REGISTRATION AND WARRANTY
THANK YOU . . .
for purchasing an Earthquake® Earth Auger Powerhead
from Ardisam, Inc. We have worked to ensure that it
meets high standards for usability and durability. With
proper care, your auger will provide many years of
service. Please take the time to read this manual
carefully to learn how to correctly operate and maintain
your auger. Congratulations on your investment in quality
REGISTRATION
Fill out and mail the registration card located in your parts
packet. Warranty is valid only if your completed
registration card is received by Ardisam, Inc., at time of
purchase.
Model Number 
Serial Number

Engine Serial Number

Date of Purchase 
Place of Purchase 
WARRANTY
One Year Limited Warranty
The Ardisam, Inc., Manufacturing Company warrants this Earthquake® Earth Auger Powerhead to be free from
defects in material or workmanship. Conditions of this warranty include:
What is covered under warranty:
For the first year from the date of purchase, Ardisam will furnish 100% parts and labor to correct any defect
caused by faulty material or workmanship. All repairs made under warranty must have prior approval from Ardisam,
Inc. Items subject to normal wear and tear, due to the nature of their function are not covered under this warranty.
Any unit used in a commercial application is covered for a period of 90 days after purchase.
What is not covered under warranty:
This warranty applies only to products which have not been repaired or altered outside our factory. It covers only
defects resulting from normal use, and does not cover defects arising from misuse, alteration, negligence, or
accident. This warranty applies only to the original purchaser, and is not transferrable.
How to obtain service:
Call 1-800-345-6007 for service assistance, or return the product to us at the address below with
transportation charges prepaid.
This warranty supersedes all other warranties either expressed or implied and all other obligations or
liabilities on our part. Ardisam, Inc., does not assume, and does not authorize any other person to assume for
us, any liability in connection with the sale of our products. This guarantee is void unless the warranty card is
properly filled out and returned to Ardisam, Inc., Cumberland, Wisconsin, within two weeks of the purchase
date.
Ardisam, Inc.
1690 Elm Street; P.O. Box 666
Cumberland, Wisconsin 54829
800-345-6007 • Fax [phone]
Email: [email protected]
J28
-.CZ
ARDISAM Page 2
1-800-345-6007

CALIFORNIA PROPOSITION 65 WARNING
Engine exhaust from this product contains
chemicals known to the State of California to
cause cancer, birth defects, or other reproductive
harm.
1-800-345-6007
Page 3
AROISAM
SAFETY
rthquakt
Owner's Responsibility
Accurate assembly and safe and effective use of the
auger is the owner's responsibility.
Read and follow all safety instructions.
Carefully follow all assembly instructions.
Maintain the auger according to directions and
schedule included in this Earthquake operator's manual.
Ensure that anyone who uses the auger is familiar
with all controls and safety precautions.
Special Messages
Your manual contains special messages to bring
attention to potential safety concerns, machine damage
as well as helpful operating and servicing information.
Please read all the information carefully to avoid injury
and machine damage.
Avoid injury! This symbol and text highlight
potential hazards or death to the operator or
bystanders that may occur if the hazards or
procedures are ignored.
Avoid damage! This text is used to tell the operator
of actions or conditions that might result in damage
to the machine.
NOTE: General information is given throughout the
manual that may help the operator in the operation
or service of the machine.
Important Safety Precautions
.  -
Please read this section carefully.
Operate the auger
according to the safety instructions and
recommendations outlined here and inserted throughout
the text. Anyone who uses this auger must read the
instructions and be familiar with the controls.
This symbol points out important safety
A
instructions which if not followed could
endanger your personal safety. Read and
follow all instructions in this manual before
attempting to operate this equipment.
Do not carry the auger powerhead between holes with
the engine running.
The auger should not rotate when the engine is idling.
If it does rotate when engine is idling, contact Ardisam,
Inc. at 1-800-345-6007 for instructions. .
Always keep hands, feet, hair and loose clothing away
from any moving parts on engine and auger.
Do not allow children to operate this power auger. Do
not allow adults to operate the auger without proper
instruction.
Do not operate any power equipment under the
influence of alcohol or drugs.
Keep all screws, nuts and bolts tight.
Engine should be turned off and cool, spark plug wire
must be removed from spark plug before any repairs are
attempted. ,
Temperature of muffler and nearby areas may exceed
150° F (65° C). Avoid these areas.
Never run engine indoors or in an enclosed area.
Engine exhaust contains carbon monoxide, an odorless
and deadly gas.
If the earth auger becomes unturnable in a hole, turn
engine off and allow to cool before attempting to remove
it manually.
Use only original equipment parts from Ardisam, Inc.
including all nuts and bolts.

SAFETY
Earthquake - ,
Engine Safety Precautions
Warning Carbon Monoxide Poisoning 
. .
All engines contain carbon monoxide in their exhaust.
Carbon monoxide is a deadly, colorless, tasteless,
odorless gas which may be present even if you do not
smell or see any engine exhaust. Levels of carbon
monoxide, which can be deadly, can be present for days
in an enclosed area that has poor ventilation. Any level of
carbon monoxide, if inhaled, can cause headaches,
drowsiness, nausea, dizziness, confusion and eventually
death. If you experience any of these symptons, seek
fresh air and
medical attention immediately.
Preventing Carbon Monoxide Poisoning
Never run engine indoors.
Never try to ventilate engine exhaust indoors. Carbon
monoxide can reach dangerous levels very quickly.
Never run engine outdoors where exhaust fumes may
be pulled into a building.
Never run engine outdoors in a poorly ventilated area
where the exhaust fumes may be trapped and not easily
taken away. (Examples include: in a large hole or areas
where hills surround your working area.)
Never run engine in an enclosed or partially enclosed
area. (Examples include: buildings that are enclosed on
one or more sides, under tents, car ports or basements.)
Always run the engine with the exhaust and muffler
pointed in the direction away from the operator.
Never point the exhaust muffler towards anyone.
People should always be many feet away from the
operation of the engine and its attachments.
Gasoline Fires and Handling Fuel Safely
Fuel and fuel vapors are highly flammable. Never use fuel
where a spark or flame may be present. Never use fuel
where a potential source of ignition could occur.
(Examples include: hotvvater or space heaters, clothes
dryer, electric motors, etc.) Keep flames and sparks away
from engine and fuel to prevent fires. Fuel fires spread
very quickly and are highly explosive.
Prevention of Gasoline Fires
Never fill your fuel tank with fuel indoors. (Examples
include: basement, garage, barn, shed, house, porch,'
etc.)
Always fill fuel tank outside in a well ventilated area.
Never remove the fuel cap or add fuel with the engine
running. Stop engine and allow to cool before filling.
Never drain fuel from engine in an enclosed area.
•• Always wipe up excess (spilled) fuel from engine
before starting. Clean up spilled fuel immediately.
Allow spilled fuel to dry, after wiping and before
starting.
Allow fuel fumes/vapors to escape from the area
before starting engine.
Test the fuel cap for proper installation before starting
and using engine.
Always run the engine with fuel cap properly installed
on the engine.
Always unscrew gas cap vent screw while engine is
running.
Never smoke while refilling engine fuel tank.
Prevent fire and explosion caused by static electric
discharge. Use only non-metal, portable fuel containers
approved by the Underwriter's Laboratory (U.L.) or the
American Society for Testing & Materials (ASTM).
Do not store engine with fuel in fuel tank indoors. Fuel
and fuel vapors are highly explosive.
During storage, screw down gas cap vent screw
tightly.
Never pour fuel from engine fuel tank.
Never siphon fuel by mouth to drain fuel tank.
Always have an adult fill the fuel tank.
Never allow anyone under the influence of drugs or
alcohol to fill engine.
Never allow children to fill the engine.

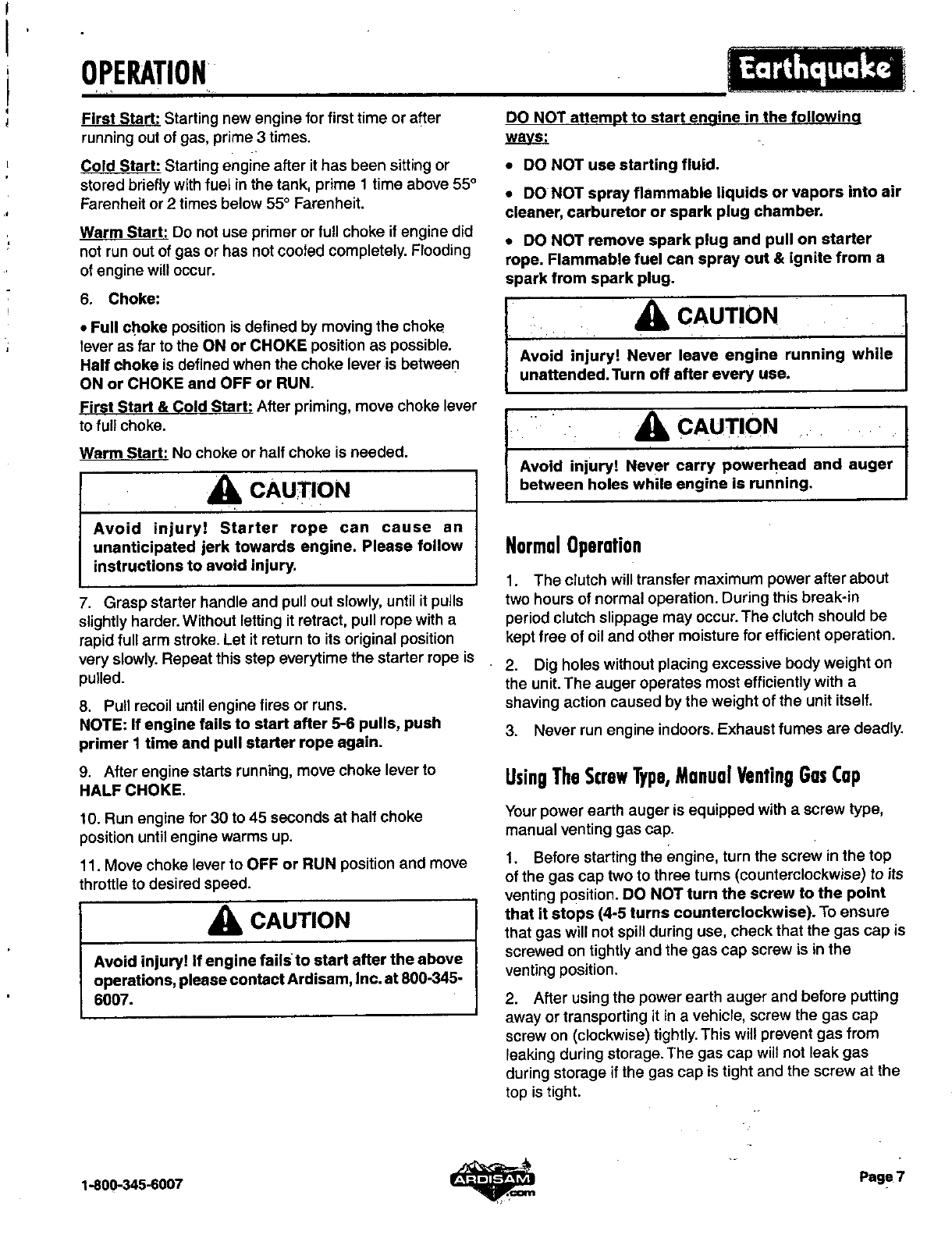

The clutch will transfer maximum power after about
two hours of normal operation. During this break-in
period clutch slippage may occur. The clutch should be
kept free of oil or other moisture for efficient operation.
Page4.
1-8007345-OG0T

Avoid injury! Always wear hearing protection while
operating engine.
Avoid injury! Hot gases are a normal by-product of
a functioning catalytic converter. Follow all safety
instructions to prevent burns and fires.
SAFETY
Burns and Fires
The muffler, muffler guard and other parts of the engine
become extremely hot during the operation of the engine.
These parts remain extremely hot after the engine has
stopped.
Prevention of Burns and Fires
Never remove the muffler guard from the engine.
Never touch the muffler guard because it is extremely
hot and will cause severe burns.
Never touch parts of the engine that become hot after
operation.
Always keep materials and debris away from muffler
guard and other hot parts of the engine to avoid fires.
This engine is designed to operate using a catalytic
converter which contributes to the engine's compliance
with the EPA.
earthquake'
Check all parts that were repaired, or removed during
repair, that they are secure and fit correctly.
NOTE: All repair parts must come from the factory.
Never replace pans that are not specifically designed
for the engine or attachment.
Replace spark plug wire.
Avoid injury! Please do not start your auger until
you have read the previous section of this manual.
If you have read these, follow the steps below to
start your auger.
Preparing Engine for Starting
GAS AND OIL
Quality
Steps for Working on Engine or Attachment
DO NOT Alter/Modify Engine or Attachments:
Avoid injury! Never alter or modify the engine
from the factory. Serious injury or death may
occur if engine is modified or altered.
Avoid injury! When working on or replacing parts
for the engine or attachments you must always
disconnect spark plug wire from the spark plug and
keep it away from the spark plug.
Turn off engine switch.
Disconnect the spark plug wire from the spark plug.
Securely place the disconnected spark plug wire away
from the spark plug and any metal parts. This must
always be done or arcing may occur between spark plug
wire and metal parts.
To operate the engine you must use a high quality
2-cycle oil to ensure that the engine operates correctly
for the life of the engine. Use unleaded regular, unleaded
premium or reformulated automotive fuels only. It may
contain up to 10% ethanol, 10% gasohol, 15% MTBE,
and 15% ETBE.
DO NOT use Methanol or leaded
fuels.
Mixture
Run earth auger with a ratio of 50:1. DO NOT use
marine 2-cycle oil.
See chart below.
GAS
QEL
_RA1_Q
1 gallon 2.5 ounces
50:1
2 galbns
5 ounces 50:1
5 gallons 13 ounces
50:1
1-800-345-6007
Page 5

Avoid injury! DO NOT start engine if fuel is spilled.
Wipe on excess fuel and allow to dry. Remove
engine from area to avoid sparks.
I Earthquake`
Page 6
1-86.634&6007
j
a
dVorz
ARDISAM
E ON
Mixing Fuel and Filling fuel Tank
Avoid injury! Never store engine with fuel in the
tank indoors. Fuel and fuel vapors are highly
-flammable. -
 - -
Avoid injury! Never mix fuel and oil directly in
engine fuel tank. Use only non-metal, portable-fuel
containers approved by the Underwriter's
Laboratory (U.L.) or the American Society for
Testing & Materials (ASTM).
Avoid injury! An adult must always handle and fill
the engine With fuel.
Mixing Fuel
Fuel must be mixed in a container outside in a well
ventilated area.
Fill certified fuel container 1/4 full of recommended
fuel.
Add recommended amount of 2-cycle oil.
DO NOT
use 2-cycle marine oil.
Screw container cap on straight and tight.
Shake the container to mix fuel and oil.
Unscrew cap slowly to vent. Add the remainder of
fuel requirements.
Wipe away any spilled fuel or oil and allow to
evaporate before moving or transporting.
Avoid injury! Always handle
-
gas in a well ventilated
area, outdoors, away from flames or sparks.
IMPCMW
This engine uses a gas/oil mixture. DO NOT run on
straight gas only, engine damage will result.
Filling Fuel Tank
• Shut-off engine and allow engine to completely cool
before refilling the fuel tank.
Moveln well ventilated area, outdoors, away from
flames and sparks.
Clean debris from area around the fuel cap.
Loosen fuel cap slowly. Place the cap on a clean, dry
surface.
Carefully add fuel without spilling.
Do not fill gas tank completely full, allow space for
fuel to expand.
Immediately replace fuel cap and tighten. Wipe off
spilled fuel and allow to dry before starting engine.
Assembly
To attach auger to powerhead, align hole at the top"of the •
auger shaft with the output shaft hole. Insert bolt and
secure bolt with provided nut or alien wrench depending
on size of auger.
NOTE:The ends of the bolt should be flush with
auger collar. Bolt head and thread end should never
go beyond earth collar.
Starting and
-
Stopping Engine
1. Move engine to a well ventilated area, outdoors, to
prevent carbon monoxide poisoning.
Z Move to an area away from fl&nes or sparks, to avoid
ignition of vapors if present.
Remove all debris from air cleaner holes and fuel cap
to ensure proper air flow.
Turn switch to the
ON position.
Priming:
When using the primer bulb, allow the bulb to return
completely to its original position between pushes. -
- • Choke must be in'the
OFF or RUN
position when
pushing of u‘Sirt the brinier
. billb. 7

Earthquake ,
OPERATION
First Start:
Starting new engine for first time or after
running out of gas, prime 3 times.
Cold Start:
Starting engine after it has been sitting or
stored briefly with fuel in the tank, prime 1 time above 55°
Farenheit or 2 times below 55° Farenheit.
Warm Start:
Do not use primer or full choke if engine did
not run out of gas or has not cooled completely. Flooding
of engine will occur.
6.
Choke:
Full choke
position is defined by moving the choke
lever as far to the ON or CHOKE
position as possible.
Half choke
is defined when the choke lever is between
ON or CHOKE and OFF or RUN.
First Start & Cold Start:
After priming, move choke lever
to full choke.
Warm Start:
No choke or half choke is needed.
A
CAUTION
Avoid injury! Starter rope can cause an
unanticipated jerk towards engine. Please follow
instructions to avoid injury.
Grasp starter handle and pull out slowly, until it pulls
slightly harder. Without letting it retract, pull rope with a
rapid full arm stroke. Let it return to its original position
very slowly. Repeat this step everytime the starter rope is
pulled.
Pull recoil until engine fires or runs.
NOTE: If engine fails to start after 5-6 pulls, push
primer 1 time and pull starter rope again.
After engine starts running, move choke lever to
HALF CHOKE.
Run engine for 30 to 45 seconds at half choke
position until engine warms up.
Move choke lever to
OFF or RUN
position and move
throttle to desired speed.
A
CAUTION
Avoid injury! If engine fails to start after the above
operations, please contact Ardisam, Inc. at 800-345-
6007.
DO NOT attempt to start engine in the following
ways:
DO NOT use starting fluid.
DO NOT spray flammable liquids or vapors into air
cleaner, carburetor or spark plug chamber.
DO NOT remove spark plug and pull on starter
rope. Flammable fuel can spray out & ignite from a
spark from spark plug.
A
CAUTION
Avoid injury! Never leave engine running while
unattended.Turn off after every use.
A
CAVTION
Avoid injury! Never carry powerhead and auger
between holes while engine is running.
Normal Operation
The clutch will transfer maximum power after about
two hours of normal operation. During this break-in
period clutch slippage may occur. The clutch should be
kept free of oil and other moisture for efficient operation.
Dig holes without placing excessive body weight on
the unit. The auger operates most efficiently with a
shaving action caused by the weight of the unit itself.
Never run engine indoors. Exhaust fumes are deadly.
Using The Screw Type, Manual Venting Gas Cap
Your power earth auger is equipped with a screw type,
manual venting gas cap.
Before starting the engine, turn the screw in the top
of the gas cap two to three turns (counterclockwise) to its
venting position.
DO NOT turn the screw to the point
that it stops (4-5 turns counterclockwise).
To ensure
that gas will not spill during use, check that the gas cap is
screwed on tightly and the gas cap screw is in the
venting position.
After using the power earth auger and before putting
away or transporting it in a vehicle, screw the gas cap
screw on (clockwise) tightly. This will prevent gas from
leaking during storage. The gas cap will not leak gas
during storage if the gas cap is tight and the screw at the
top is tight.
1-800-345-6007
Page 7

IMPOI L . li s I tTANT
Never twist air fitters when cleaning. Always
press. ;

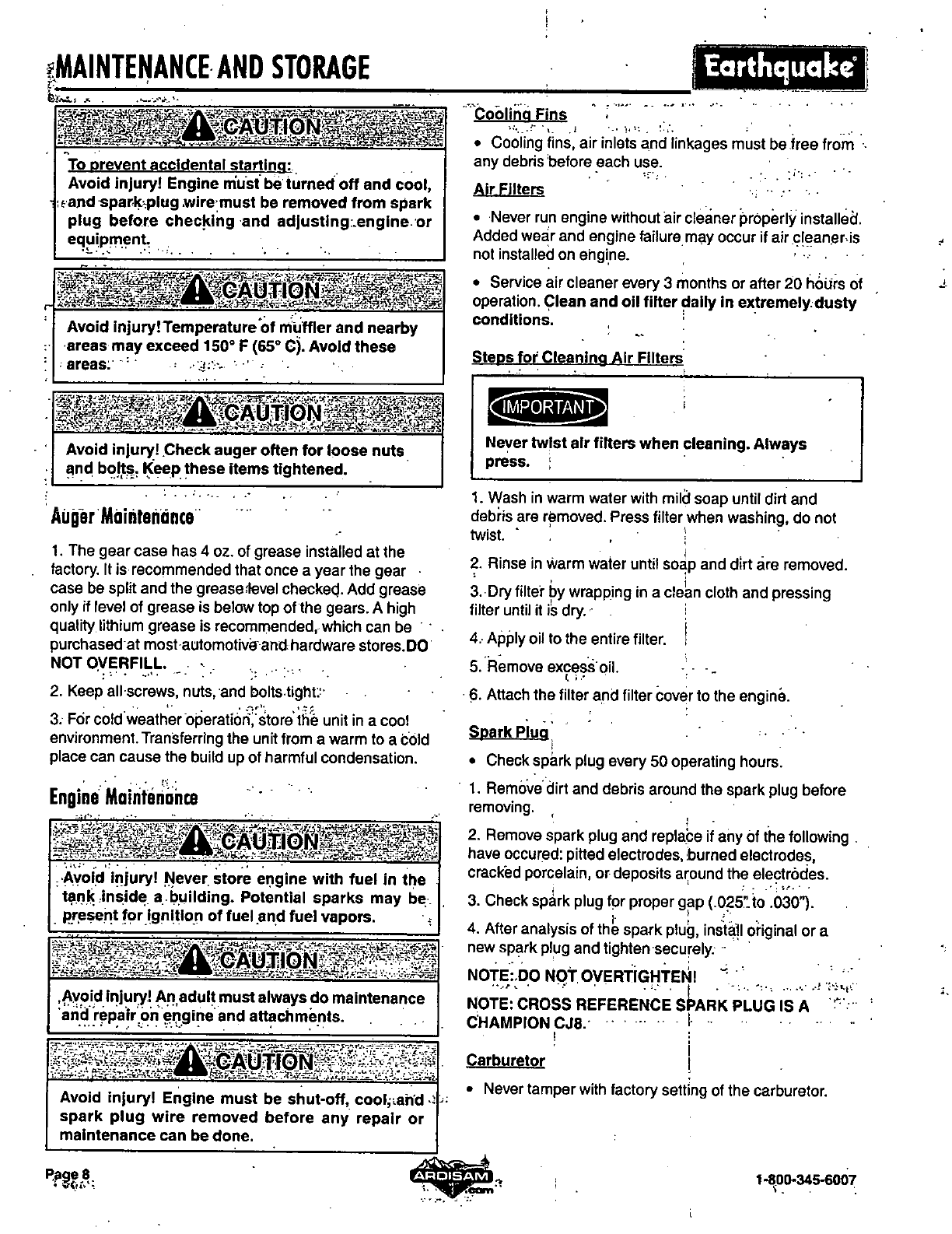

rMAINTENANCE AND STORAGE
Earthquake°
6'  Yki 
:v
— 
eipate:,sitisik
 .4.: 
.
To prevent accidental starting:
Avoid injury! Engine niust be turned off and cool,
le
and sparIcplug wire:must be removed from spark
plug before checking and adjustingLengine or
equipment.
6x -w-
Z..  'TIP
Avoid injury!Temperature of muffler and nearby
areas may exceed 150° F (65° C). Avoid these
- areas:  ' 
:  ; sr •..  '

..m-"s...., ,,,- .  W
4  71;_  20
 AST 1.
-s1 
1
Avoid injury! Check auger often for loose nuts
and bolfs. Keep these items tightened.
'AiifferMaintencince
.
The gear case has 4 oz. of grease installed at the
factory. It is recommended that once a year the gear
case be split and the grease:level checked. Add grease
only if level of grease is below top of the gears. A high
quality, lithium grease is recommended, which can be •
purchased -
at most automotive -
and hardware stores.D0
NOT OVERFILL.
Keep all screws, nuts, -
and bolts.tight: -
For coldweatherbPeratiori;atonithe unit in a cool
environment. Traftsferring the unit from a warm to a cold
place can cause the build up of harmful condensation.
Engine Maintenance
% 1

,
,
:
Avoid injury! Never store engine with fuel in the
tank :inside a building. Potential sparks may be
pyesegt for ignition of fuel And fuel vapors.
— 
_ 
1-4? 
, 
,
-fi.  --:  :- 
-
i--  .4 -
:
nci . 
esx
,  . 
•.-;,:., ?
: Avoid
injury! Anadult must always do maintenance
and repair on engine and attachments.
,
Avoid injury! Engine must be shut-off, cooLaild ..:
spark plug wire removed before any repair or
maintenance can be done.
_
Cooling Fins
Cooling fins, air inlets and linkages must be iree from •
any debris before each use.
Air. Filters
. 
.  . 
.
Never run engine without air cleaner properly installed.
Added wear and engine failure may occur if
air oleanerts
not installed on engine.
. 
.  .
Service air cleaner every 3 months or after 20 hours of ,
operation.
Clean and oil filter daily in extremely.dusty
conditions.
Steps for Cleaning Air Filters
Wash in warm water with mild soap until dirt and
debris are removed. Press filter when washing, do not
twist.
Rinse in Warm water until soap and dirt are removed.
3.. Dry filter by wrapping in a clam cloth and pressing
filter until it is dry.
4.• APPly oil to the entire filter.
5. Remove excesaoil.
6. Attach the filter and filter Cover to the engine.
Spark Plug
Check spkrk plug every 50 operating hours.
RemOvi dirt and debris around the spark plug before
removing.
Remove spark plug and replace if any of the following .
have occured: pitted electrodes, burned electrodes,
cracked porcelain, or deposits around the electrodes.
Check spa
!
rk plug for proper gap (.025"..to .0301.
After analysis of the spark plug, install original or a
new spark plug and tighten securely.
-
NOTE:DO NOT. Oy
E
RTIGHTENI
NOTE: CROSS REFERENCE SPARK PLUG IS A
CHAMPION CJ8.• • •
 •
Carburetor
Never tamper with factory setting of the carburetor.
1400-345-6007

:MAINTENANCE AND STORAGE
Transporting Your Earth Auger
Never transport engine inside an ericIpsed space or
vehicle. Fuel or fuel vapors may ignite causing seri9us
injury or death.
If fuel is present in the fuel tank, transport in an open
vehicle in an upright position.
If an enclosed vehicle must be used, remove gas into
an approved red gasoline ,container. DO NOT SIPHON
BY MOUTH.
Run engine to use up the fuel in the carburetor and
fuel tank. Always run engine in a well ventilated area.
Wipe away any spilled fuel from engine and earth
auger. Allow to dry.
Long Term Storage
If your earth auger will not be used for more tharione
month, prepare it for king term storage.
Steps for Long Term Storage
Add fuel stabilizer according to manufacturer's
instructions.
Run engine for 10-15 minutes to ensure that the
stabilizer reaches the carburetor.
Remove the remainder of the fuel from the gas tank
into an approved fuel container.
Avoid Injury! To avoid injury or death, never siphon
fuel by mouth.
Avoid injury! Never store earth auger with fuel in
the fuel tank inside an enclosed area or building.
Remove auger from powerhead and apply a thin layer
of grease to the output shaft (8913).
Store auger and powerhead (engine) in a vertical
position.
Remove all debris from auger and powerhead
1-890-345 7 6007
AROISAM
PageP.

TANT

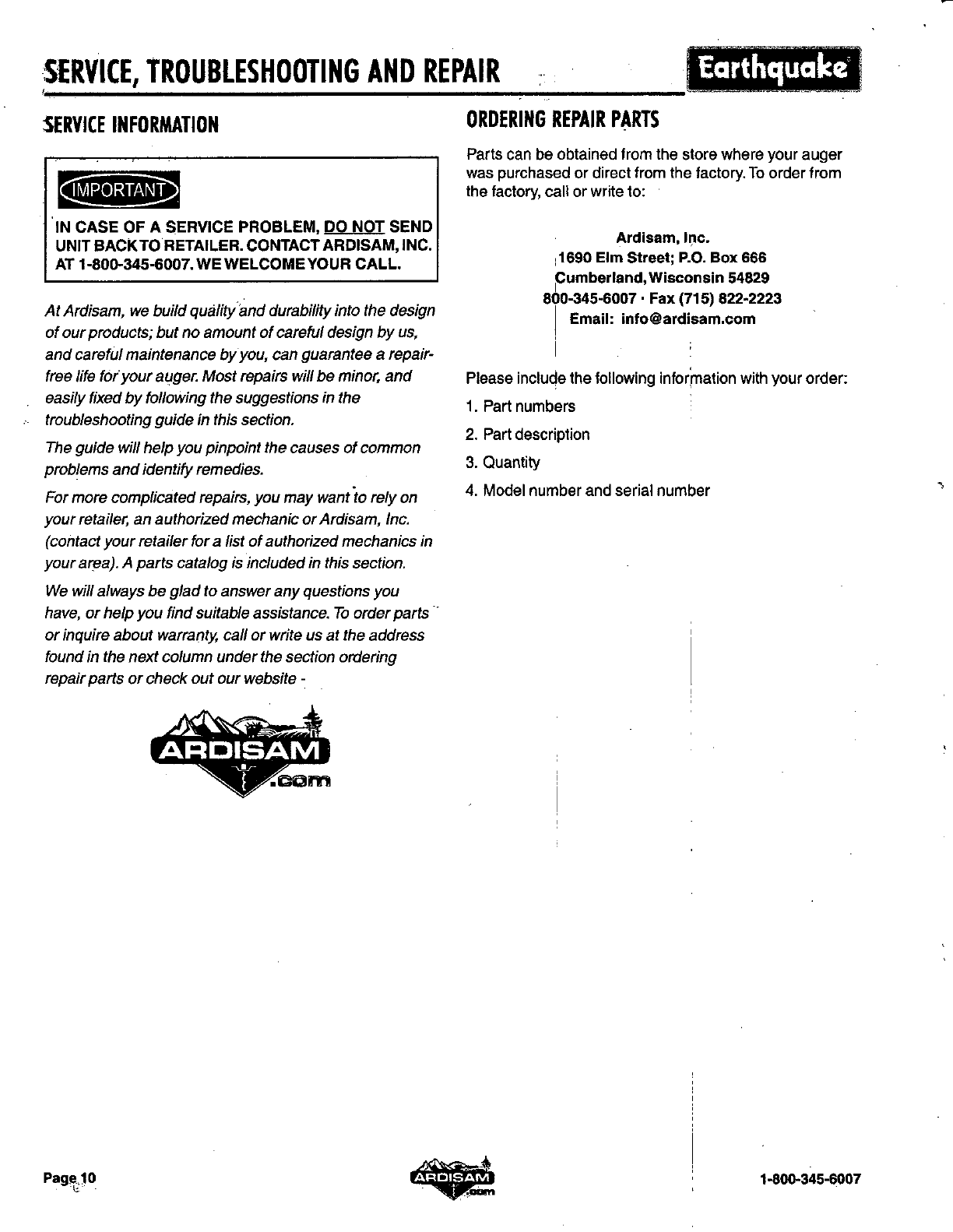

IN CASE OF A SERVICE PROBLEM, DO NOT SEND
UNIT BACKTO RETAILER. CONTACT ARDISAM, INC.
AT 1-800-345-6007. WE WELCOME YOUR CALL.
Earthquake
SERVICE, TROUBLESHOOTING AND REPAIR
SERVICE INFORMATION
At Ardisam, we build quality and durability into the design
of our products; but no amount of careful design by us,
and careful maintenance by you, can guarantee a repair-
free life for your auger. Most repairs will be minor, and
easily fixed by following the suggestions in the
troubleshooting guide in this section.
The guide will help you pinpoint the causes of common
problems and identify remedies.
For more complicated repairs, you may want to rely on
your retailer, an authorized mechanic or Ardisam, Inc.
(contact your retailer for a list of authorized mechanics in
your area). A parts catalog is included in this section.
We will always be glad to answer any questions you
have, or help you find suitable assistance. To order parts
or inquire about warranty, call or write us at the address
found in the next column under the section ordering
repair parts or check out our website -
ORDERING REPAIR PARTS
Parts can be obtained from the store where your auger
was purchased or direct from the factory. To order from
the factory, call or write to:
Ardisam, Inc.
1690 Elm Street; P.O. Box 666
Cumberland, Wisconsin 54829
800-345-6007 • Fax [phone]
Email: [email protected]
Please include the following information with your order:
Part numbers
Part description
Quantity
Model number and serial number
ARDISAM
Pagel°
1-800-345-6007

Practice safety at all times. Engine must be turned
off and allowed to cool, and spark plug wire must
be disconnected before attempting any
maintenance or repair.
SERVICE, TROUBLESHOOTING AND REPAIR
thquakte
TROUBLESHOOTING
Problern.

Possible cause

Remedy/Action
Engine will not start

1. Power switch off

1. Flip switch to on position
2. Spark plug wire disconnected

2. Connect spark plug wire to spark plug
Engine runs rough, floods during
operation
Dirty air cleaner
Choke partially engaged
Carburetor out of adjustment
Clean or replace air cleaner
Turn off choke
Call factory
Engine is hard to start
Stale fuel
Spark plug wire loose
Dirty carburetor
Drain old fuel and replace with fresh.
Use gas stabilizer at end of season
Make sure spark wire is securely
attached to spark plug
Clean carburetor, use gas stabilizer,
new gas can
. Engine misses or lacks power
Clogged fuel tank
Clogged air cleaner
Improper carburetor adjustment
Spark plug dirty, improper gap, or
wrong type
Remove and clean
Clean or replace
Call factory
Replace spark plug and adjust gap
Auger turns at idle 
1. Idle speed too high

1. Adjust idle speed lower
2. Broken clutch spring

2. Replace both springs
Auger turns, but has no power
Choke on
Carburetor out of adjustment
Broken transmission
Worn clutch shoes
Worn engine lower seal
Turn off choke after engine is running
Call factory
Call factory
Replace clutch shoes and springs
Call factory
Auger jumps

1. Blades damaged

1. Install new blades
1. Dull blades

1. Replace blades
Auger cuts slowly

2. Damaged fishtail point

2. Replace fishtail point
Engine runs, then quits

1. Gas cap not venting

1. Make sure gas cap screw is un
screwed 2-3 turns (counterclockwise)
before starting engine
Engine revs too high

1. Low fuel in tank

1. Add fuel to tank
1-86-3115t6bo7

arthquake
300439
300430
300429
300491
300445
300439
300444R
300444 -
300437
300480
300493
300475
4813-
300471j
4812 
300493
300471 
300492
300472
300484
300439
300445
300439
300401- . 
300471
300494
 300438
 300486
1021—\
300480
 300481
300498 
300489 47
30C454
300497
300488
300458
300479
 300457
300438
 300435
300478

300456
300477 
300455
BIK6A
300482
300483
300439
ai
300463 "
 --300439
300467
300467
3004110
300439
31:)°439
 t!!!)
300413
300449
300450
300412
300449
300450
E43 ENGINE PARTS LIST
Page 12
1-80o-345-6007

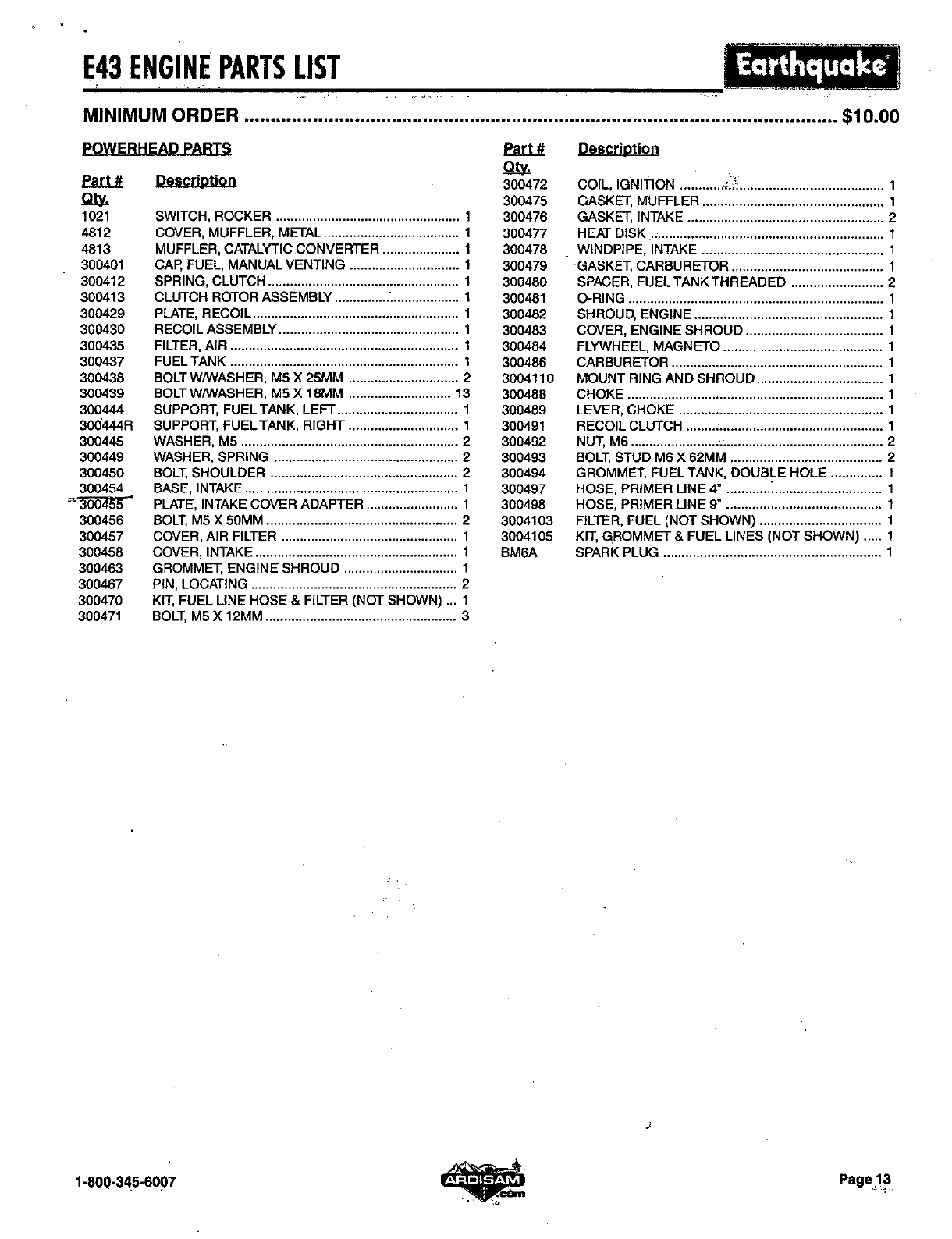

E43 ENGINE PARTS LIST
MINIMUM ORDER

$10.00
POWERHEAD PARTS Part # Description
Qty.
Part # Description
300472 COIL, IGNITION   1
300475 GASKET, MUFFLER  1
1021 SWITCH, ROCKER

1
300476 GASKET, INTAKE 
2
4812 COVER, MUFFLER, METAL 
1 300477 HEAT DISK 
1
4813
MUFFLER, CATALYTIC CONVERTER  1
300478 WINDPIPE, INTAKE  1
300401
CAP, FUEL, MANUAL VENTING 
1
300479 GASKET, CARBURETOR 
1
300412 SPRING, CLUTCH
 1
300480 SPACER, FUEL TANK THREADED 
2
300413 CLUTCH ROTOR ASSEMBLY 
1
300481 0-RING 
1
300429 PLATE, RECOIL  1
300482 SHROUD, ENGINE  1
300430
RECOIL ASSEMBLY  1
300483 COVER, ENGINE SHROUD  1
300435 FILTER, AIR  1
300484 FLYWHEEL, MAGNETO  1
300437
FUEL TANK  1
300486 CARBURETOR  1
300438 BOLT W/WASHER, M5 X 25MM  2
3004110 MOUNT RING AND SHROUD  1
300439 BOLT W/VVASHER, M5 X 18MM  13
300488 CHOKE
 1
300444 SUPPORT, FUEL TANK, LEFT  1
300489
LEVER, CHOKE  1
300444R SUPPORT, FUEL TANK, RIGHT  1
300491 RECOIL CLUTCH  1
300445 WASHER, M5  2 300492 NUT, M6

2
300449 WASHER, SPRING  2
300493 BOLT, STUD M6 X 62MM 
2
300450
BOLT, SHOULDER  2
300494
GROMMET, FUEL TANK, DOUBLE HOLE  1
300454 • BASE, INTAKE  1
300497
HOSE, PRIMER LINE 4"  1
300455 PLATE, INTAKE COVER ADAPTER
 1
300498
HOSE, PRIMER LINE 9"  1
300456 BOLT, M5 X 50MM  2
3004103
FILTER, FUEL (NOT SHOWN) 
1
300457
COVER, AIR FILTER  1
3004105
KIT, GROMMET & FUEL LINES (NOT SHOWN) 1
300458 COVER, INTAKE 
1
BM6A
SPARK PLUG 
1
300463
GROMMET, ENGINE SHROUD 
1
300467 PIN, LOCATING 
2
300470
KIT, FUEL LINE HOSE & FILTER (NOT SHOWN) ... 1
300471 BOLT, M5 X 12MM
 3
1-800-345-6007
Page 13

8924
9214
8923
300499
a
a 
8930B (4)
E43CC2
4811
4814
4809
1027F
300414
9814
8922
3004111
8923
8915
8912
8924
8922
8919
8939
8922
8913
8929
8931F(4)—_
1433, 2104
SM, 53684
1423(2),
WF516 (2),
60656 (2)
8980
EA2F, EA3F,
EA4F, EA6F,
EA8F, EA1OF
EBOLT (2)
ENUT (2)
EB4, EB6,
1
E88, EB10
8958HD, 8970
E43 PARTS LIST
Earthquake ;
Page 1'4
ARDISAM
1-800-345-6007

Earthquake'
E43 PARTS LIST
MINIMUM ORDER 
$10.00
POWERHEAD PARTS
atrUt
Description
Part # Description
1022
RING, ADAPTER 
1
8915
PIN, DOWEL 1/4"X 1/2", HARDENED STEEL
 1
(engine to handlebar plate)
8919 GASKET

1
1023 BOLT, M6 X 1 X 16MM
 4 8922
BALL BEARING 
3
(ring to engine)
8923
BALL BEARING 
2
1024F
HANDLEBAR 
1 8924 SNAP RING 
2
4800
THROTTLE HOUSING 
1 8929
BOLT-SHCS, 1/4-20 X 1-1/2" 
2
4802 SPRING, TRIGGER TORSION
 1 (gear case bottom to gear case top)
4803
PIN, CLEVIS, GROOVED 188 DIA 
1 8931F
BOLT-SHCS, 1/4-20 X 2" 
4
4804
E-CLIP 
1 (gear case to ring)
4806
TRIGGER, THROTTLE 
1 8939
GEAR CASE BOTTOM 
1
4807
SCREW-SOC HD CAP, 6-32 UNC X 1/2"
 1
8985
GEAR CASE TOP 
1
4808
THROTTLE BARREL (NOT SHOWN) 1
9214
48T & 10T PINION GEAR CLUSTER, LEFT THRD 1
4809
THROTTLE TRIGGER ASSEMBLY 
1 9814MM PINION GEAR, 7 TOOTH THREADED

1
(includes 4800, 4802, 4803, 4804, 4806,
4807, 4810) 300409
SPACER-DRUM 
1
CLUTCH DRUM 
1
4810
NUT NYLOK NM NYLON 6-32 ZN 
1 300414
4811 CABLE THROTTLE

1 300499 TRANSMISSION COMPLETE

1
8904WC
SCREW-PHILIPS PAN HD, #10 X 1-1/4"
1 E430C GAS ENGINE, 43CC 
1
8912 GEAR 44T 
1 IBE43 INSTRUCTION BOOKLET

1
8913
OUTPUT SHAFT 7/8" 
1
1-800-345-6007
ARDISAM Page 15

- 40
fica
h
.Raj te
;c05/ 4pthstoc-
e- A r -

Attaittie
d
Putiendb -
big 
-66 )
4612,4A
g talviAt
r i
zzAtti
inzet
Agazeiyfileada
1-2t
boat
yosp
eL l o
 -
Leefailtsh-et-i't 
!IA
A/NJ
T-e-tuA/sidtk zoa
1,9v saii

aatia
Earthquake, A Division of Ardisam, Inc.
1690 Elm Street, Cumberland, Wisconsin 54829
--rp4 uomatki

Phone [phone] • Fax [phone] • 800-345-6007
da
qgraf-A-N

Email: [email protected]
C ia
rink
ranick>"11-d %

"
66 - nig P
i
-91-vntaiulcuU
-94blaj
Ca&
1 3
'
gig a
Mai- )
Voo,67i'4Nz
Sg_D -
121)ei,
9o
z
yb _
be
r
a
,
,a44 1-1 ,
4
iddLz-i-kL ,tAt-e ,
d _41 , 4
,f ,JE,
