AREBOS AR-HE-PRAPP User manual

Original User Manual –AREBOS Robotic Pool Cleaner
1
Robotic Pool Cleaner
AR-HE-PRAPP
Please follow all security measures in this user´s manual to ensure a secure use.
Thank you for trusting in AREBOS.

Original User Manual –AREBOS Robotic Pool Cleaner
2
Table of Contents
1Introduction and safety instructions.........3
2Scope of delivery ......................................8
3 App Control...............................................9
4Operating the Robotic Pool Cleaner........ 10
5Maintenance and storage....................... 13
6Troubleshooting .....................................15
7Technical Data........................................16
8Environmentally friendly disposal...........17
EU Declaration of Conformity ....................18

Original User Manual –AREBOS Robotic Pool Cleaner
3
Thank you for purchasing our product. Please read the operating instructions carefully before using
the product for the first time. If you give the product to a third party, this manual must be handed
over with it. Keep the instruction manual for future reference. The drawings in this manual may
not match the physical objects. Please refer to the physical objects.
1Introduction and safety instructions
Introduction
•This instruction handbook is intended to familiarise you with the installation, use and
maintenance of the product. To install the unit safely and correctly, please read the operating
instructions before you start.
Explanation of the symbols
Warning! Read the safety instructions carefully. Failure to follow the safety
precautions could result in serious injury or damage. Keep the operating
instructions in a safe place.
Note! Pull out the mains plug.
Warning! Risk of electrical voltage!
Use with caution when using this article!
WARNING! This signal symbol/word indicates a hazard with a medium level of risk which, if not
avoided, may result in death or serious injury. injury if not avoided.
CAUTION! This signal symbol/word indicates a hazard with a low level of risk which, which, if not
avoided, may result in a minor or moderate injury. injury if not avoided.
Note! This signal symbol/word warns you of possible property damage.
This product must not be disposed of with household waste!
By means of a CE marking, it can be recognized that a product complies with
the legal requirements of European legal standards and therefore may be
traded within the European Community.

Original User Manual –AREBOS Robotic Pool Cleaner
4
Dear Owner: Thank you for choosing robotic pool cleaner. In order to achieve optimal performance,
please read and follow these steps:
1. Cleaner filter bags should be thoroughly cleaned after each use or as often as needed to ensure
cleaner’s optimal performance.
2. Before using your cleaner and especially when opening the pool for the first time remove
larger items from the pool that may diminish the cleaner’s performance. Clean filter bags
frequently when pool is excessively dirty.
3. Cleaner may stop in the middle of the pool and reverse during cleaning cycle. This is a normal
part of the programmed cycle.
4. DO NOT start cleaner out of the water. Power button should only be switched to "I" position
when unit is submerged. The unit will automatically shut off, but it is best to put power switch
in "O" position when unit completes cleaning.
5. The electric supply connection shall be made by a qualified electrician and comply with IEC
60364-1. It is recommended that the electric supply to this machine should include either a
residual current device that will interrupt the supply if the leakage current to earth exceeds 30
mA for 30 ms or a device that will prove the earth circuit.
6. The power supply box (including safety isolated transformer) of swimming pool cleaner must
be located at minimum 3.5 meters away from the pool edge and minimum 2.5 meters overtop
of top edge of pool (outside Zone 1 defined in IEC 60364-7-702).
7. The length of the supply cord of power supply box is maximum 0.5 meters.
CAUTION!
1. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without supervision.
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
3. The pump must be supplied through a residual current device (RCD) having a rated residual
operating current not exceeding 30 mA.
4. Do not operate the cleaner when people are in the pool.
5. CAUTION! The control box of the appliance must be fixed to the ground or the wall
securely! Never operate the unit without fixing the control box first!
6. CAUTION! The control box must be fixed at a minimum distance of 3.5m from the edge
of the swimming pool!"
7. CAUTION! The appliance is only to be used with the power unit provided with the
appliance.

Original User Manual –AREBOS Robotic Pool Cleaner
5
Important safety precautions
•Your safety is of the most importance to us. Please make sure that you read this instruction
booklet before attempting to install and use the appliance. If you are unsure of any of the
information contained in this booklet, please contact the Retailer where you purchased your
unit.
•WARNING! Read all safety and usage instructions. Failure to follow the safety information
and instructions can cause electric shock, fire and/or serious injury. Keep all safety and usage
instructions for future reference.
•DO NOT use the product until you read the instruction manual.
•Make sure you have read the instruction manual thoroughly and understand the contents
before you start the installation.
•The instructions are in the interest of your safety.
•WARNING! Danger of suffocation! Packaging material is dangerous for children. Never let
children play with packaging material.
Attention User: This manual contains important information that will help you in operating and
maintaining this pool cleaner. Please retain it for reference.
WARNING! Before installing this product, read and follow all warning notices and instructions
which are included. Failure to follow safety warnings and instructions can result in severe injury, death,
or property damage. Consumer Information and Safety service after installed, operated and
maintained according to the information in this manual. Be sure to read and comply with all of the
warnings and cautions.
DANGER!
Risk of electrical shock or electrocution
The electrical supply to this product must be installed in accordance with all
applicable local codes and ordinances. Improper installation will create an
electrical hazard which could result in death or serious injury to pool users or
others due to electrical shock and may also cause damage to property.
WARNING!
Do not play with cleaner or cable or apply to body. Can trap or tear hair or body
parts. Cable can trip or entangle swimmers which could result in drowning.
WARNING!
The control box of appliance must be fixed securely on the ground wall. Never
operate the unit without fixing.
WARNING!
To reduce the risk of injury, do not let children use or play with pool cleaner.
CAUTION!
Before installing the cleaner, understand cleaner coverage. The cleaner was not
designed to automatically clean steps or to work under a solar cover. It was also
not designed to do initial clean-up for a new pool installation.

Original User Manual –AREBOS Robotic Pool Cleaner
6
Important safety instructions
IMPORTANT SAFETY INSTRUCTIONS
The CLEANER automatic swimming pool vacuum cleaner has been manufactured with the highest
degree of care and concern for safety. We suggest the following safety precautions become part of
your pool safety regulations:
SAVE THESE INSTRUCTIONS
1. ALWAYS PUT THE MACHINE INTO THE WATER BEFORE CONNECTING IT TO THE ELECTRICAL
OUTLET.
2. ITIS IMPORTANT FOR SWIMMERS’ SAFETY TO REMOVETHE UNIT IMMEDIATELY FOLLOWING
USE. THIS CAN ALSO IMPROVE THE OPERATING LIFE OF YOUR CLEANER.
3. BE CERTAIN THE MACHINE IS ONLY PLUGGED INTO A GROUNDED ELECTRICAL OUTLET
EQUIPPED WITH AN APPROVED AND PROPERLY OPERATING GROUND FAULT CIRCUIT
INTERRUPTER (GFCI).
4. DO NOT HANDLE MACHINE WHILEIT IS PLUGGED INTO THE ELECTRICAL OUTLET.
5. DO NOT USE AN EXTENSION CORD. THIS COULD CREATE A SAFETY HAZARD AND/OR
DAMAGE YOUR CLEANER.
6. ALWAYS STAY OUT OF THE POOL WHILE CLEANER IS IN OPERATION.
7. NEVER ALLOW PLUG TO ENTER THE POOL.
8. DO NOT OPERATE THE MACHINE OUT OF WATER. THIS WILL DAMAGE THE MOTOR SEAL
AND VOID THE WARRANTY.
9. DO NOT DRAG THE MACHINE OUT OF THE POOL AGAINST THE SIDE WALL. THIS COULD
DAMAGE UNIT AND/OR YOUR POOL WALL.
10. DO NOT BURY CORD. REPLACE DAMAGED CORDS.
11. WARNING- TO REDUCE THE RISK OF INJURY, DO NOT PERMIT CHILDREN TO USE THIS
PRODUCT UNLESS THEY ARE CLOSELY SUPERVISEDAT ALL TIMES.
12. IF THE SUPPLY CORD IS DAMAMGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS
SERVICE AGENT OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD.
While the CLEANER has been made to operate as safely as possible, we suggest you exercise
reasonable care in the handling of the vacuum and inspect the electrical cord frequently for
damage or wear, as with any other electrical appliance. After use, remove the unit and rinse with
fresh water and remove any twists that may be present in the cord.
PREVENTATIVE MAINTENANCE
In order to maximize efficiency and receive long term service of your unit, we suggest the following:
•Thoroughly rinse entire unit after use.

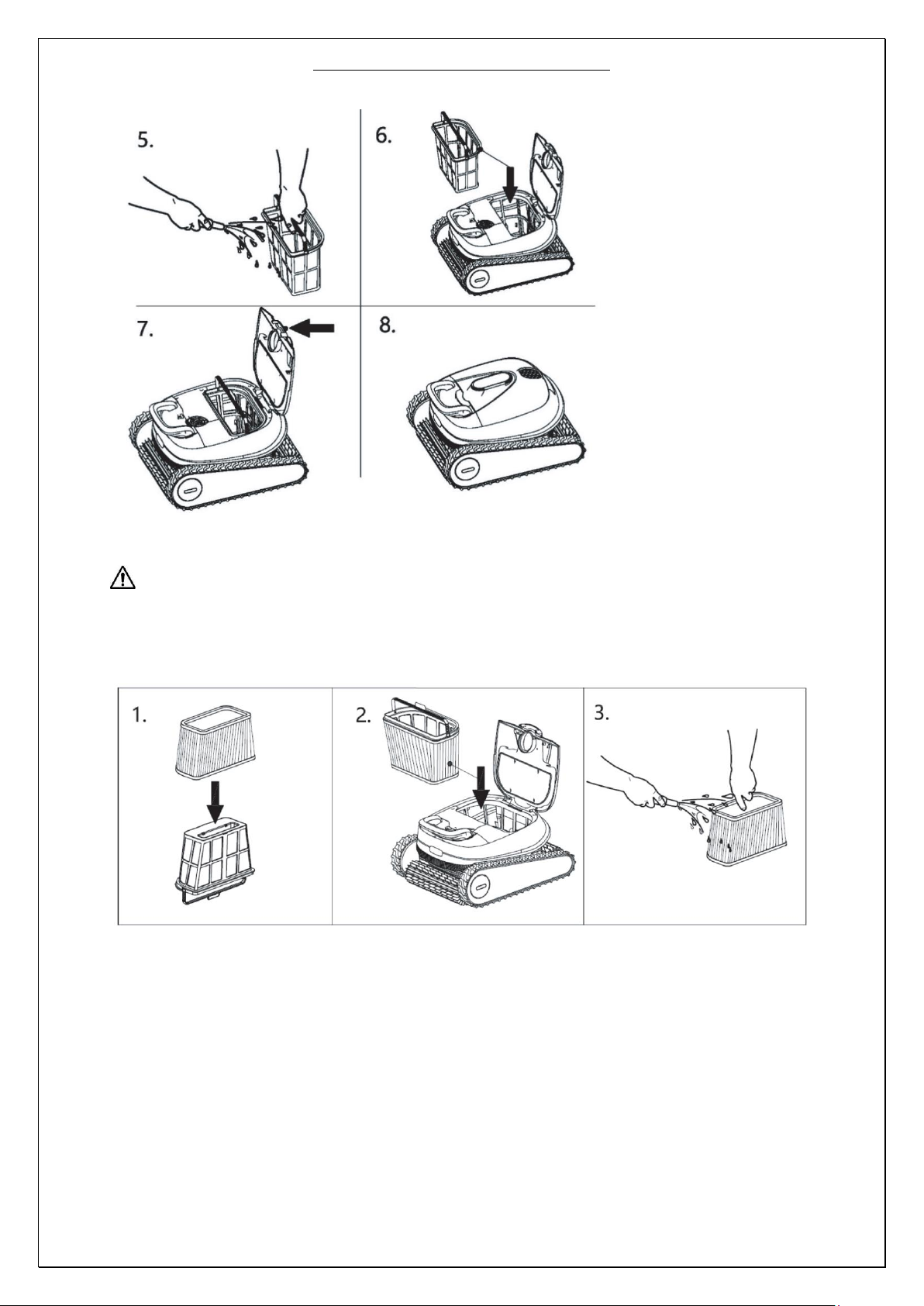

•Clean filter bags thoroughly after each use—a clogged filter can decrease efficiency
dramatically.
•Remove any twists in the cord after each use. Twisting should be minimal if the unit is
functioning properly. Laying cord, straightened out in sunlight is helpful.
•Avoid allowing the unit to “cool down” in the water.
•Inspect filter bags frequently. Replace when necessary.

Original User Manual –AREBOS Robotic Pool Cleaner
7
Further warnings and cautions
WARNING! Your cleaner should not be used while people are swimming in the pool. Do not allow
swimmers in the pool while pool cleaner is operating.
WARNING! Keep cleaner away from child or use under adult’s strict and close supervision.
WARNING! DO NOT switch ON the pool cleaner if it is not immersed in the water. Operating the
cleaner out of the water may cause severe damage and will result in loss of warranty.
WARNING! Always remember to turn the power supply OFF and unplug it from the power outlet
before removing the cleaner from the pool.
WARNING! DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.
WARNING! To use this cleaner only when water temperature is 10-35⁰C and depth of the pool is
0.5m-3m. The cleaner is designed to work for the pool with 100m² surface area.
WARNING! Keep the controller box in a dry place which is 3.5m away from the pool.
Product introduction
The cleaning robot is a kind of the underwater cleaner, it is fully automatically. It is mainly used to
clean the dirt and debris such as hair, leaves and sand from the pool floor, pool wall and waterline.
As long as you put it into the pool after initial program setting, the cleaning robot can automatically
measure the size of the pool, automatically design the working route and clean the pool by itself.

Original User Manual –AREBOS Robotic Pool Cleaner
8
2Scope of delivery
Parts breakdown and replaceable Parts List
1. Controller box components
10. Filter basket
2. Front-wheel -brush components
11. Counterweight group
3. Right gear group
12. Upper cover components
4. Guard plate (left & right)
13. Rear-wheel-brush components
5. Motorbox & Lampbox
14. Left gear group
6. Impeller
15. Drive belt
7. Water route
16. Base components
8 a. Floatable wire assembly
17. Roller assembly
8 b. Floatable wire assembly with anti-twist device
18. Water-retained plate
9. Paper filter

Original User Manual –AREBOS Robotic Pool Cleaner
9
3 App Control
You can easily operate the pool robot via an app.
You can download the app for free from Google Play or the App Store. To do this, enter "Cipu" in the
search bar and install the app.
Bluetooth connection:
1. Press Connect
2. In the next step, select the pool robot in the device list
You have the following settings:
Manual control
Steer the robot in the desired direction
or pause
Set the desired operating
mode
1. Bodenreinigung
to clean only the pool floor and to
increase cleaning efficiency.
2. All-purpose cleaning
Full cleaning, including pool floor; Pool
wall and waterline.
3. Waterline
for quick cleaning of the waterline.
Personal settings
Here you can make custom settings

Original User Manual –AREBOS Robotic Pool Cleaner
10
4Operating the Robotic Pool Cleaner
WARNING!
Your cleaner should not be used while people are swimming in the pool.
WARNING!
The electric supply connection shall be made by a qualified electrician and
comply with IEC 60364-1. It is recommended that the electric supply to this
machine should include either a residual current device that will interrupt the
supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that
will prove the earth circuit.
WARNING!
Do not allow swimmers in the pool while pool cleaner is operating.
DO NOT switch on the pool cleaner if it is not immersed in the water.
Operating the cleaner out of the water may cause severe damage and will
result in loss of warranty. Always remember to turn the power supply “O” and
unplug it from the power outlet before removing the cleaner from the pool.
GENERAL INFORMATION
Congratulations! You have got the most advanced automatic swimming pool cleaner. The robot is easy
to use and will help you cleaning your swimming pool. Operated according to this manual, your robot
will clean your pool quickly and effectively.
PLEASE READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE PUTTING
YOUR CLEANERINTO USE.
Deterioration, discoloration or brittleness of any pool finish can be caused over time separately by, or
in combination with, age, incorrect pool water chemistry, improper installation, and other factors.
Customer hereby disclaims any and all claims, and releases Manufacturer from any and all claims for
damages to any pool plaster or vinyl liner in Customer’s pool by reason of the use and/or operation of
the Cleaner. Under no circumstances shall the Manufacturer be liable for any loss or damage, whether
direct, consequential or incidental, arising out of the use or inability to use the cleaner in customer’s
pool.
FEATURES
•The swimming pool cleaner is independently scrubs, vacuums, and filters your pool.
•No installation, no attachments. Just drop it in and turn it on. It is completely automatic.
•Electronic Self-Diagnostics and overload Protection.
•It can be serviced in all shapes of pools.
GENERAL OPERATING INSTRUCTIONS
Remove the CLEANER by placing the carton down and removing it from the box as shown. If the Caddy
Cart is included, the CLEANER and the Power Supply will be premounted to the cart.

Original User Manual –AREBOS Robotic Pool Cleaner
11
Operation instructions
Brief introduction
1. Start/Stop
Could measure the pool size automatically and set the working cycle.
2. Mode of floor clean only
To only clean the pool floor to increase the clean efficiency
3. Mode of all purpose clean
All-around cleaning, including pool floor; pool wall and waterline.
4. Mode of waterline clean only
To quick clean waterline only.
5. Use App to control (not available for all models)
To control the cleaner by Bluetooth and clean the pool.
Operation instructions
1. Connect floating power cord.
2. Position the power supply so that it is approximately in the middle of the long side of the pool
at a distance of 3.5m /11.5ft. Fixation in the middle of longer side is recommended, if you have
a rectangle or oval shape pool.
3. Put the Pool Cleaner into the pool. Release the Pool Cleaner and let it sink to the floor of the
pool. Make sure that the floating cable is free of any obstructions.
4. Turn the power supply ON (230V AC 50HZ) in the position of I. One of the three modes light
will be on. Press the button for the mode you want to run, then press ON/OFF button, the Pool
Cleaner will now operate until it has reached the end of the cleaning cycle.
5. Mode switching: Press ON/OFF button, choose the mode, press ON/OFF button to start the

Original User Manual –AREBOS Robotic Pool Cleaner
12
cleaner.
6. Indicator lights %
LED
Light
Status
Indication
White
ON
Normal operation of the pool cleaner
White
Blinking twice
Work reversely after meeting obstacles
White
Always blinking
Bluetooth communication with the pool cleaner
or standby status
Red
ON
Overload or no-load protection
Let the cleaner sink to the floor of the pool, and
Press ON/OFF to start again.
CAUTION! When pulling the cable, reel it in hand-over-hand, DO NOT reel it around your arm.
The floating cable should be straight before and after work.
DO NOT ENTER THE SWIMMING POOL WHENTHE CLEANERIS OPERATING
The operating water temperature range for the CLEANER is 10°C - 35°C.
The operating depth of CLEANER is minimum 0,5m , maximum 3m.
Remove the CLEANER from the pool after each use. Keeping the CLEANER permanently in the pool may
result in additional service requirements.

Original User Manual –AREBOS Robotic Pool Cleaner
13
5Maintenance and storage
Routine Maintenance
1. Clean the filter basket
Turn off the Pool cleaner. Open the filter cover. Clean the filter basket with a hose. Insert the
clean filter basket and close the filter cover.

Original User Manual –AREBOS Robotic Pool Cleaner
14
Make sure the power supply is switched off and unplugged.
It is highly recommended to clean the filter basket after each cleaning cycle.
WARNING! Disconnect the power supply from electrical outlet before
cleaning moving parts.
2. Use of filter paper core
The filter paper core is a fragile part, which can filter particles below 100 µm, and its service life is less
than 72 hours. (The filter paper core can be used without affecting the performance of the robot, and
it is strongly recommended that the filter paper core be not used in the dirty swimming pool.)
3. Routine Maintenance of the floating cable
The floating cable may get twisted after 8 hours of continuous work, please untwist the cable then
before re-start the pool cleaner. After each use, roll up the cable so that it has no kinks.
Storage
When out of the water, store the CLEANER in a dry, shady location at temperatures between 4°C and
46°C.

Original User Manual –AREBOS Robotic Pool Cleaner
15
Cable Care
With continued use, the cable may become coiled (like a telephone cord). To correct this, periodically
stretching the cord out in the sun should remove any cord twists.
IMPORTANT: The cable should be checked periodically for any external damage.
Important Tips
•Cleaning the filter bags after every use maximizes the unit’s performance.
•Replace worn brushes.
•In a pool with usually high calcium content, more frequent cleaning of the filter is
recommended.
•Save the CLEANER original carton for extended storage or shipping requirements when
CLEANER require dealer service.
•The sealed Motor Unit and the Power Supply contain no user-serviceable parts.
•Opening them will automatically VOID your warranty.
•Remove items such as thermometer, toys and the like from the pool before operating the unit.
Such items can jam the cleaner and cause damage to the unit and/or your pool.
6Troubleshooting
Symptom
Possible reason
Corrective action
The pool cleaner moves but
does not clean the pool
Clogged filter basket
Clean the filter basket
The pool cleaner does not
move
An obstacle blocks the impeller
An obstacle blocks the drive belt
Unplug the power supply.
Open the impeller cover and
check that nothing is trapped
in the impeller. Verify that
nothing blocks the tracks or
wheels.
Debris out from the outlet
Filter basket is broken
Replace the filter basket
Filter basket is full
Clean the filter basket
The floating cable has kinks
Working for too long time, over 8
hours
Untwist the floating cable
before re-start.
Stop working
Overload or no-load protection
Let the cleaner sink to the floor
of the pool, and press ON/OFF
to start again.

Original User Manual –AREBOS Robotic Pool Cleaner
16
7Technical Data
Specifications
Product Model
AR-HE-PRAPP
Article Number
4260627428526
Product dimension
470 x 410 x 255 mm
Package dimension
680 x 450 x 390 mm
Product weight
Around 10.5 KG
Package weight
Around 18 KG
Cleaning area
All-around
Filtration accuracy
≥100µm
Length of floating cable
17m
Filter speed
14-18 m³/h
Output voltage
24V DC
Output current
4.5A
Input voltage
230V
Frequency
50Hz
Horsepower
150W
IP Class for controller box
IP54
IP Class for motor
IP68
We reserve the right to make technical and optical changes to the article in the course of product
improvements.

Original User Manual –AREBOS Robotic Pool Cleaner
17
8Environmentally friendly disposal
WARNING! Danger of suffocation! Packaging material is dangerous for children. Never let
children play with packaging material.
Disposal and packaging
•The packaging of your unit consists of materials that are necessary to guarantee effective
protection during transport. These materials are fully recyclable and therefore reduce the
environmental impact. Dispose of the packaging in a bin for recyclable materials.
Disposal of old equipment
•Old appliances must be disposed of in accordance with the guidelines and regulations of the
local waste disposal authority. Check with your local administration for the address of the
nearest recycling centre and deliver your appliance there.
The symbol of the crossed-out dustbin on a Waste electrical or electronic
equipment indicates that it must not be disposed of with household waste at
the end of its life. Collection points for waste electrical and electronic
equipment are available free of charge in your area. You can obtain the
addresses from your city or local government. You can find out about other
return options created by us on our website www.arebos.de.
The separate collection of Waste electrical or electronic equipment is intended
to enable the reuse, recycling or other forms of recovery of Waste electrical or
electronic equipment and to avoid the negative consequences of disposal on the
environment and human health.
Our customer service number: Tel. [phone]
Fax: [phone] / E-Mail: [email protected]
Office address: Canbolat Vertriebs GmbH • Gneisenaustraße 10-11 • 97074 Würzburg
Return address can be found in the imprint: https://www.arebos.de/impressum/
Sales tax identification number: DE 263752326
Registration court in the commercial register is Würzburg, HRB 10082
WEEE-Reg. No. DE 61617071

Original User Manual –AREBOS Robotic Pool Cleaner
18
EU Declaration of Conformity
We, the
Canbolat Vertriebsgesellschaft mbH
Gneisenaustraße 10-11
97074 Würzburg
Germany
declare in sole responsibility that the following product:
Brand
Product Name
Robotic Pool Cleaner
Product Model
Article Number
AR-HE-PRAPP
4260627428526
has been developed, constructed
and manufactured in compliance
with the requirements of the
European Directives:
2014/35/EU
2011/65/EU / 2015/863/EU
The object of the declaration described above is in conformity with the relevant European Union
harmonization legislation.
The assessment is based on the
following applied harmonized
standards:
EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019
+A14:2019+A15:2021
EN 60335-2-41:2003+A1:2004+A2:2010
EN 62233:2008
Other technical standards and
specifications applied:
Place and date of issue:
Würzburg, 21.10.2022
Signature:
Dipl.-Inform. (Univ.) Korhan Canbolat, Managing Director
If the device is modified without our consent, this declaration of conformity loses its validity.
