Arena Luci LC9182SZG-DIM User manual

LC9182SZG-DIM
User’s manual
Single color ZigBee remote controller
Please note that as part of Arena Luci's ongoing commitment to continuous product development, specications
are subject to change in the course of product improvement without notice. Arena Luci is not responsible for
damages resulting from improper or different use than expected.
This instruction manual contains important
information about the installation and use of the
projector. Please read and follow these
instructions carefully.
The security of this device is guaranteed only with
the proper use of the following instructions,
therefore they must be kept carefully.
Never install the device in locations easily
accessible by people who ignore the existence of
this user's manual and safety instructions.
Disconnect the unit from any power supply before
attempting any operation in contact or inside the
unit, and when not in use.
It is essential that each device is correctly earthed
and that electrical installation conforms to all
relevant standards.
Prior to connect the unit to the mains supply,
check the output voltage ts the technical
requirements on the label.
Never let the power cord come into contact with
other cables.
Never touch the electrical contacts, either directly
with your ngers, or indirectly by means of sharp
or metal objects.
Make sure that cables cannot cause trip hazard.
Do not attempt to dismantle and modify the unit.
Due to the high technological level of this unit, any
service maintenance should be performed by
specialised operators. Please contact your Arena
Luci dealer for any operation.
Always ensure that the structure to which you are
attaching the unit is secure and is able to support
the weight of each unit.
Do not allow contact with water or any other uids,
or metallic objects (IP 20).
Do not install the projector in areas of high
humidity. The unit is intended only for indoor
purposes.
Avoid installing the unit close to heat sources.
Allowed to be mounted directly on inammable
surfaces.
Install the unit where it can be easily aerated.
Do not use any solvent based cleaning agents.
Use only a soft, dry anti-static cloth.
The installation of LED modules (including power
supplies) should be done according to current
technical rules and regulations. The installation
should be performed only by a qualied operator.
Avoid contact with either corrosive agents or
humidity and moisture on delicate elements:
damages from corrosion are not refunded as
component defects.
WARNINGS

2/8
LC9182SZG-DIM
Function introduction
Important: Read All Instructions Prior to Installation
Bottom side
4.5V(3xAAA battery)
S1
S2
S3

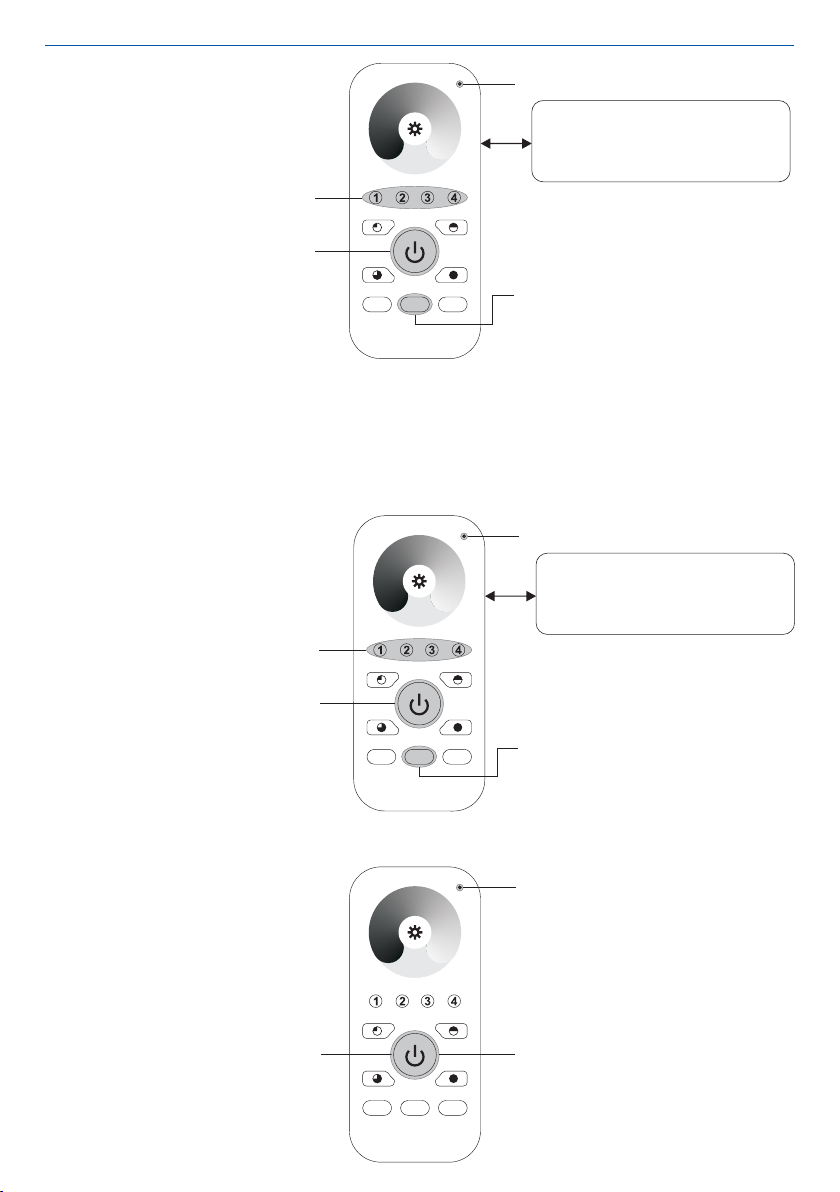

Front side
Indicator: indicate the
state of remote control
Touch color wheel, touch to select
brightness
Press and hold down to
increase/ decrease light intensity
75% brightness 100% brightness
25% brightness 50% brightness
Click to turn ON/OFF all groups
Press and hold down to save colors;
Click to recall the saved colors
Group numbers: click to choose
the group/groups, press and hold
down to turn on/off corresponding
group

3/8
USER’S MANUAL
Product Data
Operation
•This device contains AAA batteries that shall be stored and disposed properly.
• DO NOT expose the device to moisture.
Safety & Warnings
Protocol
Operation Voltage
Transmission Frequency
Transmission Range (free field)
Protection Type
Dimming Range
Dimension
Protection Grade
ZigBee 3.0
4.5V(3xAAA battery)
2.4GHz
30m
IP20
0.1%-100%
120x55x17mm
IP20

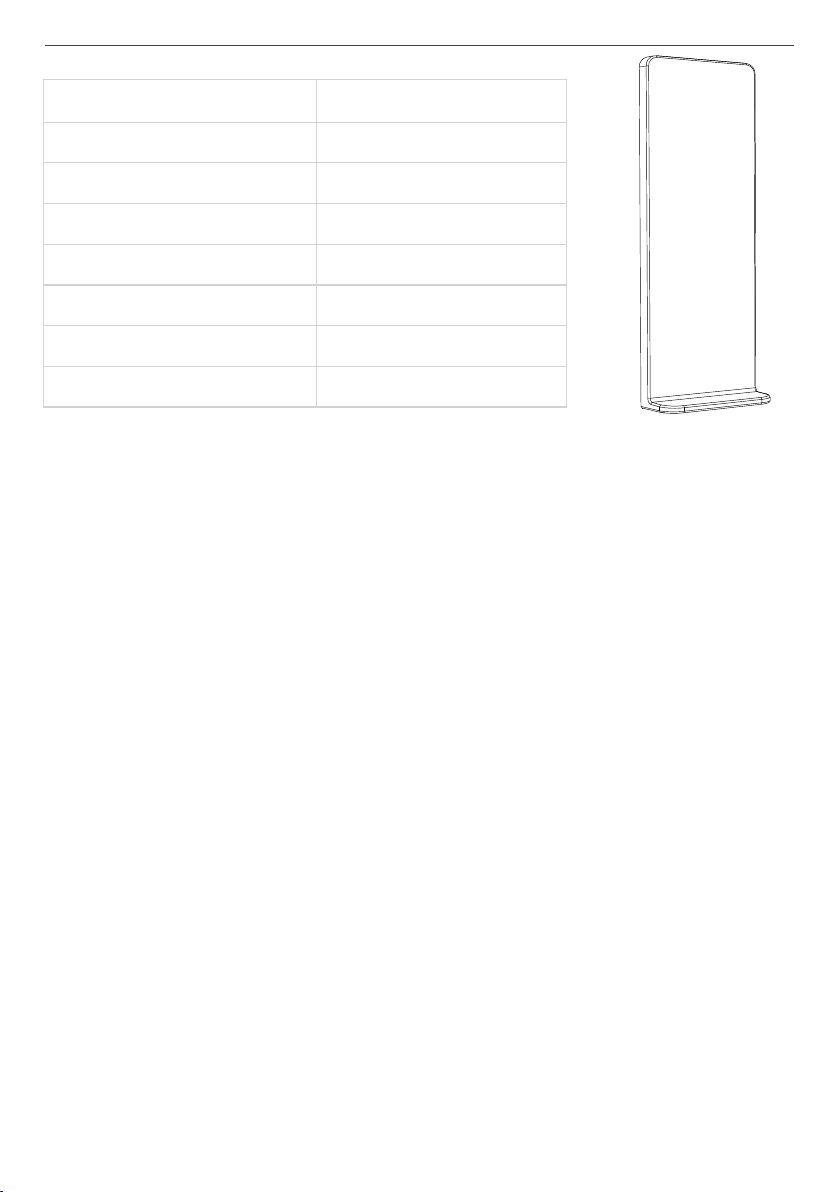

Magnetic Bracket
1.This ZigBee Dim remote is a wireless transmitter that communicates with a variety of ZigBee
compatible systems. This transmitter sends wireless radio signals that are used to remotely control a
compatible system.
2.This ZigBee remote supports 4 groups for binding max. 30 lighting devices and enables to control
single color ZigBee lighting devices.
•ZigBee Dim remote based on ZigBee 3.0
•Enables to control single color lighting devices
•High sensitive & high stable touch color wheel, fast & precise color control
•Battery powered remote with low power consumption
•Enables to pair ZigBee lighting devices through touchlink commissioning
•Supports find and bind mode to pair with ZigBee lighting devices
•Supports 4 groups for binding max. 30 lighting devices
•2.4 GHz global operation
•Transmission range up to 30m
•Compatible with universal ZigBee Gateway products
•Compatible with universal single color ZigBee lighting devices
ZigBee Clusters Supported by This Remote Are As Follows:
Input clusters:
•Basic •Power Configuration •Identify •Diagnostics
Output clusters:
•Identify •Group •Scene •On/off •Level control •Ota

4/8
LC9182SZG-DIM
S1
S2
S3
3. TouchLink to a Zigbee Lighting Device
Note:
1) If the remote control has already been used with the same lighting device before, TouchLink is not possible.
Reset both the remote control and lighting device to factory settings.
2) Directly TouchLink (both not added to a ZigBee network), each remote can link with 30 devices.
3) TouchLink after both added to a ZigBee network, each remote can link with max. 30 devices.
4) For Hue Bridge & Amazon Echo Plus, add remote and device to network first then TouchLink.
5) After TouchLink, the remote can control the linked lighting devices.
ZigBee Lighting Device
< 10cm
Step 1: Set the zigbee lighting device to
start TouchLink commissioning, please
refer to its manual to learn how.
LED indicator
Step 2: Bring the remote within 10cm of
the lighting device.
Step 3: Short press any button to
choose a group to touchlink.
Step 4: Press and hold down until LED
indicator turns on.
Step 5:Immediately short press to start
TouchLink commissioning of the remote.
LED indicator flashes fast for 3S, then
flash 6 times slowly to indicate successful
pairing to the device and the light
connected to the device will blink twice.
5. Factory Reset Manually
LED indicator
Step 2: Immediately short press 5 times
continuously, indicator flashes 3 times
quickly to indicate successful reset.
Step 1: Press and hold down until LED
indicator turns on.
Note: All configuration parameters
will be reset after the remote is reset
or removed from the network.
S1
S2
S3
4. Remove a Touchlink Paired ZigBee Lighting Device
ZigBee Lighting Device
< 10cm
Step 1: Set the Touchlink paired zigbee
device to start TouchLink
commissioning, please refer to its
manual to learn how.
LED indicator
Step 2: Bring the remote within 10cm of
the lighting device.
Step 3: Short press the group button
that the device was linked to.
Step 4: Press and hold down until LED
indicator turns on.
Step 5: Immediately short press twice to
start TouchLink removing of the remote.
LED indicator flashes fast for 3S, then
flash 6 times slowly to indicate
successful removing.
S1
S2
S3
After removal via TouchLink you can pair the same device again without restore the factory settings
of the remote control.

5/8
USER’S MANUAL
8. Factory Reset a Lighting Device (Touch Reset)
Note: the device shall be added to a network, the remote added to the same one or not added to any network.
ZigBee Lighting Device
< 10cm
Step 1: Set the zigbee device to start
TouchLink commissioning, refer to its
manual.
LED indicator
Step 2: Bring the remote within 10cm of
the lighting device.
Step 3: Press and hold down until LED
indicator turns on.Step 4:Immediately short press 5 times to
start Touch Reset of the remote.LED
indicator flashes fast for 3S, then flash 3
times slowly to indicate successful reset.
S1
S2
S3
7. Remove from a Zigbee Network through Coordinator or Hub Interface
From your ZigBee controller or hub
interface, choose to delete or reset
the remote as instructed, indicator
flashes 3 times quickly to indicate
successful removing.
6. Zigbee Network Pairing through Coordinator or Hub (Added to aZigbee Network)
LED indicator
Note: 1) After pairing successfully, the remote information will appear on the controller or hub interface.
2) No remote information will appear on the hub interface if pairing to Philips Hue Bridge.
Step 1: Remove the remote from
previous zigbee network if it has already
been added to it, otherwise pairing will
fail. Please refer to the part "Factory
Reset Manually".
Step 2: From your zigbee controller or
hub interface, choose to add device or
accessory and enter Pairing mode as
instructed by the controller.
Step 3: Press and hold down until LED
indicator turns on.
Step 4: Immediately short press to
search nearby network, indicator
flashes every 1 second, 20 seconds
timeout if there is no network. Indicator
will then blink 5 times quickly for
successful pairing.
S1
S2
S3

6/8
LC9182SZG-DIM
S1
S2
S3

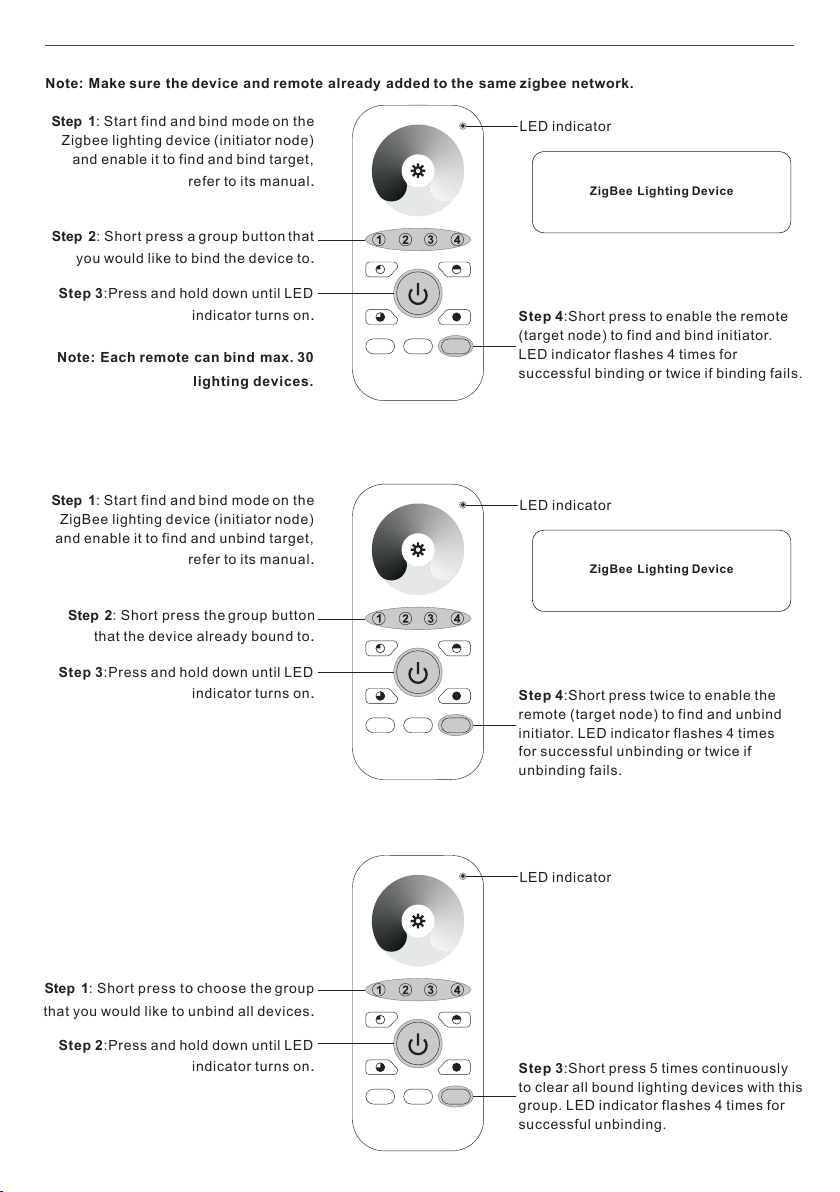

9. Find and Bind a Zigbee Lighting Device
10. Find and Unbind a Zigbee Lighting Device
11. Clear All Find and Bind Mode Paired Lighting Devices of a Group
ZigBee Lighting Device
Step 1: Start find and bind mode on the
Zigbee lighting device (initiator node)
and enable it to find and bind target,
refer to its manual.
LED indicator
Step 2: Short press a group button that
you would like to bind the device to.
Step 3:Press and hold down until LED
indicator turns on.Step 4:Short press to enable the remote
(target node) to find and bind initiator.
LED indicator flashes 4 times for
successful binding or twice if binding fails.
Note: Each remote can bind max. 30
lighting devices.
ZigBee Lighting Device
Step 1: Start find and bind mode on the
ZigBee lighting device (initiator node)
and enable it to find and unbind target,
refer to its manual.
LED indicator
Step 2: Short press the group button
that the device already bound to.
Step 3:Press and hold down until LED
indicator turns on.Step 4:Short press twice to enable the
remote (target node) to find and unbind
initiator. LED indicator flashes 4 times
for successful unbinding or twice if
unbinding fails.
Step 1: Short press tochoose the group
that you would like to unbind all devices.
LED indicator
Step 2:Press and hold down until LED
indicator turns on.Step 3:Short press 5 times continuously
to clear all bound lighting devices with this
group. LED indicator flashes 4 times for
successful unbinding.
Note: Make sure the device and remote already added to the same zigbee network.
S1
S2
S3
S1
S2
S3

7/8
USER’S MANUAL
S1
S2
S3

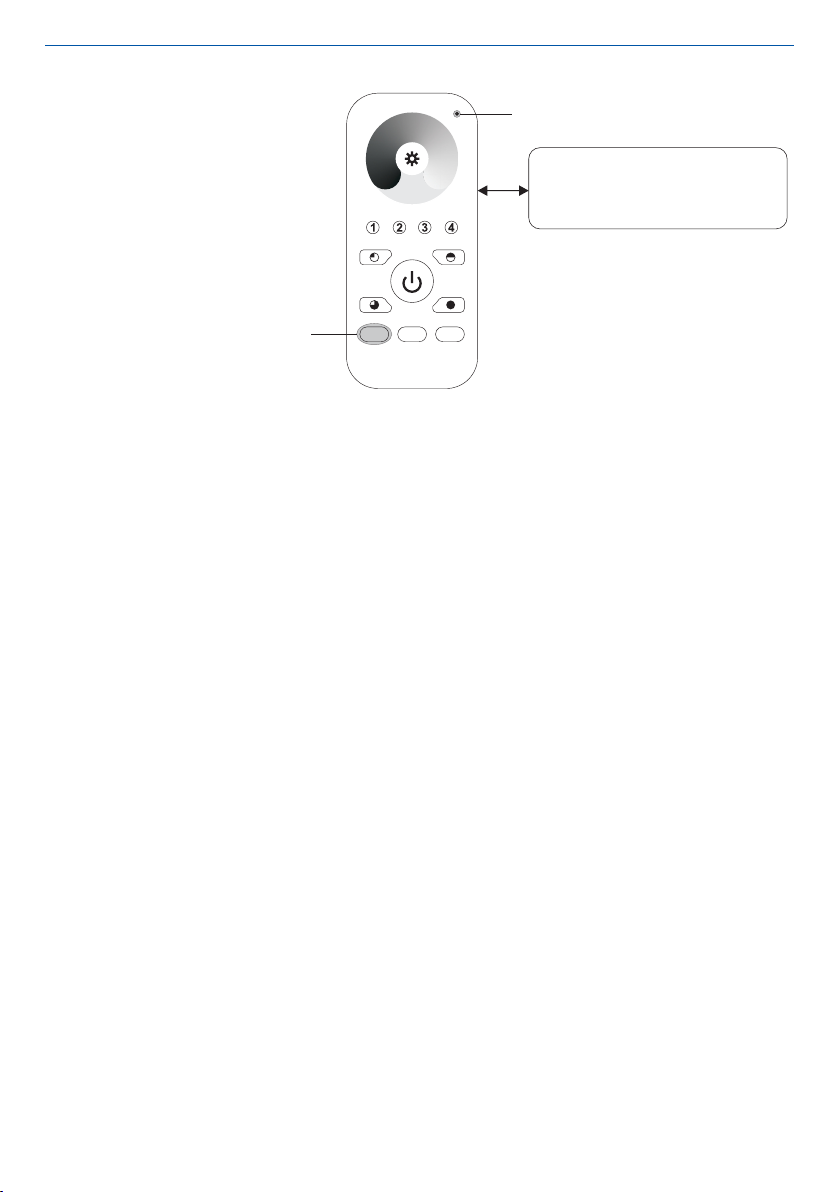

12. Setup a Network & Add Devices to the Network (No Coordinator or Hub Required)
Step 5: Add more remotes to the network as you would like.
Step 6: Factory reset the lighting devices that you would like to add to the network, refer to their manuals.
Step 7: Touchlink to pair the added remotes and lighting devices you would like to add, the devices will be added
to the network through Touchlink, refer to their manuals.
15. Battery Power Monitor Function
The remote will report battery power value to the coordinator under following situations:
• When powered on.
• When short pressing both S2 and S3 buttons simultaneously.
• When operating the switch to send data packets (over 4 hours since last operation).
• When added to the network by a coordinator.
14. How to Check Whether the Remote Belongs to a Network or not
Activate the remote by clicking All On/Off button (indicator on), then short press any other buttons except group
buttons, indicator blinking 3 times means the remote does not belong to any network, blinking once or twice
means it has already been added to a network.
ZigBee Lighting Device
< 10cm
Step 1: Factory reset the remote and
the lighting device,refer to their
manuals.
LED indicator
Step 2: TouchLink the remote and
device to setup a network, refer to their
manuals.
Step 3: Short press button S1 to enable
the network to discover and add devices,
LED indicator will flash twice. 180
seconds timeout, repeat the operation.
Step 4:Set another remote into network
pairing mode and pair it to the network,
refer to its manual.
13. OTA
The remote supports firmware updating through OTA, and will acquire new firmware from zigbee controller or
hub every 10 minutes automatically.

8/8
LC9182SZG-DIM
Arena Luci srl via Svizzera 12/14 46042 Castel Goffredo (MN), Italy
Tel. [phone] Fax [phone]
www.arenaluci.com [email protected]
Power supply
Signal
Intensity adjustment
Material
Color
Operating temperature
Dimensions
Protection
Suitable to be tted on normally inammable surfaces
Applied standards
4.5V DC (3 AAA 1.5V batteries)
Protocol ZigBee 3.0, 2.4 Ghz. Range 30m in free eld
0.1 ÷ 100%
Policarbonate
Black
0-40°C, humidity 8-80%
120x55x17 mm
IP20
TECHNICAL SPECIFICATIONS
LC9182SZG-DIM EN-R0 | 12/2020
WARRANTY CONDITIONS
The unit is guaranteed for 24 months from the date
ofpurchaseagainstdefectsinworkmanshipormaterials
that compose it.
This warranty does faults due to incorrect or improper
use of the device.
The warranty is immediately void if the unit has been
tampered with or opened by unauthorized personnel.
The warranty provides, at the discretion of Arena Luci,
repair or replacement of faulty equipment.
The serial number and model of the device are
required to obtain information or assistance from the
dealer. We invite you to transcribe them in time: for
any request of information or services, this will result
in a quick and effective operation.
CE RULES
The device meets the essential requirements of the
Directives LVD 2014/35/UE, EMC 2014/30/UE, RAEE
2012/19/UE, RoHS 2011/65/UE, Ecodesign
2009/125/CE reg. (UE) 1194/2012, Energy label
2010/30/UE reg. (UE) 874/2012 reg. (UE) 518/2014,
GPSD 2001/95/CE.
Warnings
Disposal of Old Electrical & Electronic Equipment
(applicable in the European Union and other European
countries with separate collection systems).
The product shall not be treated as household
waste but must be handed over to the
applicable collection point for the recycling of
electrical and electronic equipment. By
ensuring this product is correctly disposed, you will help
prevent potential negative consequences for the
environment and human health, which could otherwise
be caused by inappropriate waste handling. The recycling
of materials will help to conserve natural resources. For
more detailed information about recycling of this product,
please contact your city ofce, your household waste
disposal service or your supplier.
