Argent CD20SW0501 User manual

Brisbane
Level 3 / 18Wandoo Street
Fortitude Valley QLD 4006
Sydney
80 Abercrombie Street
Chippendale NSW 2008
Melbourne
198 Coventry Street
South Melbourne VIC 3205
Perth
Unit 1 / 40 Collingwood Street
Osborne Park WA 6017
Technical Advice
1800 356 717
Fax
1300 656 057
www.argentaust.com.au
STORE THIS
DOCUMENT
FOR YOUR
WARRANTY
RECORDS

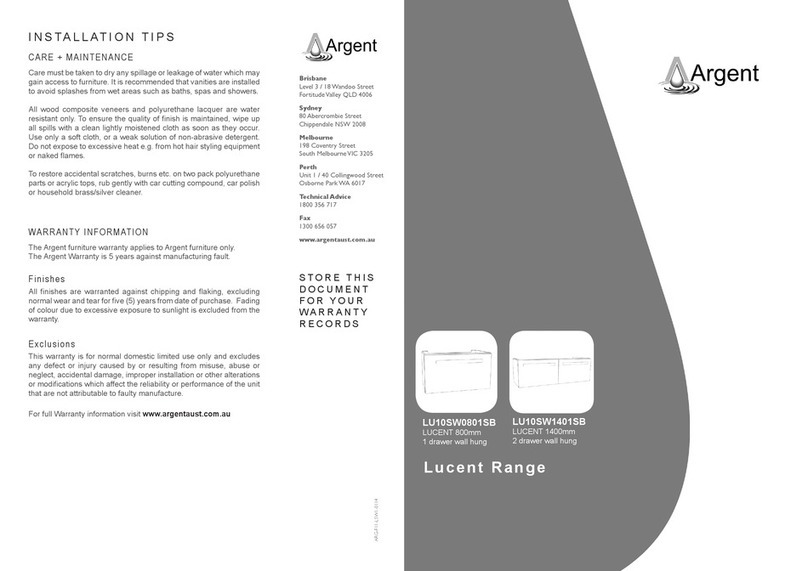

INSTALLATION TIPS
CARE + MAINTENANCE
Care must be taken to dry any spillage or leakage of water which may
gain access to furniture. It is recommended that vanities are installed
to avoid splashes from wet areas such as baths, spas and showers.
All wood composite veneers and polyurethane lacquer are water
resistant only. To ensure the quality of nish is maintained, wipe up
all spills with a clean lightly moistened cloth as soon as they occur.
Use only a soft cloth, or a weak solution of non-abrasive detergent.
Do not expose to excessive heat e.g. from hot hair styling equipment
or naked ames.
To restore accidental scratches, burns etc. on two pack polyurethane
parts or acrylic tops, rub gently with car cutting compound, car polish
or household brass/silver cleaner.
To restore accidental scratches, burns etc. on veneer parts, paint with
similar coloured wood restoration pens, let settle for one minute and
wipe off excess with soft cloth.
WARRANTY INFORMATION
The Argent furniture warranty applies to Argent furniture only.
The Argent Warranty is 5 years against manufacturing fault.
Finishes
All nishes are warranted against chipping and aking, excluding
normal wear and tear for ve (5) years from date of purchase. Fading
of colour due to excessive exposure to sunlight is excluded from the
warranty.
Exclusions
This warranty is for normal domestic limited use only and excludes
any defect or injury caused by or resulting from misuse, abuse or
neglect, accidental damage, improper installation or other alterations
or modications which affect the reliability or performance of the unit
that are not attributable to faulty manufacture.
For full Warranty information visit www.argentaust.com.au
Centra Range with Drawers
ARG-FII-CDSW-0114
CD20SW1001
Centra 1000mm
1 drawer wall hung
CD20DW1301
Centra 1300mm
2 drawer wall hung
CD20SW1301
Centra 1300mm
2 drawer wall hung
CD20SW0501
Centra 500mm
1 drawer wall hung
CD20SW0801
Centra 800mm
1 drawer wall hung

C
Ensure drawers are adjusted to sit square as
they may have moved during transportation.
Ensure runners are locked in place.
Drawer Release
Feel under the drawer for
release catches. Squeeze
catches, lift up and towards
you to release the drawer from
the runners.
Basin Sealing
2
1
3
IMPORTANT:
INSPECT THE FURNITURE
TO ENSURE NO DAMAGE
HAS OCCURRED DURING
TRANSIT.
IF DAMAGE HAS
OCCURRED, OR VISIBLE
DEFECTS EXIST, DO
NOT PROCEED WITH
INSTALLATION AND ADVISE
ARGENT IMMEDIATELY.
IMPORTANT:
USE ONLY bathroom
grade silicon sealant
Epoxy type glues
MUST NOT BE USED.
Put a bead of bathroom grade
silicon around the back edge
of the basin and where the
basin touches the wall. Do not
tighten the basin bolts to avoid
damaging the basin.
IMPORTANT:
IT IS NECESSARY TO SECURE THE
CABINET THROUGH THE SOLID
BACK BOARD INTO A SECURE
SUBSTRATE.
FOR CAVITY WALLS, CABINET MUST
BE SECURED THROUGH THE WALL
INTO EITHER WALL STUDS OR
NOGGINS.
FOR SOLID WALLS, SUITABLE WALL
PLUGS/FIXINGS WILL NEED TO BE
USED.
PRIOR TO INSTALLATION
Argent recommends a qualied trade
person fit your bathroom furniture.
Ensure your furniture is installed to
relevant building codes and Australian
Standards.
Please note, Argent will not be liable
for the cost of installation or removal
of the furniture and the warranty will be
voided if damage occurred during or
after installation.
MEASURE & MARK
Fit wall hung basin at required height
to secure stud or frame, ensure level.
Remove (1) drawer of cabinet and set
aside carefully.
Locate wall studs to secure cabinet.
Measure and mark fixing positions
for drilling. Fix through multiple studs/
noggins to ensure secure fixing, a
minimum of 6 xing positions is required.
For solid walls, use xings appropriate to
your wall substrate. Mark and cut holes
in the cabinet for hot and cold water
inlets and waste exit pipe as required.
See relevant specification sheet for
specic cut outs.
INSTALLATION
Fit the wall hung cabinet to the required
FITTING TAPWARE & WASTE
If tapware and waste are still to be tted, the drawer of cabinet can be
removed by pulling the clasps on the underside front towards the outer
edge of the drawer. Set the drawer aside carefully. Fit tapware and
waste to the basin.
Test to ensure there are no leaks.
Replace the drawer.
FIT OFF, ADJUST & FINISH
Replace drawer and adjust to ensure all square with the installed vanity.
Put a bead of bathroom grade silicon around the rear edge of the stone
top & or basin where they touch the wall & or the stone top for sealing .
height and location to studs and/or solid substrate, ensure the cabinet is level. The drawer of cabinet can be removed
by pulling the clasps on the underside front towards the outer edge of the drawer. Set the drawer aside carefully.
