Argus P-Type User manual

A1A-775897 Version 1, January 2013: 114027
www.argusdirect.com
thermal imaging from e2v

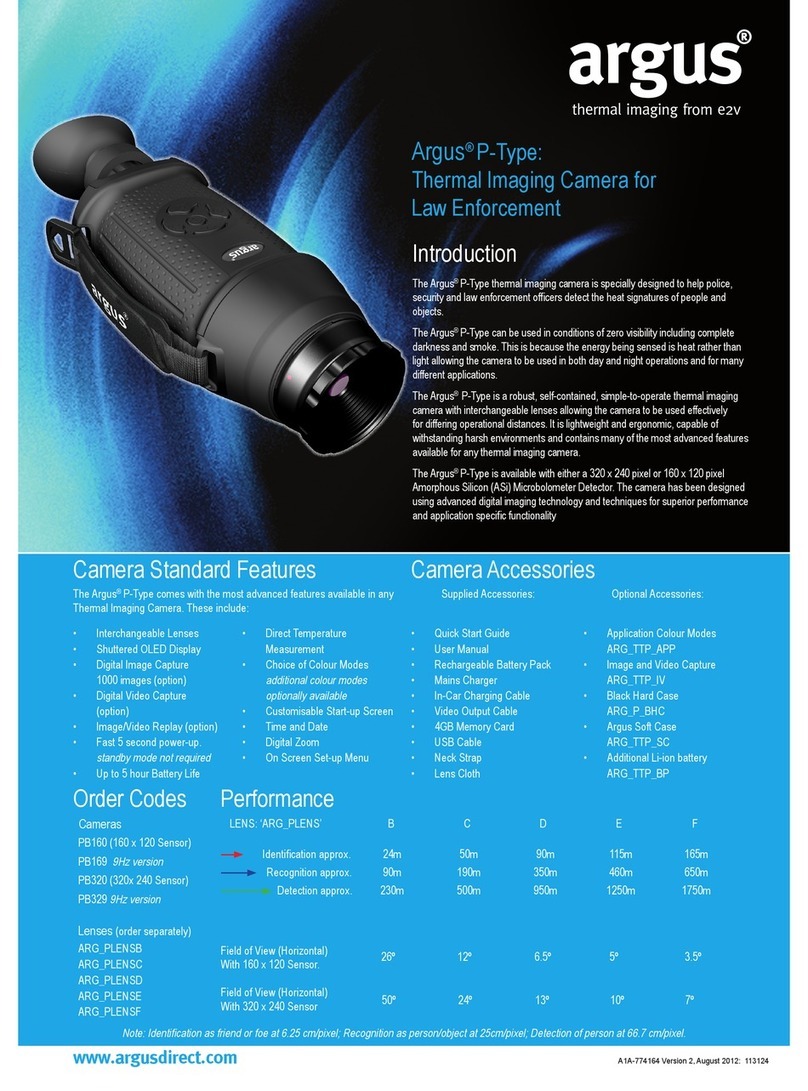

Argus® P-Type:
Thermal Imaging Camera for Marine
Navigation
The Argus® P-Type yellow thermal imaging camera is specically
designed for the Marine market with applications in mind such as
spotting other vessels and nding men overboard. Unique Argus colour
modes are also available that make the P-type a must have marine tool.
The Argus® P-Type can be used in conditions of zero visibility including
complete darkness and smoke. This is because the energy being
sensed is heat rather than light allowing the camera to be used in both
day and night operations and for many different applications.
The Argus® P-Type is a robust, self-contained, simple-to-operate
thermal imaging camera with interchangeable lenses allowing the
camera to be used effectively for differing operational distances. It is
lightweight and ergonomic, capable of withstanding harsh environments
and contains many of the most advanced features available for any
thermal imaging camera.
The Argus® P-Type is available with either a 320 x 240 pixel or 160
x 120 pixel Amorphous Silicon (ASi) Microbolometer Detector. The
camera has been designed using advanced digital imaging technology
and techniques for superior performance and application specic
functionality
Introduction
• Interchangeable Lenses
• Shuttered OLED Display
• Digital Image Capture
1000 images (option)
• Digital Video Capture
(option)
• Image/Video Replay (option)
• Fast 5 second power-up.
standby mode not required
• Up to 5 hour Battery Life
• Direct Temperature
Measurement
• Choice of Colour Modes
additional colour modes
optionally available
• Customisable Start-up Screen
• Time and Date
• Digital Zoom
• On Screen Set-up Menu
Camera Standard Features Camera Accessories
Supplied Accessories: Optional Accessories:The Argus® P-Type comes with the most advanced features available in any
Thermal Imaging Camera. These include:
Note: Identication at 6.25 cm/pixel; Recognition as person/object at 25cm/pixel; Detection of person at 66.7 cm/pixel.
Order Codes Performance
Cameras LENS: ‘ARG_PLENS’ B CD E F
PY160 (160 x 120 Sensor)
PY169
9Hz version
PY320 (320x 240 Sensor)
PY329
9Hz version
Lenses (order separately)
ARG_PLENSB
ARG_PLENSC
ARG_PLENSD
ARG_PLENSE
ARG_PLENSF
Identication approx.
Recognition approx.
Detection approx.
24m
90m
230m
50m
190m
500m
90m
350m
950m
115m
460m
1250m
165m
650m
1750m
Field of View (Horizontal)
With 160 x 120 Sensor.
Field of View (Horizontal)
With 320 x 240 Sensor
26º 12º 6.5º 5º 3.5º
50º 24º 13º 10º 7º
• Quick Start Guide
• User Manual
• Rechargeable Battery Pack
• Mains Charger
• In-Car Charging Cable
• Video Output Cable
• 4GB Memory Card
• USB Cable
• Neck Strap
• Lens Cloth
• Force Application Colour Modes -
ARG_TTP_AM_F
• Sport Application Colour Modes -
ARG_TTP_AM_S
• Specialist Application Colour Modes -
ARG_TTP_AM_SS
• Marine Application Colour Modes -
ARG_TTP_AM_M
• Image and Video Capture - ARG_TTP_IV
• Black Hard Case - ARG_P_BHC
• Argus Soft Case - ARG_TTP_SC
• Additional Li-ion battery = ARG_TTP_BP
Distributed BY: JAECO Fire & Safety, Phone: [phone], Fax: [phone], email: [email protected]

Optical Data
Detector
Sensor type Uncooled Microbolometer
Sensor material Amorphous Silicon (ASi)
Resolution 384 x 288 array (320 x 240 used) or 160 x 120
Pixel size 25 μm
Spectral response 8 – 14 μm
MDTD <100 mK Typical
Scan rate 60Hz (PY320), 120Hz (PY160)
Direct Temperature measurement
range
0ºC to 150ºC (32ºF to 300ºF)
Lens
Type BCD E F
Focal length 8.6 19 35 46 65
Aperture f/1.0 f/1.3 f/1.2 f/1.0 f/1.3
Horz. Field of View PY160 26º 12º 6.5º 5º 3.5º
Horz. Field of View PY320 50º 24º 13º 10º 7º
Material Germanium
Image Presentation
Display Type OLED Microdisplay
Pixel Format QVGA: 320 x 240 x RGB
Pixel Count 320 x 240 x 3 = 230,400 Pixles
Diopter Adjustment +2 to -4
Standard Colour Modes White hot, Black hot
Update rate PY160/320 30fps; PY169/329 9fps
Image Capture JPEG or RAW format, 1000 images
Video Capture AVI (MJPEG) format, approx. 0.2GB/hr
PY160/320 10fps; PY169/329 9fps
Electrical Data
Interfaces
Power 12VDC for use with supplied mains or vehicle adaptor
leads
Computer Mini-USB (USB2)
(USB Mass Storage Device)
Video Output NTSC 525 line 60Hz, EIA RS-170
PY160/320 30fps; PY169/329 9fps
Memory Card Compatible with MicroSD
Power
Power Consumption 3 W typical
Start-up time 5 seconds typical
Battery Type Li-Ion (DR5)
Battery Life Up to 5 hours
Battery Recharge Time 4 hours approx. in camera
3 hours approx. in external charger
Charging Temperature 0ºC to 40ºC (32ºF to 104ºF)
Alternative Battery (option) Lithium AA FR6 Primary x 4
Lithium AA Battery Life Up to 5 hours
External power/charging 100 - 240 VAC 50/60Hz or 12VDC (with vehicle adaptor)
Mechanical Data
Physical
Overall Dimensions 232mm x 93mm x 77mm
With B or C lens and cover tted. Excludes removable
eyecup & straps
Weight <0.95 kg (<2.1 lb) including battery.
B or C lens, straps and cover
Environmental
Operating Temperature -20ºC to +60ºC (-4ºF to 140ºF)
Long term storage -20ºC to +60ºC (Camera)
-10ºC to +50ºC (Li-ion battery)
Sealing Waterproof (IP65)*
Vibration EN 60721-3-2 Class 2M3.
EMC Emissions BS EN & AS/NZ 61000-6-3:2007
EN 50489:2010
FCC CFR 47 PART 15b:2010
ICES-003(2004) (Canada)
EMC Immunity BS EN 61000-6-2:2005
EN 50498:2010
RoHS Compliant
Safety IEC 60950-1 and related national standards
Warranty
24 - month warranty as standard (exclusions apply)
Camera Specication
Whilst e2v technologies has taken care to ensure the accuracy of the information contained herein it accepts no responsibility for the consequences of any use thereof and also reserves the right to change the specication of goods without notice. e2v
technologies accepts no liability beyond the set out in its standard conditions of sale in respect of infringement of third party patents arising from the use of tubes or other devices in accordance with information contained herein.
e2v technologies (uk) limited, Waterhouse Lane, Chelmsford, Essex CM1 2QU United Kingdom Holding Company: e2v technologies plc Telephone: [phone] Facsimile: [phone]
Contact e2v by e-mail: [e-mail] or visit www.e2v.com for global sales and operations centres.
© e2v technologies (uk) limited 2013
thermal imaging from e2vThermal Camera
*Connector cover tted, lens tted and battery cover closed.
Distributed BY: JAECO Fire & Safety, Phone: [phone], Fax: [phone], email: [email protected]

A1A-775898 Version 1, January 2013: 114027
www.argusdirect.com
thermal imaging from e2v
Argus® TT-Type:
Thermal Torch for Marine Applications
Introduction
The Argus® TT-Type yellow thermal torch is specically designed for
the Marine market with applications in mind such as spotting other
vessels and nding men overboard. Unique Argus colour modes
are also available that make the T-type a must have marine tool.
The Argus® TT-Type can be used in conditions of zero visibility
including complete darkness and smoke. This is because the
energy being sensed is heat rather than light allowing the camera
to be used in both day and night operations and for many different
applications.
The Argus® TT-Type is a robust, self-contained, simple-to-operate
thermal imaging camera with integrated torchlight. It is lightweight
and ergonomic, capable of withstanding harsh environments and
contains many of the most advanced features available for any
thermal imaging camera.
The Argus® TT-Type is available with either a 320 x 240 pixel or 160
x 120 pixel Amorphous Silicon (ASi) Microbolometer Detector and
a choice of lenses is available to suit the application. The camera
has been designed using advanced digital imaging technology.
and techniques for superior performance and application specic
functionality.
• Integrated Torchlight
• Dimmable LCD Display
• Digital Image Capture
1000 images (option)
• Digital Video Capture
(option)
• Image/Video Replay (option)
• Fast 5 second power-up.
standby mode not required
• Up to 5 hour Battery Life
• Direct Temperature
Measurement
• Choice of Colour Modes
additional colour modes
optionally available
• Customisable Start-up Screen
• Time and Date
• Digital Zoom
• On Screen Set-up Menu
Camera Standard Features Camera Accessories
Supplied Accessories: Optional Accessories:The Argus® TT-Type comes with the most advanced features available in
any Thermal Imaging Camera. These include:
Order Codes Performance
TY160A
TY169A (9Hz version) 160 x 120 Pixel sensor 50º Field of View
Identification approx 12m
Recognition approx 45m
Detection approx 115m
TY160B
TY169B (9Hz version) 160 x 120 Pixel sensor 26º Field of View Identification approx 24m
Recognition approx 90m
Detection approx 230m
TY320B
TY329B (9Hz version) 320 x 240 Pixel sensor 50º Field of View
TY320C
TY329C (9Hz version) 320 x 240 Pixel sensor 24º Field of View
Identification approx 50m
Recognition approx 190m
Detection approx 500m
Note: Identication at 6.25 cm/pixel; Recognition as person/object at 25cm/pixel; Detection of person at 66.7 cm/pixel.
• Quick Start Guide
• User Manual
• Rechargeable Battery Pack
• Mains Charger
• In-Car Charging Cable
• Video Output Cable
• 4GB Memory Card
• USB Cable
• Neck Strap
• Lens Cloth
• Force Application Colour Modes -
ARG_TTP_AM_F
• Sport Application Colour Modes -
ARG_TTP_AM_S
• Specialist Application Colour Modes -
ARG_TTP_AM_SS
• Marine Application Colour Modes -
ARG_TTP_AM_M
• Image and Video Capture - ARG_TTP_IV
• AA Battery Holder - ARG_TT_AA
• Black Hard Case - ARG_TT_BHC
• Argus Soft Case - ARG_TTP_SC
• Additional Li-ion battery = ARG_TTP_BP
Distributed BY: JAECO Fire & Safety, Phone: [phone], Fax: [phone], email: [email protected]

Camera Specication
Whilst e2v technologies has taken care to ensure the accuracy of the information contained herein it accepts no responsibility for the consequences of any use thereof and also reserves the right to change the specication of goods without notice. e2v
technologies accepts no liability beyond the set out in its standard conditions of sale in respect of infringement of third party patents arising from the use of tubes or other devices in accordance with information contained herein.
e2v technologies (uk) limited, Waterhouse Lane, Chelmsford, Essex CM1 2QU United Kingdom Holding Company: e2v technologies plc Telephone: [phone] Facsimile: [phone]
Contact e2v by e-mail: [e-mail] or visit www.e2v.com for global sales and operations centres.
© e2v technologies (uk) limited 2013
thermal imaging from e2v
Optical Data
Detector
Sensor type Uncooled Microbolometer
Sensor material Amorphous Silicon (ASi)
Resolution 384 x 288 array (320 X 240 used) or 160 x 120
Pixel size 25 μm
Spectral response 8 – 14 μm
MDTD <100 mK Typical
Scan rate 60Hz (TY320), 120Hz (TY160)
Direct Temperature measurement
range
0ºC to 150ºC (32ºF to 300ºF)
Lens
Type AB C
Focal length 4.3mm 8.6mm 19mm
Aperture f/1.0 f/1.0 f/1.3
Horz. Field of View TY160 50º 26º -
Horz. Field of View TY320 -50º 24º
Material Germanium
Image Presentation
Display Type High Grade Industrial colour TFT
Active Matrix LCD
Display Size 90mm (3.5 inch) Diagonal
Pixel Format QVGA: 320 x 240 x RGB
Pixel Count 320 x 240 x 3 = 230,400 Pixels
Backlight High Brightness dimmable
Standard Colour Modes White hot, Black hot
Update rate 30fps (TY-0); 9fps (TY--9)
Image Capture JPEG or RAW format, 1000 images
Video Capture AVI (MJPEG) format, approx. 0.2GB/hr
10fps (TY--0); 9fps (TY--9)
Torchlight
Type High performance power LED
Beam width 12º typical
Electrical Data
Interfaces
Power 12VDC for use with supplied mains or vehicle adaptor
leads
Computer Mini-USB (USB2)
(USB Mass Storage Device)
Video Output NTSC 525 line 60Hz, EIA RS-170
30fps (TY--0); 9fps (TY--9)
Memory Card Compatible with MicroSD
Power
Power Consumption 3 W typical
Start-up time 5 seconds typical
Battery Type Li-Ion (DR5)
Battery Life Up to 5 hours
Battery Recharge Time 4 hours approx. in camera
3 hours approx in external charger
Charging Temperature 0ºC to 40ºC (32ºF to 104ºF)
Alternative Battery (option) Lithium AA FR6 Primary x 4
Lithium AA Battery Life Up to 5 hours
External power/charging 100 - 240 VAC 50/60Hz or 12VDC (with vehicle adaptor)
Mechanical Data
Physical
Overall Dimensions 283mm x 91mm x 73mm
Hand Grip Diameter 164mm max
Weight <0.725 kg (1.6 lb) including battery
Environmental
Operating Temperature -20ºC to +60ºC (-4ºF to 140ºF)
Long term storage -20ºC to +60ºC (camera)
-10ºC to +50ºC (Li-ion battery)
Sealing Waterproof (IP65)*
Vibration EN 60721-3-2 Class 2M3.
EMC Emissions BS EN & AS/NZ 61000-6-3:2007
EN 50489:2010
FCC CFR 47 PART 15b:2010
ICES-003(2004) (Canada)
EMC Immunity BS EN 61000-6-2:2005
EN 50498:2010
RoHS Compliant
Safety IEC 60950-1 and related national standards
Warranty
24 - month warranty as standard (exclusions apply)
* Connector cover tted
Distributed BY: JAECO Fire & Safety, Phone: [phone], Fax: [phone], email: [email protected]
