Arista ALC-WM-DT-BT User manual

ALC-WM-DT-BT Dual Tech
Wall/Corner Mount Bluetooth
Occupancy Sensor
COMPLIANCE
This device complies with part 15 of the FCC. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC NOTE: The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this equipment.
Such modifications could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Important note: To comply with the FCC RF exposure compliance
requirements, no change to the antenna or the device is permitted.
Any change to the antenna or the device could result in the device
exceeding the RF exposure requirements and void user ’s authority to
operate the device.
This Class B digital apparatus complies with ICES-005 of Canada.
WARNINGS/SAFETY
WARNING
Risk of Fire or Electric Shock
• Turn OFF power at circuit breaker or fuse and test that the
power is OFF before wiring.
• To be installed and/or used in accordance with appropriate
electrical codes and regulations.
• If you are not sure about any part of these instructions, consult
a qualified electrician.
• Use this device only with copper or copper clad wire.
• INDOOR USE ONLY
NOTES: For Programming instructions please visit www.Intermatic.
com. The Arista App is available on Apple App and Google Play stores.
(Search for Arista by Intermatic)
RATINGS:
Voltage - 24 VDC, 25mA
Dry Location
Ambient Operating temperature - 0° - 55° C (32° - 131° F)
PIR Coverage - Up to 1200 ft²
US coverage up to 1000 ft²
Wiring Terminals are suited for 16-22 AWG wire with a maximum length
of 200 ft. 18 AWG solid wire is recommended.
PRODUCT OVERVIEW:

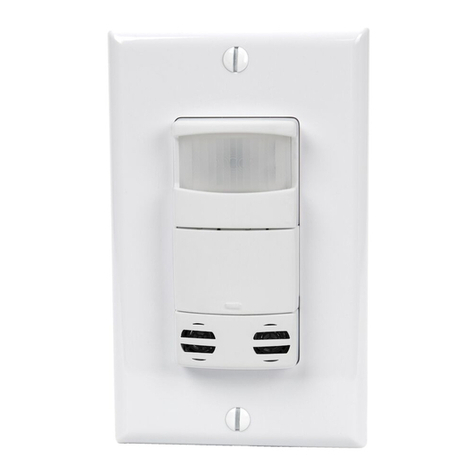

The ALC-WM-DT-BT is a Dual Tech (PIR and Ultrasonic) Sensor
designed for use with the ARISTA Lighting Controls System by
Intermatic and will control lighting based upon occupancy/vacancy.
If the space is configured for occupancy and movement is detected,
the sensor informs the ARISTA controller(s) in the space and the lights
will illuminate. The light will turn OFF after the sensors deem the room
vacant and the timeout period expires. If the space is configured for
vacancy, the ARISTA controller(s) in the space will only react when they
are manually activated. The lights will turn off after the ALC-WM-DT-BT
deems the space vacant and the timeout period expires.
INSTALLATION INSTRUCTIONS
NOTE: To be used with Class II low voltage wiring.
1

MOUNTING ADAPTOR
(CAN BE USED TO MOUNT TO
ANY SURFACE TO ALLOW
FOR PROPER COVERAGE)
SQUARE TO ROUND RING
Figure 2
24 V
DIN
COM
CONTROLLER
TERMINALS
24 VDC
DO
COM
TOP VIEW
(ft)0 5 10 2015 25 30 35 40 45
SIDE VIEW
0 5 10 20155101520 0369
(ft)
(ft)
PIR coverage
Ultrasonic coverage
Figure 1
Figure 3
RESET BUTTON
ADJUSTABLE
MOUNTING
SCREW
WIRING DIAGRAM AND MOUNTING OPTIONS
Select from the mounting options below.To wire the sensor to the ARISTA controller,
follow the wiring diagram seen in Figure 2 (communication wire is optional).
Wire from Terminal on ARISTA Controller To Terminal on Occupancy Sensor
24 VDC 24 VDC
COM (Common) COM (Common)
DI (Digital Input) DO (Digital Output)
NOTE: This unit must be powered from Intermatic ARISTA controllers.
Option 1 - Mount to a square to round drywall ring (see Figure 4)
NOTE: this will require the use of the surface mount adapter
1. Install 8/32 screws into the box leaving approximately 1/4” to 3/8” of
space between ring and screw head.
2. Install the mounting adapter to the electrical box. Only tighten screws
until snug. DO NOT OVER TIGHTEN.
3. Insert the sensor into the mounting adaptor. Twist and lock it into place.
Option 2 - Mount to a 4” octagon box (see Figure 5)
1. Loosen screws on the octagon box.
2. Install the mounting adapter to the electrical box. Only tighten screws
until snug. DO NOT OVER TIGHTEN.
3. Insert the sensor into the mounting adaptor. Twist and lock it into place.
MOUNTING ADAPTOR
(CAN BE USED TO MOUNT TO
ANY SURFACE TO ALLOW
FOR PROPER COVERAGE)
OCTAGON ELECTRICAL BOX
Figure 5
Figure 4
2
BLUE LED GREEN LED
RED LED
FRONT VIEW
(SHOWN WITHOUT LENS)

TROUBLESHOOTING
Symptom
During installation, the ARISTA Mobile App
can’t find the sensor when scanning for
devices in the area
• Verify power is supplied to the sensor
• Make sure the Blue LED is blinking slowly. If not, the sensor could already be provisioned into
another area. If this is incorrect, factory reset the device by pressing and holding the reset
button for more than 10 seconds
• Make sure the phone/tablet and sensor are within 30 feet of each other
Sensor is energizing the lights without motion
being detected in the space
• Verify zone configuration using the ARISTA Mobile App is correct
• Verify sensor configuration (i.e. – wired vs. wireless)
• Sensitivity may be set too high. Using the ARISTA Mobile App, lower the sensors sensitivity
setting
• Change mounting location
Sensor doesn’t detect motion when person
enters the space
• Verify power is supplied to the sensor
• If Blue LED is blinking slow, the sensor hasn’t been provisioned into the zone using the ARISTA
Mobile App and will not operate properly
• Verify the sensor is detecting motion by walking underneath the sensor and verifying the
Green LED blinks briefly
• Sensitivity setting may be set too low. Using the ARISTA Mobile App, increase the sensors
sensitivity setting
• Verify sensor configuration (i.e. – wired vs. wireless).
• Verify sensor configuration (i.e. – time delay)
• Change mounting location
Sensor’s Red LED is on solid • Replace Sensor
Sensor is de-energizing the lights while still
in the space
• Change mounting location
• Sensitivity setting may be set too low. Using the ARISTA Mobile App, increase the sensors
sensitivity setting
Sensor leaves the lights energized after
having left the space
• Verify sensor configuration (i.e. – time delay)
3

158--02101REF
LIMITED WARRANTY
Warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased or
(b) completing a warranty claim online at www.intermatic.com. This warranty is made by: Intermatic Incorporated, 1950
Innovation Way, Suite 300, Libertyville, IL 60048.
For additional product or warranty information go to: http://www.Intermatic.com or call 815-675-7000.
