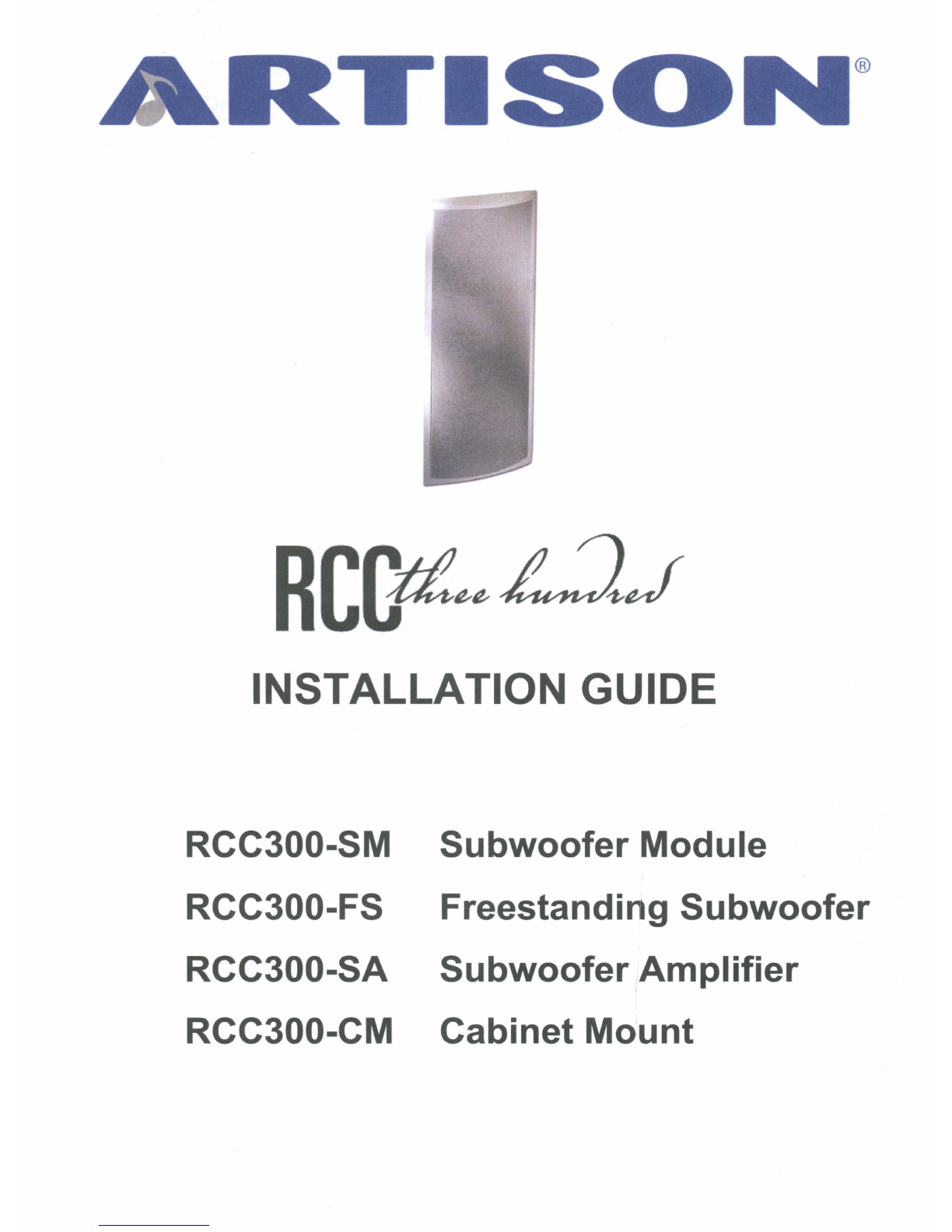

Ariston RCC300-SM User manual
®
INSTALLATION GUIDE
RCC300-SM
RCC300-FS
RCC300-SA
RCC300-CM
Subwoofer
Module
Freestanding
Subwoofer
Subwoofer
Amplifier
I
Cabinet
Mount
2
Thank you for choosing Artison's RCC 300 Subwoofer System. We are pleased
that you have selected our high-performance audio products.
INTRODUCTION
The following information will guide you through the installation and setup
of
your Artison
RCC 300 Subwoofer Module, RCC 300 Freestanding Subwoofer, RCC 300 Subwoofer
Amplifier and RCC 300 Cabinet Mount.
Your RCC300-SM carton should contain the following:
1 . RCC 300 Subwoofer Module
1 . RCC 300 Subwoofer Module Paint Shield
1 . RCC 300 Subwoofer Module Grille

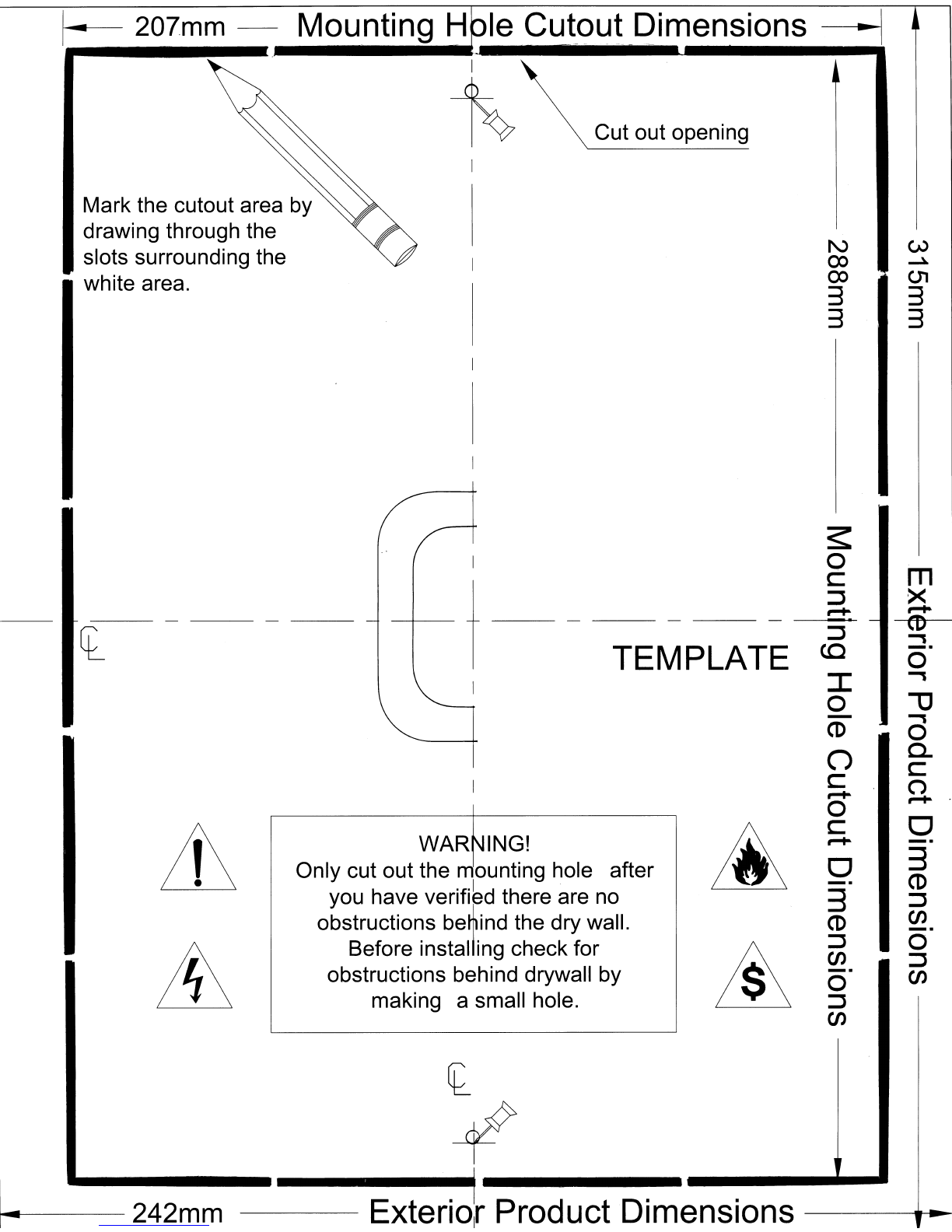

1 . RCC 300 Subwoofer Module Wall Cut-out Template
Your RCC300-FS carton should contain the following:
1 . RCC 300 Freestanding Subwoofer
1 . RCC 300 Freestanding Subwoofer Grille
4 . Rubber Feet
Your RCC300-SA carton should contain the following:
1 . RCC 300 Subwoofer Amplifier
1 . Automatic Room Mode Correction™(ARMC
TM)
Microphone Kit
2 . Rack-Mount Ears
6 . M3 Philips Head Rack-Mount Ear Screws
1 .
Ii
RU
Blank Rack Spacer
1 . Remote Control
1 . Detachable IEC Power Cord
Your RCC300-CM carton should contain the following:
1 . RCC 300 Cabinet Mount
1 . RCC 300 Cabinet Mount Cut-out Template
If you are missing any
of
these parts or if you need assistance during the
installation
of
your RCC 300 Subwoofer System, please contact Artison's
Customer Service Department during normal business hours, Pacific Time at (775)
833-4344.
3

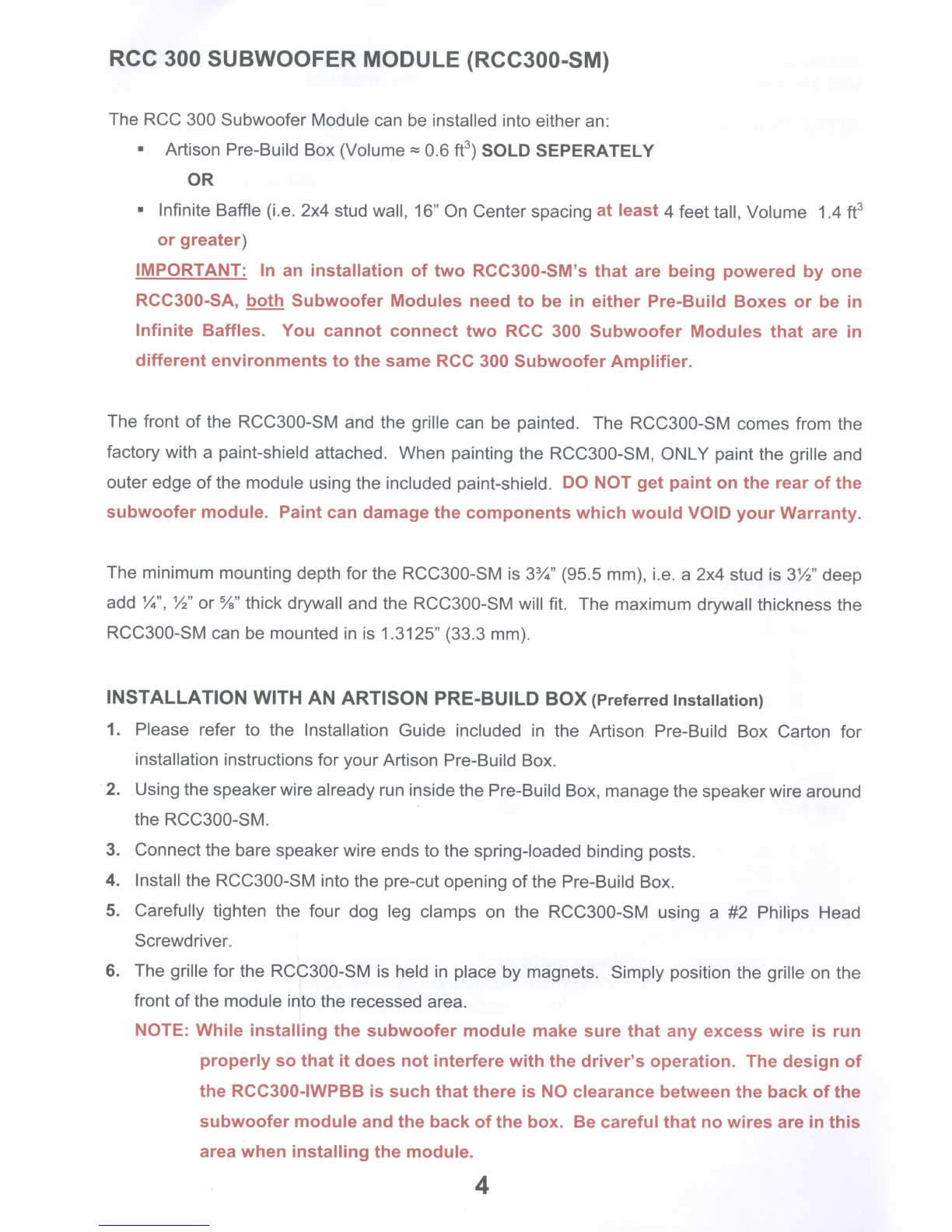

RCC 300 SUBWOOFER MODULE (RCC300-SM)
The RCC 300 Subwoofer Module can be installed into either an:
•Artison Pre-Build Box (Volume
::=
0.6
ft3)
SOLD SEPERATELY
OR
•Infinite Baffle (i.e. 2x4 stud wall, 16" On Center spacing
at
least
4feet tall, Volume 1.4
fe
or
greater)
IMPORTANT: In an
installation
of
two
RCC300-SM's
that
are
being
powered
by
one
RCC300-SA,
both
Subwoofer
Modules
need
to
be
in
either
Pre-Build
Boxes
or
be in
Infinite
Baffles.
You
cannot
connect
two
RCC 300
Subwoofer
Modules
that
are
in
different
environments
to
the
same
RCC 300
Subwoofer
Amplifier.
The front
of
the RCC300-SM and the grille can be painted. The RCC300-SM comes from the
factory with apaint-shield attached. When painting the RCC300-SM, ONLY paint the grille and
outer edge
of
the module using the included paint-shield. DO NOT
get
paint
on
the
rear
of
the
subwoofer
module.
Paint
can
damage
the
components
which
would
VOID
your
Warranty.
The minimum mounting depth for the RCC300-SM is 3%" (95.5 mm), i.e. a2x4 stud
is
3~"
deep
add
~",
~"
or %" thick drywall and the RCC300-SM will fit. The maximum drywall thickness the
RCC300-SM can be mounted
in
is
1.3125" (33.3 mm).
INSTALLATION WITH AN ARTISON PRE-BUILD BOX(Preferred
Installation)
1. Please refer to the Installation Guide included
in
the Artison Pre-Build Box Carton for
installation instructions for your Artison Pre-Build Box.
2. Using the speakerwire already run inside the Pre-Build Box, manage the speakerwire around
the RCC300-SM.
3.
Connect the bare speaker wire ends to the spring-loaded binding posts.
4.
Install the RCC300-SM into the pre-cut opening
of
the Pre-Build Box.
5.
Carefully tighten the four dog leg clamps on the RCC300-SM using a#2 Philips Head
Screwdriver.
6.
The grille for the RCC300-SM is held
in
place by magnets. Simply position the grille on the
front
of
the module i'lto the recessed area.
NOTE:
While
installing
the
subwoofer
module
make
sure
that
any
excess
wire
is
run
properly
so
that
it
does
not
interfere
with
the
driver's
operation.
The
design
of
the
RCC300-IWPBB
is
such
that
there
is
NO
clearance
between
the
back
of
the
subwoofer
module
and
the
back
of
the
box.
Be
careful
that
no
wires
are in
this
area
when
installing
the
module.
4
INSTALLATION
INTO
AN
INFINITE
BAFFLE
1. Use the provided Cut-out Template to mark the desired wall location. Be
sure
that
no
piping,
wall
studs,
or
electrical
wires
interfere
with
the
placement
of
the
RCC300-SM.
2. Once the hole is cut and the speaker wire
is
run, manage the speaker wire around the
RCC300-SM.
3.
Connect the bare speaker wire ends to the spring-loaded binding posts.
4. Install the RCC300-SM into the cut-out made
in
the wall.
5.
Carefully tighten the four dog leg clamps on the RCC300-SM using a#2 Philips Head
Screwdriver.
6.
The grille for the RCC300-SM is held
in
place by magnets. Simply position the grille
on
the
front
of
the module into the recessed area.
NOTE:
While
installing
the
subwoofer
module
ensure
any
excess
wire
is
run
properly
so
it
does
not
interfere
with
the
driver's
operation.
5
RCC 300 FREESTANDING SUBWOOFER (RCC300-FS)
SUBWOOFER PLACEMENT AND ORIENTATION
The RCC 300 Freestanding Subwoofer comes with four rubber feet to attach to the side
of
your
choice. Carefully decide what placement and orientation are best for the subwoofer, the
supplied rubber feet are not removable once applied. The classical rule for subwoofer
placement is that the subwoofer should be placed near the same wall the front channels are
located, at one-third
of
the total distance
of
the wall. When using multiple subwoofers, consult
with your dealer or custom installer for best placement options. This subwoofer
is
not affected by
cabinet orientation and can be used either vertically or horizontally. The normal vertical
orientation
is
with the terminal cup facing down. The rubber feet will allow clearance for the
speaker wire to fit underneath. Ifthe subwoofer
is
placed horizontally, the rubber feet should be
applied to the corresponding bottom side
of
the cabinet.
SUBWOOFER SETUP
The RCC 300 Freestanding Subwoofer
is
to be used
in
conjunction with the RCC 300 Subwoofer
Amplifier. On the rear
of
the amplifier
in
the SETUP section, the EQ switch should be set to the
CLOSED BOX setting.
SUBWOOFER GRILLE INSTALLATION
The grille for the RCC 300 Freestanding Subwoofer is held
in
place with magnets. Simply position
the grille
on
the front
of
the subwoofer into the recessed area.
6

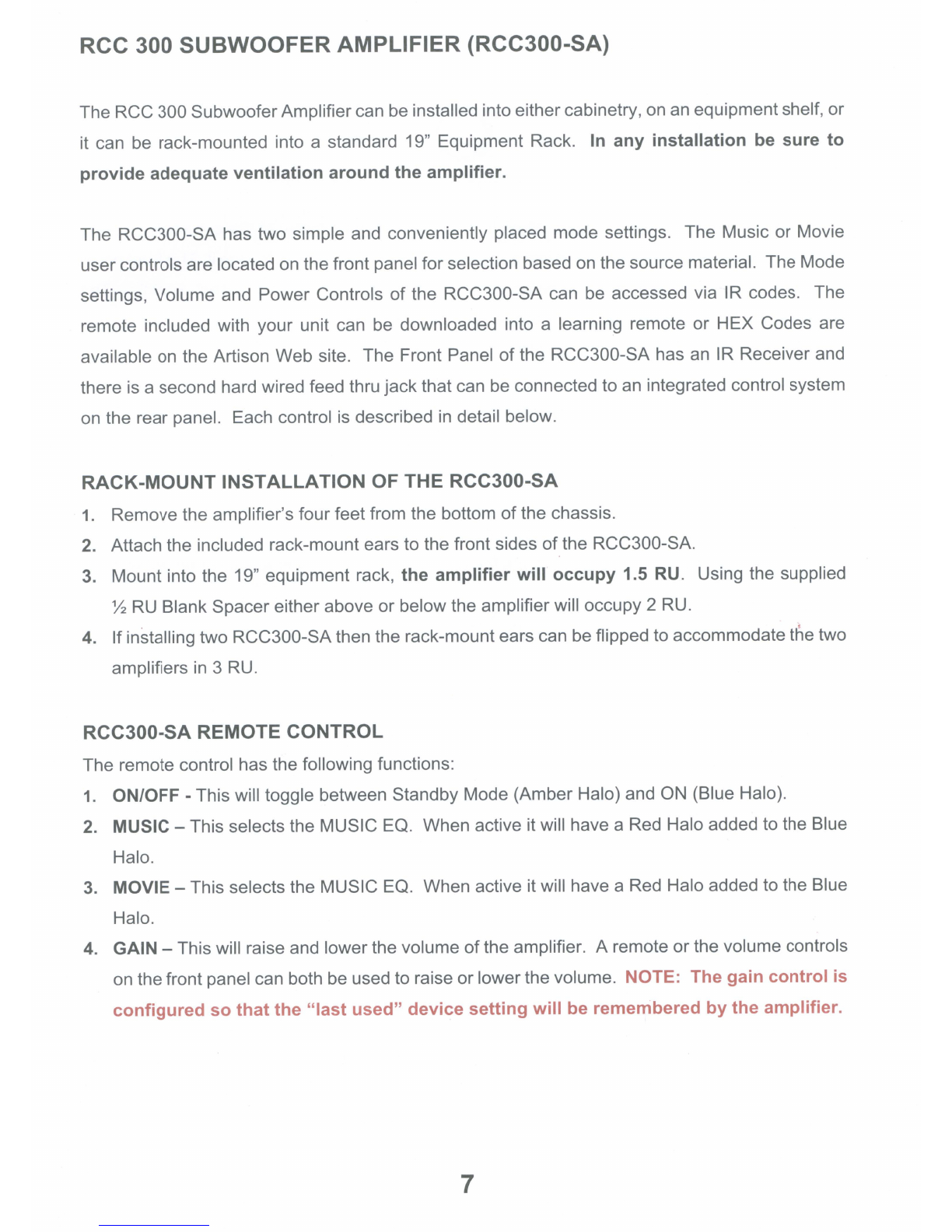

RCC 300
SUBWOOFER
AMPLIFIER
(RCC300-SA)
The RCC 300 SubwooferAmplifier can be installed into either cabinetry,
on
an equipment shelf, or
it can be rack-mounted into astandard 19" Equipment Rack. In
any
installation
be
sure
to
provide
adequate
ventilation
around
the
amplifier.
The RCC300-SA has two simple and conveniently placed mode settings. The Music or Movie
user controls are located on the front panel for selection based
on
the source material. The Mode
settings, Volume and Power Controls
of
the RCC300-SA can be accessed via IR codes. The
remote included with your unit can be downloaded into alearning remote or HEX Codes are
available
on
the Artison Web site. The Front Panel
of
the RCC300-SA has an IR Receiver and
there is asecond hard wired feed thru jack that can be connected to an integrated control system
on the rear panel. Each control
is
described
in
detail below.
RACK-MOUNT
INSTALLATION
OF THE RCC300-SA
1. Remove the amplifier's four feet from the bottom
of
the chassis.
2. Attach the included rack-mount ears to the front sides
of
the RCC300-SA.
3.
Mount into the 19" equipment rack,
the
amplifier
will
occupy
1.5 RU. Using the supplied
~
RU
Blank Spacer either above or below the amplifier will occupy 2RU.
4. If installing two RCC300-SA then the rack-mount ears can be flipped to accommodate
t~e
two
amplifiers
in
3RU.
RCC300-SA REMOTE
CONTROL
The remote control has the following functions:
1.
ON/OFF -This will toggle between Standby Mode (Amber Halo) and
ON
(Blue Halo).
2. MUSIC -This selects the MUSIC EO. When active it will have aRed Halo added to the Blue
Halo.
3.
MOVIE -This selects the MUSIC EO. When active it will have aRed Halo added to the Blue
Halo.
4. GAIN -This will raise and lower the volume
of
the amplifier. Aremote
or
the volume controls
on
the front panel can both be used to raise or lowerthe volume. NOTE: The
gain
control
is
configured
so
that
the
"last
used"
device
setting
will be
remembered
by
the
amplifier.
7
RCC300-SA FRONT PANEL CONTROLS
'"
/
RC(fLDJ
GAIN
DIM
POWER
MUSIC
IoIOVlE
·0·
000 0 0
o • 10
RTISON
V
'"
GAIN -The position of this knob controls the overall gain (volume)
of
the subwoofer. Press
this button
in
and it will spring out into arotating knob, press it back
in
to hide
it.
The front panel
gain control will become the master gain control until the remote is used. NOTE: The
amplifier
by
default
will
resume
to
the
last
setting
by
either
gain
control
device.
DIM -This button controls the brightness
of
the Halo lighting on the front panel. There are
four brightness settings.
POWER -This button will toggle between Standby Mode (Amber Halo) and
ON
(Blue Halo).
MUSIC -This preset EO mode should
be
used for music playback. This EO setting provides
afull range
of
musical bass to enhance the listening experience, when active it will add aRed
Halo to the Blue Halo.
MOVIE -This preset EO mode should be used for movie playback. This
EO
setting adds
more volume and bass to help recreate the true movie theater experience, when active it will
add aRed Halo to the Blue Halo.
RCC300-SA REAR PANEL
L
r
J
~
r-POWER
MODES-,...--
EQ MODES -
~
AUDIO
OUTPU::y:=
AUDIO
=~
-
r--
SETUP MODES AUDIO OUTPUTS
-------.,
0'fIIA
I0
CJ
0
..
~ ~
~
~=
~;
ouro
..
ill
oo~oo
a@).~"i;
~~$$
1~:~~050g~~~:::~;~:
~AC;INS
~
P~OoWER
ON
~
O
CJ
DI I r:::.--i.,
L-J.
•
..
,. _
..
-0
O-.ue'-C
~'U'2--o
(/
1,91
III
[g]
~
CJ
~o
'I
~
~
OFF 1
AC POWER
I '
CI\IIT1DIt
~=:~
~~ODO
120VAC-60Hz
Fuse:T5AL
AC
MAINS
POWER
230VAC0e:T2'5~
~
@
~
::F
1. The Power Switch is the hard ON/OFF power switch for the amplifier.
8
HIGH PASS
HIGH PASS
2. The Red Switch
is
the input voltage setting; select the appropriate 120V or 230V setting.
3.
Connect the detachable IEC Power Cord underneath the Red Voltage Selection Switch.

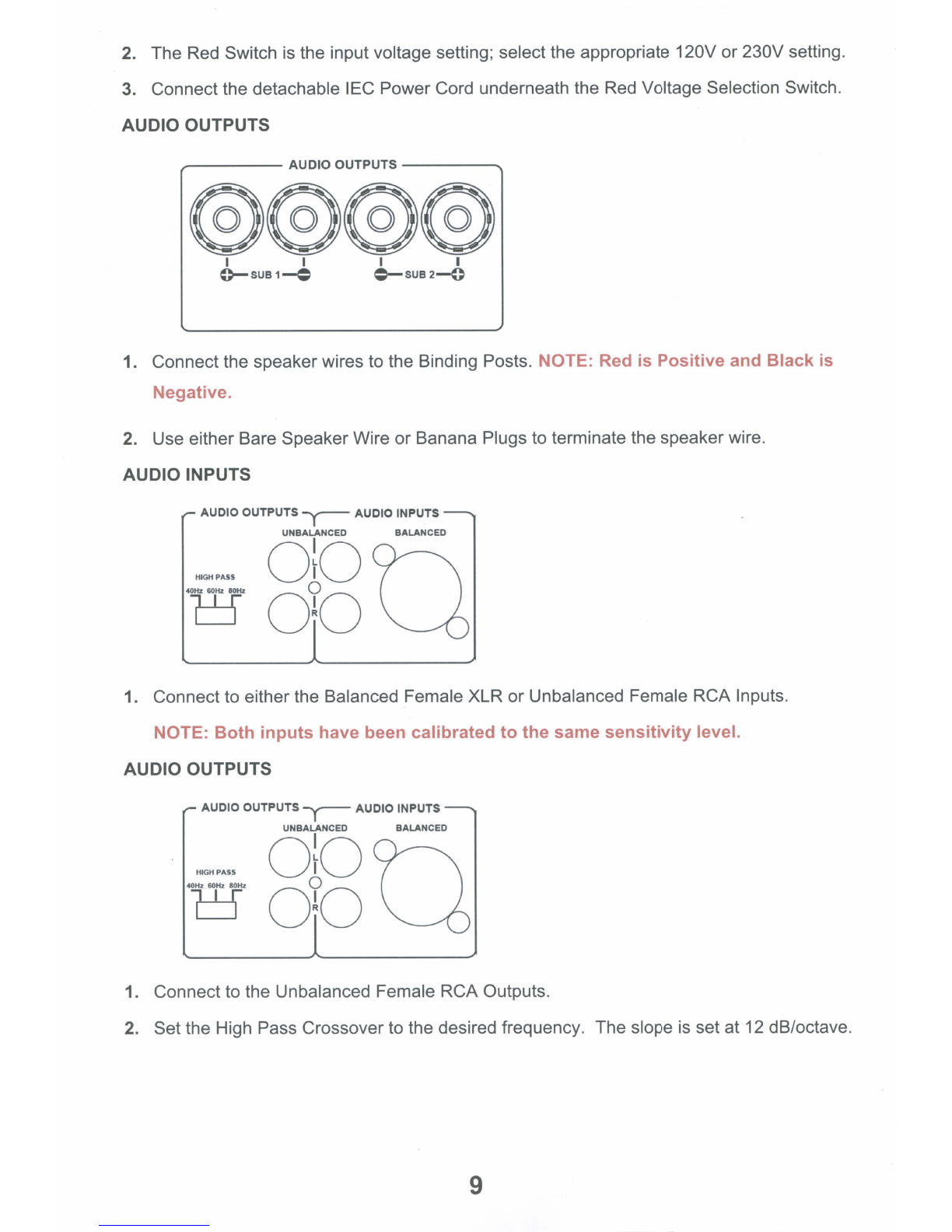

AUDIO OUTPUTS
_----
AUDIO OUTPUTS
----_
@€)@€)
I I I I
~SUB1-=
=-SUB2-@
1. Connect the speaker wires to the Binding Posts. NOTE: Red
is
Positive
and
Black
is
Negative.
2. Use either Bare Speaker Wire or Banana Plugs to terminate the speaker wire.
AUDIO INPUTS
AUDIO OUTPUTS
.-
AUDIO INPUTS
oro
BA~NCED
50?O
1. Connect to either the Balanced Female XLR or Unbalanced Female RCA Inputs.
NOTE:
Both
inputs
have been
calibrated
to
the
same
sensitivity
level.
AUDIO OUTPUTS
AUDIO OUTPUTS
.-
AUDIO INPUTS
orOh
50?O~
1. Connect to the Unbalanced Female RCA Outputs.
2. Set the High Pass Crossover to the desired frequency. The slope
is
set at 12 dB/octave.
9

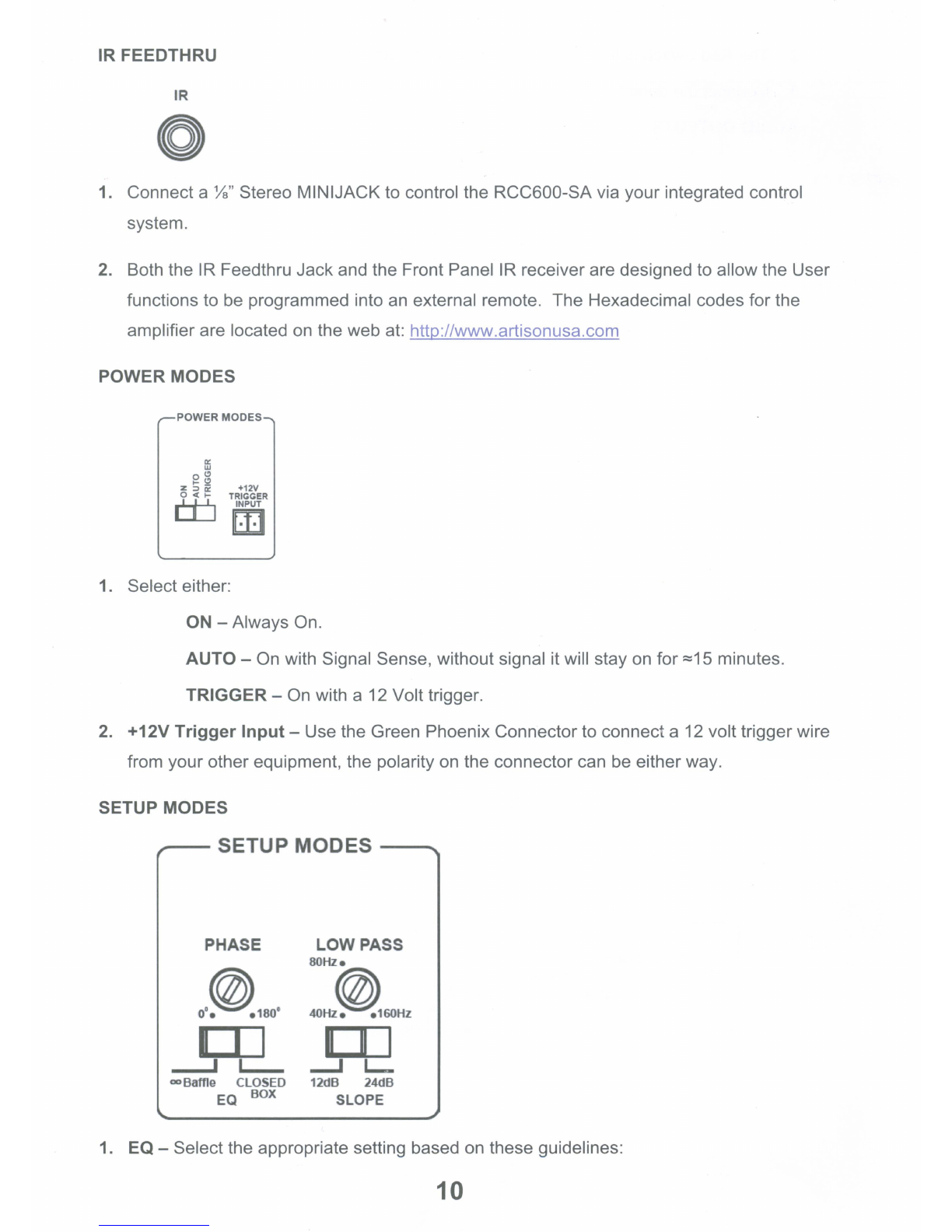

IR FEEDTHRU
IR
o
1. Connect a
~"
Stereo MINIJACK to control the RCC600-SA via your integrated control
system.
2. Both the IR Feedthru Jack and the Front Panel IR receiver are designed to allow the User
functions to be programmed into an external remote. The Hexadecimal codes for the
amplifier are located on the web at: http://www.artisonusa.com
POWER MODES
POWER MODES
0:::
w
eel
~el
Z
:::J
ii:
+12V
e<
~
TRIGGER
~
INPUT
rn
1. Select either:
ON -Always On.
AUTO
-On with Signal Sense, without signal it will stay on for
~15
minutes.
TRIGGER -On with a12 Volt trigger.
2. +12V
Trigger
Input
-Use the Green Phoenix Connector to connect a12 volt trigger wire
from your other equipment, the polarity on the connector can be either way.
SETUP MODES
~-
SETUP MODES -
........
PHASE LOW PASS
80Hz.
O'~l80'
4llHZ~60HZ
OJ
OJ
---J
L..-
---J
L.-
ao
Baffle CLOSED 12dB 24dB
EQ BOX SLOPE
1. EQ -Select the appropriate setting based on these guidelines:
10
00
Baffle
-The RCC 300 Subwoofer Module
is
installed
in
awall that has an air
volume
of
~1.4
ft3.
CLOSED
BOX
-The RCC 300 Subwoofer Module
is
installed
in
an
Artison In-Wall
Pre-Build Box or is the RCC 300 Freestanding Subwoofer.
IMPORTANT: In an
installation
of
two
RCC300-SM's
that
are
being
powered
by
one
RCC300-SA,
both
Subwoofer
Modules
need
to
be
in
either
Pre-Build
Boxes
or
be in
Infinite
Baffles.
You
cannot
connect
two
RCC 300
Subwoofer
Modules
that
are in
different
environments
to
the
same
RCC 300
Subwoofer
Amplifier.
2. PHASE -Comes from the factory set at 0°. The phase
of
the subwoofer can be adjusted
to fine tune the signal coincidence
of
the subwoofer and the lowerfrequencies
of
your LCR
Speakers. Adjust the phase, listening for an increase
in
mid bass
in
the crossover region.
Apink-noise generator or
an
RTA (Real-time Analyzer) can further analyze your
installation.
3.
LOW
PASS -This
is
the crossover frequency setting
of
the Low Pass Filter. The
RCC300-SA comes from the factory with the 80Hz setting that is recommended for use
with the Artison LCR speakers. If used
in
conjunction with any otherspeakers consult with
the manufacturer for the correct setting for the integration
of
the subwoofer with the
satellites.
4. SLOPE -Select either 12 dB/octave or 24 dB/octave for the slope
of
the Low Pass Filter
based on the correct frequency response at the crossover point. This can be done by
measurement or simply listening to the system. Aproper crossover will not have
an
apparent "hole"
in
the response nor will it exhibit the "bloated" mid bass sound that apeak
will create. Again,
an
RTA can come
in
handy during this part
of
the set up.
EQ MODES -
Automatic
Room
Mode
Correction
(ARMC)
The amplifier comes from the factory set to BYPASS. This setting produces aflat frequency
response at the subwoofer module.
In
some cases your room response may benefit from
ARMC. Eigen-modes, also known as room modes, exist
in
all rooms. These room modes are
an
interaction between the listening room itself, the location
of
the subwoofer, and the low
frequency wavelengths being on the same order as the room dimensions. This interaction
causes peak and null energy areas
in
your listening room which differ depending
on
the room
and the subwoofer location.
The ARMC program was designed to send aseries
of
tones thru the RCC300 and then
analyze the system response at the microphone position. The program then reduces the level
of
the frequency bands that have energy peaks caused by the room modes. As aby product,
after the ARMC process has been completed the overall subwoofer amplifier gain may need
11
to be raised to achieve the previous volume levels.
Ifyour normal listening position
is
located
in
anull, then the only way to truly even out the null
is
by either moving the subwoofer location to change the room modes that are stimulated
OR
install adistributed bass system. Distributed bass uses multiple subwoofers
in
different
locations
in
order to stimulate more
of
the room modes. It has been shown that this type
of
system mitigates Eigen-modes and provides amore uniform response to awider listening
area. Each RCC300-SA has the capability for running two RCC300-SM, or two RCC300-FS.
_--

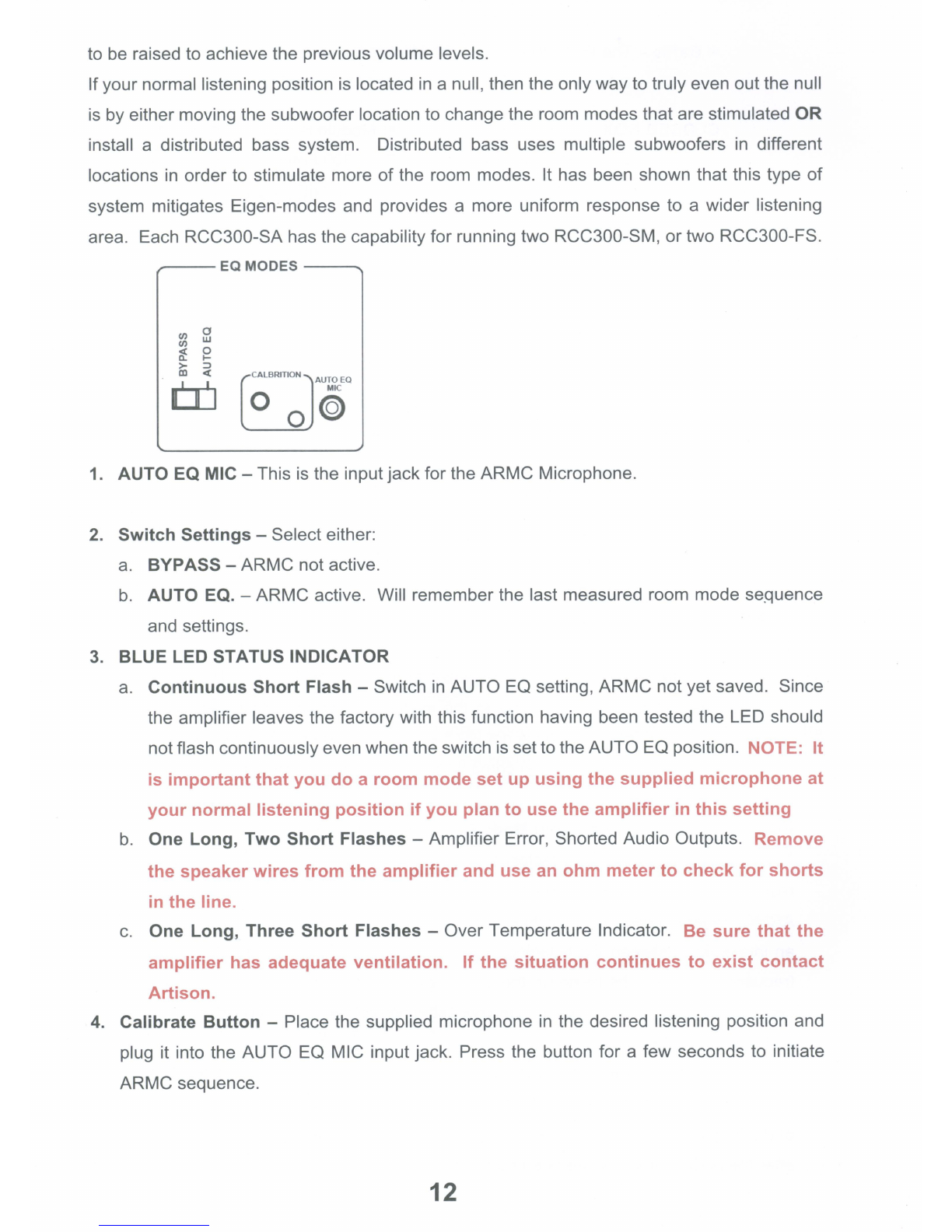

EQ MODES
---.
en
a
en
W
~
~
>:::l
m
c(
to
C~R'~
JITO
EO
MIC
°O@
1.
AUTO
EQ MIC -This
is
the input jack for the ARMC Microphone.
2.
Switch
Settings
-Select either:
a.
BYPASS
-ARMC not active.
b.
AUTO
EQ. -ARMC active. Will remember the last measured room mode se.quence
and settings.
3.
BLUE
LED STATUS INDICATOR
a.
Continuous
Short
Flash
-Switch
in
AUTO EO setting, ARMC not yet saved. Since
the amplifier leaves the factory with this function having been tested the LED should
notflash continuously even when the switch
is
setto the AUTO EO position. NOTE:
It
is
important
that
you
do
a
room
mode
set
up
using
the
supplied
microphone
at
your
normal
listening
position
if
you
plan
to
use
the
amplifier
in
this
setting
b.
One
Long,
Two
Short
Flashes
-Amplifier Error, Shorted Audio Outputs.
Remove
the
speaker
wires
from
the
amplifier
and
use
an
ohm
meter
to
check
for
shorts
in
the
line.
c.
One
Long,
Three
Short
Flashes
-Over Temperature Indicator. Be
sure
that
the
amplifier
has
adequate
ventilation.
If
the
situation
continues
to
exist
contact
Artison.
4.
Calibrate
Button
-Place the supplied microphone
in
the desired listening position and
plug it into the AUTO EO MIC input jack. Press the button for afew seconds to initiate
ARMC sequence.
12

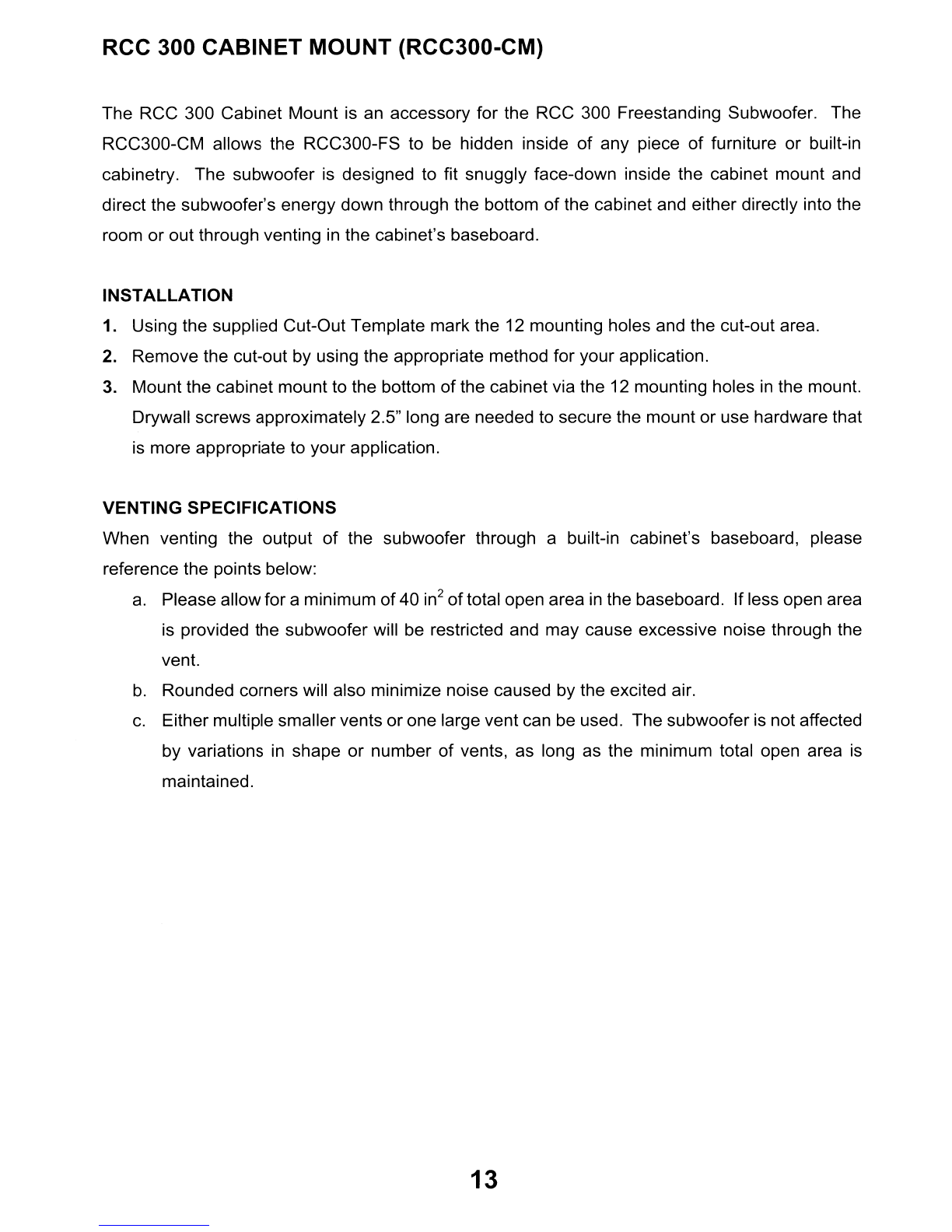

RCC 300 CABINET MOUNT (RCC300-CM)
The RCC 300 Cabinet Mount
is
an accessory for the RCC 300 Freestanding Subwoofer. The
RCC300-CM allows the RCC300-FS to be hidden inside of any piece
of
furniture or built-in
cabinetry. The subwoofer is designed to fit snuggly face-down inside the cabinet mount and
direct the subwoofer's energy down through the bottom
of
the cabinet and either directly into the
room or out through venting
in
the cabinet's baseboard.
INSTALLATION
1. Using the supplied Cut-Out Template mark the 12 mounting holes and the cut-out area.
2. Remove the cut-out by using the appropriate method for your application.
3.
Mount the cabinet mount to the bottom
of
the cabinet via the 12 mounting holes
in
the mount.
Drywall screws approximately 2.5" long are needed to secure the mount or use hardware that
is more appropriate to your application.
VENTING SPECIFICATIONS
When venting the output of the subwoofer through abuilt-in cabinet's baseboard, please
reference the points below:
a.
Please allow for aminimum
of
40
in
2
of
total open area
in
the baseboard. If less open area
is provided the subwoofer will
be
restricted and may cause excessive noise through the
vent.
b.
Rounded corners will also minimize noise caused by the excited air.
c.
Either multiple smaller vents orone large vent can
be
used. The subwoofer is not affected
by variations
in
shape or number of vents, as long as the minimum total open area
is
maintained.
13

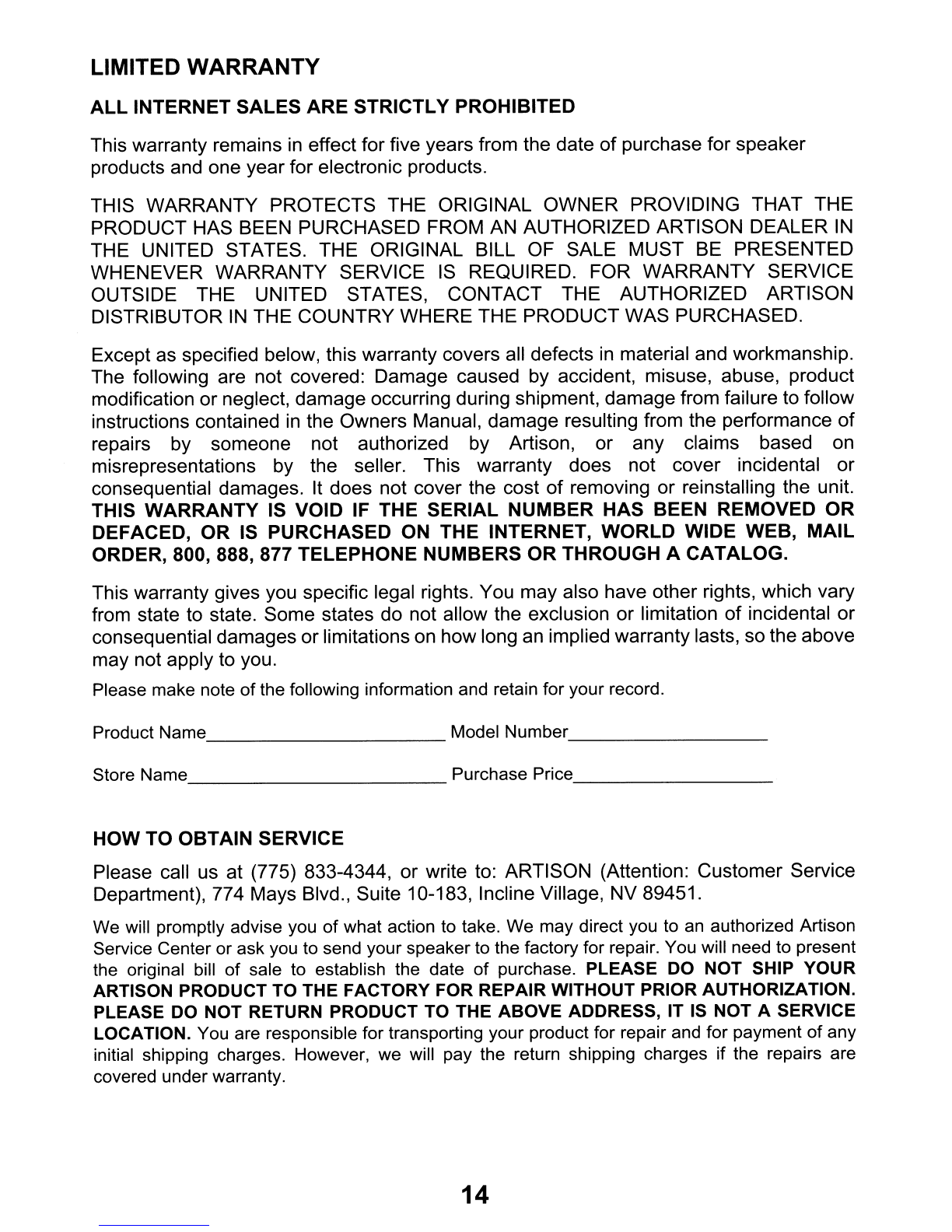

LIMITED WARRANTY
ALL
INTERNET SALES
ARE
STRICTLY PROHIBITED
This warranty remains
in
effect for five years from the date of purchase for speaker
products and one year for electronic products.
THIS WARRANTY PROTECTS THE ORIGINAL OWNER PROVIDING THAT THE
PRODUCT HAS BEEN PURCHASED FROM AN AUTHORIZED ARTISON DEALER
IN
THE UNITED STATES. THE ORIGINAL BILL OF SALE MUST BE PRESENTED
WHENEVER WARRANTY SERVICE
IS
REQUIRED. FOR WARRANTY SERVICE
OUTSIDE THE UNITED STATES, CONTACT THE AUTHORIZED ARTISON
DISTRIBUTOR
IN
THE COUNTRY WHERE THE PRODUCT WAS PURCHASED.
Except as specified below, this warranty covers all defects
in
material and workmanship.
The following are not covered: Damage caused by accident, misuse, abuse, product
modification or neglect, damage occurring during shipment, damage from failure to follow
instructions contained
in
the Owners Manual, damage resulting from the performance of
repairs by someone not authorized by Artison,
or
any claims based on
misrepresentations by the seller. This warranty does not cover incidental or
consequential damages. It does not cover the cost
of
removing or reinstalling the unit.
THIS WARRANTY IS VOID IF THE SERIAL NUMBER HAS BEEN REMOVED OR
DEFACED, OR IS PURCHASED ON THE INTERNET, WORLD WIDE WEB,
MAIL
ORDER, 800, 888, 877 TELEPHONE NUMBERS OR THROUGH ACATALOG.
This warranty gives you specific legal rights. You may also have other rights, which vary
from state to state. Some states do not allow the exclusion or limitation
of
incidental
or
consequential damages or limitations on how long an implied warranty lasts, so the above
may not apply to you.
Please make note of the following information and retain for your record.
Product Name Model Number
----------
--------
Store Name Purchase Price
-----------
---------
HOW TO OBTAIN SERVICE
Please call us at (775) 833-4344,
or
write to: ARTISON (Attention: Customer Service
Department), 774 Mays Blvd., Suite 10-183, Incline Village, NV 89451.
We will promptly advise you
of
what action to take. We may direct you to an authorized Artison
Service Center or ask you to send your speaker to the factory for repair. You will need to present
the original bill
of
sale to establish the date of purchase. PLEASE DO NOT SHIP YOUR
ARTISON PRODUCT TO THE FACTORY FOR REPAIR WITHOUT PRIOR AUTHORIZATION.
PLEASE DO NOT RETURN PRODUCT TO THE
ABOVE
ADDRESS, IT IS NOT ASERVICE
LOCATION. You are responsible for transporting your product for repair and for payment
of
any
initial shipping charges. However, we will pay the return shipping charges if the repairs are
covered under warranty.
14
~-
213mm--
t
Mounting Hole Cutout Dimensions
Cut out opening
'
..
-
..--------.
.a_slIII!.
a.
-..-
.
......
~
Mark the cutout area by
drawing through the
slots surrounding the
white area.
N
+:=--
ex>
3
3
w
c.n
0')
3
3
o
_.
3
CD
::J
en
_.
o
::J
en
o
..,
"'U
..,
o
a.
c
(")
1""+
o
_.
3
CD
::J
en
_.
o
::J
en
::J
to
Im
o-
,:-----,~-e_
-
CD
CD
..,
_.
()
C
1""+
o
C
1""+
TEMPLATE
r-------
_
..
I
WA~ING!
Only cut out the ounting hole after
you have verifi dthere are no
obstructions
beHlind
the dry wall.
Before
insta~ing
check for
obstructions bhind drywall by
making asmall hole.
I
I
!"'4
...
I-------
282mm
----
Exterior Product Dimensions
----+-
.....
e
I
c..v
~
(]I
3
3
N
00
00
3
3
Cut out opening
Mark the cutout area
by
drawing through the
slots surrounding the
white area.
~
207mm -Mounting H
Ie
CU~9~t
qimensions
~
I
~
o
_.
3
CD
:::J
CJ)
-.
o
:::J
CJ)
"'U
a
a.
c
(")
f""+
m
><
f""+
.,
-.
o
.,
o
_.
3
CD
:::J
CJ)
_.
o
:::J
CJ)
s:
o
C
:::J
f""+
:::J
c.c
I
o
-
CD
()
C
f""+
o
C
f""+
TEMPLATE
WAR\JING!
Only cut out the mounting hole after
you have verifibd there are no
obstructions
be~ind
the dry wall.
Before installing check for
obstructions behind drywall by
making asmall hole.
~---242mm
(
-¢
---
Exterio!r Product Dimensions
--------.J~
Name
Company
Name
of
Dealer
Productlsl
Telephone
Number
Address
Email
Address
of
Dealer
Model
Numbers
Date/Price
Serial
Numbers
Please
rate
your
overall
experience
with
the
dealer.
0
Excellent
0
Good
0
Average
0
Poor
2
Where
did
you
first
learn
about
ARTISON?
0
Magazine
0
Newspaper
0
Friend
0
Salesperson
0
Brochure
0
Other
1
What
other
brand
of
speakers/subwoofers
did
you
consider?
0
Polk
0
Bose
0
Sonance
0
Infinity
0
JBL
0
Boston
Acoustics
0
Mirage
o
Paradigm
0
Niles
0
KEF
0
Definitive
Technologies
0
Other
_
4
Please
check
the
most
important
factors
IIlfluencing
this
purchase?
o
Quality
of
sound
0
Magazine
Review
0
Recommendation
of
salesperson
0
Appearance
0
Technical
Specifications
0
Ease
of
operation
o
Recommendation
of
friend/family
0
Value
for
price
0
ARTISON's
reputation
0
Previous
owner
of
ARTISON's
products
o
Other
_
5
What
IS
the
primary
use
for
thiS
purchase?
0
Music
playback
0
Front
main
speakers
0
First
speaker
purchase
0
Movie/Home
Theater
o
Rear
(surround
soundfspeakers
0
Replacing
speakers
0
Add
to
existing
system
OOther _
6
Which
of
these
specialty
magaZines
do
you
read?
0
Sound
&
Vision
0
Audio
Video
Interiors
0
Stereophile
0
Stereophile
Guide
to
Home
Theater
o
Absolute
Sound
0
Architectual
Digest
0
Consumer
Reports
0
Home
Theater
0
Other
_
70
Male
0
Female
8
Age
Group?
0
Under
18
0
18-24
025-34
035-44
045-54
055-64
0
Over
64
9
Family
income?
0
Under
$15,000
0
$15,000
.
24,999
0
$25,000
-
$49,000
0
$50,000
-
$74,999
0
$75,000
-
$100,000
0
Over
$100,000
10
Education
(Please
Check
which
category
appliesl
0
High
School
0
Some
College
0
Completed
College
0
Graduate
Sch'1ol
11
What
IS
your
occupation?
0
Self
employed/Owner
0
Student
0
Professional
Technical
0
Homemaker
0
Upper
Management
o
Retired
0
Middle
Management
0
Sales/Marketing
0
Clerical/Service
Worker
0
Laborer/Tradesman
12.
Do
you
have
any
comments
about
your
new
ARTISON
products?
_
o
Yes,
I
would
like
to
receive
ARTISON
mailings
when
they
become
available
0
No,
Please
do
not
send
me
ARTISON
mailings.
WE
WOULD
LIKE
TO
THANK
YOU
FOR
CHOOSING
ARTISON
At
Artisan,
we
are
dedicated
to
the
art
and
technology
of
sound,
providing
you
with
high
quality
products
that
bring
you
closer
than
ever
to
the
live
performance
In
order
to
maintain
our
high
standards,
we
would
like
to
beller
understand
your
needs,
please
fill
out
this
questionnaire
card
and
return
itto
us
within
TEN
days
LIMITED
WARRANTY
This
warranty
remains
in
effect
for
five
years
from
the
date
of
purchase
for
speaker
products
and
one
year
for
electronic
products
THIS
WARRANTY
PROTECTS
THE
ORIGINAL
OWNER
PROVIDING
THAT
THE
PRODUCT
HAS
BEEN
PURCHASED
FROM
AN
AUTHORIZED
ARTISON
DEALER
IN
THE
UNITED
STATES
THE
ORIGINAL
BILL
OF
SALE
MUST
BE
PRESENTED
WHENEVER
WARRANTY
SERVICE
IS
REQUIRED
FOR
WARRANTY
SERVICE
OUTSIDE
THE
UNITED
STATES.
CONTACT
THE
AUTHORIZED
ARTISON
DISTRIBUTOR
IN
THE
COUNTRY
WHERE
THE
PRODUCT
WAS
PURCHASED
Except
as
specified
below,
this
warranty
covers
all
defects
in
material
and
workmanship
The
following
are
not
covered
Damage
caused
by
accident.
misuse,
abuse,
product
modification
or
neglect.
damage
occurring
during
shipment,
damage
from
failure
to
follow
instructions
contained
In
the
owners
manual,
damage
resulting
from
the
performance
of
repairs
by
someone
not
authorized
by
Artisan,
or
any
claims
based
on
misrepresentations
by
the
seller.
ThiS
warranty
does
not
cover
incidental
or
consequential
damages
It
does
not
cover
the
cost
of
removing
or
reinstalling
the
unit
This
warranty
is
void
if
the
serial
number
has
been
removed
or
defaced
You
are
responsible
for
transporting
your
product
for
repair
However,
Artisan
will
pay
return
freight
charges
if
the
repair
is
covered
under
warranty.
Tl1is
warranty
gives
you
specific
legal
rights
You
may
also
have
other
rights
which
vary
from
state
to
state
Some
states
do
not
allow
the
exclusion
or
limitation
of
incidental
or
consequential
damages
or
limitations
on
how
long
an
implied
warranty
lasts,
so
the
above
may
not
apply
to
you
Please
make
note
of
the
following
information
and
retain
for
your
record
Product
Name
Model/Serial
Number
_
Store
Name
_
Purchase
Price
_
HOW
TO
OBTAIN
SERVICE
Please
call
us
at
(775)
586-9574,
or
write
to
ARTISON
(Attention
Customer
Service
Department).
774
Mays
Blvd,
Suite
10-183,
Incline
Village,
NV
89451.
We
will
promptly
adVise
you
of
what
action
to
take.
We
may
direct
you
to
an
authorized
Artisan
Service
Center
or
ask
you
to
send
your
speaker
to
the
factory
for
repair
You
will
need
to
present
the
original
bill
of
sale
to
establish
the
date
of
purchase
PLEASE
DO
NOT
SHIP
YOUR
ARTISON
PRODUCT
FOR
REPAIR
WITHOUT
PRIOR
AUTHORIZATION
PLEASE
DO
NOT
RETURN
PRODUCT
TO
THE
ABOVE
ADDRESS,
IT
IS
NOT
A
SERVICE
LOCATION.
You
are
responsible
for
transporting
your
product
for
repair
and
for
payment
of
any
initial
shipping
charges.
However,
we
will
pay
the
return
shipping
charges
if
the
repairs
are
covered
under
warranty
ARTISON
Attention:
Customer
Service
Department
774
Mays
Blvd.,
Suite
10-183
Incline
Village,
NV
89451
Place
Stamp
Here
This manual suits for next models
3
Table of contents
