IMPORTANT // Please ensure that you read through this user manual prior to installation and use. This
manual contains important information to ensure optimal performance and keep you safe. Please retain
your proof of purchase, as this will be required in the event that you require warranty service. Remember
to retain this manual for future reference.
520,700,
850
// UNDERMOUNT HOOD

HELLO
CONGRATULATIONS ON THE SELECTION OF THIS
RANGEHOOD. OUR APPLIANCES HAVE BEEN SPECIFICALLY
DESIGNED FOR AUSTRALIAN AND NEW ZEALAND KITCHENS.
Please read through this user manual carefully as it contains information that
will ensure that your appliance is installed correctly, important operating & care
instructions and also some advice of what you need to do if this appliance
is not performing as intended.
520,700,850 // UNDERMOUNT HOOD

HELLO 2
CONTENTS 3
WARNING & SAFETY INFORMATION 4
INSTALLATION & DUCTING 5
OPERATING INSTRUCTIONS
MAINTAINING YOUR RANGEHOOD
PROOF OF PURCHASE
NOTES
CONTACT DETAILS 18
CONTENTS
520,700,850 // UNDERMOUNT HOOD
9
10
12
ELECTRICAL WIRING
13
14
IMAGES 16

WARNING &
SAFETY
INFORMATION
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Young children should be supervised
to ensure that they do not play with
the appliance.
There shall be adequate ventilation of
the room when the rangehood is used
at the same time as appliances
burning gas or other fuels.
You must read the details concerning
the method and frequency of cleaning.
There is a fire risk if cleaning is not
carried out in accordance with the
instructions.
Do not flambé under the rangehood.
Exhaust air must not be discharged
into an existing flue which is used for
exhausting fumes from appliances
burning gas or other fuels.
The minimum distance between the
hob surface and the lowest part of the
rangehood is 600mm. This distance
shall be at least 650mm, if the
rangehood is installed over a gas hob.
If the instructions for the gas hob
specify a greater distance, this has to
be taken into account.
Attention should be given to ensure that
any applicable regulations concerning
the discharge of exhaust air is fulfilled.
If the supply cord of this equipment is
damaged, it must only be replaced by
the manufacturer or its service agent or
a similarly qualified person in order to
avoid a hazard.
This appliance has been designed for
indoor domestic use only.
Do not remove or inspect the filters
whilst the hood is in operation.
520,700,850 // UNDERMOUNT HOOD

INSTALLATION &
DUCTING
10
314/
AGITUM
520,700,850 // UNDERMOUNT HOOD

INSTALLATION &
DUCTING
Electric hob - 600mm
Gas hob - 650mm
NOTICE: IF THE INTRUCTIONS FOR THE GAS HOB
SPECIFY A GREATER DISTANCE, THIS HAS TO BE
OBSERVED. ANY INSTALLATION ABOVE 750MM WILL
COMPROMISE PERFORMANCE.
520,700,850 // UNDERMOUNT HOOD
IMPORTANT Before handling the rangehood during installation, it is recommended that
you remove the filter to prevent damage.
Fig 1.2 illustrates the minimum height from the hob surface to the underside of the rangehood.

INSTALLATION &
DUCTING
NOTICE // ALL DUCTING MATERIAL MUST BE COMPLIANT WITH THE LOCAL
LAWS IN FORCE.
INSTALLATION
WARNING // Do not penetrate any screws into the rangehood as this may result in
electrical hazards. Failure to install the screws or fixing device in accordance with these
instructions may result in electrical hazards.
RE-CIRCULATING
(Carbon filter required)
TOP DUCTING SIDE DUCTING
DUCTED OPTION
520,700,850 // UNDERMOUNT HOOD
Before installing the appliance, make sure that none of the parts is damaged in any way. In case
of damaged parts, contact your retailer and do not proceed with installation.
Read all of the following instructions with care before installing the appliance.
Before installing the appliance, remuve the metal grase filter. It can be removed by pushing its
special handle toward the back-side of the cooker hood and turning the filter downwards so to
unfasten it from its slot (Fig.1).
To install the appliance please respect the follow instructions.
The appliance must be install by competent authorities. In order to do not damage the electronic
parts of the appliance please do not use added screws.

INSTALLATION &
DUCTING
Essential precautions to respect before in- stalling the appliance are the following:
1) Prepare the power supply.
2) Prepare a hole for the exhaust of the air both in the filtering and in the exhau sting version.
Use an exhausting pipe whose maximum length does not exceed 5 meters.
3) Do not use screws to fix the outlet pipe to the cooker hoods.
4) Limit the no. of elbows in the piping , since each elbow reduces the aspiration efficiency of 1
linear meter. (Ex.: if you use no. 2 x90 ° elbows, the length of pi ping l must not exceed 3
meters)
5) Avoid abrupt direction changes.
6) Use a 150 mm or 200 mm constant dia meter pipe for the whole length.
7) Use piping approved by standards in force.
10) At this point, insert the range hood inside the
8) To have made a cut-out on the bottom of the cabinet which is suitable to hold the appliance
in position (Fig. 2).
AGITUM 520 505mmX270mm
AGITUM 700 685mmX270mm
AGITUM 850
835mmX270mm
9) Right now, after drilling the kitchen cabinet please follow carefully the instructions above,
calibrate the fixing spring depending on the depth of cabinet. (Fig.. 3).
kitchen cabinet until the fixed springs will be
hooked into.
11) Fix the range hood to the cabinet, in the front and rear sides, using by the screws equipped
(Fig. 4).
12) At the end, place the grease filters that were removed before.
Warning!
Before connecting the flexible exhausting pipe to the motor, make sure the stop valve,
which is on the air outlet of the motor, can swing.
Exausting version
Connect the flange to the exhausting hole with an appropriate pipe. Connect the appliance
with the electrical mains through the supply cord.
Filtering version
Connect the flange with a pipe suitable to convey the air to the top of the cabinet. Connect the
appliance with the electrical mains through the supply cord.
9) Right now, after drilling the kitchen cabinet please follow carefully the instructions above,
calibrate the xing spring depending on the depth of cabinet. (Fig. 3).
10) At this point, insert the range hood inside the kitchen cabinet until the xed springs will be
hooked into.
11) Fix the range hood to the cabinet, in the left and right sides, using by the screws equipped
(Fig. 4).
12) At the end, place the grease lters that were removed before.

OPERATING
INSTRUCTIONS
520,700,850 // UNDERMOUNT HOOD
Model: Agitum
A: Motor switch on/off (1st rate level)
B: 2nd rate level switch
C: 3rd rate level switch
D: 4th rate level switch
E: Light switch on/off
The products are endowed with an electronic device which allows the automatic switching off
after 4 hours working from the last operation.

GENERAL MAINTENANCE
Ensure
that the power to the unit is switched off prior to cleaning the unit. Surface should
only
be cleaned with warm soapy water and a soft non-abrasive cloth. In coastal
environments and humid areas more frequent cleaning is required to maintain the finish.
MAINTAINING
YOUR
RANGEHOOD
Particular care is due to the grease filter. It can be removed by pushing its special
handle toward the back-side of the cooker hood and turning the filter downwards so to
unfasten it from its slot (Fig.1).
To insert the filter just perform the opposite operation. After 30 hours working (model),
the push button control panel will signal the saturation of the grease filter by lighting all
the buttons.Press the 0/1 button for 2 seconds to reset when
the motor is off.The grease filter needs cleaning by regular handwashing or in
dishwashers every two months at least or depending on its use.
To clean the appliance itself tepid water and neutral detergent are recommended, while
abrasive products should be avoided. For steel appliances specialized detergents are
recommended (please follow the instructions indicated o the product itself to obtain the
desired results).
Warning! To take down the appliance from the cabinet, remove the definitive fixing
screws (Fig. 4) using a screw-driver, get off the grease filters (Pic. 1).
Act on the small handle of the springs, which are inside the built-in unit, with the necessary
strength to unhook the appliance from the cabinet.
If the supply cord is damaged, it must be replaced by the manufacturer or its sevice agent or a
similarly qualified person in order to avoid
a hazard.

LAMPS
MODEL LAMP TYPE
2X SPOT LED REVO 2.5W
520,700,850 // UNDERMOUNT HOOD
Before to replace the led lamp switch off the appliance then by using appropriate tools remove
the led lamp from its slot (Fig. 5).
Take out the led lamp from its connector and replace with similar characteristics.
To find the correct led lamp please check on the replacement part list.
If the supply cord is damaged, it must be replaced the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
MAINTAINING
YOUR
RANGEHOOD
AGITUM 520
AGITUM 700
AGITUM 850
2X SPOT LED REVO 2.5W
2X SPOT LED REVO 2.5W

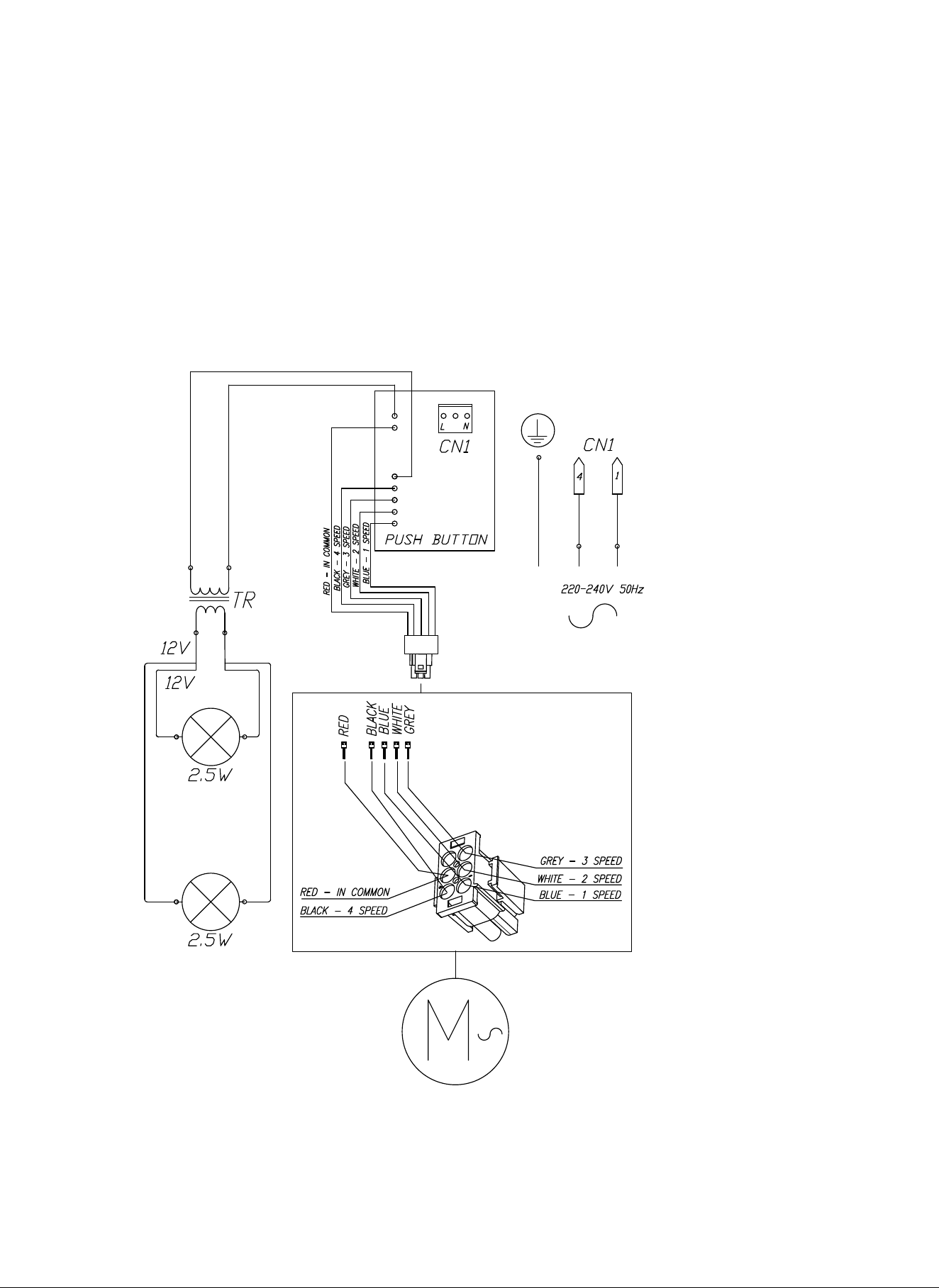

ELECTRICAL
