Armedica QUANTUM 400 Operating instructions

QUANTUM
400/400H/400P
Intersegmental Table
Service & Instruction Manual
QMS
ISO 13485
FM 50089
Armedica Manufacturing Corporation

2
Table of Contents
Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Contraindications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Positioning Patient on Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Operation of Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Table Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Treatment Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Patient Assist Bar Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Schematics / Parts Breakdown:
Cabinet Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Table Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

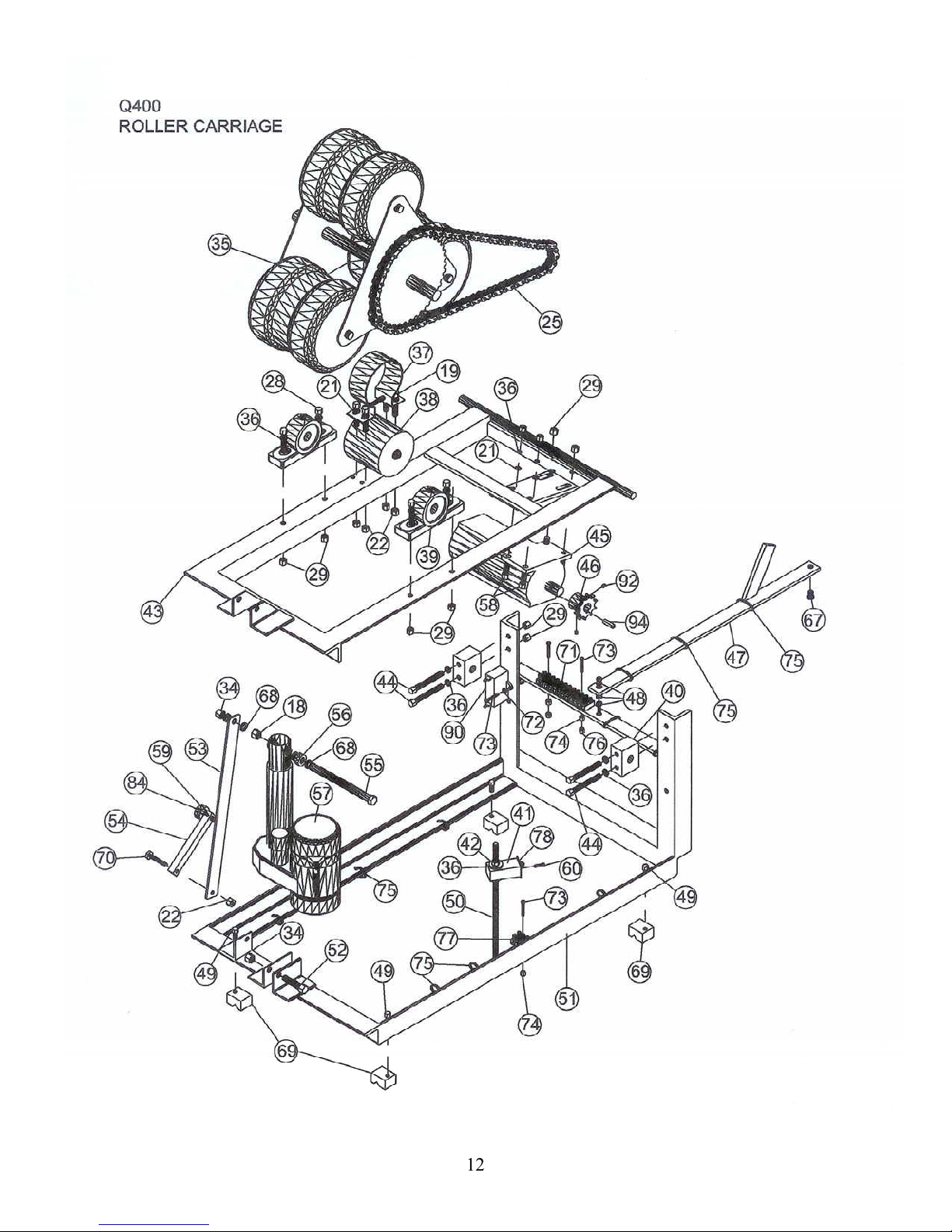

Roller Carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Turn Around Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3
Indications –
The Quantum 400/400H/400P is an electromechanical treatment table. It is designed to release
muscle tension and deliver soothing massage.
Contraindications –
1. Phlebitis
2. Fractures or suspected fractures
3. Common skin problems such as:
sunburn, bruises, boils or shingles may be irritated by the rollers
4. Patients with fused discs or implanted scoliosis rods
5. Osteoporosis
Precautions –
Use with caution on elderly patients
Use with caution on patients with acute pain
Not intended for use on patients weighing over 300 pounds
Positioning Patient on Table –
1. Make sure the rollers are in the down position.
2. Have the patient remove any keys, wallets or other items from back pockets that may
cause discomfort when rollers are in motion.
3. Assist patient onto the table with head at the roller end (above the Cervical –Thoracic
– Lumbar position indicator) and feet over the foot cover apron.
4. Position patient on the table so that the sacrum is located at the end of the roller slot.
Make sure the patient is centered on the table to allow the roller to track on both sides
of the spine. Place the knee pillow under the patient’s knees.

Operation of Controls
Power – Turns the main power to the table on or off.
Vibration – Turns the vibration mode on or off.
Heat – (Option available on Model 400H)
(See page 5)
Direction – Determines the counter-clockwise or
clockwise direction of the roller when in motion.
Standard position is counter-clockwise rotation.
Lock – Prevents patients from changing the table
settings. To unlock, hold in button for three seconds.
Treatment Time Indicator
Start/Stop – Push once to start selected therapy. Give
to the patient to use as a remote stop.
Travel – Controls the tracking of the rollers from
Cervical to Lumbar. The ON position is when the
button is lighted, which allows the rollers to track the
full range. The OFF position is when the button is not
lighted, halts the horizontal movement of the rollers,
and allows treatment to take place in a selected area.
Timer/ Roller Height Control – Timer may be
set from 1 to 30 minutes by using the arrow buttons.
Toggle up or down to set the height of the rollers
when the timer is active. Rollers will retract to lowest
position when time expires.
Roller location indicator panel –
Red light behind Cervical – Thoracic – Lumbar panel indicates horizontal position of rollers.
NOTE:
Remote control automatically defaults to last settings used
4

5
Table Options for Quantum 400 –
Heat – (Option available on Model 400H) If the heat button is lighted, this indicates the
heat is in the ON position. If the heat button light is not lighted, this indicates the heat is
in the OFF position.
Patient Assist Bar – (Option available on Model 400P) Patient assist bar allows for
greater ease of patient dismounting.
Facial Slot – (Option #401) Face slot under foot cover apron allows for use as a therapy
or adjustment table.
Treatment Considerations –
1. Always assist the patient on and off the table. The optional patient assist bar is advised, however it
is recommended that an operator assist the patient.
2. Roller height should be set to a comfortable level. At no time should the patient experience pain or
discomfort during the treatment. Continue to monitor the patient during the treatment.
3. The optional heat control should be used with caution, especially on patients with reduced sensory
perception. Monitor the patient continuously during the treatment if heat is used.
4. It is recommended that lights above the table be turned down or off to prevent glare and discomfort
to the patient during treatment.
5. Always evaluate the patient before and after the treatment.
Cleaning and Maintenance –
CLEANING – The use of a mild soap and water solution or an approved vinyl cleaner is
recommended to keep the table looking presentable. When using a soap solution, be sure to remove any
residue after cleaning. Do not use any agent that will dry out the vinyl such as alcohol, window
cleaning solutions, strong detergents or abrasive materials. Face paper squares are recommended in the
cervical area to cover the cervical pillow and vinyl and prevent skin oils from contacting the vinyl.
MAINTENANCE – The Quantum 400/400H/400P requires very little routine maintenance. All tables
are extensively tested at the factory prior to shipping, however, occasionally rough treatment by
trucking companies my require minor adjustments after delivery. In the event unusual noises are heard
or proper operation is compromised, call the Armedica Service Department for assistance.
It is recommended that at six-month intervals, the top is removed and the following items are checked:
(NOTE! Use caution when operating table with top removed. Do not place hands inside the table
compartment while the table is operating. Be certain that you have no loose clothing or neckties that
may be caught in the chains or moving parts.)
1. Check to insure that the three black rollers are free to rotate without binding.
2. Check to insure that the chains are taut.
3. Check to insure that all wiring, including the power cord to the wall outlet, is stowed away
from moving parts.

6
This equipment has been tested and found to comply with the limits for medical
devices to the IEC 60601-1-2: Third edition 2007-03. These limits are designed
to provide reasonable protection against harmful interference in a typical medical
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to other devices in the vicinity. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to other devices, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving device.
- Increase the separation between the equipment.
- Connect the equipment into an outlet on a circuit different from that to
which the other device(s) are connected.
- Consult the manufacturer or field service technician for assistance.
Warranty Information
Limited Warranty –
Armedica Manufacturing Corporation warrants the Quantum
400/400H/400P Intersegmental table is free from defects in material and
workmanship. This warranty shall remain in effect from the date of original
shipment of the product under normal and proper use as follows:
1. Roller travel motor, roller rotation motor and roller elevation motor for a period of 5
years after purchase. Warranty includes motor replacement or repair. Labor for
installation of new or repaired motor is covered for 1 year. In the event non - Armedica
Manufacturing Corporation technicians perform labor; cost of such labor must be
approved by Armedica Manufacturing Corporation.
2. The three black plastic rollers are warranted for the life of the table.
3. All other parts, excluding vinyl are warranted for a period of 1 year after purchase.
Warranty includes replacement or repair of parts and labor. In the event non - Armedica
Manufacturing Corporation technicians perform labor; cost of such labor must be
approved by Armedica Manufacturing Corporation.
The purchaser agrees to pay for all labor and /or parts not covered under this warranty and to
also pay for any expenses incurred during such repair.
Representations and/or warranties made by any person, including dealers, previous owners or
any person not an employed representative of Armedica Manufacturing Corporation which
are inconsistent or in conflict with the terms of this warranty shall not be binding on Armedica
Manufacturing Corporation.
The use of this product is the responsibility of the prescribing health care provider. The
diagnosis of the patient’s condition, the choice of the use of this product and the method of use
is the responsibility of the practitioner and not Armedica Manufacturing Corporation.
Armedica Manufacturing Corporation is an ISO 13485 registered facility.

7
PARTS LIST BY: ITEM NO
ITEM NO. PART NO. DESCRIPTION QUANTITY
1 18613 CABINET BASE 1
2 02539 SCREW HEX HEAD #12x1-1/4 16
3 01118 ALUMINUM TRIM 1
4 03148 INDICATOR PANEL CERVICAL LUMBAR 1
5 03111 CASTER HOODED 1-7/8" BALL SWIVEL 4
6 02532 SCREW HEX WASHER HEAD #6x1 5
7 03034 TRACK CARRIAGE GUIDE 14GA 2
8 03280 CIRCUIT BOARD 1
9 03264 POWER CORD 1
10 12466 RECEPTACLE PLATE 1
11 03268 COILED CORD 1
12 03281 HAND HELD REMOTE CONTROL 1
13 19680 TABLE TOP 1
14 14121 VINYL FOOT COVER 1
15 19682 TABLE TOP WITH FACE HOLE OPTION 1
16 19685 TABLE TOP WITH HEAT OPTION 1
17 13040 ROD THREADED 1/2-13x14 CHAIN TENSIONER 2
18 02138 NUT HEX FIN 3/8-16 1
19 02045 SCREW HEX HEAD CAP 1/4-20x1 8
20 02522 BOLT CARRIAGE 1/4-20x1-1/2 4
21 02140 WASHER 1/4 29
22 02100 NUT NYLOCK 1/4-20 18
23 03120 MOTOR INTERSEG TRAVERSE DRIVE W/KEY 1
24 03260 SPROCKET ROLLER 1/2 ID 40BS10 W/ SET SCREWS 1
25 19677 CHAIN ASSEMBLY ROLLER CARRIAGE 1
26 19678 CHAIN ASSEMBLY TURN AROUND 1
27 12458 BRACKET FORMED 4-3/4x5x12 TENSION 1
28 02524 SCREW SOC HEAD CAP 1/4-20x1-1/4 1
29 02105 NUT NYLOCK 5/16-18 11
30 03256 BEARING 5/8 PILLOW BLOCK 2
31 12459 SHAFT 5/8x6 TURN AROUND SPROCKET 1
32 02545 WASHER LOCK SPLIT 1/2 ZINC 2
33 02062 SCREW HEX HEAD CAP 5/16-18x1-1/2 2
34 02110 NUT NYLOCK 3/8-16 2
35 18621 ROLLER SPROCKET ASSEMBLY 1
36 02150 WASHER 5/16 26
37 03150 STRAP CLAMP VIBRATOR MOTOR 2C703 1
38 03124 MOTOR VIBRATOR 3M564 1
39 03257 BEARING 3/4 PILLOW BLOCK 2
40 12463 BLOCK UHMW 1x1-1/2x2 TOP FRAME PIVOT 2
41 12456 BLOCK UHMW 3/4x1x2 POSITION LED 1
42 02130 NUT HEX FIN 5/16-18 3
43 18610 TOP FRAME ROLLER CARRIAGE 1
44 02181 SCREW HEX HEAD CAP 5/16-18x2-1/2 4
45 03121 MOTOR ROLLER ROTATION W/ KEY 1
46 03259 SPROCKET ROLLER 5/8 ID 40BS10 W/ SET SCREWS 2
47 18620 BAR TURN AROUND 1
48 02160 WASHER NYLON 5/16 ID 8
49 02114 SCREW HEX HEAD CAP 1/4-20x3/4 4
50 13039 ROD THREADED 5/16-18x9-1/2 INDICATOR LED 1

8
51 18608 BASE FRAME ROLLER CARRIAGE 1
PARTS LIST BY: ITEM NO
ITEM NO. PART NO. DESCRIPTION QUANTITY
52 02513 SCREW HEX HEAD CAP 3/8-16x1-3/4 1
53 12448 BAR 1/8x1 POTENTIOMETER LINK 13” LONG 1
54 12452 BAR ALUM 1/2x1/2x4-5/8 ELEVATION MOTOR 1
55 02514 SCREW HEX HEAD CAP 3/8x16x5-1/2 1
56 02519 COLLAR SET 3/8IDx3/4ODx3/8 1
57 03122 ROLLER ELEVATION MOTOR 1
58 02044 SCREW HEX HEAD CAP 1/4-20x1-1/4 4
59 19689 POTENTIOMETER WITH WIRE 1
60 02527 SCREW PAN HEAD PHIL SHEET METAL 6x1/2 6
61 02008 SCREW PAN HEAD 4-40x1/2 2
62 02038 SCREW FLAT HEAD SOC 5-40x1/2 2
63 02112 NUT NYLOCK 4-40 2
64 02531 NUT NYLOCK 5-40 2
65 03270 CONNECTOR RJ45 1
66 19690 RECEPTACLE WITH WIRE 1
67 03089 BEARING FLANGE BRONZE 1/4IDx3/8ODx3/8 1
68 02518 WASHER 3/8 NYLON FLAT 5
69 12462 BLOCK UHMW 3/4x1x1-1/4 GLIDE 4
70 02053 SCREW HEX HEAD CAP 1/4-20x1-1/2 1
71 03263 TERMINAL BLOCK 12 POLE 18-20GA 350V 1
72 02142 WASHER FLAT #6 5
73 02515 SCREW PAN HEAD PHIL #6-32x1 4
74 02077 NUT NYLOCK #6-32 4
75 02235 CABLE TIE 1/16" X 6” 26
76 02516 NUT HEX FIN #6-32 2
77 03249 TERMINAL BLOCK 4 POLE 1
78 19688 LED SIDE INDICATOR ASSEMBLY 1
79 02200 CLAMP CABLE 3/16 BLACK 1
80 02208 CLAMP CABLE 3/8 WHITE 3
81 02201 CLAMP CABLE 1/4 WHITE 2
82 02090 NUT NYLOCK 1/2-13 2
83 02145 WASHER 1/2 2
84 02501 SCREW PAN HEAD PHIL 10-32x1/2 4
85 02525 SCREW PAN HEAD PHIL SHT MTL 6x5/8 ZINC 10
86 02526 SCREW PAN HEAD PHIL SHT MTL 8x3/4 ZINC 12
87 02467 FUSE 10AMP 125V GMA 1
88 03269 1’ PATCH CABLE 1
89 02135 NUT HX FIN JAM 1/2-13 4
90 CAPACITOR 12mF 1
91 CAPACITOR 4.0mF 1
92 SET SCREW 10-24x3/16 6
93 KEY .125x.125x.6875 1
94 KEY .187x.187x.875 1
95 Q400BV QUANTUM BASE VINYL SEWN (SLEEVE)
(OPTIONAL REPLACEMENT)
1
96 Q400TV QUANTUM TOP VINYL SEWN (OPTIONAL REPLACEMENT) 1
97 18622 PATIENT ASSIST BAR 1
98 12483 PATIENT ASSIST BAR BACK PLATE 1
99 02523 WASHER LOCK SPLIT 3/8 ZINC 4

14485 BOLSTER Q400 7x6x20 1
9

10

11

12

13

GR
BLK
RED
YL BLK WHT BLU RED BRN
W
RED
WHT
BLK
BLK
WHT
WHT
GR
BLK
TRAVEL
MOTOR
HANDHELD
REMOTE
RED
BLU
L WIRE
RED
BLK
BLU
ROTATION
CAPACITOR
POTENTIO-
RED
R WIRE
WHT
RED
BLK
GRAY
GR/ YL
GRN
GRN
LED
ROLLER
RED
WHT
GR/ YL
ROLLER
VIBRATOR
BLK
03121 03124
03122
02537
03272
GRN GROUND
BOLTED TO FRAME
GR/ POTENTIOMETER
GRN GROUND
BOLTED TO FRAME
03120
03276
12 TERM
(03263)
RED
BLK
WHT
BLK
BLACK
WHITE
RED
4 TERM
THERMISTOR
THERMISTOR
HEATPAD
BLACK
HEAT PAD
PLUG
BLACK
FROM
BLACK
HOLES
THROUGH TOP
FEMALE
PLUG
MALE
02463 02462
ELEVATION
MOTOR
METER
MOTOR
MOTOR
CAPACITOR
ROLLER
HEAT OPTION
12mF
4.0mF
(03249)
J5 J4
J2
J3 J1
F1
10A 250VAC
FUSE
PN
CONNECTING
HEAT
PAD
WIRE
FROM
HEAT
PAD
WIRE
TERMINAL
BOTTOM SIDE OF TABLE TOP
8 7 6 5 4 3 2 1
TOP SIDE OF TABLE TOP
BLK
J6 J7
FOR HEATED TOP
JUMPERS TO BE IN LINE
OFFSET J6 WITH OUT HEAT
SHEILDED
WIRING DIAGRAM
QUANTUM
14

PN-03177 REV C 04/28/10
QUANTUM SERIES MANUAL
16
