Visiq FM3838BC User manual

Bubble foot massager
Model: FM3838BC
Save this
instruction book

2
INTRODUCTION
Proper use produces a measurable increase in blood circulation in the skin of the feet, which
manifests itself in a pleasant and lasting feeling of warmth (rise in skin temperature). Foot massager
baths at regular intervals can produce improved blood circulation in the feet and indirectly in the
entire leg area as well.
The temperature-controlled heating system maintains the desired temperature throughout your
massager when you set the desirable water temperature on the control panel of the unit.
The stimu-nodes act as gentle fingers to make contact with the soles of your feet and give you the
most effective and invigorating massage possible. You can easily control their effectiveness by
simply pressing down lightly or letting up the pressure with your feet. The air bubble jets provide a
relaxing warm bubble bath for your feet.
READ INSTRUCTIONS BEFORE USING:
We recommend this product is not used by children and please
read the instruction booklet for further information.
1．Before connecting, check that the voltage indicated on the
appliance (bottom of the appliance) corresponds with the main
voltage in your home. If this is not the case, consult your dealer
and do not use.
2．DO NOT attempt to plug in or unplug the unit while feet are
in the
water.
3．Before plugging in or unplugging the unit, be sure the power
key is in the OFF
position.
4．NEVER immerse the unit completely into water or other
liquid for cleaning or other
purposes.
5．DO NOT stand up or place other objects in the unit, use it
only when you are in a seated
position.
6．DO NOT leave the unit in the ON position when the unit is
not in use or ready for
use.
7．DO NOT operate the unit if it has a damaged cord or
plug. If it is not working properly, or
has been dropped or
damaged in any way whatsoever. Take it to the nearest
service centre
for examination and repair, or for
mechanical
adjustment.

3
8．DO NOT pull the unit by the cord, or use as a handle.
9．CLOSE SUPERVISION is necessary when the unit is used
by, or near children, or
invalids.
10．DO NOT use while sleeping, or if you feel
drowsy.
11．USE ONLY on a flat level surface indoors, never use
outdoors.
12．Discontinue use if you feel discomfort, pain or
irritation results, never use for swollen
or inflamed
feet, or if feet have any skin eruptions. First, consult
your
Doctor.
13．The appliance has a hot surface. Persons insensitive to
heat must be careful when using
the appliance.
14．If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or
a similarly qualified
person in order to avoid a
hazard.
15 . This appliance can be used by children aged from 8 years
and above and persons with reduced physical ,sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
16. Do not use the appliance if water leakage has occurred.
Continuing to use the appliance with water leakage may
cause a safety hazard.

4
TECHNICAL
INFORMATION
Model: FM3838BC
220-240V ~ 50/60Hz, 90W, Class II,
IPX4
CARE AND MAINTENANCE:
This appliance is for household use only; there are no user serviceable par ts inside. Do not try to
open or change the parts by yourself. Please refer to qualified electrical service or return to the
nearest services centre if servicing is needed. This is a health care unit, not a washing basin.
Clean feet before use and use clean and soft water. Deposits will clog air jets and undermine the
bubble effectiveness.
TO CLEAN: After use, simply rinse out with water. Never immerse the entire unit into water. If
you
wish, you can wipe off all surfaces with a damp cloth and a mild detergent, then rinse and dry.
TO STORE: Be sure the unit is unplugged, cooled and emptied of water. Then store it in a clean
and
dry place. Before storage wind the whole power cord around the wiring holder. Never hang the unit
by
the power cord.
HOW TO USE THE MASSAGER:
The appliance must be operated with water.
Check the rotary switch is in OFF or “0” position. Then plug the power cord into an AC
outlet
(regular household
current).
DO NOT CONNECT OR DISCONNECT THE PLUG FROM THE POWER OUTLET WHILE
YOUR
FEET ARE IN THE WATER.
Seat yourself comfortably, place your feet on the foot rests and select your desired setting for
heat
only, massage only, or heat and
massage.
USING THE CONTROL SWITCH TO SELECT THE DESIRED APPLICATION:
COLD WATER MASSAGE (M)
This setting will massage your feet in cold
water.
WARMTH AND MASSAGE
(W+A+M)
Choose this setting and fill with warm water for a foot massage and bubble bath. The built-in
heater
delays temperature drop of the warm water while bathing.
WARMTH
(W+A)
Warm water footbath with bubbles. Ideal for a footbath or for allowing stimulation from
previous
massage appliances to gradually subside.
OFF
(O)
Turn the unit
off.
You can place your feet on the massage ball base situated on the central part of the unit or on
the
detachable massage rollers for partial massage whenever you like.
When you are finished with the massager, just rotate the switch to OFF or “0” position.
Then
remove your feet and unplug the unit.
REMEMBER NOT TO STAND ON THE
UNIT.

5
TO FILL: Use warm water (at desired temperature), pour into the unit and do not fill over the “MAX”
water-level line on the keel. This unit is designed to maintain the water temperature at a comfortable
level, not to raise it.
TO EMPTY: tilt the unit over a sink or tub to enable water to flow out through drain spouts.
Rinse
out and dry the unit. Never immerse the entire unit in water or any other
liquid.
CONTROLS & FUNCTIONS
Cap







M A X



Control switch

Massage Ball



Air nozzle





Stimulus nodes






Drain spout

Plug Power
cord
M A SS A GE MASSAGE BALL
A TT A CHMENT
WARMTH & BUBBLES WARMTH,
B U BBL ES,
M
A SS A GE

6

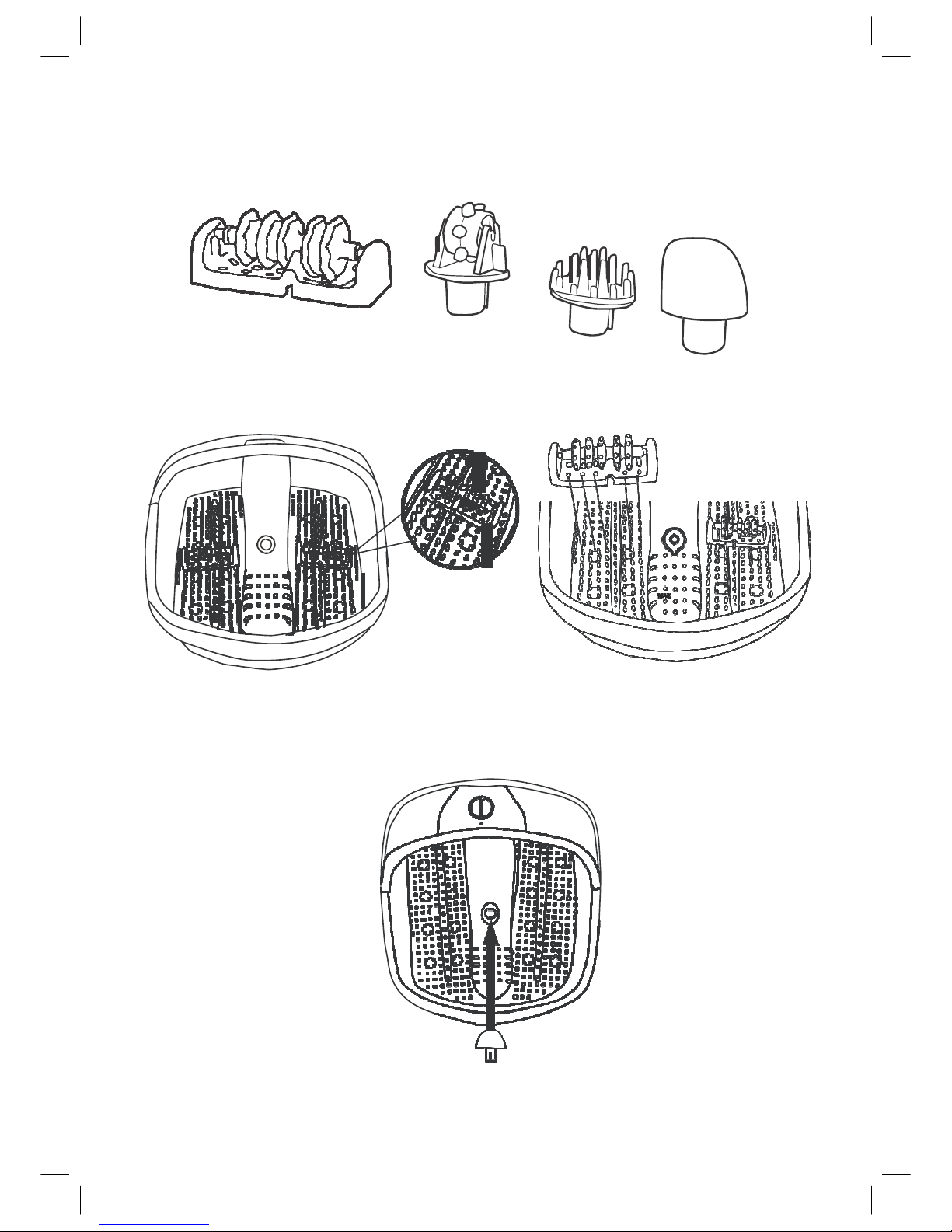

FITTING THE A TT A CHMENTS
The stimulator attachments consist of:
1 x 1 x
4
x 1
x
The 4 wheel attachments are fitted as shown in the diagrams below.
M A X
The 3 node attachments are fitted into the hole in the centre of the unit (as shown) .
NOTE: there are notches on the unit, line the attachments and push to
insert.

PLUG REPLACEMENT (UK and Ireland only)
This appliance may be fitted with a non-rewirable plug. If you need to change the fuse in a non-
rewir
able plug, the fuse cover must be refitted. If the fuse cover is lost or damaged, the plug must not
be used until a replacement is obtained (available from the appliance manufacturer).
If the plug has to be changed because it is not suitable for your socket, or becomes damaged, it
should be cut off and appropriate plug fitted following the wiring instructions. The plug removed must
be disposed of safely as insertion into a mains socket is likely to cause an electrical hazard.
This equipment must be disconnected from the mains when not in use. Do not allow this unit to
be
exposed to rain or moisture.
For your own safety read the following instructions carefully before attempting to connect this unit to
the mains. You should only plug the appliance into a AC220-240V ~ 50Hz supply. Connecting it to
other power sources may damage the
appliance.
BLUE TO
E
L
FUSE
The wires in this mains lead are coloured in
accordance with the following code:
NEUTRAL BROWN
N
IMPORTANT
TO LIVE
CORD
GRIP
BLUE = NEUTRAL
BROWN = LIVE
The colours of the wires in the mains lead of this appliance may not correspond with the
coloured
markings identifying the terminals in your plug proceed as follows:
Caution
To prevent electric shock disconnect from
the mains before removing the cover
The blue wire must be connected to the terminal marked with the letter N or coloured black.
The brown wire must be connected to the terminal marked with the letter L or coloured red.
If a 3 Amp (BS1363) fused plug is used it must be fitted with a 3A fuse conforming to BS1362 and
be ASTA approved.
If in doubt contact a qualified electrician
DISPOSAL INFORMATION
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your local authority for recycling advice.
7
