Touchstone®WR2100
Wireless Repeater
Quick Installation Guide

ii
Package Contents
The following items should be included: If any of these items are
damaged or missing, please contact your service provider immediately.
1. The WR2100 Wireless Repeater
2. Quick Installation Guide
3. End User License Agreement
What You Need
If you chose to configure the WR2100 Wireless Repeater using a PC
and a web browser, you will need an Ethernet cable long enough to
connect the WR2100 Wireless Repeater to your PC.

1
Chapter 1
Introduction
This Chapter provides details of the WR2100 Wireless
Repeater’s features, components and capabilities.
Overview
The Touchstone®WR2100 Wireless Repeater is designed to enhance
and extend the wireless network coverage, range, and connectivity by
repeating and boosting the wireless signal between the existing
Wireless Gateway/Router and hard to reach wireless client devices
(e.g. IP camera, laptop computer) and mobile devices in the home. This
provides consumers with an improved wireless experience on tablets,
smartphones, and other wireless client devices. With its easy setup and
operation, this high-speed 802.11n device works seamlessly with all
ARRIS Wireless Gateways and most other wireless routers and access
points.
Features
Easy Setup. Use either push button WPS (Wi-Fi Protected Setup)
or your PC and web browser for configuration.
Wireless Features
Supports 11n Wireless Stations: Provides backward compatibility
with the 802.11b and 802.11g standards, so 802.11n, 802.11b and
802.11g wireless clients can be used simultaneously.
WPS Support: WPS (Wi-Fi Protected Setup) can simplify the
process of connecting any device to the wireless network by using
the WPS configuration button on the device.
Security Support: Full WEP (64/128 Bit), WPA and WPA2
Personal standards are supported on the wireless interface, allowing
advanced encryption of wireless data.
Location Considerations
For best performance, locate the WR2100 Wireless Repeater away
from known interfering devices such as microwave ovens and baby
monitors.
1

2
Chapter 2
Basic Setup
This Chapter provides details on how to setup the WR2100
Wireless Repeater.
System Requirement
To use the wireless interface on the WR2100 Wireless Repeater,
other wireless devices must be compliant with the IEEE 802.11b,
IEEE 802.11g or IEEE 802.11n specifications. All wireless stations
must use compatible settings.
Physical Details

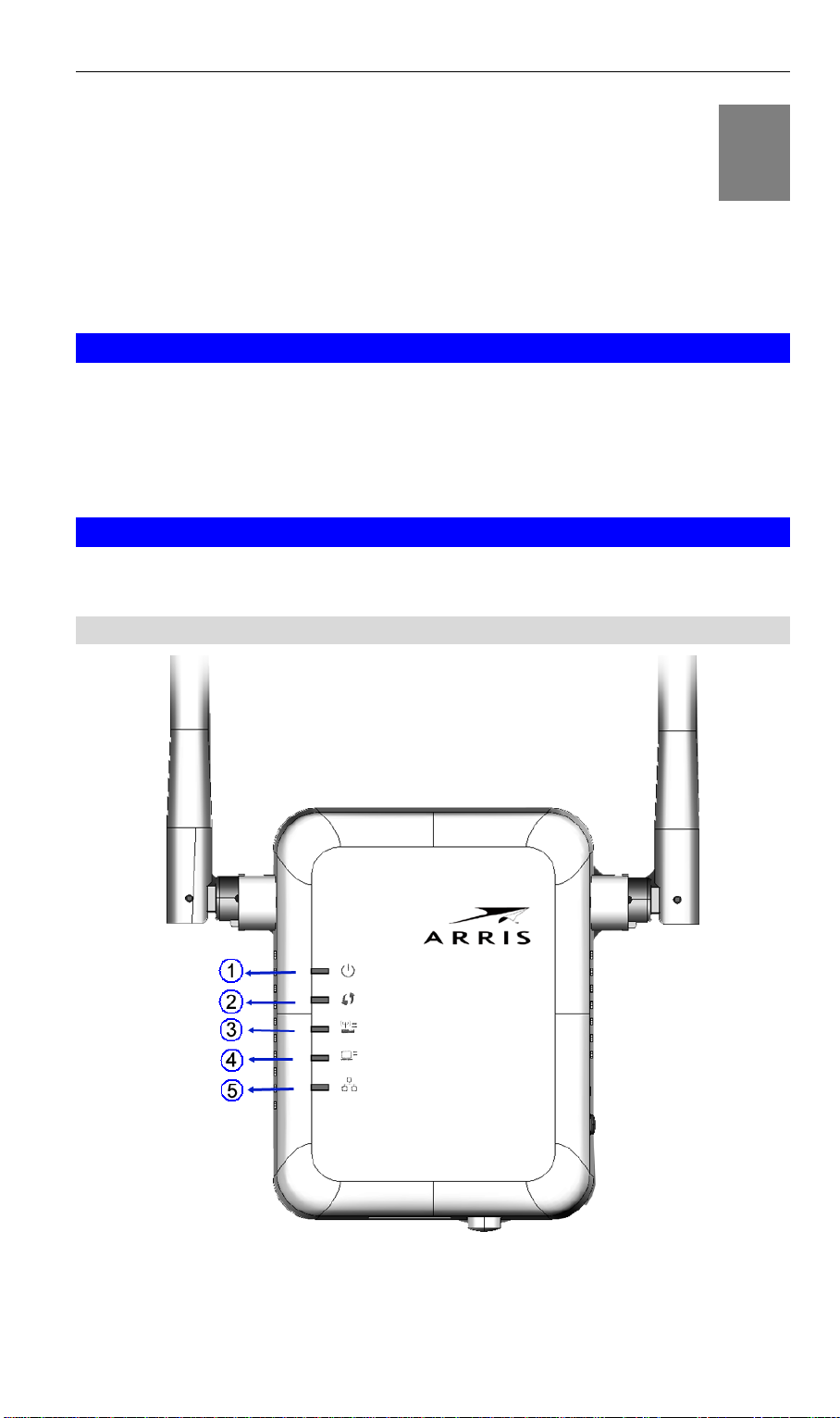

Front Panel
2

3

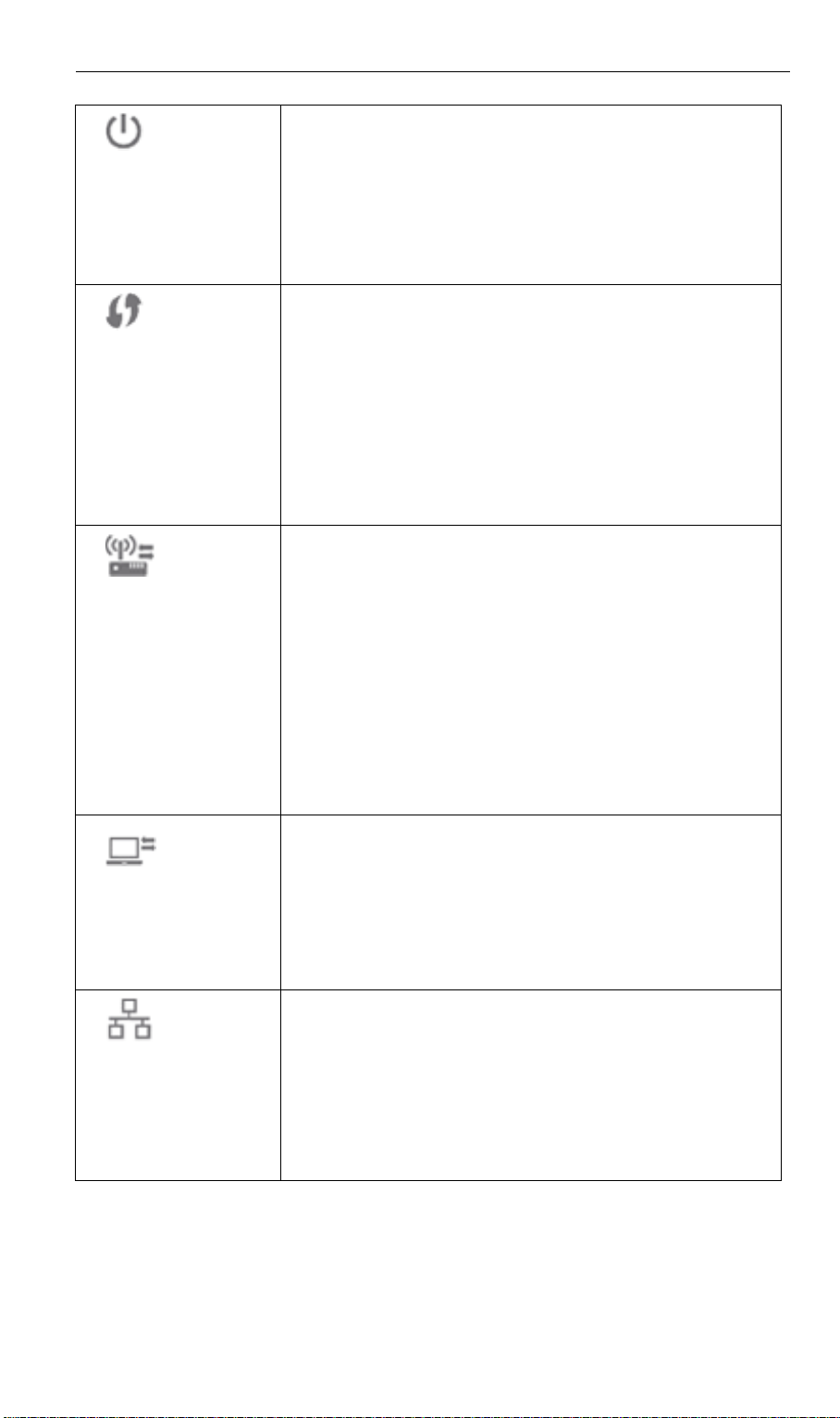

1.
Power LED
(Green/Amber)
On (Green) - Power on.
Off - No power.
Blinking (Green) - The Power LED will blink
during start up. This will take 15 to 20 seconds.
On (Amber) - System failure.
2.
WPS LED (Green)
On (Green) - When WPS button is pressed, the
LED will be on for 2 minutes.
Off - WPS feature is not in use.
Slow Blinking (Green) - WPS is activating.
Quick Blinking (Green) - WPS failure.
3.
Access Point/
Repeater LED
(Green/Red)
On (Green) –Access Point connection is
available and the signal strength is good.
Off –Access Point connection is not
established.
On (Amber) - The signal strength is normal.
On (Red) - The signal strength is poor.
Note: if the LED indicator shows red, you need
to install the device in a better location.
4.
Repeater/Client
LED (Green)
On (Green) - Client connection is available and
the signal strength is good.
Off - Client connection is not established.
5.
Ethernet LED
(Green)
On (Green) - LAN connection is available.
Off - LAN is not connected.
Blinking (Green) - Data is being transmitted or
received via the LAN connection.

4

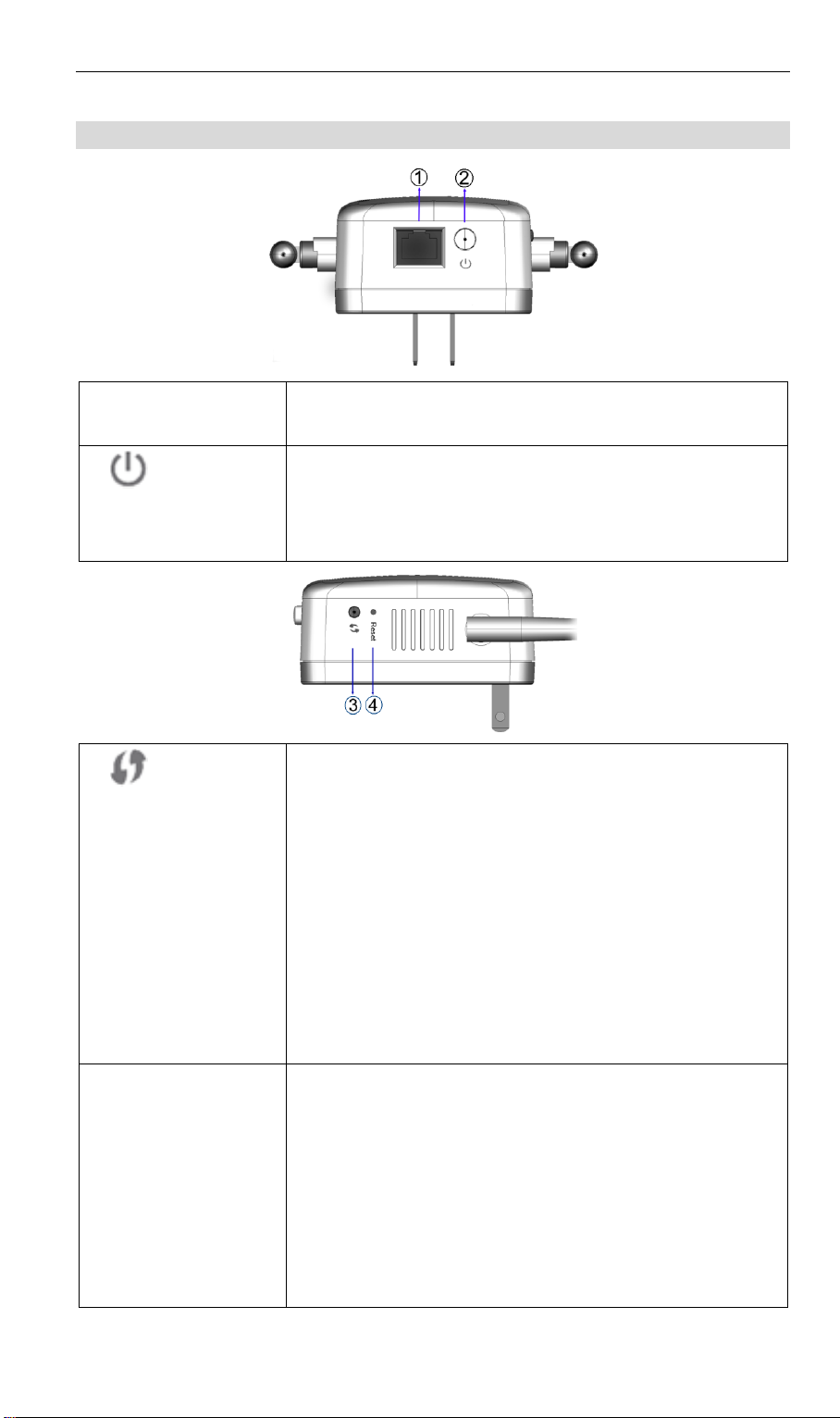

Bottom & Side Panel
1. LAN port
Use a standard Ethernet cable to connect your
WR2100 Wireless Repeater to a PC.
2.
Power On/Off
Switch
Press this button to turn on/off the WR2100
Wireless Repeater.
3.
WPS Button
Press the WPS button on the device and on your
other wireless device to perform WPS setup that
easily creates an encryption-secured wireless
connection automatically.
Access Point Connection. When pressed
and held over 3 seconds, the WR2100
Wireless Repeater performs WPS setup with
the wireless router/access point.
Client Connection. When pressed and
released (less than 3 seconds), the WR2100
Wireless Repeater will perform WPS setup
with the client devices.
4. Reset Button
This button is recessed. Use a pointed non-
metallic object to press this button. It can be
activated at any time the WR2100 Wireless
Repeater is in the "ready" mode.
Reset to manufacturer default values and
reboot. When pressed and held for over 10
seconds, the settings of the WR2100
Wireless Repeater will be reset to their
default values.

5
Setting Up the WR2100 Wireless Repeater

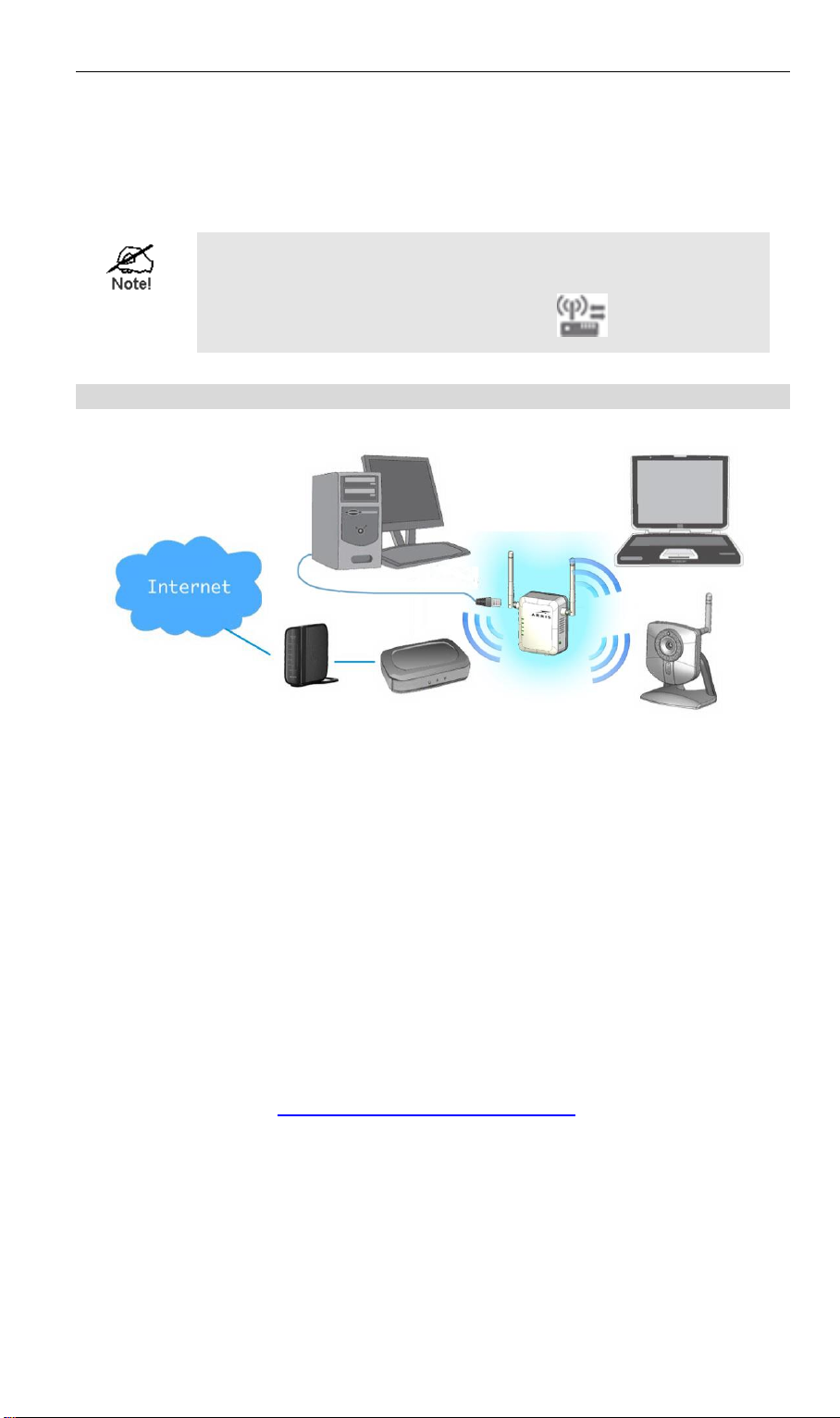

The installation allows the WR2100 Wireless Repeater to directly
connect to a wireless router (or Wireless Access Point). You can extend
the range of your wireless network without running cables and reduce
“dead spots” in the house where the router/access point signal is weak.
Automatic Configuration Using WPS
Step 1: Locate the WR2100 Wireless Repeater near the Wireless
Access Point while doing the configuration.
Step 2: Make sure the Wireless Access Point is on and working
properly and with good signal strength to WR2100 Wireless Repeater.
Step 3: Plug the WR2100 Wireless Repeater into the power outlet and
press the Power button to power it on.
Step 4: The LED stays on for a few seconds then starts blinking. Wait
for the Power LED to be static on again. The WR2100 Wireless
Repeater is now ready for use.
Step 5: Press the WPS button on the Wireless Access Point and make
sure the Wireless Access Point is in WPS mode. (The LED on the
access point will blink for 2 minutes.)
Step 6: Press and hold the WPS button on the WR2100 Wireless
Repeater for MORE than 3 seconds. The WPS LED on the device will
blink for 2 minutes. The WR2100 Wireless Repeater will automatically
associate to the Wireless Access Point on which you initiated WPS and
make connection. Make sure to press the button within 120 seconds (2
minutes) after pressing the Wireless Access Point WPS button.
Step 7: The connection of the WR2100 Wireless Repeater and
Wireless Access Point is successfully established after the LED
remains on.

6
Step 8: Now you can select a suitable location for the WR2100
Wireless Repeater. It's preferable to place the device near the center of
your wireless coverage area. Check the LED color and make sure it’s
not red. Next go to “Setting Up Your Client Devices”.
Locate the WR2100 Wireless Repeater in another
place for better wireless reception and performance
if the signal strength is weak (the LED is red).
Manual Configuration with a PC
Step 1: Locate the WR2100 Wireless Repeater near the Wireless
Access Point while doing the configuration.
Step 2: Prepare an Ethernet cable (not included). It should be long
enough to connect the WR2100 Wireless Repeater to your PC.
Step 3: Plug the WR2100 Wireless Repeater into the power outlet and
press the Power button to power it on.
Step 4: The LED stays on for a few seconds then starts blinking. Wait
for the Power LED to be static on again. The WR2100 Wireless
Repeater is now ready for use.
Step 5: Connect the Ethernet cable to the WR2100 Wireless Repeater
and the PC.
Step 6: Launch the browser and enter either the device IP address,
192.1.168.0.254, or http://www.mywifirepeater.net/ in the Address box.
Step 7: You will then be prompted for a username and password. If
using the default values, enter admin for the username, and password
for the password.

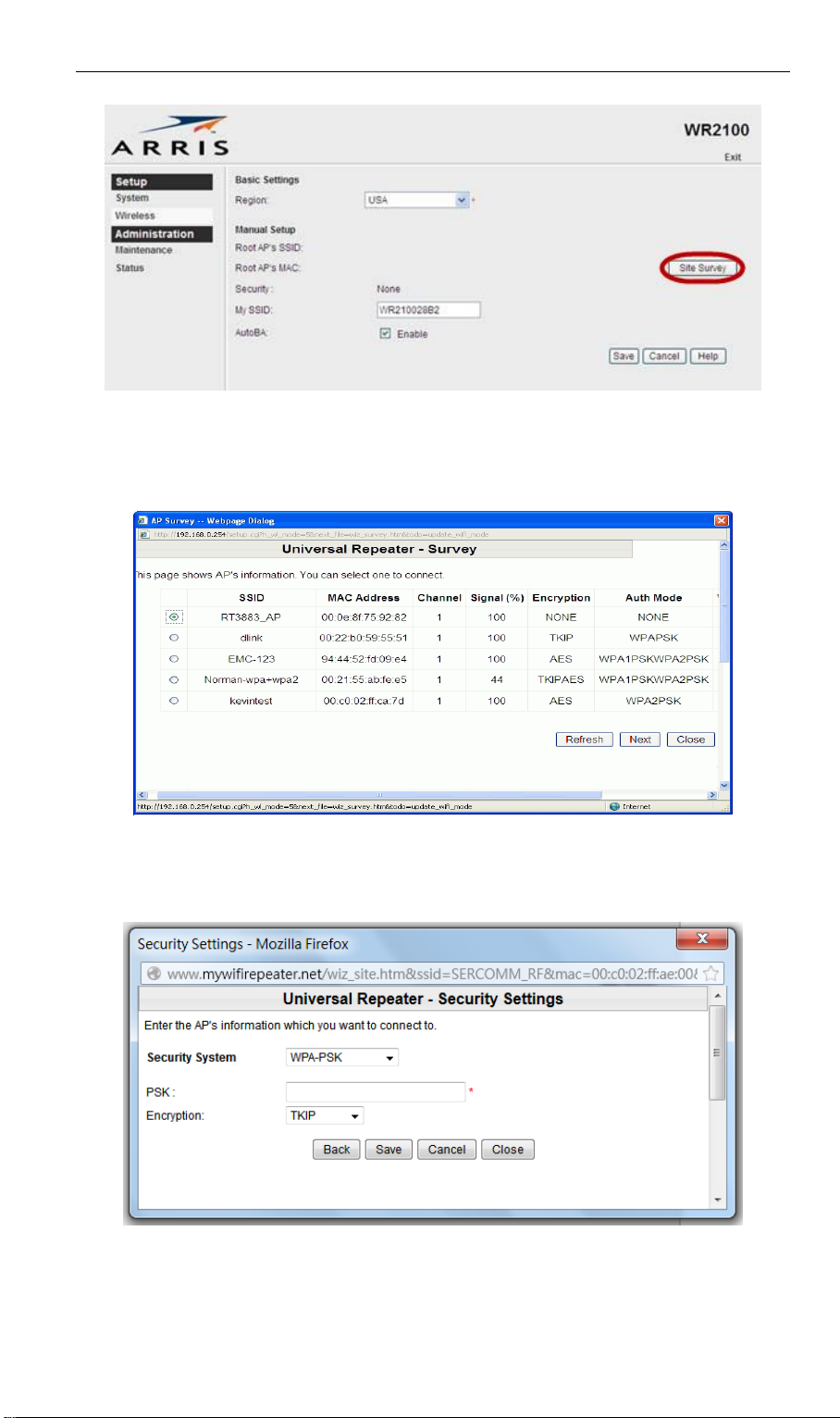

Step 8: Choose the Wireless page and click the “Site Survey” button.
The WR2100 Wireless Repeater will start to search the existing
wireless networks.

7
Step 9: Select the desired SSID that you want to connect to. Click Next.
If you can’t find the SSID, make sure the Wireless Access Point SSID is
being advertised. (You can enter the SSID manually if necessary.)
Step 10:The Security Settings screen will be prompted automatically if
the security is on. Enter the required encryption keys. Click Save.
Screen content may be different based on access point settings.
(The PSK should match the configured PSK in your wireless router.)

8
Step 11: The connection of the WR2100 Wireless Repeater and
Wireless Access Point is successfully established after the LED
remains on. Next go to “Setting Up Your Client Devices”.
Locate the WR2100 Wireless Repeater in another
place for better wireless reception and performance
if the signal strength is weak (the LED is red).
Setting Up your Client Devices
You must next configure your client devices to access the repeater.
Configuring Client Devices without WPS
PCs and laptops typically do not have a WPS function. However, if
previously configured to your wireless router/access point, they should
automatically access the network through the WR2100 Wireless
Repeater without any additional configuration.
If your client was NOT previously configured for your router/access
point, perform the following steps:
Step 1: Configure the client device (e.g. PC or laptop) with the same
SSID and encryption keys using your operating system’s network utility.
Step 2: The connection is successfully established after the LED
remains on.
Step 3: The client device can then access the wireless network.
Configuring WPS Enabled Client Devices
Step 1: Power on the WPS enabled client device (e.g. IP Camera) and
make sure it is in wireless mode
Step 2: Press the WPS button on the WR2100 Wireless Repeater for
LESS than 3 seconds. The WPS LED will blink for 2 minutes. Then
press the WPS button on the client device. Make sure to press the
button within 120 seconds (2 minutes) after pressing the WR2100
Wireless Repeater WPS button.
Step 3: Wait for the WPS LEDs to be solid on both WR2100 Wireless
Repeater and the client device. Then check the LED again.
Step 4: If the LED remains on the client device can now access
the wireless network.

9
Troubleshooting
Devices that do Not Support the Block ACK Feature
Wireless access points and wireless routers that use the older IEEE
802.11g or 802.11b specifications may not support the Block ACK
speed accelerator feature.
If you are using one of these devices and experience issues with
transfer speeds or sporadic connections with the WR2100 Wireless
Repeater, you should disable the AutoBA feature, as follows.
Step 1: Follow the procedure under Manual Configuration with a PC to
access the WR2100 Wireless Repeater configuration screens.

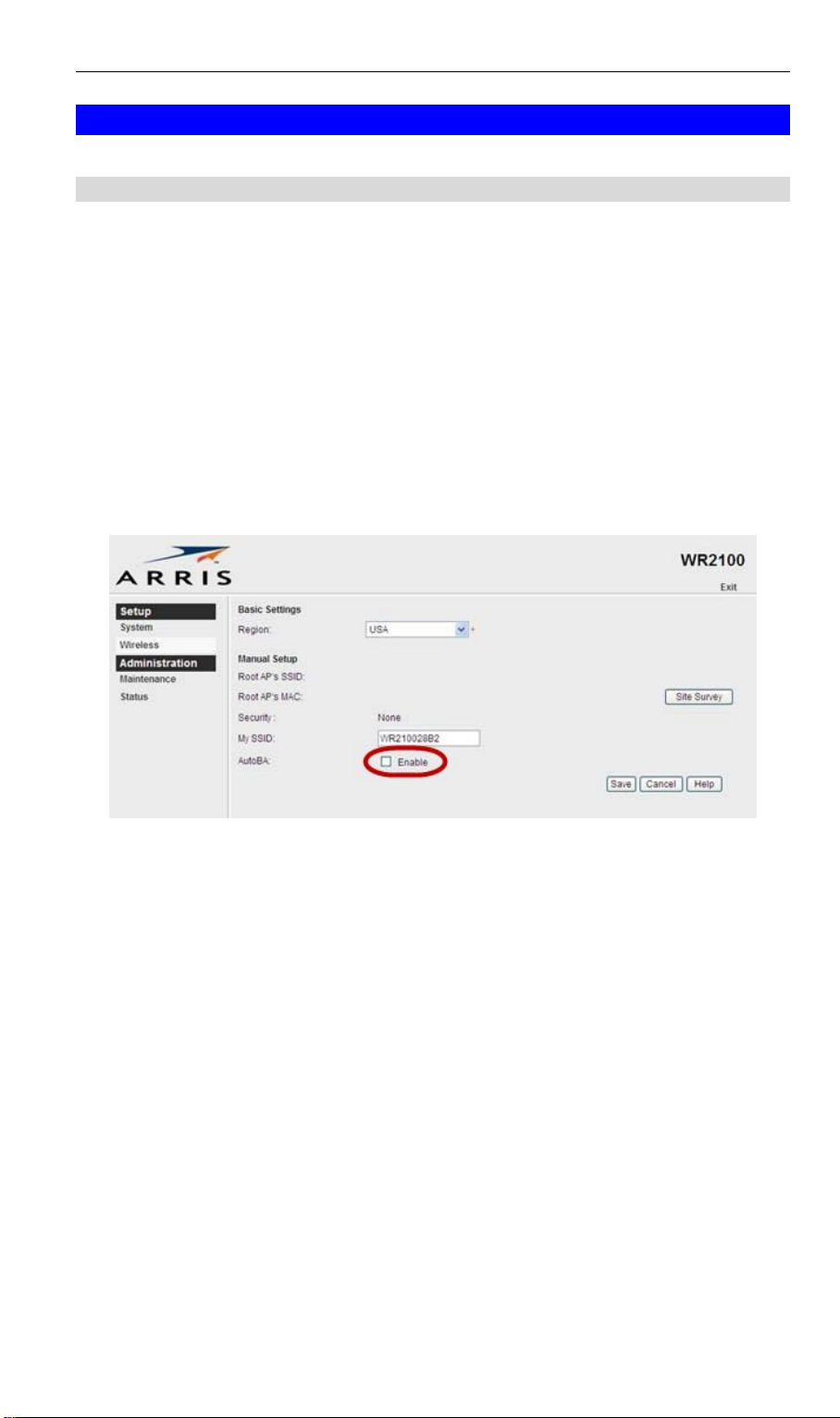

Step 2: Select the Wireless page and uncheck the AutoBA Enable
checkbox.
Step 3: Click Save to save your new configuration, and then click Exit
to close the session.

10
Appendix A
Specifications
WR2100 Wireless Repeater
Model
802.11N Wireless Repeater 2.4GHz 2x2:2
MIMO
Dimensions
67mm (W) x 85mm (H) x 36mm (D)
Operating
Temperature
0C to 40C (32F to 104F)
Antenna
External antenna x 2
Storage
Temperature
-20C to 70C (-4F to 158F)
Network Interface
1 Ethernet 10/100BaseT (RJ45) LAN connection
Wireless interface
802.11b: 20 dBm@11Mbps
802.11g: 18 dBm@54Mbps
802.11n: 18 dBm@130Mbps and 270Mbps
LEDs
5
Power
100~240V AC (Build-in Power)
Regulatory Approvals
FCC Statement
This equipment has been tested and found to comply with the
requirements for a Class B digital device under Part 15 of the Federal
Communications Commission (FCC) rules. These requirements are
intended to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
A

11
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: To assure continued compliance, any changes or
modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
(Example - use only shielded interface cables when connecting to
computer or peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 7.9 inches (20
centimeters) between the radiator and your body.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.

12
©ARRIS Enterprises, Inc. 2013 All rights reserved. No part of this
publication may be reproduced in any form or by any means or used to
make any derivative work (such as translation, transformation, or
adaptation) without written permission from ARRIS Enterprises, Inc.
(“ARRIS”). ARRIS reserves the right to revise this publication and to
make changes in content from time to time without obligation on the
part of ARRIS to provide notification of such revision or change.
ARRIS provides this guide without warranty of any kind, implied or
expressed, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. ARRIS may make
improvements or changes in the product(s) described in this manual at
any time. The capabilities, system requirements and/or compatibility
with third-party products described herein are subject to change without
notice.
ARRIS and the ARRIS logo are all trademarks of ARRIS Enterprises,
Inc. Other trademarks and trade names may be used in this document
to refer to either the entities claiming the marks and the names of their
products. ARRIS disclaims proprietary interest in the marks and names
of others.
ARSVD01455 Standard 3.1 October 2013

i
Répéteur sans fil
Touchstone®WR2100
Guide d’installation
rapide

ii
Contenu de l’emballage
L’emballage devrait contenir les articles suivants : si un de ces articles
est endommagé ou manquant, veuillez contacter votre fournisseur de
service immédiatement.
1. Répéteur sans fil WR2100
2. Guide d’installation rapide
3. Accord de licence de l’utilisateur final
Matériel nécessaire
Si vous choisissez de configurer le Répéteur sans fil WR2100 en
utilisant un ordinateur et un navigateur Web, vous aurez besoin d’un
câble Ethernet assez long pour brancher le Répéteur sans fil WR2100 à
votre ordinateur.

1
Chapitre 1
Introduction
Ce chapitre décrit les caractéristiques, les composants et
les capacités du Répéteur sans fil WR2100.
Vue d’ensemble
Le Répéteur sans fil Touchstone®WR2100 a pour but d’augmenter la
couverture, la portée et la connectivité d’un réseau sans fil en répétant
et en amplifiant le signal sans fil reliant la passerelle ou le routeur sans
fil existants et les dispositifs clients sans fil (p. ex., les appareils photo
IP et les ordinateurs portables) difficiles à atteindre. Il permet aux
consommateurs de mieux profiter de leurs tablettes et téléphones
intelligents ainsi que de leurs autres appareils sans fil. Facile à
configurer et à utiliser, ce dispositif haute vitesse 802.11n fonctionne
parfaitement avec toutes les passerelles sans fil ARRIS ainsi que la
plupart des autres routeurs et points d’accès sans fil.
Caractéristiques
Facile à configurer. Utilisez le bouton-poussoir WPS (Wi-Fi
Protected Setup) ou le navigateur Web de votre ordinateur pour
configurer l’appareil.
Caractéristiques sans fil
Compatible avec les stations sans fil 11n : Prend en charge les
anciennes normes 802.11b et 802.11g, afin que des dispositifs
clients utilisant les technologies sans fil 802.11n, 802.11b et
802.11g puissent être utilisés simultanément.
Compatible avec la fonction WPS (Wi-Fi Protected Setup) : La
fonction WPS permet de simplifier le processus de connexion des
dispositifs au réseau sans fil au moyen du bouton de configuration
WPS situé sur l’appareil.
Compatible avec les protocoles de sécurité : Les normes de
sécurité personnelles WEP (64 ou 128 bits), WPA et WPA2 sont
entièrement prises en charge par l’interface sans fil, permettant le
chiffrement avancé des données sans fil.
1

2
Emplacement
Pour obtenir les meilleurs résultats, placez le Répéteur sans fil WR2100
loin des appareils connus pour créer des interférences comme les fours
à micro-ondes et les moniteurs pour bébés.

3
Chapitre 2
Configuration de base
Ce chapitre décrit la configuration du Répéteur sans fil
WR2100.
Exigences système
Pour utiliser l’interface sans fil du Répéteur sans fil WR2100, les
autres dispositifs sans fil doivent satisfaire aux normes IEEE
802.11b, IEEE 802.11g ou IEEE 802.11n. Tous les postes sans fil
doivent utiliser des paramètres compatibles.
Description physique
Face avant
2

4
1.
Témoin
d’alimentation
(vert/ambre)
Activé (vert) –L’appareil est sous tension.
Désactivé –L’appareil est hors tension.
Clignotement (vert) –Le témoin d’alimentation
clignote pendant le démarrage. qui dure de 15 à
20 secondes.
Activé (ambre) –Le système est en panne.
2.
Témoin WPS
(vert)
Activé (vert) –Lorsque vous appuyez sur le
bouton WPS, le témoin reste allumé pendant
deux minutes.
Désactivé –La fonction WPS n’est pas utilisée.
Clignotement lent (vert) –La fonction WPS est
en cours d’activation.
Clignotement rapide (vert) –Erreur de la
fonction WPS.
3.
Témoin de la
connexion point
d’accès/Répéteur
(vert/rouge)
Activé (vert) –La connexion au point d’accès
est établie et la force du signal est bonne.
Désactivé –La connexion au point d’accès
n’est pas établie.
Activé (ambre) –La force du signal est
normale.
Activé (rouge) –La force du signal est faible.
Remarque : Si le témoin est rouge, vous devez
choisir un meilleur emplacement pour l’appareil.
4.
Témoin de la
connexion
Répéteur/client
(vert)
Activé (vert) –La connexion au dispositif client
est établie et la force du signal est bonne.
Désactivé –La connexion au dispositif client
n’est pas établie.
5.
Témoin Ethernet
(vert)
Activé (vert) –La connexion au réseau local
est établie.
Désactivé –Pas de connexion au réseau local.
Clignotement (vert) –Des données sont en
cours de transmission ou de réception via la
connexion au réseau local.
