Arris AT&T U-verse VIP2250 User manual

ARRIS
DVR Receiver
Installation Manual
VIP2250
For use with your AT&T U-verse TV Service

ii VIP2250 U-verse DVR Receiver Installation Manual
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTSINSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTSINSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Graphical symbols and supplemental warning markings are located on the back and bottom
of the terminal.
WARNING
TO REDUCE THE RISK OF FIRE OR SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
The lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated dangerous
voltage within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Product identification and supply rating are provided on the label found
on the bottom of the unit.
IMPORTANT SAFETY INSTRUCTIONS
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install according to the manufacturer’s
instructions.
• Do not install near any heat sources, such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of
time.
• Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as the power supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.

VIP2250 U-verse DVR Receiver Installation Manual iii

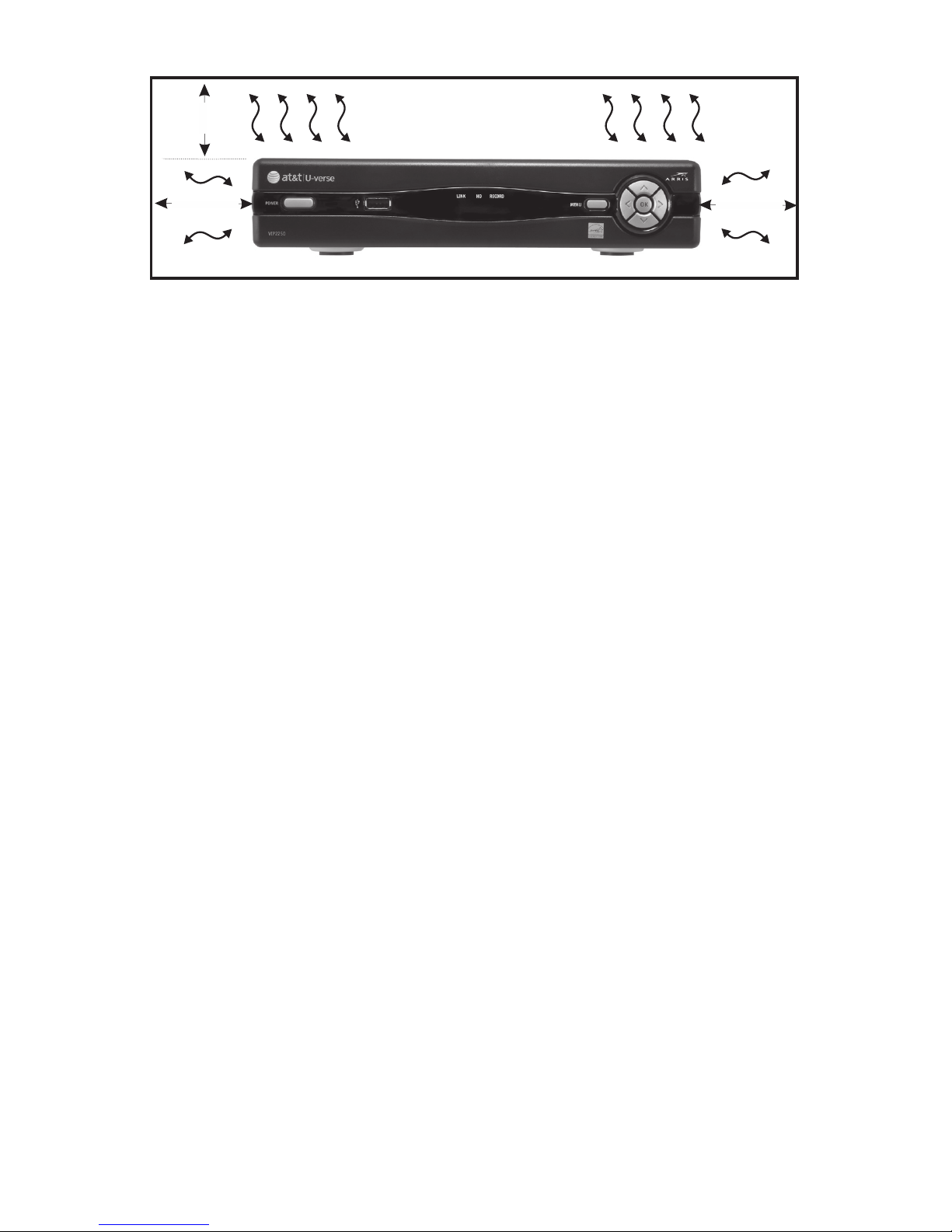

VENTILATE
At least
2 inches
2 inches 2 inches
Follow these important safety guidelines when positioning and connecting your TV
receiver:
• Do not block the slots and openings
• Do not place anything on top of the TV receiver
• Do not position the TV receiver in a confined space, such as an enclosed cabinet, that
does not provide adequate ventilation.
• Do not position the TV receiver near any external heat source that could raise the
temperature around the unit. Do not place the terminal on top of another heat
producing electronic device.
• Allow for adequate ventilation around the TV receiver to maintain normal operating
temperature. Do not place it in a sealed enclosure without providing for adequate
airflow.
• Do not plug the AC power adapter into a switched power outlet.
• A coaxial cable screen shield needs to be connected to the earth at the building
entrance per ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section
820.93, Grounding of Outer Conductive Shield of a Coaxial Cable.
• Because the receiver contains a hard drive, it must be positioned so that it remains
horizontal and rests on its rubber feet. Do not attempt to mount or position it in a
vertical position.
• To allow the disk drive to spin down properly, wait at least 10 seconds after
disconnecting power before moving the receiver.
• Always transport the receiver in its original factory carton, or in an equally well-padded
container.
• Whether installed or being transported, do not expose the receiver to temperature
extremes. The temperature range for operation is from 0° to +40°C. The non-operating
(transport or storage) temperature range is from -40° to +60°C.
This manual includes the manufacturer’s recommended safeguards and all the information
needed to connect your receiver to both your in-home IP network and your entertainment
system. The safety and installation information was developed and provided primarily by
the receiver manufacturer, ARRIS Enterprises, Inc.

iv VIP2250 U-verse DVR Receiver Installation Manual
Contents
Introduction ..............................................1
Overview ................................................2
Front Panel ...............................................2

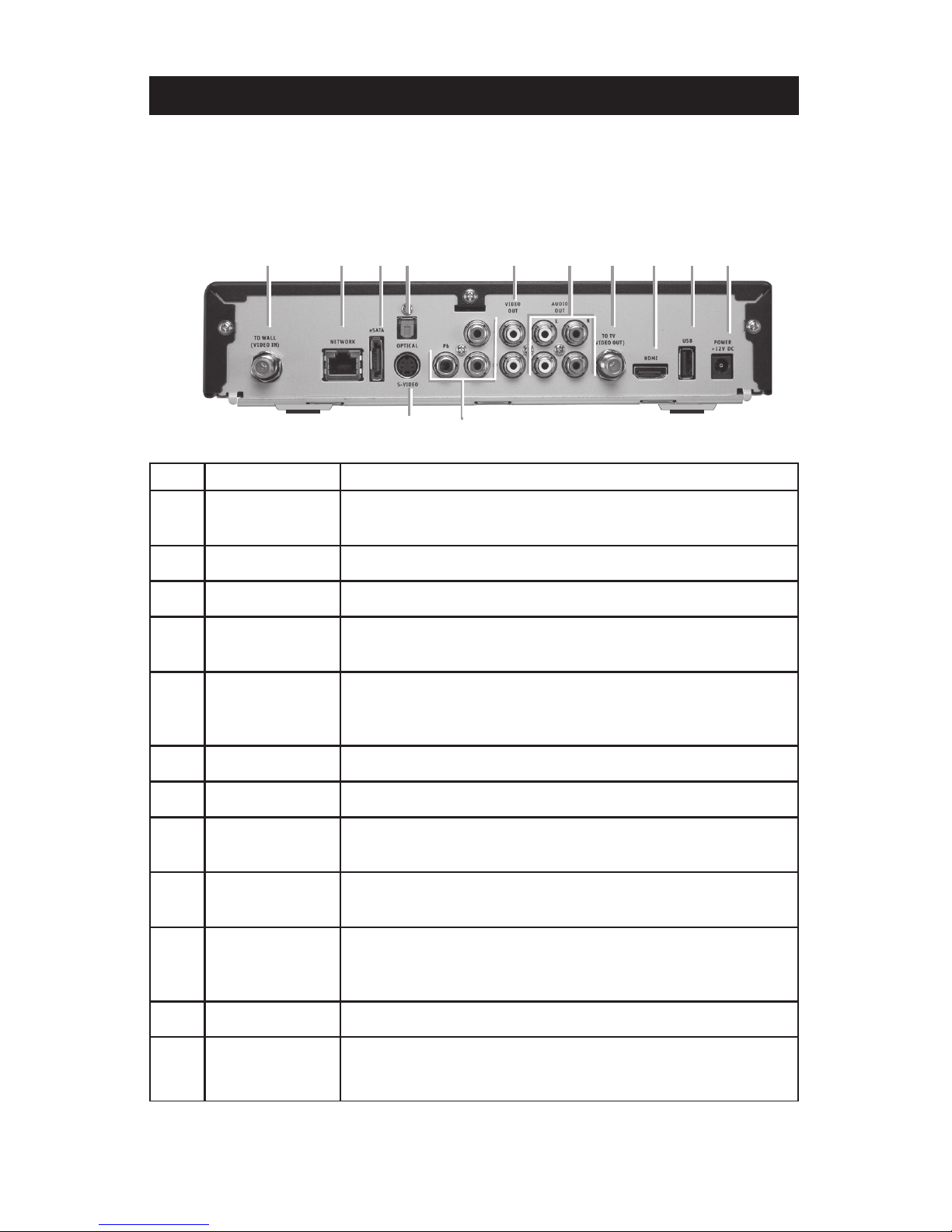

Rear Panel................................................3
Connecting Your TV Receiver .................................4

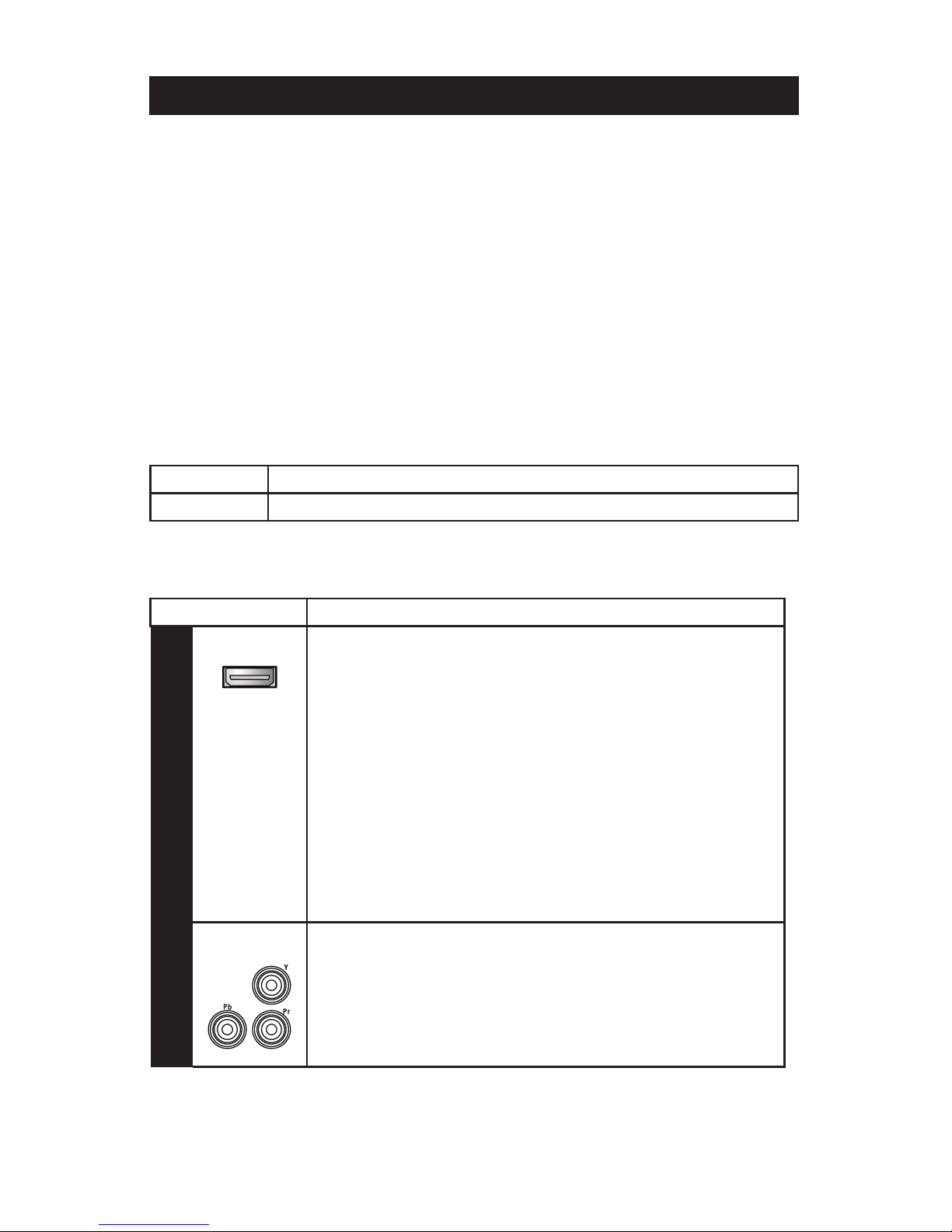

Connection Options ........................................4
Connecting Your TV Receiver .................................5
Common Cabling Examples ..................................5

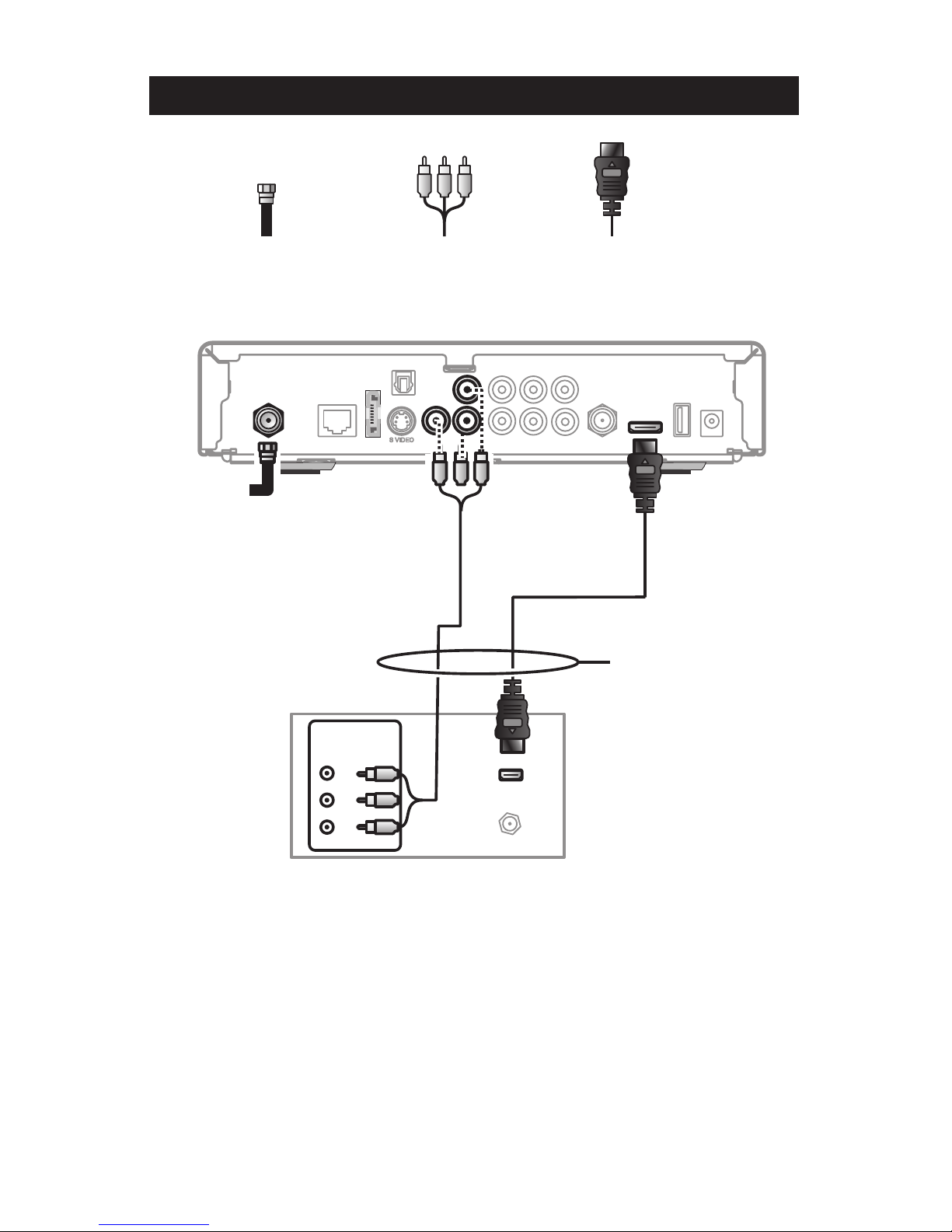

Connecting to an HDTV – Video Only ...........................6

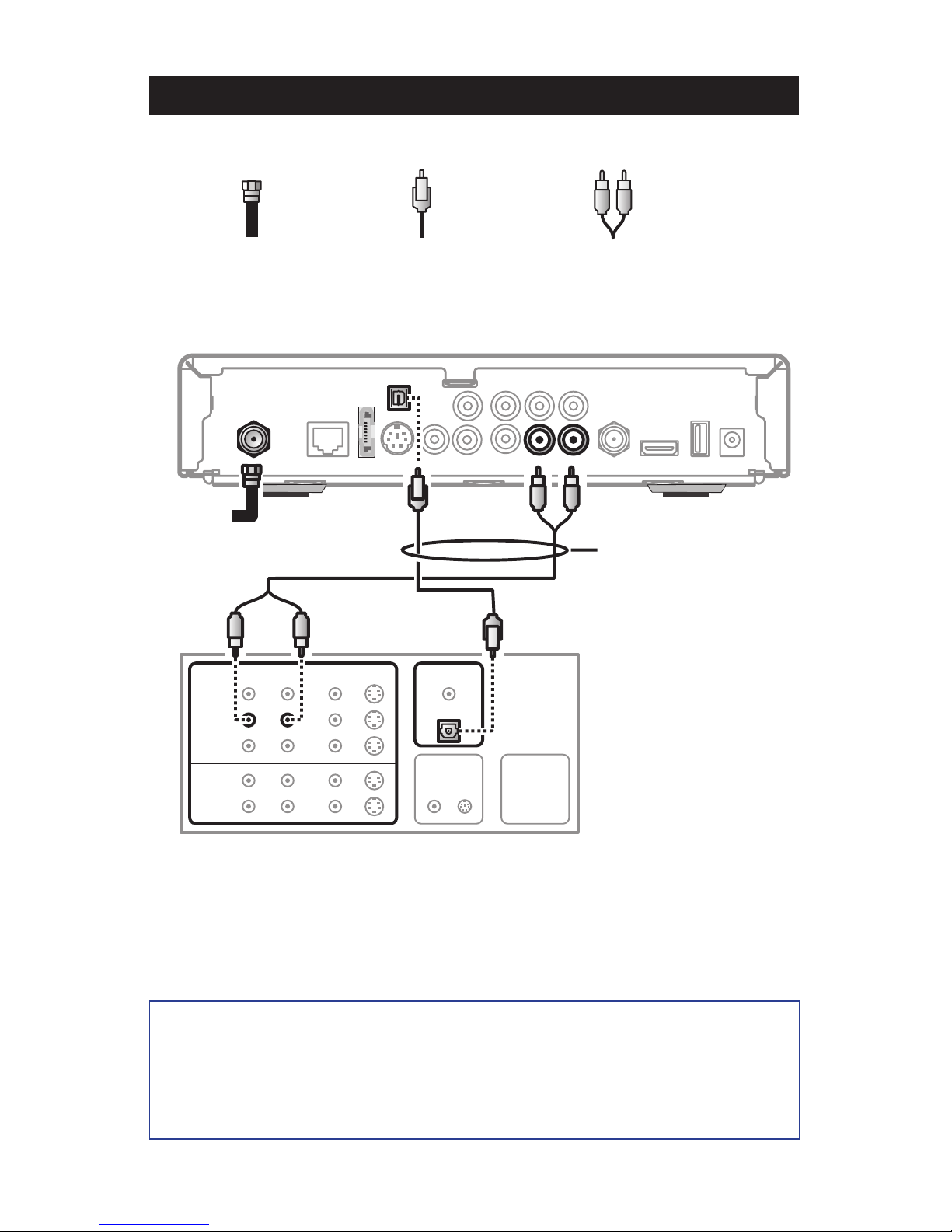

Connecting to an HDTV – Audio Only...........................7
Connecting to a Home Theater Receiver ........................8

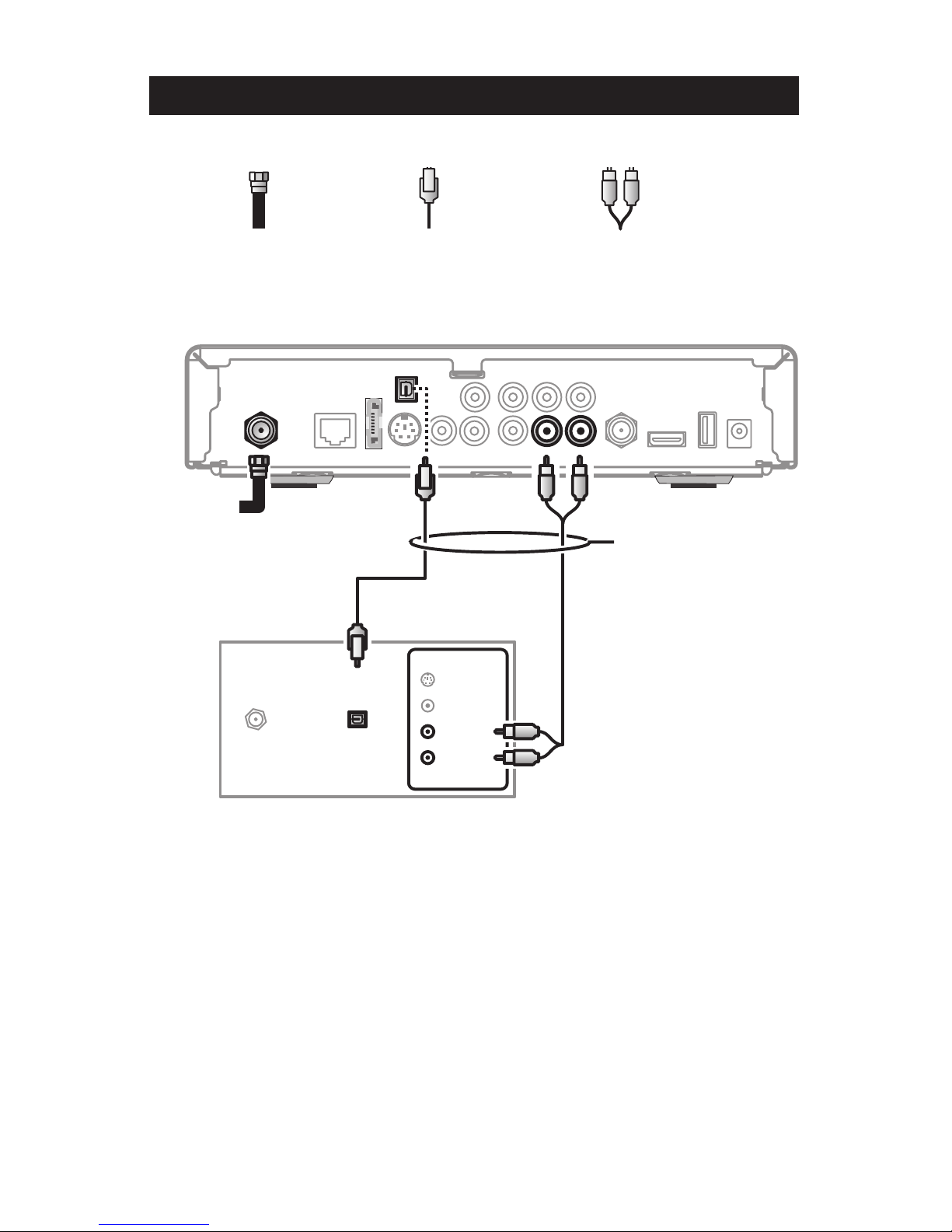

Connecting to a Stereo TV ...................................9

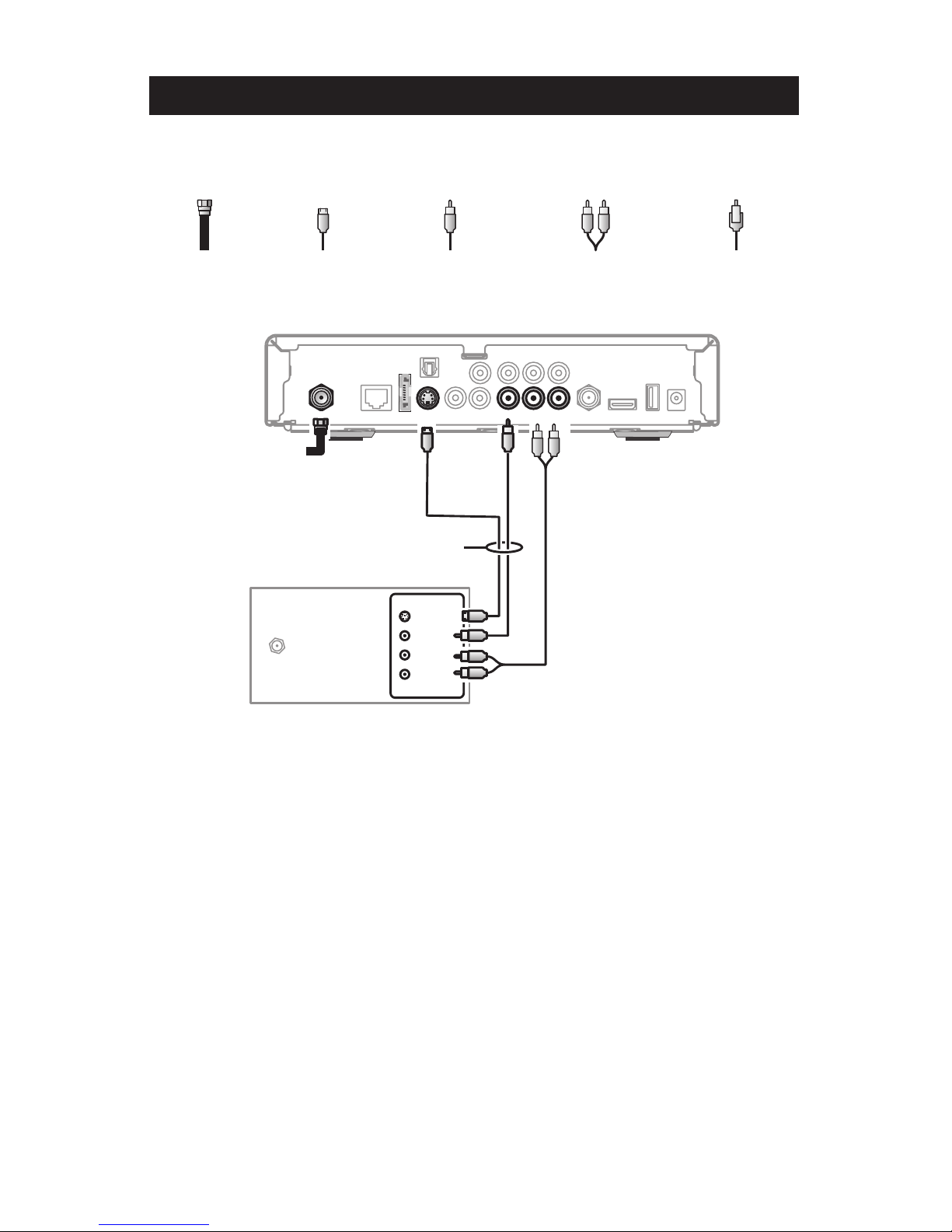

Connecting to a Stereo TV and Stereo VCR .....................10

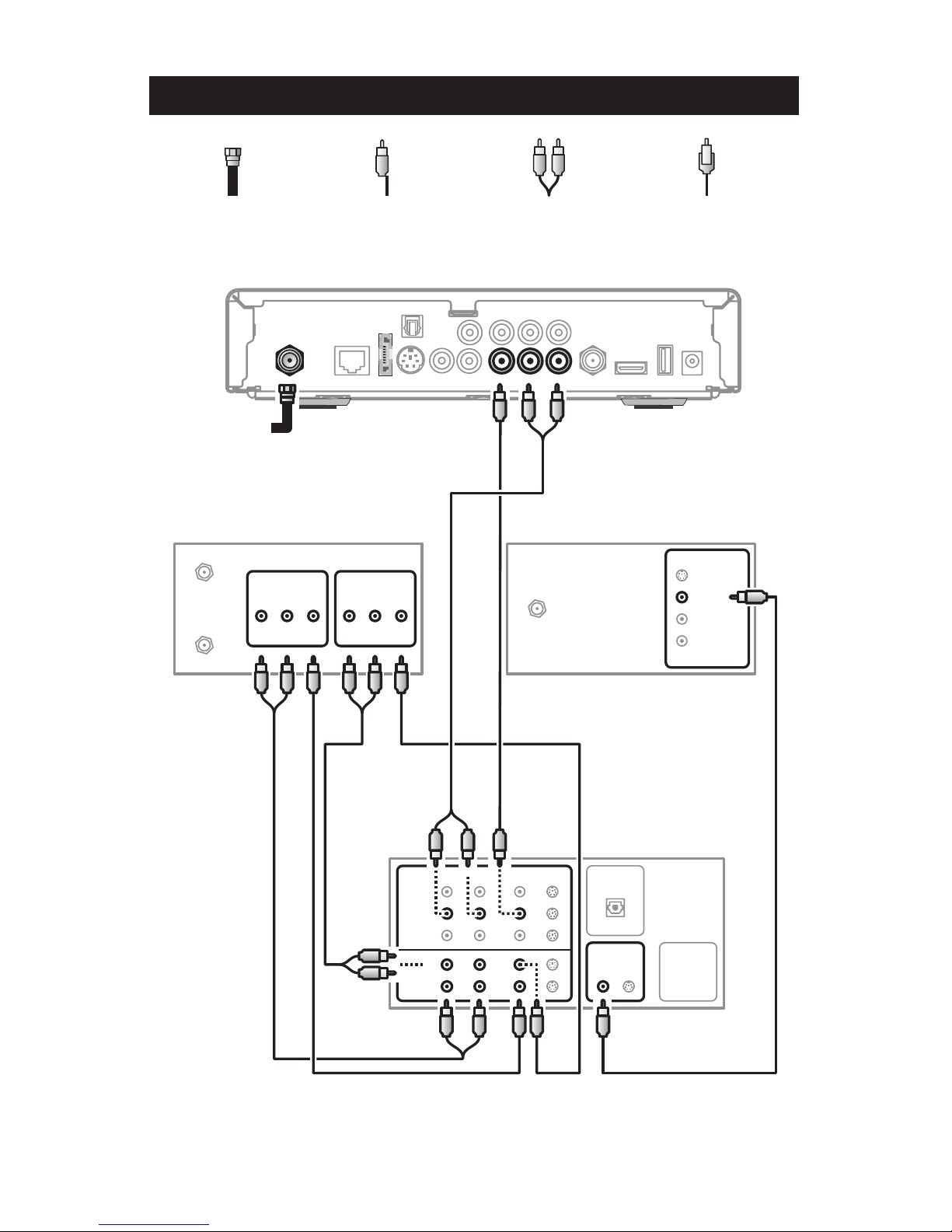

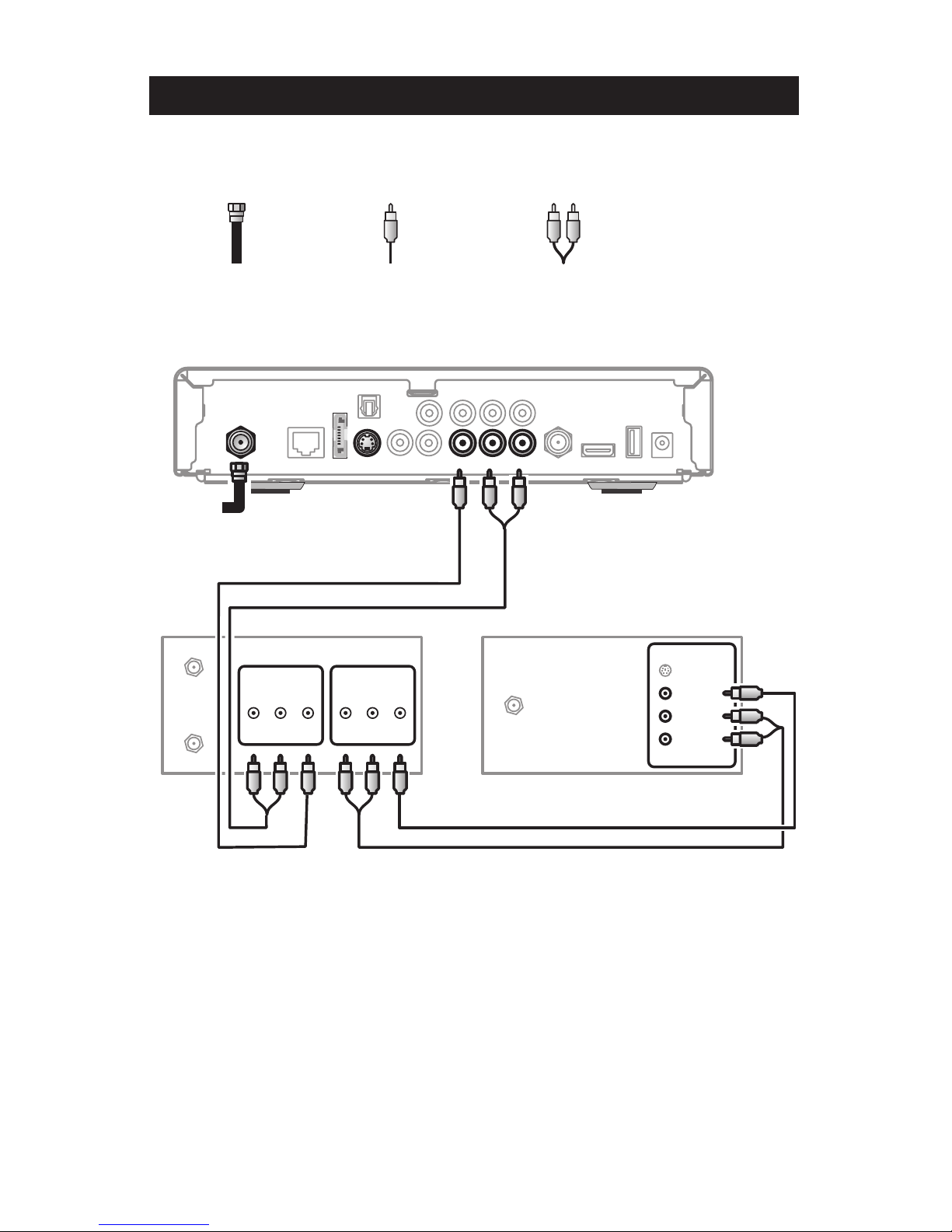

Connecting to a Home Theater Receiver, TV, and VCR .............11
Troubleshooting ..........................................12

VIP2250 U-verse DVR Receiver Installation Manual 1
Introduction
Congratulations on receiving this ARRIS VIP2250 U-verse DVR TV Receiver.
The VIP2250 provides these extraordinary home entertainment features:
• High Definition TV (HDTV), which provides up to twice the color resolution and up to
six times the sharpness of standard TV when connected to an HD-capable TV
• A digital video recorder (DVR), which can record Standard Definition and High
Definition programs
• A direct digital connection to consumer audio and video devices through multiple
interfaces
• Video on Demand (VoD)
• Commercial free, CD quality music
This installation manual introduces the basic features, outlines important safeguards, and
provides options for integrating your TV receiver into your entertainment system. Take a
few moments to read through this manual. Its configuration diagrams and troubleshooting
section will help you make the most of your home entertainment experience.
Included in the carton:
• VIP2250 Digital Video Recorder (DVR) Receiver
• Power adapter
For more information about your U-verse TV service, refer to the other documentation from
your service provider.
Dimensions: 10.0” W. x 8.0” D., x 2.2” H.
Unit Weight: 4.37 lbs.
Top Assembly Weight (incl. carton and all inserts): 6.39 lbs.
