Arrow Storage Products CM1014-A1 Use and care manual

* Size rounded o to the nearest foot
BUILDING DIMENSIONS
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
714740417
Model No. CM1014-A1 OB1014-C1
697.68103-C1 697.68104
OB1014EU-C1 697.68664-A
OB1014FB-C1
Owner's Manual & Assembly Instructions
Exterior Dimensions Interior Dimensions Door
*Approx. Base (Roof Edge to Roof Edge) (Wall to Wall) Opening
Size Size Width Depth Height Width Depth Height Width Height
10' x 14' 121" x 160 1/4" 123 1/4" 162 3/4" 81 3/8" 118 1/4" 157 1/2" 80 1/8" 55 1/2" 60"
3,0 m x 4,0 m 307,3 cm x 407,0 cm 313,1 cm 413,4 cm 206,7 cm 300,4 cm 400,1 cm 203,5 cm 141,0 cm 152,4 cm
Storage Area: 129 Sq. Ft. 769 Cu. Ft.
12,0 m221,8 m3
Missing Parts, Questions on Assembly?
Call: 1-800-851-1085 or
[email protected]
Do not return to dealer, they are not
equipped to handle your requests.
AX01

GB: Assembly manual in additional languages available online.
Scan QR code below to access.
FR: Manuel de montage disponible en ligne dans d’autres langues.
Pour y accéder, scannez le code QR ci-dessous.
SP: Manual de montaje en idiomas adicionales disponible online.
Escanee el código QR a continuación para acceder.
DE: Montageanleitung in zusätzlichen Sprachen online verfügbar.
Scannen Sie den QR-Code unten, um darauf zuzugreifen.
I T: Manuale dell’assemblea in altre lingue disponibile online.
Per accedere effettua la scansione del codice QR in basso.
P T: Manual de montagem disponível em outros idiomas online.
Digitalize o código QR abaixo para obter acesso.
D T: Samlingshåndbog i yderligere sprog til rådighed online.
Scan QR kode nedenunder for at få adgang.
SK:Nainternetejekdispozíciinávodnazostavenievďalšíchjazykoch.
Dostanete sa k nemu naskenovaním kódu QR.
CZ:Návodkmontáživdalšíchjazycíchjekdispozicivonlineverzi.
 PřístupzískáteponaskenováníQRkóduníže.
HU: Azösszeszerelésiútmutatótovábbinyelvekeniselérhetőonline.
A hozzáféréshez olvassa be az alábbi QR-kódot.
GR: Υπάρχειδιαθέσιμοστοδιαδίκτυοτοεγχειρίδιοσυναρμολόγησης
 σεπερισσότερεςγλώσσες.Σαρώστετονπαρακάτωκώδικα 
 QRγιανααποκτήσετεπρόσβαση.
P/N 6PP722621216

Owner's Manual
Before beginning construction, check local building codes regarding footings, location
and other requirements. Study and understand this owner's manual.
Important information and helpful tips will make your construction easier and more
enjoyable.
Assembly Instructions: Instructions are supplied in this manual and contain all
appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for successful results.
Flooring and Anchoring: Your storage building must be anchored to prevent wind
damage. A base is necessary to construct a square and level building. Anchoring and
base materials are not included with your building. We recommend the combined use
of an Arrow Floor Frame Kit and an Arrow Anchoring Kit as an effective method of
securing your building to the ground (Available at your local dealer, Arrow's website
arrowsheds.com or call Arrow's Customer Service department 1-800-851-1085) or you
may construct a base and anchoring system of your choice. Your assembly instructions
provide information on a few methods commonly used to secure and level a storage
building.
Parts and Parts List: Check to be sure that you have all the necessary parts for
your building.
•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the
numbers on the Parts List page.
•If you nd that a part is missing, include the model number of your building and contact:
Arrow Shed, LLC Customer Service Department
1101 North 4th Street Breese, Illinois 62230
•Separate contents of the carton by the part number while reviewing parts list. The rst few steps
show how to join related parts to make larger sub assemblies which will be used later.
•Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.
BEFORE YOU BEGIN....
A03
1-800-851-1085 or [e-mail]

Selecting and Preparing Your Site: Before assembly, you will want to decide on a
location for your building. The best location is a level area with good drainage.
•Allow enough working space for ease of moving parts into position during assembly. Be sure there
will be enough space at entrance for doors to open fully and enough space around the building to
be able to fasten the panel screws from the outside.
•Before you begin the rst steps in assembling your parts, a base should be constructed and
an anchoring system should be ready to use.
Watch the Weather: Be sure the day you select to install your building is dry and calm.
Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Teamwork: Whenever possible, two or more people should work together to assemble
your building. One person can position parts or panels while the other is able to handle the
fasteners and the tools.
Tools and Materials: These are some basic tools and materials you will need for the
construction of your building. Decide which method of anchoring and the type of base you
wish to use in order to form a complete list of the materials you will need.
Base Preparation
• Hammer and Nails
• Spade or Shovel
• Hand Saw / Power Saw
• Lumber and/or Concrete
Optional Time-Savers
• Wrench / Nut Driver
• Electric / Cordless Drill
• Square
• String (for squaring frame)
Required
• Work Gloves
• Step Ladder
• Utility Knife / Scissors
• Pliers
• Carpenter's Level
• Tape Measure
Required
• Eye Goggles
• No. 2 Phillips Screwdriver
(With Hardened Magnetic Tip)
Note: A power screwdriver or vari-
able speed drill with Phillips-tip
attachment can speed assembly by
as much as 40%.
PLAN AHEAD....
A04

Safety precautions are important to follow throughout the construction of your building.
•Care must be taken when handling various
pieces of your building since some contain
sharp edges. Please wear work gloves, eye
protection and long sleeves when assembling
or performing any maintenance on your
building.
•Practice caution with the tools being used in
the assembly of this building. Be familiar with
the operation of all power tools.
•Never concentrate your total weight on the
roof of the building. When using a step ladder
make sure that it is fully open and on even
ground before climbing on it.
•Keep children and pets away from worksite
to avoid distractions and any accidents which
may occur.
•Do not attempt to assemble the building if
parts are missing because any building left
partially assembled may be seriously damaged
by light winds. Call 1-800-851-1085 or assist@
arrowsheds.com
•Do not attempt to assemble the building on a
windy day, because the large panels acting as a
"sail", can be whipped about by the wind making
construction dicult and unsafe.
SAFETY FIRST....
A05
safety edge
safety edge
sharp edge
sharp edge

Finish: For long lasting nish, periodically clean and wax the exterior surface. Touch-up
scratches as soon as you notice them on your unit. Immediately clean the area with a wire
brush; wash it and apply touch-up paint per manufacturer's recommendation.
Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy
amounts of snow on roof can damage building making it unsafe to enter. In snow country,
Roof Strengthening Kits are available for most Arrow Buildings for added protection against
heavy snow accumulation. Contact Arrow as outlined on the Ordering Accessories page
to place an order.
Doors: Always keep the door tracks clear of dirt and other debris that prevent them from
sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep
doors closed and locked to prevent wind damage.
Fasteners: Use all washers supplied to protect against weather inltration and to protect
the metal from being scratched by screws. Regularly check your building for loose screws,
bolts, nuts, etc. and retighten them as necessary.
Moisture: A plastic sheet (vapor barrier) placed under the entire oor area with good
ventilation will reduce condensation.
Other Tips....
• Wash o inked part numbers on coated panels with soap and water.
• Silicone caulking may be used for watertight seals throughout the building.
Keep this Owner's Manual and Assembly Instructions for future reference.
CARE & MAINTENANCE....
A06
Do not store swimming pool chemicals in your building. Combustibles and
corrosives must be stored in air tight approved containers.

ACCESSORIES....
A07
* Some drilling required to t buildings without mid-wall bracing.
Model No. SS404
• Makes 8" to 12" (20,3-30,5 cm)
wide shelves in any length.
• Brackets, braces,
hardware included.
Lumber is not included.
Model No. SS900-B
• Grey color
• 3 shelves
• Holds up to 85 lbs. (38 kg)
(even weight distribution)
Heavy-duty, galvanized steel shelf units help organize storage
space. They easily mount on the wall or sit on the oor. Fits all
Arrow buildings.*
SHELF UNITS
ATTIC KIT / WORKBENCH KIT
Model No. AT101
Heavy-duty galvanized steel bars that
t all 10' (3,0 m) wide Arrow buildings.
They install quickly and easily to
help organize space and create
more useable space as an attic or
workbench. Will hold up to 250 lbs.
(113 kg) evenly distributed.
Some drilling required to t buildings without mid-wall bracing.
Model No. AK100
New concrete anchor system permits
anchoring any size Arrow building
directly to a concrete slab. Each kit
contains heavy-duty, hot-dipped
galvanized steel corner gussets and
perimeter clips which t over the oor
frame and lag bolt into a concrete slab.
Full assembly instructions and a 1/4"
masonary drill bit are included.
TOOL HANGING RACK
Model No. TH100
The perfect tool organizer. Twin
25 1/2" (64,8 cm) steel channels
plus ve heavy-duty snap-in
hangers and a small tool holder for
screwdrivers, pliers, etc. Holders
slide along channel for fully
adjustable spacing. Great for
garage, basement, or the back
of any door. Fits all Arrow
storage buildings.
ROOF STRENGTHENING
(heavy snow load) KITS
Extra roof beams and gable braces
designed for added protection against
heavy snow accumulation. Increases
the strength of your roof.
ANCHOR KITS
Model No. AK4
Anchor Kit contains heavy-duty steel
augers, 60' (18 m) of steel cable and
4 cable clamps. No digging or concrete
pouring, just insert cable under roof,
over roof beams, into augers and twist
augers into the ground. For buildings
larger than 10'x9' (3,0 m x 2,6 m), use 2 kits.
FLOOR FRAME KITS
MODELS FB47410, FB5465, FB106-A
FB109-A and FB1014-A
A simple new oor frame system made of heavy-duty, hot-dipped
galvanized steel. Use as base for plywood, sand or stone.
Model No. AK600
Earth Anchor Kit anchors any size
Arrow building to the ground.
Each kit contains heavy duty,
hot-dipped galvanized steel
corner gussets and 4 earth anchors.
BEFORE AFTER

We recommend that you purchase accessory items from your local storage building dealer whenever possible;
however, because the full line of accessories is not always available from all dealers, Arrow is oering them
to you on a direct basis.
There are two ways to order Arrow Storage Building Accessories:
SPECIAL NOTE:
If your accessory is shipped via truck line a day time phone number is required to arrange delivery. If no
one is available to sign for the delivery, you may be subject to a re-delivery charge assessed by the carrier.
ORDERING ACCESSORIES....
A08 02/13
Option 1
Accessories can be purchased
through
arrowsheds.com
Option 2
Order accessories by telephone
using your MasterCard or Visa credit card.
Call toll free 1-800-851-1085
(Customer Service).
Allow 2 weeks for delivery.

The Base For Your Building
FRONT
(DOOR)
FRONT
(DOOR)
Base
F09
Note: Finished Slab dimensions, with lumber removed.
No matter which of the options below you choose for a base, an ARROW ANCHORING KIT is
recommended as an eective method of properly securing your building after assembly is complete.
OPTION 1: Directly on ground (earth)
Assemble your building directly on level ground (grass, dirt, rock, sand, etc.). If you choose this option Arrow has a simple kit available to
provide a oor inside the shed to keep stored items o the ground. This kit can be used to support a plywood oor (wood not included)
or be lled with sand/rock to provide a solid surface. (Order No. FB1014-A or 68387-A)
Allow 1 - 2 hours for construction.
OPTION 2: Wood Platform
If you decide to build your own base, be sure to select the appropriate materials.
These are the recommended materials for your base:
2 x 4's (38 mm x 89 mm) Pressure Treated Lumber
5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade NOTE: Pressure Treated Lumber must not be used where it
will make contact with your storage building. The properties of Pressure Treated Lumber will cause accelerated corrosion.
If Pressure Treated Lumber comes in contact with your storage building your warranty will be voided.
10 & 4 penny Galvanized Nails Concrete Blocks (optional)
The platform should be level and at (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
To construct the base follow instructions and diagram.
Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6 cm/61,0 cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
OPTION 3: Concrete Slab
The slab should be at least 4" (10,2 cm) thick. It must be level and at to provide good support for the frame.
The following are the recommended materials for your base.
1 x 4's (19 mm x 89 mm) (will be removed once the concrete cures)
Concrete Sheet of 6 mil plastic
We recommend for a proper strength concrete to use a mix of:
1 part cement 3 parts pea sized gravel 2 1/2 parts clean sand
Prepare the Site/Construct a Base
1. Dig a square, 6" (15,2 cm) deep into the ground (remove grass).
2. Fill up to 4" (10,2 cm) in the square with gravel and tamp rm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm)
lumber.
5. Pour in concrete to ll in the hole and the frame giving a
total of 4" (10,2 cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for concrete curing time.
Note: Platform/Slab will extend 9/16" (1,4 cm) beyond oor
frame on all four sides. Seal this 9/16" (1,4 cm) of wood with a
roong cement (not included), or bevel this 9/16" (1,4 cm) of
concrete when pouring, for good water drainage.
121"
307,3 cm
9
121"
307,3 cm
16"/24"
40,6 cm/61,0 cm
160 1/4"
407,0 cm
160 1/4"
407,0 cm

It is important that the entire oor frame be anchored after the building is erected.
Below are recommended ways of anchoring.
Anchoring Down The Building
Anchoring
A10
Arrow Anchoring Kit: (Model No. AK100 or 68383)
Recommended for use with the concrete base.
Contains: Corner gussets, perimeter clips, hardware,
1/4" masonary drill bit and installation instruction.
Anchoring into Concrete:
1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" (6 mm x 51 mm) Lag Screws.
2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 6" (6 mm x 152 mm) Lag Screws.
Arrow Anchoring Kit: (Model No. AK4 or 60298)
Recommended for use with any suggested base.
Contains: 4 Anchors with Cable, Clamps and
installation instruction.
Anchoring into Wood/Post:
Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm)
dia. holes provided in the frames for proper anchoring.
OVER THE BEAMS
AND INTO THE GROUND
1. 2.
1. 2.
10

Remove from bag of screws
and save for the last step
67545
Weather Stripping (1)
66382
Lower Door Guide (4)
66183
Roof Trim Cap
(2 right & 2 left)
66045
Handle (2)
66646
Washer (481)
(13 sheets of 40)
65109
#8-32 Acorn Nut (4)
(Packed with Screws)
67468
Peak Cap (2)
65004
#8Ax5/16" (8 mm)
Screw (446)
65923
#8-32x3/8" (10 mm)
Bolt (192)
65900A
#10Bx1/2" (13 mm)
Black Screw (8)
(Packed with Screws)
65103
#8-32 Hex Nut (192)
Hardware
SP11 ctr
6228
Track Support (2)
66769
Door Slide (4)
11

Parts List
BZ12 ctr
Assembly Part Part Quantity Check
Key No. Number Description in Carton List
1 8576 Right Gable 2
2 8577 Left Gable 2
3 10497 Horizontal Door Brace 4
4 7743 Roof Panel 8
5 9984 Right Roof Panel 2
6 9983 Left Roof Panel 2
7 10475 Right and Left Doors 2
8 9369 Door Jamb 2
9 9373 Front Wall Panel 2
10 6515 Wall Panel 12
11 6020 Corner Panel 4
12 3719 Door Handle Brace 2
13 6278 Vertical Door Brace 2
14 6403 Door Track Splice 1
15 6892 Rt. Side Roof Trim 2
16 6893 Lt. Side Roof Trim 2
17 6015 Side Roof Trim 2
18 6869 Ridge Cap 1
19 6797 Ridge Cap 2
20 9366 Door Track 2
21 5986 Rear Wall Angle 2
22 10389 Rear Wall Channel 2
23 9365 Front Wall Channel 2
24 6635 Roof Beam Bracket 4
25 10386 Roof Beam 8
26 10388 Side Wall Channel 4
27 10391 Side Wall Angle 4
28 10387 Side Floor Frame 4
29 8936 Rear Floor Frame 2
30 9367 Front Floor Frame 2
31 9009 Gable Brace 2
32 9204 Roof Beam Brace 2
33 8934 Ramp 1
12

Assembly by Key No.
SP13 ctr
13
5
1
1
2
2
3
54
4
4
4
4
4
4
4
6
6
3
3
3
26
26
26
26 22
22
28
28
28
28
29
29
30
30
33
23
23
8
8
12
12
20
20
14
13
13 27
27
27
27
21
21
11
11
10
10
10
10
11
10
10
10
10
11
9
9
16
15
17
16
17
15
19
25
25
25
25
19
18
25
25
2525
24
24
32
32
24
24
31
31
7
7
10
10
10
10

The front oor frame is made up of
three pieces. The side floor frames
and the rear floor frame are made
up of two pieces. The holes in these
pieces will align when the pieces are
positioned with correct amount of
overlap. The illustrations below show
the proper overall length for the sides,
rear and front. Proceed as follows:

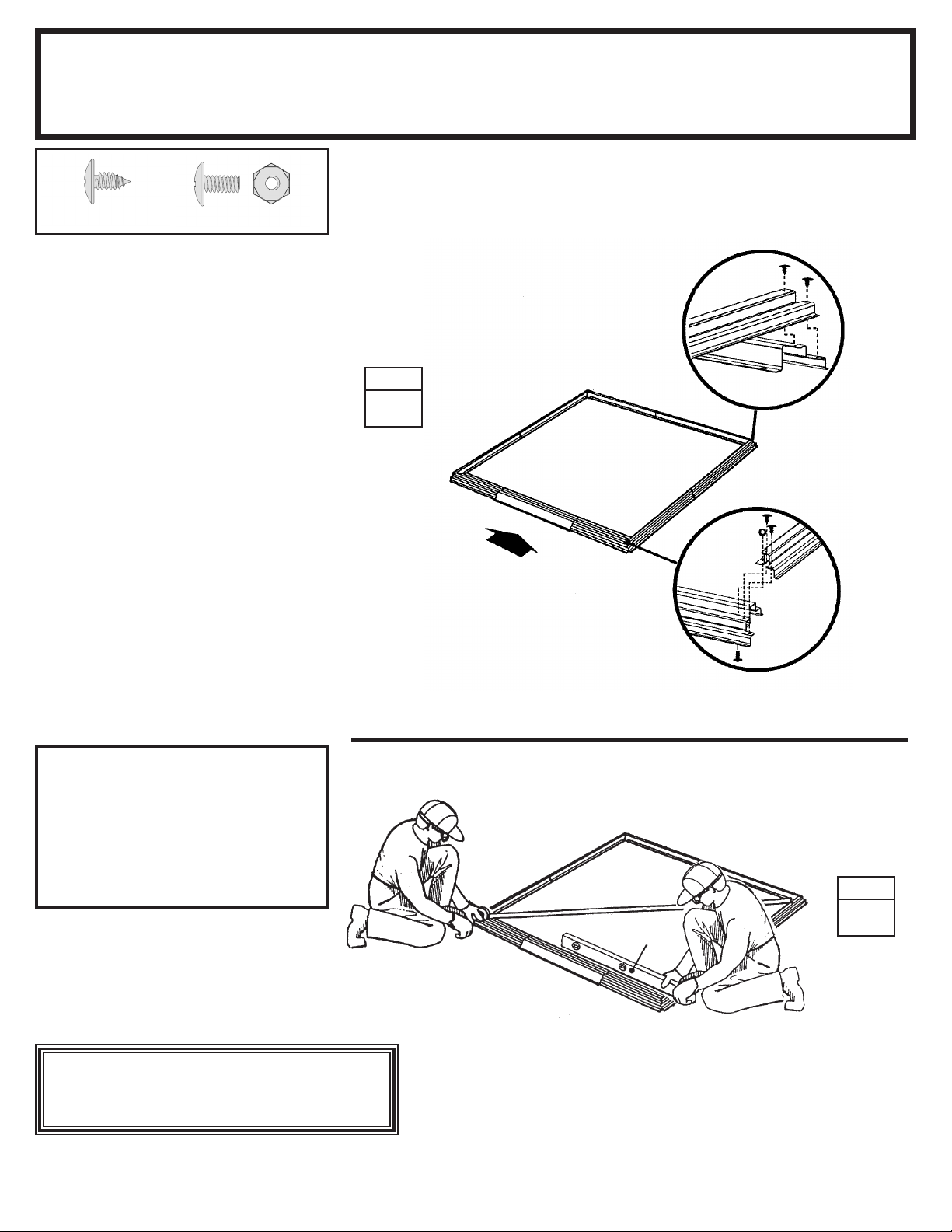

1 Place the front floor frames as
shown. Center the ramp, with drain
holes facing outside, on top of the two
front oor frames. Join the frames by
inserting eight screws.
2 Overlap the side floor frames
and the rear oor frames as shown.
The holes in these pieces will align
when the pieces are positioned with
correct amount of overlap. See the
illustrations below for the proper over-
all length of the side and rear oor
frames. Join the frames by inserting
four/ve bolts into each frame set as
shown.
3 Double check the length of each
and set these pieces aside for later
use.
Step 1
SO14ctr
 Parts Needed For 
Floor Frame Assemblies
 8934 Ramp (1)
 9367 Front Floor Frame (2)
 8936 Rear Floor Frame (2)
 10387 Side Floor Frame (4)
9367
STEP
1
8934
9367
DRAIN HOLES FACE
OUTSIDE
Front Floor
Frame Assembly
119 3/8" 303,2 cm
8936
10387
9367
8934
9367
10387
10387
Side Floor Frame 158 5/8" 402,9 cm
8936 8936
Rear Floor Frame 119 3/8"
303,2 cm
STEP
2
STEP
3
158 5/8" 402,9 cm
158 5/8" 402,9 cm
119 3/8" 303,2 cm
Front & Rear
119 3/8" 303,2 cm
Sides
(8) (13)
14

Step 2
SO15 ctr
 Parts Needed For 
Frame Assemblies

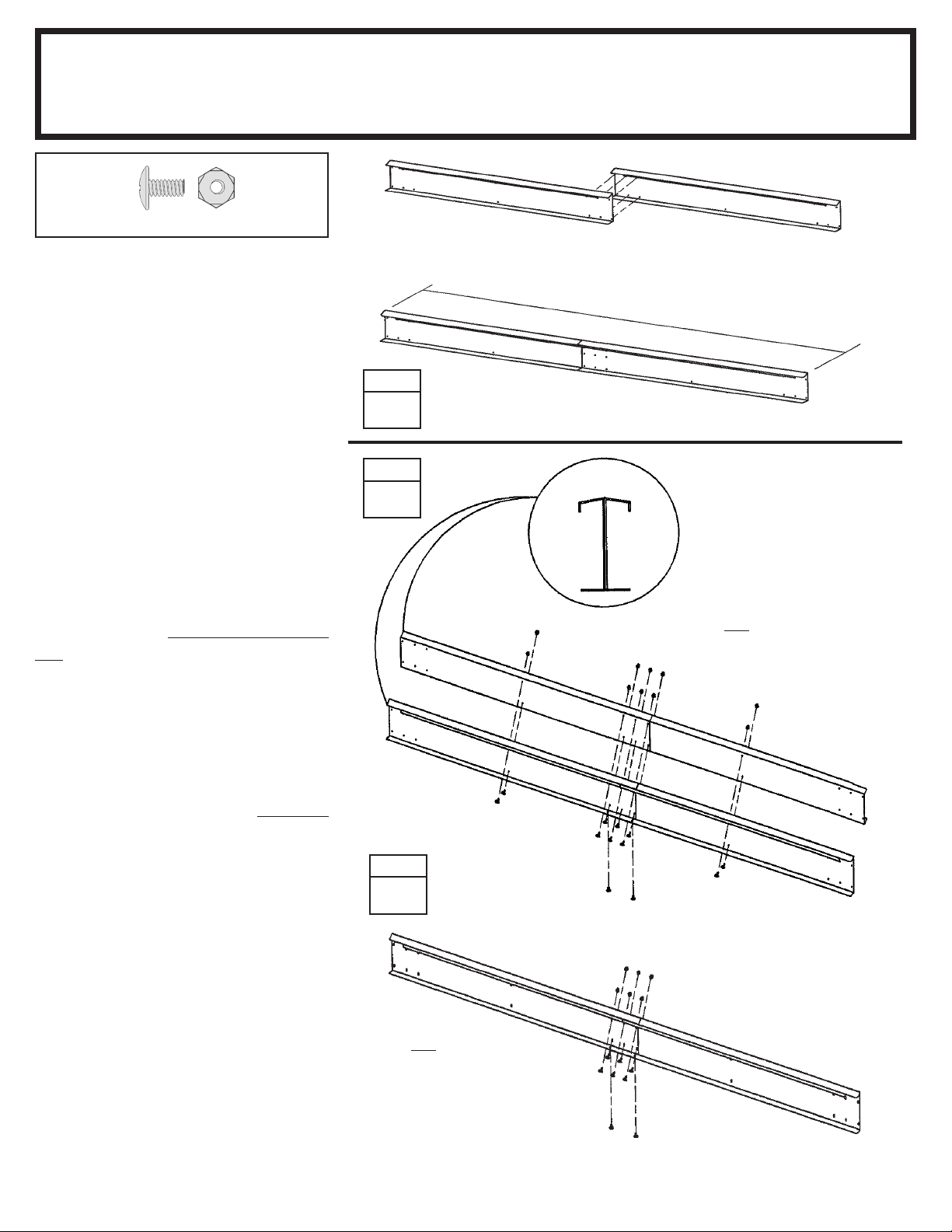

The main frame pieces reinforce
the walls. These pieces will later be
installed in the center and at the top
edge of the side walls and the rear
wall. Proceed as follows:
1 Overlap the rear wall channel
pieces as shown in the figure and
fasten the two pieces together with
eight bolts as shown.
2 Make two side wall channels by
overlapping the side wall channel
pieces as shown. Fasten each set
together with eight bolts as shown.
3 Overlap the rear wall angle
pieces as shown in the figure and
fasten them together with one bolt
in the center hole.
4 Make two side wall angles by
overlapping the side wall angle pieces
as shown. Fasten each set together
with one bolt thru the second large
hole from the end of each part.
5 Double check the length of each
and set these pieces aside for later
use.
 5986 Rear Wall Angle (2)
 10389 Rear Wall Channel (2)
 10388 Side Wall Channel (4)
 10391 Side Wall Angle (4)
STEP
1
STEP
2
10389
10388 Side Wall Channels
157 3/8" 399,7 cm
Rear Wall Angle
118 1/8" 300,0 cm
5986
5986
10391 Side Wall Angles
157 3/8" 399,7 cm
STEP
34
Rear Wall Angle 118 1/8" 300,0 cm
Side Wall Angles 157 3/8" 399,7 cm (2 Assemblies)
STEP
5
STEP
Rear Wall Channel
118 1/8" 300,0 cm
10388
10389
10391
Rear Wall Channel 118 1/8" 300,0 cm
Side Wall Channels 157 3/8" 399,7 cm (2 Assemblies)
(27)
15

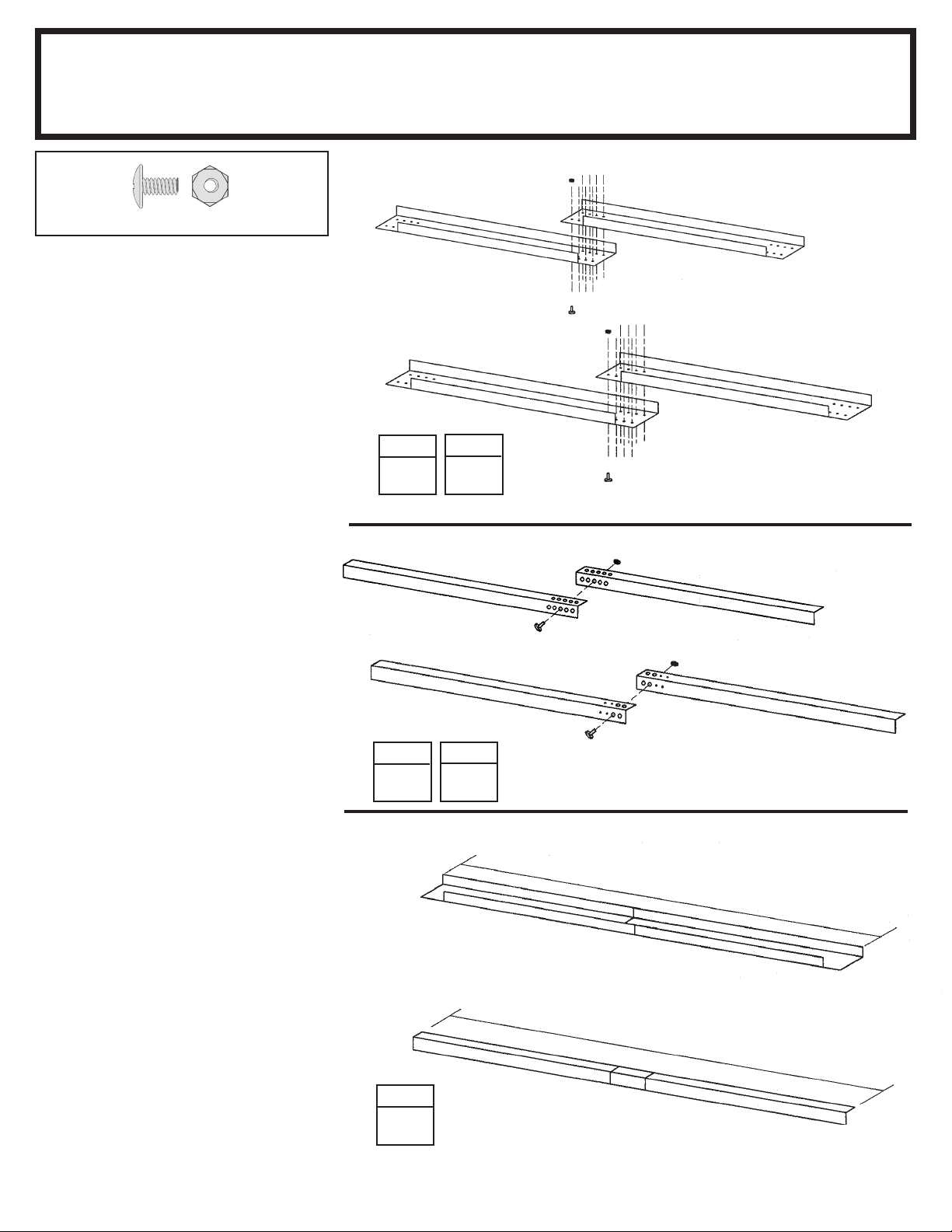

The roof beams join the two gables
and support the roof panels. The
main roof beam is made up of four
pieces overlapped back to back at
the center. The left and right roof
beam assemblies are made up of
two pieces.
Hint: These pieces are force-fitted,
so you may have to press hard to join
them together.
1 Place the end of one roof beam
inside a second roof beam so that the
six holes in each piece align. Make
four sets of roof beams by repeating
this procedure. Do not insert bolts
yet.
2 Take two of the pressed-together
roof beams and join them as shown
to form the main roof beam assem-
bly. Hold the assembly together and
fasten with 14 bolts. Build only one
Doubled Beam Assembly.
3 Fasten the other two pressed-
together roof beams with eight bolts
to make the left and right roof beam
assemblies.
4 Double check the length of each
and set these pieces aside for later
use.
Step 3
SP16 ctr
 Parts Needed For 
Roof Beam Assemblies
 10386 Roof Beam (8)
10386
STEP
1
Roof Beam 159 3/8" 404,8 cm
Build one Doubled Main Roof
Beam Assembly for Peak in Roof
END
VIEW
159 3/8" 404,8 cm
10386
Build two Single Beam
Assemblies
STEP
2
STEP
3
10386
10386
10386
10386
ASSEMBLED
159 3/8" 404,8 cm
(30)
16

Step 4
A17 ctr
 Parts Needed For 
Door Track Assembly
 6403 Door Track Splice (1)
 9366 Door Track (2)
The door track assembly supports the
sliding doors and reinforces the front
wall. It is made up of three pieces.
1 Using the door track splice,
(painted), join the door track
(galvanized) pieces end-to-end as
shown.
2 Insert four screws from the
underside only.
Hint: The holes in the top side of the
door track assembly are for fastening
the gable to the top of the front wall
in a later step.
3 Position door slides onto the
legs, from the end of door track
assembly, as shown in the end view.
4 Set this piece aside for later use.
(4)
17
NOTE:
Door Track Splice (painted part)
STEP
1
STEP
2
Long Leg
on Top
Short Leg
on Bottom
9366
9366
6403
66769
66769
STEP
3
STEP
4
118 1/8"
300,0 cm
118 1/8"
300,0 cm
CORRECT INCORRECT
Long Leg
on top.
Door Slide
END VIEW
6403
Painted Part
9366
9366

 Front Floor Assembly (1)
 Side Floor Assembly (2)
 Rear Floor Assembly (1)
 Parts Needed For 
Floor Frame

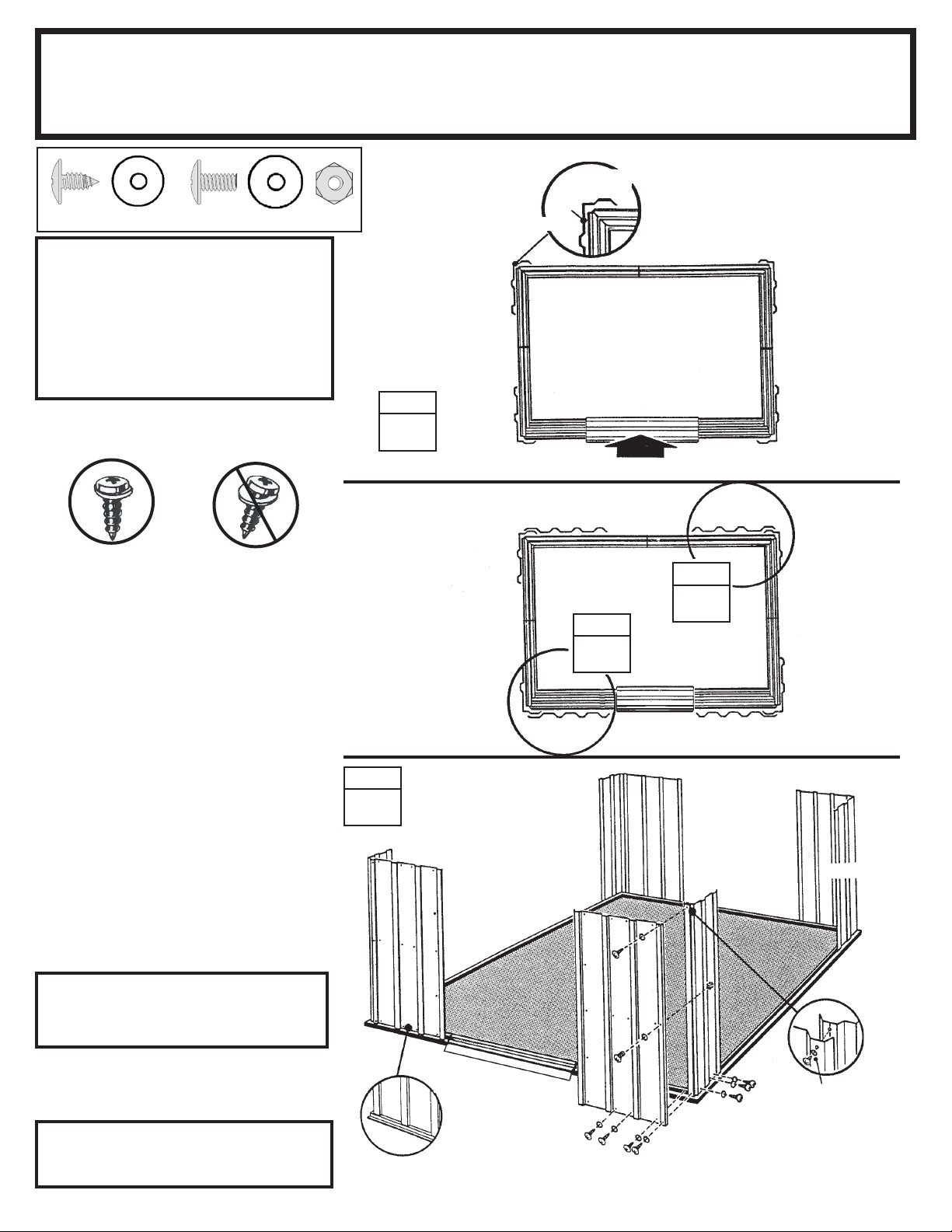

Step 5
SO18 ctr
The oor frame must be square
and level or holes will not align.
1 Assemble the four corners of
the oor frame using two screws at
each corner as shown. At the front
corners fasten bolts through from
the bottom with nuts on top.
2 Measure the oor frame diagonally.
When the diagonal measurements
are equal, the oor frame is square.
NOTE
If using a wood platform or
concrete slab do not fasten the
oor frames to your base at this
time. You will anchor the
building after it is erected.
STEP
1
10387
RIGHT
REAR
8936
Level
10387
RIGHT
FRONT
9367
STEP
2
When Diagonal Measurements
are Equal the Floor Frame
is Square.
FRONT
(8) (2)
18

1 Position a corner panel at the
corner of the oor frame as shown.
The widest part of each corner panel
must be placed along the side of the
building for all four corners. Fasten
the corner panel to the oor frame
with three screws.
Support the corner panel with a step
ladder until a wall panel is attached.
2 Attach the front wall panels to
the front corner panels, as shown.
A small gap will exist between front
wall panel and ramp.
3 Attach the wall panels to the rear
corner panels, as shown.
NOTE
Be careful to install the correct
panel in each position as shown
 6515 Wall Panel (2)
 9373 Front Wall Panel (2)
 6020 Corner Panel (4)
Step 6
SO19 ctr
 Parts Needed For 
Corners
NOTE
The remainder of the building assembly
requires many hours and more than one
person. Do not continue beyond this
point if you do not have enough time to
complete the assembly today. A partially
assembled building can be severely
damaged by light winds.
Each screw and bolt in the wall
requires a washer.
4 Double-check the part numbers of
the wall panels, before proceeding.
The oor frame must be square
and level or holes will not align.
STEP
1
6515
9373 9373
6020
6020
REAR
FRONT
9373
Panels rest on
frame as shown
6020
SIDE TOP VIEW
Narrow
Side
6020
6515
Wide Side
STEP
3
STEP
2
STEP
46020
6020
9373
6515
6020
Washer
6020
SIDE
6515
(34) (4)
CORRECT INCORRECT
19

 Rear Wall Channel Assembly (1)
 Side Wall Channel Assembly (2)
 Parts Needed For 
Mid Frames

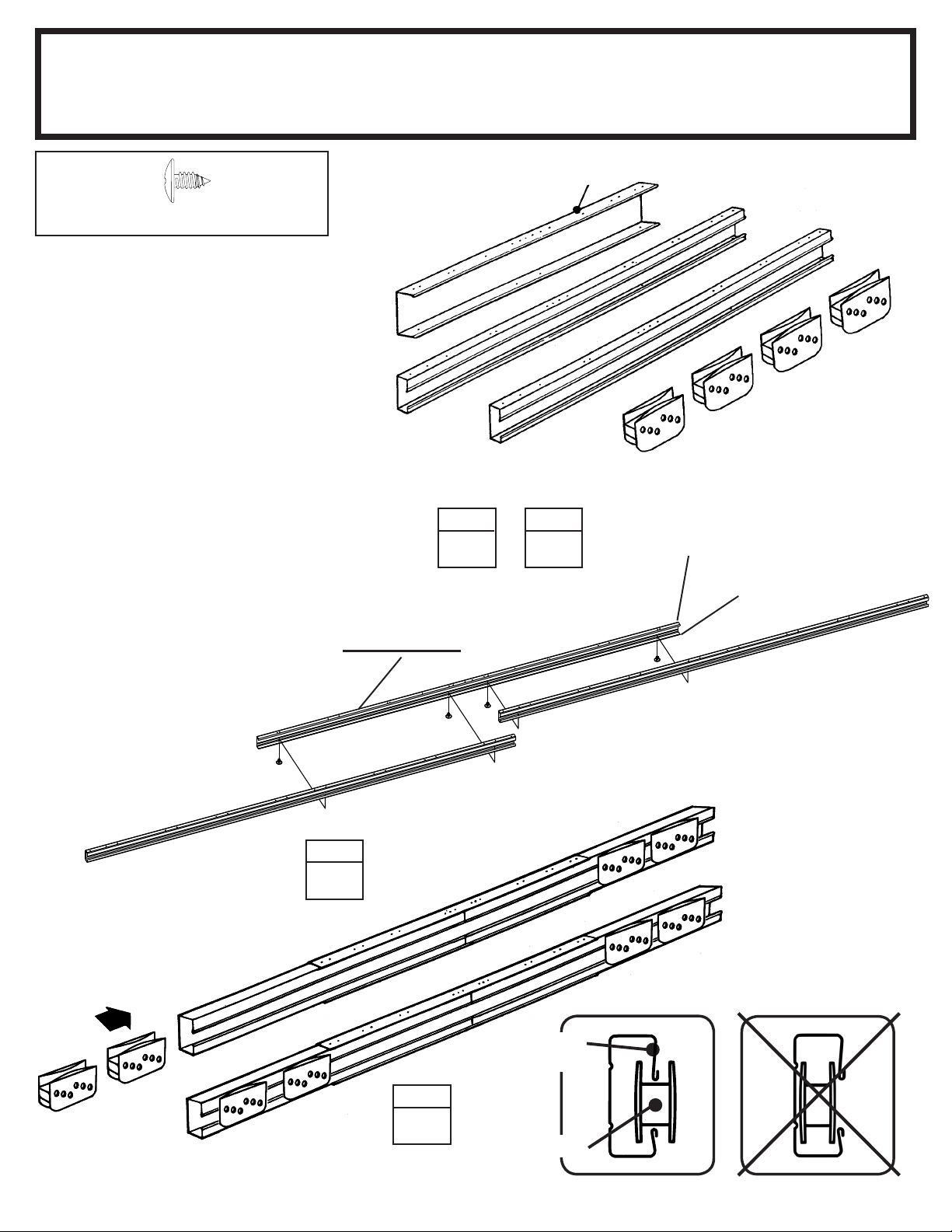

Step 7
SO20 ctr
The mid frame pieces give rigidity to
the side and rear walls.
1 Fasten the rear wall channel
across the middle of the rear wall
using screws.
2 Fasten the side wall channels
across the middle of the side panels
using screws. Fasten overlaps in
rear corners with bolts and nuts, at
two locations. See the gure.
NOTE
The wall channels behind the
front wall panels will be installed
in a later step. STEP
1
2
STEP
10388
10389
FRONT
2
STEP
(20) (4)
20
