Arrow Storage Products Mountaineer series Instructions for use

BASE BUILDING DIMENSIONS
COMMANDER™SERIES
Gloves must be worn
at all times to reduce
risk of injury!
Each Module adds an additional 57 1/2” (146,1 cm) in length, 47.2 Sq. Ft. (4,4 m2)
additional storage area, and 324 Cu. Ft. (9,2 m3) additional storage volume.
Owner’s Manual
& Assembly Guide
Size rounded off to the nearest foot
†
For proper base construction see page 5
Exterior Dimensions
(Roof Edge to Roof Edge)
Width Depth Height
Interior Dimensions
(Wall to Wall)
Width Depth Height
Door
Opening
Width Height
Approx.
Size
Storage
Area
10’ x 10’ 101 Sq. Ft. 697 Cu. Ft. 123 1/4” 128 3/4” 92 1/2” 118 1/4” 123 1/2” 91 1/4” 98 1/4” 72 3/4”
3,0 m x 3,1 m 9,4 m219,7 m3313,1 cm 327,0 cm 235,0 cm 300,4 cm 313,7 cm 231,8 cm 249,6 cm 184,8 cm
†
10x10
Base Size
122 1/4” x 127 1/2”
310,5 cm x 323,9 cm
Additional
per Module
122 1/4” x 57 1/2”
310,5 cm x 146,1 cm
* See Inside for Detailed Safety Information.
MOUNTAINEER
™SERIES
All Sizes

2
SAFETY PRECAUTIONS...
Safety precautions MUST be followed at all times throughout the construction of your building!
Care must be taken when handling various pieces
of your building since many contain sharp edges.
Please wear work gloves, eye protection and
long sleeves when assembling or performing any
maintenance on your building.
Practice caution with the tools being used in the
assembly of this building. Be especially familiar with
the operation of all power tools.
Keep children and pets away from the worksite
during construction and until the building is
completely assembled. This will help avoid
distractions and any accidents which may occur.
NEVER concentrate your weight on the roof of the
building. When using a step ladder make sure that
it is fully open and on even ground before climbing
on it.
Do NOT attempt to assemble your building on a
windy day. The large panels can catch the wind like
a “sail”, causing them to be whipped around making
construction diffi cult and unsafe.
Do NOT attempt to assemble your building before
double checking that you have all the parts
indicated in the parts lists, as well as all hardware
(page 6-11). Any building left partially assembled
may be seriously damaged by even light winds.
IMPORTANT NOTE ON ANCHORING
• Your building MUST be anchored to prevent wind
damage. An anchoring kit is not supplied with your
building and you have many options when it comes to
anchoring. See anchoring page for more info.
• If you need to take a break from assembly, place
sandbags or other weights on the fl oor frame to
temporarily anchor it.

3
ASSEMBLY TIPS &TOOLS
How to Select and Prepare Your Building Site: Before you start to assemble your
building, you will want to decide on a good location. The best location is a level area with good drainage.
• Allow enough working space so it is not diffi cult to move parts into position for assembly. Be sure there will be enough
space at the entrance for the doors to completely open. Also, there needs to be enough space outside the building to be
able to fasten the panel screws from the outside.
• Before assembling any parts, your base should be constructed and an anchoring system should be ready to use.
Watch the Weather Closely: Be sure the day you choose to install your building is dry and calm.
Do NOT attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Use Teamwork: Two or more people are required to assemble your building. One person can hold
the parts or panels in place while the other person fastens them together and handles the tools. This
makes the process of assembling your building faster and safer.
Tools and Materials: Here is a list of some basic tools and materials you will need to assemble
your building. Decide which method of anchoring and the type of base you will use to make a complete
list of the materials you will need.
•Work Gloves
•Safety Glasses
•Step Ladder
•No. 2 Phillips Screwdriver (Magnetic Tip Preferred)
•Utility Knife or Scissors
•Pliers
•Carpenter’s Level
•Tape Measure
•Power Drill (Cordless, Variable Speed)
•Nut Driver or Wrench
•Square
•String (for squaring the frame)
•Awl (to align holes)
•Lumber and/or Concrete
•Hammer and Nails
•Spade or Shovel
•Hand Saw or Power Saw
WHAT YOU NEED
RECOMMENDED TIME SAVERS
BASE PREPARATION TOOLS

4
BEFORE YOU BEGIN...

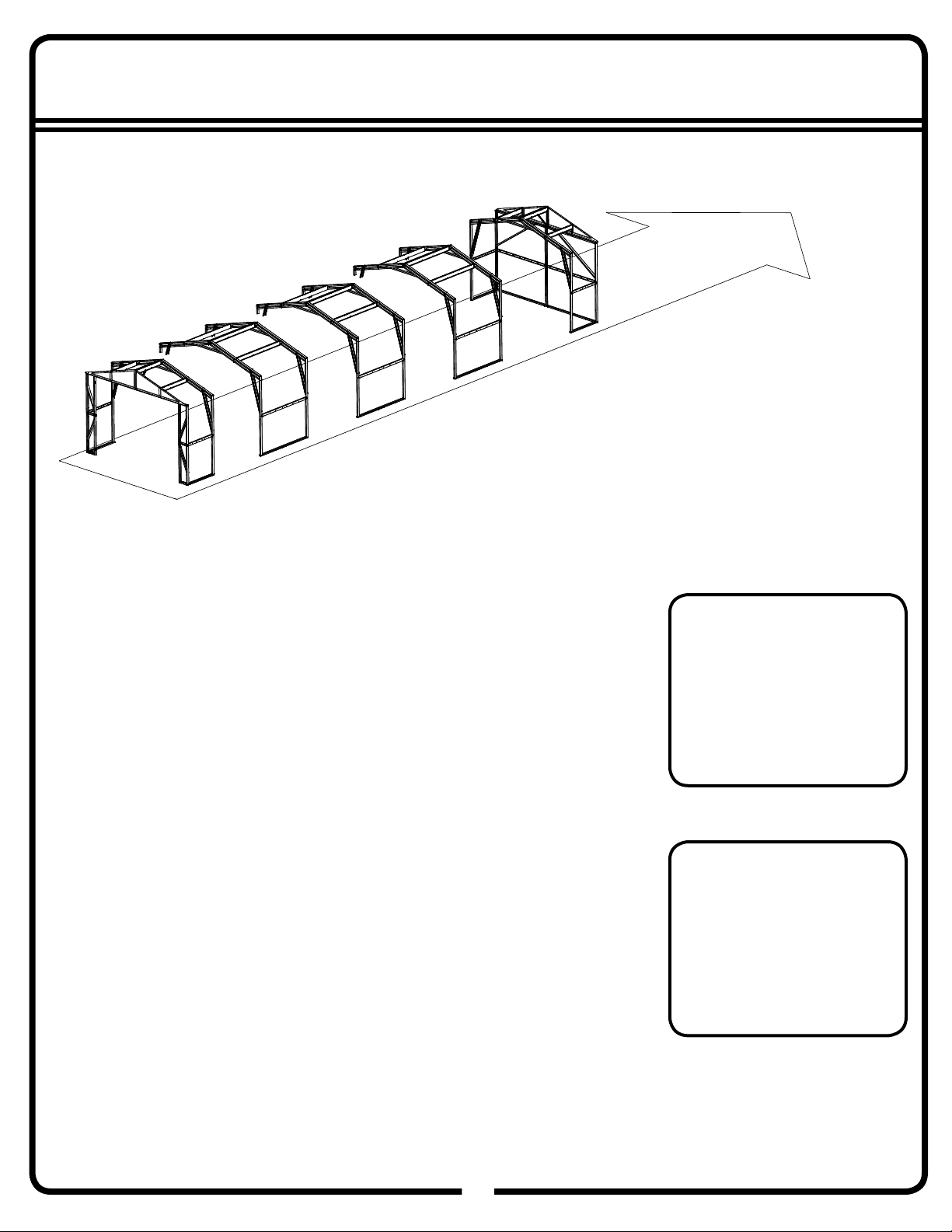

Your Commander™ / Mountaineer™ Shed has a Modular Design.
This means your shed can be
extended to virtually any length with
the addition of Extension Modules. Extension
Modules can be installed when you fi rst construct your
building, or they can be added to it later.
How your building was shipped.
How you assemble your building will depend upon how many
Extension Modules you have purchased. See below to see
how many Modules are included in your building.
Nominal
Size
Extension
Modules
10’x10’ 0
10’x15’ 1
10’x20’ 2
10’x25’ 3
10’x30’ 4
Now that you have received your building you need to take inventory of
what you have to ensure nothing is missing.
Depending on the size building you purchased, your building arrived
in two or more cartons. Locate the carton label; you should have one
carton labeled C1GA and one labeled C2GA. Also, if you purchased
a building 15’ (4,6 m) in length or longer, you should have at least one
carton labeled GA5M.
C1GA -
C2GA -
GA5M -
Nominal
Size
Extension
Modules
3,0 m x 3,1 m 0
3,0 m x 4,6 m 1
3,0 m x 6,1 m 2
3,0 m x 7,5 m 3
3,0 m x 9,0 m 4

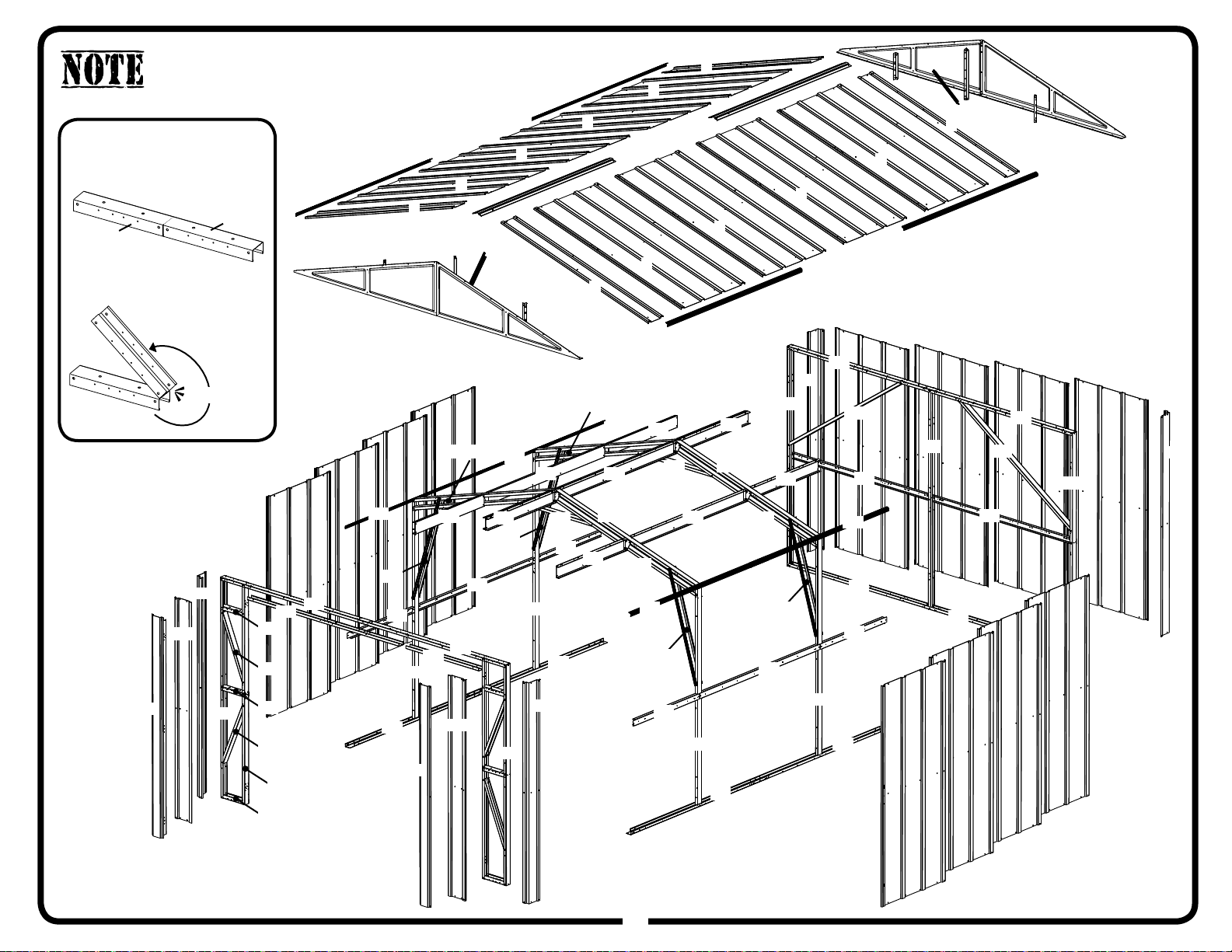

Please note: Most illustrations in this assembly manual depict a 10’x10’
(3,0 m x 3,1 m) building. A 10’x10’ (3,0 m x 3,1 m) building contains a
front and rear wall section and one truss section (see page 9). Each
additional Extension Module simply adds one more truss section to the
building (see page 11). Every truss section is identical to every other
truss section and the instructions clearly indicate how to assemble any
length building. Read all instructions carefully.
This carton contains the painted parts needed to erect
a 10’ (3,1 m) building. You should have one C1GA
carton.
This carton contains the un-painted parts needed to
erect a 10’ (3,1 m) building. You should have one C2GA
carton.
This carton contains the Extension Module. Review the
chart to the right to determine how many GA5M cartons
you should have received.

5

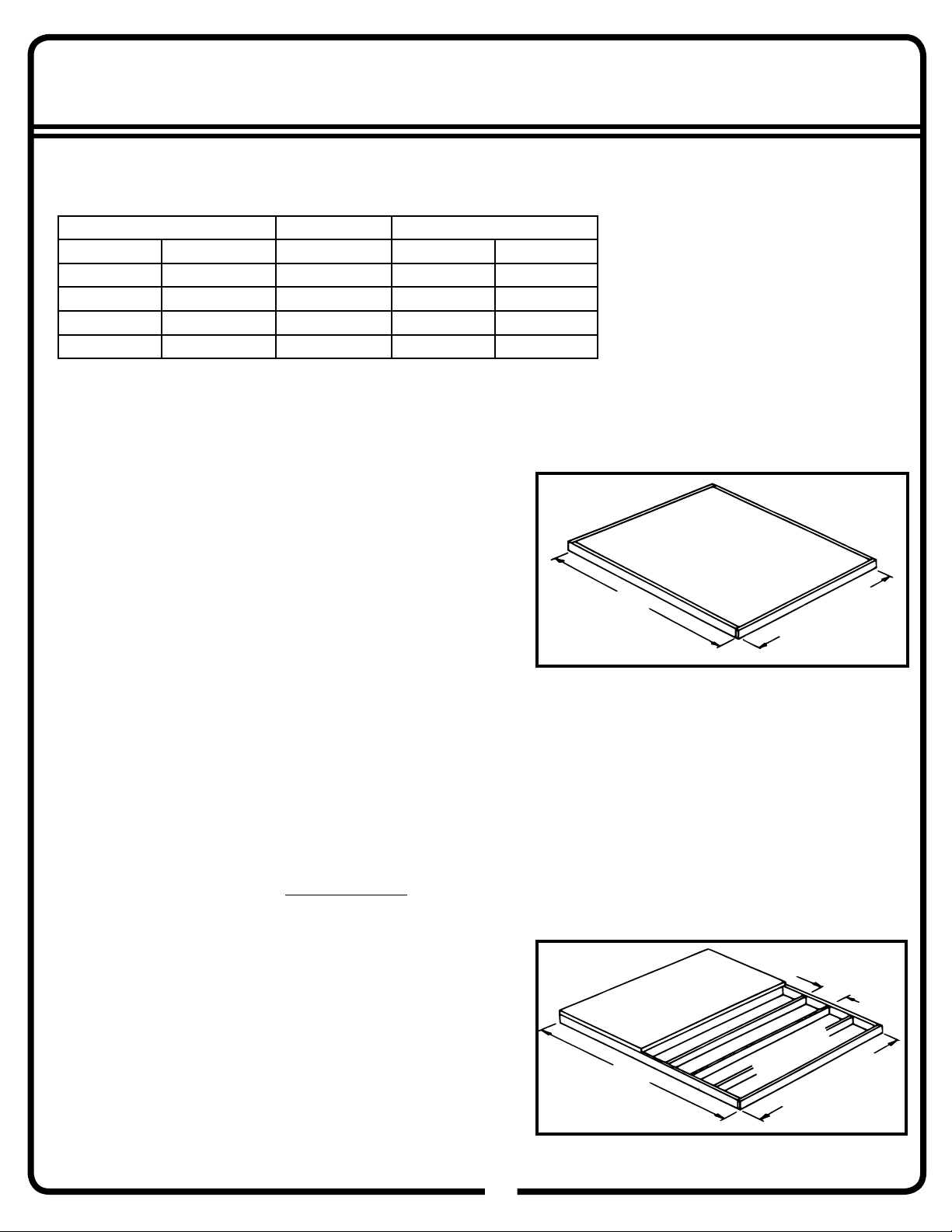

CONSTRUCTING A BASE...
OPTION 1: Concrete Slab
The slab should be at least 4” (10,2 cm) thick. It must be level
and fl at to provide good support for the frame.
The following are the recommended materials for your base.
• 1 x 4’s (19 mm x 89 mm) (will be removed once the concrete cures)
• Concrete • Sheet of 6 mil plastic
• We recommend for a proper strength concrete to use a mix of:
1 part cement • 3 parts pea sized gravel • 2 1/2 parts clean sand
Prepare the Site/Construct a Base
1. Dig a square, 6” (15,2 cm) deep into the ground (remove grass).
2. Fill up to 4” (10,2 cm) in the square with gravel and tamp fi rm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm)
lumber.
5. Pour in concrete to fi ll in the hole and the frame giving a
total of 4” (10,2 cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for curing time.
OPTION 2: Wood Platform
These are the recommended materials for your base:
• 2 x 4's (38 mm x 89 mm) Pressure Treated Lumber • 5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade
• 10 & 4 penny Galvanized Nails • Concrete Blocks (optional)
NOTE: Pressure Treated Lumber must not be used where it will make contact with your storage building. The properties of
Pressure Treated Lumber will cause accelerated corrosion. If Pressure Treated Lumber comes in contact with your storage
building your warranty will be voided.
The platform should be level and fl at (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
To construct the base follow instructions and diagram.
Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6 cm/61,0 cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
122 1/4"
310,5 cm
L
Note: Finished Slab dimensions, with lumber removed.
Platform/Slab will extend 2” (5 cm) beyond fl oor frame on
all four sides. Seal this 2” (5 cm) of wood with a roofi ng
cement (not included), or bevel concrete when pouring
for good water drainage.
FRONT
Before you assemble your building, you must construct a base.
The length of your base, shown as “L” in the diagrams below, will depend on the length of your building. See below.
Nominal Size # of Modules Length “L”
10’x10’ 3,0 m x 3,1 m 0 127 1/2” 323,9 cm
10’x15’ 3,0 m x 4,6 m 1 185” 469,9 cm
10’x20’ 3,0 m x 6,1 m 2 242 1/2” 616,0 cm
10’x25’ 3,0 m x 7,5 m 3 300” 762,0 cm
10’x30’ 3,0 m x 9,0 m 4 357 1/2” 908,1 cm
For each additional module beyond the
lengths listed, increase the length of
your base by 57 1/2” (146,1 cm).
IMPORTANT: When deciding on a base
for your building you must take into
consideration use and permit requirements.
A concrete base is best for most purposes,
but a wood platform may be suitable for light
use. Before beginning construction, check
local building codes regarding footings,
location and other requirements.
16"/24"
40,6 cm/61,0 cm
L
122 1/4"
310,5 cm
FRONT
REAR
REAR

6

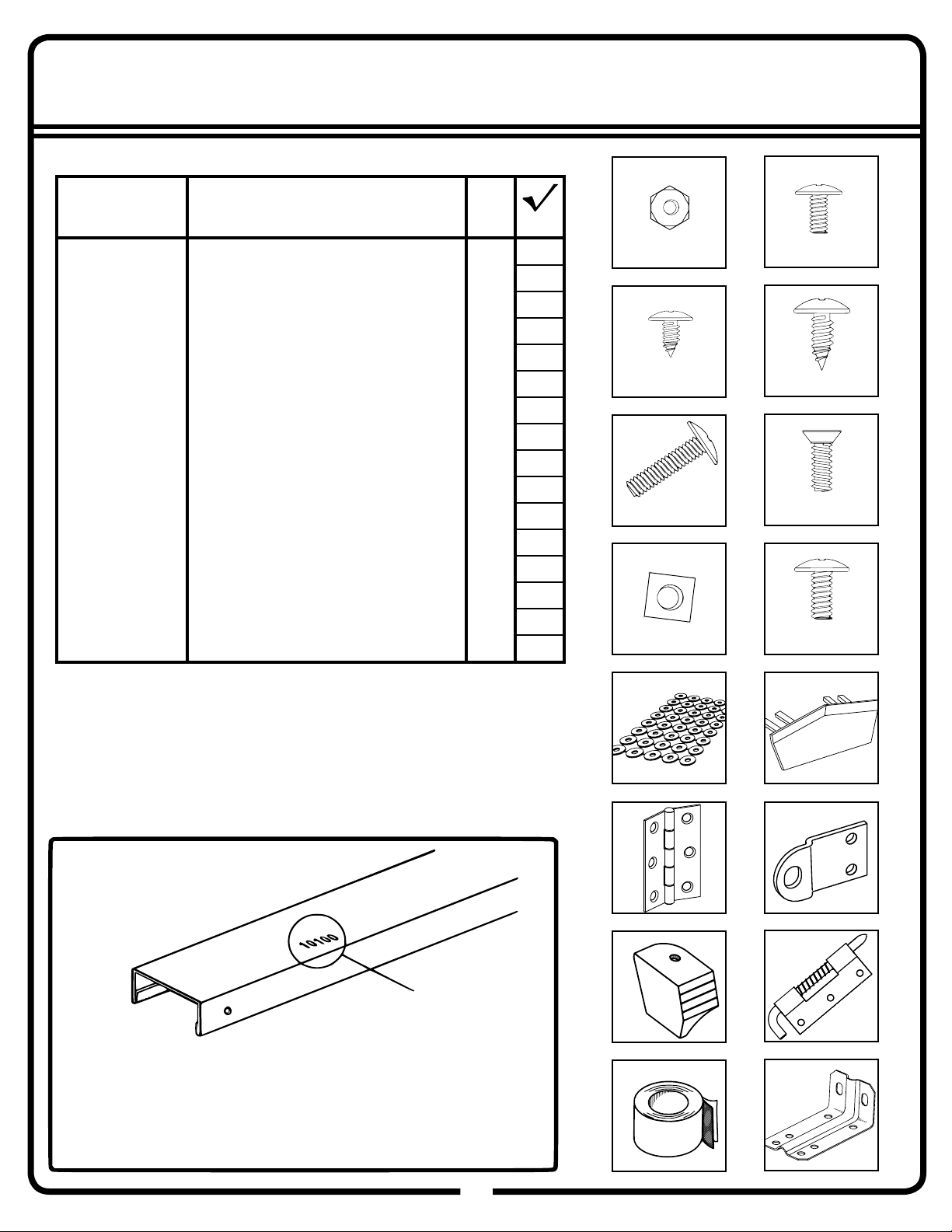

HARDWARE - C1GA
Confi rm that all hardware and parts are present
before attempting to assemble your building.
For missing or damaged parts, contact Customer
Service. Do not return to store.
Part Numbers
Part Number
1. Each part has an identifying part number on it.
2. Part Numbers are referenced in each step.
3. Unpainted parts have a stamped in number and painted
parts have a number that is inked on.
Remove inked on numbers with soap and water after assembly.

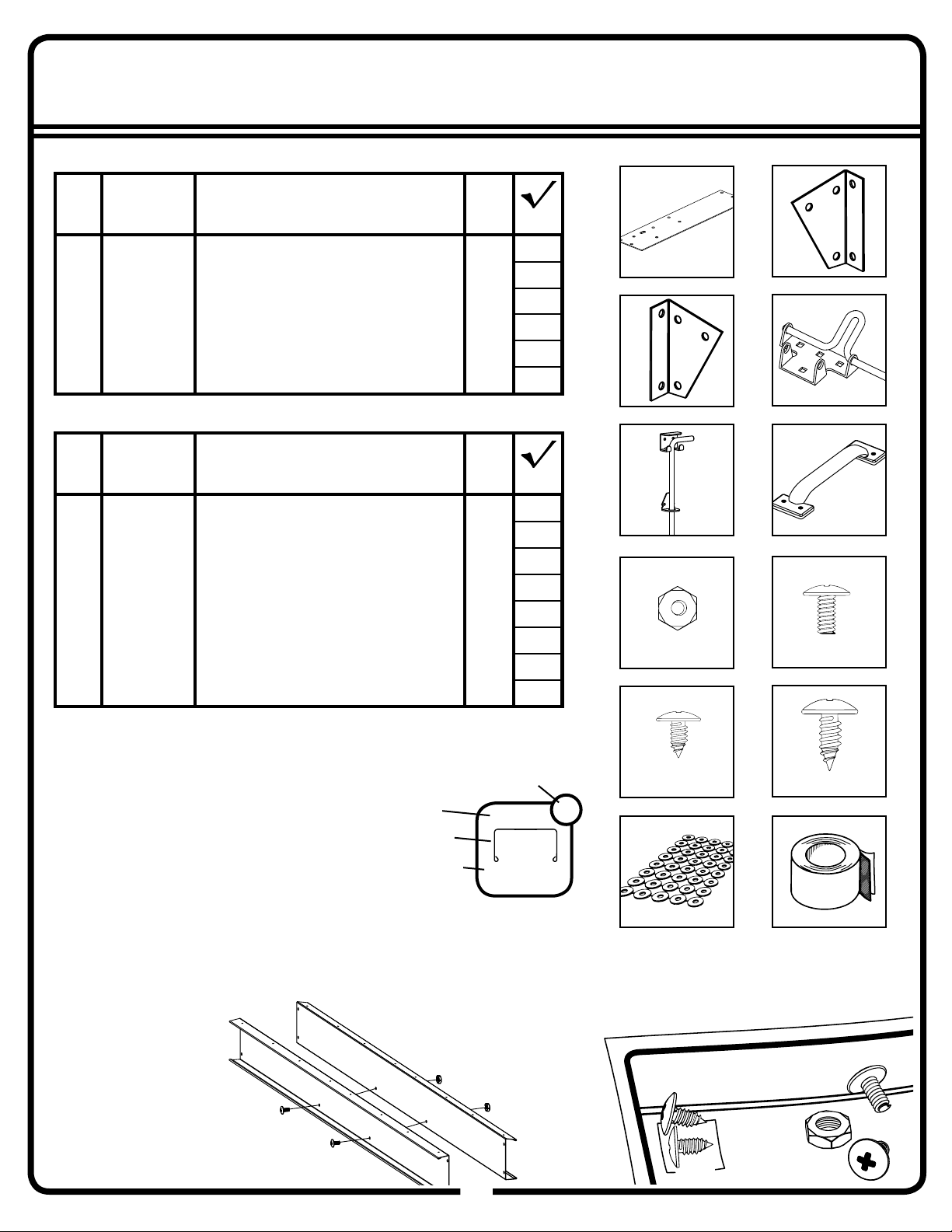

Key Part Part Qty.
No. No. Description List
56
10
11
12
34
8
9
13 14
7
12
11/32 Hex. #2 Phillips
#2 Phillips
1 65103 Hex Nut (#8-32) 292
2 65923 Small Bolt (#8-32 x 3/8) (10 mm) 256
3 65004 Small Screw (#8AB x 5/16) (8 mm) 354
4 66611 Large Screw (#10AB x 1/2) (13 mm) 209
5 66625 Long Bolt (#10-32 x 3/4) (19 mm) 2
6 66783 Flat Head Screw (#8-32 x 1/2) (13 mm) 36
7 65106 Square Nut (#10-32) 20
8 65943 Large Bolt (#10-32 x 7/16) (11 mm) 14
9 66646 Washer Sheet 12
10 67468 Peak Cap (Arrow Logo) 2
11 66609 Hinge 6
12 66778 Lock Eyelet 1
13 66183L/R Roof Trim Cap 4
14 66781 Spring Latch 1
15 67545B Weather Stripping 1
16 6228 Track Support 4
C1GA Hardware
#2 Phillips
15 16
#2 Phillips
#2 Phillips
#2 Phillips
LS
SB
SS
LNB FS
LB
#10-32

7
Key Part Part Qty.
No. No. Description List
5
11
12
34
12
1 10651 Latch Plate *3
2 7003 Shear Plate LT *8
3 7004 Shear Plate RT *8
4 66779 Slide Bolt *1
5 66780 Cane Bolt *2
6 66782 Door Handle *2
HARDWARE - C2GA / GA5M
Key Part Part Qty.
No. No. Description List
2 7003 Shear Plate LT *4
3 7004 Shear Plate RT *4
7 65103 Hex Nut (#8-32) 92
8 65923 Small Bolt (#8-32 x 3/8) (10 mm) 92
9 65004 Small Screw (#8AB x 5/16) (8 mm) 180
10 66611 Large Screw (#10AB x 1/2) (13 mm) 40
11 66646 Washer Sheet 7
12 67293B Weather Stripping 1
C2GA Hardware *Packed loose in carton
GA5M Hardware
78
910
11/32 Hex. #2 Phillips
#2 Phillips #2 Phillips
6
Various fasteners are used throughout the
construction of your building. In each step you
will see the abbreviations listed below used
in the illustrations to help you identify which
fastener to use.
Some Tips for Assembly:
The fasteners used in each step are shown actual
size at the top of each page. If you are unsure
which fastener to use, hold it up to the picture and
use the one that matches.
SB - Small Bolt
SS - Small Screw
LB - Large Bolt
LS - Large Screw
FS - Flat Head Screw
LNB - Long Bolt
At the top of each page you will see
one or more Part Cues like the one
to the right. These Part Cues are
designed to help you quickly identify
the parts needed for each step.
10629
Rear Frame
4
Part No.
Quantity Needed
End View
Part Name
SB
SS LS
SB
SB
QTY 18

8
Key Carton Part Part Qty.
No. No. No. Description List
1 C1GA 7743 Roof Panel 8
2 C1GA 7822 Wall Panel 12
3 C1GA 8576 Right Gable 2
4 C1GA 8577 Left Gable 2
5 C1GA 8578 Right Roof End Panel 2
6 C1GA 8579 Left Roof End Panel 2
7 C1GA 10618 Front Wall Panel 2
8 C1GA 10619 Corner Panel 4
9 C1GA 10620 Right Roof Trim 2
10 C1GA 10621 Front and Rear Ridge Cap 2
11 C1GA 10622 Right Door Jamb 1
12 C1GA 80017 Left Roof Trim 2
13 C1GA 80037 Left Door Jamb 1
14 C2GA 6635 Roof Beam Bracket 4
15 C2GA 9009 Gable Brace 2
16 C2GA 9204 Roof Beam Brace 2
17 C2GA 10625 Side Wall Angle 4
18 C2GA 10627 Front Wall Channel 6
19 C2GA 10628 Front Wall Diagonal 4
20 C2GA 10629 Rear Frame 4
21 C2GA 10630 Rear Wall Channel 2
22 C2GA 10631 Rear Wall Diagonal 2
23 C2GA 10632 Side Frame 4
24 C2GA 10633 Front and Rear Side Wall Channel 4
25 C2GA 10634 Mid Side Wall Channel 2
Key Carton Part Part Qty.
No. No. No. Description List
26 C2GA 10638 Long Fascia 1
27 C2GA 10639 Short Fascia 1
28 C2GA 10640 Wall Post 5
29 C2GA 10641 Truss Post 4
30 C2GA 10642 Truss Post Insert 4
31 C2GA 10643 Upper Chord Truss 4
32 C2GA 10644 Lower Chord Truss 4
33 C2GA 10645 Truss Splice 2
34 C2GA 10646 Knee Brace 8
35 C2GA 10649 Front and Rear Roof Beam 8
36 C2GA 10650 Mid Roof Beam 4
37 C2GA 10652 Wall Post (Hinge) 2
38 C2GA 10673 Front Frame 2
PARTS LIST - MAIN BUILDING
Green Plastic Edge Trim is also included
in carton C1GA and must be used when
assembling your building.
Length: 65 3/4” (167,0 cm)
QTY: 4

9
Part No. 30 (Truss Post Insert) fi ts inside Part
No. 29 (Truss Post) and is not shown below.
SNAP
10627
10627
Part 10627 Front Wall
Channel (No. 18) may be
joined in pairs.
Bend to separate.
14
14
14
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
3
4
3
4
5
5
6
6
7
7
8
8
9
9
10
10
11
17
17 17
17
20
20
20
20
8
8
21
21
22
22
23
23
23
23
24
24
24
24
25
25
26
27
33
33
35 35
35
35
35
35
36
36
36
38
38
13
12
12
18
19
18
19
18
37
28
28
28
28
28
29
29
29
29
34
34
34
34
31
32
32
31
31/32
31/32
14
15
15
16
16

10
Key Carton Part Part Qty.
No. No. No. Description List
1 C1GA 10623 Door Panel (Hinge) 2
2 C1GA 10624 Right Door Panel 1
3 C1GA 80051 Left Door Panel 1
4 C1GA 10635 Horizontal Door Brace 4
5 C1GA 10678 Vertical Door Brace (Latch) 2
6 C1GA 10637 Vertical Door Brace (Hinge) 2
7 C1GA 10647 Top Door Trim 2
8 C1GA 10648 Door Astragal 2
9 C2GA 10626 Door Diagonal Brace 8
10 C2GA 10636 Vertical Door Brace 4
11 C2GA 10675 Cane Bolt Bracket 2
PARTS LIST - DOORS &MODULE
Key Carton Part Part Qty.
No. No. No. Description List
12 GA5M 7822 Wall Panel 4
13 GA5M 7743 Roof Panel 4
14 GA5M 6015 Roof Trim 2
15 GA5M 10680 Mid Ridge Cap 1
16 GA5M 10625 Side Wall Angle 2
17 GA5M 10632 Side Frame 2
18 GA5M 10634 Mid Side Wall Channel 2
19 GA5M 10650 Mid Roof Beam 4
20 GA5M 10641 Truss Post 2
21 GA5M 10642 Truss Post Insert 2
22 GA5M 10643 Upper Chord Truss 2
23 GA5M 10644 Lower Chord Truss 2
24 GA5M 10645 Truss Splice 1
25 GA5M 10646 Truss Knee Brace 4
DOORS EXTENSION MODULE

11
Extension Module
Part No. 21 (Truss Post Insert) fi ts inside Part
No. 20 (Truss Post) and is not shown above.
14
12
12
12
12
13
13
13
13
14
16
16
17
17
18
18
19
19
19
20
20
22
22
23
24
23
25
25
15
Left Door
1
9
9
9
9
4
4
10
6
7
8
11
5
3
10
Right Door 9
5
1
2
9
9
9
4
4
10
10
6
7
8
11

12
Step 1: Trusses
You will need for this page:
(QTY: 24)
Washers are to be used on painted parts only. Washers
are not necessary on unpainted parts and there are
not enough to use on every Screw and Bolt.
CORRECT
INCORRECT
Holes must align in this direction.
Not this direction
Build two Assemblies.
(QTY: 12)
Align the bottoms of the Truss Post and Truss
Post Insert and join as shown. Insert Large
Screws along both sides of the Truss Post
where holes align.
1
2
Repeat instruction 1 to build a second Truss
Post Assembly. Set aside for use on next
page.
With the Upper and Lower Chord Trusses
positioned as shown below, attach Shear
Plates where indicated below. Attach Shear
Plates using Small Bolts and Nuts to Upper Chord
fi rst, then to the Lower Chord. Do not tighten at this
time.
3
4
Repeat instruction 3 to build a second Chord
Truss Assembly. Set aside for use on next
page.
Truss Post Insert fi ts INSIDE
Truss Post as shown.
10641
Truss Post
210642
Truss Post
Insert
210643
Upper Chord
Truss
210644
Lower Chord
Truss
27003
Left Shear
Plate
4
7004
Right Shear
Plate
4
10643
Leave top holes open.
Build two Assemblies.
10641
10642
10641
10642
10641
10642
10644
7003
7003
7004
7004
10643
10644
10643
10644
SB
SB
LS
LS
LS
SB
SB
SBLS

13
Step 1: Continued
Next, insert the Upper/Lower Chord Truss
Assembly into the Truss Post Assembly as
shown. Secure with Small Bolts and Nuts. Do
not tighten at this time. Repeat for other side.
5
6
Attach Truss Splice to Truss using Small Bolts
and Nuts as shown below, but do not tighten at
this time. Temporarily secure the peak of the
Truss using two Small Bolts and Nuts as shown.
Repeat for Additional Trusses
You will need for this page:
(QTY: 14)
(QTY: 12)
Assemblies from previous page:
•Truss Post Assembly (2)
•Chord Truss Assembly (2)
Nominal Size # of Modules # of Trusses
10’x10’ 3,0 m x 3,1 m 0 2
10’x15’ 3,0 m x 4,6 m 1 3
10’x20’ 3,0 m x 6,1 m 2 4
10’x25’ 3,0 m x 7,5m 3 5
10’x30’ 3,0 m x 9,0 m 4 6
The number of Trusses you will
need to construct your building
will depend on the size of your building. All
buildings require at least two Trusses. See the
chart to the right to determine the number of
Trusses needed for your building.
10645
Truss Splice
110646
Knee Brace
4
10641
10642
10643
10644
10645
10646
10646
118 1/4”
300,4 cm
7
Attach Knee Braces to
Truss using Large Screws
as shown. Do not tighten at
this time. With the Truss assembled,
check that the width of the Truss
is 118 1/4” (300,4 cm) across the
top and bottom of the Truss. If so,
tighten all fasteners. Repeat steps
to build additional Trusses.
Number of Trusses Needed
SB
SB
LS
LS
LS
LS
LS
LS
LS
LS
SB
SB
SB
SB
SB
SB
SB
LS SB

14
Step 2: Rear Wall
You will need for this page:
(QTY: 15)
(QTY: 8)
10629
Rear Frame
410630
Rear Wall
Channel
210631
Rear Wall
Diagonal
210640
Wall Post
3
10631
10629
10629
10629
10629
10630
10630
10631
10640
10640
10640

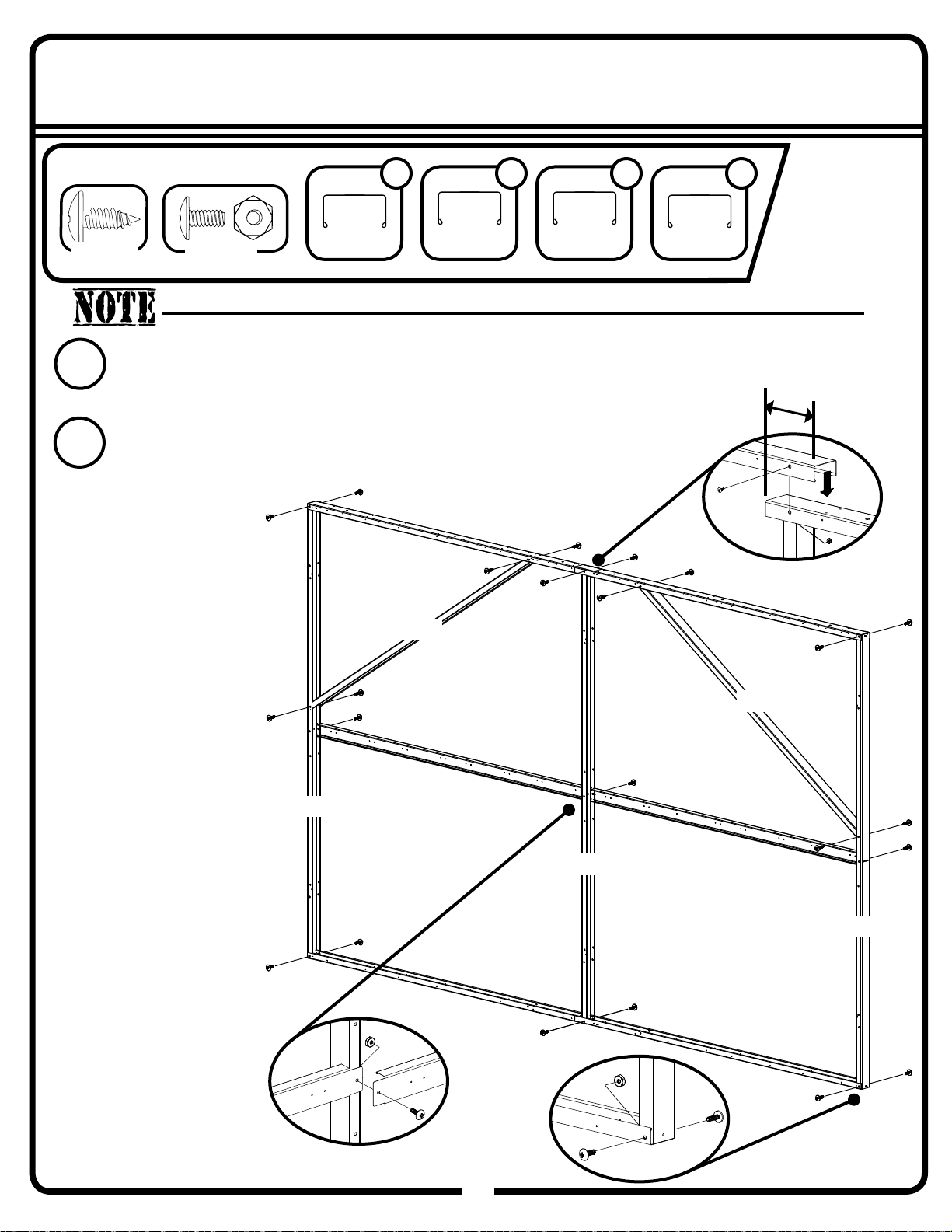

Lay out the parts and position them as shown. Overlap the Rear Frames by
4” (10,2 cm) and connect them to the Wall Post in the center of the Rear
Wall using Small Bolts and Nuts as shown. Do not tighten at this time.
1
2
Attach other two Wall Posts at the sides of the Rear Wall using Small Bolts
and Nuts as shown. Attach both Rear Wall Channels using Small Bolts
and Nuts. Slide the Rear Wall Diagonals into the Frame and secure with
Large Screws.
SB
SB
SB
SB
SB
SB
SB
SB
SB
SB
SB
SB
SB
SB
SB
LS
LS
LS
LS
LS
LS
LS
LS
LS SB
overlap length:
4” (10,2 cm)
INSIDE
OUTSIDE
If you purchased a Door Kit, skip this page and move on to page 16.

15
Step 2: Continued
You will need for this page:
7822
Wall Panel
2

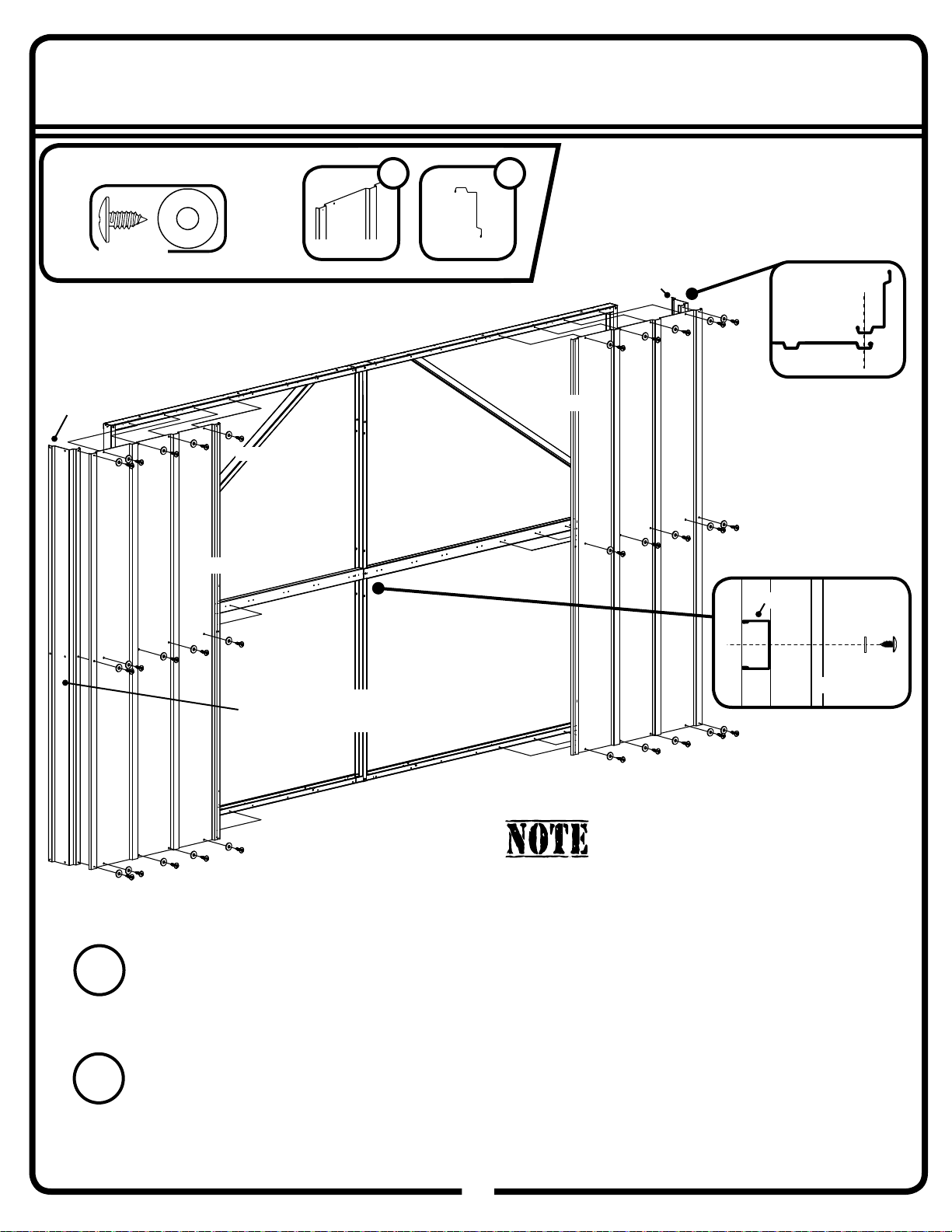

Using Small Screws, attach a Wall Panel and Corner
Panel to each corner of the Rear Wall as shown. The
Corner Panel should only be secured to the Wall Panel
where the Panels overlap. Do not secure the Corner Panel to the
Rear Wall itself, this will be done in Step 5.
3
Carefully set the Rear Wall Assembly aside for use in Step 5.
4
Place Washers on all Bolts and
Screws used on painted parts. This
will help to prevent leaks and corrosion.
LEAVE HOLES OPEN
ALONG SIDE OF WALL
(QTY: 30)
10619
Corner Panel
2
10619
7822
7822
10630
7822
7822
10619
10619
SS
INSIDE
OUTSIDE
SS
SS
SS
SS
SS
SS

16
Step 3: Front Wall
You will need for this page:
(QTY: 24)
(QTY: 34)
Insert Front Wall Diagonals into the Front
Wall Assembly as shown and secure with
Large Screws.
3
10640
Wall Post
210652
Wall Post
(Hinge)
210627
Front Wall
Channel
610628
Front Wall
Diagonal
4
Left Front Wall Assembly
10640
10640
10652
10652
10627
10627
10627
10628
10628
10628
10628
10673
10639
Fascia pieces should fi t inside
Front Frame as shown.
10673
Front Frame
2
10638
Long Fascia
110639
Short Fascia
1

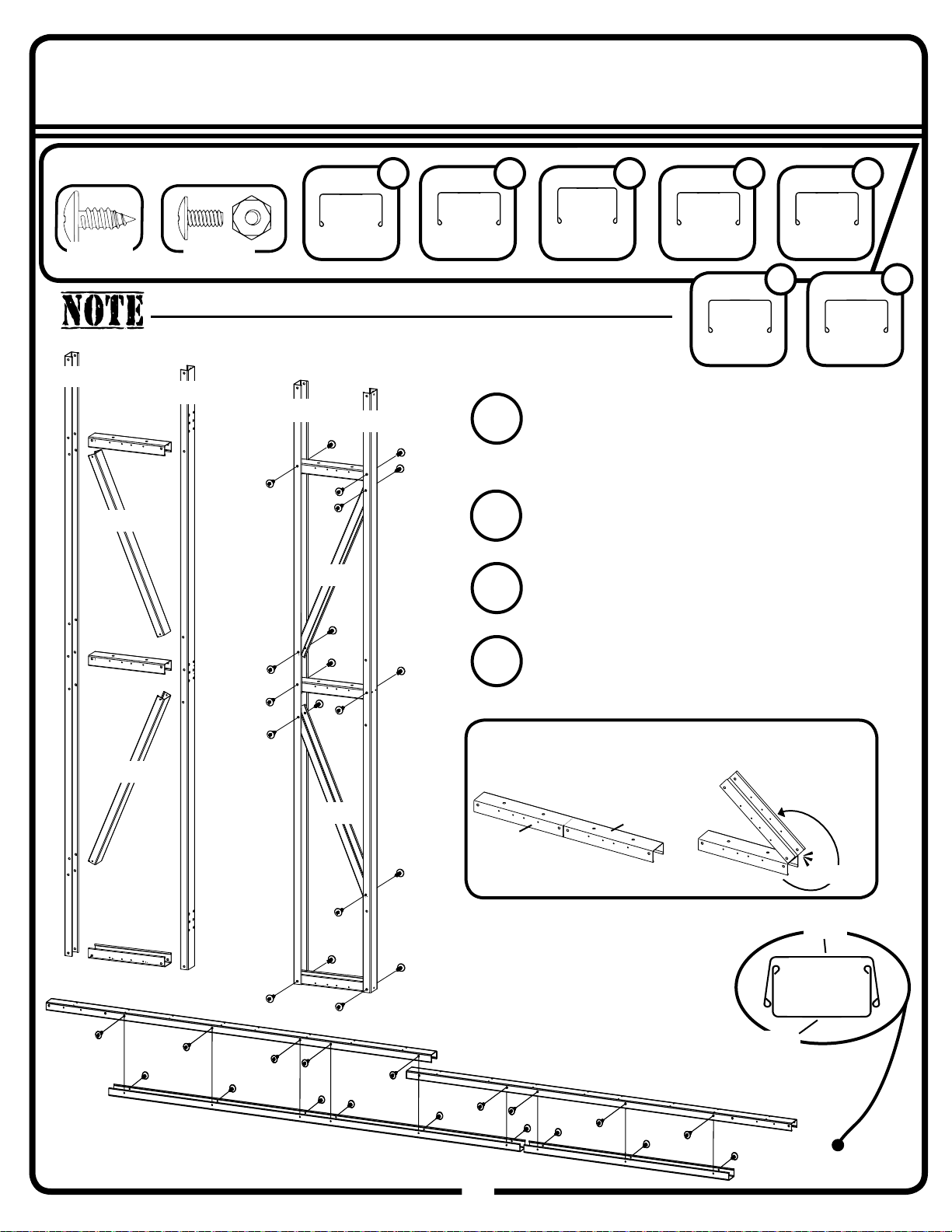

Lay out the parts and position them as
shown. Double check that holes align as
shown. If holes do not align, the Wall Post
(Hinge) is most likely upside-down.
1
2
Insert the Front Wall Channels into the Wall
Post and Wall Post (Hinge) as shown and
secure with Small Bolts and Nuts.
Assemble two Front Frames together with
the Long and Short Fascias as shown
below and secure using Large Screws.
4
Right Front Wall Assembly
LS
SB
LS
LS
LS
SB
SB
SB
SB
SB
LS
SB
SB
SB SB
SB SB
LS
LS
LS
LS SB
10673
10673
10638
10639
Door Header Assembly
LS
LS
SNAP
10627
10627
Part 10627 Front Wall Channel may be joined in
pairs. Bend to separate.
If you purchased a Door Kit, build two Front Walls.

17
You will need for this page:
Step 3: Continued
Using Small Screws, attach a Front Wall
Panel and Corner Panel to each corner of
the Front Wall as shown. The Corner Panel
should only be secured to the Front Wall Panel where
the Panels overlap. Do not secure the Corner Panel
to the Front Wall itself, this will be done in Step 6. Also,
leave the holes closest to the Door open in the Front
Wall Panel. These will be used to attach the Door
Jambs in Step 6.
6
Slide the Door Header Assembly down onto
the Front Wall Assemblies as shown and
secure with Small Bolts and Nuts. Once these
pieces are joined, take care when moving them as the
Door Header may bend.
5
(QTY: 8) (QTY: 12)
Assemblies from previous page:
•Left Front Wall Assembly
•Right Front Wall Assembly
•Door Header Assembly
LEAVE HOLE OPEN
LEAVE HOLE OPEN
LEAVE HOLE OPEN
IMPORTANT: A minimum
of two people should be
used at all times when
handling or maneuvering
the Front Wall Assembly.
When installing the Front
Wall Assembly in the build-
ing, two people should hold
the Assembly in place until
it is secure. Failure to do so
could result in bending the
Front Frame and Fascia
pieces. LEAVE HOLES OPEN
ALONG SIDE OF WALL
10618
Front Wall
Panel
210619
Corner Panel
2
Left Front Wall Assembly Right Front Wall Assembly
SB SB
SB
SB
SB SB
SB SB
10618
10618
10618
10619
10619
10619
SB SS
SS
SS
SS
SS SS

18
You will need for this page:
(QTY: 4)
(QTY: 8)
Assemblies from Step 1:
•Truss Assemblies (2)
10632
Side Frame
4

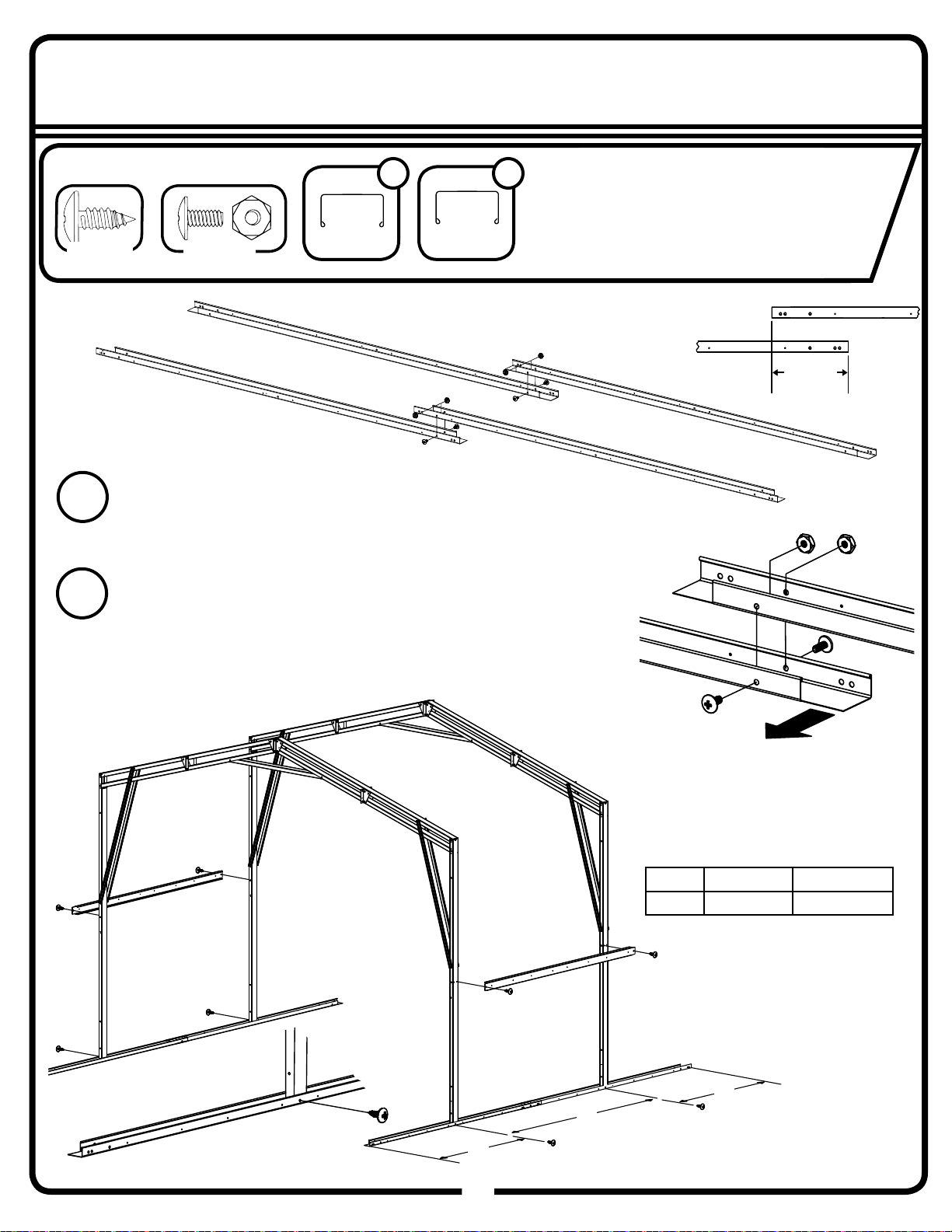

Step 4: Truss Installation
10634
Side Wall
Channel
2
Assemble two sets of Side Frames by
overlapping them by 8 1/4” (21,0 cm) and
inserting two Small Bolts and Nuts as shown
above. These will form the left and right Floor Frames.
1
2
32 7/8” (83,5 cm) from the edge of each Floor
Frame, erect a Truss Assembly and secure
using a Large Screw on each side. Once two
Truss Assemblies are in place, connect them with a
Mid Side Wall Channel and secure with Large Screws.
Support Trusses until Mid Side Wall Channels are in
place.
8 1/4”
21,0 cm
Overlap Length
A
A
B
Notched side of Frame must
face inside building.
A32 7/8” 83,5 cm
B57 1/2” 146,1 cm
Truss Spacing
10632
10632
10632
10632
10632
10632
10634
10634
SB
SB
SB
SB
LS
LS
LS
LS
LS
LS
LS
10632
LS SB

19
4
10650
Step 4: Continued
4
Install the Main Roof Beam and secure with two
Small Bolts and Nuts at each end. Next, install
the outer Roof Beams in the same manner.
Remove Bolts holding Truss peaks together (from
Step 1-6). Next, place two Middle Roof Beams
back-to-back and secure with two Small Bolts and
Nuts as shown above. This is the Main Roof Beam.
3
Side of Beams with small holes must face up.
End View of Double Beam
10650
10650
10650
10650
10650
Small holes in tops of beams.
SB
Main Roof Beam
Main
Outer
Outer
Main
Outer Outer
You will need for this page:
(QTY: 14 ) Roof Beam

20
You will need for this page:
(QTY: 18+)
(QTY: 6+)
Assemblies from Step 1:
•All remaining Truss
Assemblies
10632
Side Frame
2+
Step 4: Continued for Extension Modules
10634
Side Wall
Channel
2+
6
57 1/2” (146,1 cm) behind the previous Truss,
erect a Truss Assembly and secure using a Large
Screw on each side. Once two Truss Assemblies
are in place, connect them with a Mid Side Wall Channel
and secure with Large Screws. Support Trusses until Mid
Side Wall Channels are in place.
LS SB
5
All Truss Sections are assembled in the
same manner as the Truss Section just
erected. Install one additional Side Frame
per side for each additional Module. Overlap Side
Frames by 8 1/4” (21,0 cm). Refer to page 13 to
see how many Trusses should be included in your
building.
One Side Frame per side is added for
each additional Extension Module.
10650
10650
10650
Install the Main Roof Beam and secure with two
Small Bolts and Nuts at each end. Next, install
the outer Roof Beams in the same manner.
8
Remove Bolts holding Truss peaks together (from
Step 1-6). Next, place two Middle Roof Beams
back-to-back and secure with two Small Bolts
and Nuts as shown. This is the Main Roof Beam.
7
If you are erecting a 10’x10’ (3,0 m x 3,1 m) building, skip this page
and move on to page 21.
10650
10650
Main Roof Beam
Side of Beams with small holes must face up.
Outer
Outer
Outer
Main
Outer
Main
Repeat until all Trusses have been installed.
Roof Beam
4+
10650
