Arrow Storage Products VVCS85 Use and care manual

BUILDING DIMENSIONS
Gloves must be worn
at all times to reduce
risk of injury!
* See Inside for Detailed Safety Information.
Owner’s Manual
& Assembly Guide
719780416
Customer Service:
1-800-851-1085 or
[email protected]
01AM
Size rounded off to the nearest foot
Exterior Dimensions
(Roof Edge to Roof Edge)
Width Depth Height
Interior Dimensions
(Wall to Wall)
Width Depth Height
Door
Opening
Width Height
Approx.
Size
Storage
Area
8’ x 5’ 36 Sq. Ft. 241 Cu. Ft. 99 3/4” 59 1/2” 91 3/8” 94 3/4” 54 1/4” 90 1/16” 59 1/2” 69 1/4”
2,4 m x 1,4 m 3,3 m26,8 m3253,4 cm 151,1 cm 232,1 cm 240,7 cm 137,8 cm 228,8 cm 151,1 cm 175,9 cm
For proper base construction see page 12
Base
Size
97 1/2” x 57”
247,7 cm x 144,8 cm
†
†
Model No. VVCS85
Nominal Size
8’ x 5’
www.arrowsheds.com

2
SAFETY PRECAUTIONS...
Safety precautions MUST be followed at all times throughout the construction of your building!
Care must be taken when handling various pieces
of your building since many contain sharp edges.
Please wear work gloves, eye protection and
long sleeves when assembling or performing any
maintenance on your building.
Practice caution with the tools being used in the
assembly of this building. Be especially familiar with
the operation of all power tools.
Keep children and pets away from the worksite
during construction and until the building is
completely assembled. This will help avoid
distractions and any accidents which may occur.
NEVER concentrate your weight on the roof of the
building. When using a step ladder make sure that
it is fully open and on even ground before climbing
on it.
Do NOT attempt to assemble your building on a
windy day. The large panels can catch the wind like
a “sail”, causing them to be whipped around making
construction diffi cult and unsafe.
Do NOT attempt to assemble your building before
double checking that you have all the parts indicated
in the parts lists (page 8) as well as all hardware
(page 7). Any building left partially assembled may
be seriously damaged by even light winds.
IMPORTANT NOTE ON ANCHORING
• Your building MUST be anchored to prevent wind
damage. An anchoring kit is not supplied with your
building and you have many options when it comes to
anchoring. See anchoring page for more info.
• You must also have a temporary anchoring system in
place in case you need to take a break from assembly.
See page 4 for more info.
02A

3
ASSEMBLY TIPS &TOOLS
How to Select and Prepare Your Building Site: Before you start to assemble your
building, you will want to decide on a good location. The best location is a level area with good drainage.
• Allow enough working space so it is not diffi cult to move parts into position for assembly. Be sure there will be enough
space at the entrance for the doors to completely open. Also, there needs to be enough space outside the building to be
able to fasten the panel screws from the outside.
• Before assembling any parts, your base should be constructed and an anchoring system should be ready to use.
Watch the Weather Closely: Be sure the day you choose to install your building is dry and calm.
Do NOT attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Use Teamwork: Two or more people are required to assemble your building. One person can hold
the parts or panels in place while the other person fastens them together and handles the tools. This
makes the process of assembling your building faster and safer.

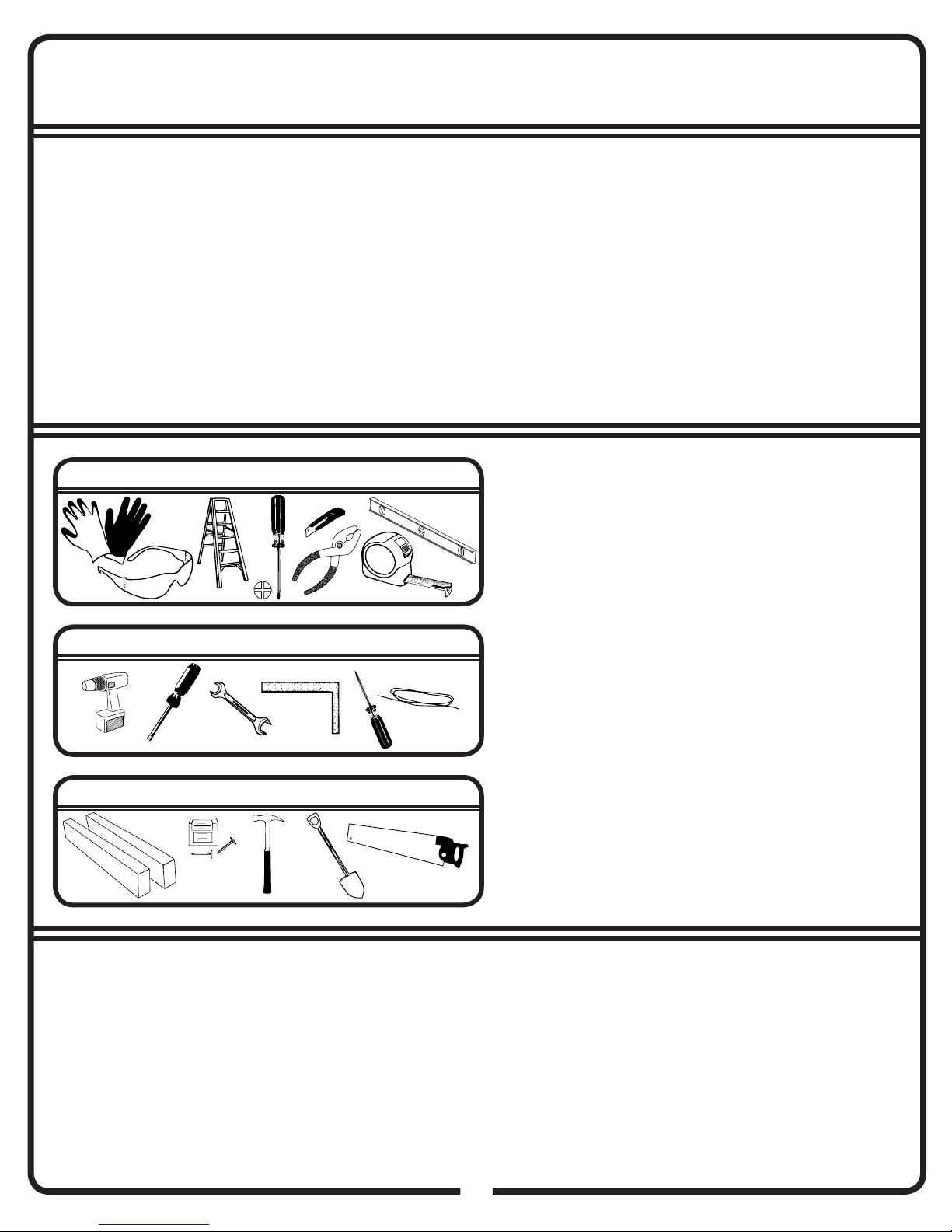

Tools and Materials: Here is a list of some basic tools and materials you will need to assemble
your building. Decide which method of anchoring and the type of base you will use to make a complete
list of the materials you will need.
• Work Gloves
• Safety Glasses
• Step Ladder
• No. 2 Phillips Screwdriver (Magnetic Tip Preferred)
• Utility Knife or Scissors
• Pliers
• Carpenter’s Level
• Tape Measure
• Power Drill (Cordless, Variable Speed)
• Nut Driver or Wrench
• Square
• String (for squaring the frame)
• Awl (to align holes)
• Lumber and/or Concrete
• Hammer and Nails
• Spade or Shovel
• Hand Saw or Power Saw
WHAT YOU NEED
RECOMMENDED TIME SAVERS
BASE PREPARATION TOOLS
03A

4
FREQUENTLY ASKED QUESTIONS
Q. How long will it take to assemble the building?
A. Assembly time depends on a variety of factors, including roof design, tools available, DIY skill and the pace
at which you work. Guidelines for each shed assembly are approximate AFTER completion of the base, and
assume two or more people working on the assembly. Generally, you should plan on at least one day working with
someone who can assist you; again, after constructing the base. Refer to the clock icons on each product page
on the website for specifi c time estimates.
Q. How do I decide where to put my shed?
A. The key to a successful assembly is to make sure the shed will be square and level when built. The shed can
be assembled directly onto level ground (grass or dirt). If you have location options, choose one that is already
fl at, with good drainage to control moisture. If you don’t have a fl at, well-drained area, you need to prepare the
space. Level the area using cinder blocks, concrete, crushed gravel or other sturdy materials. Once level with good
drainage, construct your base. Using a carpenter’s level, make sure your base is level and free of bumps or ridges
to provide good support for your building.
Q. What if I can’t fi nish my building in one session?
A. If weather conditions change so that it becomes windy or rainy, it is recommended that you stop assembly
until conditions improve. This is for your safety and for protection of the shed panels. However, do not leave
your unfi nished construction without fi rst temporarily anchoring the corners of the shed to your base and placing
weights, such as patio blocks or sandbags, on the fl oor frame. Failure to anchor the building if you leave it while
partially assembled could result in irreparable damage or personal injury if the building collapses.
Note: Most instruction manuals provide a warning note at the beginning of the installation step for corner panels,
stating that the remainder of the building assembly requires multiple hours and more than one person. Do not
continue beyond this point if you do not have enough time or help to complete the assembly that day. A partially
assembled building can be severely damaged by even light winds.
Q. Do I need to anchor my building?
A. Yes! Fully assembled buildings should be anchored using a permanent anchoring system. If you need to leave
your building before it is completely assembled, you will need to temporarily anchor the corners of the shed to your
base, and place weights, such as patio blocks or sandbags, on top of the fl oor frame.
Q. How do I temporarily anchor my building before it’s fully assembled?
A. An incomplete building must be anchored before breaking for any period of time to prevent possible damage.
•If the building is on a wood base, secure the frame with wood screws in the corners
•If the building is on a concrete base, temporarily anchor the frame in the corners
•Use patio blocks or sandbags on top of the fl oor frame as weights
•Secure the fl oor frame to the ground with ground augers or rope the frame in the corners to the ground
Q. How do I control condensation and prevent water from leaking in?
A. To minimize condensation, install a continuous, unbroken plastic vapor barrier with a thickness of 6 mil.
between exposed ground surface and the building’s base. Make sure that all weather stripping and washers are
used throughout the assembly process. Make sure that the weather-stripping tape adheres to the panels when
installing it along the main ridge beam. Do not stretch it. Apply it directly off the roll onto clean panels. Ensure
that all washers are fl ush with the panels and do not over-tighten screws, as this can crack the washers. Silicone
caulking may be used to create watertight seals at the washers and throughout the building.
04A

5

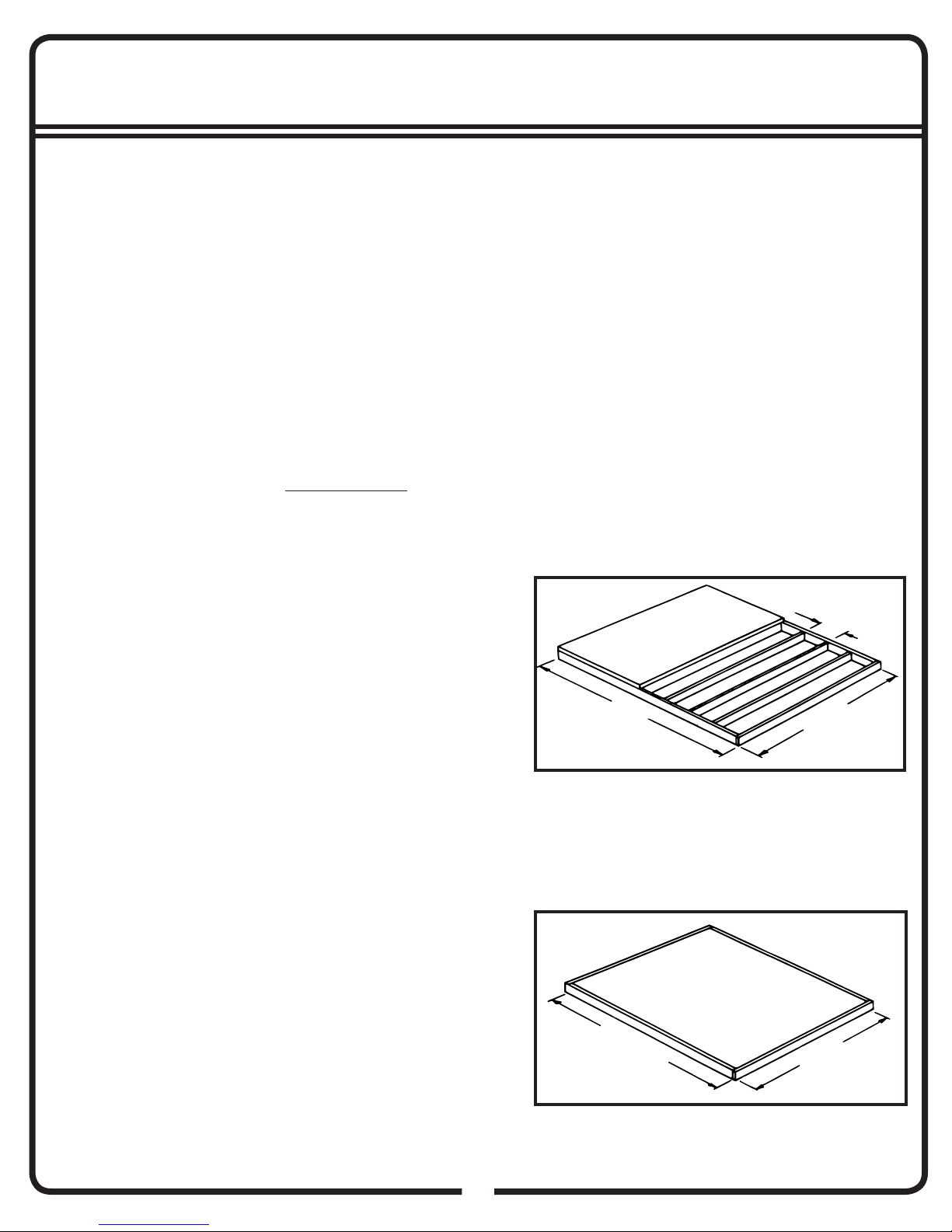

Q. What kind of base do I use?
A. You can:
•Use an Arrow Base Kit
•Pour a concrete slab
•Build a wood deck/fl oor (use exterior-grade plywood)
•Use patio blocks
•Build on crushed gravel, dirt or grass
Arrow provides a base kit accessory that is an option for most building sizes. If you are building a wood deck/fl oor,
an Arrow fl oor frame kit on top of your deck/fl oor assembles in minutes and provides a fl oor frame suitable for a
5/8” exterior-grade plywood fl oor (not included). A continuous unbroken plastic vapor barrier with a thickness of 6
mil. between the ground and the building’s base is also recommended.
Q. How should I measure for my base?
A. Shed dimensions are provided in “nominal” size. Nominal sizes are roof-edge measurements rounded to the
nearest foot and are not the measurements to use for constructing the shed base. So, carefully check the exact,
recommended base size in the specifi cations for your shed model.
Q. How do I align the holes in the wall panels with the holes in the fl oor frame?
A. Make sure that the shed is level and square, with the correct fl oor frame size, and that the corner panels are
installed correctly. Line up the large hole in the panel with the small holes in the fl oor frame. An awl can be used to
help align the holes.
Q. How do I align the holes in the roof panels with the holes in the roof beam and side wall angles?
A. Your building must be level and square in order for the holes to align. It must be square at both the top and
bottom. Check that the building is square by measuring diagonally. The two diagonal measurements will be equal.
If your building is out of square, carefully rock and push the shed until it is square. Also, try loosening the roof
beams to give more play and fl exibility. Non-alignment can also occur if your building is not level. You can raise
corners and shim under them to make it level. Check that the panels are installed in the proper location. The
building should not be permanently anchored until the complete unit is assembled; otherwise, you will not be able
to make adjustments for squareness during assembly. Do not attach the bottom of the roof panels to the side wall
angles until all the roof panels are up.
Note: If you have to stop assembly for any reason before it is complete, do not leave your unfi nished construction
without fi rst temporarily anchoring the corners of the shed to your base and placing weights, such as patio blocks
or sandbags, on the fl oor frame.
Q. How do I ensure that the sliding doors on the building will hang level?
A. Make sure that the door track has been correctly installed, with the long leg on top and the short leg on the
bottom. Check that the door slides are straddling the upper and lower legs of the door track assembly, putting the
door slide only halfway in the track. Also, the rounded end of the door slide should be at the bottom and the square
end at the top.
Q. What kind of customer support is available?
A. Our instruction manuals contain step-by-step assembly illustrations and guide you from preparation through
assembly to care and maintenance of your fi nished building. Each part is marked with a factory number for easy
identifi cation. In addition, our assembly animation (located under the Customer Support menu on the website)
provides helpful tips. But if you need to reach someone at Arrow, you can contact Arrow Customer Service, toll free,
at 1-800-851-1085 (press 1) or via e-mail at [email protected]. Have your model number and instruction
manual with you when you call.
05A

6
Q. What if the rear wall angle and channels are too large to fi t inside of the rear wall panels?
A. Check the dimensions of wall assemblies. They should be slightly smaller than the fl oor frames. Lay the
assemblies on top of the rear fl oor frame and pull them up to the top of the wall panels causing the corner panels
to stand erect and not lean inward. Caution: Be careful to not scratch the panels on the way up.
Q. The wide rib always overlaps the crimped rib. Is there ever an exception?
A. This sequence is to be followed through the assembly process. However, this will typically happen once on the
rear and once on each side wall (vertical wall units only) where there will be either two crimped ribs overlapping or
two wide ribs overlapping. This may give it a tighter fi t, but it will work.
Q. Can the building be painted?
A. The buildings can be painted with an exterior-grade paint designed for use on steel. Contact your local paint
supplier for recommendations.
Q. I heard that rust might be an issue with steel; is it?
A. While steel can rust, with proper care this should not be an issue. For a long-lasting fi nish, periodically clean
the exterior surface and apply spray-on car wax. Touch up scratches as soon as you notice them by immediately
cleaning the area with a wire brush or emery paper, washing it and applying touch-up paint. This will minimize rust
and maintain your shed’s attractive appearance for years.
Q. How do I take care of dents in my shed?
A. Proper selection of shed size, including a suffi cient door-opening width, and proper placement of your shed
should minimize the possibility of damage. If a dent does occur, carefully push the dent out from the opposite side.
If the paint has been scratched or removed, touch up the area as soon as you notice it. Immediately clean the area
with a wire brush or emery paper, wash it and apply touch-up paint. This will minimize rust and maintain your shed’s
attractive appearance for years.
Still have questions? Visit us online at www.arrowsheds.com to view lots of helpful tips and information
regarding all of our available products. You can also contact our Customer Service team at 1-800-851-1085
(press 1), or via e-mail at [email protected].
06A

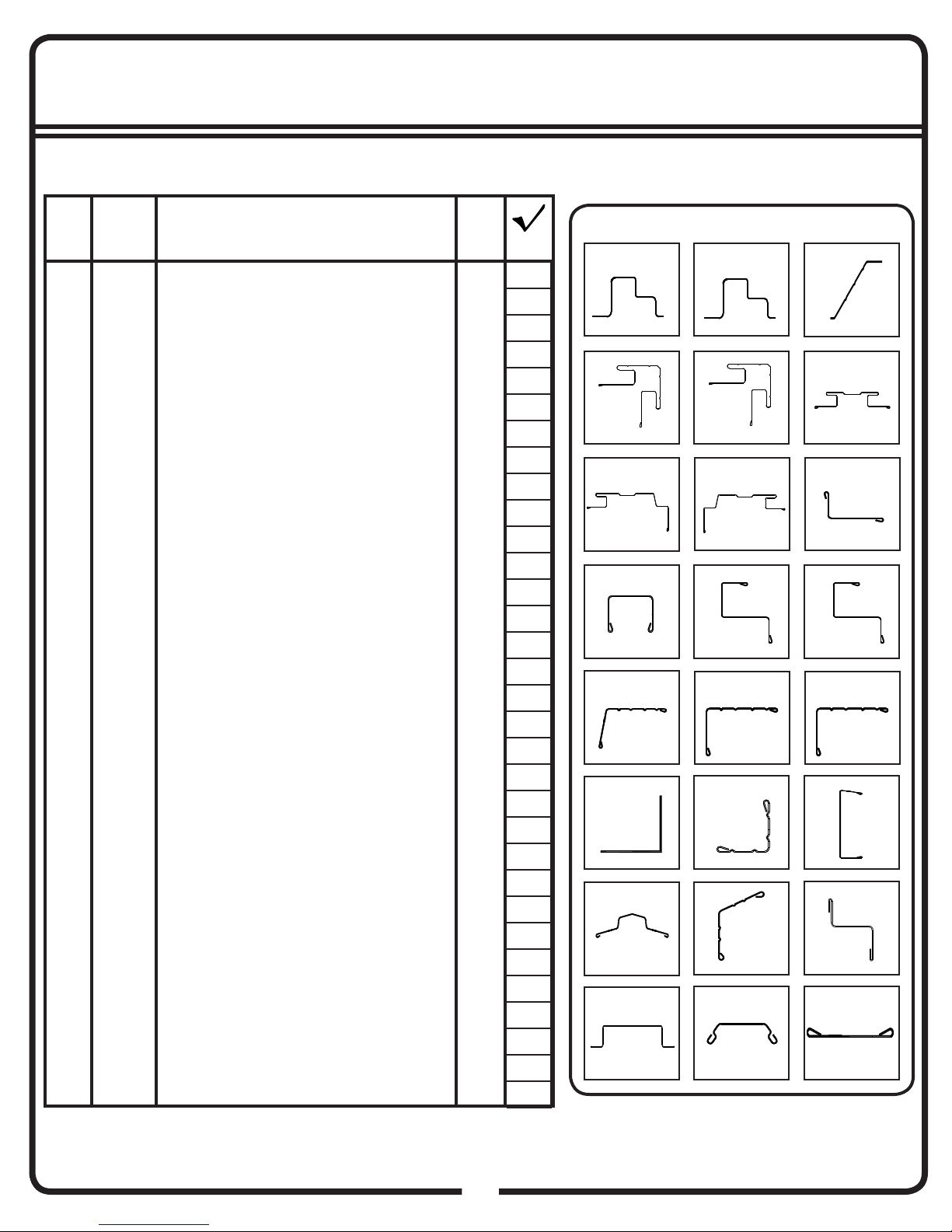

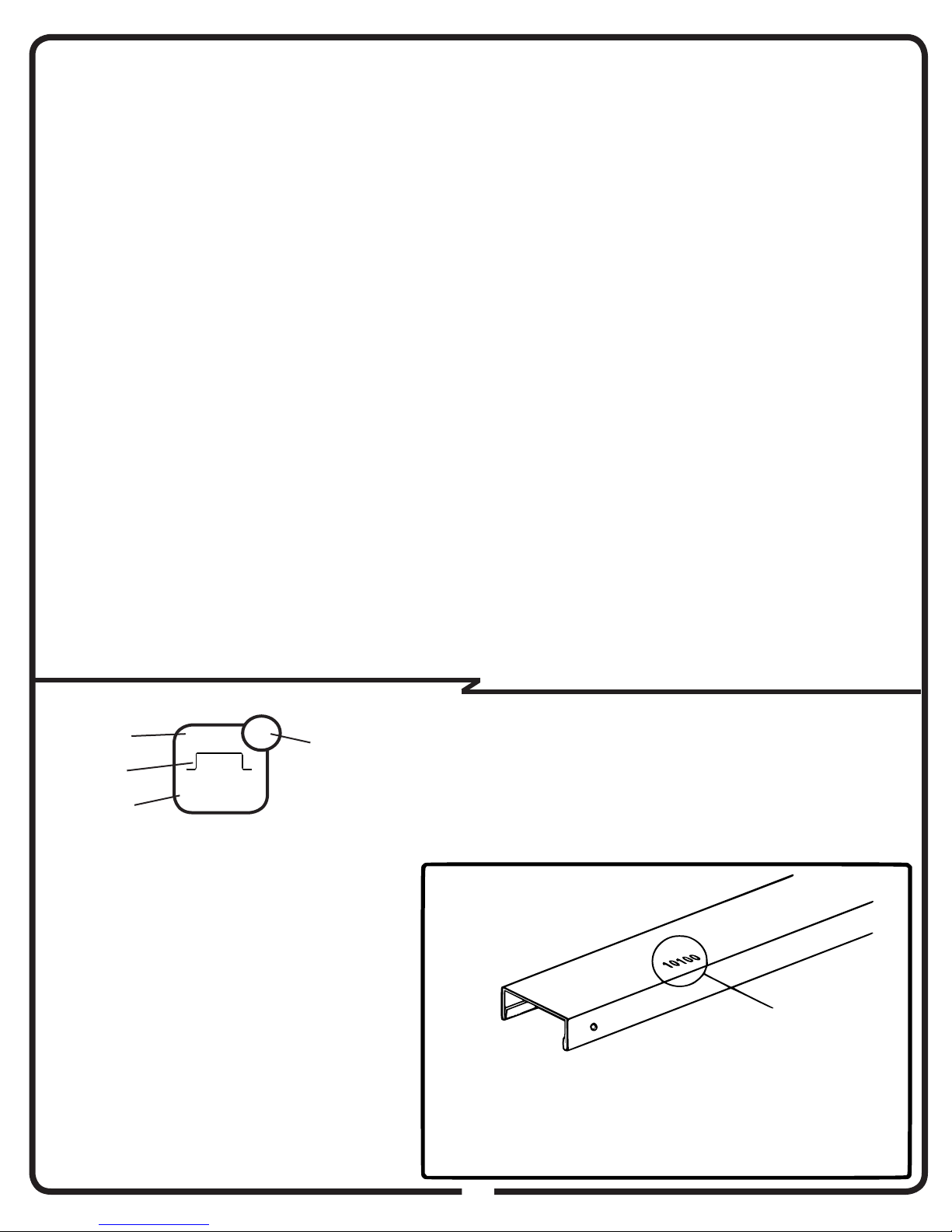

At the top of each page you will see one or more Part
Cues like the one to the left. These Part Cues are
designed to help you quickly identify the parts needed
for each step.
##### 5
Part No. Quantity Needed
End View
Part Name Part Name
Confi rm that all hardware and parts are
present before attempting to assemble
your building.
Customer Service:
1-800-851-1085 or
[email protected]
For missing or damaged parts contact
Customer Service. Do not return to store.
Part Numbers
Part Number
1. Each part has an identifying part number on it.
2. Part Numbers are referenced in each step.
3. Unpainted parts have a stamped in number and painted
parts have a number that is inked on.
Remove inked on numbers with soap and water after assembly.

7
HARDWARE LIST...
17
14 15
07Y
1
11/32 Hex.
16
Hardware Views by Key No.
10
13
11 12
18
23
22
2
#2 Phillips
SB
5
#2 Phillips
SS
7
#2 Phillips
LNB
9
#2 Phillips
TS
8
#2 Phillips
FB
21
1 65103 Hex Nut (#8-32) 93
2 65923-61 Small Bolt (Stone) (#8-32 x 3/8) (10 mm) 49
3 65923-62 Small Bolt (Vanilla) (#8-32 x 3/8) (10 mm) 8
4 65923-06 Small Bolt (Black) (#8-32 x 3/8) (10 mm) 12
5 65004-61 Small Screw (Stone) (#8AB x 5/16) (8 mm) 336
6 65004-62 Small Screw (Vanilla) (#8AB x 5/16) (8 mm) 58
7 65958 Long Bolt (#8-32 x 7/8) (22 mm) 4
8 66783 Flat Head Bolt (#8-32 X 1/2) (13 mm) 24
9 66692 Tapping Screw (#10ABx1) (25 mm) 2
10 66646 Washer Sheet 5
11 66809 Locking Handle Right 1
12 66054 Latch 1
13 66609 Hinge 4
14 66183L Left Roof Trim Cap 2
15 66183R Right Roof Trim Cap 2
16 67293 Weather Stripping 1
17 67468 Peak Cap 2
18 67236 Adhesive Pads (2 per sheet) 1
19 66684 Top Latch Spring 1
20 66808 Bottom Latch Spring 1
21 66810 Left Handle 1
22 66811 Handle Backplate 2
23 66812 Hinge Plate Decoration 4
Key
No.
Part
No.
Part
Description Qty. List
6
#2 Phillips
VS
4
#2 Phillips
BB
3
#2 Phillips
VB
20
19
SB - Stone Bolt
VB - Vanilla Bolt
BB - Black Bolt
SS - Stone Screw
VS - Vanilla Screw
FB - Flat Head Bolt
TS - Tapping Screw
LNB - Long Bolt
The fasteners used in each
step are shown actual size at
the top of each page. If you
are unsure which fastener
to use, hold it up to the
picture and use the one that
matches.
QTY 18
Various fasteners are used
throughout the construction of
your storage unit. In each step
you will see the abbreviations
listed below used in the
illustrations to help you identify
which fastener to use.

6
Key
No.
Part
No.
Part
Description
Qty.
List
1 9377 Front/Rear Floor Frame 4
2 9402 Side Floor Frame 2
3 10702 Ramp 1
4 5284 Right Corner Post 2
5 5285 Left Corner Post 2
6 5287 Rear Splice Post 1
7 10780 Right Door Jamb 1
8 80069 Left Door Jamb 1
9 10827 Door Jamb Angle 2
10 9344 Siding Stud 20
11 10794 Front Siding 6
12 10787 Side Siding 6
13 10792 Rear Siding 6
14 10826 Front Inner Header 1
15 10795 Front Outer Header 2
16 9912 Side Wall Angle 2
17 9336 Right Rear Wall Angle 1
18 9337 Left Rear Wall Angle 1
19 8700 Right Gable 2
20 8701 Left Gable 2
21 7905 Roof Beam Bracket 4
22 9204 Roof Beam Brace 2
23 10825 Roof Beam 6
24 10788 Right Roof Panel 2
25 80073 Left Roof Panel 2
26 6869 Ridge Cap 1
27 6015 Side Roof Trim 2
28 10782 Door 2
29 10718 Horizontal Door Brace 4
30 10719 Door Handle Brace 2
31 10720 Diagonal Door Brace 8
32 10721 Door Stop 1
5
9
6
2
10
1817
16
4
1
14
8
7
15
21
27
26
2322
PARTS LIST...
8
08AM
27
29 3230
Selected End Views by Key No.
3

ASSEMBLY BY KEY NO.
9
09AM
NOTE: Double Wall
Studs are used on
side and back walls to
support Siding Panels.
4
5
6
4
5
12
12
12
12
12
12
11
11
11
11
11
11
13
13
13
13
13
13
9
9
17
8
7
18
10
10
16
1
1
1
1
2
2
15
15
16
14
Walls
3
Floor

ASSEMBLY BY KEY NO.
10
10AM

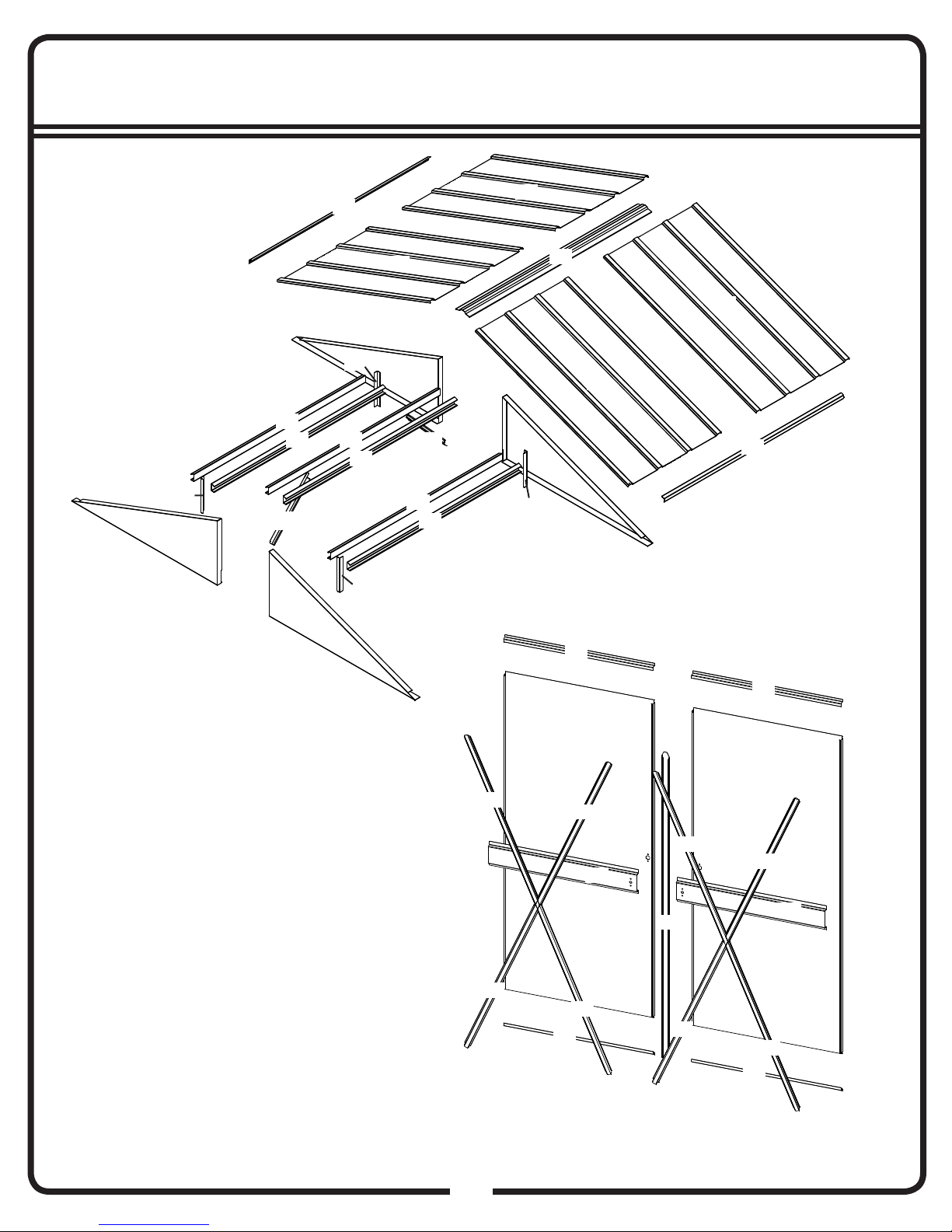

Roof
22
22
20
20
21
23
23 23
23
23
21 19
21
21
23
19
25
25
27
26
27
24
24
28
28
29
29
29
29
30
30
32
31
31
31
31
31
31
31
31
Doors

11
ASSEMBLY OVERVIEW
Build the Floor Frame Erect Post, Studs, and Door Jambs
Install Siding Panels Attach Gables and Roof Beams
Install Roof Panel, Ridge Cap,
Side Trim, Corner Cap
Install Doors
11AM
Shed is now complete.

12
CONSTRUCTING A BASE...
FRONT
(DOOR)
FRONT
(DOOR)
Note: Finished Slab dimensions, with lumber removed.
No matter which of the options below you choose for a base, an ARROW ANCHORING KIT is
recommended as an effective method of properly securing your building after assembly is complete.
OPTION 1: Directly on ground (earth)
Assemble your building directly on level ground (grass, dirt, rock, sand, etc.).
Allow 1 - 2 hours for construction.
OPTION 2: Wood Platform
If you decide to build your own base, be sure to select the appropriate materials.
These are the recommended materials for your base:
• 2 x 4's (38 mm x 89 mm) Pressure Treated Lumber • 5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade
• 10 & 4 penny Galvanized Nails • Concrete Blocks (optional)
NOTE: Pressure Treated Lumber must not be used where it will make contact with your storage building. The properties of
Pressure Treated Lumber will cause accelerated corrosion. If Pressure Treated Lumber comes in contact with your storage
building your warranty will be voided.
The platform should be level and fl at (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
To construct the base follow instructions and diagram.
Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6 cm/61,0 cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
OPTION 3: Concrete Slab
The slab should be at least 4" (10,2 cm) thick. It must be level
and fl at to provide good support for the frame.
The following are the recommended materials for your base.
• 1 x 4's (19 mm x 89 mm) (will be removed once the concrete cures)
• Concrete • Sheet of 6 mil plastic
• We recommend for a proper strength concrete to use a mix of:
1 part cement • 3 parts pea sized gravel • 2 1/2 parts clean sand
Prepare the Site/Construct a Base
1. Dig a square, 6" (15,2 cm) deep into the ground (remove grass).
2. Fill up to 4" (10,2 cm) in the square with gravel and tamp fi rm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm)
lumber.
5. Pour in concrete to fi ll in the hole and the frame giving a
total of 4" (10,2 cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for concrete curing time.
Note: Platform/Slab will extend 9/16" (1,4 cm) beyond
fl oor frame on all four sides. Seal this 9/16" (1,4 cm)
of wood with a roofi ng cement (not included), or bevel
this 9/16" (1,4 cm) of concrete when pouring, for good
water drainage.
97 1/2"
247,7 cm
16"/24"
40,6 cm/61,0 cm
57"
144,8 cm
97 1/2"
247,7cm
57"
144,8 cm
12Y

6
Step 1: Floor Frame Pre-Assembly
13
13P
You will need for this page:
9377
Front/Rear
Floor Frame
4
(QTY: 8)
SB
Join two (2) Front/Rear Floor Frames together by overlapping them as shown and secure the
Frames with four (4) Stone Bolts and Nuts. Repeat this for the other two (2) Front/Rear Floor
Frames.
1
Check the overall length of each set of Floor Frames to make sure they are at the proper length
of 95 7/8” (243,5 cm).
2
95 7/8” 243,5 cm
Washers are to be
used on painted
parts only. Washers
are not necessary on unpainted
parts and there are not enough
to use on every Screw and Bolt.
9377
9377
BUILD TWO (2) ASSEMBLIES

6
Step 2: Frame Pre-Assembly
14
14P
You will need for this page:
(QTY: 1)
SB
(QTY:2)
SS
Connect the Front Inner Header to a Front Outer Header using one (1) Stone Screw as
shown. Repeat this for the opposite end.
1
Join the Left and Right Rear Wall Angles using one (1) Stone Bolt and Nut as shown.
2
10826
Front Inner
Header
110795
Front Outer
Header
2
9336
Right Rear
Wall Angle
1
9337
Left Rear
Wall Angle
1
SB
93369337
Check the overall length of the Header and Rear Wall Angle sets to make sure they are at the
proper length of 94 5/8” (240,3 cm).
3
94 5/8” (240,3 cm)
Header
Rear Wall Angle
94 5/8” (240,3 cm)
10826
10795
10826
SS
10795
10795
SS

6
15
15P
You will need for this page:
(QTY:60)
SS

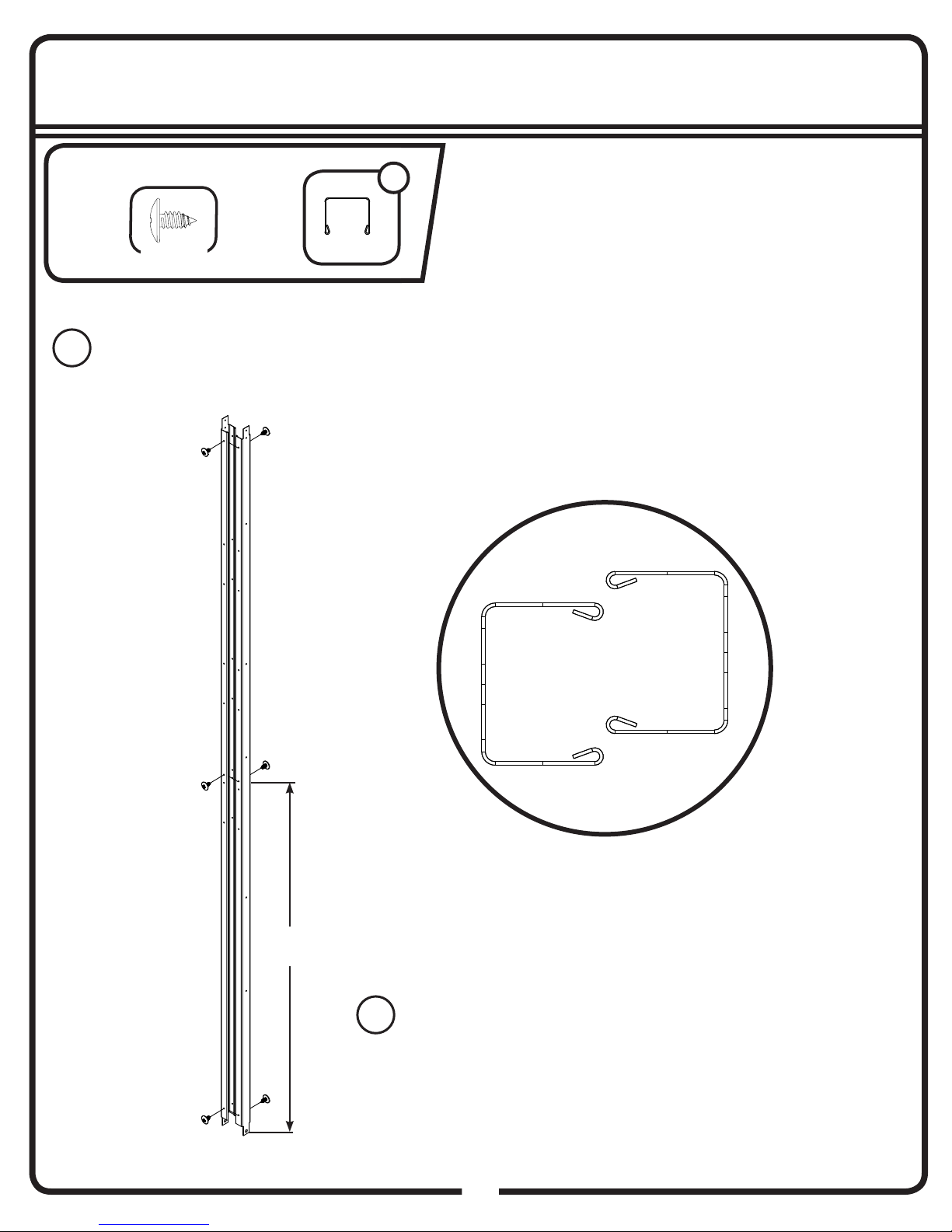

Join two (2) Siding Studs together using six (6) Stone Screws as shown.
1
9344
Siding Stud
20
Step 3: Stud Assembly
Repeat process to make nine (9) more assemblies.
Set assemblies aside for later use.
2
Top view of Siding Studs.
BUILD TEN (10) ASSEMBLIES
9344
9344
35 9/16”
(90,3 cm)

6
16
16P
You will need for this page:
(QTY: 12)
SB
Place two (2) Roof Beams back-to-back with small holes on top. Fasten together using four (4)
Stone Bolts and Nuts. DO NOT FULLY TIGHTEN.
1
Repeat process to make two (2) more assemblies.
Set assemblies aside for later use.
2
10825
Roof Beam
6
Step 4: Roof Beam Assembly
End view of Roof Beam
BUILD THREE (3) ASSEMBLIES
10825
10825
Side of Beams with small holes must face up.

6

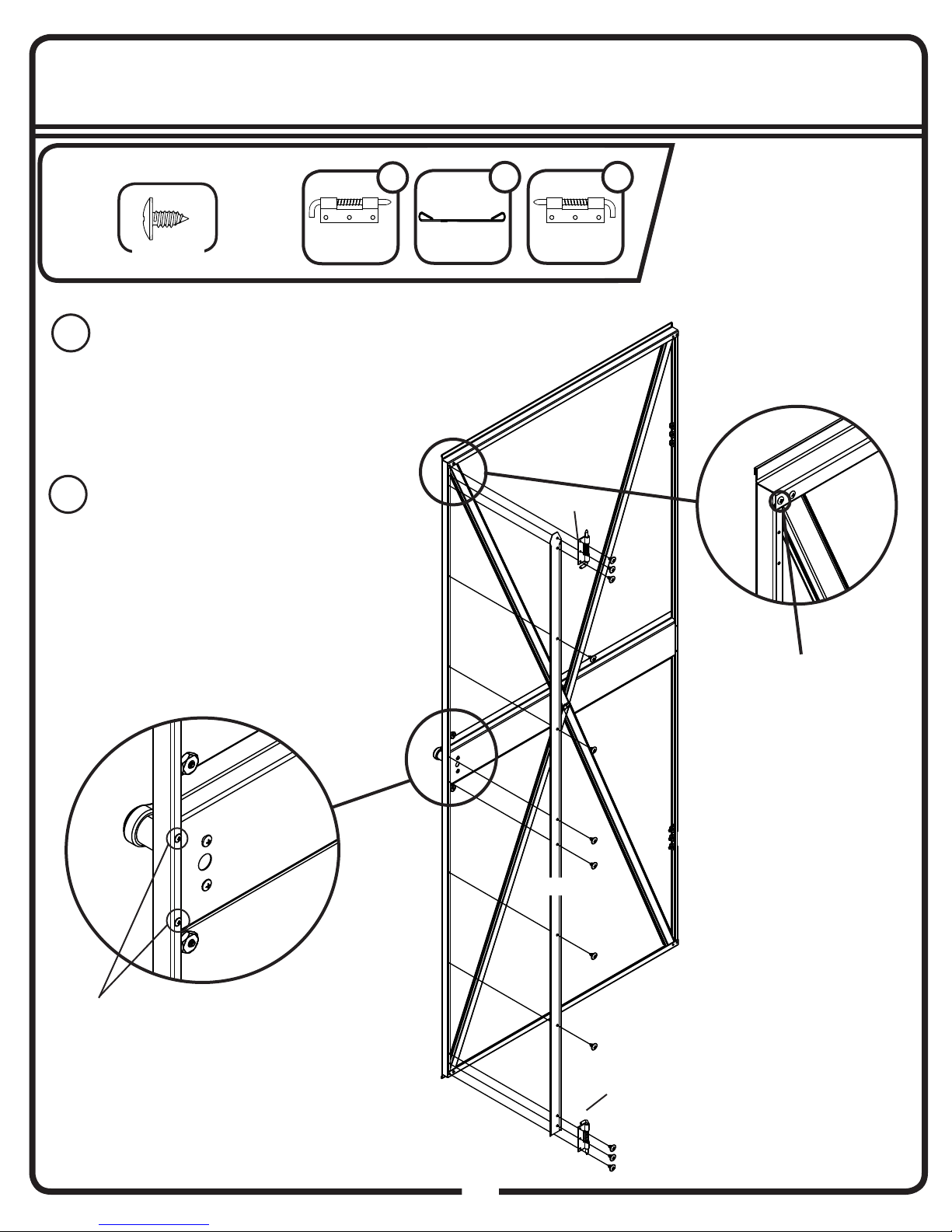

Step 5: Door Pre-Assembly
17
17P
You will need for this page:
10718
Horizontal
Door Brace
410719 2
Door Handle
Brace
10782
Door Panel
2
10718
10719
10718
10782
(QTY: 24)
SS
10720
Diagonal Door
Brace
8
(QTY: 2)
TS
67236
Adhesive Pad
2
Start assembly by sliding the Door Handle
Brace into the middle of the Door and securing
it with four (4) Stone Screws. Then attach the
Horizontal Door Braces to each end of Door
using two (2) Stone Screws on each brace.
Once installed, attach Adhesive Pad between
leg of Door Handle Brace and Door.
1
10719
10782
67236
10720
10718
Place the ends of Diagonal Door Braces with
small holes under Horizontal Door Braces
as shown. Secure all Diagonal Door Braces
to center of Door Handle Brace using one
(1) Tapping Screw. Attach all Diagonal
Door Braces under Horizontal Door Braces
using four (4) Stone Screws at each corner
as shown.
2
Repeat this process for the other Door.
3
Make sure holes in Door Handle Brace
are on same side as holes in Door.
Diagonal Door Braces attach from behind
Horizontal Door Brace.
TS
10720 10720
10720
10720
Large holes of Diagonal
Door Braces go to center.

6

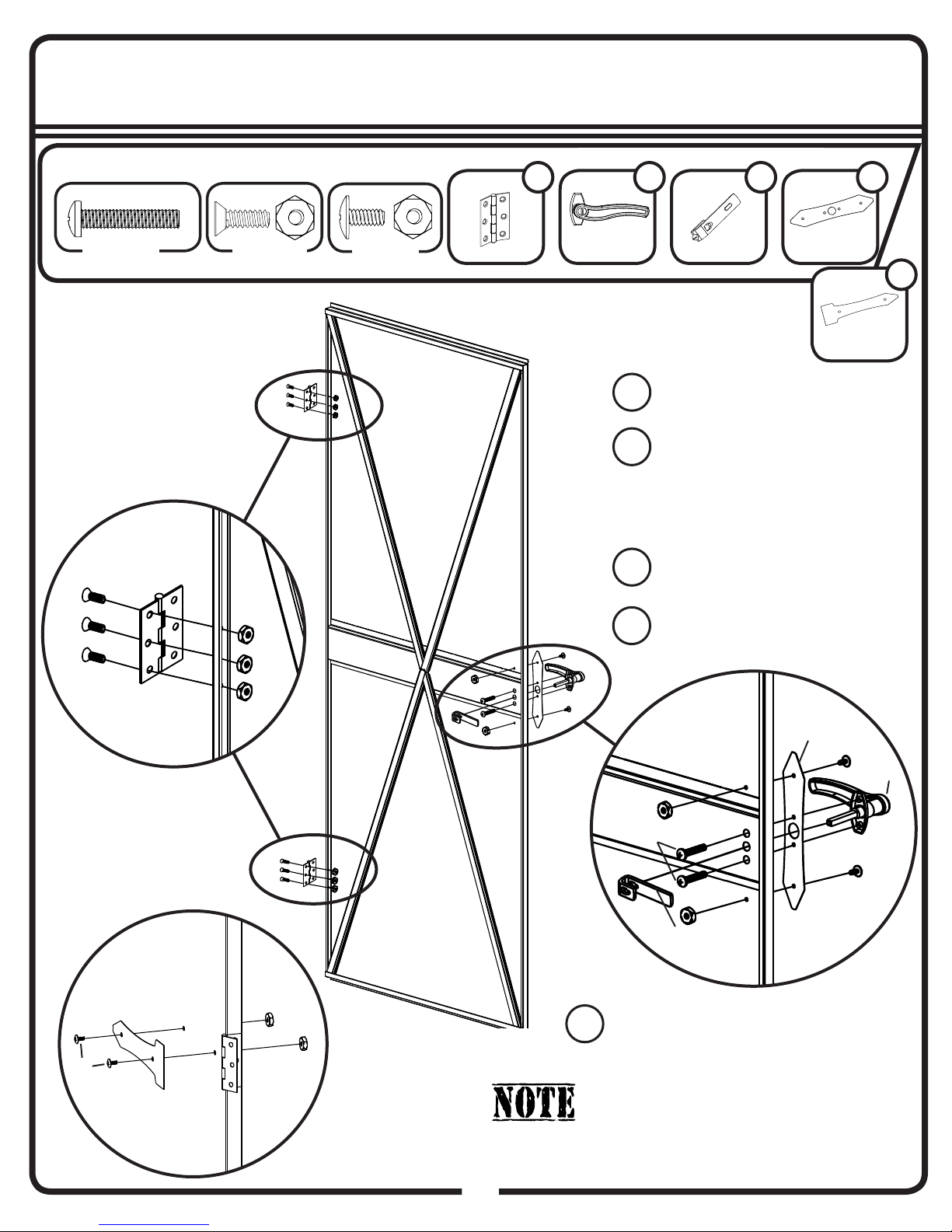

Step 6: Right Door Assembly
18
18P
You will need for this page:
(QTY: 6)
FB
66609
Hinge
266054
Latch
1
66809
Locking
Handle Right
1
(QTY: 2)
LNB
Install Locking Handle and
Handle Backplate using
two (2) Long Bolts. Secure
Backplate using two (2)
Black Bolts and Nuts.
2
Attach Latch to Locking
Handle.
3
Attach Hinges to Door using
six (6) Flat Head Bolts.
1
Tighten set screws in Latch.
4
(QTY: 6)
BB
66811
Handle
Backplate
1
66812
Hinge Plate
Decor
2
Attach Hinge Plate Decor to Door
by the Hinges using two (2) Black
Bolts and Nuts for each Decor.
5
When securing the Decor, be careful not to
scratch the paint. Do not use a drill to tighten the
Nuts. Instead, use a No. 2 Phillips Screwdriver
to hold the Bolt in place and a Nut Driver or
Wrench to tighten the Nut.
66609
66812
BB
66809
66811
66054
BB
BB
LNB
FB

6
Step 7: Left Door Assembly
19
19P
You will need for this page:
(QTY: 6)
FB
66609
Hinge
2
(QTY: 2)
LNB
Install Locking Handle and
Handle Backplate using two (2)
Long Bolts. Secure Backplate
using two (2) Black Bolts and
Nuts.
2
Attach Hinges to Door using six
(6) Flat Head Bolts.
1
(QTY: 6)
BB
66811
Handle
Backplate
166812
Hinge Plate
Decor
2
Attach Hinge Plate Decor to Door
by the Hinges using two (2) Black
Bolts and Nuts for each Decor.
3
When securing the Decor, be careful not to
scratch the paint. Do not use a drill to tighten
the Nuts. Instead, use a No. 2 Phillips
Screwdriver to hold the Bolt in place and a
Nut Driver or Wrench to tighten the Nut.
66810
Left
Handle
1
66609
66812
BB
FB
66810
66811
BB
BB
LNB

6
Step 7: Continued
20
20P
You will need for this page:
Remove two (2) Screws from left
side of Door Handle Brace and
far left Screw from both top and
bottom Horizontal Door Brace.
Screws will be reused.
4
Attach Door Stop and both Top
and Bottom Latch Springs to
left side of Door using the four (4)
previous Screws as well as eight
(8) additional Stone Screws.
5
66808
Bottom
Latch Spring
166684
Top Latch
Spring
1
(QTY: 8)
SS
10721
Door Stop
1
Remove Screws to
install Door Stop.
10721
66684
66808
Remove far left Screw from
top and bottom Horizontal
Door Brace to install Door
Stop and Latch Springs.
