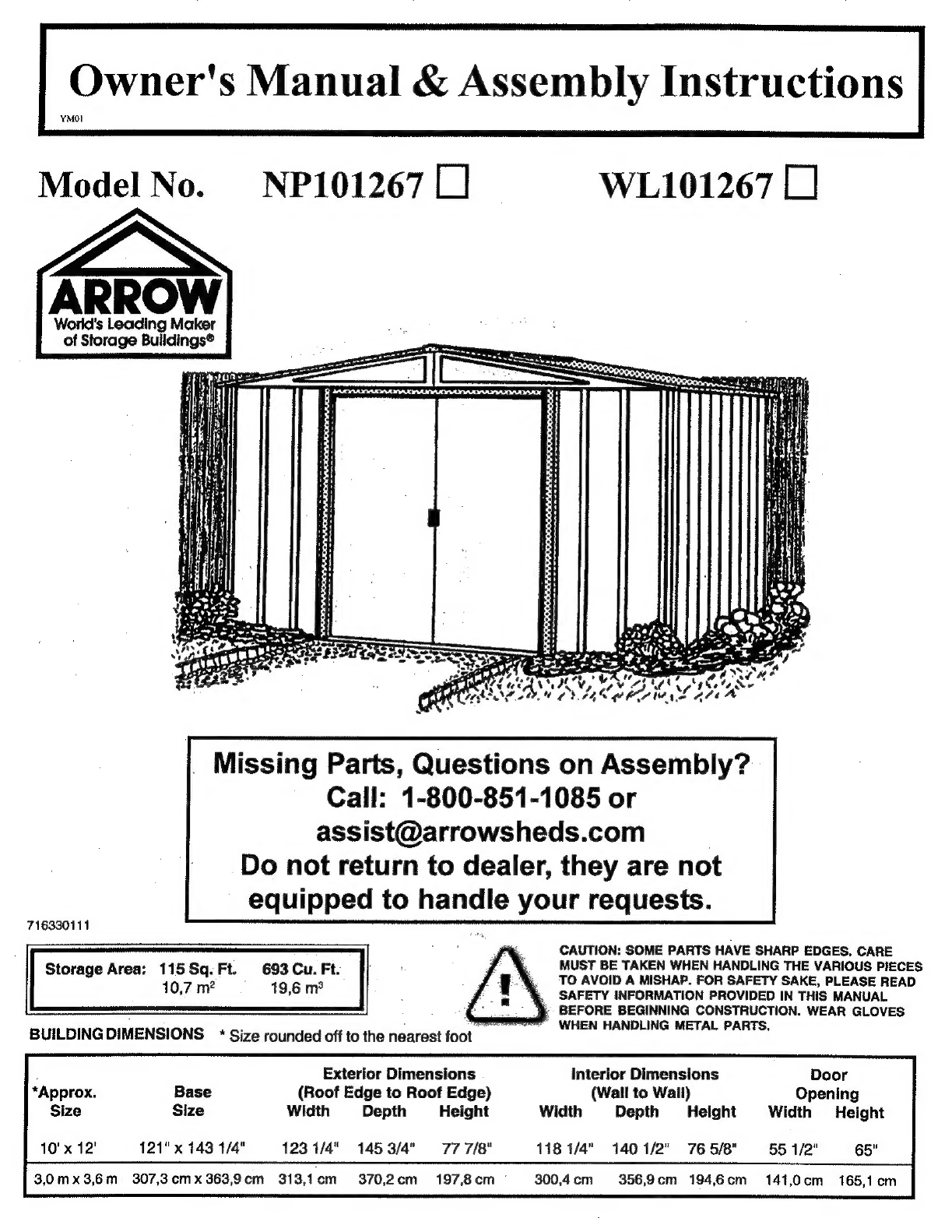

Owner's Manual & Assembly Instructions
YMO1
Model
No.
NP101267
L]
WL101267
O
L”
ARROW
World's Leading Maker
of Storage Bulldings®
er N
ct V Se
v FÑ V, run
Bey NOG ie
Missing Parts, Questions on Assembly?
Call: 1-800-851-1085 or
[email protected]
Do not return to dealer, they are not
equipped to handle your requests.
716330111
CAUTION: SOME PARTS HAVE SHARP EDGES, CARE
Storage
Area:
115
Sq.
Ft.
693
Cu.
Ft.
MUST
BE
TAKEN
WHEN
HANDLING
THE
VARIOUS
PIECES
10.7
m?
196
m?
¿TO
AVOID
A
MISHAP.
FOR
SAFETY
SAKE,
PLEASE
READ
,
om
$
SAFETY
INFORMATION
PROVIDED
IN
THIS
MANUAL
1
$
BEFORE BEGINNING
CONSTRUCTION.
WEAR GLOVES
;
Ree
WHEN
HANDLING
METAL
PARTS.
BUILDING
DIMENSIONS
*
Size
rounded
off
to the
nearest
foot
. Exterior Dimensions interior Dimensions Door
*Approx. Base (Roof Edge to Roof Edge) (Wall to Wall) Opening
Size Size Width Depth Height Width Depth Height Width Height
10'x 12' 121" x 143 1/4" 123 4/4" 1453/4" 77 7/8" 118 1/4" 140 1/2"
3,0mx3,6m 307,3 cm x363,9cm 313,1cm 370,2cm 197,8 cm `
76 5/8" 55 1/2" 65"
300,4cm 356,9cm 194,6cm 141,0cm 165,1 cm

BEFORE
YOU
BEGIN....
Owner's Manual
Before
beginning
construction,
check
local
building
codes
regarding
footings,
location
and
other
requirements.
Study
and
understand
this
owner's
manual.
Important
information
and
helpful
tips
will
make
your
construction
easier
and
more
enjoyable.
Assembly
Instructions:
Instructions
are
supplied
in
this
manual
and
contain
all
appropriate
information
for
your
building
model.
Review
all
instructions
before
you
begin,
and
during
assembly,
follow
the
step
sequence
carefully
for
successful
results.
Flooring
and
Anchoring:
Your
storage
building
must
be
anchored
to
prevent
wind
damage.
A
base
is
necessary
to
construct
a
square
and
level
building.
Anchoring
and
base
materials
are
not
included
with
your
building.
We
recommend
the
combined
use
of
an
Arrow
Floor
Frame
Kit
and
an
Arrow
Anchoring
Kit
as
an
effective
method
of
securing
your
building
to
the
ground
(Available
at
your
local
dealer,
Arrow's
website
arrowsheds.com
or
call
Arrow's
Customer
Service
department
1-800-851-1085)
or
you
may
construct
a
base
and
anchoring
system
of
your
choice.
Your
assembly
instructions
provide
information
on
a
few
methods
commonly
used
to
secure
and
level
a
storage
building.

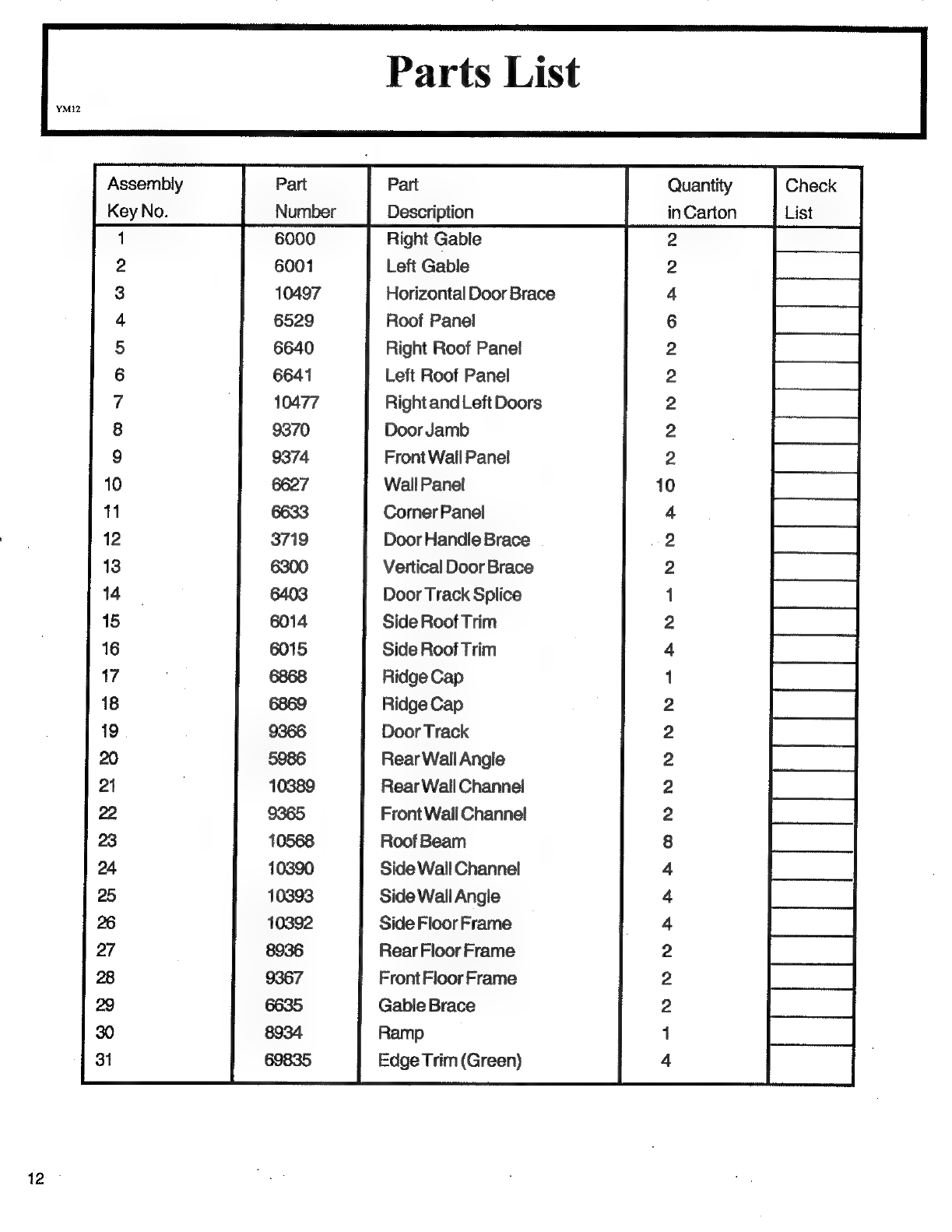

Parts
and
Parts
List:
Check
to
be
sure
that
you
have
all
the
necessary
parts
for
your
building.
*Ail
part
numbers
can
be
found
on
the
parts.
All
of
these
numbers
(before
the
-)
must
agree
with
the
numbers
on
the
Parts
List
page.
elf
you
find
that
a
part
is
missing,
include
the
model
number
of
your
building
and
contact:
Arrow
Shed,
LLC
Customer
Service
Department
1101
North
4th
Street
Breese,
Illinois
62230
1-800-851-1085
or
assist
@arrowsheds.com
Separate
contents
of
the
carton
by
the
part
number
while
reviewing
parts
list.
The
first
few
steps
show
how
to
join
related
parts
to
make
larger
sub
assemblies
which
will
be
used
later.
¢Familiarize
yourself
with
the
hardware
and
fasteners
for
easier
use
during
construction.
These
are
packaged
within
the
carton.
Note
that
extra
fasteners
have
been
supplied
for
your
convenience.

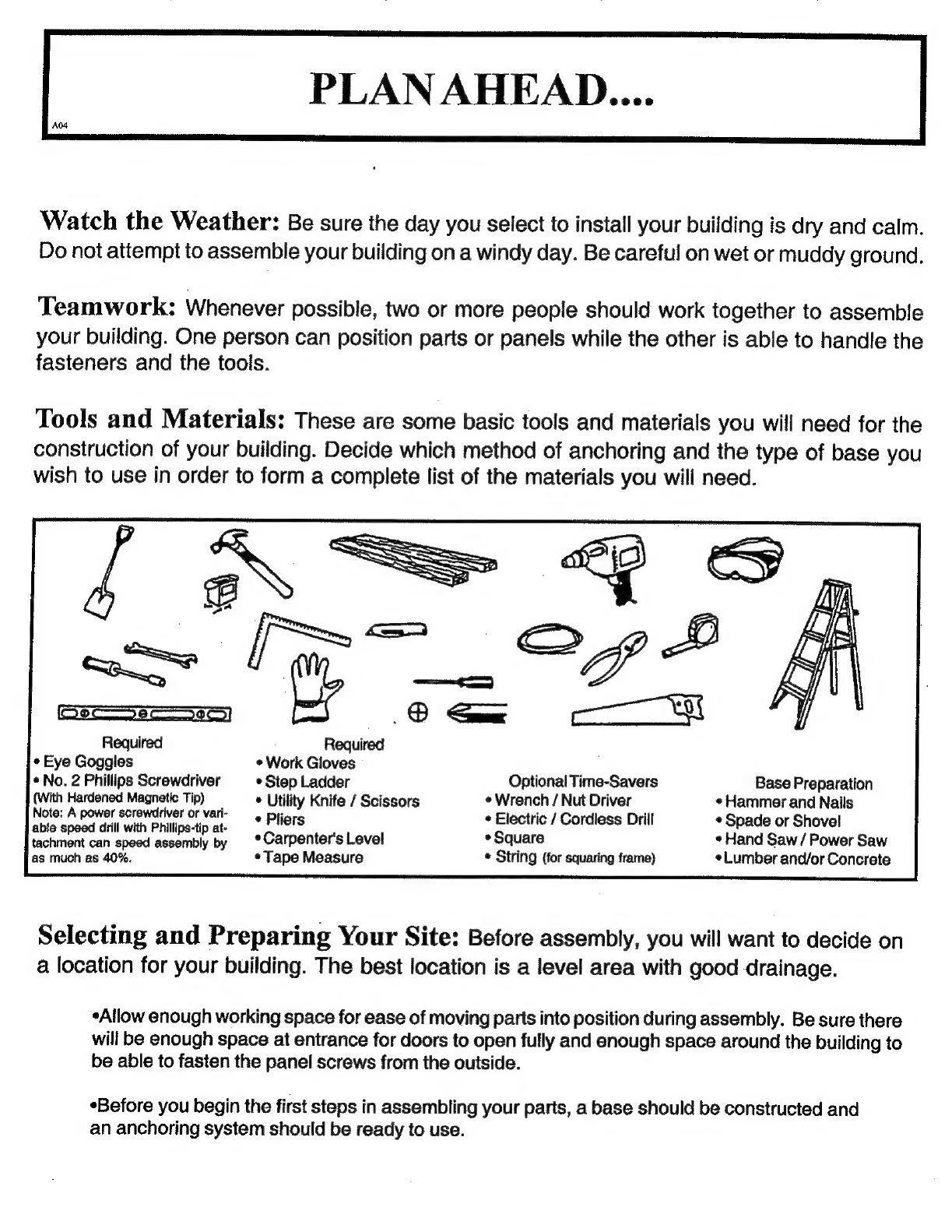

PLAN AHEAD....
Watch
the
Weather:
Be
sure
the
day
you
select
to
install
your
building
is
dry
and
calm.
Do
not
attempt
to
assemble
your
building
on
a
windy
day.
Be
careful
on
wet
or
muddy
ground.
Teamwork:
Whenever
possible,
two
or
more
people
should
work
together
to
assemble
your
building.
One
person
can
position
parts
or
panels
while
the
other
is
able
to
handle
the
fasteners
and
the
tools.
Tools
and
Materials:
These
are
some
basic
tools
and
materials
you
will
need
for
the
construction
of
your
building.
Decide
which
method
of
anchoring
and
the
type
of
base
you
wish
to
use
in
order
to
form
a
complete
list
of
the
materials
you
will
need.
+ Eye Goggles + Work Gloves
»
No.
2
Phillips
Screwdriver
¢
Step
Ladder
Optional
Time-Savers
Base
Preparation
(With
Hardened
Magnetic
Tip)
e
Utility
Knife
/
Scissors
+
Wrench
/
Nut
Driver
+
Hammer
and
Nails
Note:
A
power
screwdriver
or
vati-
—_,
Pliers
e
Electric
/
Cordless
Drill
¢
Spade
or
Shovel
able
speed
drill
with
Phillips-tip
at-
e
Carpenter's
Level
+
Square
+
Hand
Saw
/
Power
Saw
tachment can speed assembly by i
as much as 40%. e Tape Measure e String (for squaring frame) e Lumber and/or Concrete
Selecting
and
Preparing
Your
Site:
Before
assembly,
you
will
want
to
decide
on
a
location
for
your
building.
The
best
location
is
a
level
area
with
good
drainage.
«Allow
enough
working
space
for
ease
of
moving
parts
into
position
during
assembly.
Be
sure
there
will
be
enough
space
at
entrance
for
doors
to
open
fully
and
enough
space
around
the
building
to
be
able
to
fasten
the
panel
screws
from
the
outside.
Before
you
begin
the
first
steps
in
assembling
your
parts,
a
base
should
be
constructed
and
an
anchoring
system
should
be
ready
to
use.

SAFETY
FIRST...
Safety
precautions
are
important
to
follow
throughout
the
construction
of
your
building.
*Care
must
be
taken
when
handling
various
pieces
of
your
building
since
some
contain
sharp
edges.
Please
wear
work
gloves,
eye
protection
and
long
sleeves
when
assembling
or
performing
any
maintenance
on
your
build-
ing.
4
safety edge
«Keep
children
and
pets
away
from
worksite
to
avoid
distractions
and
any
accidents
which
may
occur.
eNever
concentrate
your
total
weight
on
the
roof
of
the
building.
When
using
a
step
ladder
make
sure
that
it
is
fully
open
and
on
even
ground
before
climbing
on
it.
K
Practice
caution
with
the
tools
being
used
in
the
assembly
of
this
building.
Be
familiar
with
the
operation
of
all
power
tools.
Do
not
attempt
to
assemble
the
building
if
parts
are
missing
because
any
building
left
partially
assembled
may
be
seriously
damaged
by
light
winds.
Call
1-800-851-1085
or
assist
@
arrowsheds.com
Do
not
attempt
to
assemble
the
building
on
a
windy
day,
because
the
large
panels
acting
as
a
"sail",
can
be
whipped
about
by
the
wind
making
construction
difficult
and
unsafe.
Ë
Je

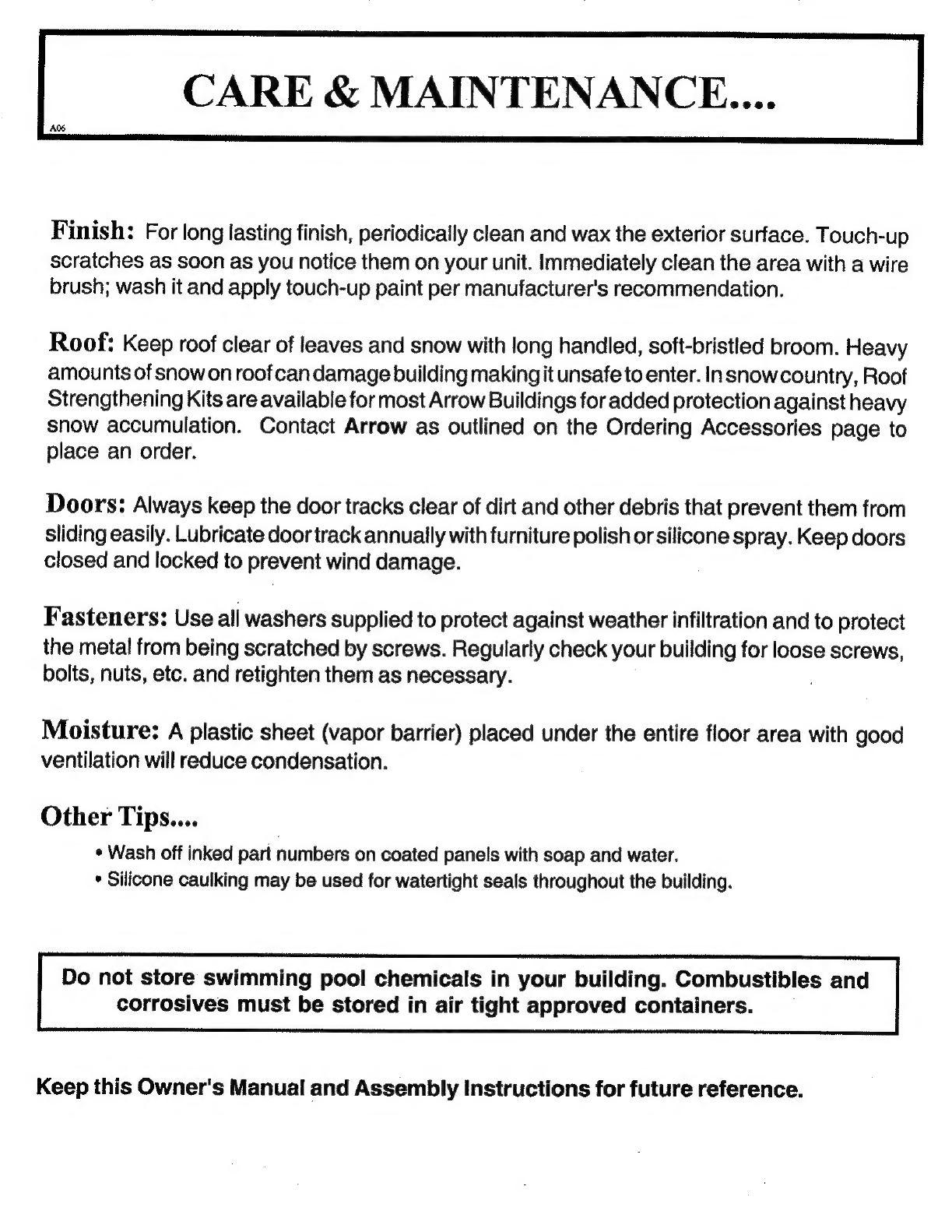

CARE & MAINTENANCE....
Finish:
For
long
lasting
finish,
periodically
clean
and
wax
the
exterior
surface.
Touch-up
scratches
as
soon
as
you
notice
them
on
your
unit.
Immediately
clean
the
area
with
a
wire
brush;
wash
it
and
apply
touch-up
paint
per
manufacturer's
recommendation.
Roof:
Keep
roof
clear
of
leaves
and
snow
with
long
handled,
soft-bristled
broom.
Heavy
amounts
of
snow
on
roof
can
damage
building
making
it
unsafe
to
enter.
In
snowcountry,
Roof
Strengthening
Kits
are
available
for
most
Arrow
Buildings
for
added
protection
against
heavy
snow
accumulation.
Contact
Arrow
as
outlined
on
the
Ordering
Accessories
page
to
place
an
order.
Doors:
Always
keep
the
door
tracks
clear
of
dirt
and
other
debris
that
prevent
them
from
sliding
easily.
Lubricate
door
track
annually
with
furniture
polish
or
silicone
spray.
Keep
doors
closed
and locked
to
prevent
wind
damage.
Fasteners:
Use
all
washers
supplied
to
protect
against
weather
infiltration
and
to
protect
the
metal
from
being
scratched
by
screws.
Regularly
check
your
building
for
loose
screws,
bolts,
nuts,
etc.
and
retighten
them as
necessary.
Moisture:
A
plastic
sheet
(vapor
barrier)
placed
under
the
entire
floor
area
with
good
ventilation
will
reduce
condensation.
Other Tips....
¢ Wash off inked part numbers on coated panels with soap and water.
e Silicone caulking may be used for watertight seals throughout the building.
Do
not
store
swimming
pool
chemicals
in
your
building.
Combustibles
and
corrosives must be stored in air tight approved containers.
Keep this Owner's Manual and Assembly Instructions for future reference.

ACCESSORIES...
ROOF STRENGTHENING
(heavy snow load) KITS
Extra roof beams and gable braces
designed for added protection against
heavy snow accumulation. Increases
the strength of your roof by 50%.
ANCHOR KITS
Model No. AK4
Anchor Kit contains heavy-duty steel
augers, 60' (18 m) of steel cable and
4 cable clamps. No digging or concrete
pouring, just insert cable under roof,
over roof beams, into augers and twist
augers into the ground. For buildings
larger than 10'x9' (3,0 m x 2,6 m), use 2 kits.
Model No. AK100
New concrete anchor system permits
anchoring any size Arrow building
directly to a concrete slab. Each kit
contains heavy-duty, hot-dipped
galvanized steel corner gussets and
perimeter clips which fit over the floor
frame and lag bolt into a concrete slab.
Full assembly instructions and a 1/4“
masonary drill bit are included.
Model No. AK600
Earth Anchor Kit- anchors any size
Arrow building to the ground.
Each kit contains heavy duty,
hot-dipped galvanized steel è
corner gussets and 4 earth anchors.
TOOL HANGING RACK
Model No. TH100
The perfect tool organizer. Twin
25 1/2" (64,8 cm) steel channels
plus five heavy-duty snap-in A ea
hangers and a smali tool holder for §
screwdrivers, pliers, etc. Holders
slide along channel for fully
adjustable spacing. Great for
garage, basement, or the back
of any door. Fits all Arrow
storage buildings.
MODELS FB47410, FB5465, FB106-A
FB109-Aand FB1014-A
A
simple
new
floor
frame
system
made
of
heavy-duty,
hot-dipped
galvanized
steel.
Use
as
base
for
plywood,
sand
or
stone.
ATTIC KIT / WORKBENCH KIT
Model No. AT101
Heavy-duty galvanized steel bars that
fit all 10' (3,0 m) wide Arrow buildings.
They install quickly and easily to
help organize space and create
more useable space as an attic or
workbench. Will hold up to 250 Ibs.
(113 kg) evenly distributed.
Some drilling required to fit buildings without mid-wall bracing.
SHELF UNITS
Heavy-duty,
galvanized
steel
shelf
units
help
organize
storage
space.
They
easily
mount
on
the
wall
or
sit
on
the
floor.
Fits
all
Arrow
buildings.*
—_-
Fp
Mode! No. 88404 Model No. SS900-A
+ Makes 8" to 12" (20,3-30,5 cm) * Grey color
wide shelves in any length. * 3 shelves
e
Brackets,
braces,
*
Holds
up
to
85
Ibs.
(38
kg)
hardware
included.
(even
weight
distribution)
Lumber
is
not
included.
* Some drilling required to fit buildings without mid-wal! bracing.

ORDERING ACCESSORIES....
We
recommend
that
you
purchase
accessory
items
from your
local
storage
building
dealer
whenever
possible;
however,
because
the
full
line
of
accessories
is
not
always
available
from
all
dealers,
Arrow
is
offering
them
to
you
on
a
direct
basis.
There are two ways to order Arrow Storage Building Accessories:
Option 1 Option 2
Order accessories by telephone
using your MasterCard or Visa credit card.
Accessories can be purchased
through
Call toll free 1-800-851-1085
(Customer Service).
Allow 2 weeks for delivery.
arrowsheds.com
SPECIAL NOTE:
if
your
accessory
is
shipped
via
truck
line
a
day
time
phone
number
is
required
to
arrange
delivery.
If
no
one
is
available
to
sign
for
the
delivery,
you
may
be
subject
to
a
re-delivery
charge
assessed
by
the
carrier.

Base
AQ09
The Base For Your Building
OPTION 1: ARROW FLOOR FRAME KIT: (order No. FB1014-A or 68387-A)
Arrow has the best base for your building in this simple kit. It keeps stored items above the ground.
This kit should be used with one of the following:
A. To support a plywood deck B. To be filled with sand. We recommend the combined use of
1. an ARROW FLOOR FRAME KIT and 2. an ARROW ANCHORING KIT as an effective method of securing the building to the ground.
Allow 1 - 2 hours for construction.
OPTION 2: Wood Platform
If you decide to build your own base, be sure to select the appropriate materials.
These are the recommended materials for your base:
@ 2 x 4's (38 mm x. 89 mm) Pressure Treated Lumber
@ 5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade NOTE: Pressure Treated Lumber must not be used where it
will make contact with your storage building. The properties of Pressure Treated Lumber will cause accelerated corrosion.
If Pressure Treated Lumber comes in contact with your storage building your warranty will be voided.
@ 10 & 4 penny Galvanized Nails @ Concrete Blocks (optional)
The platform should be level and flat (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
To construct the base follow instructions and diagram.
Construct frame (using 10 penny galvanized nails)
Measure 16'/24" (40,6 cm/61,0 cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction. Note: Platforn/Slab will extend 9/16" (1,4 cm) beyond floor
frame on all four sides. Seal this 9/16" (1,4 cm) of wood with a
roofing cement (not included), or bevel this 9/16" (1,4 cm) of
OPTION 3: Concrete Slab concrete when pouring, for good water drainage.
The slab should be atleast 4" (10,2 cm) thick. it must be level and flat to provide good support for the frame.
The following are the recommended materials for your base.
@ 1 x 4's (19 mm x 89 mm) (will be removed once the concrete cures)
@ Concrete @ Sheet of 6 mil plastic
@ We recommend for a proper strength concrete to use a mix of:
1 part cement @ 3 parts pea sized gravel @ 2 1/2 parts clean sand
Prepare the Site/Construct a Base
1. Dig a square, 6" (15,2 cm) deep into the ground (remove grass).
2. Fill up to 4" (10,2 cm) in the square with gravel and tamp firm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm)
lumber.
5. Pour in concrete to fill in the hole and the frame giving a
total of 4" (10,2 cm) thick concrete. Be sure surface is level.
Note: Finished Slab dimensions, with lumber rernoved.
Allow 3 - 5 hours for construction and a week for concrete curing time. ; 9

10
Anchoring
Anchoring Down The Building
It
is
important
that
the
entire
floor
frame
be
anchored
after
the
building
is
erected.
Below
are recommended
ways
of
anchoring.
Arrow Anchoring Kit: (Mode! No, AK4 or 60298) Anchoring into Wood/Post:
Recommended for use with any suggested base. Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm)
Contains:
4
Anchors
with
Cable,
Clamps
and
dia.
holes
provided
in
the
frames
for
proper
anchoring.
installation instruction.
OVER THE BEAMS
AND INTO THE GROUND:
Arrow
Anchoring
Kit:
(Model
No.
AK100
or
68383)
Anchoring
into
Concrete:
Recommended
for
use
with
the
concrete
base.
1.
For
poured
concrete
slab
or
footing
or
patio
blocks:
Contains:
Corner
gussets,
perimeter
clips,
hardware,
Use
1/4"
x
2"
(6
mm
x
51
mm)
Lag
Screws.
1/4"
masonary
drill
bit
and
installation
instruction.
2.
For
Anchor
Post
of
Concrete
poured
after
building
is
erected: Use 1/4” x 6" (6 mm x 152 mm) Lag Screws.

Hardware
SVIL
Remove from bag of screws
and save for the last step
65900A
#10Bx1/2"
(13
mm)
65923
65004
65103
Black
Screw
(8)
#8-32x3/8"
(10mm)
#8Ax5/16"
(8
mm)
#8-32
Hex
Nut
(175)
(Packed
with
Screws)
Boit
(175)
Screw
(402)
S DS
66646
65109
67468
66045
Washer
(428)
#8-32
Acorn
Nut
(4)
Peak
Cap
(2)
Handle
(2)
(11
sheets
of
40)
(Packed
with
Screws)
(Arrow
Logo)
Zé, Wy Ee)
900 j
Keos
>
~
66183
66769 66382 Roof Trim Cap 5971
Door
Slide
(4)
Lower
Door
Guide
(4)
(2
right
&
2
left)
Roof
Beam
Bracket
(4)
6228 67545
Track Support (2) Weather Stripping (1)

Parts List
12
Assembly
Key No.
1
CON Oa AR WD
ee ee ee ee ee
OMDN DA ROD A OS
SSBRBNSERRBRNB
Part Part
Number Description
Right Gable
Left Gable
Horizontal Door Brace
Roof Panel
Right Roof Panel
Left Roof Panel
Right and Left Doors
Door Jamb
Front Wall Panel
Wall Panel
Corner Panel
Door Handle Brace
Vertical Door Brace
Door Track Splice
Side Roof Trim
Side Roof Trim
Ridge Cap
Ridge Cap
Door Track
Rear Wall Angle
Rear Wall Channel
Front Wall Channel
Roof Beam
Side Wall Channel
Side Wall Angle
Side Floor Frame
Rear Floor Frame
Front Floor Frame
Gable Brace
Ramp
Edge Trim (Green)
Quantity Check
in Carton List
2
-à
AaNNNAARONNNNN= AN- NNA ONNNNNOARN

@ 8934 Ramp (1)
@
Parts
Needed
For
@
@
9367
Front
Floor
Frame
(2)

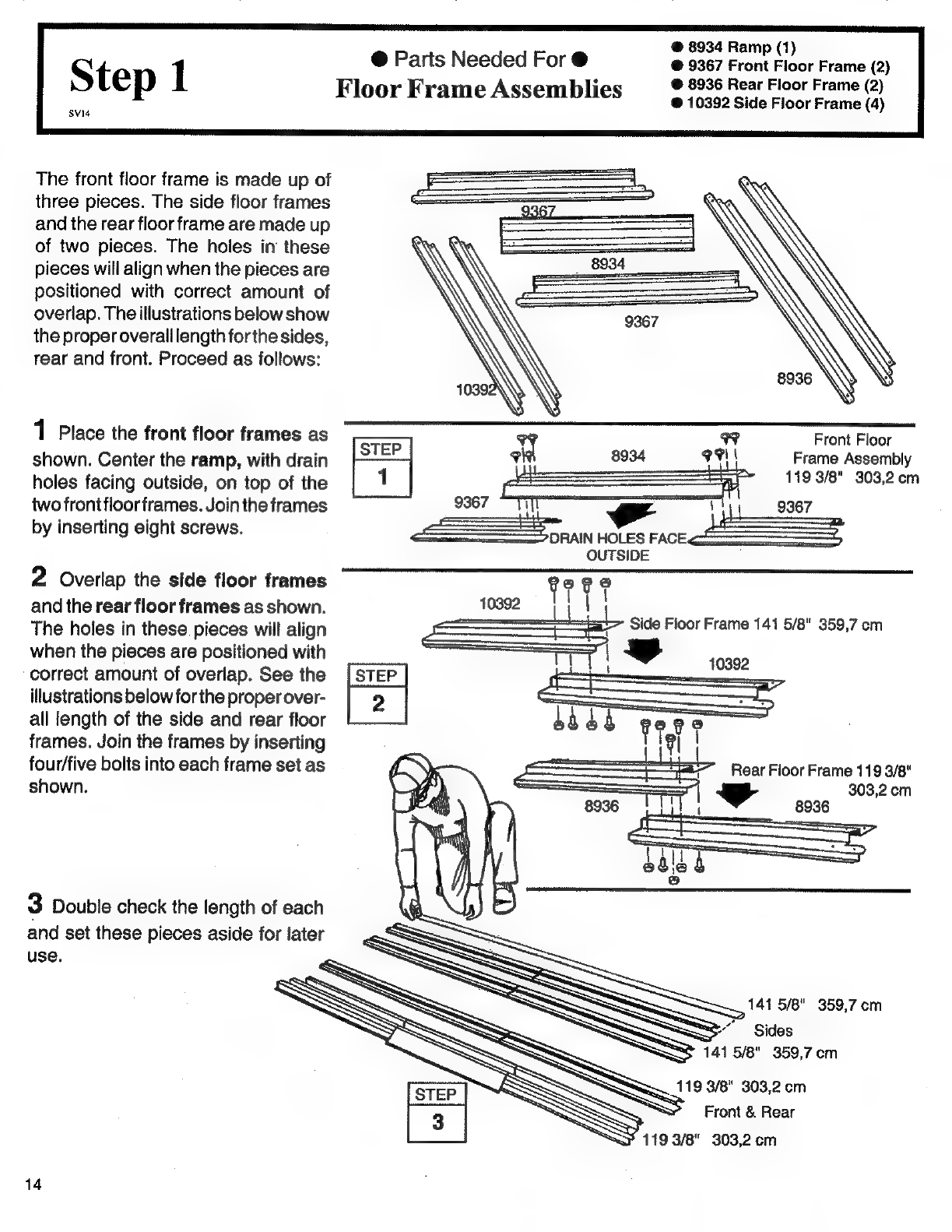

Step 1 Floor Frame Assemblies @ 8936 Rear Floor Frame (2)
@ 10392 Side Floor Frame (4)
SV14
The front floor frame is made up of
three pieces. The side floor frames
and the rear floor frame are made up
of two pieces. The holes in these
pieces will align when the pieces are
positioned with correct amount of
overlap. The illustrations below show
the proper overall length for the sides,
rear and front. Proceed as follows:
1
Place
the
front
floor
frames
as
a
Front
Floor
PT
Frame
Assembly
shown. Center the ramp, with drain oa 8934 :
holes
facing
outside,
on
top
of
the
|
1
|
SS
119
3/8"
303,2
cm
two frontfloor frames. Join the frames 9367 -Ti er i 9367
by inserting eight screws. DRAIN HOLES FACE
OUTSIDE
2 Overlap the side floor frames 7? 79
|
and the rear floor frames as shown. 10392
The holes in these pieces will align
when the pieces are positioned with
‘correct amount of overlap. See the
illustrations below forthe proper over- Ez
all length of the side and rear floor
frames. Join the frames by inserting
= Side Floor Frame 141 5/8" 359,7 cm
four/five
bolts
into
each
frame
set
as
7
Rear
Floor
Frame
119
3/8"
shown.
wv
303,2
cm
8936
i
|
8936
E
bald
4
==
Ə
3 Double check the length of each
and set these pieces aside for later
use.
141 5/8" 359,7 cm
Sides
141 5/8" 359,7 cm
119 3/8" 303,2 cm
Front & Rear
119 3/8" 303,2 cm

@ 5986 Rear Wall Angle (2)
@
Paris
Needed
For
@
@
10389
Rear
Wall
Channel
(2)
: @ 10390 Side Wall Channel (4)
Frame
Assemblies
©
10393
Side
Wall
Angle
(4)
The main frame pieces reinforce the
wails.
These
pieces
will
later
be
in-
Tilt!
Rear
Wall
Channe!
stalled
in
the
center
and
at
the
top
10389
Be
118
1/8"
300,0
cm
edge
of
the
side
walls
and
the
rear
SSE
wall.
Proceed
as
follows:
Åm
10389
tpi
E
i
1
Overlap
the
rear
wall
channel
2
pieces
as
shown
in
the
figure
and
CRANE
;
fasten
the
two
pieces
together
with
|
Side
Wall
Channels
eight bolts as shown. pro om
2
Make
two
side
wall
channels
by
10390
overlapping
the
side
wall
channel
pieces as shown. Fasten each set
together with eight bolts as shown.
3
Overlap
the
rear
wall
angle
5986
Rear
Wall
Angle
118
1/8"
300,0
cm
pieces
as
shown
in
the
figure
and
ac
à
fasten
them
together
with
one
bolt
in
SSS
SS
the
center
hole.
P
4
Make
two
side
wall
angles
by
10393
Soa
al
Angles
overlapping
the
side
wall
angle
Ss
pieces as shown. Fasten each set
140 3/8" 356,6 cm
together with one bolt thru the large
hole at the end of each part. oe ra |
Rear Wall Channel 118 1/8" 300,0 cm
` Side Wall Channels 1403/8" 356,6 cm (2 Assemblies)
5 Double check the length of each
and set these pieces aside for later
use.
Rear Wall Angle 118 1/8" 300,0 cm
Side Wall Angles 140 3/8" 356,6 cm (2 Assemblies)
15

Step 3
YM16
The roof beams join the two gables
and support the roof panels. The
main roof beam is made up of four
pieces overlapped back to back at
the center. The left and right roof
beam assemblies are made up of two
pieces.
Hint: These pieces are force-fitted,
so you may have to press hard to join
them together.
1 Place the end of one roof beam
inside a second roof beam so thatthe
six holes in each piece align. Make
four sets of roof beams by repeating
this procedure. Do not insert bolts
yet.
2 Take two of the pressed-together
roof beams and join them as shown
to form the main roof beam assem-
bly. Hold the assembly together and
fasten with 14 bolts. Build only one
Doubled Beam Assembly.
3 Fasten the other two pressed-
together roof beams with eight bolts
to make the left and right roof beam
assemblies.
4 Double check the length of each
and set these pieces aside for later
use.
@ Parts Needed For @
@ 10568 Roof Beam (8)
Roof Beam Assemblies
10568
10568
Roof Beam 142 3/8" 361,6 cm
ASSEMBLED
END
VIEW
Build one Doubled Main Roof
Beam Assembly for Peak in Roof
142 3/8" 361,6 cm
142 3/8"
Build two Single Beam 361,6 cm
Assemblies

@
Parts
Needed
For
@
©
6403
Door
Track
Splice
(1)
Step
4
Door
Track
Assembly
@
9366
Door
Track
(2)
NOTE:
Door Track Splice (painted part)
Pa
The door track assembly supports
the sliding doors and reinforces the
frontwall. Itis made up of three pieces.
1 Using the door track splice,
(painted), join the door track
(galvanized) pieces end-to-end as
shown.
2 Insert four screws from the under-
side only.
LongLeg
a . z on Top
Hint: The holes in the top side of the
door track assembly are for fastening
the gable to the top of the front wall in
a later step.
Short Leg
on Bottom
118 1/8"
300,0 cm
3 Position door slides onto the
legs, from the end of door track
assembly, as shown in the end view.
4 Set this piece aside for later use.
118 1/8"
A L
kt” 009
FA gao P
Looe? 66769 Ar
END VIEW N 5
118 1/8"
300,0 cm
17

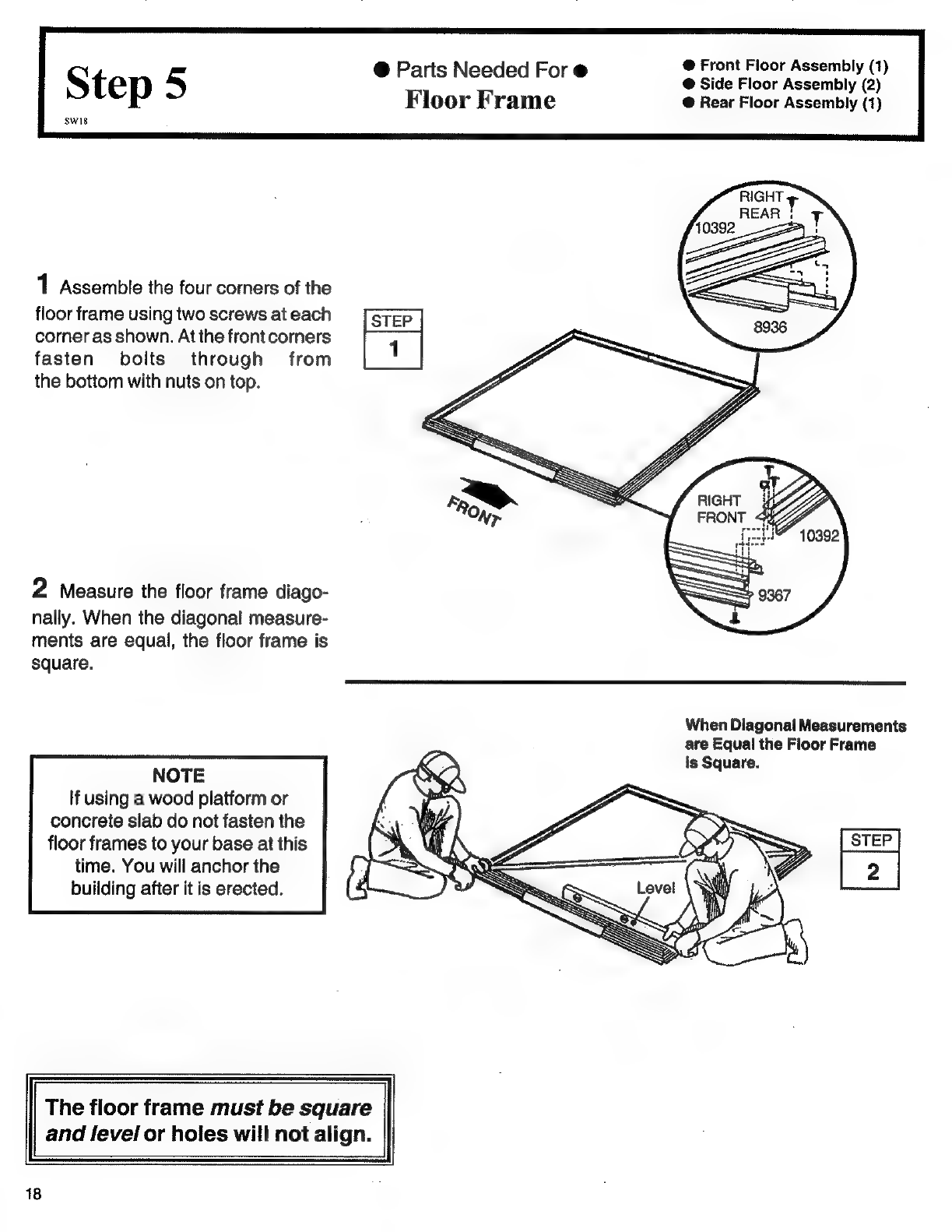

@ Parts Needed For @
Floor Frame
@ Front Floor Assembly (1)
@ Side Floor Assembly (2)
@ Rear Floor Assembly (1)
1 Assemble the four corners of the
floor frame using two screws at each
corner as shown. At the front corners
fasten bolts through from
the bottom with nuts on top.
2 Measure the floor frame diago-
nally. When the diagonal measure-
ments are equal, the floor frame is
square.
NOTE
If using a wood platform or
concrete slab do not fasten the
floor frames to your base at this
time. You will anchor the
building after it is erected.
The floor frame must be square
and level or holes will not align.
18
When Diagonal Measurements
are Equal the Floor Frame
is Square.

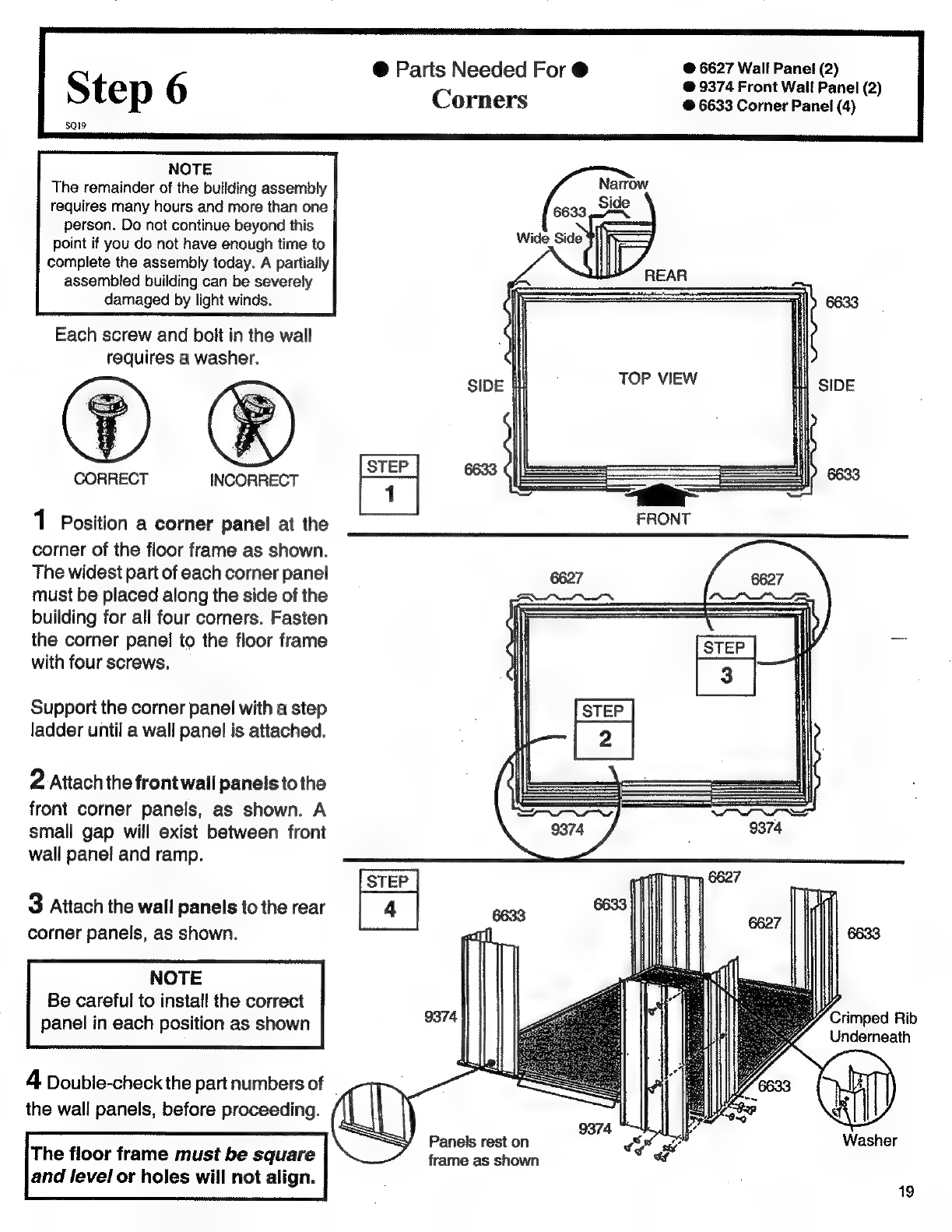

@ Parts Needed For @ @ 6627 Wall Panel (2)
@ 9374 Front Wali Panel (2)
Corners
@
6633
Corner
Panel
(4)
NOTE
The remainder of the building assembly
requires many hours and more than one
person. Do not continue beyond this
point if you do not have enough time to
complete the assembly today. A partially
assembled building can be severely
damaged by light winds.
Each screw and bolt in the wall
requires a washer.
TOP VIEW
CORRECT
INCORRECT
Ea
|
—
1 Position a corner panel at the
corner of the floor frame as shown.
The widest part of each corner panel
must be placed along the side of the
building for all four corners. Fasten
the corner panel to the floor frame
with four screws.
Support the corner panel with a step
ladder until a wall panel is attached.
2 Attach the front wall panels tothe
front corner panels, as shown. A
small gap will exist between front
wall panel and ramp.
3 Attach the wall panels to the rear | 4 |
corner panels, as shown.
NOTE
Be careful to install the correct
Crimped Rib
Underneath
panel in each position as shown
A Double-check the part numbers of -
the wall panels, before proceeding.
The floor frame must be square
and level or holes will not align.
Panels rest on Washer
frame as shown
19

Mid Fram es @ Side Wall Channel Assembly (2)
Step
7
@
Parts
Needed
For
@
@
Rear
Wall
Channel
Assembly
(1)
The mid frame pieces give rigidity to
the side and rear walls.
1 Fasten the rear wall channel
across the middle of the rear wall
using screws.
2 Fasten the side wall channels
across the middle of the side panels
using screws. Fasten overlaps in
rear corners with bolts and nuts, at
two locations. See the figure.
NOTE
The wall channels behind the
front wall panels will be installed
in a later step.

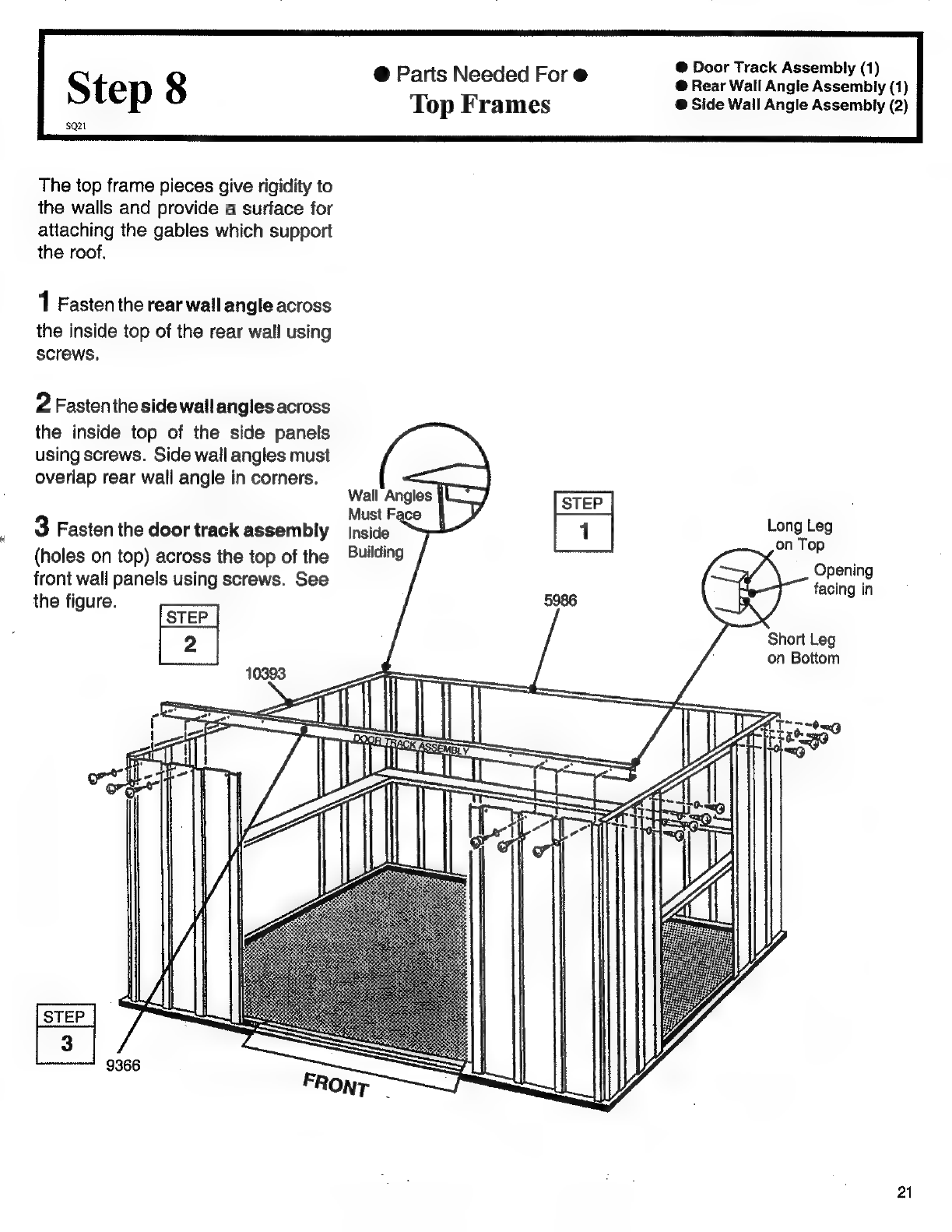

@ Parts Needed For @
Top Frames
@ Door Track Assembly (1)
@ Rear Wall Angle Assembly (1)
@ Side Wall Angle Assembly (2)
The top frame pieces give rigidity to
the walls and provide a surface for
attaching the gables which support
the roof.
1 Fasten the rear wall angle across
the inside top of the rear wall using
screws.
2 Fasten the sidewall angles across
the inside top of the side panels
using screws. Side wall angles must
overlap rear wall angle in corners.
3 Fasten the door track assembly
(holes on top) across the top of the
front wall panels using screws. See
the figure.
s
— |
Wall Angles IL 23 P
Must Face 5
Inside 1]
Building
Long Leg
on Top
S saci
PA
Short Leg
on Bottom
21
