ARS ARV-QC User manual

ARV-QC FEATURES:
- New advanced lightweight
multi-composite material.
- State-of-the-Art pivoting Key-Lock
system.
- Fast donning and dofng.
- One-size ts all.
- Structural “O” Ring for Tag/Trail Line
or handcuffs/ex-cuffs.
- Rated to 4000 lbs (18kN) MBS

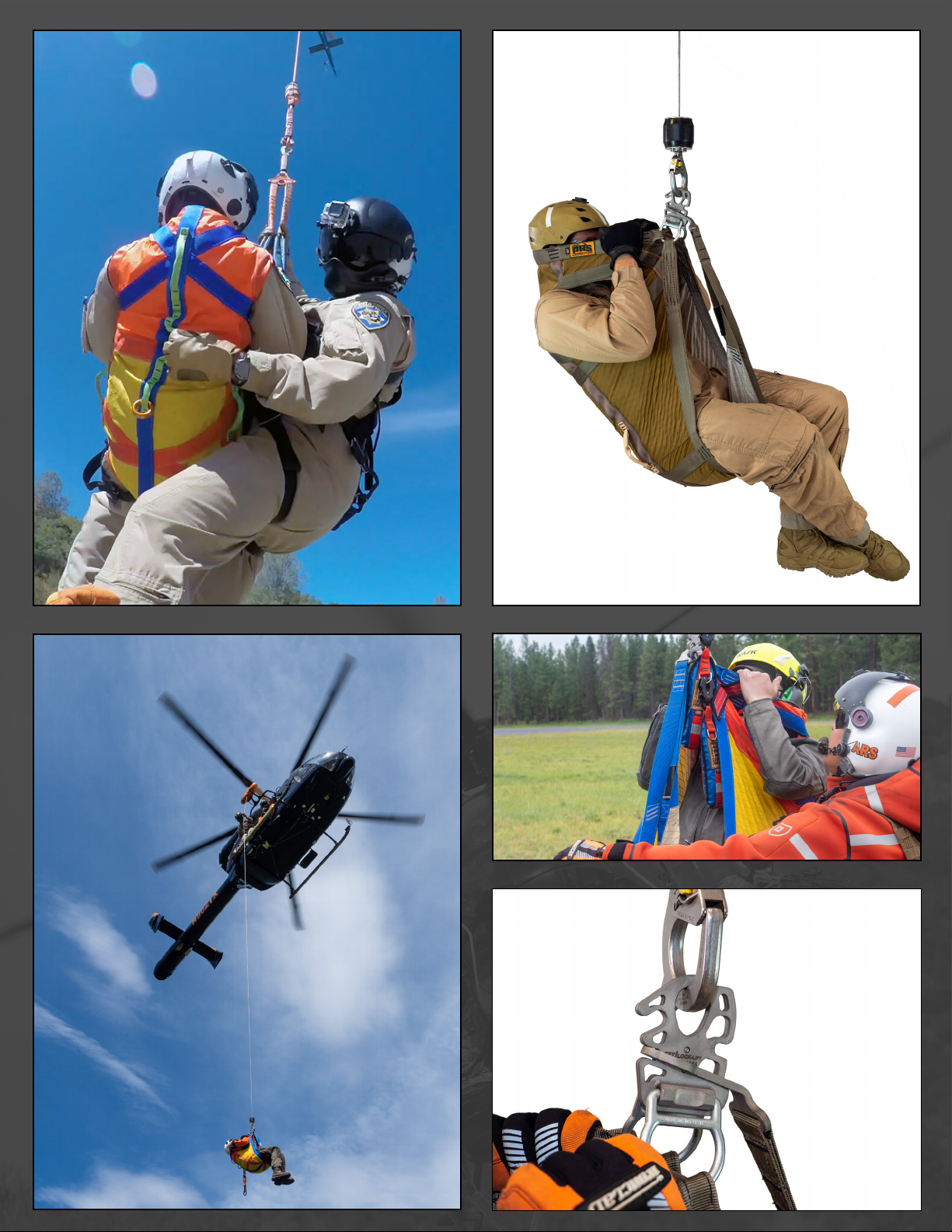

Operational Use:
- Hoist/Winch Operations.
- Short Haul Operations.
- High Angle/Rapid Rescues.
Packaged Dimensions:
- 14 inch x 9 inch x 9 inch.
- Weight 6 lbs 0 oz (2.7 kg).
Max Load:
- Single person - 400 lbs.

Copyright © 2016 Air Rescue Systems, Corp. All rights reserved
No part of this publication may be reproduced, stored in a retrieval system or transmitted in any
form or by any means, electronic, mechanical, photocopying, recording, scanning, or otherwise,
except as permitted under Section 107 or 108 of the 1976 United States Copyright Act, without the
prior written permission of the publisher.
AGENCY:
UNIT:
SHOP:
PRODUCT SERIAL NUMBER:
PART NUMBER:
DATE OF MANUFACTURE:
DATE IN SERVICE:
Certicates
- Airworthiness Certicate for US Army UH/HH-60
AWR980 (P/N: ARV-QC-M)
- Airworthiness Certicate for US Army UH-72A
AWR9 (P/N: ARV-QC-M)
- Airworthiness Certicate for US Navy/US Marine Corp
NA13-1-6.5 (P/N: ARV-QC-M19)

Page: 1Rev Date: 11/22/2019Doc Number: D1092Initials: RF
AIR RESCUE SYSTEMS CORPORATION
AIR RESCUE VEST QUICK CONNECT PRODUCT MANUAL
LIST OF EFFECTIVE PAGES
PAGE # REVISION DATE PAGE # REVISION DATE
1 D 11/22/2019
2 A 05/01/2016
3 C 09/01/2019
4 C 09/01/2019
5 D 11/22/2019
6 A 05/01/2016
7 D 11/22/2019
8 B 01/20/2017
9 B 01/20/2017
10 B 01/20/2017
11 B 01/20/2017
12 B 01/20/2017
13 B 01/20/2017
14 B 01/20/2017
15 B 01/20/2017
16 D 11/22/2019
17 D 11/22/2019
18 B 01/20/2017
19 B 01/20/2017
20 D 11/22/2019
21 C 09/01/2019
22 A 05/01/2016
Original Document Date: 05/01/2016
Current Manual Version: D (11/22/2019)

Page: 2 Rev Date: 5/1/2016 Doc Number: D1092 Initials: RF
LIMITED WARRANTY -
Air Rescue Systems warrants for one year from the purchase date and only to the original retail buyer that
our products are free from defects in material and workmanship. If the buyer discovers a warranty related
defect, the buyer should return the product to Air Rescue Systems. Air Rescue Systems reserves the option to
repair or replace any product returned under warranty. That is the extent of our liability under this war-
ranty and, upon the expiration of the applicable warranty period, all such liability shall terminate.
WARRANTY EXCLUSIONS -
Air Rescue Systems does not warrant products against normal wear and tear, unauthorized modication or
alteration, improper use, improper maintenance, accident, misuse, negligence, damage, or if the product is
used for a purpose for which it was not designed. This warranty gives you specic legal rights, and you may
also have other rights which vary from state to state. Except as expressly stated in this warranty, Air Rescue
Systems shall not be liable for direct, indirect, incidental, or other types of damages arising out of, or result-
ing from the use of the product.
WARNING -
Products manufactured by Air Rescue Systems are intended for use by professionals trained and experienced
in the use, inspection, and maintenance of these products. Many products which Air Rescue Systems manu-
factures are used in helicopter operations which pose a very substantial risk of serious injury or death. You
must read and understand all manufacturers’ instructions before use. Any person purchasing and/or using
this equipment assumes the responsibility for seeking proper training in its use. Purchaser also assumes all
risk for any injury or damage sustained while using any of this equipment. Failure to follow these warnings
increases the risk of injury and death.
The -DANGER- sign is used throughout this product manual to high-
light procedures, techniques, or circumstances that can lead to se-
vere injury or death of the person using this product.
The -CAUTION- sign is used throughout this product manual to high-
light policies, procedures, and practices that when not followed could
result in the damage or destruction of this product.
The -i- information sign is used throughout this product manual
when referring the reader to an outside source for further
information regarding this product.
A ve-year life span is the maximum authorized use of ARS products following the
date manufacture. All ARS products have a ve-year shelf life from the eective date
of manufacture.
ARS products must be in good working condition and must pass a manufacturers
inspection to extend the service life beyond ve years. Any product that is over ve
years and is in poor inspection condition must be removed from service.

Page: 3Rev Date: 1/20/2017Doc Number: D1092Initials: RF
TABLE OF CONTENTS
1.0 General Information.............................................................................5
1.1 Introduction...........................................................................5
1.2 Description.............................................................................5
1.3 Sizing Specications..............................................................5
1.4 Standards and Certications...............................................6
1.5 Instructions for Continued Airworthiness (ICAs)...............6
1.6 Airworthiness Limitations....................................................6
2.0 User Operation.....................................................................................7
2.1 Pre-Flight................................................................................7
2.2 Victim Packaging...................................................................7
2.3 Securing the Key-Lock System............................................8
2.4 Optional Features...............................................................11
2.5 Extraction and Flight...........................................................14
3.0 Additional Products............................................................................17
4.0 Stowing Procedures...........................................................................18
5.0 Product Care.......................................................................................20
5.1 Maintenance and Inspection.............................................20
5.2 Advanced Inspection.........................................................20
5.3 Storage Instructions............................................................20
5.4 Cleaning Instructions.........................................................20
5.5 Post Salt Water Exposure...................................................20
APPENDICES
I - ARV-QC Inspection Log.........................................................21
II - ARV-QC Label Packet............................................................22

Page: 4 Rev Date: 9/1/2019 Doc Number: D1092 Initials: RF

Page: 5Rev Date: 5/1/2016Doc Number: D1092Initials: RF
1.1 INTRODUCTION -
The Air Rescue Systems Air Rescue Vest Quick Connect or ARV-QC is a reinvention of the
tried and true ARS Air Rescue Vest. The ARV-QC utilizes a highly engineered Key-Lock lift system
quick connect device that improves safety and eliminates the need for a carabiner. Furthermore
the ARV-QC incorporates all new lightweight materials that signicantly reduce overall system
weight. Purpose-designed and built by working helicopter operations professionals the ARV-QC
provides the benets of full body capture with the speed of a rescue strop. Created out of the
need for a safe, comfortable, and secure full body rescue device; this human rescue harness is to
be used for the following helicopter operations:
• Short Haul – Human External Cargo (HEC)
• Hoist/Winch Operations
• Technical Rescue/High-Angle Operations
1.2 DESCRIPTION -
• Key-Lock lift system improves safety, simplies operation, and reduces system height.
• Reinforced neck structure provides vertical supporting head stabilization for conscious
and unconscious victims.
• Multiple positioning handles increase ease of victim control by attending rescuer.
• Re-designed load bearing structure and deep seat cavity for additional victim support
and comfort.
• Lightweight and designed to t over bulky clothes, PFDs, and tactical vests.
• Brings a new level of ease, safety, and security in performing cli side victim picks.
• Easily dons in seconds for standing, seated, prone, or supine patients.
• Rated to 18kN or 4000 lbs, with a true 10:1 static safety factor.
• Rear load control ring attachment for use with tag line and o-set lift systems.
• Empty harness and bag weight 6 lbs 0 oz (2.7 kg).
• Available in Bright Rescue (BRT) conguration and Military Tan (TAN).
1.3 SIZING SPECIFICATIONS -
• The Air Rescue Vest Quick Connect is an adjustable one size ts all encompassin
rescue device capable of securely lifting persons from 35-400 lbs (16-182 kg).
1.0 GENERAL INFORMATION
This product is intended for use by trained professionals only.
Improper care or use of this product may result in extreme injury
or death.

Page: 6 Rev Date: 5/1/2016 Doc Number: D1092 Initials: RF
1.4 STANDARDS AND CERTIFICATIONS -
• Built in the USA - Berry Amendment (USC, Title 10, Section 2533a) compliant.
• Manufacturer ISO 9001:2015 certied compliant.
• For harness label information refer to Appendix I.
1.5 INSTRUCTIONS FOR CONTINUED AIRWORTHINESS -
This product manual serves as the Instructions for Continued Airworthiness (ICAs) for the
Air Rescue Vest Quick Connect (ARV-QC).
• This document lists user operating instructions, operational capability, and equipment
limitations for the Air Rescue Vest Quick Connect (ARV-QC).
• This document includes instructions on how and when to conduct inspections as well as
product maintenance and storage procedures.
• This manual does not contain any troubleshooting information, as any alterations or
repairs to the Air Rescue Vest Quick Connect (ARV-QC) not conducted by Air Rescue
Systems may damage structural integrity. Alterations and/or repairs are prohibited and
void the product warranty.
1.6 AIRWORTHINESS LIMITATIONS -
• A pre-ight safety check must be performed by the rescuer every time the device is used.
• A post-ight inspection must be performed every time the device is stowed.
• A routine inspection must be performed every time the device has been stored for a
period greater than 30 days.
• A ve-year life span is the maximum authorized use of ARS products following the date
of manufacture. All ARS products have a ve-year shelf life from the eective date of
manufacture.
• ARS products must be in good working condition and must pass a manufacturers inspection
to extend the service life beyond ve years. Any product that is over ve years and is in
poor inspection condition must be removed from service.

2.1 PRE-FLIGHT
2.1.1 ARV-QC label information
Users should refer to this product manual as user operation instructions
before and after each use to ensure safe operation and care of this rescue
device. Failure to use the Air Rescue Vest Quick Connect harness properly
may result in extreme injury or death.
• Perform an initial inspection before using
the ARV-QC. For inspection guidelines refer to
section 5.1.
• Copy ARV-QC label information into your
inspection log sheet (refer to Appendix I).
2.0 USER OPERATION
Read all product documentation and store in a secure location. Create a
copy of all product documentation and keep with the ARV-QC for reference.
A copy of this manual may be found online at www.airrescuesystems.com.
Figure 1.

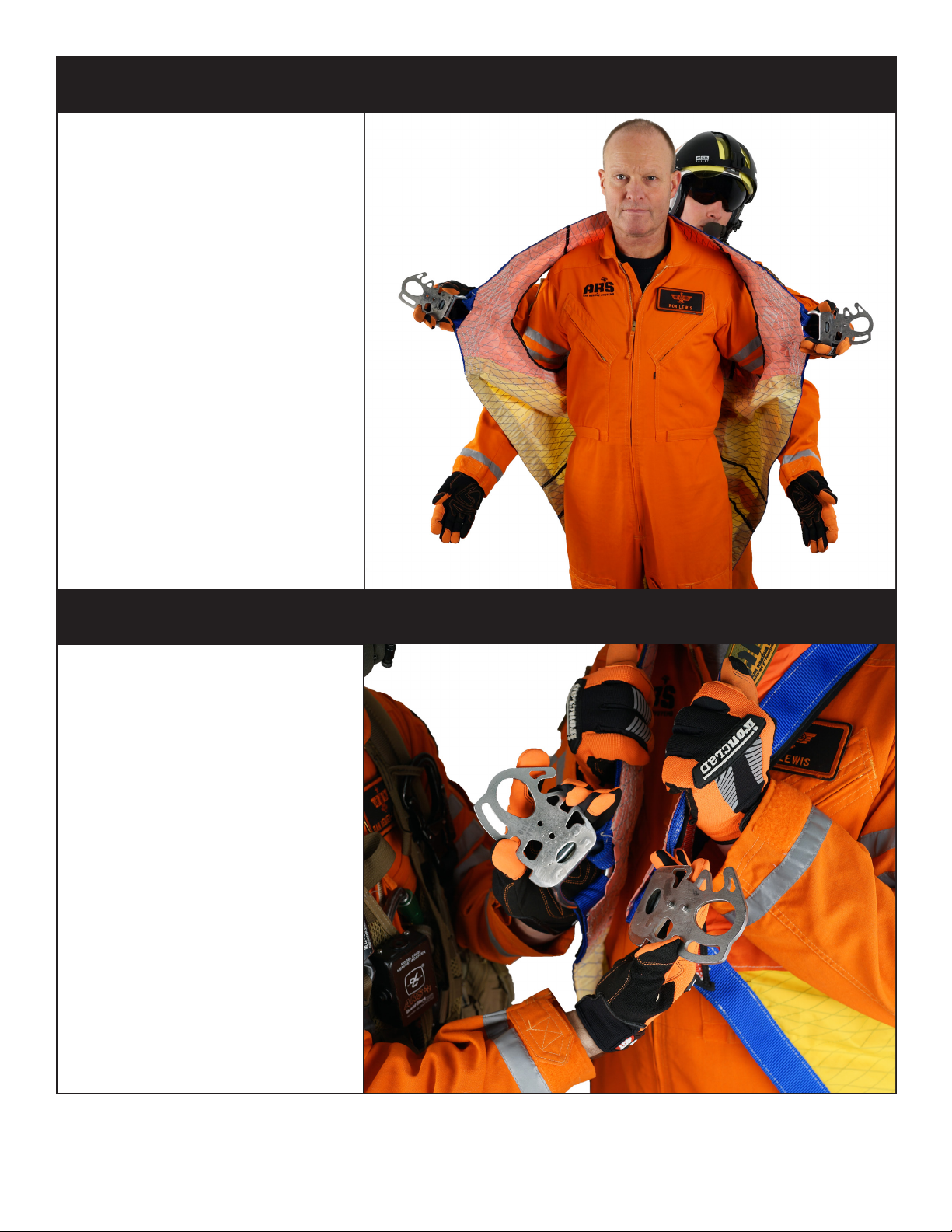

2.2 VICTIM PACKAGING
2.2.1 Wrap the victim
• Remove ARV-QC from bag
and open.
• Place the ARV-QC high around
the shoulders of the victim.
• The victim can be safely own
with their arms either inside
the ARV-QC or outside through
the armholes depending on
victim size.
ARC-QC can be donned on
victims in any position;
standing, sitting, supine,
or prone. Contact the ARS
Training Sta for more
information regarding
advanced extraction and
evacuation techniques.

Page: 8 Rev Date: 1/20/2017 Doc Number: D1092 Initials: RF
Figure 3.
Figure 4.

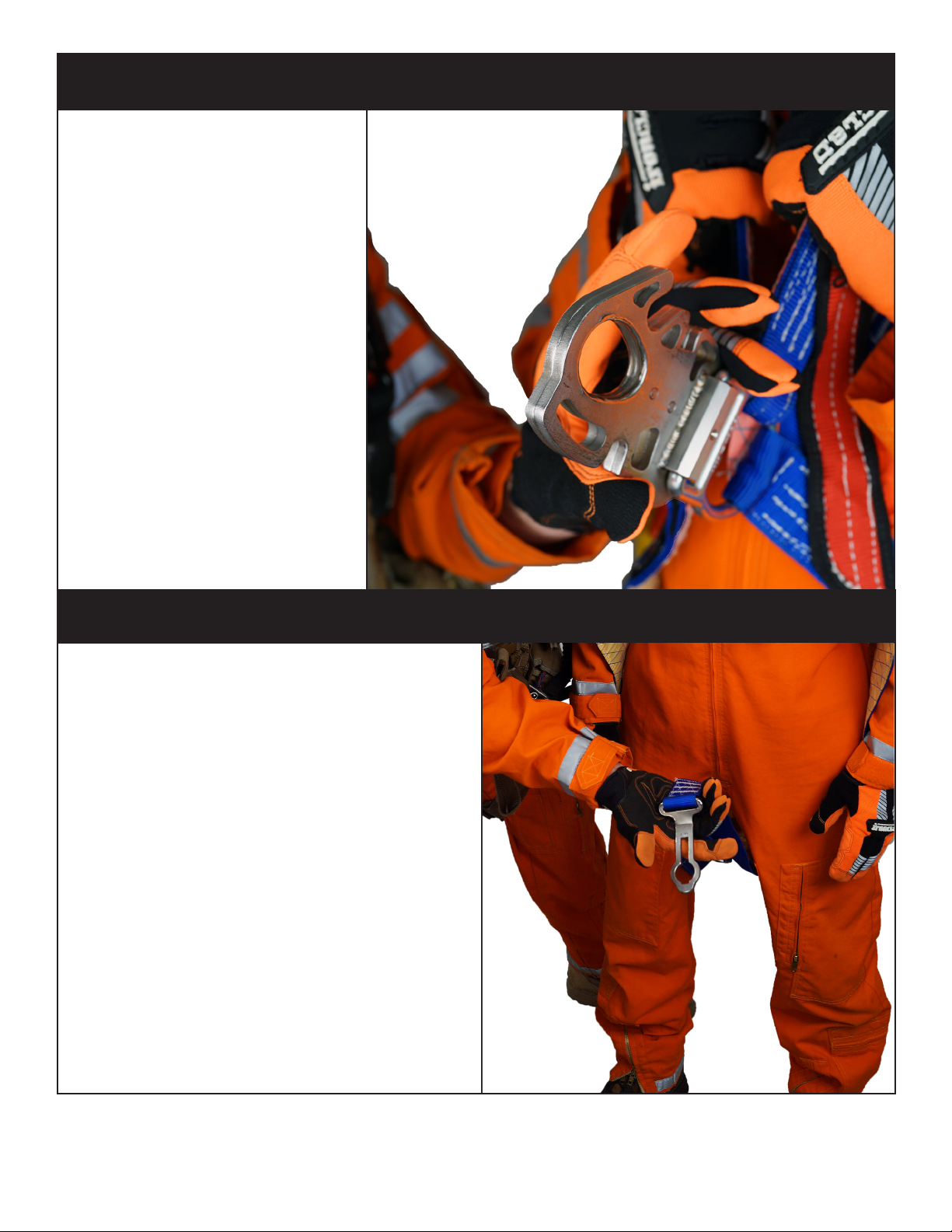

2.3 SECURING THE KEY-LOCK SYSTEM
2.3.1 ALIGN - The Key-Lock plates
• In order to secure the ARV-
QC Key-Lock plates, the two
centering pins on the left
plate must be aligned with the
corresponding holes on the
right plate.
• When both pins are aligned
the plates will sit ush together.

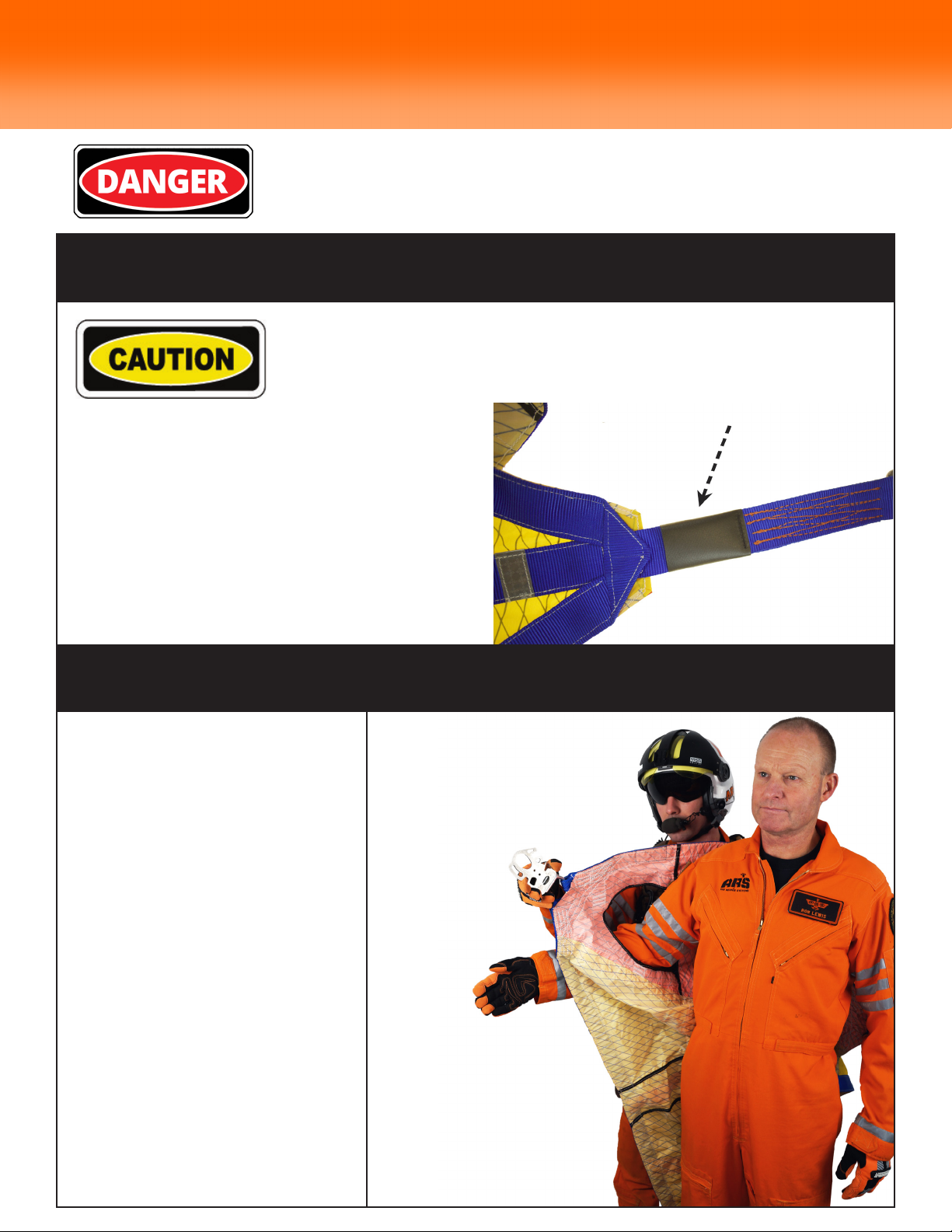

2.2.2 Victim arm placement
• If already wrapped, the
rescuer can easily help the
victim pull their arms through
the armholes by guiding their
arm out via their elbow.
• Once a victim’s arms are
outside the ARV-QC they
should be instructed to place
their hands on the sti webbing
above the attachment point as
to avoid accidental injury from
hardware when loading the
device.

Page: 9Rev Date: 1/20/2017Doc Number: D1092Initials: RF
Figure 5.
Figure 6.
2.3.2 JOIN - The Key-Lock plates
• Press both Key-Lock plates
together keeping a rm hold
while locating the tail lock
plate.
2.3.3 GRAB - The tail lock plate
• Grab the ARV-QC tail and pull it up between
the legs of the victim.
• Optionally, this device can be secured and
own in the method detailed in section 2.4.1
- Quick Pick Conguration.

Page: 10 Rev Date: 1/20/2017 Doc Number: D1092 Initials: RF
2.3.5 SECURE - The tail lock plate
• Pull the tail lock plate downward
seating it behind the second capture
horn.
• Once the tail lock plate is oriented as
pictured, the system is secured and
will not inadvertently release.
• Manual pressure to keep the Key-
Lock plates joined is no longer needed.
• For instruction on how to properly
attach the ARV-QC to your hoist or
short haul line please refer to section
2.5.
2.3.4 HOOK - The tail lock plate
• Hook the open eye of the tail
lock plate over the rst upward
facing capture horn on the two
joined Key-Lock plates.
• Maintaining slight downward
pressure, pivot the bottom of
the tail lock plate towards the
victim.
• Lift the tail lock plate into the
bottom groove of the joined
Key-Lock plates.
• This will allow enough
clearance to maneuver the
tail lock plate over the second
upward facing capture horn
on the joined Key-Lock plates.
Figure 7.
Figure 8.

Page: 11Rev Date: 1/20/2017Doc Number: D1092Initials: RF
2.4.2 Using Load Control Ring
• Designed to provide a quick easily
attachable sliding ring for securing
o-set lift and Tag/Trail Line systems.
• To use, attach your Fast Break-QRD
or other load control system directly
to the ring.
• Ring can also be used as an
attachment point for restraint systems
when ying combative or violent
victims.
2.4 OPTIONAL FEATURES
2.4.1 Quick Pick Conguration
• In the event speed is
paramount to achieving a safe
and successful extraction, the
ARV-QC can be used in the
quick pick conguration.
• Utilizing this method is at the
discretion of the trained rescue
specialist. It is understood that
by using this conguration, the
safety Key-Lock system is being
bypassed.
• For instruction on how to
properly attach the ARV-QC to
your hoist or short haul line in
this conguration, please refer
to Section 2.5.
Figure 9.
Figure 10.

Page: 12 Rev Date: 1/20/2017 Doc Number: D1092 Initials: RF
Figure 11.
2.4.3 Victim Protection - Best Practices
• ARS recommends all victims be own
while wearing a certied ANSI Z89.1
Type I helmet, ear protection, and eye
protection.
• ARS recommends all victims be own
or extracted with a professional, trained
rescue attendant.
• The ARV-QC bag is designed to accom-
modate proper victim personal protec-
tive equipment for ease of deployment.

Page: 13Rev Date: 1/20/2017Doc Number: D1092Initials: RF
PAGE INTENTIONALLY BLANK

Page: 14 Rev Date: 1/20/2017 Doc Number: D1092 Initials: RF
2.5 EXTRACTION AND FLIGHT
2.5.1 Best Practices
• Rescuer must conduct a quick safety check by visually inspecting that the ARV-QC tail is
between the victims legs and that all 3 Key-Lock Lift System plates are secured before ight.
• To y the victim the rescuer must attach the hoist hook, 2-Up hoist assist device, or short
haul HELA Rig directly to the large eye of the Key-Lock Lift System.
• When maintaining pre-load utilizing a connected short haul line, the rescuer’s hand should
be located on the soft material of the short haul attachment device just above the two
carabiners.
• When maintaining pre-load utilizing a hoist hook or 2-Up hoist assist device, the rescuer’s
hand should be located on the hoist hook bumper.
• It is imperative the ARV-QC be installed correctly, attached to the lift device correctly, and
pre-loaded correctly before the rescue attendant signals the aircraft to lift.
• Immediately after lift the rescuer should visually re-check all attachment systems to ensure
proper function and safety. If an issue is identied the attendant should signal the aircraft to
return them to the ground.
• The rescue attendant can make in ight adjustments for the increased comfort of the victim
by lifting the victims legs and pulling the ARV-QC up towards the knee. This action will help
seat the victim deeper into the device providing more support.
• Upon landing, to place the victim in a standing position the rescue attendant must grab
one of the exterior positioning handles and pull directly up when the victim’s feet touch the
ground. If the attendant does not assist the victim to stand, the victim will naturally land in
the supine position.
In order for this device to function properly it must be secured and attached
to the appropriate lift device correctly. Failure to properly safety check this
device may result in extreme injury or death.

Page: 15Rev Date: 1/20/2017Doc Number: D1092Initials: RF
Figure 12.
Figure 13.
2.5.3 HOIST - Attaching ARV-QC to hoist hook
• When attaching a packaged victim directly
to a hoist hook the attachment should be
executed as depicted.
• Attach the hoist hook directly into the large
eye of the Key-Lock Lift System.
• This conguration is for hoisting a victim
without an attendant.
• Verify the hoist hook is locked and properly
pre-loaded before lift.
• Air Rescue Systems strongly recommends
tag line techniques to be utilized during
single rider static hoist operations.
2.5.2 SHORT HAUL - Attaching ARV-QC to a HELA Rig
• When attaching a packaged victim to
a shorthaul HELA Rig the attachment
should be executed as depicted.
• Attach one paired leg of HELA Rig
carabiners directly into the large eye
of the Key-Lock Lift System.
• Attach the second paired leg of the
HELA Rig carabiners to the attachment
point of the attending rescuer’s
harness.
• Verify all carabiners are locked and
properly pre-loaded before lift.

Page: 16 Rev Date: 11/22/2019 Doc Number: D1092 Initials: RF
Figure 15.
Figure 14.
2.5.4 HOIST - Attaching ARV-QC to the ARS 2-Up Leg
• Limiting leg twist, attach one 2-Up
3-stage auto-lock carabiner directly
into the large eye of the Key-Lock Lift
System.
• Limiting leg twist, attach the second
2-Up 3-stage auto-lock carabiner
directly to the attachment point on
the rescuer’s harness.
• Verify the hoist hook and all
carabiners are locked and properly
pre-loaded before lift.
2.5.5 HOIST - Attaching ARV-QC to the ARS 2-Up (Quick Pick Conguration)
• Limiting leg twist, attach one 2-Up
3-stage auto-lock carabiner directly into
the large eye of both Key-Lock plates
and the large eye of the tail lock plate.
• Verify the hoist hook and all carabiners
are locked and properly pre-loaded
before lift.

Page: 17Rev Date: 11/22/2019Doc Number: D1092Initials: RF
3.0 ADDITIONAL PRODUCTS
The ARV-QC is compatible with a variety of additional products and safety equipment. It is the
responsibility of the user to learn and understand the operational requirements, strength ratings, and
airworthiness limitations of all equipment not listed in this product manual that is used in conjunction
with the Air Rescue Vest Quick Connect.
Utility Version
Rescue Version
Figure 16.
Figure 17.
Figure 18.
3.1 ARS 2-Up Hoist assist device
• Designed to clean up the hoist-hook human interface by allowing
2 separate yet compact attachment points in a lightweight highly
engineered system.
• CNC’d from aircraft grade 6061-T6 billet aluminum, the 2-Up hoist
device yields at an astounding 54kn (MBS).
• Constructed with two 30 kN rated, DMM captive eye, 3-stage auto-lock
carabiners with ANSI rated gates, both sewn onto individual 30 kN(MBS)
webbing legs.
• Using the 2-Up in place of a carabiner can prevent dynamic roll out from
hoist hook.
3.2 Human External Load Anchor (HELA) Rigs
• Integrated load sharing plate which allows for
increased separation between short haulers
and a more comfortable ight.
• Integrated anchor point for easily ying
equipment at a much more manageable
height as opposed to attaching directly to the
ring.
• Built to the standard ARS 10:1 safety margin
and comes in two industry specic versions.
3.3 Fast Break (Quick Release Device)
• Small, lightweight, intuitive, Controlled Break-Away System for tag and
O-Set Lift control systems used in helicopter operations.
• 2-stage auto locking carabiner provide ease of one handed on/o.
• One-handed, manual quick release for jettisoning control system under
load.
• Integrated internal, Controlled Break-Away System separation at 400 lbs

Page: 18 Rev Date: 1/20/2017 Doc Number: D1092 Initials: RF

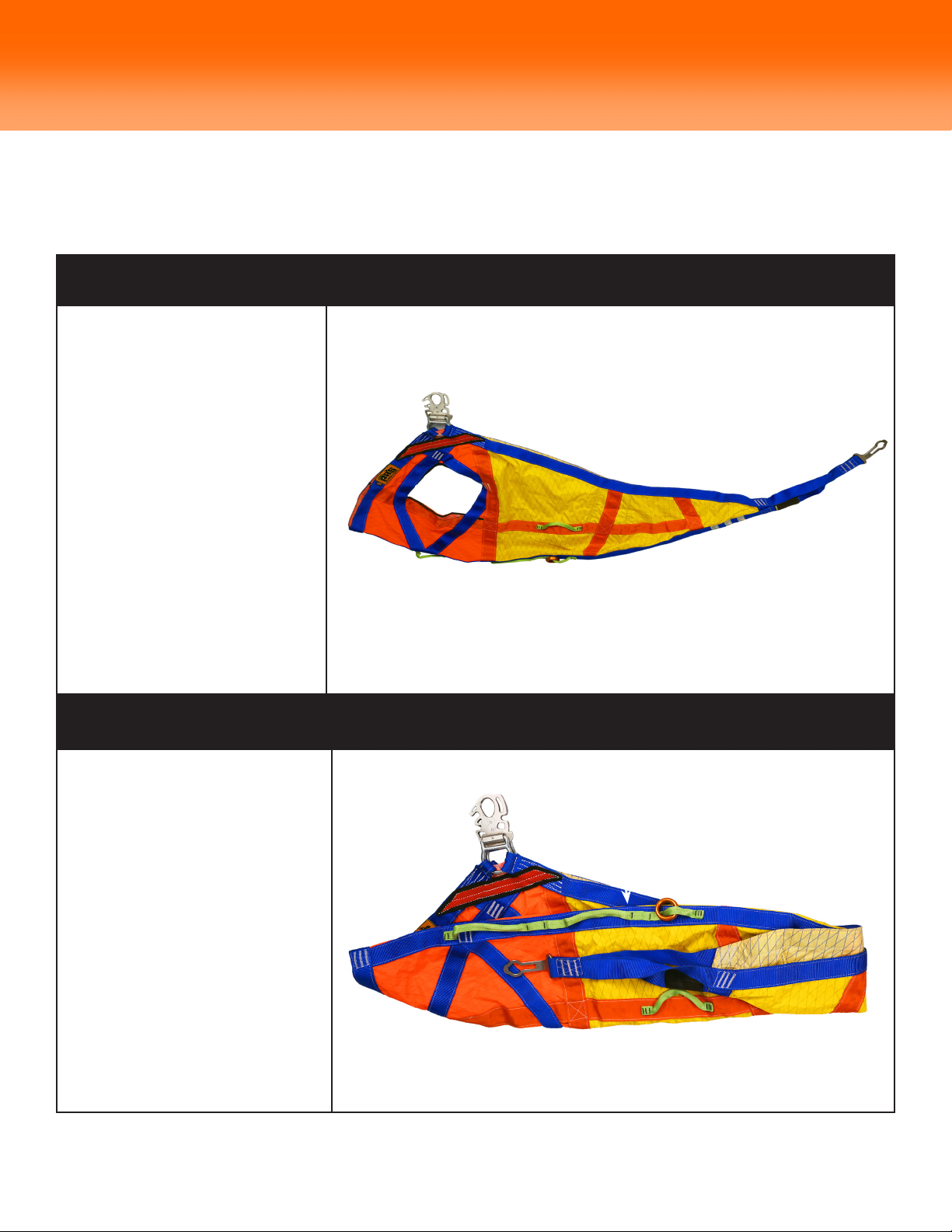

4.0 STOWING PROCEDURES
In order to ensure the ARV-QC is ight ready and correctly congured for a safe, easy, and quick
deployment it is imperative the device is stowed properly after every use.
Figure 18.
Figure 19.
Step 4.1
• Lay the ARV-QC on a
clean at surface with the
inside facing up.
• Fold the ARV-QC in half
by joining the two Key-
Lock plates.
Step 4.2
• Fold ARV-QC in half again
by bringing the center of the
previous fold up towards
the Key-Lock plates.
• Fold the tail of the ARV-
QC up towards the top of
the device.
