INTRODUCTION
Thank you for purchasing Applied Research and Technology’s DUAL RP. The Dual RP is the ideal solution to
increasing the performance of your ribbon and Dynamic microphones. This remotely powered preamp brings out all
of the nuances of your mic before running into your recording interface or Mixer through long cable runs. With the
Dual RP you can tailor the loading on the mic through the variable impedance controls.
The balanced output drives long cable runs with ease allowing you to place the preamp as close as possible to the
mic before picking up any noise.
The Dual RP is packaged in a rugged extrusion with rubber feet for long, reliable operation.
Get the very best out of your mics with the Dual RP!
FEATURES
• Two very low noise mic preamps
• Variable Impedance controls
• Low Cut filter single pole, 150Hz
• Adds at least 20dB of gain to your mic
• Runs off a Phantom power supply
• Able to drive long balanced cables
• Heavy duty extruded chassis
• Designed and developed in the USA

2
INSTALLATION and OPERATION
Connect the outputs of the Dual RP to a Phantom powered source such as a mixer or preamplifier.
Connect the Dual RP inputs to your Ribbon or dynamic mics.
Make sure you start with the gain pots set to their minimum settings. Once connected engage the Phantom power
and adjust the gain on the Dual RP for the desired level. The phantom power will not pass through to the inputs thus avoiding
any potential damage to any dynamic or ribbon mics. As an added feature you have the ability to remove any unwanted
wind noise or rumble by enabling the Low Cut filter per input.

3
APPLICATIONS
Perfect for: getting the most out of your ribbon and dynamic mic!
The Dual RP may be used in a wide variety of applications and environments. Self-contained in an extruded
enclosure, the remote mic Preamp is designed for continuous professional use. Because the unit is compact and
lightweight, mounting location is not critical.
LOW CUT FILTER control
The Low Cut Filter is a single tuned High Pass Filter. The input signal can be filtered to remove low frequency
information. The roll off frequency is set at 100Hz. Since it is single tuned, it preserves some low frequency content
so its use is less obtrusive. It is especially useful in close mic’d applications cutting out pops and wind noise.
Variable Impedance Function
Using this variable impedance function allows the user to adjust the input impedance seen by the microphone, in
turn getting a better tonal response from your microphone used.
Dynamic Mic
Dynamic (coil) microphones are sensitive to loading. If these mics are not coupled correctly, the result maybe a
loss in frequency response and could result in added distortion.
As an example a common mic like the SM57 prefers a 600 Ohm load. When the load is varied above or below the
600 Ohms, then the mid range resonance could sound harsh and distorted. The low-end response will also sound
more controlled with a 600 Ohm load. There are many dynamic mics that may have similar issues but not be as
sensitive to loading as the SM57.
Ribbon Mic
Ribbon type (transformer coupled) microphones are sensitive to the input impedance of the preamps or mixers
used to achieve the optimum frequency response. A Ribbon mic would like to see an input impedance several times
larger than its output impedance. Ribbon mics, being transformer coupled, have increased impedance at high and
low frequencies. On the low end the mic is power bound, as you load it there becomes a low frequency cut off at
higher levels, so it may sound distorted. At the high end, the output impedance of the transformer increases
(independent of level), so the greater the load the less high end.
As an example, a typical ribbon mic with a characteristic impedance of 300 Ohms may have an inherent 600 Ohm
impedance at 20kHz and a 2k impedance at its low frequency resonance (about 50Hz). If you set the input
impedance to 10k Ohms your result would be a 0.25dB drop at 20kHz. This would also drop the low frequency
resonance by 1.3dB. Compare this to a typical mixer input (3k input impedance) where you would get a 0.75dB
drop at 20kHz and 3.6dB at resonance.
So increasing the input impedance seen by the mic using the impedance pots on the Dual RP will result in an
optimum performance from the ribbon mic used. If the preamp or mixer input impedance is too low then you will
start to limit the frequency response of the ribbon mic. When this occurs, the low-end of the microphone’s sound
quality will be limited and the transient response will sound flat degrading the overall performance of the
microphone. So by adjusting the impedance pot on the Dual RP, you can achieve a clean full frequency response
from your microphones using the Dual RP.
The beauty of the DRP and the RP-1 may be the ability to operate at higher impedance or
control the impedance vs. the mixer
1
you are currently using.
1
A Phantom power capable input has around 13K maximum impedance simply due to the 6.8k Phantom power pull-up
resistors.

4
FULL BILL OF MATERIALS
PART # VALUE DESCRIPTION PATTERN
QTY LOCATION
RESISTOR SECTION
1.00K Resistor, Metal Film, 0.1% AXIAL0.4 4 R100, R101, R200, R201
10.0K Resistor, Metal Film, 0.1% AXIAL0.4 4 R104, R107, R204, R207
3.01K Resistor, Metal Film, 0.1% AXIAL0.4 4 R113, R114, R213, R214
681 Ohms Resistor, Metal Film, 0.1% AXIAL0.4 4 R116, R117, R216, R217
150 Ohms Resistor, Carbon Film, 5% AXIAL0.4 2 R115, R215
160K Resistor, Carbon Film, 5% AXIAL0.4 2 R103, R203
33 Ohms Resistor, Carbon Film, 5% AXIAL0.4 2 R111, R211
10.0 Ohms Resistor, Carbon Film, 1% AXIAL0.4 4 R110, R112, R210, R212
51.1K Resistor, Carbon Film, 1% AXIAL0.4 6 R102, R108, R109, R202, R208, R209
POT/ SWITCH SECTION
1001025104
10k "A"
taper POT - Single Control / Trimmer VR-16 2 VR100, VR200
1005021101 SW-DPDT Switch, DPDT, PCB Mount LC2255 2 SW100, SW200
CAPACITOR SECTION
300pF Capacitor, Film / Ceramic RADIAL0.1 6 C105, C106, C107, C205,
C206, C207
100uF/25V Capacitor, Electrolytic (polarized), Rubycon 25YXJ100MTA5X11 LYTIC.1 6 C100, C108, C109, C200, C208, C209
33uF/35V Capacitor, Electrolytic (polarized), Rubycon 25PK220MEFCTA6.3X11, LYTIC.1 8 C101, C102, C103, C104, C201, C202, C203, C204
470uF/10V Capacitor, Electrolytic (polarized), Rubycon 10YXG470MEFC6.3X11 LYTIC.1 2 C110, C210
JACKS AND CONNECTORS SECTION
ARTC107 XLR- FEMALE XLR-Female Ref# Lih Sheng LX-1604H-3 XLR- FEMALE 2 J101, J201
ARTC108 XLR-MALE Jack, Canon XLR Male, 3-pin PCB Mount XLR JACK- M 2 J100, J200
DIODE AND TRANSISTOR SECTION
ZTX751 PNP Transistor - Single TO92-EBC 4 Q100, Q102, Q200, Q202
2N4401 NPN Transistor - Single TO92-EBC 4 Q101, Q103, Q201, Q203
1N4148 Diode - Signal or Power Rectifier DIODE0.4 4 D100, D101, D200, D201

5
PART # VALUE DESCRIPTION PATTERN QTY
LOCATION
MECHANICAL SECTION
DRP3001100a PCB 1
1662001100 Extrusion Chassis 1
DRP2002100 Front Panel 1
DRP2003100 Rear Panel 1
1662005100 Rubber side caps 2
2572004101 Round Plastic KNOB, .54" dia. Knobs for front panel pots 2 VR100, VR200
Gray switch cap
For front panel
switches 2 SW100, SW200
1005032126 FAS SCR #4 x3/8 PH FL HD ST BLK Chassis screws 4
1005032125 PH,RD screw self tap for
plastic Screws for XLR jacks and tube bracket 8 JK1-JK4
SERVICE PARTS
ART PART # VALUE DESCRIPTION PATTERN QTY LOCATION
1001025104 10k "A" taper POT - Single Control / Trimmer VR-16 2 VR100, VR200
1005021101 SW-DPDT
Swt, PCB Mount Pushbutton Switch DPDT
Standard Through Hole, Right Angle LC2255 2 SW100, SW200
ARTC107 XLR-FEMALE XLR-Female Ref# Lih Sheng LX-1604H-3 XLR-FEMALE 2 J101, J201
ARTC108 XLR-MALE Jack, Canon XLR Male, 3-pin PCB Mount XLR JACK-M 2 J100, J200
DRP2002100 Front Panel 1
DRP2003100 Rear Panel 1
1662005100 Rubber side caps 2
2572004101
Round Plastic
KNOB, .54" dia. Knobs for front panel pots 2 VR100, VR200
1005121102 Black switch cap Black switch cap rounded tip For front panel
switches 2 SW100, SW200

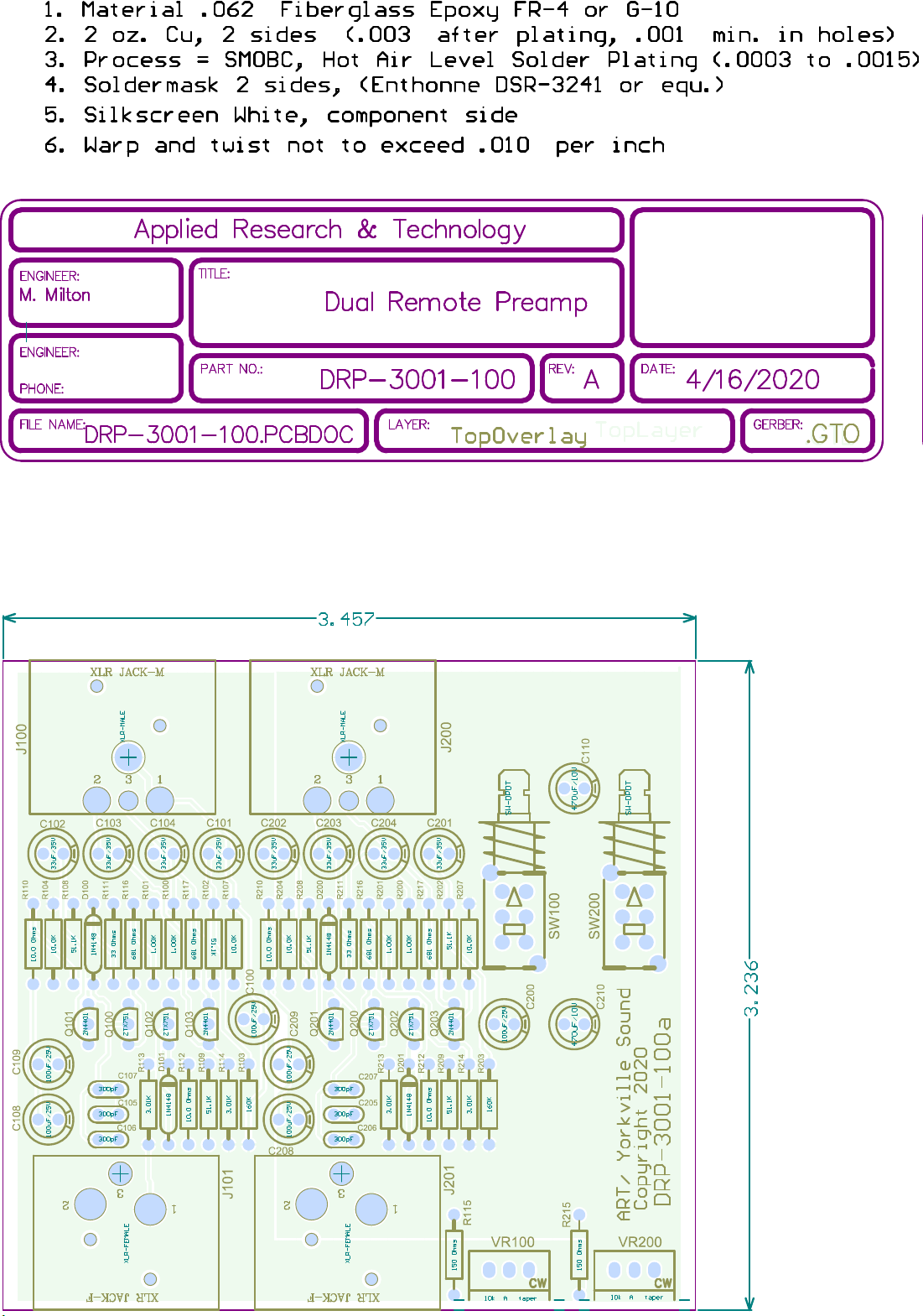

1 1
2 2
3 3
4 4
D D
C C B B
A A

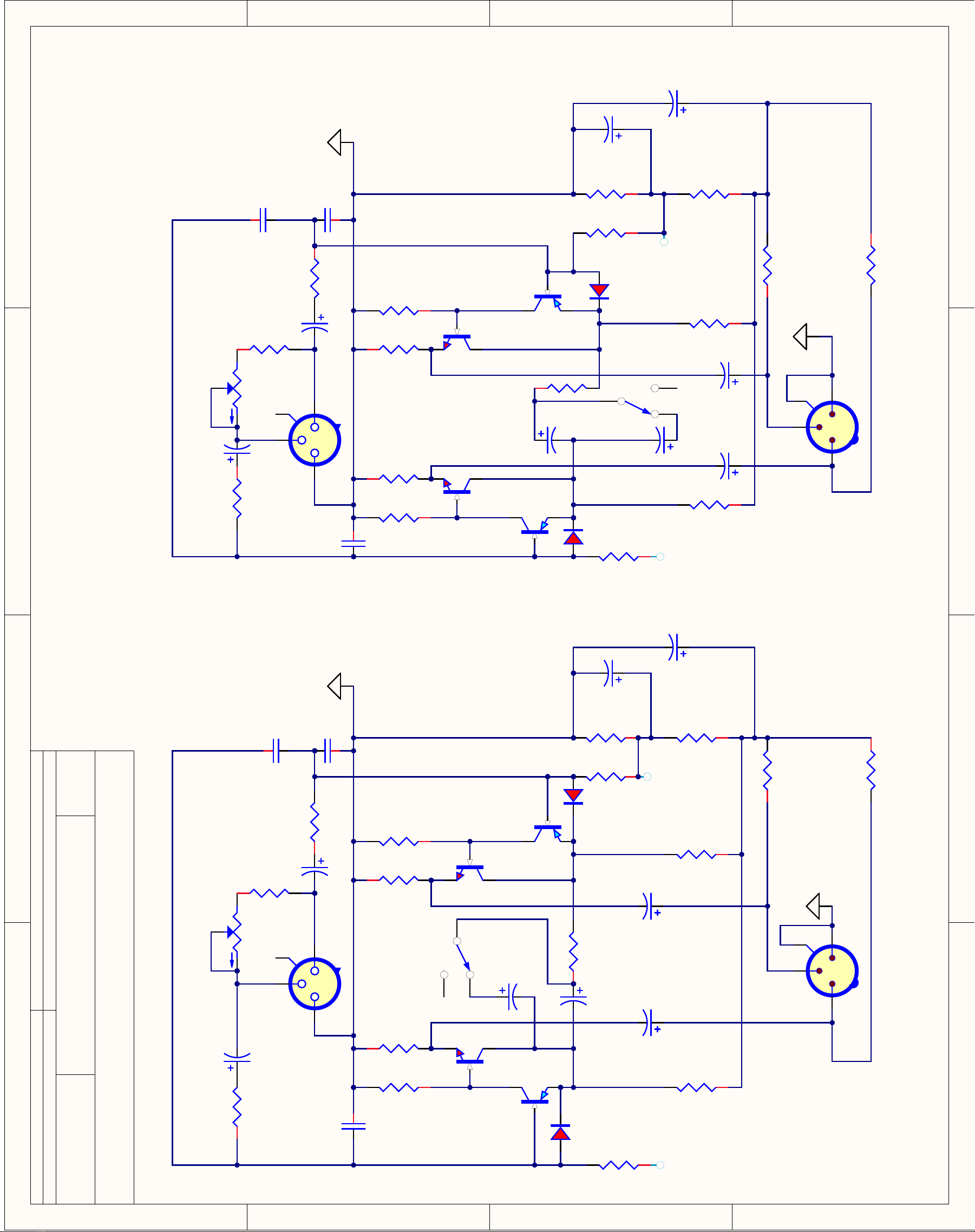

Title
Number RevisionSize
A
Date: 4/16/2020 Sheet of File: C:\Products\..\DRP-4001-100a.SchDoc Drawn By:
Q101
2N4401
Q103 2N4401
Q100 ZTX751 Q102
ZTX751
3
21
G
J100
XLR-MALE
3
2 1
G
J101
XLR-FEMALE
VR100
10k "A" taper
R113 3.01K
R114 3.01K
R111 33 Ohms
R109 51.1K
R104 10.0K
R107 10.0K
R112
10.0 Ohms
R110
10.0 Ohms
R100 1.00K R101 1.00K
R102 51.1K R103 160K
R108 51.1K
C107 300pF
C106 300pF
C105 300pF
R115 150 Ohms
C104
33uF/35V
C100 100uF/25V
C102
33uF/35V
C103
33uF/35V
C101 33uF/35V
Gnd-1
Gnd-1
Bias-1 Bias-1
MIC INPUT 1
Output 1
(Phantom Power input)
IMPEDANCE 1
10K150
Q201
2N4401
Q203 2N4401
Q200 ZTX751 Q202
ZTX751
3
21
G
J200
XLR-MALE
3
2 1
G
J201
XLR-FEMALE
VR200 10k "A" taper
R213 3.01K
R214 3.01K
R211 33 Ohms
R209 51.1K
R204 10.0K
R212
10.0 Ohms
R210
10.0 Ohms
R200 1.00K R201 1.00K
R202 51.1K R203 160K
R208 51.1K
C207 300pF
C206 300pF
C205 300pF
R215 150 Ohms
C204
33uF/35V
C200 100uF/25V C202
33uF/35V
C203
33uF/35V
C201 33uF/35V
Gnd-2
Gnd-2
Bias-2
Bias-2
MIC INPUT 2
Output 2
(Phantom Power input)
IMPEDANCE 2
10K150
R207 10.0K
Dual Remote Preamp
DRP-4001-100 a
1 1
m.m.
D100
1N4148
D101
1N4148
R117 681 Ohms
R116 681 Ohms
D200 1N4148
D201 1N4148
R217 681 Ohms
R216 681 Ohms
C108
100uF/25V
C109
100uF/25V
C208
100uF/25V
C209
100uF/25V
2
3
1
SW100A SW-DPDT
5
6 4
SW200B SW-DPDT
C210
470uF/10V LOW CUT 2
C110
470uF/10V
LOW CUT 1
