ArtFox Pointy 10R User manual

USER MANUAL
ARTFOX Pointy 10R

2
Tableofcontents
1. Safety instructions.................................................................................................................... 3
2. Fixture exterior view................................................................................................................. 5
3. Installation............................................................................................................................................... 6
3.1 Connection to the mains.....................................................................................................6
3.2 Changing the lamp.............................................................................................................. 7
3.3 Lamp adjustment................................................................................................................. 8
3.4 Replacing rotating gobos................................................................................................. 10
3.5 Rigging the fixture................................................................................................................ 11
3.6 DMX-512 connection........................................................................................................... 13
4. DMX Protocol..............................................................................................................................14
5. Operation Menu....................................................................................................................... 17
6. Technical Specifications...................................................................................................... 19
7. Maintenance and cleaning.....................................................................................................21
8. Photometric diagrams............................................................................................................ 23
ArtFox Pointy 10R - Beam Spot Wash 3-in-1, 3D effect

3
CAUTION ! EYE DAMAGES !
Avoid looking directly into the light source!
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOU INITIAL START - UP
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to en-
sure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes
written in this manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this
manual or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
This light was designed for indoor use and it is intended for
professional application only. It is not for household use.
1. Safety instructions
CAUTION!
Disconnect the fixture from mains before you remove any cover of the fixture.
With a high voltage you can suffer a dangerous electric shock when touching
alive wires and electrical parts under covers!
Make sure that the available voltage is not higher than stated on the rear panel of the fixture.
This fixture should be operated only from the type of power source indicated on the marking label. If you are
not sure of the type of power supplied, consult your authorized distributor or local power company.
Always disconnect the fixture from AC power before cleaning, removing or installing the fuses, or any part.
The power plug has to be accessible after installing the fixture. Do not overload wall outlets and extension cords
as this can result in fire or electric shock.
Do not allow anything to rest on the power cord. Do not locate this fixture where the cord may be damaged by
persons walking on it.
Make sure that the power cord is never crimped or damaged by sharp edges. Check the fixture and the power
cord from time to time.
Refer servicing to qualified service personnel.
This fixture falls under protection class I. Therefore this fixture has to be connected to
a mains socket outlet with a protective earthing connection.
Do not connect this fixture to a dimmer pack.
During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily
mean that the device is defective.
Do not touch the device’s housing bare hands during its operation (housing becomes hot)!
For replacement use lamps and fuses of same type and rating only.

4
If the fixture has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on
immediately. The arising condensation water might damage your device. Leave the device switched off until
it has reached room temperature.
Do not shake the fixture. Avoid brute force when installing or operating the fixture.
This fixture was designed for indoor use only, do not expose this unit to rain or use near water.
When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat, moisture
or dust.
Air vents and slots in the fixture´s head and base are provided for ventilation, to ensure reliable operation of
the device and to protect it from overheating.
Do not block the front objective lens with any object when the fixture is under operation.
The openings should never be covered with cloth or other materials, and never must be blocked.
The fixture becomes very hot during operation. Allow the fixture to cool approximately 20 minutes prior to
manipulate with it.
This fixture should not be placed in a built-in installation unless proper ventilation is provided.
Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fas-
tened.
Always use a secondary safety cable when mounting this fixture.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fix-
ture.
Warning
The minimum distance between light output and the illuminated surface must be more
than 10 meters.
The maximum ambient temperature 45°C must never be exceeded.
CAUTION!
The lens has to be replaced when it is obviously damaged,
so that its function is impaired, e. g. due to cracks or deep scratches!
Operate the device only after having familiarized with its functions. Do not permit operation by persons not
qualified for operating the device. Most damages are the result of unprofessional operation!
CAUTION!
The lamp has to be replaced when it is damaged
or deformed due to the heat!
Please use the original packaging if the device is to be transported.
CAUTION!
Fast on-off-cycles (e.g. 10 min. on / 10 min. off) will reduce lamp life.

5
2. Fixture exterior view
1- Front lens
2- Tilt lock
3- Pan lock
4- Base
5- Touch screen
6- Moving head
7- Arm
8- Handle
The head should be locked for transportation- the tilt lock latch (2) and the pan lock latch (3) have to be in the
locked positions. To unlock the head, move these latches to unlock positions before operating the fixture.
Rear panel of the base:
1- Power In
2- Power On / Off
3- 3-pin DMX Out
4- 5-pin DMX Out
5- Fuse Holder
6- 3-pin DMX In
7- 5-pin DMX In
Front panel of the base:
1- LCD touch screen
2- FUNCTION button
3- UP button
4- DOWN button
5- ENTER/DISPLAY ON button
The ENTER/DISPLAY ON button also serves for switching the display on when the fixture is disconnected
from the mains.

6
3. Installation
Fixtures must be installed by a qualified electrician in accordance with all
national and local electrical and construction codes and regulation.
3.1 Connection to the mains
For protection from electric shock, the fixture must be earthed!
The Colorfullight Monster is equipped with auto-switching power supply that automatically adjusts to any
50-60Hz AC power source from 100-240 Volts.
This fixture must be earthed. To use the fixture, a plug must be fixed.
The correct assembly of a sufficient plug may be done by professional persons only.
The conductors in the cable are marked by the following table.
Core (EU)
Core (US)
Connection
Plug Terminal Marking
Brown
Light blue
Green /Yellow
Black
White
Green
Live
Neutral
Earth
L
N

7
3.2 Changing the lamp
DANGER !
Install the lamp with the fixture unplug from mains !
To insert the new lamp.
1. Disconnect the fixture from mains and allow it to cool at least 20 minutes.
2. .Loosen the two quarter-turn fasteners (1) on a lamp cover and remove the lamp cover (2) to get into lamp
compartment.
3. Remove both Fastons (3) from flat blades of the lamp.
4. Holding the lamp by its ceramic base (4), carefully pull the lamp outwards until you break force of
spring locks (5) keeping the lamp in the lamp compartment.
5 Holding the new lamp by its ceramics base (4), gently insert the lamp into lamp compartment until it snaps
into spring locks (5).
Do not install a lamp with a higher wattage! A lamp like this generates temperatures the device is not designed
for. Damages caused by non-observance are not subject to warranty. Please follow the lamp manufacturer‘s
notes!
Warning: do not touch the lamp’s envelope with bare hands. Should this happen, clean the bulb with a cloth
soaked in alcohol and dry it
6. Slide both Fastons (3) onto lamp blades and check this connection
7. Re-insert the lamp cover (2) and tighten the two quarter-turn fasteners (1) .
8. Connect the fixture to the mains.
9. Reset the "Lamp On Time” and "Lamp Strikes” counters in the menu "Information”.
Never operate this fixture without the lamp!
Do not operate this fixture without the lamp cover!

8
3.3 Lamp adjustment
The lamp holder is aligned at the factory. Due to differences between lamps,the fine adjustment may improve
light performance.
For lamp adjustment serve four slots in the lamp assembly.
Slots A - for adjustment of the lamp horizontally
Slots B - for adjustment of the lamp vertically
To adjust the lamp in the fixture.
1. Connect the fixture to the mains, switch on the lamp, open shutter and dimmer, set zoom and focus (Static
gobo wheel a rotating gobo wheel should be set at 0 DMX) and check the image on the wall
2. Disconnect the fixture from mains.
3. .Loosen two quarter-turn fasteners (1) on a lamp cover and remove the lamp cover (2) to get into lamp
compartment.
4. Move the lamp into desired position by using a suitable screwdriver inserted in the appropriate slots (A, B).
5. Re-insert the lamp cover (2) and tighten the two quarter-turn fasteners (1) .
6. Connect the fixture to the mains and check if the adjustment has been correctly made.
7. If you need to continue in adjusting, disconnect the fixture from mains and repeat steps 2-5.
The lamp must be adjusted with the fixture disconnected from mains!
Do not operate this fixture without the lamp cover!
Note: Due to light refraction in the fixture, the lamp has to be moved into direction of shifted hot-spot - see
pictures below.

9
Note!
The adjusted hot-spot may move during the first 100 hours of the lamp operation
(lamp stabilizes its burning) and the lamp adjusting has to be repeated.
(In some cases, the lamp adjusting has to be made every 100 hours of lamp operation.)

10
3.4 Replacing rotating gobos
DANGER!
Replace gobos with the device switched off only.
Unplug from mains before!
1. Disconnect the fixture from mains and allow it to cool.
2. Remove the bottom plastic cover of the head by loosening the 4 quarter-turn fasteners on the cover.
3. Gently pull up the gobo holder from the rotation gobo wheel.
4. Carefully remove the gobo and the spring gobo-lock from the gobo holder by pushing to the gobe from the side
without toothed wheelt. Do not touch the surface of the pattern of the glass gobo - use a suitable glove.
Be careful! Glass!
5. Insert the new gobo (glazy side towards the lamp). Insert the spring-gobo lock
to secure it in the gobo holder.
6. Insert the gobo holder back into rotating gobo wheel.
7. Replace the bottom cover before applying power.

11
3.5 Rigging the fixture
A structure intended for installation of the fixture (s) must safely hold weight of the fixture(s) placed on it. The
structure has to be certificated to the purpose.
The fixture (fixtures) must be installed in accordance with national and local electrical and construction codes
and regulation.
For overhead installation, the fixture must be always secured with a safety wire
When rigging, derigging or servicing the fixture staying in the area below the installation place, on bridges,
under high working places and other endangered areas is forbidden.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert
before taking into operation for the first time and after changes before taking into operation another time.
The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled
person once a year.
Allow the fixture to cool for ten minutes before handling.
The projector should be installed outside areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including calculating working
load limits, installation material being used, and periodic safety inspection of all installation material and the
projector. If you lack these qualifications, do not attempt the installation yourself, but use a help of professional
companies.
CAUTION: Fixtures may cause severe injuries when crashing down! If you have doubts concerning the safety
of a possible installation, do not install the fixture!
The fixture has to be installed out of the reach of public.
The fixture must never be fixed swinging freely in the room.
.
Danger of fire !
When installing the device, make sure there is no highly inflammable
material (decoration articles, etc.) in a distance of min. 1 m.
The special desing of the temperature filter has allowed to reduce distance betwen
the fixture and lit objects, but the minimum distance of 10 meters between light output
from the moving head and the lit objects must be kept!
(If the fixture will work in eco mode only, this distance can be redused to 7.5 m)
CAUTION!

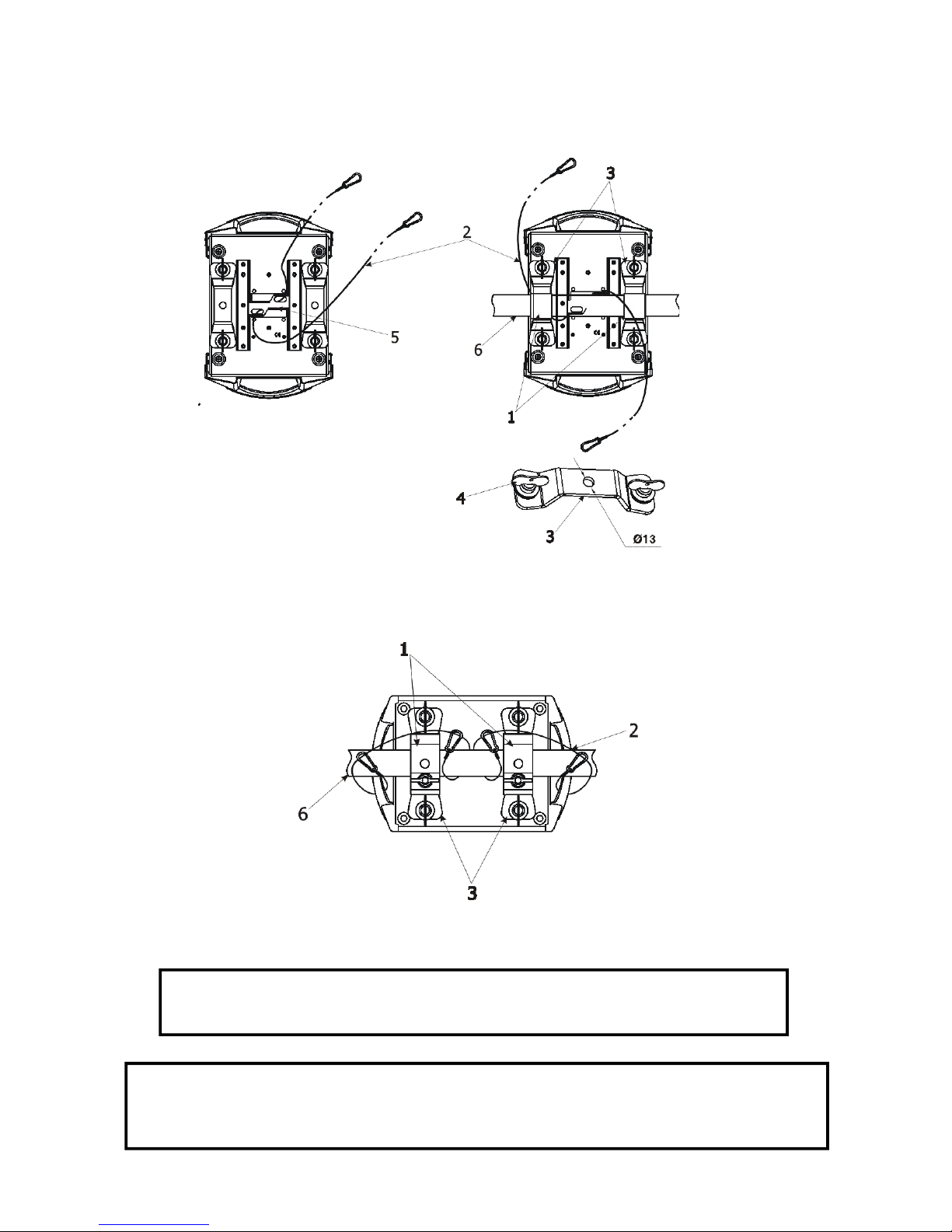

Use 2 appropriate clamps to rig the fixture on the truss.
Follow the instructions mentioned at the bottom of the base.
Make sure that the device is fixed properly! Ensure that the
structure (truss) to which you are attaching the fixtures is secure.
The fixture can be placed directly on the stage floor or rigged in any orientation on a truss without altering its
operation characteristics .
For securing a fixture to the truss, install a safety wire that can hold at least 10 times the weight of the fixture.
Use only the safety wire with screw-on carabine. Pull the safety wire through the safety attachment point on
the bottom of the base and around the truss as shown on the pictures below.

12
Truss installation
1.Bolt each clamp (1) to the omega holder (3) with M12 bolt and lock nut through the hole in the holder.
2.Fasten the omega holders on the bottom of the base by inserting both quick-lock fasteners (4) into the holes
of the base and tighten fully clockwise.
3. Pull the safety wire (2) through the attachment point and around the truss (6).
1-Clamps
2-Safety wire
3-Omega holder
4-Quick-lock fastener
5-Attachment point
6-Truss
Alternativelly, fixtures handels can be used for safety attachment
Wheninstallingfixturesside-by-side,
avoid illuminating one fixture with another!
DANGER TO LIFE!
Before taking into operation for the first time,the installation has to be approved by
an expert!

13
3.6 DMX-512 connection
The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output.The sockets are wired
in parallel.
Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in
order to connect the controller with the fixture or one fixture with another.
DMX - output DMX-input
XLR mounting-sockets (rear view): XLR mounting-plugs (rear view):
1- Shield
2- Signal (-)
3- Signal (+)
4- Not connected
5- Not connected
1- Shield
2- Signal (-)
3- Signal (+)
4- Not connected
5- Not connected
If you are using the standard DMX controllers, you can connect the DMX output of the controller directly with
the DMX input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-out-
puts, you need to use adapter-cables.
Building a serial DMX-chain:
Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture. Always
connect one output with the input of the next fixture until all fixtures are connected.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω
resistor
between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.

14
4. DMX Protocol
Standard
Mode
Compact
Mode
DMX
Value
Channel Function
1
1
0－255
Pan
2
*
0－255
Pan Fine
3
2
0－255
Tilt
4
*
0－255
Tilt Fine
5
3
0－255
Pan/Tilt Speed
6
4
Macro function
0－129
Blank
130－139
Lamp on by controller
140－149
Pan/Tilt Reset
150－189
Effect Reset
190－199
Blank
200－209
Light Reset
210－229
Blank
230－239
Lamp off by controller
240－255
Blank
7
5
Color Wheel
Rata continuous positioning
0－8
White
9－17
Deep Red
18－26
Deep Blue
27－36
Yellow
37－45
Green
46－54
Magenta
55－63
Azure
64－72
Red
73－81
Deep Green
82－90
Amber
91－100
Blue
101－109
Orange
110－118
Cooling
119－127
Fluorescent Blue
128－129
White
Positioning by color
130－134
Crimson
135－138
Deep Blue
139－143
Yellow
144－147
Green
148－152
Magenta
153－157
Azure
158－161
Red
162－166
Deep Green
167－171
Amber
172－176
Blue
177－180
Orange
181－185
Cooling

15
186－189
Fluorescent Blue
190－215
Forwards rainbow effect from fast to slow
216－217
Water stop
218－243
Backwards rainbow effect from slow to fast
244－249
Random colour selection by sound control
250－255
Random colour selection by audio control
8
*
Blank
9
6
Blank
10
7
Fixed Gobo
0－3
Blank
4－9
Gobo 1
10－15
Gobo 2
16－21
Gobo 3
22－27
Gobo 4
28－33
Gobo 5
34－39
Gobo 6
40－45
Gobo 7
46－51
Gobo 8
52－57
Gobo 9
58－63
Gobo 10
64－69
Beam reducer 1
70－75
Beam reducer 2
76－87
Beam reducer 3
Shaking gobos from slow to fast
88－95
Gobo 1
96－103
Gobo 2
104－111
Gobo 3
112－119
Gobo 4
120－127
Gobo 5
128－135
Gobo 6
136－143
Gobo 7
144－151
Gobo 8
152－159
Gobo 9
160－167
Gobo 10
168－175
Beam reducer 1
176－183
Beam reducer 2
184－199
Beam reducer 3
200－201
Blank
202－221
Forwards fixed gobo wheel rotation from fast to slow
222－223
Water stop
224－243
Backwards fixed gobo wheel rotation from slow to fast
244－249
Random gobo selection by sound control
250－255
Random gobo selection by audio control
11
8
Rotating gobo wheel
Index by 12 channels
0－4
Blank
5－7
Gobo 1
8－10
Gobo 2
11－13
Gobo 3
14－16
Gobo 4
17－19
Gobo 5
20－22
Gobo 6

16
23－25
Gobo 7
26－28
Gobo 8
29－31
Gobo 9
Rotated through 12 channels
32－34
Gobo 1
35－37
Gobo 2
38－40
Gobo 3
41－43
Gobo 4
44－46
Gobo 5
47－49
Gobo 6
50－52
Gobo 7
53－55
Gobo 8
56－59
Gobo 9
Gobo shake from slow to fast
Rotated through 12 channels
60－67
Gobo 1
68－75
Gobo 2
76－83
Gobo 3
84－91
Gobo 4
92－99
Gobo 5
100－107
Gobo 6
108－115
Gobo 7
116－123
Gobo 8
124－129
Gobo 9
Gobo shake from slow to fast
Rotated through 12 channels
130－137
Gobo 1
138－145
Gobo 2
146－153
Gobo 3
154－161
Gobo 4
162－169
Gobo 5
170－177
Gobo 6
178－185
Gobo 7
186－193
Gobo 8
194－199
Gobo 9
200－201
Blank
202－221
Forward rotation from fast to slow flowing water
222－223
Rotation stop
224－243
Reverse rotation from slow to fast flowing water
244－249
Random Rotation gobo selection by sound control
250－255
Random Rotation gobo selection by audio control
12
9
Gobo Rotation
0－127
Indexing
128－177
Backwards gobo rotation from slow to fast
178－203
Stop
204－255
Forwards gobo rotation from fast to slow
13
*
0－255
Blank
14
10
Prism
0－19
Blank
20－49
6-facet linear rotating prism
50－75
6-facet circular rotating prism

17
76－105
8-facet linear rotating prism
106－127
8-facet circular rotating prism
128－135
Macro function 1
136－143
Macro function 2
144－151
Macro function 3
152－159
Macro function 4
160-167
168
-
Macro function 5
168-175
176
Macro function 6
176-183
184
Macro function 7
184-191
Macro function 8
192-199
Macro function 9
200-207
Macro function 10
208-215
Macro function 11
216-223
Macro function 12
224-231
Macro function 13
232-239
Macro function 14
240-247
Macro function 15
248-255
Macro function 16
15
11
Prism rotation
0-127
Index
128-191
Clockwise from fast to slow flowing water
192-193
Blank
194-255
Counterclockwise from slow to fast flowing water
16
12
Frost
0-64
Blank
65－255
Frost from 0% to 100%
17
13
Zoom
0－255
Zoom from max. to min. beam angle
18
*
0－255
Fine zooming
19
14
0－255
Focus
20
*
0－255
Fine focusing
21
*
0－255
Blank
22
15
Shutter/Strobe
0－31
Shutter closed
32－63
Shutter open
64－95
Strobe-effect from slow to fast
96－127
Strobe open
128－143
Closing pulse in sequences from fast to slow
144－159
Opening pulse in sequences from slow to fast
160－191
Shutter open
192－223
Random strobe-effect from slow to fast
224－255
Shutter open
23
16
Dimmer
0－255
Dimmer intensity from 0% to 100%
24
*
Blank
5. Operation Menu

18
Tab
Level 1
Level 2
Level 3
FEATURES SETTING
Run Mode
WIRE/AUTO/DMX
ChanMode
SMAL/STANDEFE
X Reverse
ON/OFF
Y Reverse
ON/OFF
XY Speed
NORM/FAST/SLOW
X. Angle
360/540/630
XY Fback
ON/OFF
SignalClear
ON/OFF
Full Color
ON/OFF
Shortcut
ON/OFF
RST.
SAVE
ESC
ADV.
Zero. Set
Chan. Def.
Fact. Set
Use. Mang.
ESC
UNLOCK
PassWord1(0-255)
PassWord2(0-255)
KEY
ESC
Passport1
Zero. Set/Chan. Def.
1
Fact. Set
1
Use. Mang.
3
MANUAL
LAMP REST
ALL MOTER
PART MOTER
XY MOTER
YES
NO
TEST RUN
AUTO
SOUND
ESC
SMULATE DMX
CH1-CH32(0-255)
ESC

19
SYSTEM INFO
DMX VALUE
CH1-CH32(0-255)
ESC
OTHER INFO
Run Time(0-9999)
Run Count(0-9999)
Residue T(0-9999)
Residue C(0-9999)
Fan 1(0-9999)
Fan 2(0-9999)
Temp 1(0-100)
Temp 2(0-100)
PCB1 Ver
PCB2 Ver
PCB3 Ver
ESC
ERROR INFO
Color
RotGobos
FixeGobo
Plane
Titl
RotGobos1
Prism
Effect
Prism.R
Effect.R
Zoom
Focus
ESC
ESC
DISPLAY SETTING
Brightness
Level 1-7
LightDelay
10Sec/20Sec/30Sec/On
Menuback
10Sec/20Sec/31Sec/Off
Flicker
Off/On
Save
ESC
LAMP SETTING
Default
ON/OFF
Manual
ON/OFF
Electronic
ON/OFF
Back
Back to last level
Converse
Change the display director
Chinese
/English
Change the manu language
Back
Back to LOGO tab
DMX Address(0-512)
Save
Addressing
ESC

19
6. Technical Specifications
Electrical
Power supply:.........................electronic auto-ranging
Input voltage range:............... supply 100-240V, 50/60Hz
Live Fuse:...............................T 5 A/250V,
Neutral Fuse:..........................T 5 A/250V
Max. power consumption:.........470 W at 230V (I=2,05A,power factor 0.96)
Typical power consumption:......390W at 230V (I=1.8A, power factor 0.95)
*Allow for a deviation of +/-10%
Lamp
Approved model: OSRAM SIRIUS HRI 280W
Lamp life: 2000 hrs (Standard mode)
3000 hrs (Eco mode)
Ballast
Electronic
Optical System
High luminous-efficiency glass reflector
Beam range: 5°-20° (spot application)
2.5°-10° (beam application)
Colour wheel
13 dichroic filters + white
Static gobo wheel
10 metal gobos & 4 beam reducers
Rotating gobo wheel
9 glass gobos can be indexed and rotated in both directions at different speeds
Gobo wheel continuous rotation
Glass gobos:
"Slot&lock" system for easy replacement of gobos
Prisms
Rotating 6-facet linear prism with continuous rotation in both directions
Rotating 8-facet circular prism with continuous rotation in both directions
Frost filter
Zoom
Separate,variable frost filter
Linear motorized zoom
Strobe
Strobe effect with variable speed (max.15 flashes/sec.)
Dimmer
Smooth dimmer from 0 - 100 %
