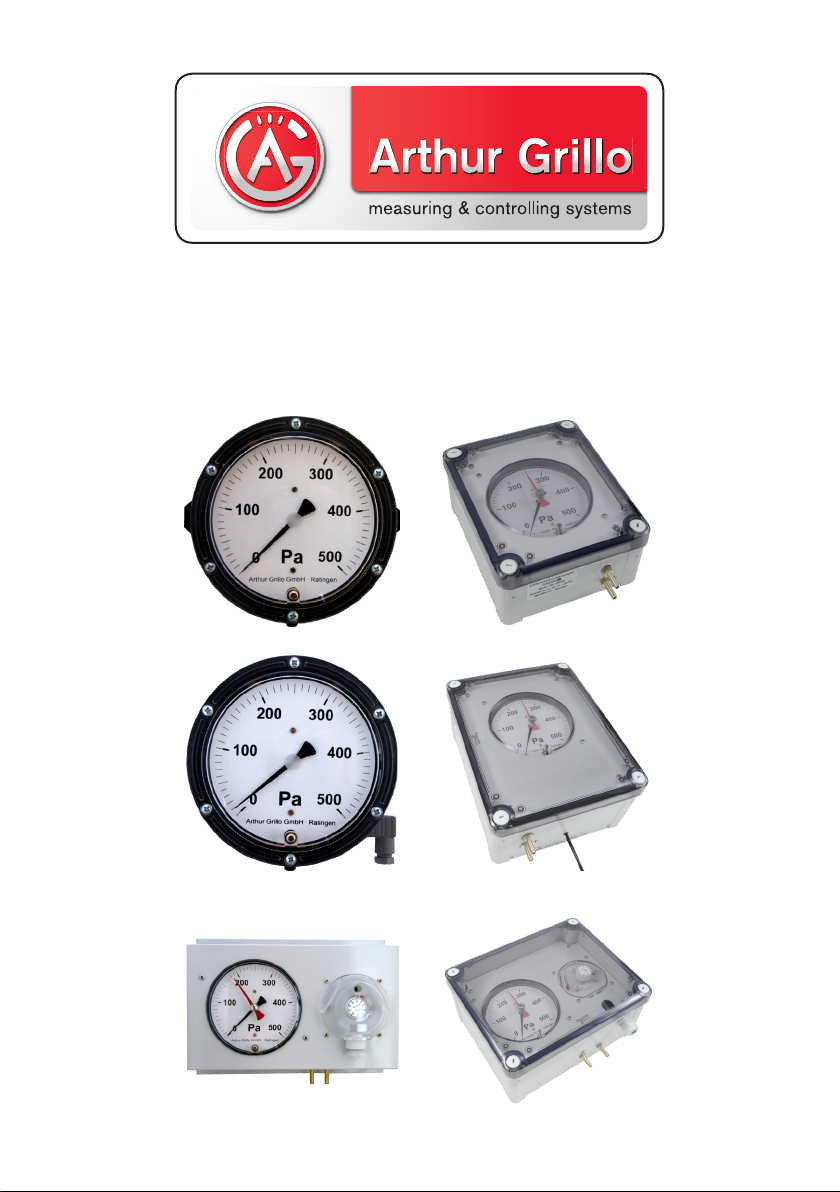

Arthur Grillo DA2000 Series User manual

Installation and operation manual
Differential pressure manometer -
DA2000 series
Doc.-no: DA2000-01 issue: 02/2016

2Doc.-no: DA2000-01 issue: 02/2016
Manufacturer:
Phone:
Fax:
E-mail:
Website:
Issue:
Doc.-no.:
Arthur Grillo GmbH
Am Sandbach 7
40878 Ratingen
0 21 02 - 47 10 22
0 21 02 - 47 58 82
[email protected]
www.grillo-messgeraete.de
www.sensor-store.de
02/2016
DA2000_001
This documentation including all parts is protected by copyright.Any utili-
sation or modication other than permissible under the strict limitations of
copyright law is prohibited and liable to prosecution without the approval
of the Arthur Grillo GmbH.This applies in particular to duplications, trans-
lations, microlming and storage and processing in electronic systems.

3
Doc.-no: DA2000-01 issue: 02/2016
TABLE OF CONTENT
Table of content
1 General safety instructions
1.1 Signal words for safety instructions
1.2 Used pictograms and symbols
1.3 General notes
2 Product description
2.1 Intended use
2.2 Functional description
3 Installation
3.1 Dimensions
3.1.1 DA2000 & DA2000-A
3.1.2 DA2000-K
3.1.3 DA2000 series in IP66 protective housing
4 Electrical connection
5 Maintenance
6 Warranty
7 Disposal
8 Specications     
8.1 CE-labelling
04
04
04
04
05
05
05
05
06
06
07
08
09
10
10
10
11
12

4Doc.-no: DA2000-01 issue: 02/2016
GENERAL SAFETY INSTRUCTIONS
1. General safety instructions
1.1 Signal words for safety instructions
The safety instructions in this operation manual are designed to prevent hazards.They can
be found in the operation manual before an operation / task / activity is described, which
can entail a possible hazard.
Identication of a hazard with a low risk, which can lead to material
damage or minor or moderate bodily injuries.
CAUTION
1.2 Used pictograms and symbols
In this manual the following symbols are used:
General hazard symbol (dan-
ger, warning, caution)
Signal word for important information regarding the product, which
needs to be specically pointed out.
NOTICE
Hazard word Type of hazard
Hazard source
Hazard prevention
1.3 General notes
This manual contains information for installation and operation of
the pressure controller and is exclusively for the operator and ex-
pert staff. The guidelines in this manual will help to avoid danger
and downtime.
NOTICE
General information

5
Doc.-no: DA2000-01 issue: 02/2016
2. Product description
The differential pressure manometer of the DA2000 series are build to measures and display
pressure, negative pressure or differential pressure of non-aggressive gases.
2.1 Intended use
This device is primarily intended for use with air conditioning systems, room pressure
control or lter control. Our differential pressure manometers DA2000s are a simple
solution to monitor pressure in for example lter systems of ventilation technologies.
2.3 Functional description
The differential pressure manometers DA2000s are low pressure indicator.
A soft silicone diaphragm is used as sensor. Under the inuence of the differential pressure
the diaphragm displaces a measuring spring until the spring force compensates pressure
pushing on the diaphragm. The deection is transferred to the display via a pointer engine.
To meet your needs, we offer the DA2000s with different measuring ranges and optional
additional functions.
Optional additional functions are:
• Two limit indicator, in the colors red or green
• Analog outputs 0...10 V or 4...20 mA (DA2000-A)
• Combination with a pressure switch (DA2000-K)
• IP66 housing for each product version (DA2000-S, DA2000-A-S, DA2000-K-S)
• Root extracted output (rad-DA2000)
• Scaled in m3/h
• Double scale (e.g. in Pa and m3/h)
• Tone Scale in desired colors
PRODUCT DESCRIPTION

6Doc.-no: DA2000-01 issue: 02/2016
MONTAGE
3. Installation
The devices of the DA2000 series are intended for wall mounting or installation into a
corresponding panel.
When choosing your location, please note that:
• The mounting surface must be solid enough and vibration-free.
• The environment has to full the ambient climatic conditions as given in the technical
data.
3.1 Dimensions
All dimensions in mm.
3.1.1 DA2000 & DA2000-A
Wall mounting DA2000 Wall mounting DA2000-A
Material damage
Read the manual carefully before installation and operation
Only experienced stuff may connect the device and bring it into
operation.
CAUTION
• The device is position depended.
• The DA2000 must be mounted vertically.
• The DA2000 can be mounted to a wall or panel
NOTICE

7
Doc.-no: DA2000-01 issue: 02/2016
ABMESSUNGEN
Panel mounting (in front of the panel) Panel mounting (behind the panel)
3.1.2 DA2000-K
Wall mounting
Anschlussstutzen
HINTEN
Anschlussstutzen
UNTEN
ø122
ø120
ø134
41
60
80
+
-
Pa
100
20
0
40

8Doc.-no: DA2000-01 issue: 02/2016
3.1.3 DA2000 series in IP66 protective housing
Wall mounting DA2000-K-S
Wall mounting DA2000-S
Wall mounting DA2000-A-S
MONTAGE

9
Doc.-no: DA2000-01 issue: 02/2016
4. Electrical connection
DA2000-A
Connection diagram two-wire circuit
DA2000-A
Connection diagram three-wire circuit
DA2000-K
Connection diagram pressure switch
MONTAGE

10 Doc.-no: DA2000-01 issue: 02/2016
6. Warranty
Warranty and liability claims for personal and property damage are excluded if they are
caused by one or more of the following reasons:
• Improper use of the device.
• Improper installation, commissioning, operation and maintenance of the device.
• Unauthorized modications to the device beyond the intended use.
• Disasters due to external inuences and force majeure.
7. Disposal
Dispose of parts so as not to endanger the human health or environment. Follow the laws
in the country of use for disposing of electronic components and devices during disposal.
WARRANTY & SUPPORT
5. Maintenance
The DA2000 contains no wearing or consumable parts. Servicing is not required.
On request, Arthur Grillo GmbH offers an annual calibration with factory certicate.
For information, please contact:
Arthur Grillo GmbH Phone: 0 21 02 - 47 10 22
Am Sandbach 7 Fax: 0 21 02 - 47 58 82
40878 Ratingen E-Mail: [email protected]

11
Doc.-no: DA2000-01 issue: 02/2016
TECHNICAL SPECIFICATIONS
8. Specication
0...100 Pa, 0...200 Pa, 0...500 Pa, 0...1000 Pa, 0...2000 Pa,
0...5000 Pa
Scale length 270° = approx. 250 mm
not less then 10-times measurment span
max. 0,2 bar
hose nozzle 8 mm ø
Ultramid/ABS, black, transparent cover
round outside 134 mm ø
-10...50 °C
IP 65
approx. 400 g
± 2 %
20...300 Pa, 30...400 Pa 50...500 Pa, 200...1000 Pa, 500...2500
Pa, 1000...5000 Pa
± 15 %
max. 1,5 A / 250 Vac
mechanical more then 106cycles
normally closed contact - NC
normally open contact - NO
supply - COM
0...10 V, 3-wire-circuit
supply voltage 15...30 Vdc or 24 Vac
4...20 mA, 2-wire-circuit
supply voltage 12...30 Vdc
rectangle plug connector 16 mm or
color coded cable, approx. 50 cm long
IP54 - DA2000, DA2000-A, DA2000-K
IP66 - DA2000-S, DA2000-A-S, DA2000-K-S
Manometer
Measurment range:
Display:
Overload protection:
Static pressure:
Pressure connection:
Housing:
Ambient temperature:
Protection class:
Weight:
Tolerance:
Pressure switch
Adjustable switching ranges:
Tolerance on the upper and
lower switching point:
Switching capacity:
Durability:
Contact arrangement:
Analog output
Signal range:
Electrical connection:
Protection class:

12 Doc.-no: DA2000-01 issue: 02/2016
CE-LABELLING
8.1 CE-labelling
As an electric device the DPC200 falls within the scope of the directive 2004/108/EG
(EMV-directive). In the scope of the EMV-directive the following norms were applied:
DIN EN 61000-6-2:2006-03
correction 1:2011-06
Electromagnetic compatibility (EMC) - Part 6-2: Generic
standards - Immunity for industrial environments
DIN EN 61000-6-3:2011-09
Electromagnetic compatibility (EMC) - Part 6-3: Generic
standards - Emission standard for residential, commer-
cial and light industrial environments
You can order the Declaration of Conformity at:
Arthur Grillo GmbH
Am Sandbach 7
40878 Ratingen
Phone: 0 21 02 - 47 10 22
Fax: 0 21 02 - 47 58 82
E-mail: [email protected]
