Artillian 1RMBCH Operating instructions

1 of 6
INSTALLATION & OWNER’S MANUAL
Rev. B, 08/10/2020 p/n: IM-1RMBCH
ARTILLIAN ROPS MOUNTED
BEVERAGE COOLER HOLDER
P/N: 1RMBCH
Approximate Set-Up Time
Experienced Dealer Technician – 15 Minutes
Average Dealer Technician – 15 Minutes
Do-It-Yourself – 15 Minutes
Approximate Product Specifications
Overall dimensions: 22.25” L x 16.25” W x 11.25” H
Weight: 19 lbs. (not including mounting bar)
Capacity: 40 lbs.
The Artillian Beverage Cooler Holder is the perfect accessory for a full day
out on the tractor. Large enough to hold most 12-pack coolers, you now
have a place to store your lunch and some ice cold drinks! An included
cam buckle strap with E-track fittings securely holds a cooler in place and
allows for quick removal on the go. Many E-track locking positions suit
various cooler sizes and orientations. Texture black powder coat,
integrated bottle openers, and two included cup holders round out the
design.
Integrated Cam Lever Latches securely lock onto the Artillian ROPS
Mounted Tool Bar (sold separately) in seconds without the use of tools.
For use on Artillian ROPS Mounted Tool Bar (P/N: 1RMTB) (sold separately)
CAUTION Do not exceed the rated capacity for the Beverage Cooler Holder. Doing so may
result in damage to the holder and/or the Tool Bar and will void the warranty.
The contents of this envelope are the property of the owner. Leave with the owner when installation is complete.
Comes with 15ft long x 1 inch wide E-Track Cam-buckle Strap (not shown)

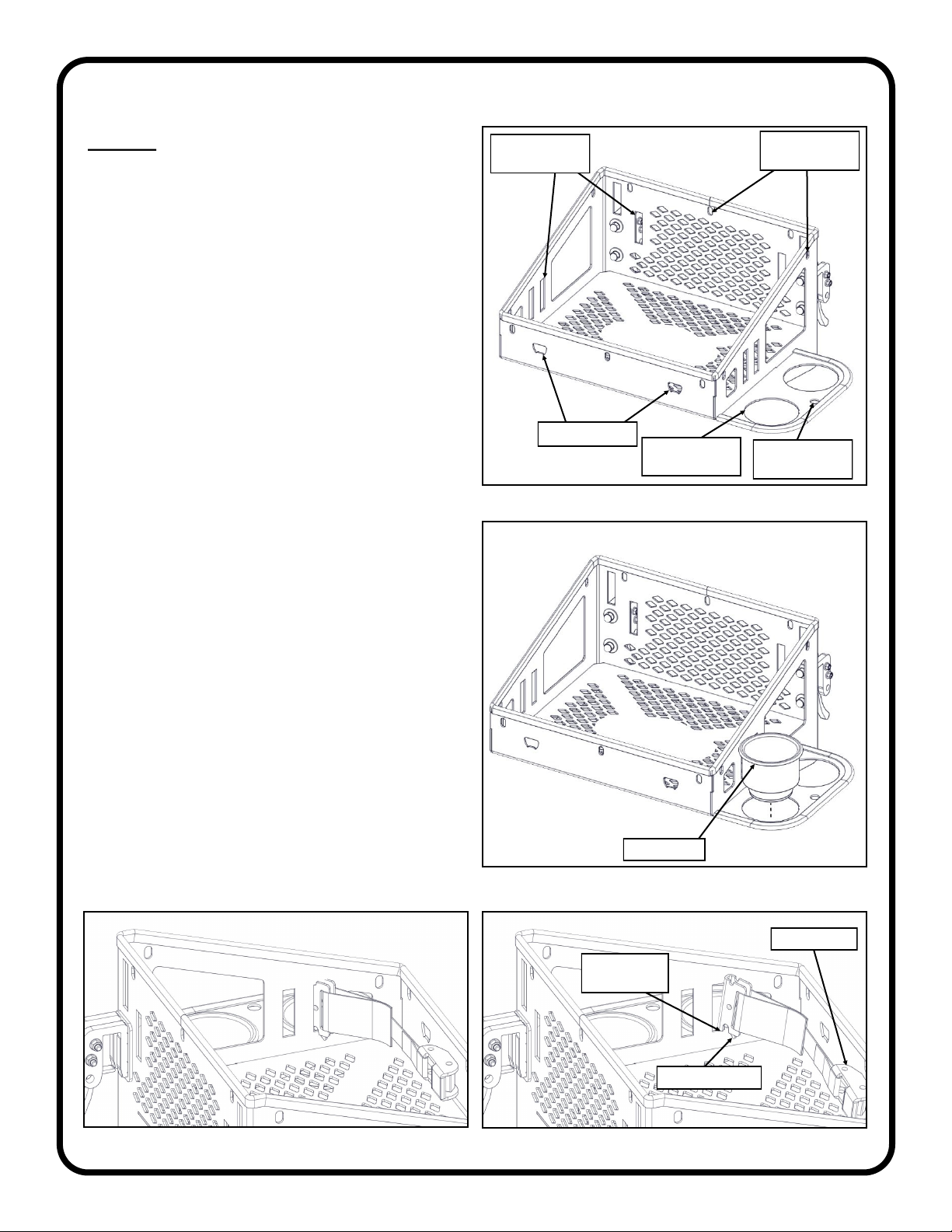

2 of 6
SET-UP
SET-UP
1. The beverage cooler holder features include many
E-Track slots, bungee cord holes, bottle openers,
cup holders and even a carabiner clip hole for a
carabiner mounted accessory (for example: a
Bluetooth speaker). See fig. 1.
2. Insert the (2) supplied cup holders into the
mounting holes. See fig. 2.
3. Based on the size of your beverage cooler, locate
the best E-track slots that meet your needs.
Install the fixed end of the strap first. To install the
E-track fitting, pull the release lever towards the
cam buckle, hook the release lever end of the
fitting into the mount and then insert the other
end. Release the lever. See figs. 3a & b.
Fig. 1 (mounting point options)
Fig. 2 (installing cup holders)
Fig. 3a (install fixed end of hold-down strap)
Pull back lever
Hook this end
first
Fig. 3b (fixed end of hold-down strap installed)
Cam buckle
E-Track
Mounting Slots
Bungee Cord
Slots
Carabiner Clip
Hole
Bottle Openers
Cup Holder
Holes
Cup Holder

3 of 6
SET-UP
SET-UP (cont’d.)
4. Install the adjustable length E-track cam-buckle
strap in the desired E-track slot location. Route the
strap around the front of the cooler as shown in fig.
4. Note: If you have chosen to use one of the alternate E-track
slots, route the strap accordingly.
5. Install the adjustable end of strap into the fixed
end’s cam buckle and tighten strap down. Once
fully tightened, cut the excess strap (if desired)
using a pair of scissors.
Remove the beverage cooler from the beverage
cooler holder prior to the next step.
6. Once the strap is cut to length, use a heat gun or
lighter to singe the cut end of the strap to make
sure that the strap does not fray. See fig. 6.
Note: One E-track cam-buckle strap is provided in the
kit. However, the mount was designed with many E-
track and bungee cord slots to allow the user the option
to add more straps or bungee cords, as desired.
Fig. 4 (install adjustable length hold-down strap end)
Fig. 6 (cut adjustable length hold-down strap end)
Cut and singe
Hold-down strap
CAUTION:

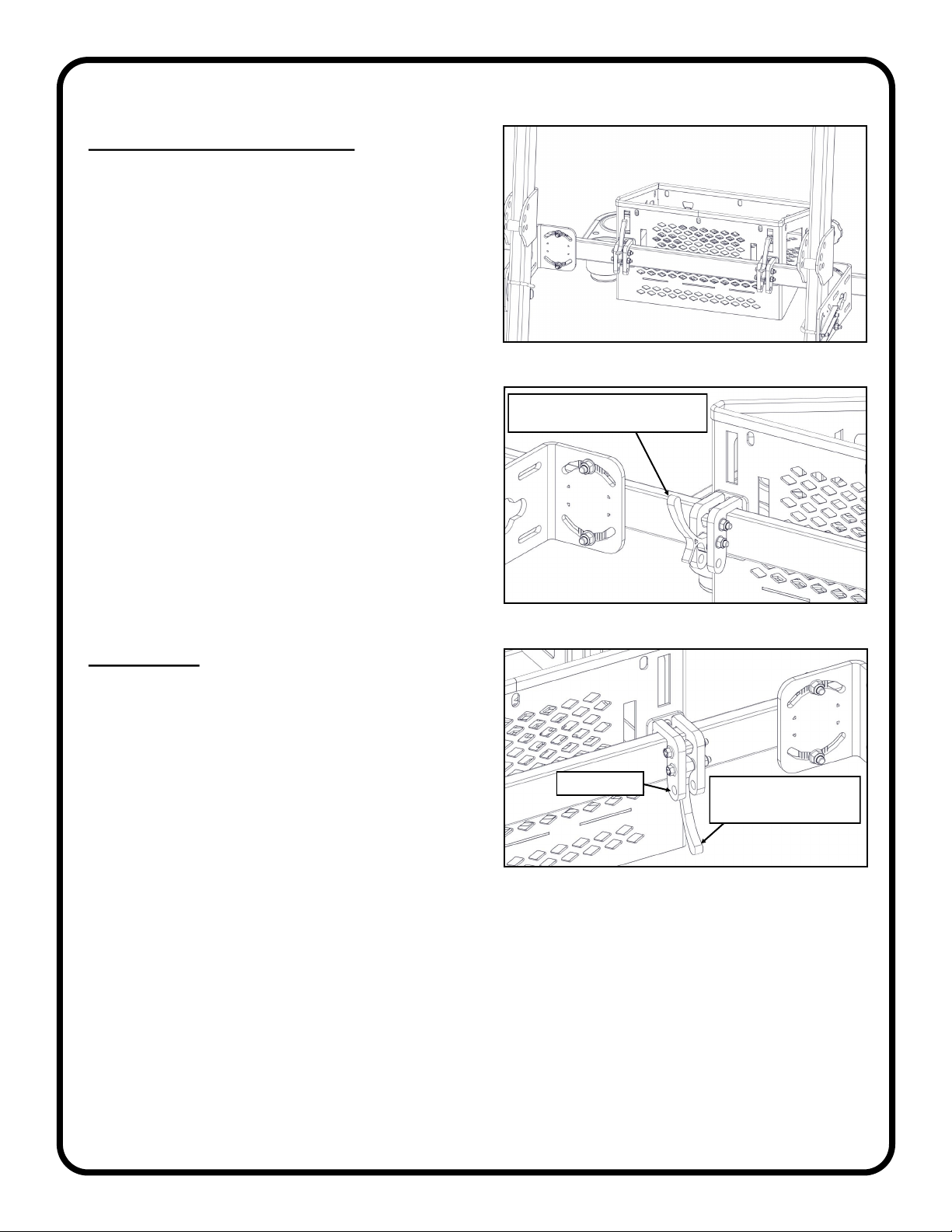

4 of 6
Fig. 7 (attaching a beverage cooler holder)
ATTACHING AND OPERATION
Fig. 8 (cam lever in the open position)
Fig. 9 (cam lever in the closed position)
rotate both cam levers up to
install the beverage cooler holder
padlock holes rotate both cam levers down
to secure the beverage
cooler holder
ATTACH TO MOUNTING BAR:
Note: The Artillian ROPS Mounted Toolbar is designed to
hold multiple accessories at one time. If placed appropriately,
up to 3 separate accessories may be possible. For example,
the Chainsaw Mount, Fuel Can Holder, and Beverage Cooler
Holder were designed to fit on the toolbar simultaneously.
7. Figure 7 shows a beverage cooler holder installed
onto an Artillian ROPS Mounted Tool Bar.
8. To install the beverage cooler holder, rotate both
cam levers UP, then place onto the Tool Bar. See
fig. 8.
Note: if the Cam Lever Latches do not sit flush on the Tool Bar, one
of the clamp plates may not have been fully open. Simply remove the
beverage cooler holder, rotate the cam levers up and tilt the
beverage cooler holder away from you to ensure the clamp plates are
fully open, then reinstall on the Tool Bar.
9. To secure the beverage cooler holder to the Tool
Bar, rotate both cam levers DOWN until they cam
over. See fig. 9.
NOTE: For additional security, the beverage cooler holder can be
locked to the Tool Bar by inserting a padlock through the holes in the
mounting bracket where shown in fig. 9.
10. To remove the beverage cooler holder from the
Tool Bar, rotate both cam levers UP, then lift the
beverage cooler holder.
OPERATION
11. For optimal functionality, the cam lever latches are
factory assembled with some friction between the
cam lever and the housing. This ensures the cam
lever doesn’t accidentally flip closed while the user
attempts to install it on the bar. If the cam levers
loosen up over time, simply tighten the nut and bolt
that secure the lever to the housing until the
desired resistance on the cam lever has been
achieved.

5 of 6
1" WIDE HOLD-DOWN, 15' LG, BLACK
P/N: 9SV-9BC06 (QTY.: ONE)
SERVICE PARTS:
CAM LEVER LATCH
P/N: 8SV-110-00071 (QTY.: ONE)
BEVERAGE COOLER HOLDER (with Trim
Lok); P/N: 8SV-WA-00372 (QTY.: ONE)
TRIM LOK (10 feet long)
P/N: 9SV-PRO1-10
SAFETY WALK ADHESIVE STRIPS
P/N: 9SV-9PR62-375 (QTY.: 12)
CUP HOLDER, 3.75" DIAM. X 3.25"
TALL; P/N: 9SV-9CUP02 (QTY.: ONE)

6 of 6
ROPS MOUNTED TOOL RACK
P/N: 1RMTRK
ROPS MOUNTED TOOLBOX, X-LARGE
P/N: 1RMTBXL
MORE ACCESSORIES COMING SOON!
OTHER ACCESSORIES:
ROPS MOUNTED TOOL BASKET
P/N: 1RMTBSK
ROPS MOUNTED TOOLBOX, LARGE
P/N: 1RMTBXS
ROPS MOUNTED CHAINSAW MOUNT
P/N: 1RMCSM
(chainsaw shown for illustration purposes)
ROPS MOUNTED FUEL CAN HOLDER
P/N: 1RMFCH
(fuel can and accessories shown for illustration purposes)
ROPS MOUNTED 5-GALLON BUCKET
HOLDER - P/N: 1RM5GBH
(Bucket shown for illustration purposes)
TOOL BAR WALL MOUNT
P/N: 1RMTBWM
