User manual
EFT/ Burst Generator
PEFT Junior

Title EFT/ Burst Generator PEFT Junior
Release date 17.3.97
Author N. Wright
Layout BA_2S_LK.DOC
Reference 250231.1 / 00
Number of pages 83
Name of file 2E250231.DOC

EFT/ Burst Generator PEFT Junior
Contents
1. Description 1
1.1 Introduction...........................................................................................................1
1.2 Technical data ......................................................................................................2
1.2.1 Impulse shape...............................................................................................2
1.2.2 Voltage test levels .........................................................................................2
1.2.3 Operating frequencies...................................................................................3
1.2.4 Coupling modes ............................................................................................4
1.2.5 Single phase integrated filter.........................................................................4
1.2.6 Connections ..................................................................................................4
1.2.7 Control ..........................................................................................................5
1.3 Dimensions...........................................................................................................6
1.4 Electrical connections ...........................................................................................6
1.5 Lexicon .................................................................................................................7
2. Safety 8
2.1 Safety standards...................................................................................................8
2.2 Environmental conditions......................................................................................8
2.3 Operating precautions ..........................................................................................9
2.4 Electromagnetic compatibility................................................................................9
2.5 Limit of liability ......................................................................................................9
3. Technical overview 10
3.1 Construction .........................................................................................................10
3.2 Control circuits......................................................................................................11
3.3 Power supplies .....................................................................................................12

EFT/ Burst Generator PEFT Junior
3.4 High voltage circuit............................................................................................... 12
3.5 Impulse circuits .................................................................................................... 13
4. Control elements 14
4.1 Generator rear panel............................................................................................ 14
4.1.1 Ventilation..................................................................................................... 14
4.1.2 Primary power. ............................................................................................. 14
4.1.3 Printer connection ( PRINTER)..................................................................... 14
4.1.4 Interface IEEE/GPIB (Option )...................................................................... 15
4.1.5 Interface RS 232.(Option)............................................................................. 15
4.1.6 External coupling filter control - P90 EXTENSION (option)........................... 15
4.1.7 Safety circuit ( SAFETY CIRCUIT ) .............................................................. 15
4.1.8 Mains voltage selection ( Line input )............................................................ 15
4.2 Generator front panel........................................................................................... 16
4.2.1 Control unit P90............................................................................................ 17
4.2.1.1 Liquid crystal display (1)........................................................................ 17
4.2.1.2 Safety circuit indications SAFETY (2).................................................... 18
4.2.1.3 START / STOP key (3) ......................................................................... 18
4.2.1.4 HV / LINE ON indication (4) .................................................................. 18
4.2.1.5 POWER ON / OFF switch (5)................................................................ 18
4.2.1.6 Synchronisation input SYNC IN (6) ....................................................... 18
4.2.1.7 Oscilloscope trigger output TRIGGER OUT (7)..................................... 18
4.2.1.8 Menu previous page (8) ........................................................................ 18
4.2.1.9 Function keys F1 to F4 (9) .................................................................... 19
4.2.1.10 Menu next page (10) ........................................................................... 19
4.2.1.11 Numerical keypad (11) ........................................................................ 19
4.2.2 High voltage impulse output connections...................................................... 20
4.2.2.1 EUT mains supply................................................................................. 20
4.2.2.2 Coupling paths...................................................................................... 20
4.2.2.3 EUT mains protection............................................................................ 20

EFT/ Burst Generator PEFT Junior
4.2.2.4 High voltage burst output.......................................................................21
4.2.2.5 Ground connection ................................................................................21
4.3 Control modes ......................................................................................................22
4.3.1 Local control..................................................................................................22
4.3.2 Remote control..............................................................................................23
5. Test set up 24
5.1 Instruction for set up .............................................................................................24
5.2 Operating personnel .............................................................................................24
5.3 Initial operation .....................................................................................................24
5.3.1 Optical control ...............................................................................................24
5.3.2 Mains power..................................................................................................24
5.4 Installation in accordance with IEC 1000-4-4 ........................................................25
5.4.1 Installation for single phase testing ...............................................................25
5.4.2 Installation for three phase testing.................................................................26
5.4.3 Installation for coupling into control lines. ......................................................27
5.5 Other test system possibilities...............................................................................28
5.5.1 System controlled by PC ...............................................................................28
5.5.2 Single phase "on line" system .......................................................................29
5.5.3 Three phase "on line" system........................................................................29
5.5.4 EMC test system PATS.................................................................................30
6. Operation 31
6.1 Parameter definition..............................................................................................31
6.1.1 Input menu ....................................................................................................32
6.1.1.1 Nominal test voltage V-NOMINAL..........................................................32
6.1.1.2 Burst polarity POLARITY .......................................................................32
6.1.1.3 Burst trigger TRIGGER..........................................................................32

EFT/ Burst Generator PEFT Junior
6.1.2 Burst output BURST OUTPUT ..................................................................... 33
6.1.2.1 Direct output TO HV-OUT ..................................................................... 33
6.1.2.2 Coupling to single phase mains TO LINE 1PHASE............................... 33
6.1.2.3 Coupling to three phase mains TO LINE 3PHASE................................ 33
6.1.3 Coupling path options COUPLING PATH..................................................... 34
6.1.3.1 Single phase coupling ........................................................................... 34
6.1.3.2 Three phase coupling............................................................................ 34
6.1.4 Repetition frequency..................................................................................... 36
6.1.4.1 Spike repetition frequency SPIKE FREQ. ............................................. 36
6.1.4.2 Burst duration BURST DUR. ................................................................. 36
6.1.4.3 Burst repetition frequency BURST FREQ. ............................................ 36
6.1.4.4 Test duration TEST TIME. .................................................................... 37
6.1.5 Synchronisation ............................................................................................ 37
6.1.5.1 Random burst distribution RANDOM..................................................... 37
6.1.5.2 Burst synchronisation BURST SYNCRO............................................... 38
6.1.5.3 Frequency of synchronisation signal SYNCRO FREQ. ......................... 38
6.1.5.4 Synchronisation to a phase angle SYNCRO ANGLE ............................ 38
6.1.6 Transitions.................................................................................................... 38
6.1.6.1 Test voltage transition VOLTAGE TRANS. ........................................... 39
6.1.6.2 Burst frequency transition FREQ. TRANS............................................. 39
6.1.6.3 Synchronisation transition SYNCRO TRANS. ....................................... 40
6.1.7 Save menu ................................................................................................... 41
6.1.7.1 Saving a program SAVE PROGRAM IN ............................................... 41
6.1.7.2 Linking programs NEXT PROGRAM..................................................... 41
6.1.7.3 Selecting the printer PRINTER.............................................................. 41
6.2 Function operation ............................................................................................... 43
6.3 Interface operation ............................................................................................... 45
6.3.1 Operation in remote mode............................................................................ 45
6.3.2 P90 interface configuration.......................................................................... 45
6.3.3 PC Configuration .......................................................................................... 46
6.3.4 Using the RS232/IEEE type 730 interface .................................................... 46

EFT/ Burst Generator PEFT Junior
6.3.4.1 Entry format...........................................................................................47
6.3.4.2 Entry format...........................................................................................47
6.3.4.3 Serial Interface RS-232C.......................................................................47
6.3.4.4 Switching remote mode / local mode .....................................................47
6.3.5 Programing ...................................................................................................47
6.3.5.1 Command syntax...................................................................................48
6.3.5.2 Interrogation commands ........................................................................49
6.3.5.3 Remote Control Debug utility .................................................................49
6.3.5.4 Error control...........................................................................................51
6.3.5.5 PEFT Junior remote control commands.................................................55
6.3.6 Program examples ........................................................................................57
6.3.7 Test programs...............................................................................................60
6.4 Functional diagrams .............................................................................................62
6.4.1 Menu configuration........................................................................................62
6.4.2 Program functions .........................................................................................63
6.4.3 Run time options ...........................................................................................64
7. Maintenance and verification 65
7.1 Maintenance .........................................................................................................65
7.2 Measurement requirements ..................................................................................65
7.3 Quick verification of PEFT ....................................................................................66
8. Function failures 68
8.1 Error messages ....................................................................................................68
8.2 Fault diagnostics...................................................................................................69
8.3 Service..................................................................................................................70
8.4 Replacement parts................................................................................................74
8.5 After sales service ................................................................................................74

EFT/ Burst Generator PEFT Junior
9. Shutdown and storage 75
9.1 Daily shutdown..................................................................................................... 75
9.2 Storage for long periods....................................................................................... 75
10. Packaging and Transport 76
10.1 Packaging .......................................................................................................... 76
10.2 Transport ........................................................................................................... 76
11. Disposal 77
11.1 Disassembly information .................................................................................... 77
11.2 Recyclable components ..................................................................................... 77
11.3 Non-recyclable components............................................................................... 77
12. Accessories and options 78
12.1 Accessories........................................................................................................ 78
12.2 Options .............................................................................................................. 78
13. Corrections and additions 79

EFT/ Burst Generator PEFT Junior 1
1. Description
1.1 Introduction
The PEFT Junior test system, enables electromagnetic immunity testing in accordance with the
standard IEC 1000-4-4 (IEC 801-4).
The built in single phase mains filter enables coupling of EFT / Burst into the EUT mains supply
with minimum disturbance to the general mains.
HAEFELY
CONTROL UNIT
HAEFELY
PEFT.1
Fig. 1.1
The equipment is controlled by an integrated microprocessor control unit ( P90 ).
In order to conduct three phase tests in accordance with the standard IEC 1000-4-4, it is
necessary to use an external coupling filter. For example the FP-EFT 32.1 is a three phase filter
that can be controlled directly from the PEFT Junior mainframe.
Tests in IEC 1000-4-4 which require coupling of the EFT / Burst into data and communication
lines, can be achieved using the capacitive coupling clamp type IP4A.
The test system can be made fully automatic, by using the optional interface type RC 730 for
RS232 and IEEE communication with the WinPATS software package.

2 EFT/ Burst Generator PEFT Junior
1.2 Technical data
The PEFT Junior, has the following technical characteristics:
1.2.1 Impulse shape
Definition in accordance with the standard IEC 1000-4-4 ( IEC 801-4 )
Vnominal
Delta V
SPIKE FREQ.
BURST DUR. BURST FREQ:
90 %
50 %
10 %
ta
tb
tt
VV
PEFTMES1.PIC
Fig.1.2.1
Voltage impulse form into 50 Ωta 5 ns ±30%
tb 50 ns ±30%
Voltage impulse form into 1kΩta 5 ns ±30%
tb 35 ns...150 ns
Output impedance 50 Ω±20%
Polarity POLARITY positive / negative
Tab.1.2.1
1.2.2 Voltage test levels
Open circuit test voltage
Vnominal
0.22 to 4.5 kV ±10%
delta V for 75 impules per burst frequency=10 kHz ≤1%
frequency=100 kHz
≤2%
frequency=1 MHz ≤10%
Tab.1.2.2

EFT/ Burst Generator PEFT Junior 3
1.2.3 Operating frequencies
Impulse frequency
(limited as a function of test
voltage, see Fig 1.2.3a )
SPIKE FREQ
1 Hz to 1 MHz
±2% for F≤100 kHz
±20% for F≤1MHz
Burst duration BURST DUR 0.01 to 20 ms ±2%
Burst frequency BURST FREQ 1 to 400 Hz ±2%
Impulses / second
max. 600
Impulses / burst SPIKE/BURST max. 150
Tab.1.2.3

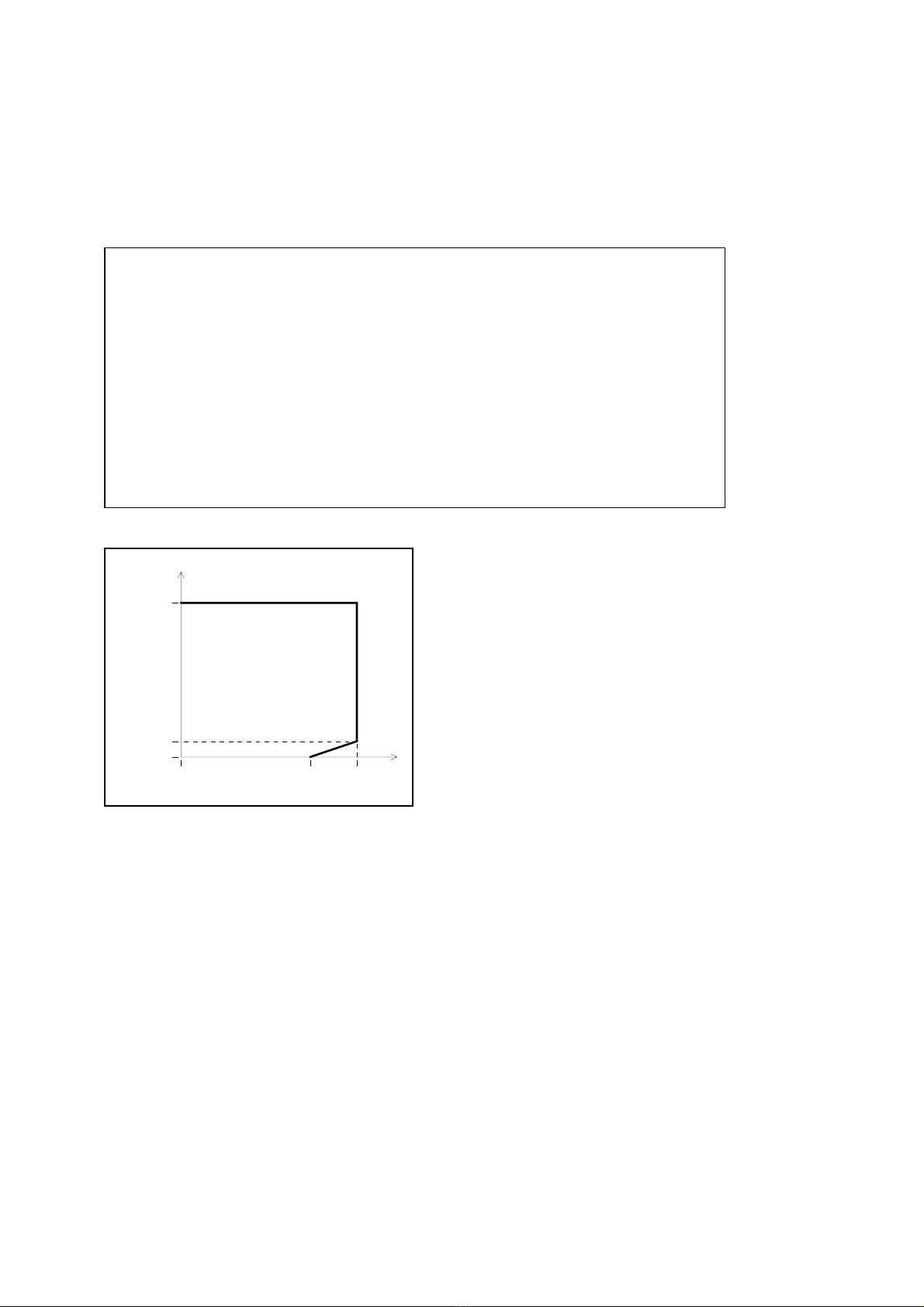

Diagram of limitations
V
F
4.5kV
0.5kV
0.25kV
500kHz 1MHz 1Hz
Fig.1.2.3a

4 EFT/ Burst Generator PEFT Junior
1.2.4 Coupling modes
The EFT / burst can be delivered as follows.
Coupling into control lines using
the capacitive coupling clamp
To HV-OUT
Direct output to SHV
connector
Coupling into single phase mains To-LINE 1PHASE
Output coupled to
integrated single
phase filter
Coupling into three phase mains To-LINE 3PHASE Direct output to SHV
connector,
with control of the
external three phase
filter
Tab.1.2.4
1.2.5 Single phase integrated filter
Maximum operating voltage
Ueff 250 V
Maximum operational current DC max.10 A
50 Hz max. 16 A
400 Hz max. 9 A
Bandwidth
1 to 100 MHz
Coupling attenuation
< 2 dB
Asymetric filter attenuation > 20 dB
Tab. 1.2.5
1.2.6 Connections
High voltage output to coaxial connector type SHV
Mains input to integrated filter connector type IEC 320 250 V / 16 A
Mains output from integrated filter Euro (Schuko) 250 V / 16 A
Tab. 1.2.6

EFT/ Burst Generator PEFT Junior 5
1.2.7 Control
Synchronisation with mains 162/3,40, 50, 60 ou 400 Hz
Impulse trigger Manual or automatic
Oscilloscope trigger Signal + 15 V on output BNC
Safety Software: via safety circuit
External 3 phase coupling filter
( option )
The connection "P90 extension" enables
control of an external coupling filter.
Test report By connecting a printer to the serial output.
Remote control ( option ) Type RC730 interface for RS232 and IEEE.
Tab. 1.2.7

6 EFT/ Burst Generator PEFT Junior
1.3 Dimensions
The generator is built into a 19 " case 3 " high, its dimensions are:
Case (internal) 19", 3", 480 mm
Housing 520 x 166 x 500 mm
Weight 18 kg
Tab 1.3
Attention
For optimal ventilation and access to the rear
panel connectors, it is recommended that a
space of approximately 25 cm be left around
the generator
1.4 Electrical connections
The generator mains input is on the back panel.
Mains requirements are:
Single phase voltage 230 V ( 50 Hz )
115 V ( 60 Hz )
± 10 %
± 10 %
Nominal power 120 VA ( 230 V, 50 Hz )
( 115 V, 60 Hz )
Tab. 1.4
Mains voltage selection is made using the manual switch on the rear panel.
Connection to the mains is made using a 10 A cable fitted with the relevant plug:
Europe ( CEE-7/VII )
Great Britain ( BS-1363 )
Switzerland ( SEV Type 12 )
USA ( NEMA5-15P )

EFT/ Burst Generator PEFT Junior 7
1.5 Lexicon
An aide memoire for the electrotechnical vocabulary used in the standard IEC 50 (161)
EUT Equipment Under Test
EMC Electro Magnetic Compatibility
EFT/B Electrical Fast Transient / Burst
Coupling network Electrical network for the purpose of
transferring energy from one circuit to
another
Decoupling network Electrical network for the purpose of filtering
signals
Coupling filter
(single-threephase)
Electrical circuit (single-threephase)
incorporating coupling and decoupling
networks
HV High Voltage
Tab 1.5

8 EFT/ Burst Generator PEFT Junior
2. Safety
2.1 Safety standards
The generator has been constructed in accordance with IEC 348 and IEC 1010: Safety
requirements for electronic apparatus.
This user manual contains information and warnings that must be heeded by the user for safe
and efficient use of the generator.
2.2 Environmental conditions
The generator contains high voltage circuits in a very small volume, this defines the
environmental conditions under which it may be operated.
Temperature 15 °C to 35 °C
Relative humidity 45 % to 75 %
Atmospheric pressure 86 kPa to 106 kPa (860 to 1060 mbar)
Absence of Frost, dew, rain,
condensation, water
infiltration, direct sun
Tab. 2.2
The generator must only be used in dry rooms. In the case of visible condensation, the generator
must be dried before use.
Under certain conditions sparks can be produced by the EUT or generator. Because of this the
generator must not be used in an area where an explosion hazard exists.
WARNING
Persons with heart pace makers must not be in
the area when the generator is operating

EFT/ Burst Generator PEFT Junior 9
2.3 Operating precautions
The generator produces high volatges, it is essential that the following basic safety instructions
be followed:
Do not approach the EUT during testing. Accesss to the EUT during operation
can be prevented by use of the safety circuit.
Never touch high voltage cables or connections during operation.
When handling the EUT, the high voltage and any supply to the coupling filter
must first be switched off.
For any service inside the generator, first disconnect the mains.
Tab. 2.3
For safety reasons, the generator must only be connected to an earthed mains supply.
2.4 Electromagnetic compatibility
The EUT may radiate electromagnetic energy. The local rules and regulations must be observed
with regard to this stray energy.
The PEFT Junior should not be placed close to sensitive measuring instruments.
The PEFT Junior satisfies the requirements of the following immunity tests:
Electrostatic discharge level 4 (IEC 1000-4-2)
Electric fast transients and burst level 3 (IEC 1000-4-4)
Surge level 3 (IEC 1000-4-5)
Fig. 2.4
2.5 Limit of liability
This operator manual is an integrated part of the PEFT Junior test system.
The safety and operating instructions must be complied with.
Emile Haefely & CO LTD. and all its sales partners refuse to accept responsibility for
consequential or direct damage caused to persons and / or goods due to non-observance of the
user manual or incorrect use of the PEFT Junior.

10 EFT/ Burst Generator PEFT Junior
3. Technical overview
3.1 Construction
The generator comprises the following parts:
- microprocessor unit P90, contains all the control elements of the PEFT Junior.
- Main PCB, here are mounted the high voltage supply and regulation circuits, the impulse
forming circuits, high voltage switch and most elements of the single phase coupling filter.
- Power supply unit, generates 24 V DC.
HAEFELY
CONTROL UNIT
HAEFELY
PEFT.1
P90 Power supply unit
Fan
Main PCB
Filter coils
Fig. 3.1

EFT/ Burst Generator PEFT Junior 11
3.2 Control circuits
the P90 microprocessor is the interface between the user and the generator. It controls all the
functions of the PEFT Junior.
The LCD display has two user accesseable layers, the first is to display parameters and test
sequences, the second displays the operational conditions during a test.
RS232 / IEEE (Option)
Printer
Control unit
microprocessor
P90
Power supply
Safety circuit
Trigger output
Syncro Input
Control unit display
Control unit keyboard
P90 Extension (Option)
Main PCB
EUT failed ( option )
Fig. 3.2
