ARTRAY ARTCAM-990SWIR User manual

- 1 -
December 17, 2020
Ver1.00
USB3.0 InGaAs NIR CAMERA
ARTCAM-990SWIR
INSTRUCTION BOOKLET
ARTRAY CO., LTD.

- 2 -
Contents
1. Attention ............................................................................................................- 3 -
2. Introduction........................................................................................................- 6 -
3. Main Features .....................................................................................................- 6 -
4. The Product ........................................................................................................- 6 -
5. Connect the Camera ............................................................................................- 7 -
5.1. How to Connect a Camera...............................................................................- 7 -
6. Specifications......................................................................................................- 8 -
6.1. Camera Specification ......................................................................................- 8 -
6.1.1. Analog / Digital Gain Settings.....................................................................- 9 -
6.1.2. Dimensional Outline................................................................................ - 10 -
6.1.3. Sensor Package Information .................................................................... - 11 -
6.1.4. Sensor Position and the Light Receiving Surface.......................................... - 12 -
6.1.5. Field of Vision: Lens versus Sensor（For Reference Only）........................... - 12 -
6.2. Sensor Specification (Based on sensor datasheet from the manufacturer) ............ - 13 -
6.2.1. Sensor Specification ............................................................................... - 13 -
6.2.2. Spectral Sensitivity Characteristics............................................................ - 13 -
6.3. Camera Function.......................................................................................... - 14 -
6.3.1. Eternal Trigger Function(Option)............................................................... - 14 -
6.3.2. Trigger Timing ....................................................................................... - 15 -
7. System Requirements ........................................................................................ - 16 -
7.1. Recommended System Requirements ............................................................. - 16 -

- 3 -
1. Attention
■About this manual
1．Before using the camera, please read this manual thoroughly.
2．Please keep this manual reachable and always refer to the contents when needed.
3．Please contact us if the manual is lost or damaged. We will provide a replacement.
4．We cannot guarantee the safety of improper uses of the camera.
5．For your safety, please follow the directions of this manual.
6．All contents are subject to change.
7．Images in this manual may have been simplified to be easier comprehended.
8．Please contact us if you find any unclear points or mistakes in this manual.
9．Quoting, copying or altering some or all parts of the manual without our permission is
prohibited.
10．We are not responsible for any lost or damages on your profits due to the use of our products.
11．Please understand that our oversea branches do not provide maintenance or repair services.
■About the Icons
To keep the safety of the user, other people and their properties, please pay attention to the
following icons.
Warning
If the user fails to follow the instruction, serious injury or death may occur.
Caution
If the user fails to follow the instruction, physical injury on human or damages on hardware may
occur.

- 4 -
■ For Safe Use
Warning
●In following circumstances, please stop using the product and turn off the power immediately to
prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair
or exchange. For your safety, please do not disassemble, modify or repair the camera on your own.
Please stop using the product and turn off the power immediately when:
・The product becomes smoky or gets extremely hot on the surface, or makes unusual smells or
sounds.
・Foreign material or water gets into the product.
・The product falls and becomes damaged.
●Do not place the product on unstable surfaces. The product may be fallen and people may get
hurt.
Caution
●Do not expose the product to steam or fumes to avoid electric shocks and fires.
●Do not leave the product in high temperature places such as inside of vehicles or under direct
sunlight. High temperature may cause damages to the camera, or even cause fires.
●Do not cover the product with cloth or other materials. The product may get extremely hot and
the heat may cause deformations on the parts or even cause fires.
●Please avoid dropping or shocking the product as the product may be damaged.
●Do not touch the cable with a wet hand. Such action may cause electric shocks.
●Please avoid continuously contacting the surface of the camera to your skin when the camera is
being used. The surface temperature of the camera may cause burns.
■Other Notices
●Please do not use the camera under strong lights such as sun light for a long period. Also, please
do not expose the camera under strong lights even when the product is not being used because
the sensor might be damaged.

- 5 -
■ Maintenance
●Wipe the dirt on surface with soft cloth or tissue paper. Do not use alcohol, thinner or benzene to
avoid damaging the surface paints.
■ Export Control
This product is a List Control item subject to the Foreign Exchange and Foreign Trade Act and its
relevant legislations No.1 10 (2) and (4). To export this product from Japan, obtaining export
licenses from the Ministry of Economy, Trade and Industry is required. It is also necessary for our
company to manage the information of users and the purposes of use. If the end users or purposes
of use change after the purchase and thus cause the need to apply export licenses from Ministry of
Economy, Trade and Industry, please contact the sales representative in advance.
■Guarantee
To save the environment, we do not issue warranty in printed format. Instead, all records of the
warranty periods, delivery dates and the customer information are well kept in our system.
For more details, please refer to the sites below:
Hardware Warranty: http: //www.artray.us/download/artray_warranty.pdf
■Dispose
To dispose this product, please return the camera to us. If you decide to dispose the camera
without returning it us, please follow related regulations and have the camera disposed as an
industrial waste. Please always keep records of the dispose, and make sure the disposed camera
cannot be accessed or used by any 3rd party.
■Limited Responsibility
We do not guarantee the functions of this product or the descriptions on this manual to be
completely adapted to the users’ end applications or marketing purposes. We are also not held
responsible for any direct or indirect damages caused by our products under any circumstances.
Please do not use this product on applications that require high reliability. This product is not
manufactured to be used as medical, nuclear, aerospace, transportation equipment or equipment
that is highly related to human safety. We are not held responsible for any damages on the users’
property, equipment or personal safety caused by this product.

- 6 -
2. Introduction
This manual is to identify the specification of ARTCAM-990SWIR, NIR camera adopting InGaAs
(Indium gallium arsenide) sensor with USB3.0 interface.
3. Main Features
●NIR Detection with High Sensitivity
The InGaAs sensor can detect radiation invisible to human eyes and CCD/CMOS cameras in the
wavelength range between 400 nm to 1700 nm bond.
●High Resolution, High Frame Rate
ARTCAM-990SWIR uses a higher resolution sensor of 1280 x 1024 pixel and delivers image at 70
fps.
●USB3.0 Interface
This camera adopts USB3.0 interface, so the data can be delivered to PC directly. No capture card
is needed.
4. The Product
1) Camera
2) USB3.0 Cable Type A-micro B connector cable, 3m approx.
3) Special viewer software/Device Driver CD
<Options>
1) NIR Lenses (C Mount Lens)

- 7 -
5. Connect the Camera

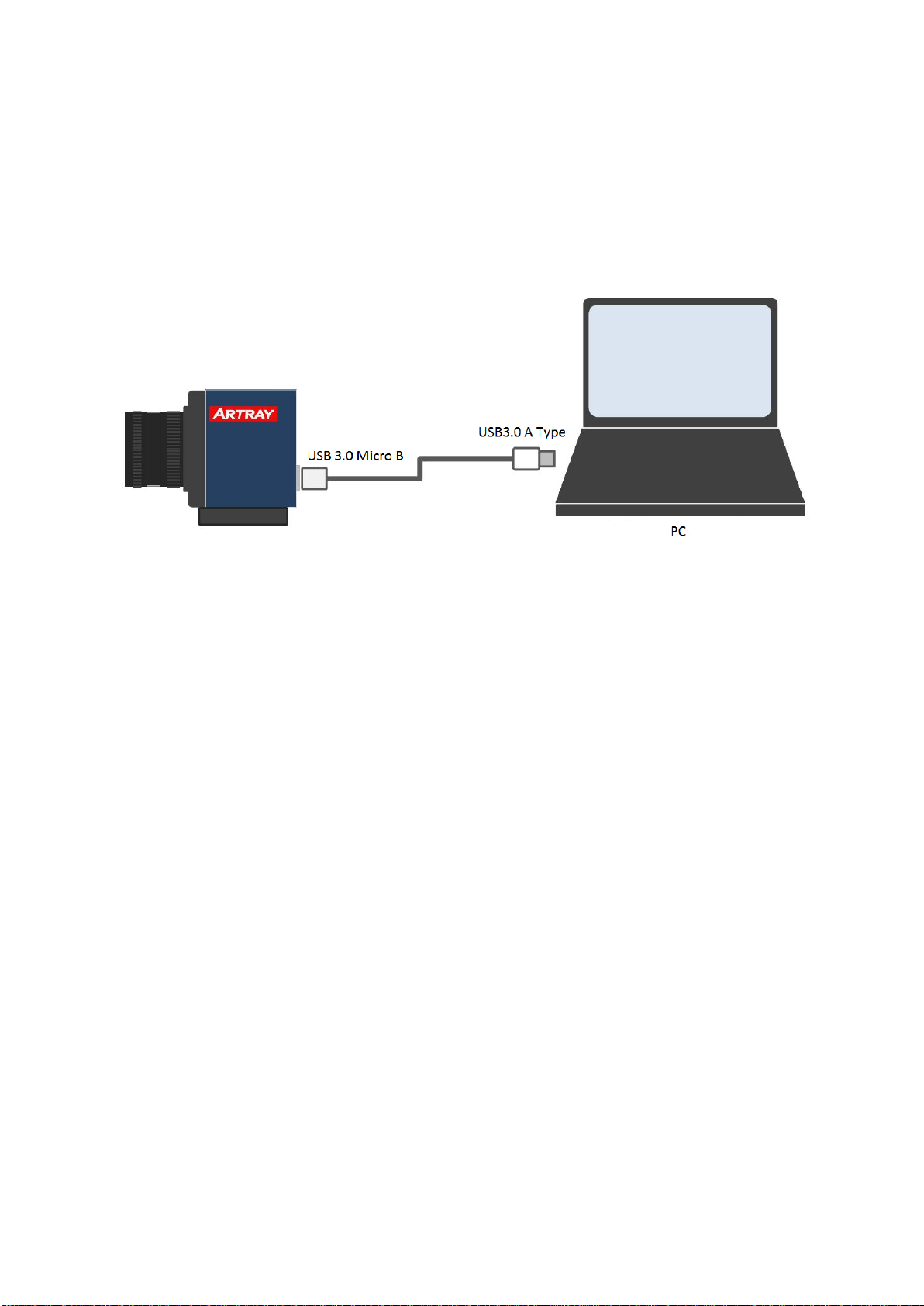

5.1. How to Connect a Camera
Please connect the camera and the PC by using the attached USB3.0 cable.
Camera’s power is supplied from USB Bus Power.

- 8 -
6. Specifications
6.1. Camera Specification
MODEL
ARTCAM-990SWIR
Sensor Type
1.3MP InGaAs Image Sensor
Interface
USB3.0 Bulk Transfer
Output Bit Depth
12bit
Frame Rate
72fps (12bit)
Shutter Speed
20.3µsec. ~ 2sec.
Synchronization System
Internal Synchronization / External Trigger Synchronization(Option)
Lens Mount
C Mount
External trigger input
(option)
SMA female connector (when option selected)
BNC conversion adapter included
Power
DC5V USB BUS Power
Power Consumption
Under Approx.3.2W
Ambient Conditions
Operating Temperature/Humidity: 10~35°C/10~80%（Non-condensing）
Storage Temperature/Humidity: 0~60°C /10~95%（Non-condensing）
External Dimensions
50.0(W) x 47.0(H) x 42.7(D)mm
※Lens, Tripod mount and cables not included
Weight
About 110g

- 9 -
6.1.1. Analog / Digital Gain Settings
ARTCAM-990SWIR is compatible with analog and digital gain.
Setting value of gain on software can be set from 0 ~ 420, and the gain will change from 0.0dB ~
42.0dB accordingly. Gain can be calculated by the following formula:
Gain[dB] = value / 10.0[dB]
Digital gain will activate when setting value of gain > 180.

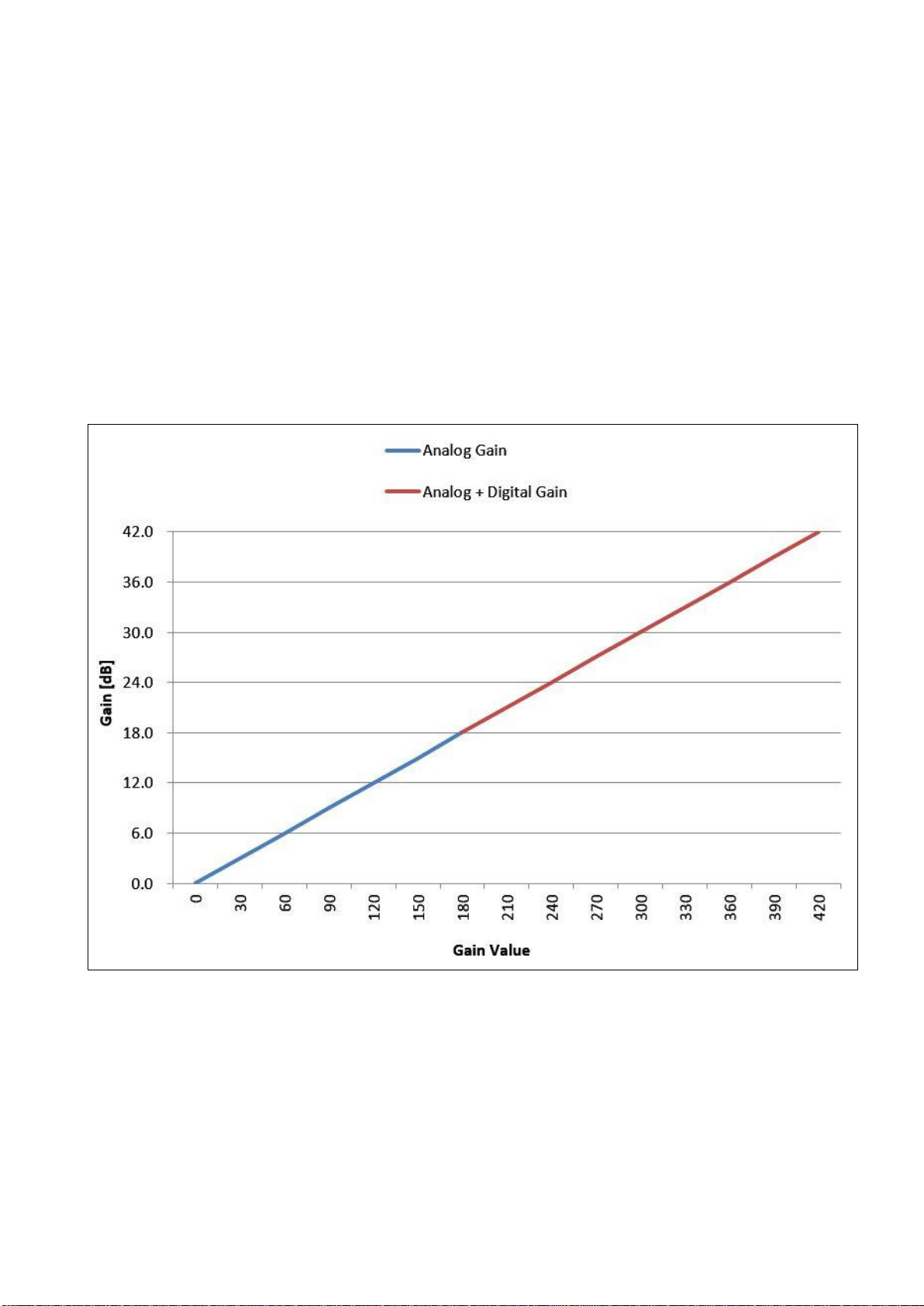

The graph below shows the relationship between setting value of gain and its magnification[dB].

- 10 -

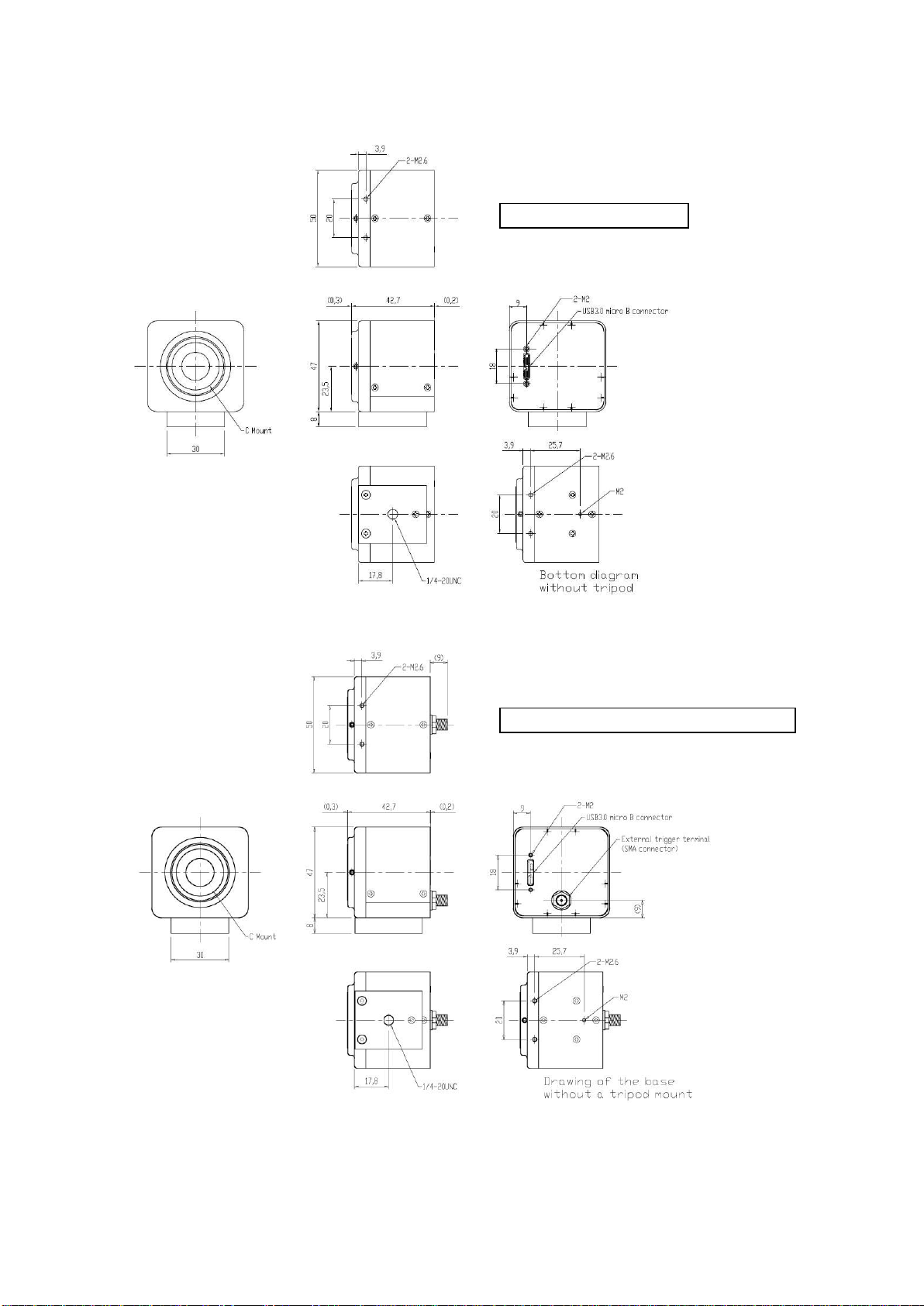

6.1.2. Dimensional Outline
※The dimension might be changed.
Drawing of the base
without a tripod mount
Standard specifications
Drawing of the base
without a tripod mount
External trigger specification (optional)

- 11 -

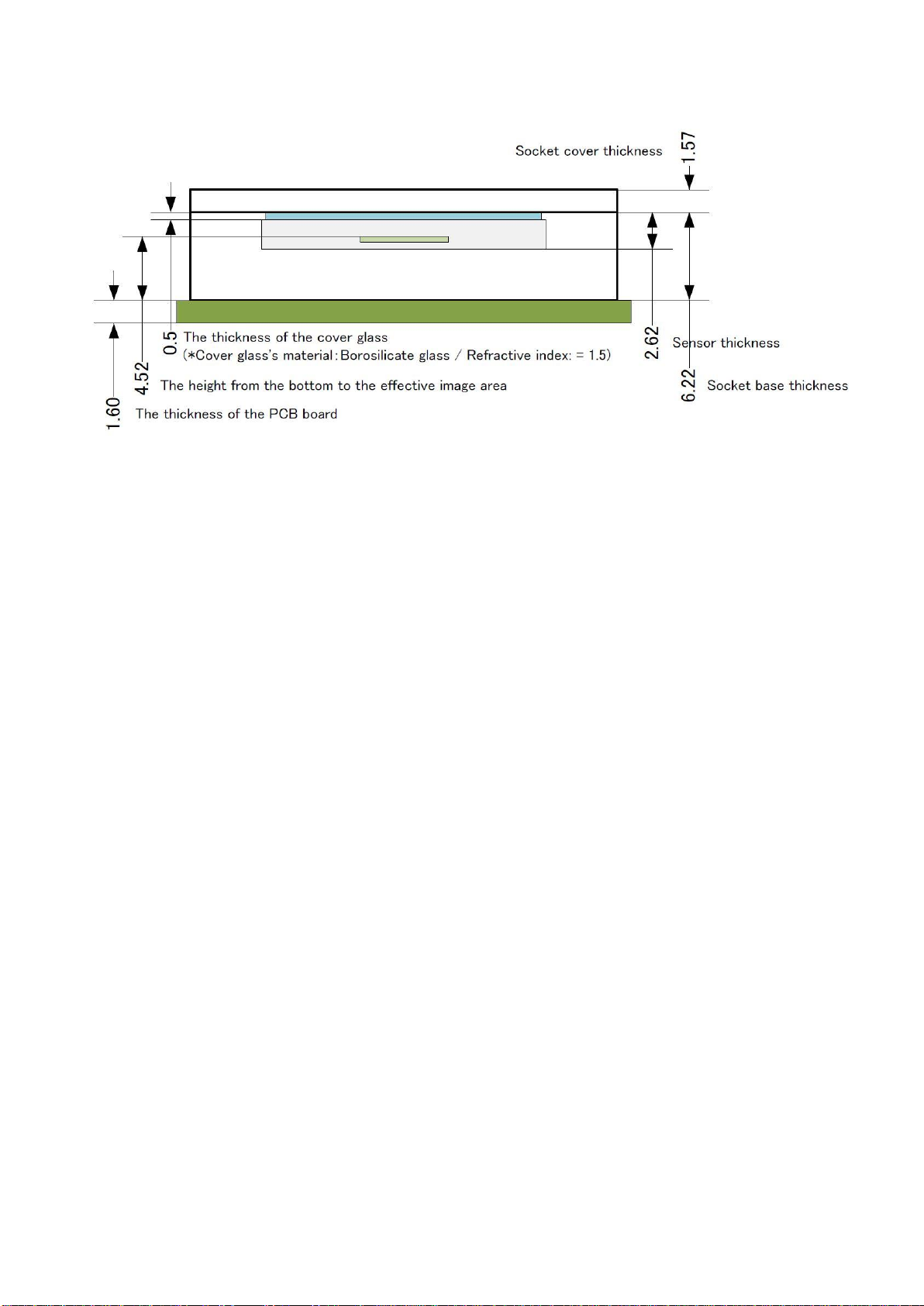

6.1.3. Sensor Package Information

- 12 -
6.1.4. Sensor Position and the Light Receiving Surface
H = 5[um] * 1280 = 6400 [um]
V = 5[um] * 1024 = 5120 [um]
6.1.5. Field of Vision: Lens versus Sensor（For Reference Only）
※The ratios of sensor size (diagonal) to lens size in the above illustrations are as follows:
1/2 inch = φ8mm, 2/3 inch = φ11mm, 1 inch = 15.8mm.
Please note that the actual field of view varies depending on different lens.

- 13 -
6.2. Sensor Specification (Based on sensor datasheet from the manufacturer)
6.2.1. Sensor Specification
Sensor Model
SONY IMX990-AABJ-C
Actual Pixel Array
1296(H) × 1032(V)
Effective Pixel Array
1280(H) × 1024(V)
Pixel Pitch
5[μm] × 5[μm]
Image Size
6.4[mm] × 5.12[mm]
(Diagonal length: 8.2[mm], 1/2”)
Spectral Range
400nm~1700nm
Shutter type
Global Shutter
S/N Ratio
51dB (for reference only)
A/D Resolution
12bit

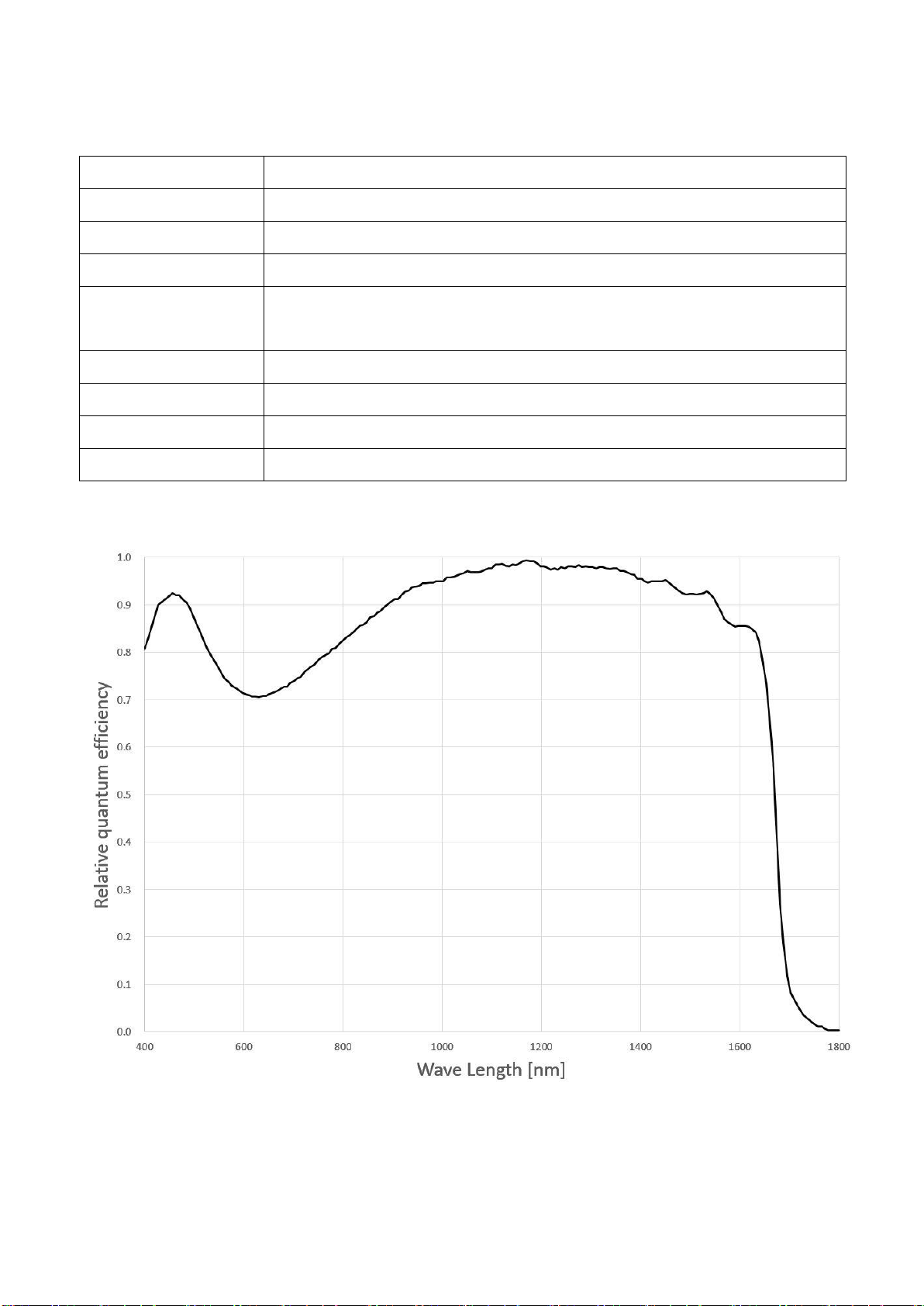

6.2.2. Spectral Sensitivity Characteristics

- 14 -
6.3. Camera Function
The functions of the camera are as follows.
NO
ITEM
RANGE
DEFAULT
VALUE
REMARKS
1
Shutter Speed
20.3[µs]~2[s]
1[ms]
2
Gain
(Analog/Digital)
0~420
(0~42[dB])
0
(0[dB])
Gain [dB] = Value/10
3
ROI,
Sub-sampling
(1/2)
ON/OFF
OFF
ROI: Vertical only
(Horizontal only available on software)
Sub-sampling: 1/2
4
Trigger
ON/OFF
OFF
5
Mirroring
ON/OFF
OFF
Vertical and Horizontal

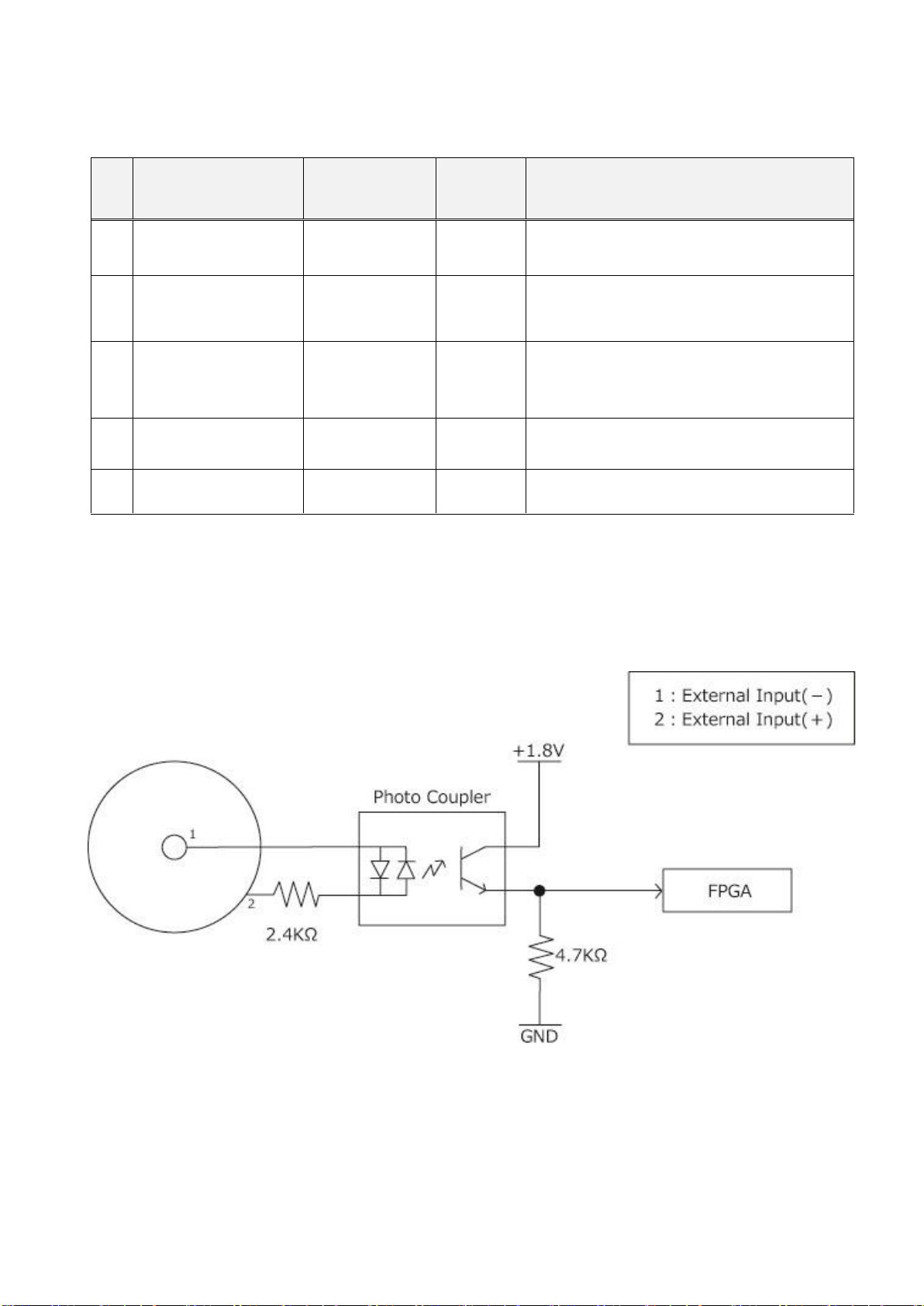

6.3.1. Eternal Trigger Function(Option)
This camera has an external trigger electronic circuit, which is insulated by a photocoupler, and
thus enables synchronized shooting by the input signal received from the external circuit.
※The connector is subject to change.
SMA female connector
※Conversion connector: SMA male-BNC female is included

- 15 -

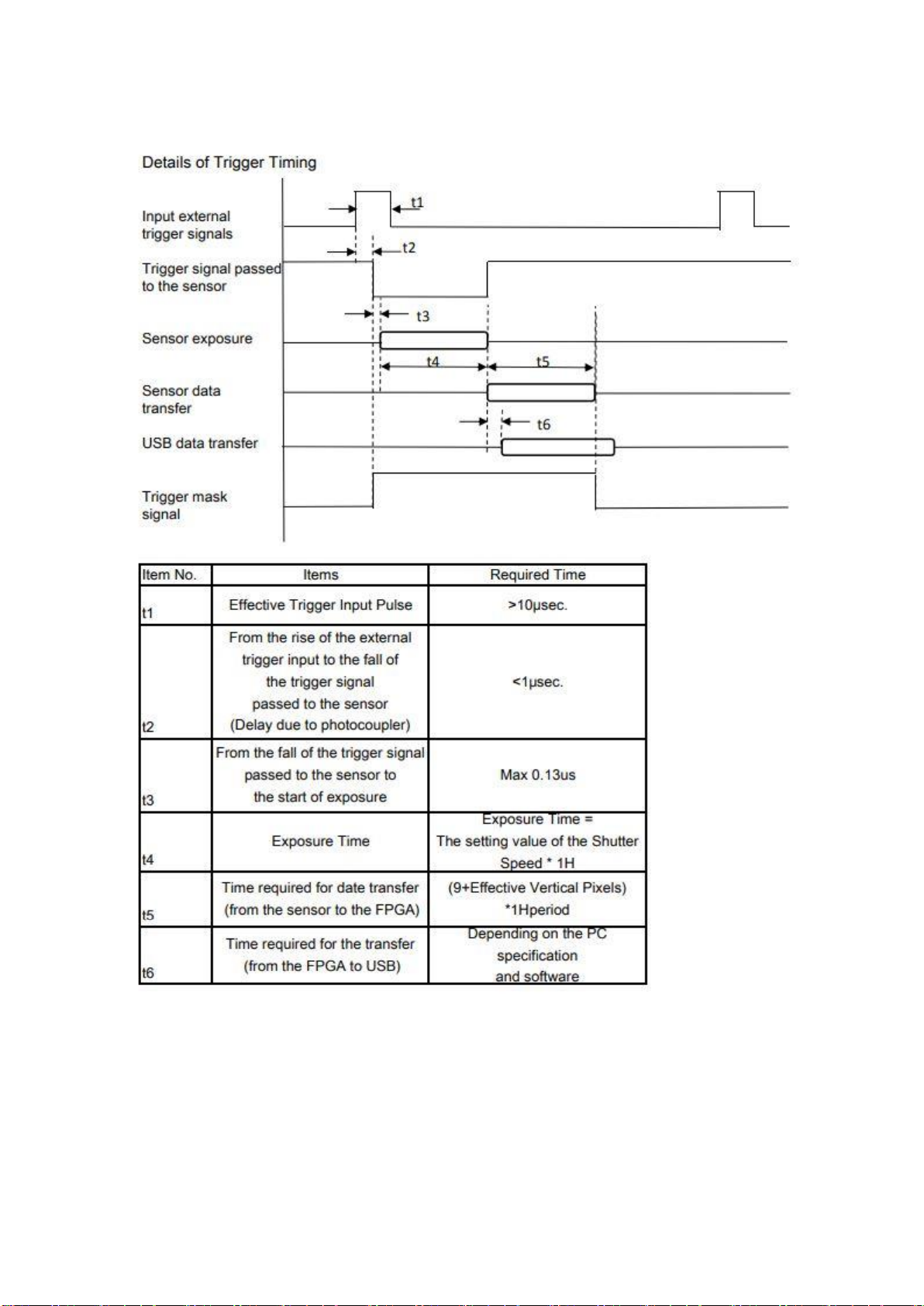

6.3.2. Trigger Timing

- 16 -
7. System Requirements
7.1. Recommended System Requirements
●Host Controller
This camera is applicable to USB 3.0.
Connecting to USB 2.0 host controller may cause low-speed or failure to function properly.
●CPU
The driver of this camera is applicable to computer architecture “x86” or “amd64”.
The specification of CPU effects directly the imaging process speed, therefore it is highly
recommended to utilize a high-end CPU if possible.
●Memory
In the viewer software, there is a data buffer which can store 4 to 8 frames.
Therefore, it is necessary to keep spare space at least for 8 frames in the memory.
(For example, when using 1.3MP color camera, 1280 x 1024 x 3 x 8 [byte] = 30[MB] is
necessary.)
It is highly recommended to keep enough memory space especially when using high
resolution camera.
●OS
This camera is applicable only to the architecture of Windows NT (32bit/64bit).
Standard functions are confirmed with OS after Windows.
In addition, it is recommended to use Windows 10.
Caution
■Please refer the restrictions below when you use ARTCAM series.
(1) Recommended System Requirements
If the system specifications do not meet the requirements recommended above, it may be
difficult to run at the maximum frame rate.
(2) Use of other USB3.0 Hardware
The data on our camera/converter is transferred in bulk mode. For this reason, when
using our camera/converter, please avoid using other bulk transferred USB3.0 hardware
such as Memory stick, External HDD, External DVD, CDROM etc.
As a solution, we recommend installing a PCI USB host card to the PC and connect
external USB hardware to this port only.
(3) USB3.0 Cable Extension
We cannot guarantee the functionality of the USB3.0 camera if the user adopts USB3.0
extension cables or repeaters which are not confirmed by us. With the extension cables or
repeaters, the bandwidth of transfer may differ, and thus caused malfunctions such as a
low frame rate or recognition failure on the camera.
What may cause the problem is that the regulation of the power lines becomes not
enough, and so causes impudence mismatch on data signals.
*For the recommended extension cable, please contact our sales department.
(TEL: [phone])

- 17 -
ARTRAY Co., LTD. Obtained ISO 9001: 2015 2018/9/17
1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan
TEL: [phone] FAX: [phone]
Email: [e-mail] URL: www.artray. us
