ARTRAY ARTCAM-991SWIR-TEC-CL User manual

- 1 -
Nov 12, 2021
Ver1.02
Camera Link Connection
InGaAs Camera
ARTCAM-991SWIR-TEC-CL
INSTRUCTION BOOKLET
ARTRAY CO., LTD.

- 2 -
Contents
1. Attention ...................................................................................................................................................- 3 -
2. Introduction..............................................................................................................................................- 6 -
3. Main Features..........................................................................................................................................- 6 -
4. The Product..............................................................................................................................................- 6 -
5. Connect the Camera ...............................................................................................................................- 7 -
5.1. How to Connect a Camera..............................................................................................................- 7 -
5.1.1. When connecting to a desktop PC ........................................................................................- 7 -
5.1.2. When connecting to a notebook PC......................................................................................- 7 -
6. Specifications...........................................................................................................................................- 8 -
6.1. Camera Specification ......................................................................................................................- 8 -
6.1.1. Analog / Digital Gain Settings................................................................................................- 9 -
6.1.2. Shutter speed calculation.......................................................................................................- 9 -
6.1.3. Dimensional Outline ..............................................................................................................- 10 -
6.1.4. Sensor Package Information ................................................................................................- 10 -
6.1.5. Sensor Position and the Light Receiving Surface .............................................................- 11 -
6.1.6. Field of Vision: Lens versus Sensor（For Reference Only）...........................................- 11 -
6.2. Spectral Sensitivity Characteristics.............................................................................................- 12 -
6.3. External Trigger Function .............................................................................................................- 12 -
6.4. Trigger Timing ................................................................................................................................- 13 -
7. Recommended System Requirements................................................................................................- 14 -

- 3 -
1. Attention
■About this manual
1．Before using the camera, please read this manual thoroughly.
2．Please keep this manual reachable and always refer to the contents when needed.
3．Please contact us if the manual is lost or damaged. We will provide a replacement.
4．We cannot guarantee the safety of improper uses of the camera.
5．For your safety, please follow the directions of this manual.
6．All contents are subject to change.
7．Images in this manual may have been simplified to be easier comprehended.
8．Please contact us if you find any unclear points or mistakes in this manual.
9．Quoting, copying or altering some or all parts of the manual without our permission is prohibited.
10．We are not responsible for any lost or damages on your profits due to the use of our products.
11．Please understand that our oversea branches do not provide maintenance or repair services.
■About the Icons
To keep the safety of the user, other people and their properties, please pay attention to the following
icons.
Warning
If the user fails to follow the instruction, serious injury or death may occur.
Caution
If the user fails to follow the instruction, physical injury on human or damages on hardware may occur.

- 4 -
■ For Safe Use
Warning
●In following circumstances, please stop using the product and turn off the power immediately to
prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or
exchange. For your safety, please do not disassemble, modify or repair the camera on your own.
Please stop using the product and turn off the power immediately when:
・The product becomes smoky or gets extremely hot on the surface, or makes unusual smells or sounds.
・Foreign material or water gets into the product.
・The product falls and becomes damaged.
●Do not place the product on unstable surfaces. The product may be fallen and people may get hurt.
Caution
●Do not expose the product to steam or fumes to avoid electric shocks and fires.
●Do not leave the product in high temperature places such as inside of vehicles or under direct
sunlight. High temperature may cause damages to the camera, or even cause fires.
●Do not cover the product with cloth or other materials. The product may get extremely hot and the
heat may cause deformations on the parts or even cause fires.
●Please avoid dropping or shocking the product as the product may be damaged.
●Do not touch the cable with a wet hand. Such action may cause electric shocks.
●Please avoid continuously contacting the surface of the camera to your skin when the camera is
being used. The surface temperature of the camera may cause burns.
■Other Notices
●Please do not use the camera under strong lights such as sun light or laser light for a long period.
Also, please do not expose the camera under strong lights even when the product is not being used
because the sensor might be damaged.

- 5 -
■Maintenance
●Wipe the dirt on surface with soft cloth or tissue paper. Do not use alcohol, thinner or benzene to
avoid damaging the surface paints.
■Export Control
This product is a List Control item subject to the Foreign Exchange and Foreign Trade Act and its
relevant legislations No.1 10 (2) and (4). To export this product from Japan, obtaining export licenses
from the Ministry of Economy, Trade and Industry is required. It is also necessary for our company to
manage the information of users and the purposes of use. If the end users or purposes of use change
after the purchase and thus cause the need to apply export licenses from Ministry of Economy, Trade
and Industry, please contact the sales representative in advance.
■Guarantee
To save the environment, we do not issue warranty in printed format. Instead, all records of the
warranty periods, delivery dates and the customer information are well kept in our system.
For more details, please refer to the sites below:
Hardware Warranty: http: //www.artray.us/download/artray_warranty.pdf
■Dispose
To dispose this product, please return the camera to us. If you decide to dispose the camera without
returning it us, please follow related regulations and have the camera disposed as an industrial waste.
Please always keep records of the dispose, and make sure the disposed camera cannot be accessed or
used by any 3rd party.
■Limited Responsibility
We do not guarantee the functions of this product or the descriptions on this manual to be completely
adapted to the users’end applications or marketing purposes. We are also not held responsible for any
direct or indirect damages caused by our products under any circumstances.
Please do not use this product on applications that require high reliability. This product is not
manufactured to be used as medical, nuclear, aerospace, transportation equipment or equipment that
is highly related to human safety. We are not held responsible for any damages on the users’property,
equipment or personal safety caused by this product.

- 6 -
2. Introduction
This manual is to identify the specification of ARTCAM-991SWIR-TEC-CL, NIR camera adopting
InGaAs (Indium gallium arsenide) sensor with Camera Link interface.
3. Main Features
●NIR Detection with High Sensitivity
The InGaAs sensor can detect radiation invisible to human eyes and CCD/CMOS cameras in the
wavelength range between 400 nm to 1700 nm bond.
●High Resolution, High Frame Rate
ARTCAM-991SWIR-TEC uses a higher resolution sensor of 640×512 pixel and delivers image at 137
fps.
●CameraLink interface
We adopt high reliability Cameralink interface as industial application.
4. The Product
1) Camera
2) AC adapter (DC12V)
3) Special viewer software/Device Driver CD
<Options>
1) NIR Lenses (C Mount Lens)
2) Grabber board (manufactured by EPIX, Inc., is recommended.)
3) CameraLink Cable

- 7 -
5. Connect the Camera
5.1. How to Connect a Camera
5.1.1. When connecting to a desktop PC
5.1.2. When connecting to a notebook PC

- 8 -
6. Specifications
6.1. Camera Specification
MODEL
ARTCAM-991SWIR-TEC-CL
Sensor Model
SONY IMX991-AABA-C
Effective Pixel Array
640(H) ×512(V)
Pixel Pitch
5[μm] ×5[μm]
Image Size
3.2[mm] ×2.56[mm]
(Diagonal length: 4.1[mm], 1/4”)
Spectral Range
400nm~1700nm
Shutter type
Global Shutter
S/N Ratio
51dB (for reference only)
Interface
Camera Link (Base Configuration)
Output connector
SDR26pin
A/D Resolution
12bit
Frame Rate
max 137fps (12bit only)
Exposure time
20.3μsec. ~ 2sec.
Gain
(Analog/Digital)
0~420 ※DEFAULT VALUE：0
(0~42[dB] ※DEFAULT VALUE：0[dB])
Trigger
ON/OFF ※Default value：OFF
Mirroring
ON/OFF ※DEFAULT VALUE：OFF
Vertical and Horizontal
Synchronization System
Internal Synchronization (preview mode)
External Synchronization (trigger mode)
Lens Mount
C Mount
Power
DC12V External Input
Power Consumption
Under Approx.11W
Ambient Conditions
Operating Temperature/Humidity: 10~40°C / 10~80%（Non-condensing）
Storage Temperature/Humidity: 0~60°C /10~95%（Non-condensing）
External Dimensions
71.6(W)×61.5(H)×78.0(D)mm
※Lens, Tripod mount and cables not included
Weight
About 450g

- 9 -
6.1.1. Analog / Digital Gain Settings
ARTCAM-990SWIR-TEC-CL is compatible with analog and digital gain.
Setting value of gain on software can be set from 0 ~ 420, and the gain will change from 0.0dB ~ 42.0dB
accordingly. Gain can be calculated by the following formula:
Gain [dB] = value / 10.0[dB]
Digital gain will activate when setting value of gain > 180.

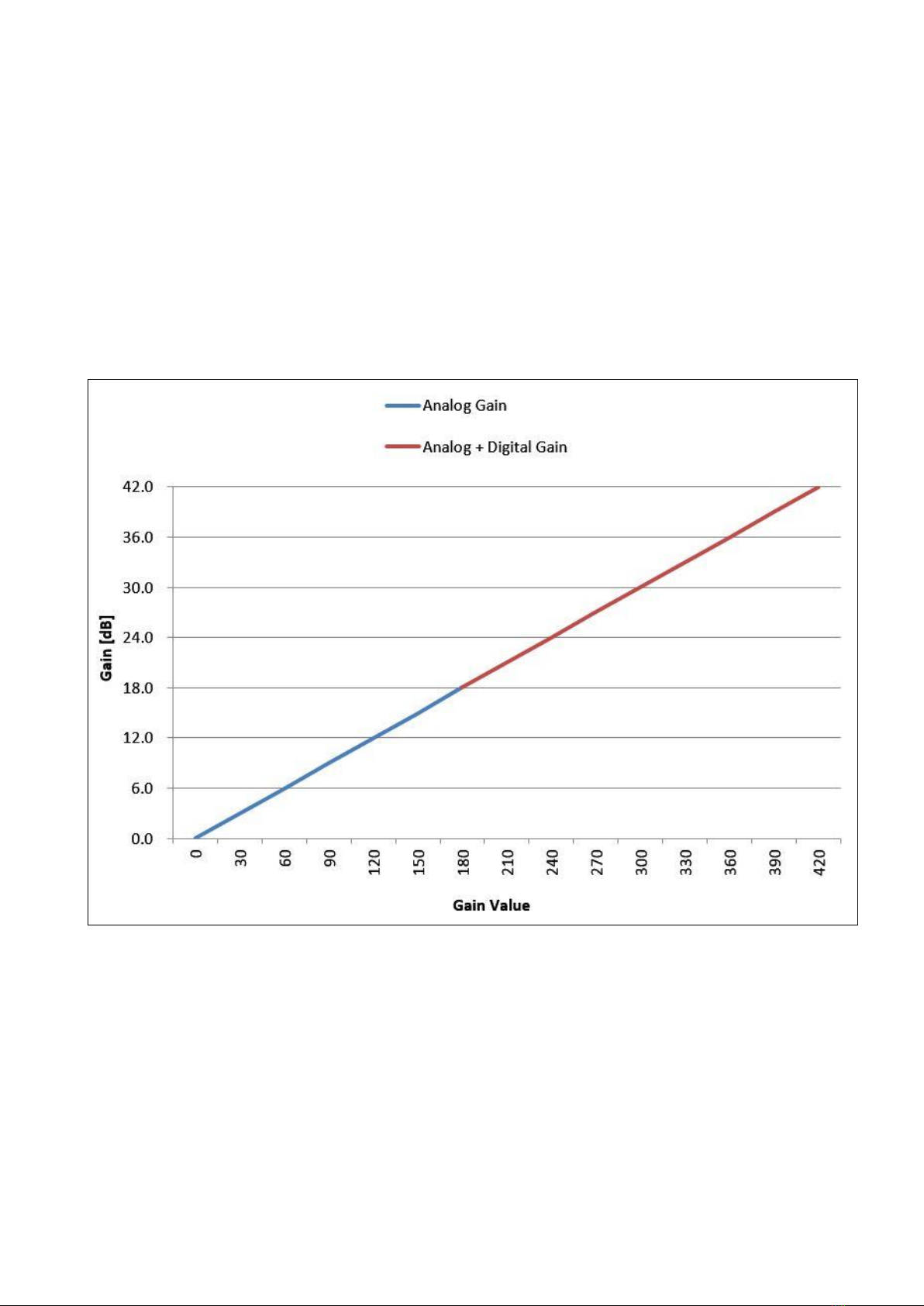

The graph below shows the relationship between setting value of gain and its magnification[dB].
6.1.2. Shutter speed calculation
ARTCAM-991SWIR-TEC-CL allows for shutter speed control.
Shutter speed value can be calculated by the following formula:
Shutter speed [us] = value*12.96[us]

- 10 -

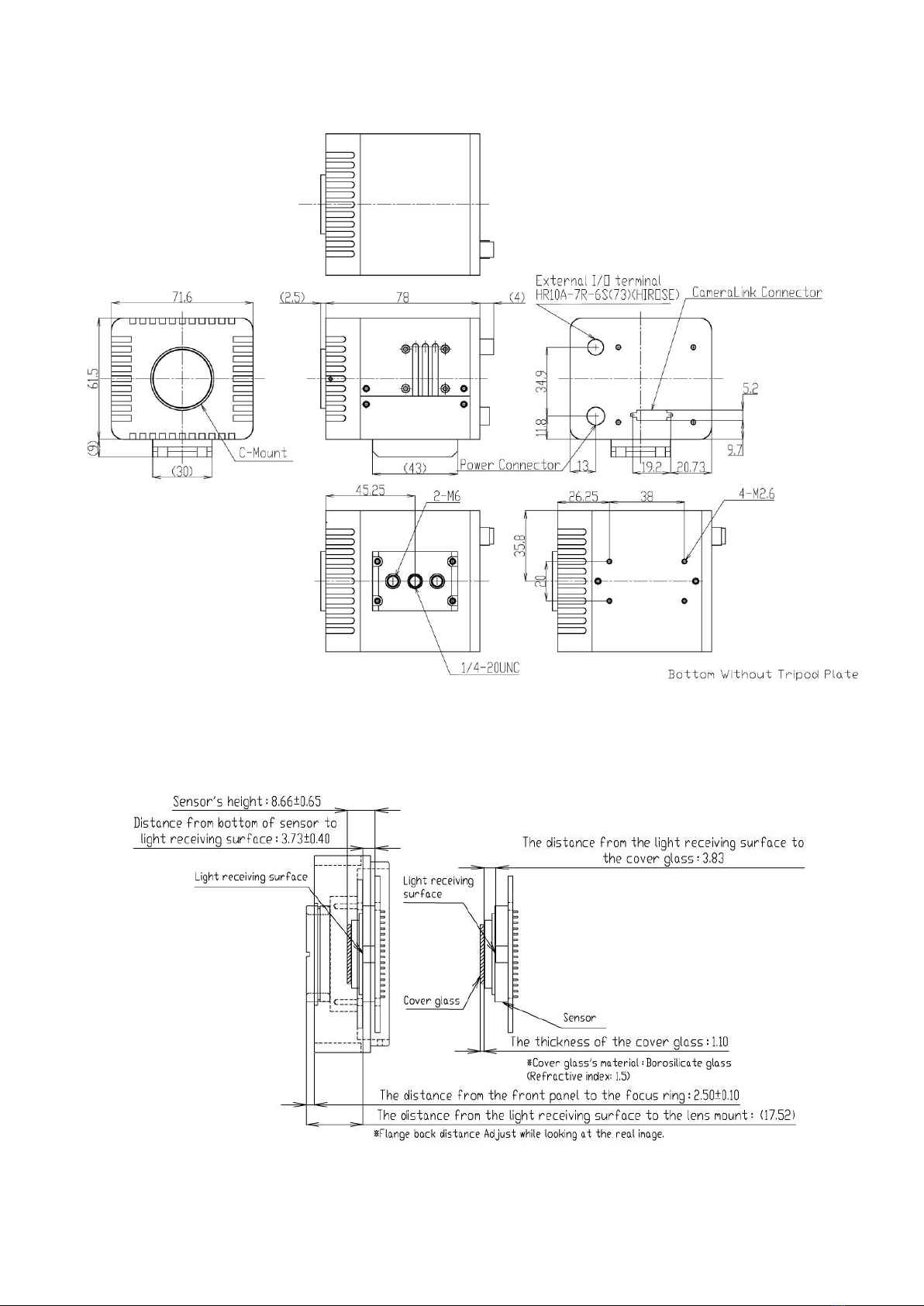

6.1.3. Dimensional Outline
Drawing of the base without a tripod mount
6.1.4. Sensor Package Information

- 11 -
6.1.5. Sensor Position and the Light Receiving Surface
H = 5[um] * 640 = 3200 [um]
V = 5[um] * 512 = 2560 [um]
6.1.6. Field of Vision: Lens versus Sensor（For Reference Only）
※The ratios of sensor size (diagonal) to lens size in the above illustrations are as follows:
1/2 inch = φ8mm, 2/3 inch = φ11mm, 1 inch = 15.8mm.
Please note that the actual field of view varies depending on different lens.

- 12 -
6.2. Spectral Sensitivity Characteristics
6.3. External Trigger Function
This camera has an external trigger electronic circuit, which is insulated by a photocoupler, and thus
enables synchronized shooting by the input signal received from the external circuit.

- 13 -
6.4. Trigger Timing
items
Required time
t1
Effective trigger input pulse
>10μsec.
t2
From the rise of the external trigger input to the
fall of the trigger signal passed to the sensor
(Delay due to the photocoupler)
<1μsec.
t3
From the fall of the trigger signal passed to the
sensor to the start of exposure
Max 0.13μs
t4
Exposure time
Exposure time = The setting value of the
Shutter speed*1H
t5
Time required for data transfer
(from the sensor to the FPGA)
(9+Effective Vertical pixels)*1H
t6
Trigger input prohibition period
t2+t3+t4+t5
※1H＝12.96μsec.
※When input triggers continuously, please ensure that the trigger interval is more than t6.

- 14 -
7. Recommended System Requirements
⚫Camera Link Frame Grabber
It has been confirmed to work with boards manufactured by EPIX, Teledyne DALSA, National
Instruments, and Aval Data.
All models made by EPIX have been confirmed to work, but other manufacturers have confirmed
the operation of only some models.
Please confirm with us if you are using different grabber.
⚫PC
Please confirm the recommended requirement of the Camera Link frame grabber.
ARTRAY Co., LTD. Obtained ISO 9001: 2015 2018/9/17
1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan
TEL: [phone] FAX: [phone]
Email: [e-mail] URL: www.artray. us
