2. Introduction
ARTCAM-2020UV-CL is a series of ultraviolet cameras with high sensitivity to the wavelength band of 200 nm to 1100
nm.
3. Main Features
UV Detection with High Sensitivity
The CMOS sensor can detect radiation invisible to human eyes and CMOS cameras in the wavelength range between
200 nm to 1100 nm band.
CameraLink interface
We adopt high reliability Cameralink interface as industial application.
4. The Product
1) Camera
2) AC adapter (AC100-240V -> DC12V)
3) Software CD
<Options>
1) Grabber board (PIXCI-EB1, manufactured by EPIX, Inc., is recommended.)
2) CameraLink Cable (Standard 5m, Exchangeable to 1m or 3m)
3) CameraLink SDK (XCLIB manufactured by EPIX, etc.)

- 7 -
5. Setup
5.1. Connecting Method (an example)
5.1.1. When using on a desktop PC
5.1.2. When using on a notebook PC
*There is an unique port of CameraLink channel used since this camera operates with
CameraLink - Base Configuration.
For the connector of this camera is SDR-26pin, please use the supported cable.
MDR-26pin
PIXCI-EB1
SDR-26pin
PIXCI-EB1-34

- 8 -
6. Specifications
6.1. Camera Specification
6.1.1. Camera specification list
Items
Image pickup device Gpixel 4.0M pixels CMOS Sensor GSENSE2020BSI
Number of effective pixels 2058(W) x 2056(H)
Number of output pixels 2048(W) x 2048(H)
Pixel Size 6.5(H) [µm] × 6.5(V) [µm]
Imaging area 13.3(H)×13.3(V)[mm]
(Diagonal 18.809[mm], Approx.1.2 inch)
Detection frequency band 200～1100nm
Shutter Type Rolling Shutter (Global reset possible)
Saturation capacity /
readout noise
54ke-
1.6e- @12/11bits
A/D Resolution 11/12bits
Interface Camera Link (Base Configuration)
Number of output bits 12 bits
Frame Rate 23 fps
Shutter Speed 11.2μ sec ~ 1 sec
Synchronization System Internal Synchronization / External Trigger Synchronization
Lens Mount C Mount
External I/O terminal HR10A-7R-6S(73) (HIROSE)
Power DC12V External input
Power Consumption Approx.6W (During normal operation)
Ambient Conditions Operating Temperature/Humidity：0～35°C/10～80%(Non condensing)
Storage Temperature/Humidity：0～60°C /10～95%(Non condensing)
External Dimensions 71.6(W) × 61.5(H) × 51.5(D) mm
※Exclude lens, tripod mount and projections
Weight Approx. 240g
※Exclude lens, tripod mount and projections
※All by nominal value

- 9 -

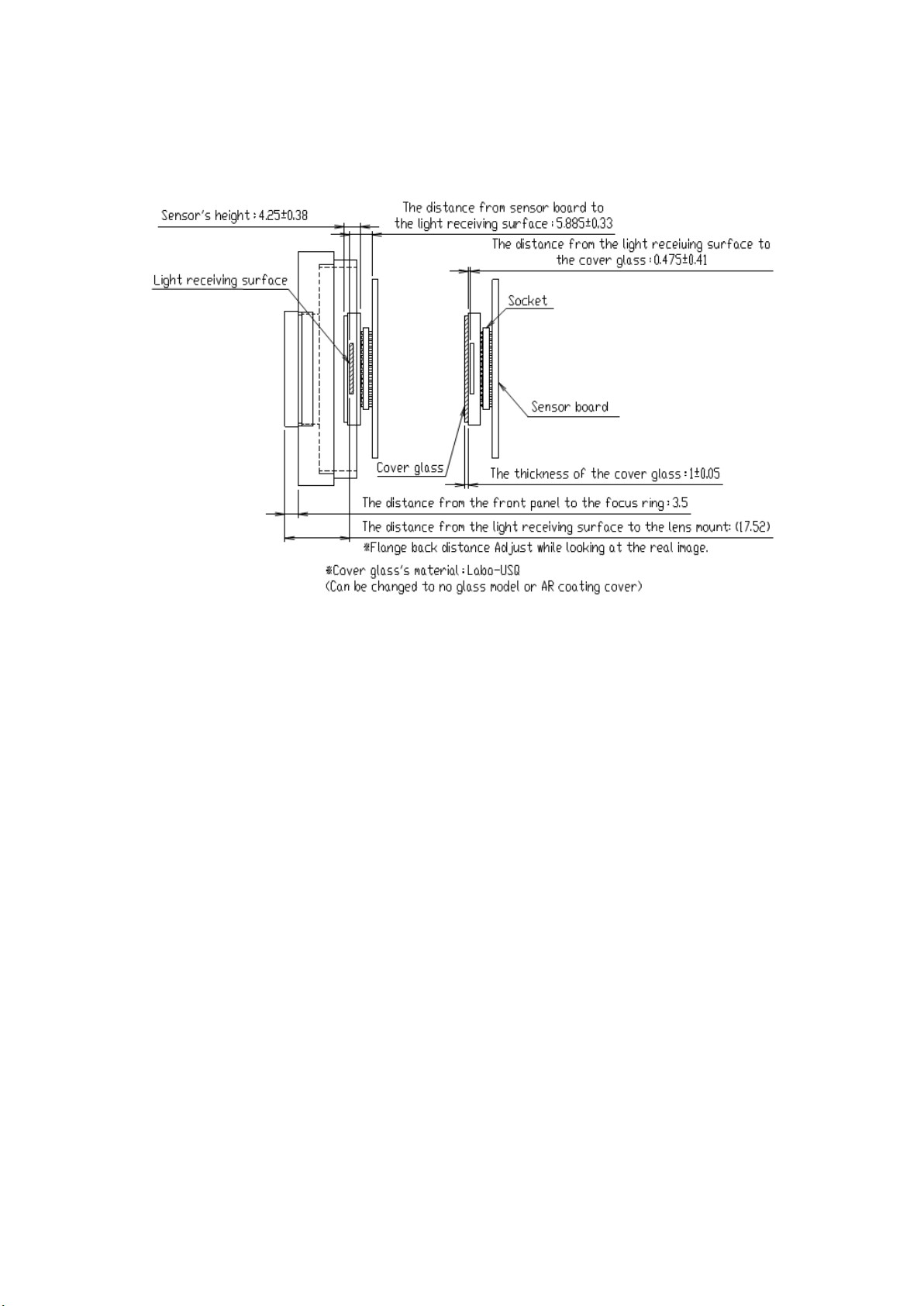

6.1.2. Dimensional Outline
HR10A-7R-6S(73)(HIROSE)
Drawing of the base without
a tripod mount

- 10 -
6.1.3. Schematic Diagram of the Sensor

- 11 -
6.2. Camera’s Functions
6.2.1. Shutter Speed
The exposure time (electronic shutter speed) of the camera can be set.
The exposure time can be calculated by the following formula:
Exposure time = the setting value of the shutter speed * 1 H period
※1 H period = 560(Minimum) * 1PCLK ＝11.2μsec.
※1PCLK = 1/50,000,000sec. = 0.020μsec.
6.2.2. External Trigger Function

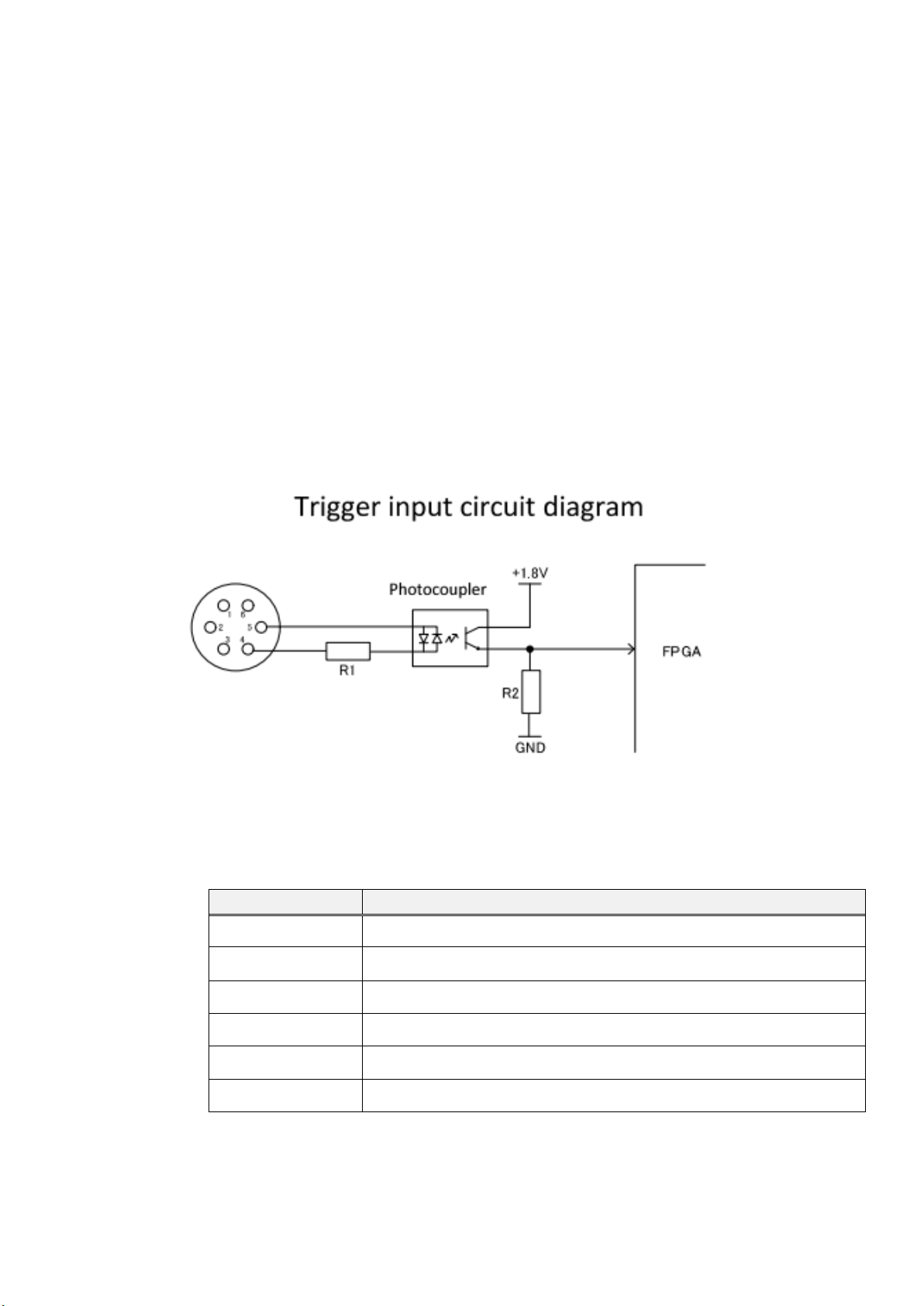

This camera has an external trigger electronic circuit, which is insulated ｆby a photocoupler, and thus enables
synchronized shooting by the input signal received from the external circuit.
R1 = 2.4kΩ (5～12V)
R2 = 4.7kΩ
The Pin Assignment of the External I/O Terminal
Pin Number Function
1GND
2External output 1（Vertical Synchronization）※
3External output 2（Strobe）※
4External Input（-）(Trigger Reception -)
5External Input（+）(Trigger Reception +)
6+12V
※When outputting, please use open drain (6.5V, 50mA)
HR10A-7R-6S(73)(HIROSE)

- 12 -
Details of trigger timing
Item
Numbers
Items Required Time
t1 Effective Trigger Input Pulse >10μsec.
t2 Time required from the starting of the External
Trigger to the starting of the Internal Trigger
Signals
(may delay caused by the photocoupler)
<1μsec.
t3 Time required from the starting of the Internal
Trigger Input to the Exposure Time
<1μsec.
t4 Strobe Time t5＋t6
t5 Exposure Time Exposure Time =
the setting value of the Shutter Speed * 1 H period
※1 H period = 560(Minimum) * 1PCLK ＝11.2μsec.
※1PCLK = 1/50,000,000sec. = 0.020μsec.
t6 Time required for data transfer
(from the sensor to the FPGA) （Effective Vertical Pixels＋2）* 1 H period
t7 Time required for the transfer (from the FPGA to
USB)
>3 H period
t8 Time required from the completion of the sensor
data transfer to the completion of the USB data
transfer
>3 H period
t9 Time required from the completion of the internal
data transfer until the next trigger input becomes
available
Approx. 1 H period

- 13 -
7. Spectral Sensitivity Characteristics

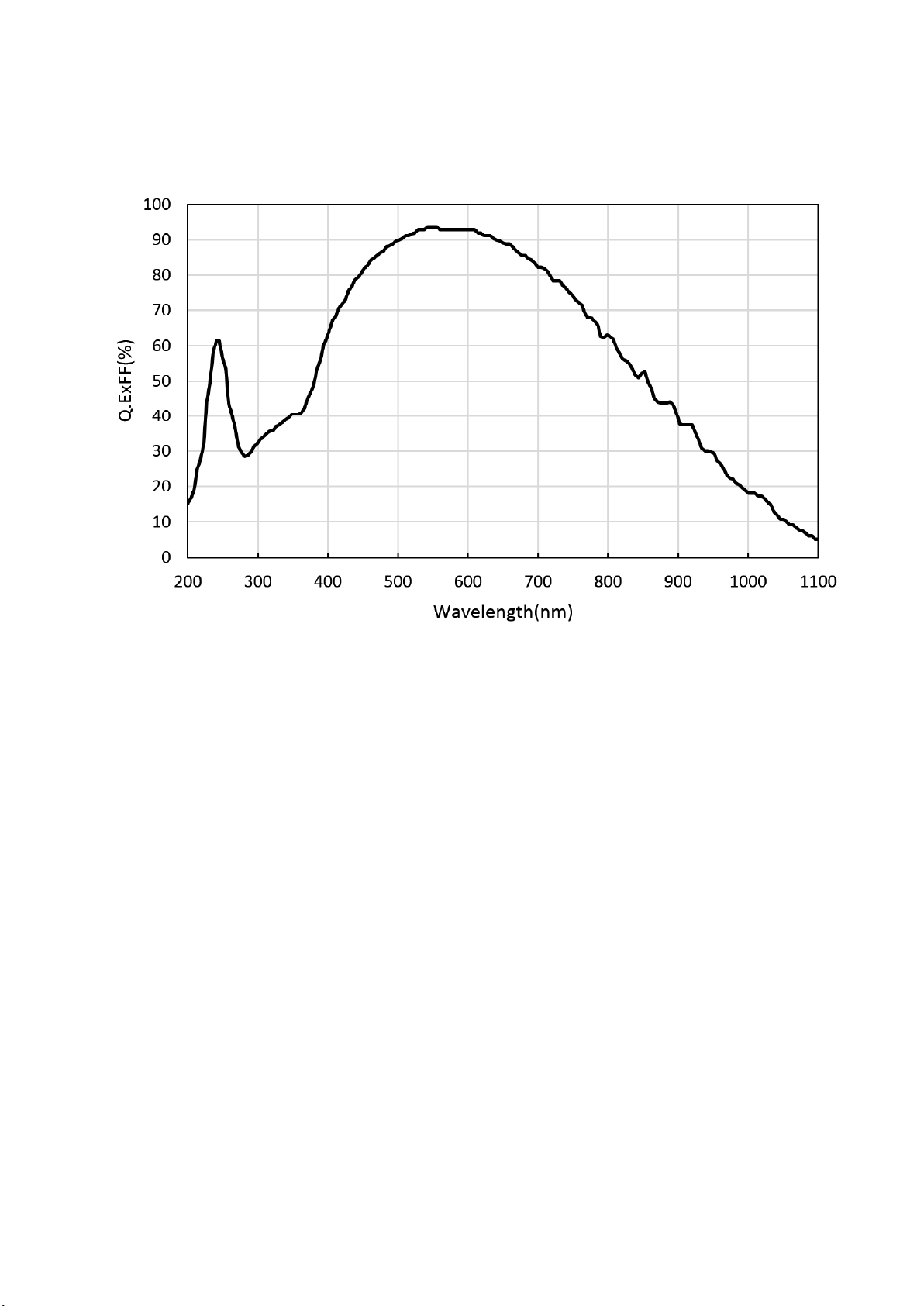

7.1. ARTCAM-2020UV-CL
7.2. UV Bandpass Filter（U340）(Optional）
ARTCAM-2020UV-CL is possible to choose to install an additional filter U340, which can absorb visible wavelengths
and only allow ultraviolet wavelengths to pass.
Please refer to the following Spectral sensitivity line chart for detail.

- 14 -
8. Recommended System Requirements
●Camera Link Frame Grabber
PIXCI-EB1 manufactured by EPIX, Inc. is recommended.
Please confirm with us if you are using different grabber.
●PC
Please confirm the recommended requirement of the Camera Link frame grabber you are using.
