ARTRAY ARTCAM-MI-WOM Series User manual

December13,2012
Ver1.23
USB2.0 CMOS CAMERA
ARTCAM-MI-WOM Series
INSTRUCTION BOOKLET
0.36M pixels ARTCAM-036MI2-WOM Series
1.3M pixels ARTCAM-130MI-WOM Series
1.3M pixels ARTCAM-035IMX-WOM Series
3.0M pixels ARTCAM-300MI-WOM Series
5.0M pixels ARTCAM-500MI-WOM Series
10.0M pixels ARTCAM-1000MI-WOM Series
14.0M pixels ARTCAM-1400MI-WOM Series
ARTRAYCO., LTD.

Contents
1. Attention………………………………….3
2. Introduction………………………………6
3. Main Features……………………………6
4. TheProduct………………………………8
5. Connect the Camera…………………….9
6. Specifications…………………………….10
7. External Dimensions…………………….14
8. SpectralSensitivityCharacteristics……...17
9. Characteristicofvisiblelightcutfilter.…...24
10. AD Conversion…………. ……. ……. ….25
11. OptionalFunctions……………………….29
12. Recommended PC………………..……..35

- 3 -
1.Attention
■Aboutthismanual
1．Beforeusingthecamera, pleasereadthismanualthoroughly.
2．Pleasekeep thismanualreachableandalwaysrefertothecontentswhen needed.
3．Pleasecontactusif themanual islostordamaged.Wewill provideareplacement.
4．Wecannotguaranteethe safetyof improperusesof thecamera.
5．Foryoursafety,pleasefollowthedirectionsofthismanual.
6．All contentsaresubjecttochange.
7．Imagesinthismanualmayhavebeen simplified tobeeasier comprehended.
8．Pleasecontactusif youfindanyunclearpointsormistakesinthismanual.
9．Quoting, copyingoralteringsome orallpartsof themanual withoutourpermission isprohibited.
10．Wearenotresponsibleforanylostordamagesonyourprofitsduetotheuse of ourproducts.
11．Pleaseunderstandthatouroverseabranchesdonotprovidemaintenanceorrepairservices.
■About the Icons
Tokeepthesafetyoftheuser,otherpeopleandtheirproperties,pleasepayattentiontothefollowingicons.
Warning
Iftheuserfailstofollowtheinstruction,physicalinjuryonhumanordamagesonhardwaremayoccur.
Caution
Iftheuserfailsto followtheinstruction,seriousinjuryordeathmayoccur.

- 4 -
■For Safe Use
Warning
●In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of
fires andelectricshocks.If the productisdefective,pleasecontactus forrepairorexchange.Foryoursafety, pleasedo
notdisassemble,modifyorrepairthecameraonyourown.
Pleasestopusingtheproductandturnoff thepowerimmediatelywhen:
・Theproductbecomessmokyorgets extremelyhotonthesurface,ormakes unusualsmellsorsounds.
・Foreignmaterial orwatergetsinto theproduct.
・Theproductfalls andbecomesdamaged.
●Do not place theproductonunstablesurfaces.Theproductmaybefallenandpeoplemayget hurt.
Caution
●Do not expose the product to steamorfumestoavoid electricshocksandfires.
●Do not leavetheproductin high temperature places suchasinside of vehiclesorunder directsunlight.
Hightemperaturemaycausedamages tothe camera,oreven causefires.
●Do not cover the product with cloth or other materials. The product may get extremely hot and the heat may cause
deformationsonthe partsorevencausefires.
●Pleaseavoiddroppingorshockingtheproductastheproductmaybedamaged.
●Do not touchthecablewitha wethand.Suchaction maycause electricshocks.
●Please avoid continuously contacting the surface of the camera to your skin when the camera is being used. The
surfacetemperatureofthecameramaycauseburns.
■Other Notices
●Please do not use the camera under strong lights such as sun light for a long period.Also please do not expose the
cameraunderstrong lights evenwhen theproduct is notbeingused becausethesensormightbe damaged.
Maintenance
●Wipe thedirton surfacewith soft clothor tissue paper. Do not use alcohol, thinner or benzene to avoid damaging the
surfacepaints.
ElectroMagneticInterference
●The cameramay interference with electronic devices such as TV and radio. Pleasedo not place the camera next to
suchequipment.

- 5 -
■Export Control
The Government of Japan controls military sensitive goods and technologies including relevant dual-use goods and
technologies.
This product is a Catch-all Control item subject to the Foreign Exchange and Foreign Trade Act and its relevant
legislations.Exceptforexportingtothe27whitecountriesdesignatedintheCabinetOrder,exportlicensesarerequired
if the products are going to be used for military use or if the end user of the product is related to all kinds of military
activities.Ifyourcircumstancescausetheneedtoapplyexportlicenses,pleasenotifyusbeforeyouplaceorders.Also,
please notifyusinadvance iftheend usersor purposes of use changeafterthe purchaseand thuscause theneed to
applyexportlicenses.
*The27whitecountriesnotundertheUNSCArmsEmbargo:
Argentina, Australia, Austria, Belgium, Bulgaria, Canada, Czech Republic, Denmark, Finland, France, Germany,
Greece, Hungary, Ireland, Italy, Republic of Korea, Luxemburg, Netherlands,New Zealand, Norway, Poland, Portugal,
Spain,Sweden,Switzerland,UnitedKingdom,andUnitedStates
About the Japanese Security Export Controls, please refer to the webpage for Security Export Control Policy, The
MinistryofEconomy,TradeandIndustry:
http://www.meti.go.jp/policy/anpo/englishpage.html
■Guarantee
To save the environment, we do not issue warranty in printed format. Instead, all records of the warranty periods,
deliverydatesandthecustomerinformationarewellkeptinoursystem.
Formoredetails,pleaserefertothesitesbelow:
HardwareWarranty:http://www.artray.us/download/artray_warranty.pdf

- 6 -
2.Introduction
ARTCAM-MI-WOMSeriesisCMOS camerasforindustrialuse.
ThisseriesadoptUSB2.0interface,sothedatacanbedeliveredtoPCdirectlywithoutacaptureboard.
Camerasareequipped withon boardmemorywhichavoiddatamissingduringtransfer.
We provide a variety including cased cameras, board cameras which can be easily incorporated to other equipment,
andsoon.
3. Main Features
・HighResolution,High FrameRate
WeprovidehighspeedCMOScamerasofa widerangeofresolutionsfrom 0.36megapixelsto14 megapixels.
・USB2.0Interface
OurcamerasadoptUSB2.0interface,sothedatacanbedeliveredtoPCdirectlyandnocaptureboardisneeded.
・SmallandLight
Ourcamerasaresmallandlight,thuscanbeeasilyinstalledaccordingtoyourdesires.
Also,theboardtypecamerawithsmall typeboardlensiseasytobe incorporatedwithothermachines.
・VarietiestoYourNeeds
Weprovidea varietyincludingcasedcameras,boardtypecameras,C-Mountboard type cameras.
Also, we provide color and monochrome models to meet customers’ needs.
For ARTCAM-036MI2-WOM / 130MI-WOM / 035IMX-WOM / 500MI-WOM series, monochrome and near infrared
typesarealsoavailableuponyourchoice.
・ROI(RegionOfInterest)
One major benefit of CMOS sensor is the ROI function which enables readout of designated partial images with a
faster transmissionspeed.
Total
vertical
pixels
Total horizontalpixels
(0,0)
(Horizontal
origination,
Vertical
origination)
Horizontalpixels
Vertical
pixels
Validarea

- 7 -
・Sub-samplingfunction(notavailableonARTCAM-036MI2-WOM)
Thisfunctionresultsinamorepleasingoutputimagewithreducedsubsamplingartifactsandimprovestheframerate.
1/2Sub-samplingmode 1/4Sub-samplingmode
・GlobalShutter(ARTCAM-036MI2-WOM series)
ARTCAM-036MI2-WOMseriesadoptsglobalshutterwhichisverysuitableformachinevision.
・Mirror function
Mirrorcouldbeprocessedeitheronthesensorsorontheviewersoftware(ART-Viewer).
036MI2-WOM
130MI-WOM
035IMX-WOM
300MI-WOM
500MI-WOM
1000MI-WOM
1400MI-WOM
Horizontal
direction
Sensor
Software
Software
Software
Sensor
Sensor
Software
Vertical
direction
Sensor
Software
Software
Sensor
Sensor
Sensor
Sensor
*If mirrorfunctionisprocessedonsoftware,theCPU loadmaybecomehighandmaycauseimagetransfererror.
・BoundedViewerSoftware
WeprovidetheViewerSoftware-ART-Viewer(WindowsXP/Vista/7).
Withthissoftware,userscaneasilypreview,saveimagesandchangecamerasettings.
・2DMeasurement& FilingSoftware(Optional)
Useful2D measuringfunctionsare availablewiththeoptional 2D Measuring &Filing Software-ART-MEASURE.
・Recording Software(Optional)
TheoptionalrecordingsoftwareART-RECallowstheusertosavemoviesinAVIformat.
・Software DevelopmentKit(Optional)
Forcustomerwhopreferstocreatetheirownimageprocessingsoftwareoruseourcamerawithotherapplications,we
provideSDKuponrequests.

- 8 -
4.TheProduct
1)Camera
2)USBCable TypeA-Bconnectorcable,3m approx.
3)Introduction Booklet
4)Viewersoftware/DeviceDriverCD
<Options>
1)C Mountlens
2)2Measurement&FilingSoftware [ART-MEASURE]
3)RecordingSoftware [ART-REC]
4)SoftwareDevelopmentKit [ARTCCM-SDK]
5)LabViewDLL
6)5mextensioncablewithUSB2.0repeater

- 9 -
5. Connect theCamera
5-1 Howtoconnectacamera
5-2 ShutterSpeed
ShutterspeedcanbechangedonthestandardviewersoftwareART-Viewer.
The shutter speed is set directly on the sensor register, so please refer to the following formulas for the real exposure
time.
Model
Method
036MI2-WOMSeries
Range：1~32767(ExposureTime：1/33149~0.988sec)
*1 External trigger value : 2~32767
ExposureTime＝(ShutterValue×(640+64))×0.0417 [μsec] at 24MHz
130MI-WOMSeries
Range：1~16383(ExposureTime：1/35928~0.52sec)
ExposureTime＝(ShutterValue×(1280+244)－180)×0.020833 [μsec] at 48MHz
035IMX-WOMSeries
Range：1~8191(ExposureTime：1/33582~0.24sec)
ExposureTime＝(ShutterValue×(1280+328))×0.018519 [μsec] at54MHz
300MI-WOMSeries
Range：1~16383(ExposureTime：1/19688~0.832sec)
ExposureTime＝(ShutterValue×(2048+390))×0.020833 [μsec] at 48MHz
500MI-WOMSeries
Range：1~16383(ExposureTime：1/53452~1.196sec)
ExposureTime＝((ShutterValue×(2592+912))－2606)×0.020833 [μsec]
at 48MHz
1000MI-WOMSeries
Range：1~16383(ExposureTime：1/11678~1.4sec)
ExposureTime＝(ShutterValue×(3856+254))×0.020833 [μsec] at 48MHz
1400MI-WOMSeries
Range：1~16383(ExposureTime：1/9756~1.68sec)
ExposureTime＝(ShutterValue×(4608+312))×0.020833 [μsec] at48MHz
5-3 Operationclocksettings
Userscanswitchtheoperationclockbetween48MHz/24MHz/12MHzwiththestandardviewersoftwareorSDK.
*1 48MHzisnotavailableonARTCAM-036MI2-WOM series.
*2 ARTCAM-035IMX-WOMseriesisfixedat54MHz.

- 10 -
6.Specifications
6-1 ColorModel
ARTCAM-
036MI2-WOM
036MI2-WOM-OP
036MI2-WOM-OP-CM
ARTCAM-
130MI-WOM
130MI-WOM-OP
130MI-WOM-OP-CM
ARTCAM-
035IMX-WOM
035IMX-WOM-OP
035IMX-WOM-OP-CM
ARTCAM-
300MI-WOM
300MI-WOM-OP
300MI-WOM-OP-CM
SensorType
CMOSColorImageSensor
ActivePixels
752(H)×480(V)
1280(H)×1024(V)
1329(H)×1049(V)
2048(H)×1536(V)
ActiveImager
Size
4.51(H)×2.88(V)mm
1/3”
6.66(H)×5.32(V)mm
1/2”
4.82(H)×3.81(V)mm
1/3”
6.55(H)×4.92(V)mm
1/2”
ScanMode
ProgressiveScan
PixelSize
6.0(H)×6.0(V)μm
5.2(H)×5.2(V)μm
3.63(H)×3.63(V)μm
3.2(H)×3.2(V)μm
ShutterType
GlobalShutter
RollingShutter
ColorFilter
Array
RGBBayerPattern
FrameRate
60fps
30fps
28.5fps(FULL)
30fps(SXGA)
12fps
ShutterSpeed
1/33149~0.988s
at 24MHz
1/35928~0.52s
at48MHz
1/33852~0.24s
SXGA at 54MHz
1/19688~0.832s
at48MHz
Interface
USB2.0BulkTransfer
Synchronization
System
InternalSynchronization
LensMount
CMount
(036MI2-WOM,
036MI2-WOM-OP-CM)
BoardlensMountM12P0.5
(036MI2-WOM-OP)
CMount
(130MI-WOM,
130MI-WOM-OP-CM)
BoardlensMountM12P0.5
(130MI-WOM-OP)
CMount
(035IMX-WOM,
035IMX-WOM-OP-CM)
BoardlensMountM12P0.5
(035IMX-WOM-OP)
CMount
(300MI-WOM,
300MI-WOM-OP-CM)
BoardlensMountM12P0.5
(300MI-WOM-OP)
Power
DC5V(SuppliedbyUSB port)
Power
Consumption
UnderApprox.2W
Ambient
Conditions
OperatingTemperature/Humidity：0~35°C/10~80%(Noncondensing)
StorageTemperature/Humidity：0~60°C/10~95%(Noncondensing)
External
Dimensions
50(W)×47(H)×41.7(D)mm
(036MI2-WOM)
43.5(W)×43.5(H)×26.2(D)mm(0
36MI2-WOM-OP)
50(W)×47(H)×28.6(D)mm
(036MI2-WOM-OP-CM)
*Lens,tripodnotincluded
50(W)×47(H)×41.7(D)mm
(130MI-WOM)
43.5(W)×43.5(H)×26.2(D)mm
(130MI-WOM-OP)
50(W)×47(H)×28.6(D)mm
(130MI-WOM-OP-CM)
*Lens,tripodnotincluded
50(W)×47(H)×41.7(D)mm
(035IMX-WOM)
43.5(W)×43.5(H)×26.2(D)mm
(035IMX-WOM-OP)
50(W)×47(H)×28.6(D)mm
(035IMX-WOM-OP-CM)
*Lens,tripodnotincluded
50(W)×47(H)×41.7(D)mm
(300MI-WOM)
43.5(W)×43.5(H)×26.2(D)mm
(300MI-WOM-OP)
50(W)×47(H)×28.6(D)mm
(300MI-WOM-OP-CM)
*Lens,tripodnotincluded
Weight
Approx.110g(036MI2-WOM)
Approx.30g(036MI2-WOM-OP)
Approx.70g(036MI2-WOM-OP-CM)
*Lens,tripodandcablenotincluded
Approx.110g(130MI-WOM)
Approx.30g(130MI-WOM-OP)
Approx.70g(130MI-WOM-OP-CM)
*Lens,tripodandcablenotincluded
Approx.110g(035IMX-WOM)
Approx.30g(035IMX-WOM-OP)
Approx.70g(035IMX-WOM-OP-CM)
*Lens,tripodandcablenotincluded
Approx.110g(300MI-WOM)
Approx.30g(300MI-WOM-OP)
Approx.70g(300MI-WOM-OP-CM)
*Lens,tripodandcablenotincluded

- 11 -
6-2 ColorModel
ARTCAM-
500MI-WOM
500MI-WOM-OP
500MI-WOM-OP-CM
ARTCAM-
1000MI-WOM
1000MI-WOM-OP
1000MI-WOM-OP-CM
ARTCAM-
1400MI-WOM
1400MI-WOM-OP
1400MI-WOM-OP-CM
SensorType
CMOSColorImageSensor
ActivePixels
2592(H)×1944(V)
3856(H)×2764(V)
4608(H)×3288(V)
ActiveImager
Size
5.70(H)×4.28(V)mm
1/2.5”
6.41(H)×4.59(V)mm
1/2.3”
6.14(H)×4.60(V)mm
1/2.3”
ScanMode
ProgressiveScan
PixelSize
2.2(H)×2.2(V)μm
1.67(H)×1.67(V)μm
1.4(H)×1.4(V)μm
ShutterType
RollingShutter
ColorFilter
Array
RGBBayer Pattern
FrameRate
7.5fps
4.4fps
3.0fps
ShutterSpeed
1/53452~1.196s
at48MHz
1/11678~1.4s
at48MHz
1/9756~1.68s
at48MHz
Interface
USB2.0BulkTransfer
Synchronization
System
InternalSynchronization
LensMount
CMount
(500MI-WOM, 500MI-WOM-OP-CM)
Boardlens Mount M12 P0.5
(500MI-WOM-OP)
CMount
(1000MI-WOM, 1000MI-WOM-OP-CM)
Boardlens Mount M12 P0.5
(1000MI-WOM-OP)
CMount
(1400MI-WOM,
1400MI-WOM-OP-CM)
Boardlens Mount M12 P0.5
(1400MI-WOM)
Power
DC5V(SuppliedbyUSB port)
Power
Consumption
UnderApprox.2W
Ambient
Conditions
OperatingTemperature/Humidity：0~35°C/10~80%(Noncondensing)
StorageTemperature/Humidity：0~60°C/10~95%(Noncondensing)
External
Dimensions
50(W)×47(H)×41.7(D)mm
(500MI-WOM)
43.5(W)×43.5(H)×26.2(D)mm
(500MI-WOM-OP)
50(W)×47(H)×28.6(D)mm
(500MI-WOM-OP-CM)
*Lens,tripodnotincluded
50(W)×47(H)×41.7(D)mm
(1000MI-WOM)
43.5(W)×43.5(H)×26.2(D)mm
(1000MI-WOM-OP)
50(W)×47(H)×28.6(D)mm
(1000MI-WOM-OP-CM)
*Lens,tripodnotincluded
50(W)×47(H)×41.7(D)mm
(1400MI-WOM)
43.5(W)×43.5(H)×26.2(D)mm
(1400MI-WOM-OP)
50(W)×47(H)×28.6(D)mm
(1400MI-WOM-OP-CM)
*Lens,tripodnotincluded
Weight
Approx.110g(500MI-WOM)
Approx.30g(500MI-WOM-OP)
Approx.70g(500MI-WOM-OP-CM)
*Lens,tripodandcablenotincluded
Approx.110g(1000MI-WOM)
Approx.30g(1000MI-WOM-OP)
Approx.70g(1000MI-WOM-OP-CM)
*Lens,tripodandcablenotincluded
Approx.110g(1400MI-WOM)
Approx.30g(1400MI-WOM-OP)
Approx.70g(1400MI-WOM-OP-CM)
*Lens,tripodandcablenotincluded

- 12 -
6-3 MonochromeModel
ARTCAM-
036MI2-BW-WOM
036MI2-BW-WOM-OP
036MI2-BW-WOM-OP-CM
ARTCAM-
130MI-BW-WOM
130MI-BW-WOM-OP
130MI-BW-WOM-OP-CM
ARTCAM-
035IMX-BW-WOM
035IMX-BW-WOM-OP
035IMX-BW-WOM-OP-CM
ARTCAM-
500MI-BW-WOM
500MI-BW-WOM-OP
500MI-BW-WOM-OP-CM
SensorType
CMOSMonochromeImageSensor
ActivePixels
752(H)×480(V)
1280 (H)×1024(V)
1329(H)×1049(V)
2592(H)×1944(V)
ActiveImager
Size
4.51(H)×2.88(V)mm
1/3”
6.66(H)×5.32(V)mm
1/2”
4.82(H)×3.81(V)mm
1/3”
5.70(H)×4.28(V)mm
1/2.5”
ScanMode
ProgressiveScan
PixelSize
6.0(H)×6.0(V)μm
5.2(H)×5.2(V)μm
3.63(H)×3.63(V)μm
2.2(H)×2.2(V)μm
ShutterType
GlobalShutter
RollingShutter
FrameRate
60fps
30fps
28.5fps(FULL)
30fps(SXGA)
7.5fps
ShutterSpeed
1/33149~0.988s
at24MHz
1/35928~0.52s
at48MHz
1/33852~0.24s
SXGAat54MHz
1/53452~1.196s
at48MHz
Interface
USB2.0BulkTransfer
Synchronization
System
InternalSynchronization
LensMount
CMount
(036MI2-BW-WOM,
036MI2-BW-WOM-OP-CM)
BoardlensMountM12P0.5
(036MI2-BW-WOM-OP)
CMount
(130MI-BW-WOM,
130MI-BW-WOM-OP-CM)
BoardlensMountM12P0.5
(130MI-BW-WOM-OP)
CMount
(035IMX-BW-WOM,
035IMX-BW-WOM-OP-CM)
BoardlensMountM12P0.5
(035IMX-BW-WOM)
CMount
(500MI-BW-WOM,
500MI-BW-WOM-OP-CM)
BoardlensMountM12P0.5
(500MI-BW-WOM-OP)
Power
DC5V(SuppliedbyUSB port)
Power
Consumption
UnderApprox.2W
Ambient
Conditions
OperatingTemperature/Humidity：0~35°C/10~80%(Noncondensing)
StorageTemperature/Humidity：0~60°C/10~95%(Noncondensing)
External
Dimensions
50(W)×47(H)×41.7(D)mm
(036MI2-BW-WOM)
43.5(W)×43.5(H)×26.2(D)mm
(036MI2-BW-WOM-OP)
50(W)×47(H)×28.6(D)mm
(036MI2-BW-WOM-OP-CM)
*Lens,tripodnotincluded
50(W)×47(H)×41.7(D)mm
(130MI-BW-WOM)
43.5(W)×43.5(H)×26.2(D)mm
(130MI-BW-WOM-OP)
50(W)×47(H)×28.6(D)mm
(130MI-BW-WOM-OP-CM)
*Lens,tripodnotincluded
50(W)×47(H)×41.7(D)mm
(035IMX-BW-WOM)
43.5(W)×43.5(H)×26.2(D)mm
(035IMX-BW-WOM-OP)
50(W)×47(H)×28.6(D)mm
(035IMX-BW-WOM-OP-CM)
*Lens,tripodnotincluded
50(W)×47(H)×41.7(D)mm
(500MI-BW-WOM)
43.5(W)×43.5(H)×26.2(D)mm
(500MI-BW-WOM-OP)
50(W)×47(H)×28.6(D)mm
(500MI-BW-WOM-OP-CM)
*Lens,tripodnotincluded
Weight
Approx.110g(036MI2-BW-WOM)
Approx.30g(036MI2-BW-WOM-OP)
Approx.70g(036MI2-BW-WOM-OP-CM)
*Lens,tripodandcablenotincluded
Approx.110g(130MI-BW-WOM)
Approx.30g(130MI-BW-WOM-OP)
Approx.70g(130MI-BW-WOM-OP-CM)
*Lens,tripodandcablenotincluded
Approx.110g(035IMX-BW-WOM)
Approx.30g(035IMX-BW-WOM-OP)
Approx.70g(035IMX-BW-WOM-OP-CM)
*Lens,tripodandcablenotincluded
Approx.110g(500MI-BW-WOM)
Approx.30g(500MI-BW-WOM-OP)
Approx.70g(500MI-BW-WOM-OP-CM)
*Lens,tripodandcablenotincluded

- 13 -
6-4 NIR Model
ARTCAM-
036MI2-NIR-WOM
036MI2-NIR-WOM-OP
036MI2-NIR-WOM-OP-CM
ARTCAM-
130MI-NIR-WOM
130MI-NIR-WOM-OP
130MI-NIR-WOM-OP-CM
ARTCAM-
035IMX-NIR-WOM
035IMX-NIR-WOM-OP
035IMX-NIR-WOM-OP-CM
ARTCAM-
500MI-NIR-WOM
500MI-NIR-WOM-OP
500MI-NIR-WOM-OP-CM
SensorType
CMOSMonochromeImageSensor
ActivePixels
752(H)×480(V)
1280 (H)×1024(V)
1329(H)×1049(V)
2592(H)×1944(V)
ActiveImager
Size
4.51(H)×2.88(V)mm
1/3”
6.66(H)×5.32(V)mm
1/2”
4.82(H)×3.81(V)mm
1/3”
5.70(H)×4.28(V)mm
1/2.5”
ScanMode
ProgressiveScan
PixelSize
6.0(H)×6.0(V)μm
5.2(H)×5.2(V)μm
3.63(H)×3.63(V)μm
2.2(H)×2.2(V)μm
ShutterType
GlobalShutter
RollingShutter
FrameRate
60fps
30fps
28.5fps(FULL)
30fps(SXGA)
7.5fps
ShutterSpeed
1/33149~0.988s
at24MHz
1/35928~0.52s
at48MHz
1/33852~0.24s
SXGAat54MHz
1/53452~1.196s
at48MHz
Interface
USB2.0BulkTransfer
Synchronization
System
InternalSynchronization
LensMount
CMOUNT
(036MI2-NIR-WOM,
036MI2-NIR-WOM-OP-CM)
BoardlensMountM12P0.5
(036MI2-NIR-WOM-OP)
CMOUNT
(130MI-NIR-WOM,
130MI-NIR-WOM-OP-CM)
BoardlensMountM12P0.5
(130MI-NIR-WOM-OP)
CMOUNT
(035IMX-NIR-WOM,
035IMX-NIR-WOM-OP-CM)
BoardlensMountM12P0.5
(035IMX-NIR-WOM-OP)
CMOUNT
(500MI-NIR-WOM,
500MI-NIR-WOM-OP-CM)
BoardlensMountM12P0.5
(500MI-NIR-WOM-OP)
Power
DC5V(SuppliedbyUSB port)
Power
Consumption
UnderApprox.2W
Ambient
Conditions
OperatingTemperature/Humidity：0~35°C/10~80%(Noncondensing)
StorageTemperature/Humidity：0~60°C/10~95%(Noncondensing)
External
Dimensions
50(W)×47(H)×41.7(D)mm
(036MI2-NIR-WOM)
43.5(W)×43.5(H)×26.2(D)mm
(036MI2-NIR-WOM-OP)
50(W)×47(H)×28.6(D)mm
(036MI2-NIR-WOM-OP-CM)
*Lensandcablenotincluded
50(W)×47(H)×41.7(D)mm
(130MI-NIR-WOM)
43.5(W)×43.5(H)×26.2(D)mm
(130MI-NIR-WOM-OP)
50(W)×47(H)×28.6(D)mm
(130MI-NIR-WOM-OP-CM)
*Lensandcablenotincluded
50(W)×47(H)×41.7(D)mm
(035IMX-NIR-WOM)
43.5(W)×43.5(H)×26.2(D)mm
(035IMX-NIR-WOM-OP)
50(W)×47(H)×28.6(D)mm
(035IMX-NIR-WOM-OP-CM)
*Lensandcablenotincluded
50(W)×47(H)×41.7(D)mm
(500MI-NIR-WOM)
43.5(W)×43.5(H)×26.2(D)mm
(500MI-NIR-WOM-OP)
50(W)×47(H)×28.6(D)mm
(500MI-NIR-WOM-OP-CM)
*Lensandcablenotincluded
Weight
Approx.110g(036MI2-NIR-WOM)
Approx.30g(036MI2-NIR-WOM-OP)
Approx.70g(036MI2-NIR-WOM-OP-CM)
*Lens,tripodandcablenotincluded
Approx.110g(130MI-NIR-WOM)
Approx.30g(130MI-NIR-WOM-OP)
Approx.70g(130MI-NIR-WOM-OP-CM)
*Lens,tripodandcablenotincluded
Approx.110g(035IMX-NIR-WOM)
Approx.30g(035IMX-NIR-WOM-OP)
Approx.70g(035IMX-NIR-WOM-OP-CM)
*Lens,tripodandcablenotincluded
Approx.110g(500MI-NIR-WOM)
Approx.30g(500MI-NIR-WOM-OP)
Approx.70g(500MI-NIR-WOM-OP-CM)
*Lens,tripodandcablenotincluded

- 14 -
7. External Dimensions

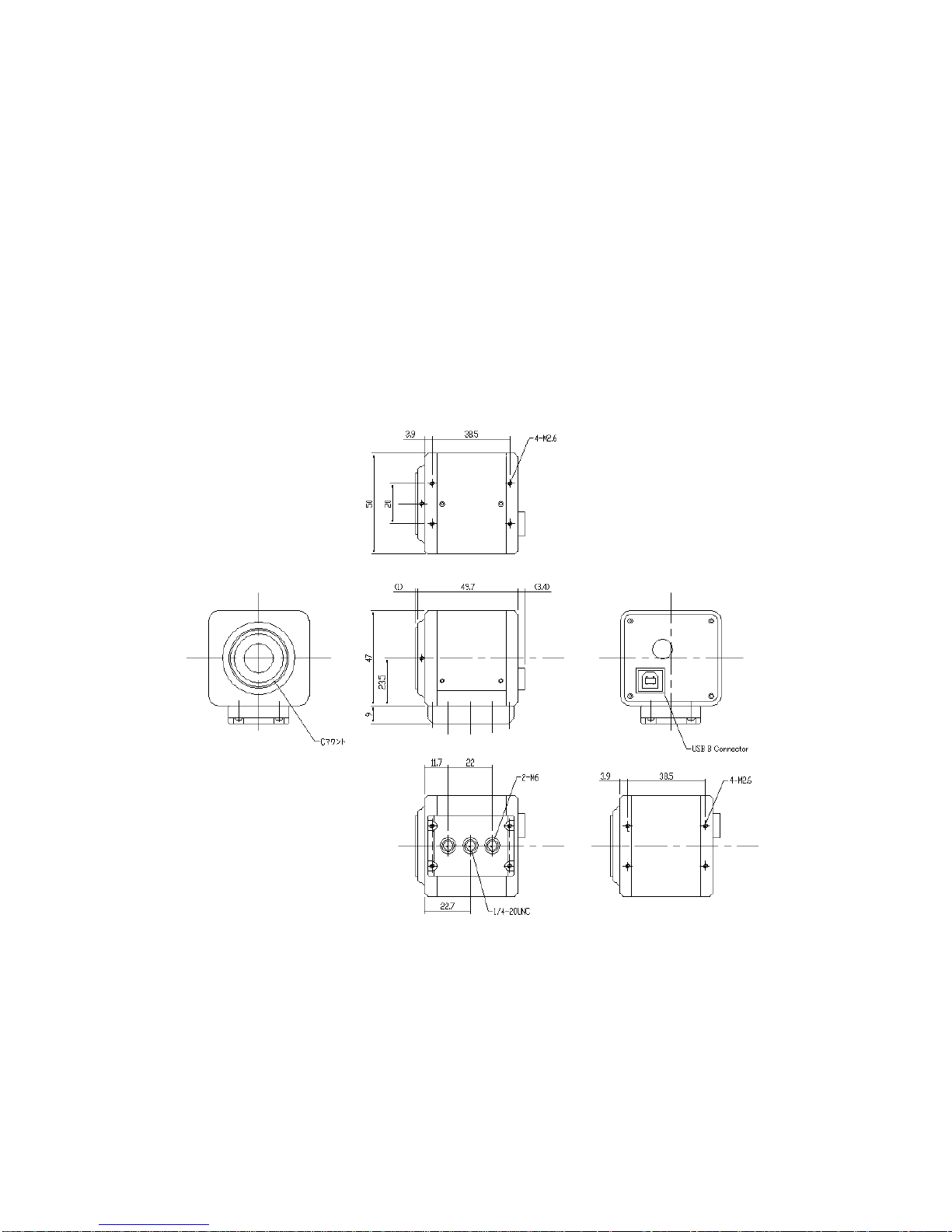

7-1 C-MOUNT,CASED,USBCABLETYPE(Smallcase）
ARTCAM-036MI2-WOM/036MI2-BW-WOM/036MI2-NIR-WOM
ARTCAM-130MI-WOM/130MI-BW-WOM /130MI-NIR-WOM
ARTCAM-035IMX-WOM/035IMX-BW-WOM /035IMX-NIR-WOM
ARTCAM-300MI-WOM
ARTCAM-500MI-WOM/500MI-BW-WOM /500MI-NIR-WOM
ARTCAM-1000MI-WOM
ARTCAM-1400MI-WOM
*The design has changed into the small case model of this outline
drawingforordersafterAug,2012.

- 15 -
7-2 C-MOUNT,CASED,USBCABLETYPE (Oldmodel case)
ARTCAM-036MI2-WOM/036MI2-BW-WOM/036MI2-NIR-WOM
ARTCAM-130MI-WOM/130MI-BW-WOM /130MI-NIR-WOM
ARTCAM-035IMX-WOM/035IMX-BW-WOM /035IMX-NIR-WOM
ARTCAM-300MI-WOM
ARTCAM-500MI-WOM/500MI-BW-WOM /500MI-NIR-WOM
ARTCAM-1000MI-WOM
ARTCAM-1400MI-WOM
*Itisanoutlinedrawingof previouscase.
Itisalso possibletouse thesamecase.
Drawingofthebasewithouta tripod panel

- 16 -
7-3 BOARD LENS,BOARDTYPE
ARTCAM-036MI2-WOM-OP/036MI2—BW-WOM-OP /036MI2-NIR-WOM-OP
ARTCAM-130MI-WOM-OP /130MI-BW-WOM-OP /130MI-NIR-WOM-OP
ARTCAM-035IMX-WOM-OP /035IMX-BW-WOM-OP /035IMX-NIR-WOM-OP
ARTCAM-300MI-WOM-OP
ARTCAM-500MI-WOM-OP /500MI-BW-WOM-OP /500MI-NIR-WOM-OP
ARTCAM-1000MI-WOM-OP
ARTCAM-1400MI-WOM-OP
*Depending on different models, size and position of components in
frontofsensorboard(condenser...)mightvary.

- 17 -
7-3 C-MOUNT,BOARDTYPE
ARTCAM-036MI2-WOM-OP-CM /036MI2-BW-WOM-OP-CM /036MI2-NIR-WOM-OP-CM
ARTCAM-130MI-WOM-OP-CM /130MI-BW-WOM-OP-CM /130MI-NIR-WOM-OP-CM
ARTCAM-035IMX-WOM-OP-CM/035IMX-BW-WOM-OP-CM /035IMX-NIR-WOM-OP-CM
ARTCAM-300MI-WOM-OP-CM
ARTCAM-500MI-WOM-OP-CM /500MI-BW-WOM-OP-CM /500MI-NIR-WOM-OP-CM
ARTCAM-1000MI-WOM-OP
ARTCAM-1400MI-WOM-OP

- 18 -
8. Spectral sensitivity characteristics

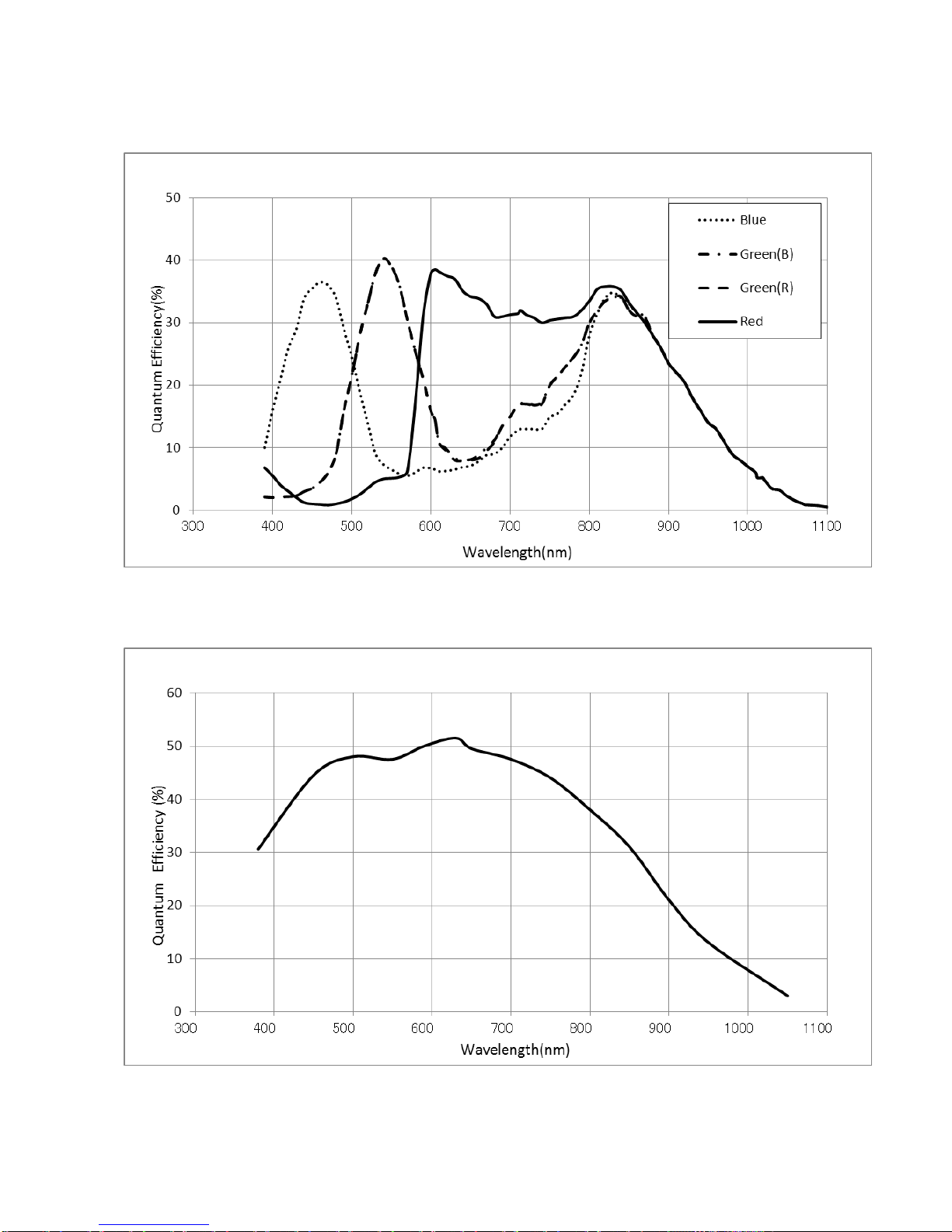

8.1 ARTCAM-036MI2-WOMseries(Colormodel)
8.2 ARTCAM-036MI2-BW-WOMseries(Monochromemodel)
ARTCAM-036MI2-WOM series(Colormodel)
ARTCAM-036MI2-BW-WOMseries(Monochrome model)

- 19 -

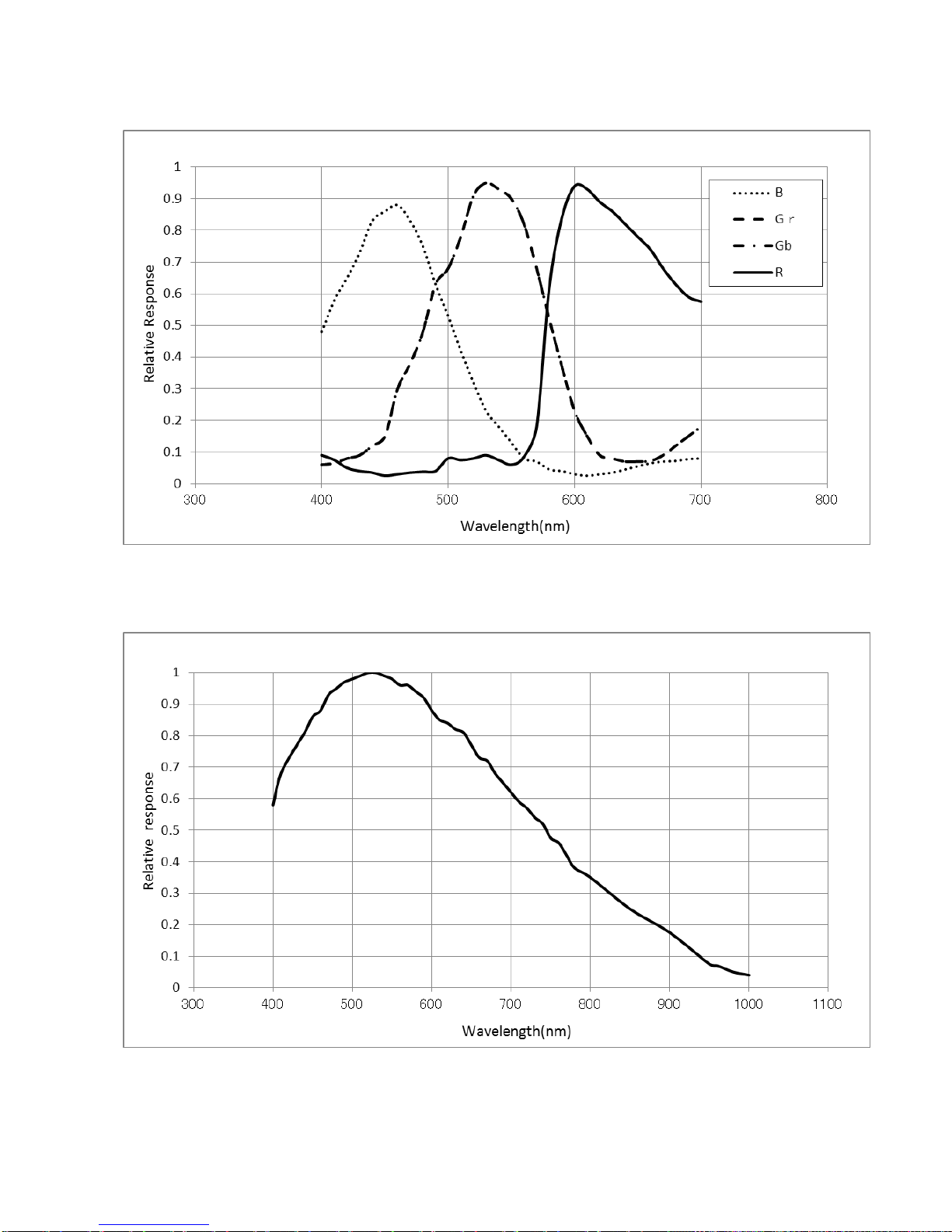

8.3 ARTCAM-130MI-WOMseries(Colormodel)
8.4 ARTCAM-130MI-BW-WOM series(Monochromemodel)
ARTCAM-130MI-BW-WOMseries(Monochromemodel)
ARTCAM-130MI-WOM series(Colormodel)

- 20 -
8.5ARTCAM-035IMX-WOMseries(Colormodel)
8.6ARTCAM-035IMX-BW-WOMseries(Monochromemodel)
ARTCAM-035IMX-WOM series(Colormodel)
ARTCAM-035IMX-BW-WOMseries(Monochromemodel)
