Artusi AMC34BI User manual

AMC34BI
OPERATION MANUAL
APPLIANCES
FOR LIVING

Congratulations, you are now the proud owner of an ARTUSI cooking appliance. Thank you for purchasing ARTUSI
and welcome to the ARTUSI Family.
This instruction manual has been specially created to inform you of the full range of features your ARTUSI appliance
has to offer and serves as an introduction to getting the very best out of your ARTUSI appliance.
We present detailed information on each of the features your ARTUSI appliance consists of. Once you have read
this section you will be able to choose the most appropriate settings for your appliance when cooking different
types of food.
We ask you to read the instructions in this booklet very carefully as this will allow you to get the best results from
using your appliance. KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.
TO REGISTER YOUR PRODUCT WITH ARTUSI, PLEASE FILL OUT THE WARRANTY CARD AT THE END OF
THIS BOOKLET AND POST IT TO: REPLY PAID 83617
LEICHHARDT NSW 2040
Dear Artusi Customer, please read this user manual carefully before using the product and, keep it permanently at
your disposal.
Note: This user manual is prepared for more than one model. Some of the features specified in this Manual may not
be available on your appliance.
All our appliances are only for domestic use, not for commercial use. Products marked with (*) are optional.
“THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE REGULA TIONS FORCE AND ONLY USED
IN A WELL VENTILATED SPACE. READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE”
“Conforms with the WEEE Regulations.”

Specifications
(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwave energy. Never break or tamper with the safety
interlocks.
(b) Do not place any object between the oven front face
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
an authorised service person.
If the MWO is not maintained in a good state of
cleanliness, its surface could be degraded and affect its
lifespan and lead to a dangerous situation.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
2
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Rated Input Power(Grill):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
230-240V~50Hz
Approx. kg
Rated Input Power(Convection):
315mm
1550W
1100W
2300W
.5
AMC34BI
1000W
3 L
595x467.5x388mm
21
The accessible surface may
be hot during operation.
Important
2

3
To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including the following:
1. Warning: Liquids and other foods must not be heated
in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved.Children shall not
play with the appliance.Cleaning and user maintenance
shall not be made by children unless they are older than
8 and supervised.
4. Keep the appliance and its cord out of reach of
children less than 8 years.
5. Only use utensils that are suitable for use in microwave
6. The oven should be cleaned regularly and any food
deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
8. When heating food in plastic or paper containers,
IMPORTANT SAFETY INSTRUCTIONS
WARNING
oven .s

4
9. If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes.
Do not store items, such as bread, cookies, etc. inside
the oven.
12. Remove wire twist-ties and metal handles from
paper or plastic containers/bags before placing them in
the oven.

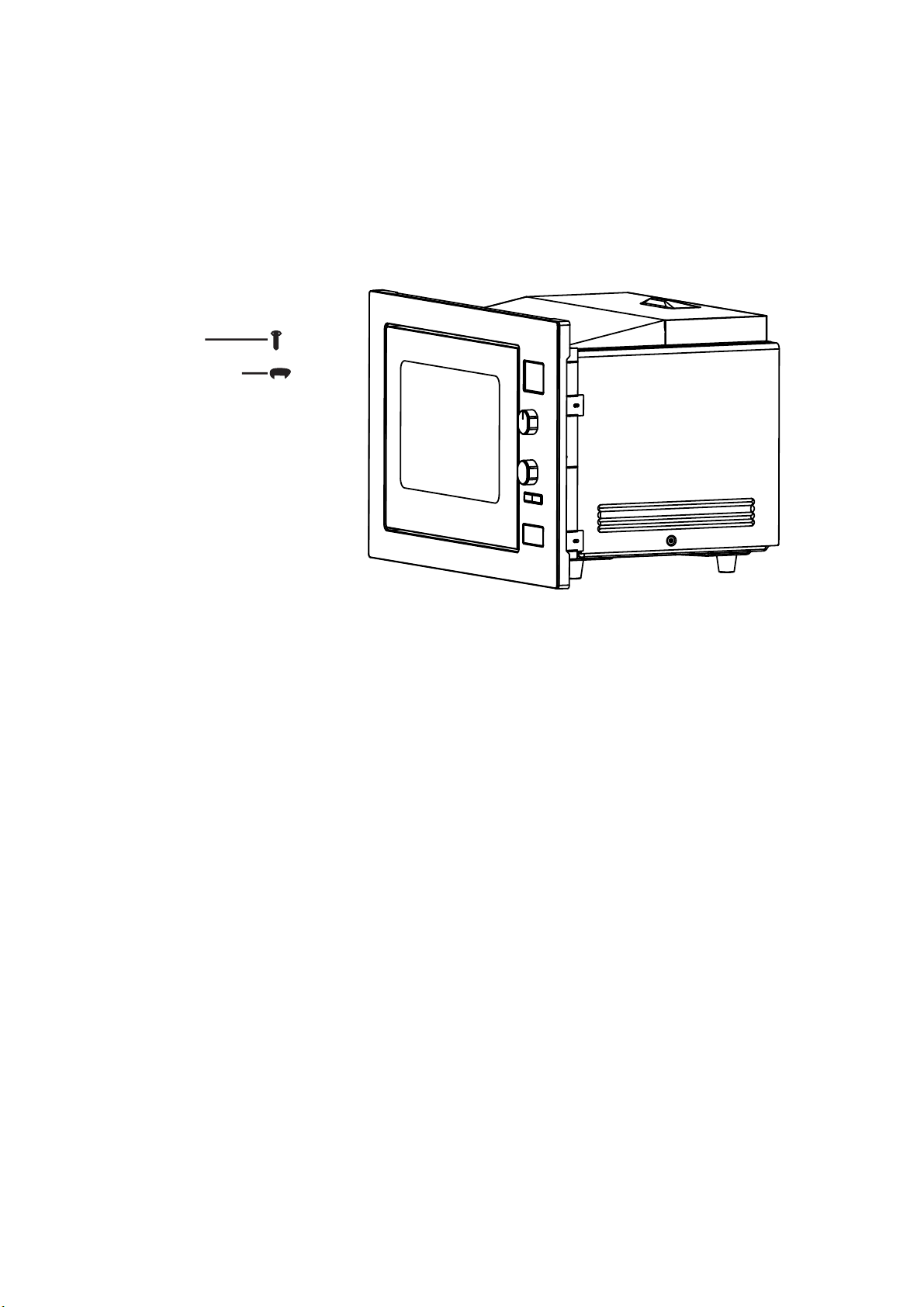

13. Install or locate this oven only in accordance with the
installation instructions provided.
14. Eggs in the shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
15.This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement
or near a swimming pool.
19. The temperature of accessible surfaces may be high
when the appliance is operating. The surfaces are liable
to get hot during use. Keep cord away from heated
keep an eye on the oven due to the possibility of ignition.
ir

5
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition
could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
22.The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in
delayed eruptive boiling, therefore care must be taken
when handling the container.
24.The appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
25.Children should be supervised to ensure that they do
not play with the appliance.
26.The appliances are not intended to be operated by
means of an external timer or separate remote-control
system.
27. Accessible parts may become hot during use.
Young children should be kept away.
28.Steam cleaner is not to be used.
29.During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside the
oven.
30.Only use the temperature probe recommended for
this oven.(for ovens provided with a facility to use a
surface, and do not cover any vents on the oven.

6
31.WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years of
age shall be kept away unless continuously supervised.
32.The microwave oven must be operated with the
decorative door open.(for ovens with a decorative door.)
33.Surface of a storage can get hot.
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
3 .The microwave oven is intended for heating food an
beverages.Drying of food or clothing and heating of
warming pads,slippers,sponges,damp cloth and similar
may lead to risk of injury,ignition or fire.
4
temperature-sensing probe.)
d
drawer

7
To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER
Electric Shock Hazard
Touching some of the
internal components can
cause serious personal
injury or death. Do not
disassemble this appliance.
WARNING
Electric Shock Hazard Improper
use of the grounding can
result in electric shock.
Do not plug into an outlet
until appliance is properly
installed and grounded.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a cord having a
grounding wire with
a grounding plug. The
plug must be plugged into
an outlet that is properly
installed and grounded.
Consult a qualified
electrician or serviceman
if the grounding instructions
are not completely
understood or if doubt exists
as to whether the appliance
is properly grounded.
If it is necessary to use an
extension cord, use only
a 3-wire
1. A short power-supply cord
is provided to reduce the risks
resulting from becoming
entangled in or tripping over a
longer cord.
cord is used:
1)The marked electrical rating
of the cord set or extension cord
should be at least as great as
the electrical rating of the
appliance.
2)The extension cord must be
a grounding-type 3-wire cord.
3)The long cord should be
arranged so that it will not drape
over the counter top or tabletop
where it can be pulled on
by children or tripped over
unintentionally.
cord. extension
2. If a long cord set or extension

CLEANING
appliance from thepower supply before cleaning it.
1. Clean the cavity of the oven after using with a slightly damp
cloth.
2. Clean the accessories in warm soapy water.
3. The door frame and seal and neighbouring parts must be
cleaned carefully with a damp cloth .
4. Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the
food can touch: Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100% microwave power for 10
minutes. Wipe the oven clean using a soft, dry cloth.
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for
anyone other than a
compentent person to
carry out any service
or repair operation that
involves the removal of
a cover which gives
protection against
exposure to microwave
energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question in
the oven.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
very warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
See the instructions on "Materials you can use in
or to be avoided in microwave ovens."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
8
Unplug the

Materials you can use in microwave oven
Utensils Remarks
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
9

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
CB
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both
glass tray and turntable ring assembly must
always be used during cooking.
c. ood and containers of food must be placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center for replacement.
Turntable Installation
Turntable shaft
10
Grill Rack( Can not be used in microwave
function and must be placed on the glass tray )
F

11
Installation and connection
1.This appliance is only intended for domestic use.
2.This oven is intended for built-in use only. It is not intended
for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4.The appliance can be installed in a 600mm wide wall-
mounted cupboard(at lease 550mm deep and 850mm off the
floor).
5.The appliance is fitted with a plug and must only be
connected to a properly installed earthed socket.
6.The mains voltage must correspond to the voltage
specified on the rating plate.
7.The socket must be installed and connecting cable must
only be replaced by a qualified electrician. If the plug is no
longer to accessible following installation, an all-pole
disconnecting device must be present on the installation
side with a contact gap of at lease 3mm.
8.Adapters, multi-way strips and extension leads must not
be used. Overloading can result in a risk of fire.
side with a contact gap of at least 3mm.

12
Installation Instructions
Please Read the Manual Carefully Before Installation
Please Note
Electrical connection
The oven is fitted with a plug and must be only connected to a properly installed earthed
socket. In accordance with the appropriate regulations, the socket must only be installed and
the connecting cable must only be replaced by a qualified electrician.
If the plug is no longer accessible following installation and all-pole isolating switch must
be present on the installation side with a contact gap of at least 3mm.
TRIM-KIT PLASTIC
COVER
SCREW

13
A. Built-in furniture
The built-in cabinet shall not have a rear wall behind the appliance.
Minimum installation height is 850mm.
Do not cover ventilation slots and air intake points.
600
560+8
(45)
(45)
min
380
5 0 +3 5

14
B. Install the Oven
1. Do not trap or kink the power cord.
Make sure that the oven is installed in the center of the cabinet.
2. Open the door; fix the oven to the cabinet with SCREW at the
INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER
to the INSTALLATION HOLE.
Installation Hole
Screw
Trim-kit plastic cover

15
Control pannel
Auto menu
clock/kitchen timer
time defrost
weight defrost
C-4
grill
convection
C-1
C-2
C-3
Microwave
function knob
selection knob
Start/+30Sec./Confirm
Stop/Clear

16
Operation Instructions
1. Clock Setting
When the microwave oven is on, the screen will display "0:00",
, "P100" will flash.
to choose different microwave power, and "P100, P80, P50,
P30, P10" will display in order.
to confirm the power level.
to start cooking.
the input time should be within 0--23.
, the minute figures will flash.
to finish clock setting. ":" will flash.
Note:
In the process of clock setting, if you press , the oven
will go back to the previous status automatically.The setting will be cancelled.
, the hour figures will flash.
to adjust the minute figures, the input time should be within 0--59.
1)
2)
3) Press
4) Turn
to adjust the cooking time. The time setting should be 0:05-95:00.
5) Press
3. Microwave Cooking
1) Press
2)
3) Press
to confirm setting.
4) When the timer time arrives, the buzzer will ring 5 times. If the clock has been set, screen
will display the current time.
1) The kitchen time is different from 24-hour system, it is a timer.
2) During kitchen timer, any program cannot be set.
Turn
to adjust the timer time. Time setting should be 0:05-95:00.
Note:
.2 Kitchen Timer
,the screen will display"00:00".
Turn the function knob to
Turn
1) Turn the function knob to
2) Press
3) Turn
to adjust the hour figures,
4) Press
5) Turn
6) Press
,the screen will display"00:00",this is clock setting.
1) Turn the function knob to
Then turn
and "00:00" will flash, this is kitchen timer setting.
confirm, the screen will display 00:00.

17
1) Turn the function knob to
turn to choose the convection temperature (
2) Press to confirm the temperature.
Power
Display
100% 80% 50% 30% 10%
P100 P80 P50 P30 P10
3) Press again to start preheating.
4) The temperature figure will flash when temperature arrives and
reminding you to put the food in.
5) Turn to adjust the cooking time, the maximum time that can
be set is
95 minutes.
6) Press to start cooking.
2) Press to confirm the tempetature.
3) Turn to adjust the cooking time, the maximum time that can
be set is 95 minutes.
4) Press to start cooking.
NOTE: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
0
, "130 C" will display and flash.
130-220 C).
0
1) Turn the function knob to
turn to choose the convection temperature 0
, "130 C" will display and flash.
(130-220 C).
0
1)Turn the function knob to
and the screen displays"G".
95 minutes.
to start cooking.
2) Turn to the cooking time, the maximum time that can be set is
3) Press
95 minutes.
2) Turn to the cooking time, the maximum time that can be set is
3) Press
4. Convection Cooking(with preheating function)
5. Convection Cooking(without preheating function)
6. Grill Cooking
the buzzer will ring twice
set

18
Note:, the oven bell sounds twice, this is normal.
In order to have better grilled food, you should turn the food over, close the
and then press to continue cooking.
When half the grill time has passed
door,
:
95 minutes.
to start cooking.
2) Turn
to adjust the cooking time, the maximum time that can be set is
3) Press
1)Turn the function knob to and the screen displays"C-1".
i .
1)Turn the function knob to " " and the screen displays"C-2".
95 minutes.
to start cooking.
2) Turn to adjust the cooking time, the maximum time that can be set is
3) Press
95 i utes.
1)Turn the function knob to
and the screen displays"C-3".
95 minutes.
to start cooking.
2) Turn to adjust the cooking time, the maximum time that can be set is
3) Press
1)Turn the function knob to and the screen displays"C-4".
95 minutes.
to start cooking.
2) Turn
to adjust the cooking time, the maximum time that can be set is
3) Press
5
Function Display Microwave Grill
Combi.1 C-1
Combi.2 C-2
Convection
C-3
C-4
Combi.3
Combi.4
7. Combination Cooking
7.1. Combination Cooking(C-1)
7.2. Combination Cooking(C-2)
7.3. Combination Cooking(C-3)
7.4. Combination Cooking(C-4)

19
2) Turn to select the cooking time. The maximum time is 95 minutes.
3) Press to start defrosting.
1)
2) Turn to adjust defrost weight. "g" indicator will light,
3) Press to start defrosting.
The weight input should be 100-2000g.
2) During the microwave, grill, combination,convection cooking
to increase the cooking time by 30 seconds.
and defrost by time,
press
1) Press key to cook with 100% power level
for 30 seconds.
Each press on the key increase 30 seconds. The maximum cooking
time is 95 minutes.
Turn the function knob to" ","dEF1" will be displayed.
1)Turn the function knob to ,"dEF2" will be displayed.
1
3) Turn to choose the food weight or portion.
2) Press to confirm the menu you need.
4) Press to start cooking.
1) the screen displays "A1",then turn to
choose the menu from "A1" to "A10".
Turn the function knob to
1
Lock: Press key for 3 seconds. There will be a long "beep"
Unlock: In locked state, press
key for 3 seconds. There will be a long
has been set. Otherwise, "0:00" will display.
"beep" signalling that the lock is released.
. Child Lock Function
8. Speedy Cooking
9. Defrost By Weight
10. Defrost By Time
1. Auto Menu Cooking
2
signalling the child lock is ON. The screen will display current time if the clock
s
