Artusi CAO610BP User manual
CAO610BP
OPERATION MANUAL
APPLIANCES
FOR LIVING
Congratulations, you are now the proud owner of an ARTUSI cooking appliance.
Thank you for purchasing ARTUSI and welcome to the ARTUSI Family.
This instruction manual has been specially created to inform you of the
full range of features your ARTUSI appliance has to offer and serves as an
introduction to getting the very best out of your ARTUSI appliance.
We present detailed information on each of the features your ARTUSI appliance
consists of. Once you have read this section you will be able to choose the
most appropriate settings for your appliance when cooking different types of
food.
We ask you to read the instructions in this booklet very carefully as this
will allow you to get the best results from using your appliance. KEEP THE
DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.
TO REGISTER YOUR PRODUCT WITH ARTUSI, PLEASE FILL OUT THE WARRANTY CARD
AT THE END OF THIS BOOKLET AND POST IT TO: REPLY PAID 83617
LEICHHARDT NSW 2040
Dear Artusi Customer, please read this user manual carefully before using the
product and, keep it permanently at your disposal.
Note: This user manual is prepared for more than one model. Some of the
features specified in this Manual may not be available on your appliance.
All our appliances are only for domestic use, not for commercial use. Products
marked with (*) are optional.
“THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE
REGULA TIONS FORCE AND ONLY USED IN A WELL VENTILATED
SPACE. READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS
APPLIANCE”
“Conforms with the WEEE Regulations.”
Oven temperature indicator
ECO Fan Forced
Super Fan Forced
Pyrolytic Cleaning Defrost
Convection
Fan Forced
Bottom
Grill
Half Fan Grill
Fan Assisted
Bakers Function
The kitchen should be dry and have effective ventilation according to the
existing technical provisions.
Main lead behind the oven must be placed in such manner to avoid touching the
back panel of the oven because of the heat it develops during operation.
Remove any packaging materials(foils,artificial foam,nails,etc.)from the reach of
children,because they represent potential danger.Children may swallow small parts,
or suffocate with foils.
This is a built-in oven,which means that its back wall and one side wallcan be
placed next to a high piece of furniture or a wall.Coating or veneer used on fitted
furniture must be applied with a heat resistant adhesive(100℃),This prevents
surface deformation or detachment of the coating.If you are unsure of your
furniture's heat resistance,you should leave approximately 2cm of free space around
the oven.The wall behind the oven should be resistant to high temperatures.During
operation,its back side can warm up to around 50 above the ambient temperature
℃
Make an opening with the dimensions given in the diagram for the oven to be fitted.
The appliance must be earthed.
Insert the oven completely into the opening without allowing the four screws in the
places shown in the diagram to fall out.
(by authorised electrician)
The means for disconnection from
the supply mains having a contact
separation in all poles that provide
full disconnection under over voltage
the grounding wire shall be
longer than the other wires.
fixed wiring in accordance with the
H05VV-F
564
600
580
40
564
600
58040
570
20
547
595 558
570
20
547
595 558
Remove packaging,clean the interior of the oven.
Take out and wash the oven fittings with warm water and a little washing-up liquid.
Switch on the ventilation in the room or open a window.
Heat the oven(to a temperature of 250℃,for approx.30 min.),remove any stains
and wash carefully.
ECO Fan Forced
Super Fan Forced
Pyrolytic Cleaning Defrost
Convection
Fan Forced
Bottom
Grill
Half Fan Grill
Fan Assisted
Bakers Function
Adjust the Temperature and the Time, the need to stop the current order.
(when the oven s working, touch 3 times), display “0:00”, the “ ” flashing.
3.Touch the temperature button“ ” once, enter the temperature mode.
This mode to set the oven cooking time, when time run out, oven stop working and alarm
sound to remind customer.
Set the cooking time when the power is on, and the oven is working:
2. Turn the Temperature knob to set the cooking time .
3. Touch “ ” to confirm, the cooking time ”“ lights on, time set saved.
4. Set the cooking time run out, oven stop heating, alarm sounds, all the icon on the display
5. Touch button “ ”,“ ”,“ ”or “ ”,the alarm signal will go off. or it
will be turned off automatically after 120 seconds.
are flashing.
1. Touch button“ ” once, the cooking time “ ” flashing, dispaly shows “ 0:00 ”.
1. Touch button“ ” twice, the end of cooking time “ ” flashing.
5. Touch button “ ”,“ ”,“ ”or “ ”,the alarm signal will go off. or it
will be turned off automatically after 120 seconds.

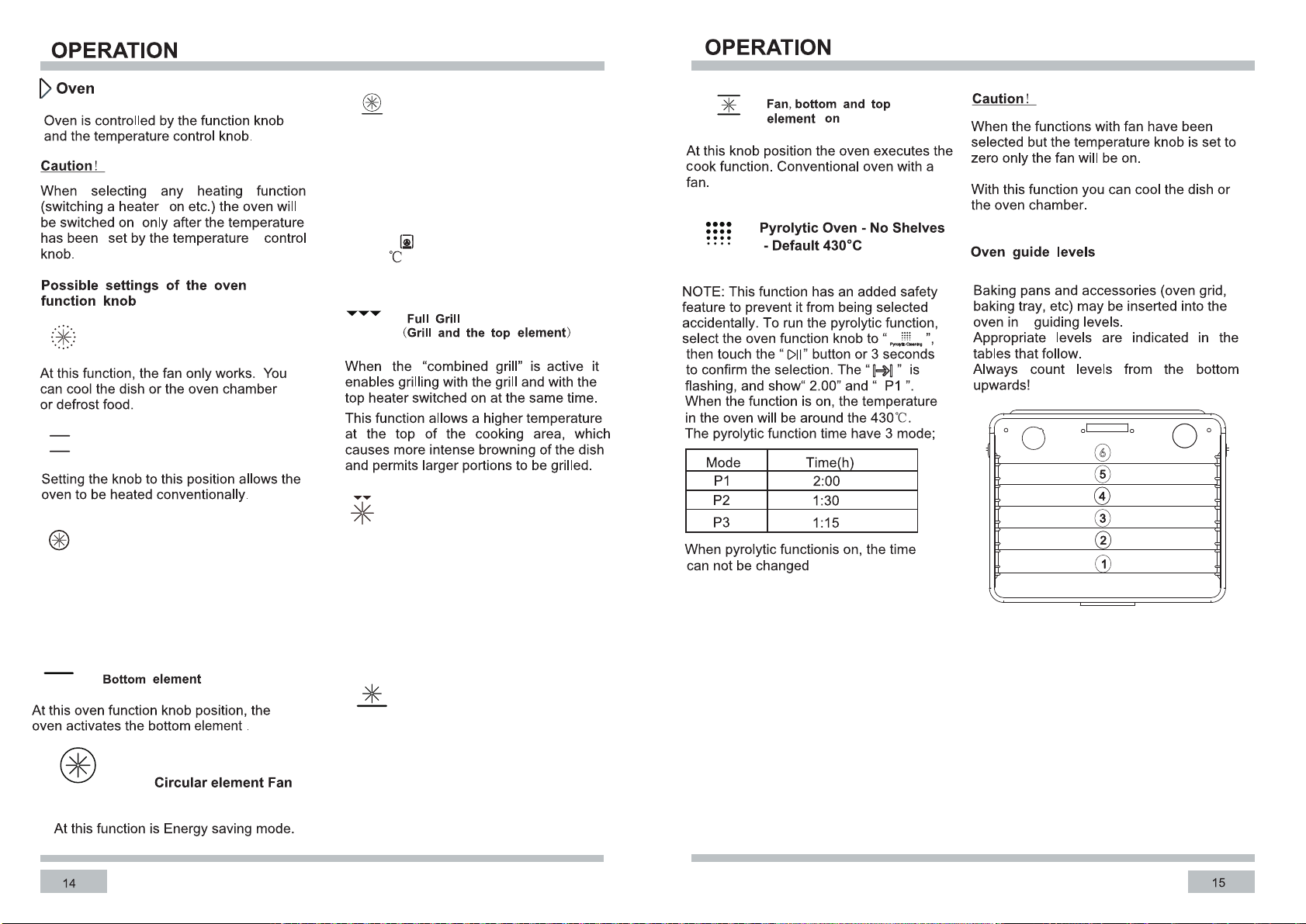

Fan(Defrost)
Bottom and top element on
Fan forced
A heating element around the fan enables
the most uniform heating possible. This
mode minimises preheating time, and is
also the best for cooking several different
types of food at once.
Convection
Defrost
Fan Forced
Circular heater Fan
with Bottom Element
This operates the fan oven with the
convection element and the bottom
element allowing for cooking with
increased temperature from the
of the dish when using shelf
or 4 . set the oven operation
the default temperature
displayed and can be
bottom
position 3
knob to .
of 220 is
adjusted by turn the Temperature knob.
Super Fan Forced
Bottom
Grill
ECO Fan Forced
Fan and bottom heater on
oven activates
the bottom heater and fan function.
The mode is useful for baking low pastry
and preparation of preserved fruit
and vegetables.
At this oven function, the
Bakers Function
Fan Assisted
Pyrolytic Cleaning
6
6
Half FanGrill
Half Fan Grill
When the knob is turned to this position,
the oven activates the grill and fan function.
In practice, this function allows the grilling
process to be speeded up and an improvement
in the taste of the dish, you should only use
the gill with the oven door shut.
Theovenshouldbecleanedafter
everytimeuse.
Cooltheovencompletelybefore
cleaning.
Nevercleantheappliancewith
pressurizedhotsteamcleaned.
Theovenchambershouldonlybe
washedwithwarmwateranda
smallamountofwashing-upliquid.
-Closetheovendoor.
-Setthetemperatureknobto100℃,
andthefunctionknobtothebottom
heaterposition.
-Heattheovenchamberfor
approximately30minutes.
-Opentheovendoor,wipethe
chamberinsidewithaclothorsponge
andwashusingwarmwaterwith
washing-upliquid.
Aftercleaningtheovenchamberwipe
itdry.
Oven cleaning
Before any maintenance is started
involving electrical parts, the
appliance must be disconnected
from the power supply.
If the oven has been in use, let the
oven cavity and the heating elements
cool down before attempting any
maintenance.
Changing the bulb
Unscrew the protective cover. We
recommend that you wash and dry the
glass cover at this point.
Carefully remove the old bulb and
insert the new bulb suitable for high
temperatures (300ºC) having the
following specifications: 220-240V,
50-60Hz, 25W , G9 fitting.
Refit the protective cover.
IMPORTANT
Never use screwdrivers or other
utensils to remove the light cover.
This could damage the enamel of the
oven or the lampholder. Remove only
by hand.
IMPORTANT
Never replace the bulb with bare
hands as contamination from your
fingers can cause premature failure.
Always use a clean cloth or gloves.
Please note:
The bulb replacement is not covered
by your guarantee
“12.00”.
Switchoffallworkingunitsoftheoven
Calltheservicecentre
Someminorfaultscanbefixedbyreferringtotheinstructionsgiveninthetable
Fan Forced
Fan Forced
2800W
800W
1000W
1000W
220-240V
50-60Hz
CAO610BP
1800W
1800W
Worldwide Appliances Pty Limited
A.B.N. 45868077422
Oce:
48-50 Moore Street, Leichhardt N.S.W 2040
Post:
Locked Bag 3000, Annandale, N.S.W 2038
P: 1300 694 583
WARRANTY REGISTRATION
Your ongoing satisfaction with your artusi
product is important to us. We ask that you
complete the enclosed Warranty Registration
Card and return it to us so that we have a record
of the artusi product purchased by you.
PRIVACY
Worldwide Appliances respects your
privacy and is committed to handling your
personal information in accordance with the
National Privacy Principles and the Privacy
Act 1988 (Cth). A copy of the Worldwide
Appliances Privacy Policy is available at
www.artusi.com.au. Worldwide Appliances will
not disclose any personal information set out
in the Warranty Registration Card (“Personal
Information”) without your consent unless
required by:
1. law;
2. any Worldwide Appliances related company;
3. any service provider which provide services
to artusi or assist artusi in providing services
(including repair and warranty services) to
customers. Our purpose in collecting the
Personal Information is
to keep a record of the artusi product purchased
by you, in order to provide a better warranty
service to you in the unlikely event that there is
a problem with your artusi product. Worldwide
Appliances may contact you at any one or more
of the address, email address or telephone
numbers set out in the Warranty Registration
Card. Please contact artusi on 1300 694
583 should you not wish to be contacted by
Worldwide Appliances.
WARRANTY
1. Warranty
Worldwide Appliances warrants that each artusi
product will remain, for a period of either 12
months or 24 months of warranty. All Warranties
are valid from the original date of purchase, And
warranty claims must be accompanied by the
proof of purchase.
24 months warranty products:
All Built-in Appliances – Limited to Ovens,
Gas, Induction and Electric Cooktops, and All
Rangehoods
Freestanding Cookers - Gas and Electric Models
(900mm Width)
Dishwashers - Freestanding, Fully Integrated,
Semi Integrated and built-in
12 months warranty products:
Freestanding Cookers - Gas and Electric Models
in 50cm, 54cm and 60cm Widths
Portable Appliances* – Benchtop Models and
Portable Gas Models
2. What is not Covered by the Warranty.
The Warranty does not apply if an artusi product
is defective by a factor other than a defect
arising in the manufacture of the artusi product,
including but not limited to:
(a) damage through misuse (including failure
to maintain, service or use with proper care),
neglect, accident or ordinary wear and tear
(including deterioration of parts and accessories
and glass breakage);
(b) use for purpose for which the artusi product
was not sold or designed;
(c) use or installation which is not in accordance
with any specied instructions for use or
installation;
(d) use or operation after a defect has occurred
or been discovered;
(e) damage through freight, transportation or
handling in transit (other than when Worldwide
Appliances is responsible);
(f) damage through exposure to chemicals,
dusts, residues, excessive voltage, heat,
atmospheric conditions or other forces or
environmental factors outside the control or
Worldwide Appliances;
(g) repair, modication or tampering by the
purchaser or any person other than Worldwide
Appliances, an employee of Worldwide
Appliances or an authorised artusi service
contractor*;
(h) use of parts, components or accessories
which have not been supplied or specically
approved by artusi.
(i) damage to surface coatings caused by
cleaning or maintenance using products not
recommended in the artusi product handbook
provided to the purchaser upon purchase of the
artusi product;
(j) damage to the base of an electric oven due
to items having been placed on the base of
the oven cavity or covering the base, such as
aluminium foil (this impedes the transfer of heat
from the element to the oven cavity and can
result in irreparable damage); or
(k) damages, dents or other cosmetic
imperfections not aecting the performance
of the artusi in respect of an artusi product
purchased as a “factory second” or from display
The Warranty does not extend to light globes
used in artusi products.
3. Domestic Use
Each artusi product is made for domestic use.
This Warranty may not extend to artusi products
used for commercial purposes.
4. Time for Claim under the Warranty
You must make any claim under this Warranty
within twenty eight (28) days after the occurrence
of an event which gives rise to a claim pursuant
to the Warranty, by booking a service call on the
telephone number below.
Continued over...
Please complete and send to ARTUSI at: REPLY PAID 83617
LEICHHARDT NSW 2040
Last Name: First Name:
Address:
State: Postcode: Email:
Home Phone: Mobile:
Purchase Date: / / (Please attach proof of purchase to validate warranty)
MODEL NUMBER SERIAL NUMBER
(if you cannot locate the serial number please call ARTUSI on 1300 694 583)
1
2
3
4
WARRANTY REGISTRATION CARD
01052013
01032014
5. Proof of Purchase
Customers must retain proof of purchase in order
to be eligible to make a warranty claim in respect
of an artusi product.
6. Claiming under the Warranty
Customers will bear the cost of claiming under
this Warranty unless Worldwide Appliances
determines the expenses are reasonable, in which
case the customer must claim those expenses
by providing written evidence of each expense
to Worldwide Appliances at the address on the
Warranty Registration Card.
7. Statutory Rights
(a) These terms and conditions do not aect your
statutory rights.
(b) The limitations on the Warranty set out in this
document do not exclude or limit the application
of the consumer guarantees set out in the Act or
any other equivalent or corresponding legislation
in the relevant jurisdiction where to do so would:
(i) contravene the law of the relevant jurisdiction;
or
(ii) cause any part of the Warranty to be void.
(c) Worldwide Appliances excludes indirect or
consequential loss of any kind (including, without
limitation, loss of use of the artusi product) and
(other than expressly provided for in these terms
and conditions) subject to all terms,
conditions and warranties implied by custom,
the general law, the Act or other statute.
(d) The liability of Worldwide Appliances to you
for a breach of any express or non-excludable
implied term, condition or warranty is limited at
the option of Worldwide Appliances to:
(i) replacing or repairing the defective part of the
artusi product;
(ii) paying the cost of replacing or repairing the
defective part of the artusi product;
(iii) replacing the artusi product; or
(iv) paying the cost of replacing the artusi
product.
(e) Our goods come with guarantees that cannot
be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund
for a major failure and for compensation for any
other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a Warranty Card tear off
major failure.
8. Defects
Any part of an artusi product deemed to be
defective and replaced by Worldwide Appliances
is the property of Worldwide Appliances.
Worldwide Appliances reserves the right to
inspect and test artusi products in order to
determine the extent of any defect and the
validity of a claim under the Warranty.
*To locate your closest artusi authorised service
agent please contact us on 1300 652 100 or visit
www.artusi.com.au
ALL SERVICE CALLS MUST BE BOOKED THROUGH AN
AUTHORISED DEALER OR WARRANTY DEPARTMENT
ON 1300 652 100 OR stokesaps.com.au/artusi-
service
01032014
ARTUSI.COM.AUP: 1300 649 583
NSW & ACT (HEAD OFFICE)
48-50 MOORE STREET
LEICHHARDT
F 02 8569 4699
QLD
1/42 CAVENDISH ROAD
COORPAROO
F 07 3397 0850
VIC,TAS & SA
1211 TOORAK ROAD
CAMBERWELL
F 03 9809 2155
WA & NT
UNIT 10/55 HOWE STREET
OSBORNE PARK
F 08 9201 9188
NZ
PO BOX 11.160
SOCKBURN CHRISTCHURCH
F 03 344 5906
ARTUSI OFFICES ARE OPEN DAILY FROM 9AM–5PM AND SATURDAYS 10AM–4PM
DISCLAIMER
Worldwide Appliances PTY LTD, trading as ARTUSI, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result alterations to our products and
designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be regarded as an infallible guide to the current specifications, nor does it
constitute an offer for the sale of any particular product. Product dimensions indicated in our literature is indicative only. Actual product only should be used to define dimension cutouts. Distributors, and retailers
are not agents of ARTUSI and are not authorised to bind ARTUSI by any express or implied undertaking or representation.
Table of contents
Other Artusi Oven manuals
Artusi
Artusi CAO900 User manual
Artusi
Artusi AO650X User manual
Artusi
Artusi CAO900X1 User manual
Artusi
Artusi AO6 Series User manual
Artusi
Artusi AO654XP User manual
Artusi
Artusi CAFC95X User manual
Artusi
Artusi AO450X User manual
Artusi
Artusi CAO610XP User manual
Artusi
Artusi AMC34BI User manual
Artusi
Artusi CAMC45B User manual
Popular Oven manuals by other brands
Electrolux
Electrolux EOB3638 operating instructions
Premium
Premium PBO6504M Service manual
Electrolux
Electrolux EKS985X user manual
Häfele
Häfele HO-K60C user manual
Range Master
Range Master RMB610BL User guide & installation & service instructions
Vulcan-Hart
Vulcan-Hart ABC7E-208 Nstallation & operation manual
