Ozito PXCLTS-0182 User manual

CORDLESS
LINE TRIMMER
PXCLTS-0182
STANDARD EQUIPMENT
Line Trimmer
Safety Guard
Adjustable Handle
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST
RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE
WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING
YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER
SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Ofce) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benets provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer service helpline
above.
INSTRUCTION MANUAL
SPECIFICATIONS
Voltage: 18V x 2
No Load Speed: 0 - 9,000/min
Cutting Diameter: 300mm
Cutting Line: Ø2.0mm x 8m
Line Feed: Bump
Weight: 3.1kg
ozito.com.au
0618
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other
than that specied on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
Shoulder Strap, Hex Key and
Replacement Spool & Line
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty. Warranty excludes consumable parts, for example: line & spool,
shoulder strap and included accessories.

ONLINE MANUAL
Scan this QR Code with your mobile
device to take you to the online manual.

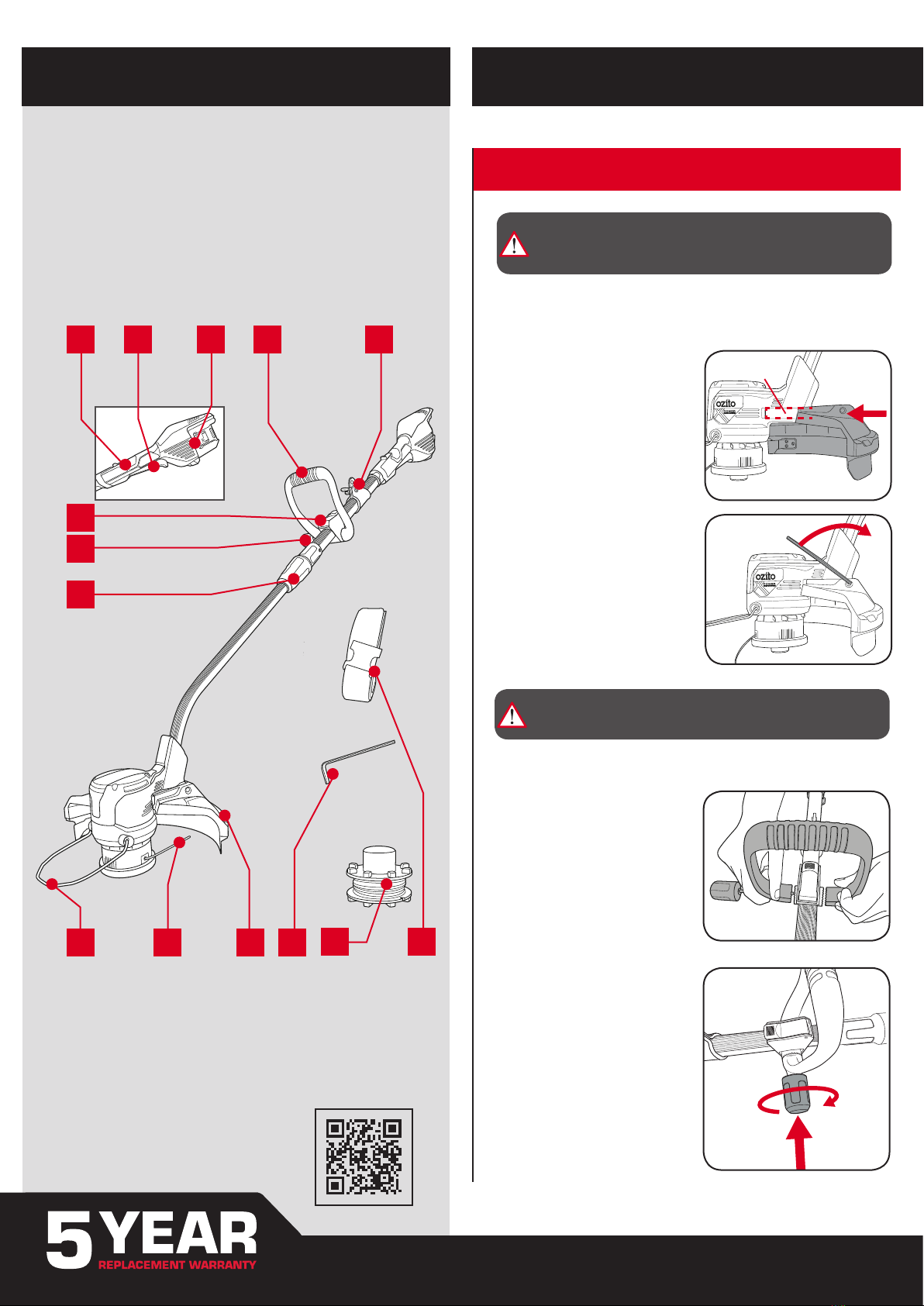

KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
2. Align the tabs of the safety guard
with the recess in the back of the
line trimmer motor.
3. Slide the safety guard in place and
secure with the socket head bolt.
Tighten with the hex key.
Fitting the Safety Guard
WARNING! ENSURE THE TOOL IS SWITCHED
OFF AND BATTERY DISCONNECTED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
WARNING! NEVER USE THE GRASS TRIMMER
UNLESS THE SAFETY GUARD IS PROPERLY FITTED.
CORDLESS LINE TRIMMER
1. Safety Switch
2. Variable Speed Trigger
3. Battery Seating
4. Adjustable Handle
5. Shoulder Strap Bracket
6. Adjustable Handle Lever
7. Adjustable Handle Knob
8. Shaft Lock Collar
9. Edging Guide
10. Cutting Line
11. Safety Guard
RECESS
Fitting the Adjustable Handle
1. Fit the adjustable handle onto the
mounting bracket.
Note: You will need to carefully ex
the adjustable handle just enough to
slip over the mounting bracket. Do not
over ex as this can damage or break
the adjustable handle.
2. Place the adjustable handle on
the mounting bracket, then pass
the screw with washer through
the handle and onto the mounting
bracket.
1 2 3 4
10 11
5
7
8
9
6
ACCESSORIES
12. Hex Key
13. Replacement Spool & Line
14. Shoulder Strap
12
BATTERY & CHARGER
This tool is compatible with all battery and chargers from
the Ozito Power X Change Range
13 14
1. With the provided hex key remove the socket head bolt from the safety
guard.
RECESS

2. ADJUSTMENTS
1. Loosen the adjustable handle
knob.
2. Rotate the handle into
the desired position and
tighten the knob to lock
in place.
Adjusting the Handle angle
TA B
RECESS
Adjusting the Handle position
Shaft Assembly
1. Push both halves of the shaft together aligning the tab with the recess.
2. Screw tight with the shaft lock collar.
Attaching the Shoulder Strap
Fasten the carabiner hook to the
shoulder strap bracket on the shaft.
1. Release the adjustable
handle lever.
2. Slide the handle into
the desired position and
then lock in place with
the lever.

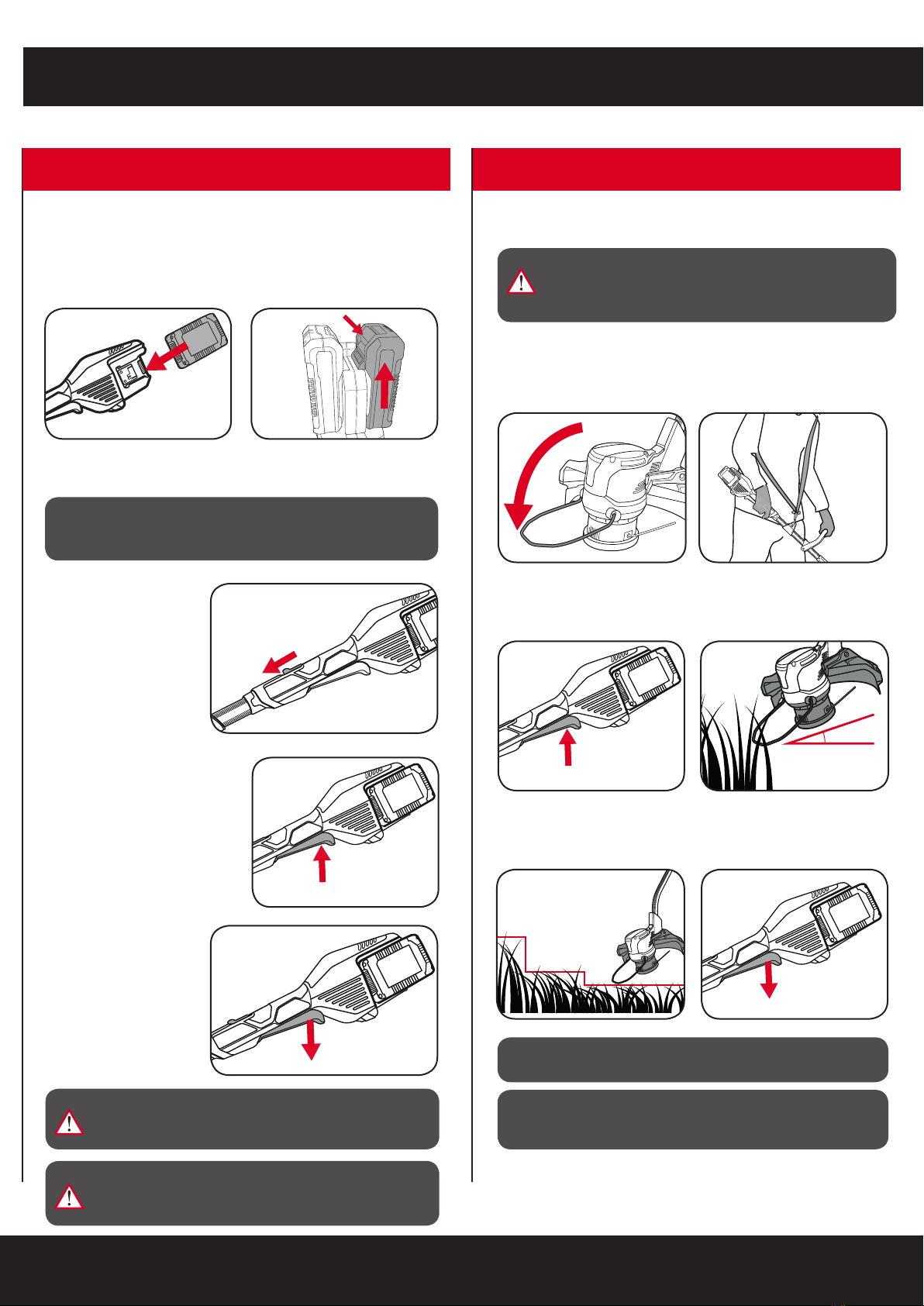

3. CONTROLS & OPERATION
OPERATION
Switching On and Off
CAUTION! BEFORE YOU START THE UNIT, MAKE SURE
THAT THE LINE TRIMMER IS NOT MAKING CONTACT
WITH ANY OBJECTS.
WARNING! INSPECT THE AREA TO BE TRIMMED
AND REMOVE ANY WIRE, CORD OR STRING-LIKE
OBJECTS WHICH COULD BECOME ENTANGLED IN
THE ROTATING SPOOL & LINE.
WARNING! DO NOT OPERATE THE TRIMMER ON A
TREE, ON A LADDER, OR ON A SCAFFOLD. THIS IS
EXTREMELY DANGEROUS.
CAUTION! BYSTANDERS MUST KEEP A MINIMUM SAFE
DISTANCE OF 10M AWAY FROM THE TRIMMER WHILE
IT IS OPERATING.
WARNING! STONES, PIECES OF METAL AND OTHER
OBJECTS CAN BE THROWN OUT AT HIGH SPEED BY
THE CUTTING LINE.
2. Squeeze the variable speed
trigger to start the line
trimmer.
Note: The more the variable
speed trigger is depressed,
the faster the cutting line will
rotate.
3. To stop the trimmer,
release the trigger.
NOTE: DO NOT CUT GRASS WHEN WET. (THE BEST
RESULTS ARE ACHIEVED ON DRY GRASS.)
1. Extend the edging guide to
prevent the cutting head from
getting too close to an object
such as a tree trunk or wall.
2. Hold the trimmer with both
handles and wear the shoulder
strap over the left shoulder for
best control and balance..
3. To turn on squeeze the variable
speed trigger whilst holding the
safety switch forward.
4. Move the line trimmer into the
grass to allow it to cut.
6. Release the variable speed
trigger and allow the motor to
come to a complete standstill.
5. Several passes will be required
to cut long grass.
Using the Line Trimmer
1. Align the ribs of the battery with
the recess in housing and slide in
until it clicks into place.
2. To remove, press and hold the
battery release tab and then slide
out.
Inserting & Removing the Battery
30°
30°
1. Press and hold the safety
switch forward with your
thumb.

PXCLTS-0182

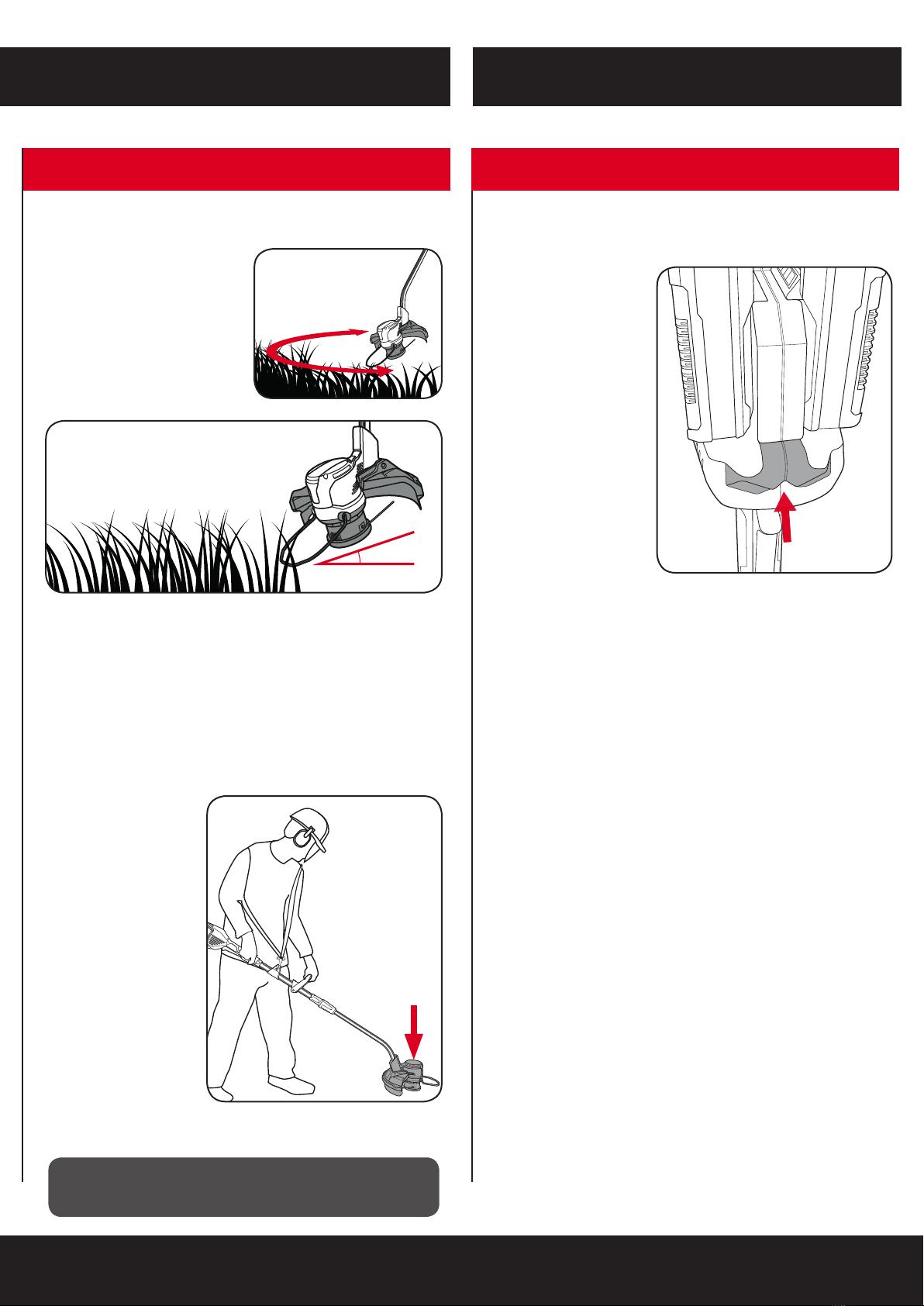

Trimming
Move the grass trimmer from side to
side as you walk forward, holding it at
an angle of approx. 30° (Light cuts are
better than heavy cuts as they allow
the cut grass to fall away from the
cutting head).
30°
30°
Bump Feed
The line trimmer is tted with a bump feed function which allows the line to
be feed without stopping the line trimmer. If the line trimmer is not cutting
correctly the line may need to be feed using this feature.
1. While the line trimmer is
still on, simply bump the
head of the trimmer on the
ground to allow the line to
feed out.
2. The bump feed will
automatically lock once off
the ground so that the line
will stop feeding.
CAUTION! DO NOT BUMP THE HEAD ON ANY HARD
SURFACES SUCH AS CONCRETE OR BRICK, THIS COULD
CAUSE DAMAGE TO THE LINE TRIMMER.
Use only the tip of the cutting line to do the trimming especially near walls
and fences. Trimming with the side of the cutting line may overload the motor,
wear out the line faster, and break the line more often.
4. WALL HOLDER
STORAGE
The line trimmer is equipped with a integrated wall holder, this enables it to
be easily hung on a wall.

MAINTENANCE
• Keep ventilation slots of the trimmer clean at all times. Periodically clean out the grass from the
cutting head and the rim of the safety guard to ensure efcient operation at all times.
• After each use, blow air through the tool housing to ensure it is free from all dust, dirt, etc. Build
up of dust, dirt particles may cause the tool to overheat and shorten the life of the tool.
• If the housing of the trimmer requires cleaning, do not use solvents but a moist soft cloth or soft
brush only.
• Never let any liquid get inside the tool, never immerse any part of the tool into liquid.
• No lubrication is necessary as the tool has sealed bearings.
• When not in use, the line trimmer should be stored in a dry, frost free location not within the
reach of children.
WARNING! ALWAYS ENSURE THE TOOL HAS
COMPLETELY STOPPED AND THE BATTERY IS
REMOVED PRIOR TO ANY MAINTENANCE.
Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of
the grass trimmer by an unauthorised person or by mishandling of the grass trimmer. This tool is
designed for DIY use - use in commercial or industrial environments will void the warranty.
Battery protection system
The tool is equipped with the battery protection system, which helps to ensure a long service
life.
The output power automatically cuts off during operation when the tool and/or battery are
placed under the following situations:
• When the tool is overloaded:
If this occurs, release the trigger switch and remove causes of overload, then pull the
switch trigger again to restart.
• When the remaining battery capacity becomes low:
Recharge the battery pack.
Note: The battery protection system does not in any way damage the tool.
Note: The indicated capacity may be lower than the actual level during use or immediately
after using the tool.
Replacing the Spool/ Clearing jams and
tangled lines
From time to time, especially when cutting thick or stocky weeds, the line
feeding hub may become clogged with sap or other material and the line will
become jammed as a result. To clear the jam, follow these steps.
1. Turn off the line trimmer and
remove the batteries.
2. Press the release tabs on the
line spool cover and remove
the cover by pulling it straight
off.
3. Lift the spool of nylon line
out of the hub and clear any
broken line or cutting debris
from the spool area.
4. In case of jams and tangled
line, unwrap about 15cm
of line to ensure that it is
undamaged. If it is OK, thread
the end of the line spool
through the eyelet in the
spool cover
5. Snap the spool cover back
onto the spool housing.
6. Turn the line trimmer back to
its normal orientation, insert
the battery and turn the tool
on. If the length of the line
is excessive, you’ll hear it
being cut automatically to the
proper length.
15cm
15cm
Rewinding Spool from Bulk Line
Bulk line for your line trimmer is available from your local dealer. To install,
follow steps:
1. Remove the spool as described in steps 1 - 3 of the “Replacing the
spool/clearing jams and tangled lines” section.
2. Cut a length of Ø2.0mm line, approximately 8m long.
3. Insert the new cutting line
through the line mount
inside the spool.
4. Wind the line evenly
with tension in a counter-
clockwise direction.
5. To ensure that the line does not
unravel while the spool is being
loaded, the line can be clipped
into one of the notches on the
outer of the spool.
8. Re-seat the spool as described in steps 5 - 6 of the “Replacing the
spool/clearing jams and tangled lines” section.
6. Thread the end of the line on the
new line spool through the eyelet
in the spool cover.
15cm
7. Pull the line sharply to release it from the notch.
15cm
15cm
15cm
15cm

DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
Power tools that are no longer usable should not be disposed of with household
waste but in an environmentally friendly way. Please recycle where facilities exist.
Check with your local council authority for recycling advice.
Recycling packaging reduces the need for landll and raw materials. Reuse of
recycled material decreases pollution in the environment. Please recycle packaging
where facilities exist. Check with your local council authority for recycling advice.
Spare parts can be ordered from the Special Orders
Desk at your local Bunnings Warehouse.
For further information, or any parts not listed here,
visit www.ozito.com.au or contact Ozito Customer
Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR
BATTERY CHARGER.
1. Before using the charger read all instructions and cautionary markings on the charger, battery pack
and the product using the battery pack.
2. This charger is not intended for any uses other than charging rechargeable batteries. Any other use
may result in risk of re, electric shock or electrocution.
3. Do not place any object on top of the charger or place the charger on a soft surface that may result in
excessive internal heat. Place the charger in a position away from any heat source.
4. To reduce risk of damage to the electric plug and cord, pull by the plug rather than the cord when
disconnecting the charger.
5. Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected
to damage or stress.
6. An extension cord should not be used unless absolutely necessary. Use of an improper extension cord
could result in the risk of re, electric shock or electrocution.
7. Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any
way. Have it checked by an electrician or power tool repairer.
8. Do not disassemble charger. Take it to an electrician or power tool repairer when service or repair is
required. Incorrect reassembly may result in a risk of electric shock, electrocution or re.
9. To reduce risk of electric shock, unplug the charger from the outlet before attempting any cleaning.
Removing the battery pack will not reduce this risk.
10. Never attempt to connect 2 chargers together.
11. DO NOT store or use the tool and battery pack in locations where the temperature may reach or exceed
40ºC (such as inside sheds or metal buildings in summer).
12. The charger is designed to operate on standard household electrical power (240 volts). Do not attempt
to use it on any other voltage!
13. The battery pack is not fully charged out of the carton. First read the safety instructions and then
follow the charging notes and procedures.
14. The longest life and best performance can be obtained if the battery pack is charged when the air
temperature is between 18 - 24ºC. Do not charge the battery pack in an air temperature below 10ºC or
above 40ºC. This is important and will prevent damage to the battery pack.
15. Do not incinerate the battery pack even if it is seriously damaged or is completely worn out. The battery
can explode in a re.
16. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or
cracks, immediately discontinue use and do not recharge.
17. During charging, the battery must be placed in a well ventilated area.
BATTERY AND CHARGER SAFETY WARNINGS
Problem Cause Remedy
Trimmer is not
starting
Possible clogging Clean the cutter head of any grass.
Battery is low in charge Charge battery
Battery not inserted
properly
Insert battery pack correctly
Trimmer is not
operating at
full capacity
Possible clogging Clean the cutter head of any grass.
Cutting tall grass at
ground level.
Make several passes from top down.
Motor
stops while
operating
Battery has no power Charge battery
Grass wraps
around the
shaft and
trimmer head.
Cutting tall grass at
ground level.
Make several passes from top down.
Wear safety glasses
Read instruction manual
Do not use in the rain or leave the grass trimmer outdors while raining
Keep bystanders away. Do not operate whilst people especially
children or pets are in the area.
Regulator compliance mark
94
Decibel level

GRASS TRIMMER SAFETY WARNINGS
WARNING! When using mains-powered tools, basic safety precautions, including
the following, should always be followed to reduce risk of fire, electric shock, personal
injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The charger has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating
plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tools charger is double insulated therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation system is for
added protection against injury resulting from a possible electrical insulation failure within the tool.
The power supply for this products charger should be protected by a residual current device (rated at 30mAor less). A residual current
device reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless)
power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol
or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting
to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of re when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and re.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from
one terminal to another. Shorting the battery terminals together may cause burns or a re.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause irritation or burns.
6. Service
a. Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Hold power tool by insulated gripping surfaces, when performing an
operation where the cutting accessory may contact hidden wiring. Cutting
accessory contacting a “live” wire may make exposed metal parts of the power tool “live“ and could give
the operator an electric shock.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Never allow children or people unfamiliar with these instructions to use the grass trimmer.
• Avoid using the grass trimmer, while people, especially children or pets, are nearby.
• Use the grass trimmer only in daylight or good articial light.
• Never operate the grass trimmer with damaged guards or without guards in place.
• Switch on the grass trimmer only when the hands and feet are away from the cutting head.
• Never t metal cutting blades.
• Use only the manufacturer’s recommended replacement parts and accessories.
• Always remove the battery from the grass trimmer when leaving the grass trimmer unattended.
• Always remove the battery from the grass trimmer before carrying out maintenance or cleaning
work.
• Inspect and maintain the grass trimmer regularly. Have the grass trimmer repaired only by an
authorized repairer.
• When not in use, store the grass trimmer out of the reach of children.
• Face the cutting head away from yourself, other people and animals while the power is connected to
the grass trimmer (especially during operation).
• Remove the battery when changing spools or clearing grass from under the guard.
• Remove the battery from the grass trimmer before making any adjustments.
• Use both handles at all times
• Keep ventilation openings clear of debris. Keep handles dry, clean and free of oil and grease.
• Never reach underneath the grass trimmer (the cutting blade area) until it has completely stopped
and the battery has been removed.
WARNING! When servicing, use only identical replacement parts. Use of any other parts
may create a hazard or cause product damage. To ensure safety and reliability, all repairs should
be performed by a qualied service technician.
WARNING! This appliance is not intended for use by young or inrm persons unless
supervised by a responsible person to ensure that they can use the appliance safely. Children
should be supervised to ensure that they do not play with the appliance.
