Ascaso BIG DREAM T User manual

BIG DREAM T
User Manual
Manual de Usuario
Benutzerhandbuch
(p.27)
(p.51)
MAN-47 V3 / 2022

Thank you
Recycling your coffee machine
Thank you for purchasing an ascaso product. With it you can get the best espresso
coffee and delicious cappuccinos.
Your coffee machine has been designed and built applying the latest technological
innovations, both in the computer field and engineering, so the result is a high quality
product, safe and reliable.
Coffee makers may contain recyclable materials.
Contact your distributor or your local recycling center.

3
ENGLISH
Contents
CONFORMITY.........................................................5
SAFETY RULES........................................................6
1. USE ...............................................................8
2. COMPONENTS IDENTIFICATION........................................8
3. CHARACTERISTICS OF THE MACHINE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4. INSTALLATION .....................................................10
5. ELECTRICAL CONNECTION ..........................................11
6. HYDRAULIC CONNECTION .......................................... 12
7. START-UP ........................................................ 13
8. COFFEE PREPARATION ............................................ 14
9. PROGRAMMING THE DOSE OF COFFEE .............................. 16
10. PREPARATION OF THE CAPPUCCINO ................................ 17
11. PREPARATION OF HOT WATER ..................................... 19
12. DISPLAY OPTIONS ................................................ 20
13. MAINTENANCE AND CLEANING .................................... 24
14.WARRANTY ...................................................... 25

5
ENGLISH
Regulations - EC Declaration of Conformity
Ascaso Factory S.L.U
Coneixement 1 Pol. Ind. Gavá Park
08850 Gavá / Barcelona / Spain
As a manufacturer of coffee machines, we hereby declare under its responsibility that
the product to which this Declaration refers (please see label below) in accordance with
the provisions of the specific directives: 98/37/ CE - - Machine directive 73/23 / CEE,
93 / 68 / CEE - Low Voltage Directive 89/336 / CEE, 93/68 / CEE, 92/31/CEE - - EMC
Directive 97/23 / - Pressure Equipment Directive (PED) and conforms to the following
standards: EN 292 -1, EN292-2, EN 60335-1, EN 60335-2-15, EN 55014, EN 61000-3,
EN 61000-4, EN 50141, EN55104 Harmonized EN standards.
This declaration loses its validity if the appliance is modified without the express written
authorization of the manufacturer, or if it has been used in any other way than as
directed by the User Manual and instructions. The technical file has been stored by the
Quality manager at the company’s registered address.
Registered address:
Ascaso Factory S.L.U
Coneixement 1 Pol. Ind. Gavá Park
08850 Gavá / Barcelona / Spain
Date: 01/09/2020
(Quality Manager)

6
ENGLISH
1 - Safety rules
• Before connecting the machine, check the mains.
• Do not use extension cords, adapters or multiple plugs for your connection.
• Check that there is an earth connection and an efficient electrical safety device.
• Place the machine on a flat, stable surface, inaccessible to children and animals and
away from hot surfaces.
• Use in environments where the temperature is between 5°C (41°F) and 40°C (95°F)
• Access to the service area is restricted to persons with knowledge and practical
experience of the appliance, in particular in regard to health and safety.
• The machine must be connected to a water mains supplying drinking water, softened
to a maximum hardness of 3.5/5 French degrees (60/85 ppm).
• This equipment is to be installed to comply with the applicable federal, state or local
plumbing codes.
• This appliance is not suitable for installation in an area where a water jet could be
used.
• This appliance should be placed in a horizontal position.
• This appliance is only to be installed in locations where its use and maintenance is
restricted to trained personnel.
• This appliance cannot be cleaned with a water jet.
• This equipment is not intended for use outdoors or in an unconditioned environment
where freezing temperatures may occur.
• If the supply cord is damaged, it must be replaced only by the manufacturer or
authorized and technically qualified person.
• The maximum inlet water pressure is 4bar (0.4 MPa). If pressure is greater, install a
pressure reducer.
• The minimum inlet water pressure is 1bar (0.1 MPa)
• This machine is not intended for use in kitchens.
• This appliance may be used by children aged 8 years and over and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge under supervision or provided that they have received instruction
concerning safe use of the appliance and understand the hazards involved.
• Children should not play with the appliance.
• Children should not undertake cleaning or user maintenance without supervision.
• The weighted sound pressure level of the machine is lower than 70dBA.

7
ENGLISH
• If a stationary appliance is not fitted with a supply cord and a plug, or with other
means for disconnection from the supply mains having a contact separation in all
poles that provide full disconnection under overvoltage category III conditions, the
instructions shall state that means for disconnection must be incorporated in the
fixed wiring in accordance with the wiring rules.
• This appliance is designed to be permanently connected to the water supply.
• Never start a defective appliance or an appliance with a mains cable in poor
condition.
• Do not obstruct the ventilation grilles, in particular, do not cover the hot-cup surface
with cloths or other objects.
• Do not intervene for cleaning or maintenance work with the appliance plugged in.
• Do not unplug the coffee machine by pulling on the power cord.
• Do not allow children or inexperienced persons to handle the device.
• Do not handle the appliance with wet or damp hands or feet.
• Do not immerse the appliance in water.
• Do not leave the packaging material (bags, nails, cardboard) within the reach of
children.
• The packaged machine must be stored in one place, dry and without moisture.
• Avoid placing heavy packages of another type on the packaging.
• Use only accessories and spare parts authorized by the manufacturer.
• In the event of a malfunction or breakdown, switch off the appliance and unplug it
from the mains.
• Do not attempt to repair or intervene directly. Call your technical service.
• An incorrect installation can cause damage to people and objects, for which the
manufacturer cannot be held responsible.
• Failure to respect these warnings may compromise the safety of both the device and
the user.
• Keep this instruction manual for future reference.
• This equipment is to be installed with adequate backflow protection to comply with
aplicable federal, state, and local codes.

8
ENGLISH
1 - Use
2 - Components identification
The machines have been designed, manufactured and protected to be used as
machines to prepare espresso coffee and hot drinks (tea, cappuccino, chamomile,
etc.); all other use must be considered improper and therefore dangerous.
General switch (0 OFF, I ON)
Buttons groups
Information screens groups
Pressure gauge boiler / pressure pump
Coffee groups
Steam tap control
Steam tube
Hot water switches
Hot water outlet
Tray
Cup-warmer
Adjustable feet
Light, cup-warmer and group-heating switch (0 OFF, I ON)
Display
IMPORTANT!
The manufacturer declines all liability for damages to persons or things due to
improper, erroneous or unreasonable use.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
14
10
77
8
4
11
5
1
6
12
913
32

9
ENGLISH
3 - Characteristics of the machine
The machines of the BIG DREAM T series have been designed to prepare espresso and hot
drinks.
The operating principle consists of a volumetric pump inside the machine that feeds the
hot water and steam boiler, in addition to the independent coffee groups. By activating the
controls, the water is sent to the external brewing units in the form of hot water or steam
according to the needs.
The water to be used to prepare the drinks is taken at the moment of the water network,
pressurized by the pump, passing through a pre-heating circuit through the hot water / steam
boiler, and its temperature is finally raised from the temperature from pre-heating to working
by a heat exchanger.
Each one of the spreader groups, as well as the hot water / steam boiler, can present a
different working temperature, as well as different independent configuration parameters to
optimize the machine's performance before the needs of the user.
The machine is formed by a supporting structure in stainless steel to which the mechanical
and electrical components are fixed. Everything is covered with panels of total coverage
made in Baydur© (polymeric material with high isolation features) and stainless steel. The
productive operations are carried out on the front of the machine and the controls, where the
control devices and the coffee brewing groups are located. In the upper part of the machine
there is a surface destined to heat the cups.
BIG DREAM T 2GR 3GR
Voltage 380V 3F / 220-240V 50/60Hz
Power (w) 5500 6500
Steam boiler (w) 3500 3500
Coffee group (w) 2x1000 3x1000
Steam boiler
Max. Pressure (mpa) 0,27 0,27
Working pressure (mpa) 0,2 0,2
Volume (l) 8,5 8,5
Size (mm) 930x554x593 1189x554x593
Weight (kg) 71 93
Water inlet 3/8" 3/8"
Min/max pressure (mpa) 0,1 / 0,6 0,1 / 0,6
Drain pipe diameter (mm) 16
1 Coffee filter holder 1 1
2 Coffees filter holder 2 3
Blind filter 1 1
Tamper 1 1
Drain pipe 1 1
Incoming water pipe 1 1

10
ENGLISH
4 – Installation
The installation, maintenance and repair of the machines must be carried out only by
qualified personnel.
The appliance must be installed so that the support surface is at least 1.20m high. The
support plane must be well levelled and dry, and stable. The machines are equipped
with height adjustable feet.
This appliance is not suitable to be installed in an area where a water jet could be used,
nor to be installed outdoors. This device is only suitable for installation in places where
its use and maintenance is restricted to qualified personnel.
To ensure correct use, the machine must be installed in places where the ambient
temperature is between + 5ºC / + 32ºC and the humidity does not exceed 70%.
It is advisable to leave a space around the machine in order to speed up maintenance
work, as well as the space for the coffee grinder.
In order to avoid the freezing of water in the machine, avoid installing it in places with
an ambient temperature equal to or lower than 0ºC. In case of freezing do not use the
machine and contact the manufacturer.
The appliance must be powered exclusively with potable and cold water in accordance
with current legislation. The pressure of the water network must be between 0.1 and
0.6 MPa. If this requirement is not met, consult the manufacturer. Between the water
network and the feeding tube of the machine, a stopcock must be installed in order to
interrupt the supply when necessary.
The water and steam expelled by the machine’s tubes are extremely hot and can cause
serious injury.
Any failure to comply with the instructions and warnings given by the manufacture may
invalidate the machine’s warranty.

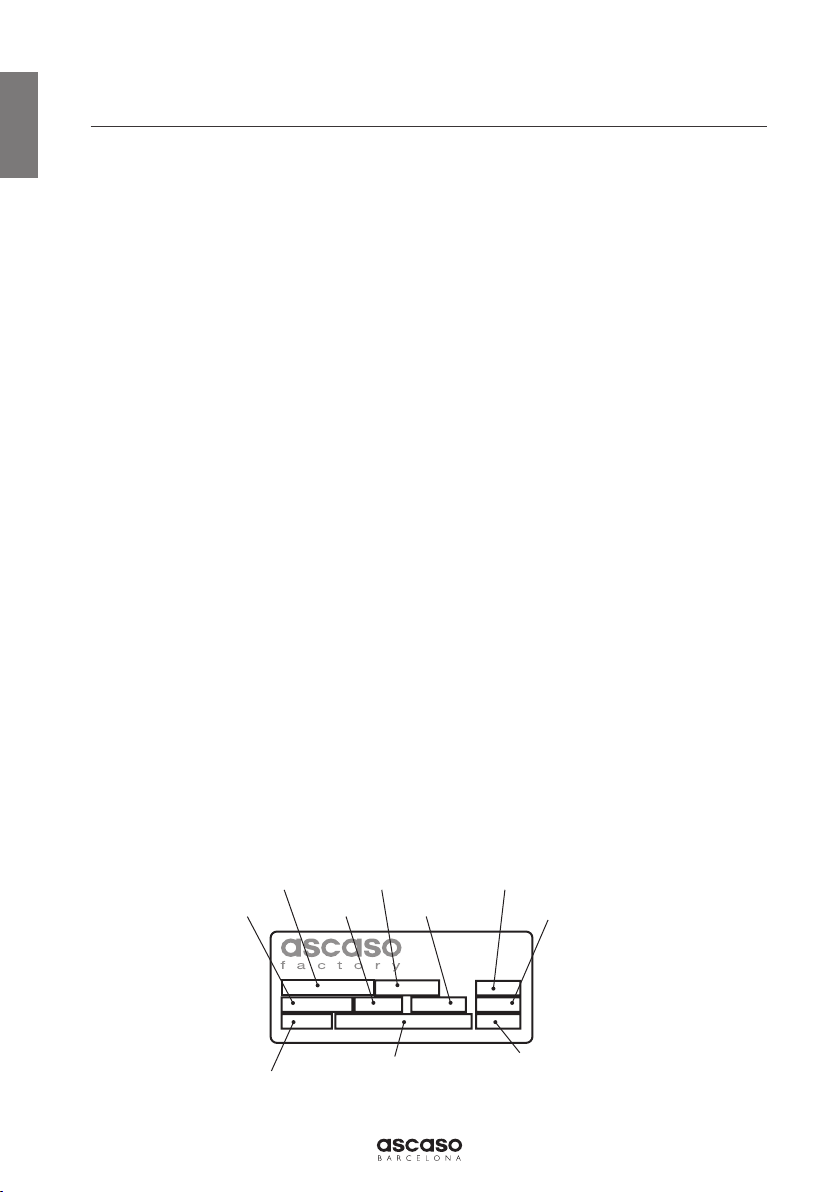

Model Machine code Machine number
Current rate
Cycles Power
Voltage
Boiler capacity Boiler pressure Manufacture date

11
ENGLISH
The machine is supplied ready for connection according to the required specifications.
The appliance is supplied with the power cable without plug, because its fixed
installation is envisaged to the electrical network, so it is necessary to install a general
protection switch.
Before connecting the machine, make sure that the data on the rating plate correspond
to those of the electrical distribution network.
If the power cord is damaged, it must be replaced by the manufacturer, by its after-
sales service or by similar qualified personnel in order to avoid a danger.
The power supply cable must be connected to the connection provided according to
current regulations.
Disconnecting means must be incorporated into the fixed installation in accordance
with the installation regulations.
ATTENTION!
The machines model BIG DREAM T 2/3 groups are configured to make a two-
phase (1/2 GR) / three-phase (3 GR) connection, as indicated in the diagram
incorporated into the connection cable. Special attention must be paid to the
connection of each of the phases as well as the cable corresponding to the
neutral of the electrical system.
ATTENTION!
It is essential to connect the machine to a properly grounded connection.
R = PHASE/FASE
S = PHASE/FASE
T = PHASE/FASE
N = NEUTRAL/
NEUTRO
BL = BLUE/AZUL/BLU/
BLAU/BLEU
YG = YELLOW-GREEN/
AMARILLO-VERDE/
VERDE GIALLO/
GELB-GRÜN/JAUNE-VERT
BR = BROWN/MARRÓN
MARRONE/BRAUN/MARRON
BK = BLACK/NEGRO/
NERO/SCHWARZ/NOIR
GR = GREY/GRIS/GRIGIO/
GRAU/GRIS
5 – Electrical connection

12
ENGLISH
Coffee
(W) Steam (W) TOTAL AMP 230V 1P CE Parameter
123456
2GR
2 x 1000 2 x 1750 24 A 7,5 A 15 A 19,5 A 24 A 24 A 24 A
3GR
3 x 1000 2 x 1750 29 A 7,5 A 15 A 19,5 A 24 A 29 A 29 A
ATTENTION!
The connection in single-phase mode of these machines will lead to high
consumption of electric current, sockets supporting 25 A for the model of
2 groups, and 30 A for the 3 groups, are necessary. It is possible to limit the
maximum amperage by means of the software of configuration of the machine,
limiting the number of heating elements that work simultaneously (see section
12). The power / amperage table based on the configuration of the number of
heating elements that work simultaneously is as follows:
ATTENTION!
It is possible to connect the machine having all heating elements disabled for
exhibition purpose. Please check section 12 for more information.
POWER/CURRENT TABLE
First, we will connect the free end of the drain pipe supplied with the machine to the
previously installed general drain outlet.
In connection with the general network, a tap must be incorporated to interrupt the
flow of water to the appliance when necessary. Next, we will connect the flexible hose
(connection 3/8 “H) to the pump and to the water inlet of the network. In case a water
treatment system is installed, we will connect the hose to the outlet of said system.
Attention! Recommended water parameters:
6 – Hydraulic connection
T.D.S. 90-150 ppm pH 6.5-8
Total hardness 70-100 ppm Alkalinity 40-80 ppm
Total Iron 0-0.02 ppm Chloride 0-30 ppm
Free chlorine 0-0.05 ppm Network pressure 0.1-0.6 MPa
Total chlorine 0-0.1 ppm Flow rate 8 l/min

13
ENGLISH
If these parameters are not met in mains water, a specific filtration device must be
installed, always complying with current national and local regulations regarding
drinking water.
Once the water inlet and drain connections have been made, we will open the valve or
tap to fill the boiler.
ATTENTION!
This equipment is to be installed with adequate backflow protection to comply
with applicable federal, state or local codes.
Set the main switch to the "ON" position and automatically the machine will proceed to
fill the boiler to the set level. Once the filling process has been completed, the water will
be heated up to the working temperature and pressure.
Pump pressure regulation:
The pump is factory-set to 9 bar
pressure. If it is necessary to
adjust it, please turn the pump
regulator placed under the
machine. Turning it clockwise will
increase pressure, and counter
clockwise will decrease it. Please
check pressure while adjusting on
manometer.
From this moment, it will be necessary to wait until the temperature of the coffee
groups reaches the set-point (showed in the specific display of each group dedicated
to the temperature and also in the main display) in order to start making coffee, and
until the temperature of the steam/hot water boiler (showed in the main display)
reaches the set-pint one (the pressure gauge will show a pressure between 1 and 1.5
bar depending on the set-point) in order to start using the hot water or steam function.
7 – Start-up
ATTENTION: During the heating up of the groups, the 5 keys of each control
panel will alternate to be ON and OFF until group reaches set temperature. Then
5 keys will change to permanent ON position.

14
ENGLISH
You can use any type of coffee. For optimal results, we recommend using mixtures
prepared for the preparation of espresso coffee since the grinding point will be
adequate. If the coffee comes out very quickly or very slowly, it will be necessary to
change the type of coffee for another fine or coarser grind and experiment with the
pressing according to our preferences.
The steps to follow are:
1. You must have the machine connected. Place the filter holder (with filter) in the
group.
2. The 5 keys of the keypad must be permanently illuminated, which indicates that
the coffee machine has reached the ideal temperature to make coffee.
3. Press the XL key (continuous coffee output) of the keypad and let water through
the group. Perform this action before making coffee, eliminate waste and balance
the temperature for optimal service.

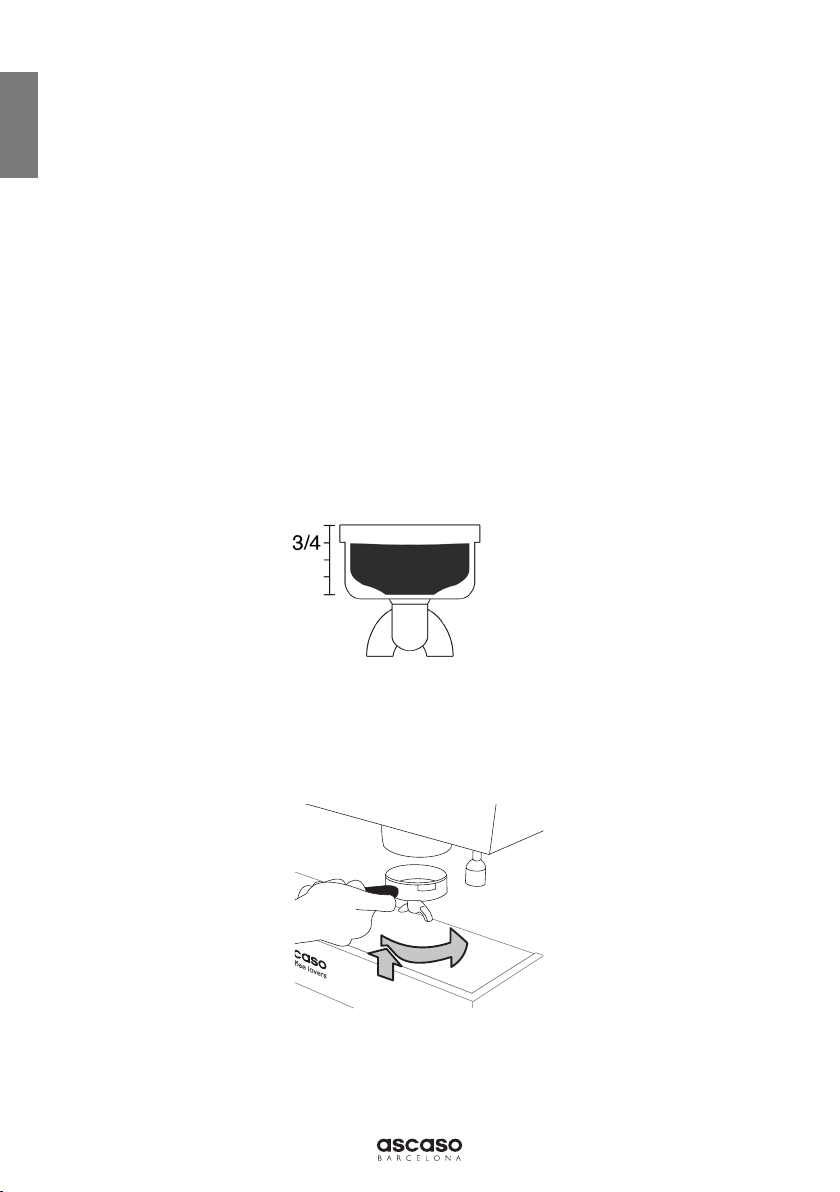

4. The pan must be filled 3/4 of its capacity, once pressed.
5. Clean coffee residues that have been deposited on the edges of the clay so that
the adjustment is perfect.
6. Insert the filter holder in the group starting from your left and turning to the right
with enough final pressure.
Place the cups or cup on the rack and press the keypad in the desired selection. The
perfect extraction of an espresso requires 20/25 seconds.
8 – Coffee preparation

15
ENGLISH
ATTENTION!
To obtain an optimum coffee extraction quality, always use the appropriate filter
for 1 or 2 coffees.
ATTENTION!
If the coffee comes out very fast or very slowly, it will be necessary to change the
grind of the finest or thickest coffee and experiment with the pressing according
to our preferences.
GENERAL ADVICE
1. The filter holder must always be placed on the machine to keep it warm. In closed
position.
2. Place the cups on the cup-warmer. The temperature (optimum 40ºC / 105ºF) will
improve our espresso.
3. The coffee will continue to come out in small drops a few seconds after turning off
the coffee breaker.
4. It is advisable to grind the amount of coffee needed at the time it is needed
because the ground coffee quickly loses its aroma qualities and the fatty
substances contained in the coffee become rancid.

16
ENGLISH
To program the amount of coffee (volumetric dose) or hot water (set by time, not
volume), with the machine ON and ready to make coffee (keys of the keypad
permanently lit), press the programming button XL for 5 or 6 seconds until it is lit
intermittently while the rest of the keys are illuminated in a fixed manner.
Then press the key of the selection you want to program, which is lit intermittently at the
same time that the other four keys are off. The erogation process begins.
Once the desired quantity has been obtained, press again the key belonging to the
selection you are programming. The dispensing process is stopped, and the key light
is OFF. Press XL button until all keys are ON except for this one, and then press it
twice until machines gets back to working mode. You can also wait for 30 seconds so
machine gets back to working mode automatically.
If you want to get coffee at will (continuous), press the XL key. When you get the
desired amount, press again to interrupt the delivery.
9 – Programming dose of coffee and hot water
Hot water selection
Short
Hot water selection
Large
ATTENTION!
In machines of 2 and 3 groups, when programming the left group, they are
automatically programmed with the same volume parameters located to the
right of this. You can program different selections at once, without getting out
of programming mode. Just follow same steps with the different selections you
need to set.
ATTENTION!
To program hot water buttons follow the same process. Short hot water selection
must be set through group 1, while large hot water selection must be set through
group 2.
1 espresso 1 lungo 2 espressos 2 lungo continuous
(press again
to discontinue
the dose)

17
ENGLISH
ADVICE. You can also adjust the dose through the main display, introducing the
volume you want for each selection directly on the display (ml). The sequence to get to
dose adjustment setting is as follows:
The true “cappuccino” is composed of 25 milliliters of espresso coffee and 125
milliliters of cold milk mounted with steam, which will go from 3 or 4 degrees Celsius to
about 55 degrees Celsius. The milk must be bovine and fresh with a protein content of
3.2 percent and 3.5 percent fat, and assembled - just the amount needed for a cup - in
a steel container (jar) to avoid mixing with other scents or flavors.
The density of the cream has to be uniform without there being a separation with the
liquid, nor can it present holes or bubbles.
PREPARATION
• Please check in the display that steam boiler reaches correct working temperature,
and that the steam pressure gauge shows a pressure between 1. 2 / 1.5 bar.
When switching ON for the first time, the boiler will be ready to dispense water and
steam in approximately 20 min.
• Turn the steam lever. It is normal that at the beginning of the steam service a little
water comes out of the pipe, so we recommend that you position the pipe in the
drain pan.
• Insert the tube into the milk to be heated. Fill up to 1/3 of the jar.
ADVICE. You can modify the temperature of the steam boiler through the main display.
Maximum allowed temperature is 130ºC. The sequence to get to the boiler temperature
setting is as follows:
1) TEXTURE: Getting cream
To obtain the consistency called “velvet”, the cappuccinator
tube should be placed just below the surface of the milk.
Open the steam control and move the tube at different
angles (always under the surface of the milk) to achieve
10 – Preparation of the cappuccino

18
ENGLISH
an emulsion effect thanks to air circulation. Once textured, the volume of milk can be
doubled.
Please remember to move the jug and steam tube, always making sure it works in the
most superficial area of the milk. After this operation, the milk is textured but is still cold.
2) TEMPERATURE: Heating the milk
Once the texture is obtained, we submerge the steam tube
(10) in the jug deeper. We make circular movements to
heat the milk in all its volume until it reaches the desired
temperature.
ATTENTION! Texture requires working under the surface of
the milk and heating requires working deeper
Texture Heating
Remember not to heat the milk to more than 75ºC. From this temperature the milk will
be blanched and lose its properties for the cappuccino.
Once the operation is finished, turn the knob (9) to close the steam outlet.
ADVICE. The espresso is extracted at 75ºC-80ºC. The milk is textured and hot
between 55ºC-70ºC. It is important to keep these temperatures when serving, so the
cups must be heated using the cup-warmer zone of the coffee maker. If this is not
possible, warm the cup with hot water before using it.
Once we have the hot and textured milk, we are ready to serve it in the cup, adding it to
our espresso base.
POSSIBLE PROBLEMS
The cream can be excessively thin and without consistency.
1) One of the reasons may be that the milk had already warmed up in advance.
2) The milk has been heated too much (the steam tube is placed deeper in the jar
and the milk is heated without letting the air circulate on the surface) before having
achieved the desirable texture. We have not done step 1 correctly: TEXTURAR and we
have not let the air work the milk.

19
ENGLISH
Attention! If you have used the steam or water service for a long period without
interruption and observe that the output pressure drops, wait a few moments for the
boiler to recover. The optimum pressure is 1 / 1,5 bar.
IMPORTANT!
After each use it is advisable to let steam out for 5 seconds to clean
the duct and prevent it from becoming clogged. To clean the absorption
holes (A) you can use a clip. Make sure that the tube is free of obstacles.
Put a cup or container under the water outlet. Operate the hot water switch (8, short or
large selection) to obtain water.
Both selections are set by time and will stop automatically after reaching the setting. If
you want to modify it, please follow section 9.
11 – Preparation of hot water

20
ENGLISH
It is possible to control all functions and parameters of the machine through the main
display.
Please find below information about each one of them.
AENERGY SAVING OPTIONS. It is possible to switch ON or OFF each
one of the coffee groups as well as the boiler, and set the time after
which they may get into ECO mode, and also its stand-by temperature
after that.
Switch ON or OFF coffee
groups Switch ON or OFF boiler
Coffee groups ECO
temperature setting
Boiler ECO temperature
setting
Coffee groups ECO mode
starting time
Boiler ECO mode starting
time
BGROUP CLEANING. It allows to carry on cleaning process of each
one of the coffee groups. Cleaning process consist of 10 consecutive
rinsing of 10 seconds, with a 3 second delay between them.
12 – Display options
ATTENTION!
Please use blind filter on each group where cleaning process is being applied.
Depending on cleaning frequency, please consider using cleaning product ref.
V.8401 or V.8402, following instructions specified on it. This process dissolves the
dust contained in the blind filter, cleaning the ducts and the solenoid valve, as
well as the showers and diffusers of the group. You can repeat this process as
many times as necessary and until clean water appears through the discharge
of the group.
Once finished, remove the filter holder and operate the group for 30 seconds,
passing clean water.
ATTENTION!
It is possible to stop the process pressing any of the keys of the control panel
belonging to the coffee group being cleaned.
